Sliding/tilting sunroof with glass pan‐

el (Meritor)

1.1

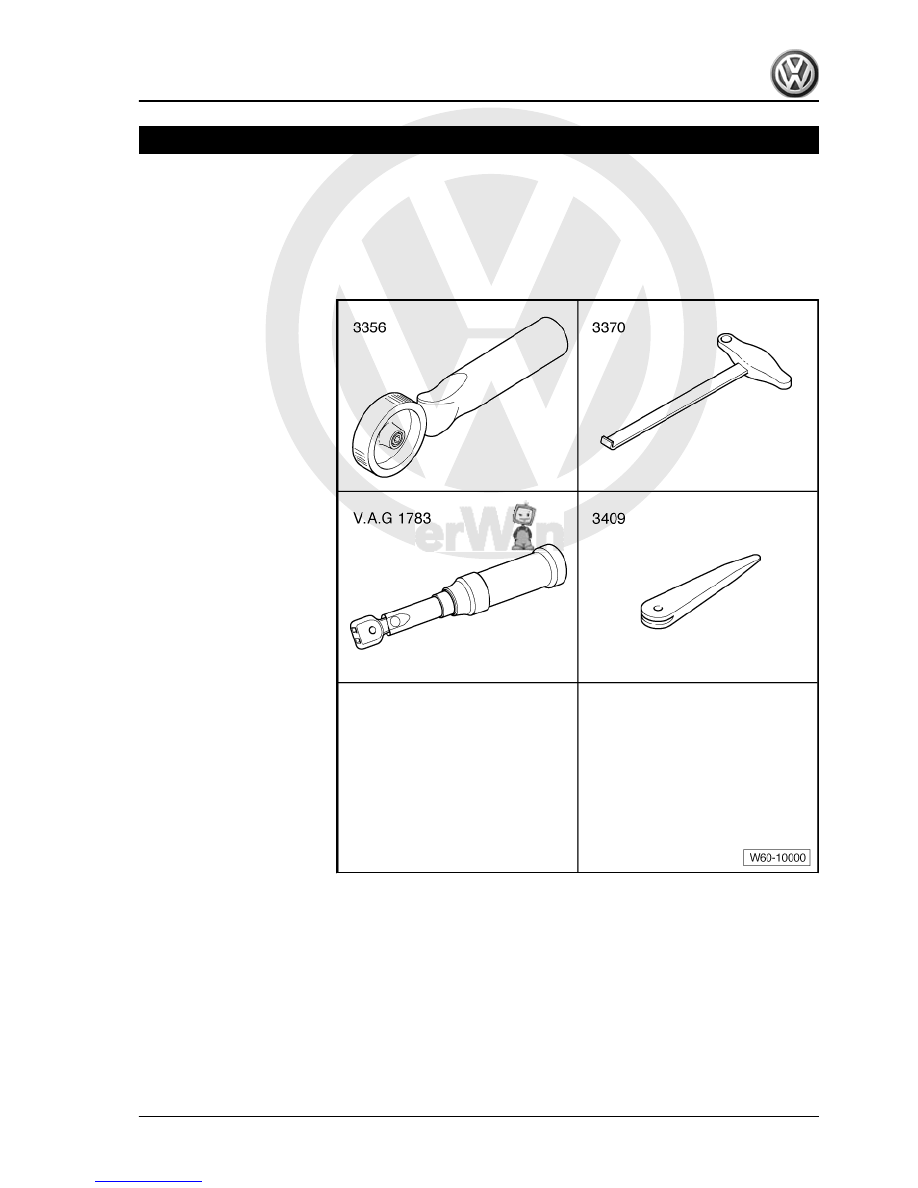

Tools

Special tools and workshop

equipment required
♦ Roller for door insulation

foil -3356-

♦ Front end hook -3370-
♦ Torque wrench -V.A.G

1783-

♦ Removal wedge -3409-

1.2

Function

All actions of the sliding/tilting sunroof with glass panel can be

performed with the ignition switched on.
After the ignition is switched off, actions can be performed until

either the driver or front passenger door is opened.
The opening of the glass panel in sliding or tilting positions can

be preselected using the rotary switch.
On the rotary switch there are marks for preset sliding and tilting

positions of the glass panel.

1. Sliding/tilting sunroof with glass panel (Meritor)

161



cur when sunroof is fully open.

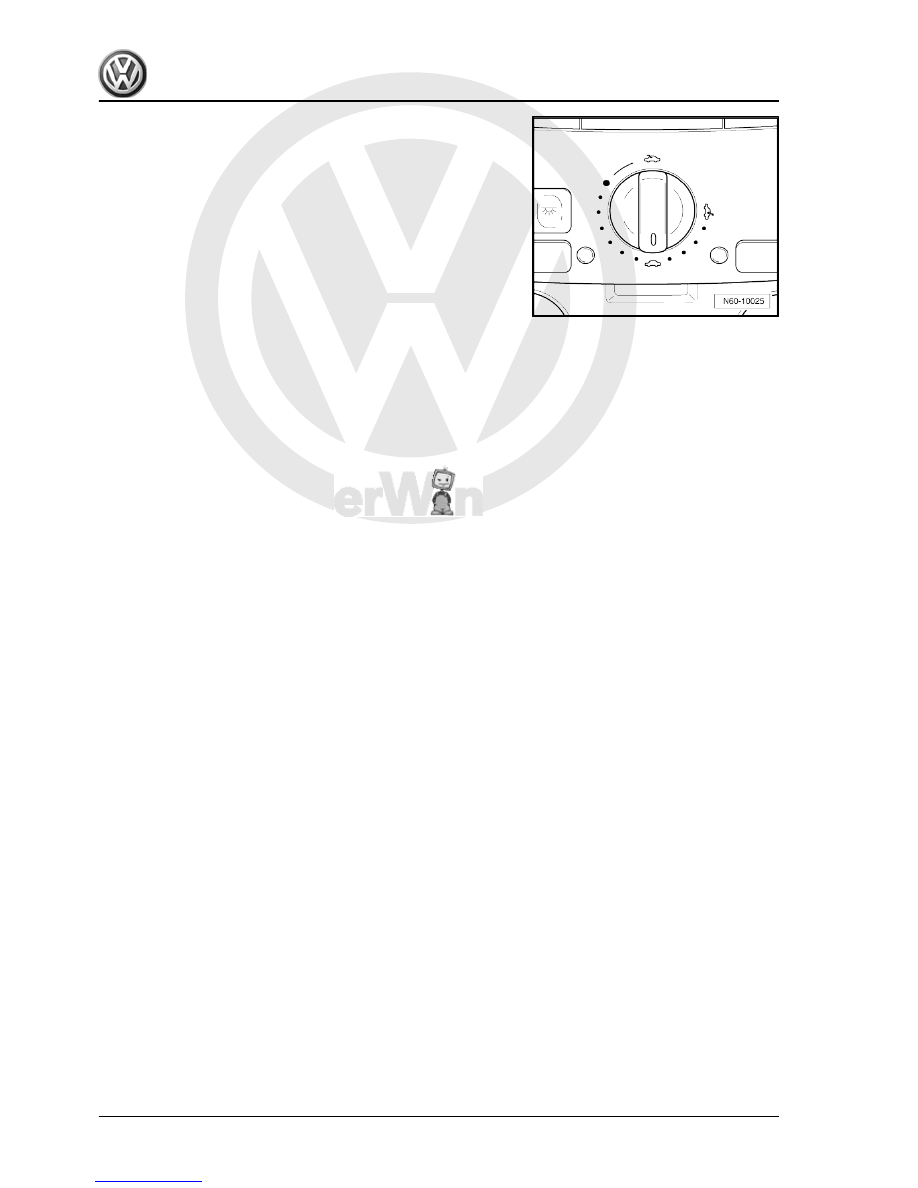

Pre-selector switch
The sliding/tilting sunroof with glass panel is equipped with a force

limitation (roll back) feature while closing. If the sunroof encoun‐

ters an obstruction while closing from tilting or sliding position, it

will open automatically.
In addition, there is an emergency closure function. If problems

occur during closure, the sliding/tilting roof with glass panel can

be forced to shut by pressing the preselector switch when it is in

the “close sliding/tilting roof” position.
The roll-back function is disabled when the emergency closure

function is active.
The drive for the sliding/tilting sunroof with glass panel is protec‐

ted against overheating by a time limit. The protective mechanism

activates when the sunroof is operated continuously for approx.

2 minutes. It is functional again after a cooling-off phase.
In the event of power failure, the sliding/tilting sunroof with glass

panel can be moved using a hexagon key directly on the drive.

Hexagon key is located in vehicle tool kit.

162



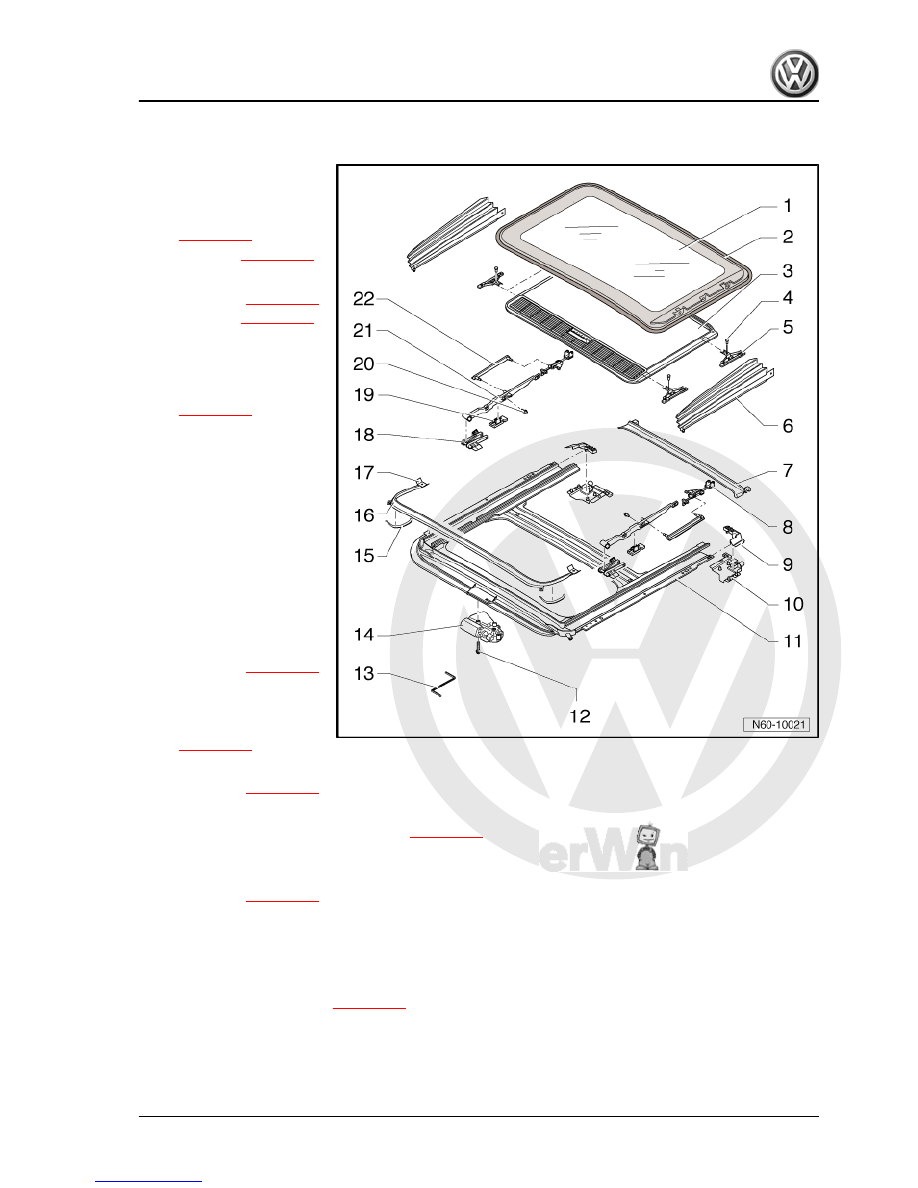

1 - Glass panel for sliding/tilting

sunroof (single pane safety

glass)

❑ Removing and installing

⇒ page 166

❑ Adjusting

⇒ page 167

2 - Panel seal

❑ Renewing

⇒ page 169

❑ Adjusting

⇒ page 168

❑ Joint of seal centred at

rear

3 - Sliding headliner

❑ Removing and installing

⇒ page 170

4 - Bolt

❑ Bolts are microencap‐

sulated and must al‐

ways be renewed after

loosening.

❑ Qty. 4
❑ 1.8 Nm

5 - Spring slide

❑ Screwed to sliding

headliner

❑ Qty. 4
❑ Can be renewed individ‐

ually.

❑ Removing

⇒ page 170

6 - Bellows

❑ To cover guide plate.
❑ Removing and installing

⇒ page 164

7 - Water channel

❑ Removing

⇒ page 178

8 - Latch guide

❑ Is removed together with guide plate

⇒ page 178

9 - End piece upper part

❑ Clipped to end piece upper part.
❑ Removing

⇒ page 178

10 - End piece lower part

❑ Can be renewed individually.
❑ To seal use butyl adhesive sealing cord -AKL 450 005 05- .

11 - Carrier unit

❑ Removing and installing

⇒ page 174

❑ If needed, guide channels may be greased only with special grease -G 000 450 02- , otherwise correct

operation cannot be guaranteed.

12 - Bolt

❑ Bolts are microencapsulated and must always be renewed after loosening.

1. Sliding/tilting sunroof with glass panel (Meritor)

163



❑ Hexagon key is located in vehicle tool kit

14 - Electric drive

❑ Removing and installing

⇒ page 171

❑ Adjusting drive (0 position)

⇒ page 172

 .

15 - Spring

❑ Qty. 2
❑ Pushes up wind deflector.
❑ Clipped onto wind deflector and can be renewed individually
❑ Removing

⇒ page 169

16 - Wind deflector

❑ Removing and installing

⇒ page 169

17 - Wind deflector bearing

❑ Qty. 2
❑ Clipped onto wind deflector and can be renewed individually
❑ Removing

⇒ page 169

18 - Front guide

❑ Can be pushed out of guide rail individually.
❑ Removing

⇒ page 178

19 - Lower rear guide

❑ Is removed together with guide plate

⇒ page 178

20 - Torx bolt

❑ Qty. 3 on each side
❑ 5 Nm

21 - Guide plate

❑ Removing and installing

⇒ page 177

22 - Spacer

❑ Removing and installing

⇒ page 177

1.4

Removing and installing bellows

1.4.1

Removing

– Slide sliding headlining to rear.
– Run sliding/tilting sunroof glass panel to tilted position.
– Carefully unclip bellows -1- from lower part of guide plate -3-

using a removal wedge -3409- .

– Pull bellows -1- off securing pins -4-.
– Detach bellows -1- at top rear -2-.
