❑ Removing

⇒ page 44

10 - Rear lid lock

❑ Fitting location: bolted to rear lid.
❑ Removing

⇒ page 39

11 - Release element with button

❑ Fitting location: bolted in rear lid.
❑ Removing

⇒ page 38

12 - Coupling station, left side of rear lid

❑ Fitting location: behind C-pillar trim.
❑ Removing and installing ⇒  General body repairs, interior; Rep. Gr.  70 ; Trim/insulation; Pillar and side

panel trim; Removing and installing C-pillar upper trim

13 - Rear left door lock

❑ Door lock is secured to door inner part
❑ Electric central locking is integrated in door lock
❑ Removing

⇒ page 111

14 - Rear left door control unit J388

❑ Integrated in window regulator motor
❑ Removing

⇒ page 213

15 - Coupling station

❑ Fitting location: left B-pillar.
❑ To separate connector, loosen boot at pillar

⇒ page 90

16 - Front left door lock

❑ Door lock is secured to door inner part
❑ Electric central locking is integrated in door lock
❑ Removing

⇒ page 73

17 - Central switch for window regulator

❑ Fitting location: installed in door trim.
❑ Removing and installing centralized switches for window regulators ⇒  Vehicle electrical system; Rep.

Gr.  96 ; Electrical system; Interior lights, lamps, switches; Lights and switches in doors

18 - Front left door control unit J386

❑ Integrated in window regulator motor
❑ Removing

⇒ page 199

 and

⇒ page 73

19 - Coupling station

❑ Fitting location: left A-pillar.
❑ To separate connector, loosen boot at pillar

⇒ page 51

20 - Anti-theft alarm horn

❑ Fitting location: under right wing.
❑ Removing ⇒  Electrical system; Rep. Gr.  96 ; Lights, bulbs, switches - interior; Anti-theft protection; Anti-

theft alarm system (ATA); Alarm horn H12

21 - Bonnet contact switch F266

❑ Anti-theft alarm (ATA) contact switch
❑ Fitting location: on bonnet lock.
❑ Removing ⇒  Electrical systems; Rep. Gr.  96 ; Lights, bulbs, switches - interior; Anti-theft protection;

Lights and switches in engine compartment; Removing and installing bonnet contact switch F266

2.2

Adapting keys with remote control

Keys with remote control can be adapted using the vehicle diag‐

nosis, testing and information system -VAS 5051 A- .

General body repairs, exterior - Edition 04.2008

2. Central locking

81

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

– Select “guided fault finding” in diagnostic tester -VAS 5051 A- .
– Using the “GoTo” key, select "Function/component selection"

and the following menu items one after the other:

♦ Body
♦ General body repairs
♦ 01 - Self-diagnosis capable systems
♦ Convenience systems
♦ Functions - convenience system central control unit
♦ Checking/adapting key with remote control J393

2.3

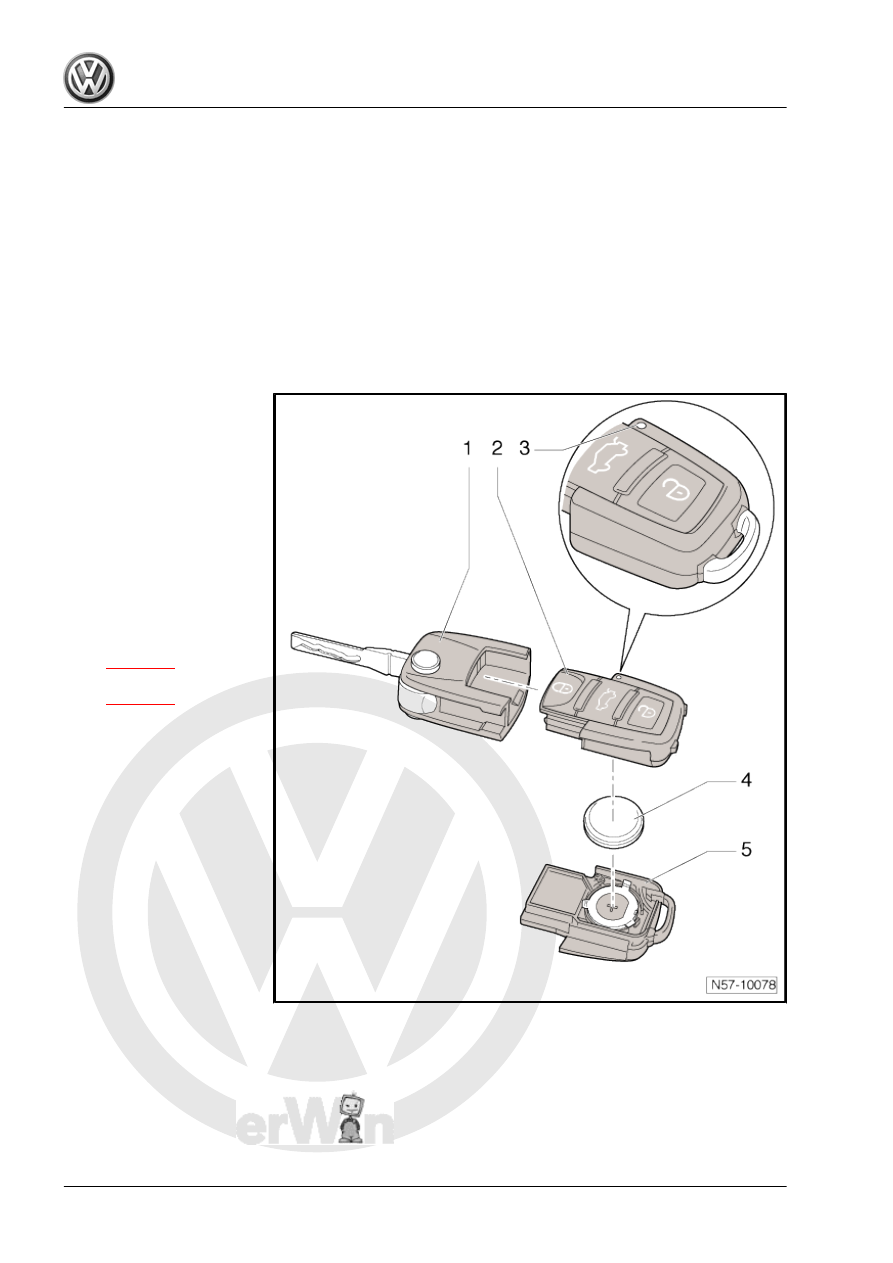

Assembly overview - battery for folding key with remote control

1 - Key with variable code

transponder
2 - Transmitter unit - upper part
3 - LED

❑ When remote control is

operated, this LED must

light up

❑ If LED does not flash

during remote control

operation, the battery is

dead and must be re‐

newed

4 - Battery

❑ Removing battery

⇒ page 83

❑ Installing battery

⇒ page 83

5 - Transmitter unit - lower part

General body repairs, exterior - Edition 04.2008

82

     Rep. Gr.57 - Front doors, door components, central locking

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

2.4

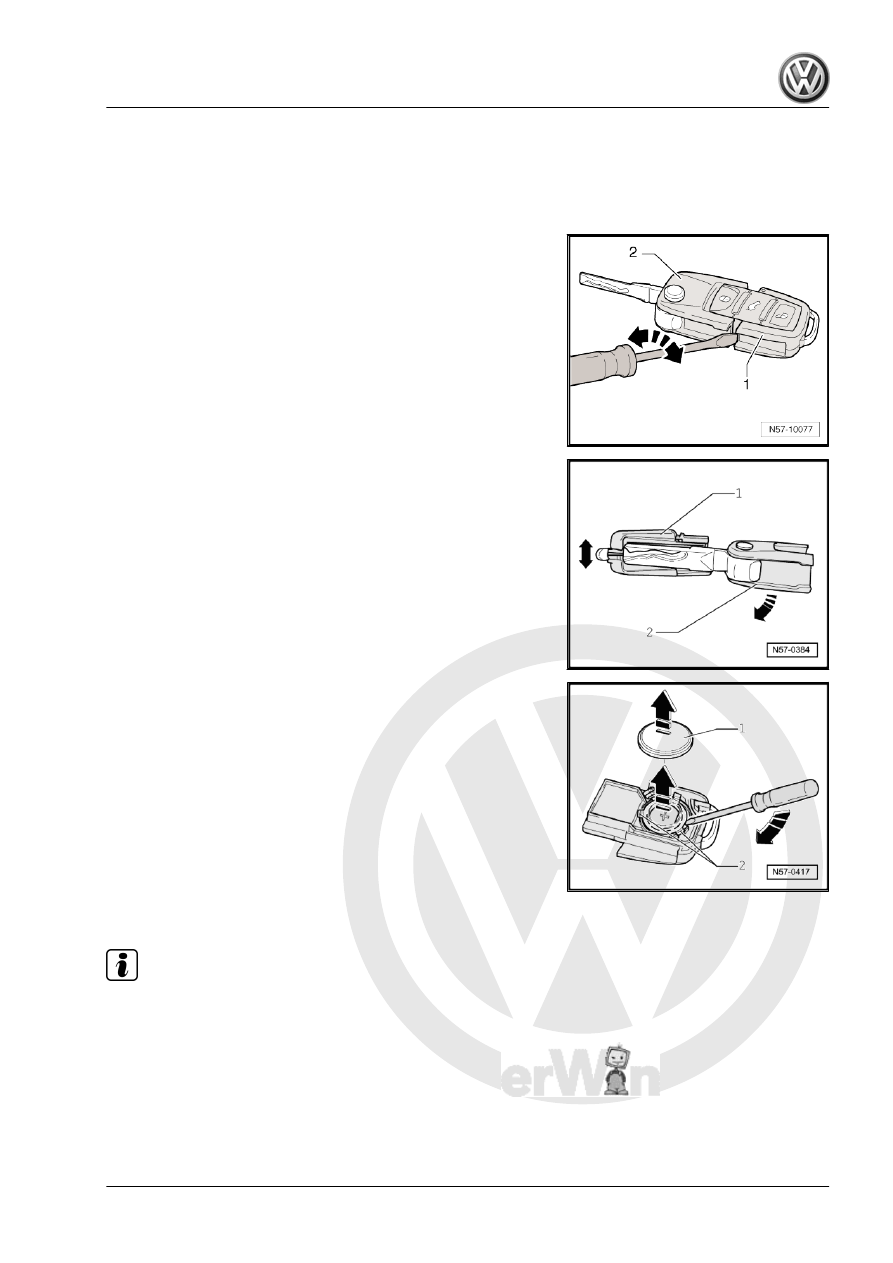

Removing and installing battery for fold‐

ing key with remote control

2.4.1

Removing

– Insert a screwdriver in slot between transmitter unit -1- and key

-2-.

– Twist screwdriver in -direction of arrow- to separate transmitter

unit from key.

– Press transmitter unit -1- apart using profile section of key

-2-.

– Unclip battery -1- from retainers -2- with a screwdriver in

-direction of arrow-.

2.4.2

Installing

Note

♦

Before installing battery, always press any key once.

♦

Thus transmitter unit is reset and can recognize a new battery

only now.

General body repairs, exterior - Edition 04.2008

2. Central locking

83

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

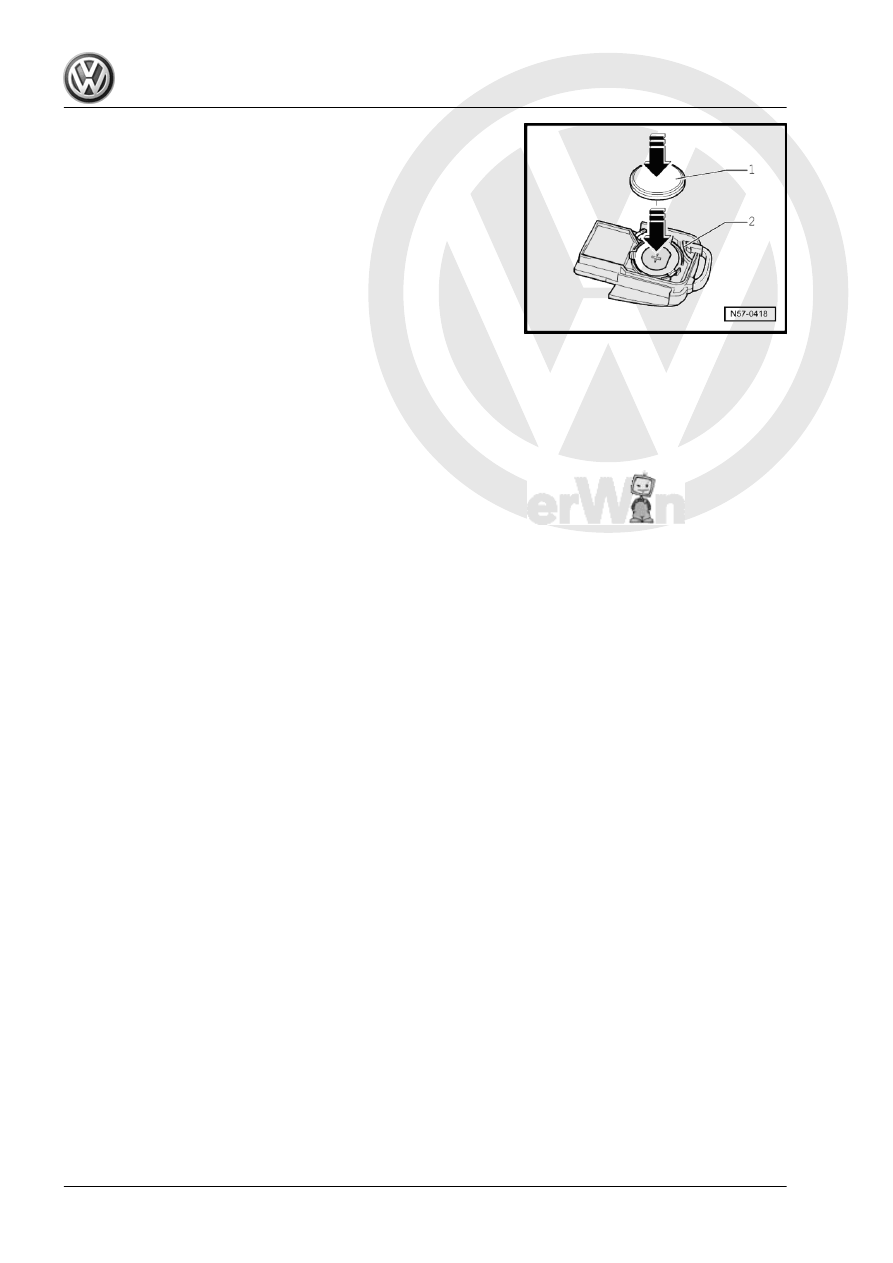

Note polarity and correct position when installing battery.
