Toyota Camry (2019 year). Manual - part 33

513

7-2. Steps to take in an emergency

CAMRY_U

Wh
en tro

uble

ris

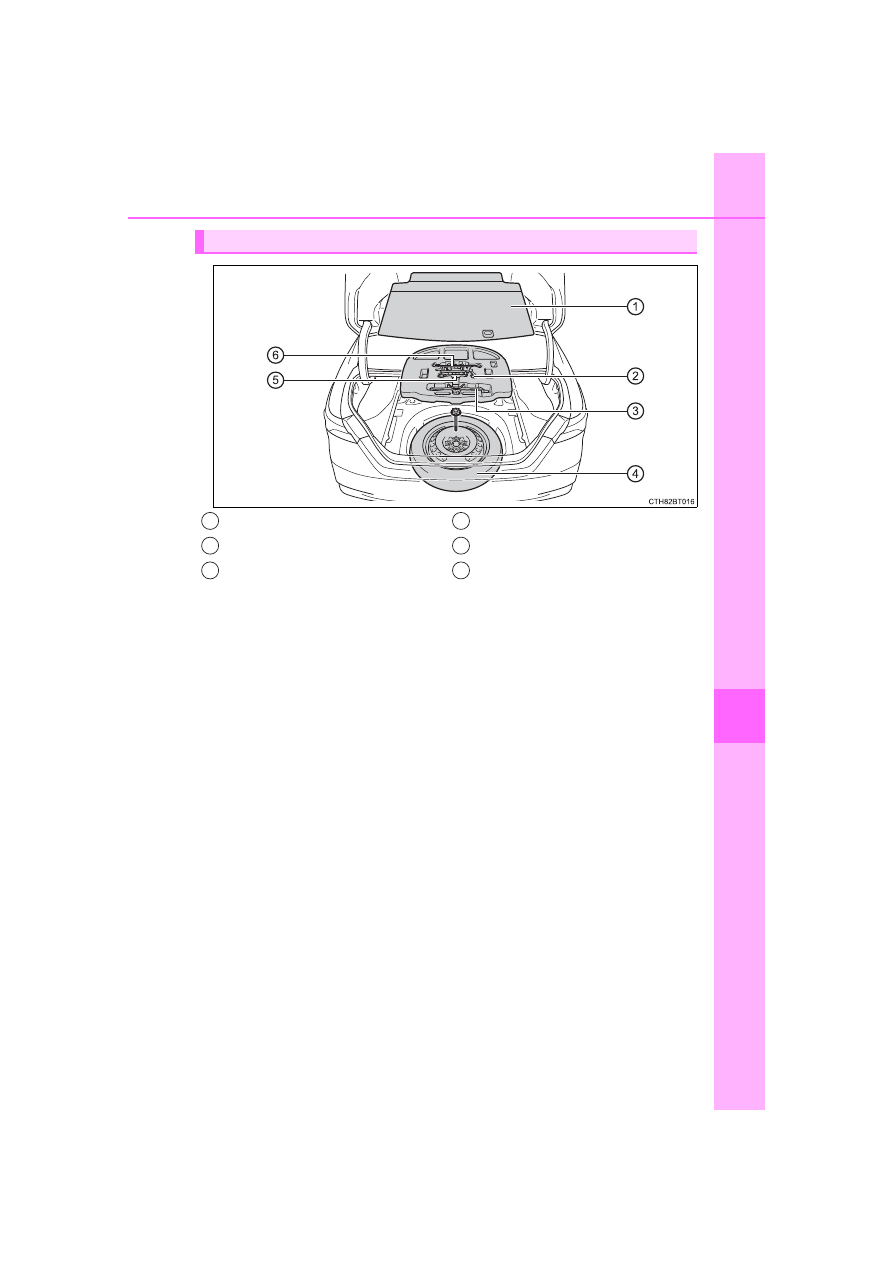

Location of the spare tire, jack and tools

Luggage floor cover
Wheel nut wrench
Jack

Spare tire
Towing eyelet (if equipped)
Jack handle

514

7-2. Steps to take in an emergency

CAMRY_U

WARNING

■

Using the tire jack
Observe the following precautions.

Improper use of the tire jack may cause the vehicle to suddenly fall off

the jack, leading to death or serious injury.

●

Do not use the tire jack for any purpose other than replacing tires or

installing and removing tire chains.

●

Only use the tire jack that comes with this vehicle for replacing a flat

tire.

Do not use it on other vehicles, and do not use other tire jacks for

replacing tires on this vehicle.

●

Put the jack properly in its jack point.

●

Do not put any part of your body under the vehicle while it is supported

by the jack.

●

Do not start the engine or drive the vehicle while the vehicle is sup-

ported by the jack.

●

Do not raise the vehicle while someone is inside.

●

When raising the vehicle, do not put an object on or under the jack.

●

Do not raise the vehicle to a height greater than that required to

replace the tire.

●

Use a jack stand if it is necessary to get under the vehicle.

●

When lowering the vehicle, make sure that there is no-one near the

vehicle. If there are people nearby, warn them vocally before lowering.

NOTICE

■

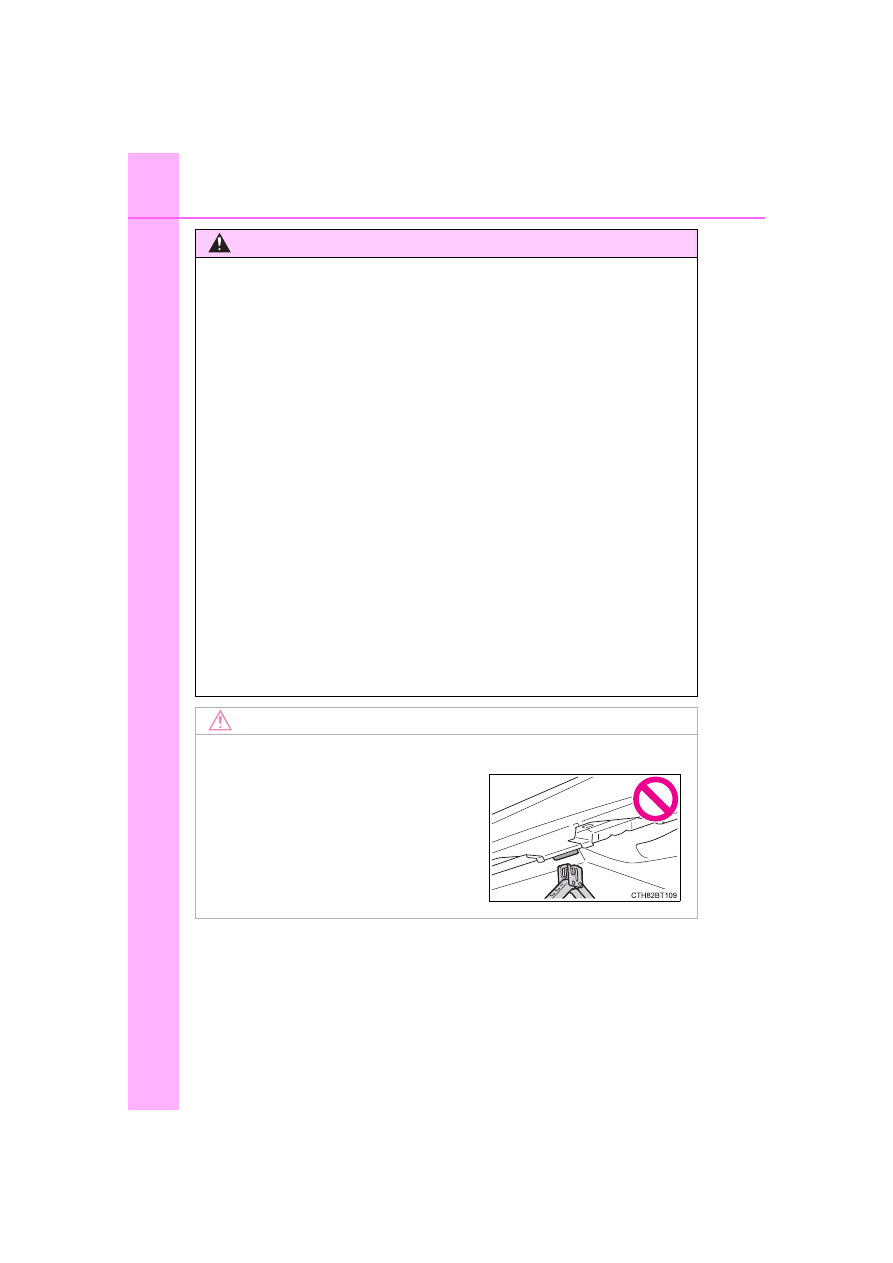

To prevent damage to the vehicle when using a jack
When jacking up the rear of the vehi-

cle, make sure not to position the jack

under the bracket shown in the illustra-

tion near the rear jack point, as the

vehicle body may be damaged.

515

7-2. Steps to take in an emergency

CAMRY_U

Wh
en tro

uble

ris

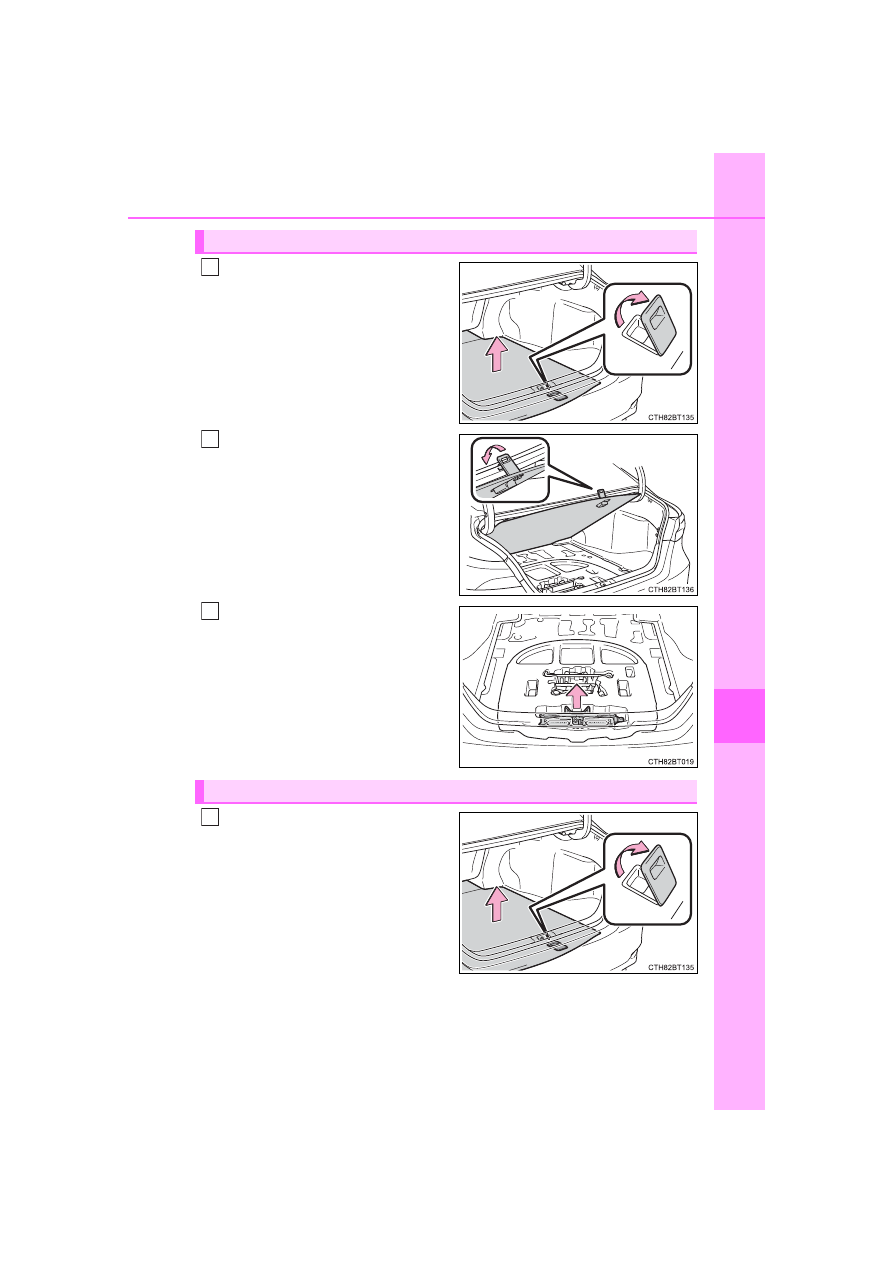

Lift up the hook of the luggage
floor cover on the trunk floor.

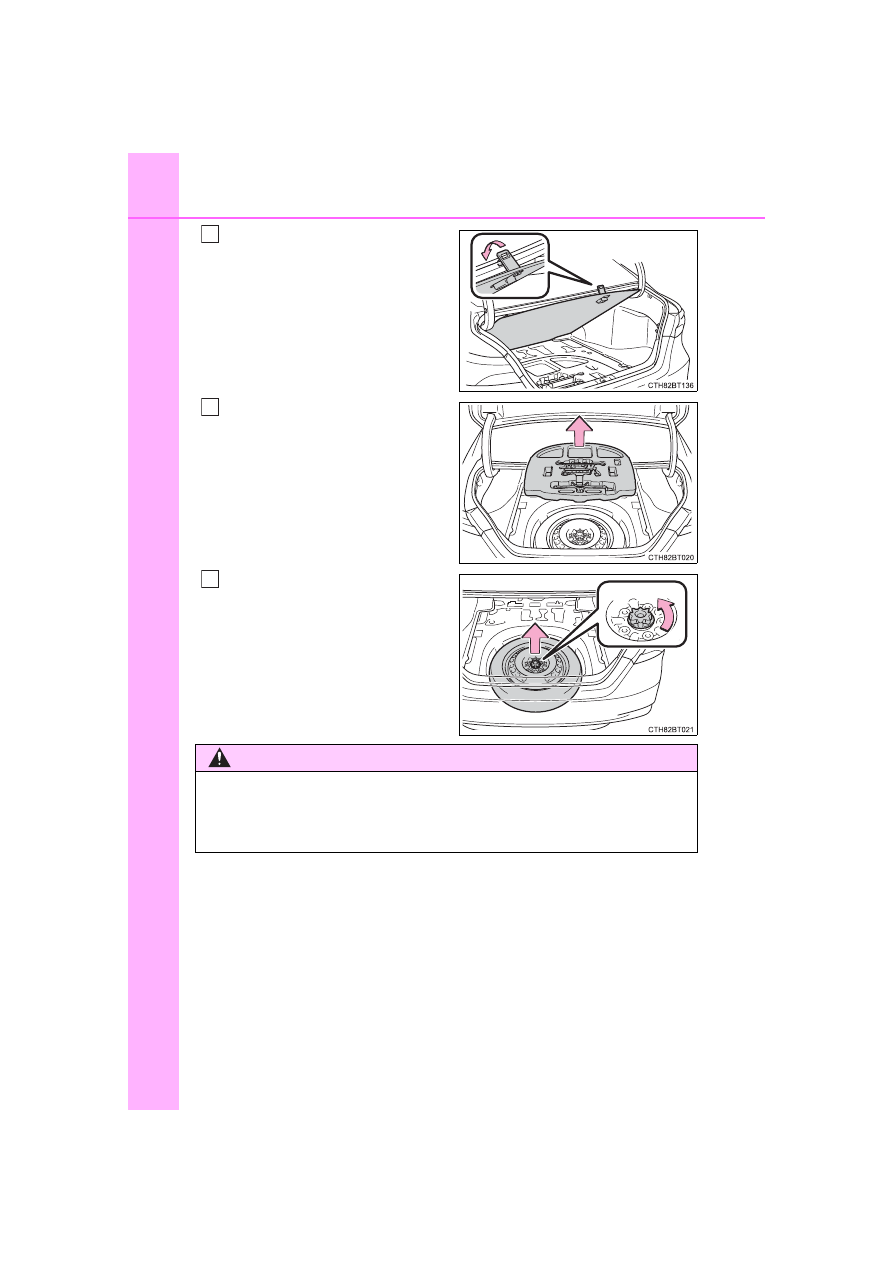

Secure the luggage floor cover
using the hook provided.

Remove the jack.

Lift up the hook of the luggage
floor cover on the trunk floor.

Taking out the jack

Taking out the spare tire

516

7-2. Steps to take in an emergency

CAMRY_U

Secure the luggage floor cover
using the hook provided.

Remove the tool tray.

Loosen the center fastener that
secures the spare tire.

When taking out or stowing the

spare tire, make sure to firmly

hold opposite end of the tire.

WARNING

■

When storing the spare tire
Be careful not to catch fingers or other body parts between the spare

tire and the body of the vehicle.

517

7-2. Steps to take in an emergency

CAMRY_U

Wh
en tro

uble

ris

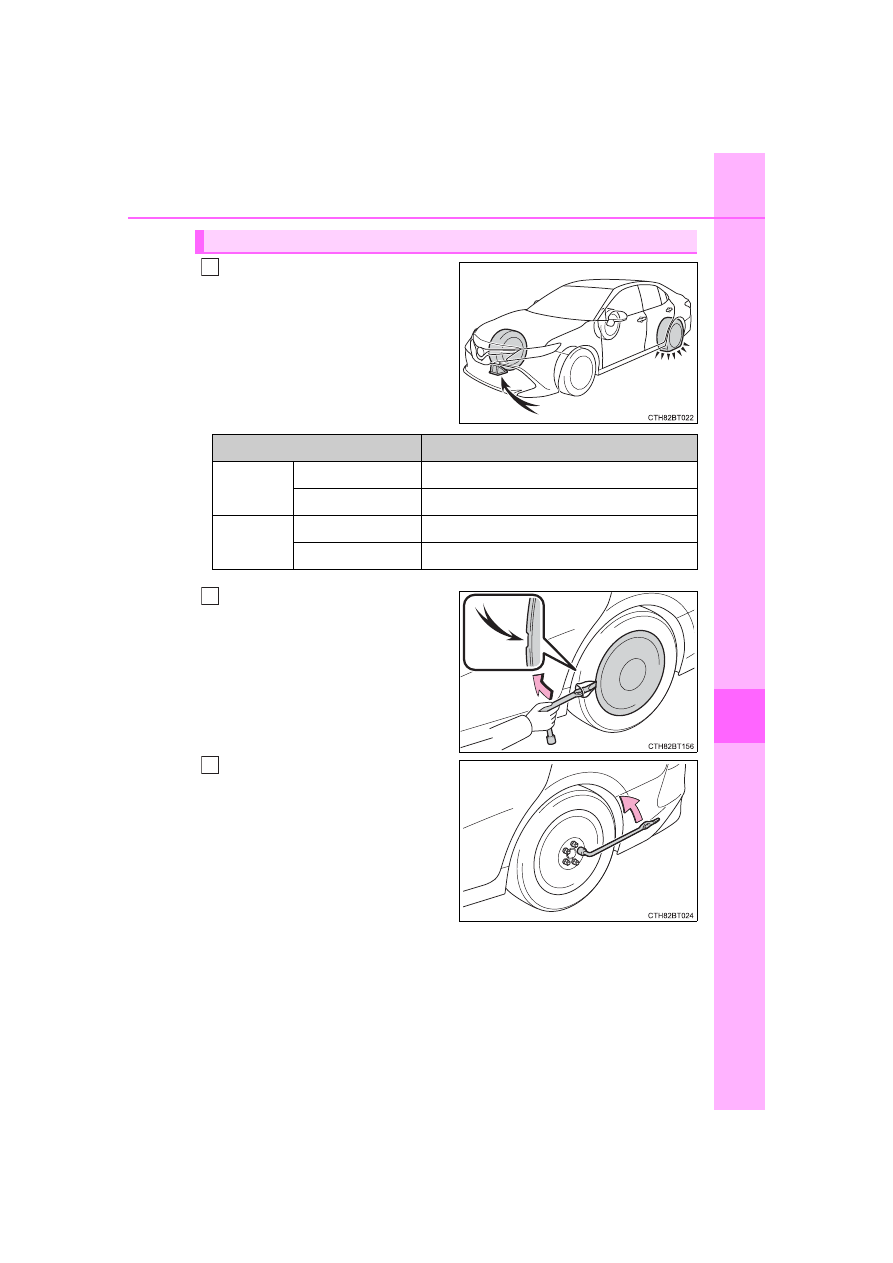

Chock the tires.

For vehicles with steel wheels,
remove the wheel ornament
using the wrench.

To protect the wheel ornament,

place a rag between the wrench

and the wheel ornament, as

shown in the illustration.

Slightly loosen the wheel nuts
(one turn).

Replacing a flat tire

Flat tire

Wheel chock positions

Front

Left-hand side

Behind the rear right-hand side tire

Right-hand side

Behind the rear left-hand side tire

Rear

Left-hand side

In front of the front right-hand side tire

Right-hand side

In front of the front left-hand side tire

518

7-2. Steps to take in an emergency

CAMRY_U

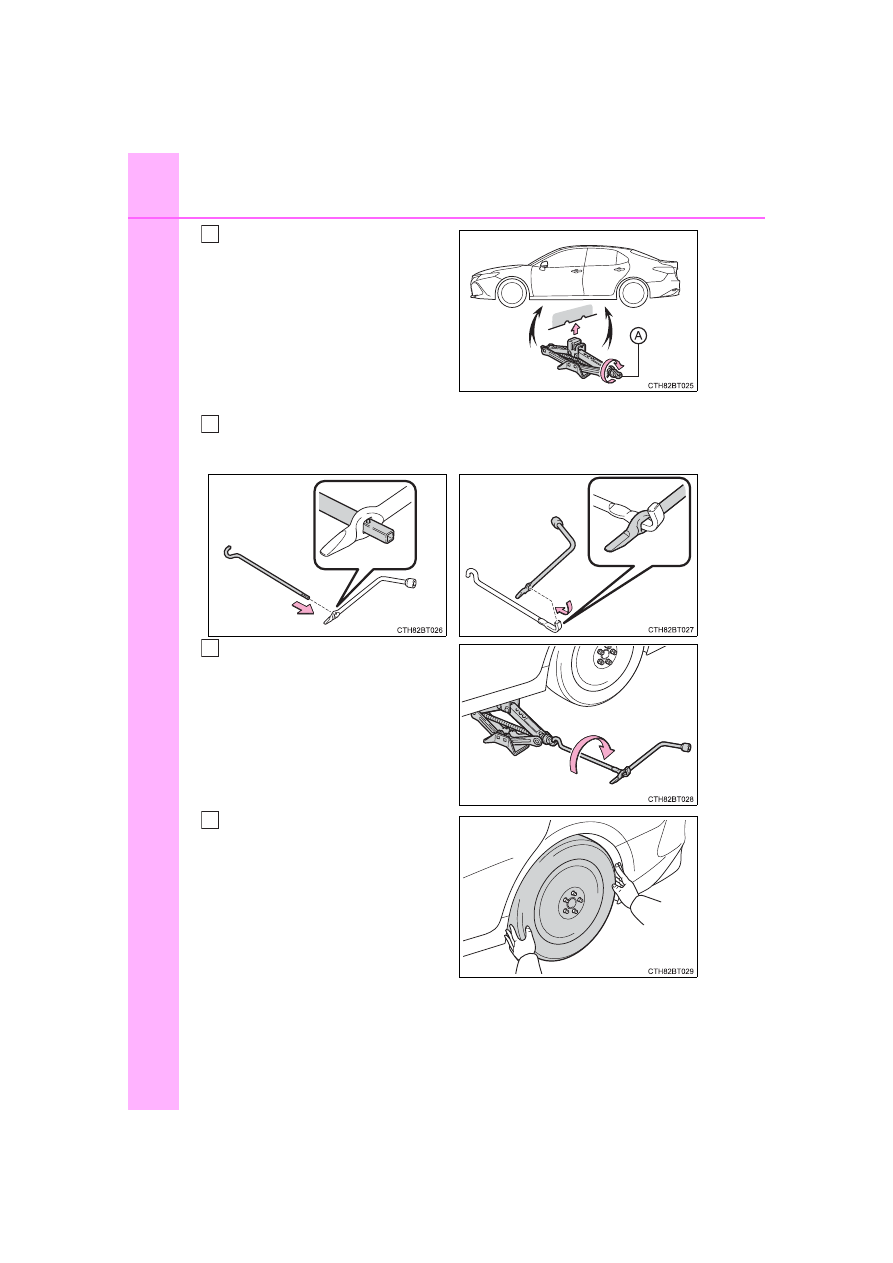

Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.

To prevent damage to the vehicle

when using the jack, position the

jack in the correct location.

(



P. 514)

The jack point guides are located

under the rocker panel. They

indicate the jack point positions.

Assemble the jack handle.

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and
the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.



Type A



Type B

519

7-2. Steps to take in an emergency

CAMRY_U

Wh
en tro

uble

ris

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or the area around the brakes immedi-

ately after the vehicle has been driven.

After the vehicle has been driven the disc wheels and the area around

the brakes will be extremely hot. Touching these areas with hands, feet

or other body parts while changing a tire, etc. may result in burns.

●

Failure to follow these precautions could cause the wheel nuts to

loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103

N•m, 10.5 kgf•m) as soon as possible after changing wheels.

• Do not attach a heavily damaged wheel ornament, as it may fly off

the wheel while the vehicle is moving.

• When installing a tire, only use wheel nuts that have been specifi-

cally designed for that wheel.

• If there are any cracks or deformations in the bolt screws, nut

threads or bolt holes of the wheel, have the vehicle inspected by

your Toyota dealer.

• When installing the wheel nuts, be sure to install them with the

tapered ends facing inward. (

P. 463)

520

7-2. Steps to take in an emergency

CAMRY_U

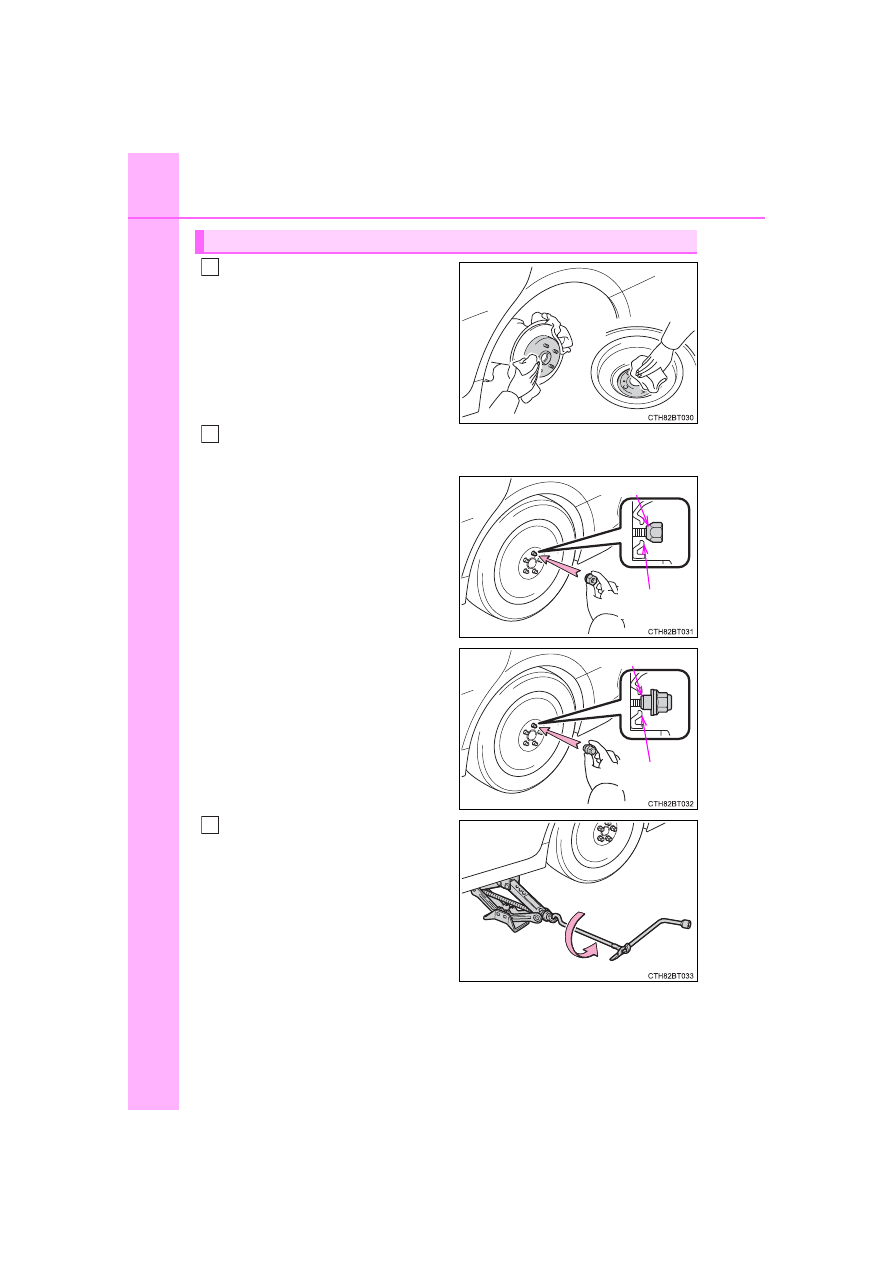

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come

off.

Install  the  tire  and  loosely  tighten  each  wheel  nut  by  hand  by
approximately the same amount.
When  replacing  a  steel  wheel
with  a  steel  wheel,  tighten  the
wheel  nuts  until  the  tapered
portion  comes  into  loose  con-
tact with the disc wheel seat.

When  replacing  an  aluminum
wheel  with  a  steel  wheel,
tighten the wheel nuts until the
tapered  portion  comes  into
loose  contact  with  the  disc
wheel seat.

Lower the vehicle.

Installing the spare tire

Tapered portion

Disc wheel

seat

Tapered portion

Disc wheel

seat

521

7-2. Steps to take in an emergency

CAMRY_U

Wh
en tro

uble

ris

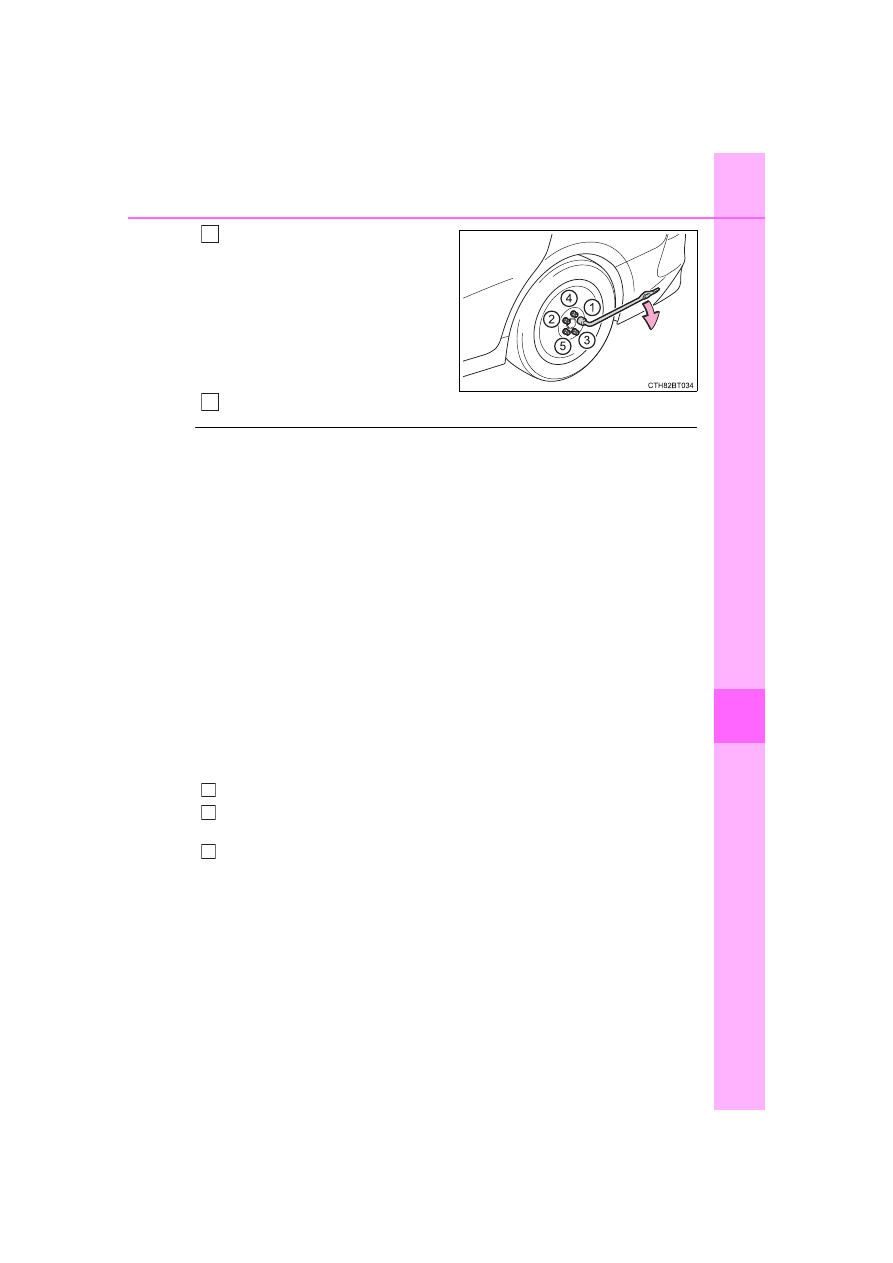

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.

Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

Stow the flat tire, tire jack and all tools.

■

The compact spare tire

●

The compact spare tire is identified by the label “TEMPORARY USE

ONLY” on the tire sidewall.

Use the compact spare tire temporarily, and only in an emergency.

●

Make sure to check the tire inflation pressure of the compact spare tire.

(

P. 547)

■

When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning

valve and transmitter, low inflation pressure of the spare tire will not be

indicated by the tire pressure warning system. Also, if you replace the

compact spare tire after the tire pressure warning light comes on, the light

remains on.

■

When the compact spare tire is equipped
When driving with the compact spare tire installed, the vehicle height will

be different than when driving with standard tires.

■

If you have a flat front tire on a road covered with snow or ice (vehi-

cles with 16 or 17-inch wheels)
Install the compact spare tire on one of the rear wheels of the vehicle.

Perform the following steps and fit tire chains to the front tires:

Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehi-

cle.
Fit tire chains to the front tires.

522

7-2. Steps to take in an emergency

CAMRY_U

WARNING

■

When using the compact spare tire

●

Remember that the compact spare tire provided is specifically

designed for use with your vehicle. Do not use your compact spare tire

on another vehicle.

●

Do not use more than one compact spare tires simultaneously.

●

Replace the compact spare tire with a standard tire as soon as possi-

ble.

●

Avoid sudden acceleration, abrupt steering, sudden braking and shift-

ing operations that cause sudden engine braking.

■

When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-

tems may not operate correctly:

If equipped

■

Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact

spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Fail-

ure to observe this precaution may lead to an accident causing death or

serious injury.

■

After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in

their storage location to reduce the possibility of personal injury during a

collision or sudden braking.

• ABS & Brake assist

• VSC

• TRAC

• EPS

• Automatic High Beam

• Cruise control

• Dynamic radar cruise control

with full-speed range

• LDA (Lane Departure Alert with

steering control)

• PCS (Pre-Collision System)

• Tire pressure warning system

• BSM (Blind Spot Monitor)

• Intuitive parking assist

• Intelligent Clearance Sonar

(ICS)

• Rear view monitor system

• Toyota parking assist monitor

• Panoramic view monitor

• Navigation system

523

7-2. Steps to take in an emergency

CAMRY_U

Wh
en tro

uble

ris

NOTICE

■

Be careful when driving over bumps with the compact spare tire

installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire

compared to when driving with standard tires. Be careful when driving

over uneven road surfaces.

■

Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.

Tire chains may damage the vehicle body and adversely affect driving

performance.

■

When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning

valve and transmitter, contact your Toyota dealer as the tire pressure

warning valve and transmitter may be damaged if not handled correctly.

■

To avoid damage to the tire pressure warning valve and transmit-

ters
When a tire is repaired with liquid sealants, the tire pressure warning

valve and transmitter may not operate properly. If a liquid sealant is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (

P. 446)

524

7-2. Steps to take in an emergency

CAMRY_U

One of the following may be the cause of the problem:
● There may not be sufficient fuel in the vehicle’s tank.

Refuel the vehicle.

● The engine may be flooded.

Try to restart the engine again following correct starting procedures.
(

P. 206, 208 )

● There may be a malfunction in the engine immobilizer system.

(

P. 79)

One of the following may be the cause of the problem:
● The battery may be discharged. (P. 529)
● The battery terminal connections may be loose or corroded.

The engine starting system may be malfunctioning due to an electrical
problem such as electronic key battery depletion or a blown fuse.
However, an interim measure is available to start the engine.
(

P. 525)

If the engine will not start

If the engine will not start even though correct starting proce-
dures are being followed (

P. 206, 208), consider each of the fol-

lowing points:

The engine will not start even though the starter motor operates
normally.

The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.

The starter motor does not turn over (vehicles with a smart key
system)

525

7-2. Steps to take in an emergency

CAMRY_U

Wh
en tro

uble

ris

One of the following may be the cause of the problem:
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. (P. 529)
● There may be a malfunction in the steering lock system (vehicles

with a smart key system).

Contact your Toyota dealer if the problem cannot be repaired, or if repair
procedures are unknown.

When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally:

Set the parking brake.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while
depressing the brake pedal firmly.

Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by your Toyota
dealer.

The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.

Emergency start function (vehicles with a smart key system)

526

7-2. Steps to take in an emergency

CAMRY_U

■

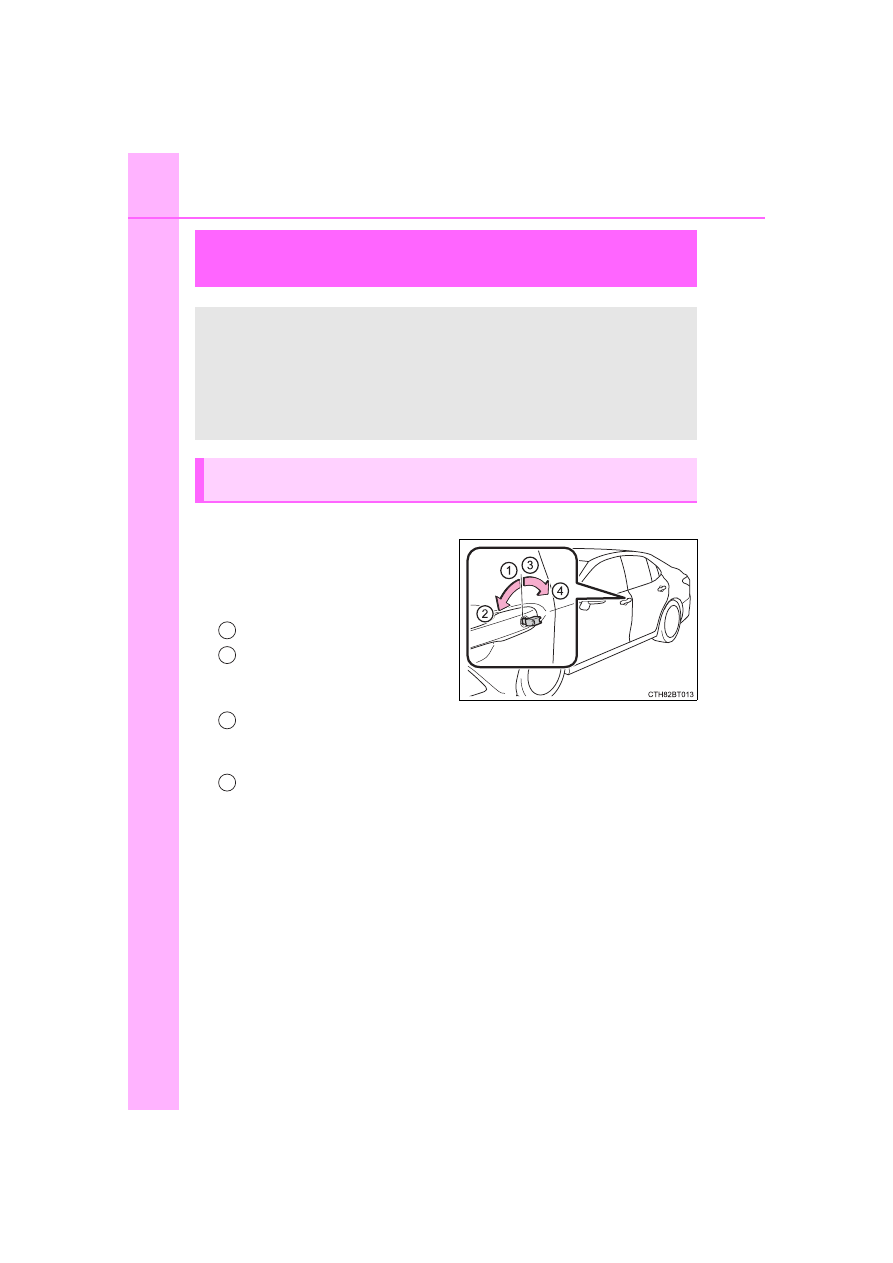

Doors
Using the mechanical key (

P.

136) in order to perform the fol-
lowing operations (driver’s door
only):

Locks all doors
Closes the windows and the
moon roof

or panoramic

moon roof

(turn and hold)

Unlocks the door

Turning the key rearward unlocks the driver's door. Turning the key once
again unlocks the other doors.

Opens the windows and the moon roof

or panoramic moon

roof

(turn and hold)

: If equipped

: This setting must be customized at your Toyota dealer.

If the electronic key does not operate properly

(vehicles with a smart key system)

If communication between the electronic key and vehicle is
interrupted (

P. 159) or the electronic key cannot be used

because the battery is depleted, the smart key system and wire-
less remote control cannot be used. In such cases, the doors
and trunk can be opened and the engine can be started by fol-
lowing the procedure below.

Locking and unlocking the doors, unlocking the trunk and key
linked functions

527

7-2. Steps to take in an emergency

CAMRY_U

Wh
en tro

uble

ris

■

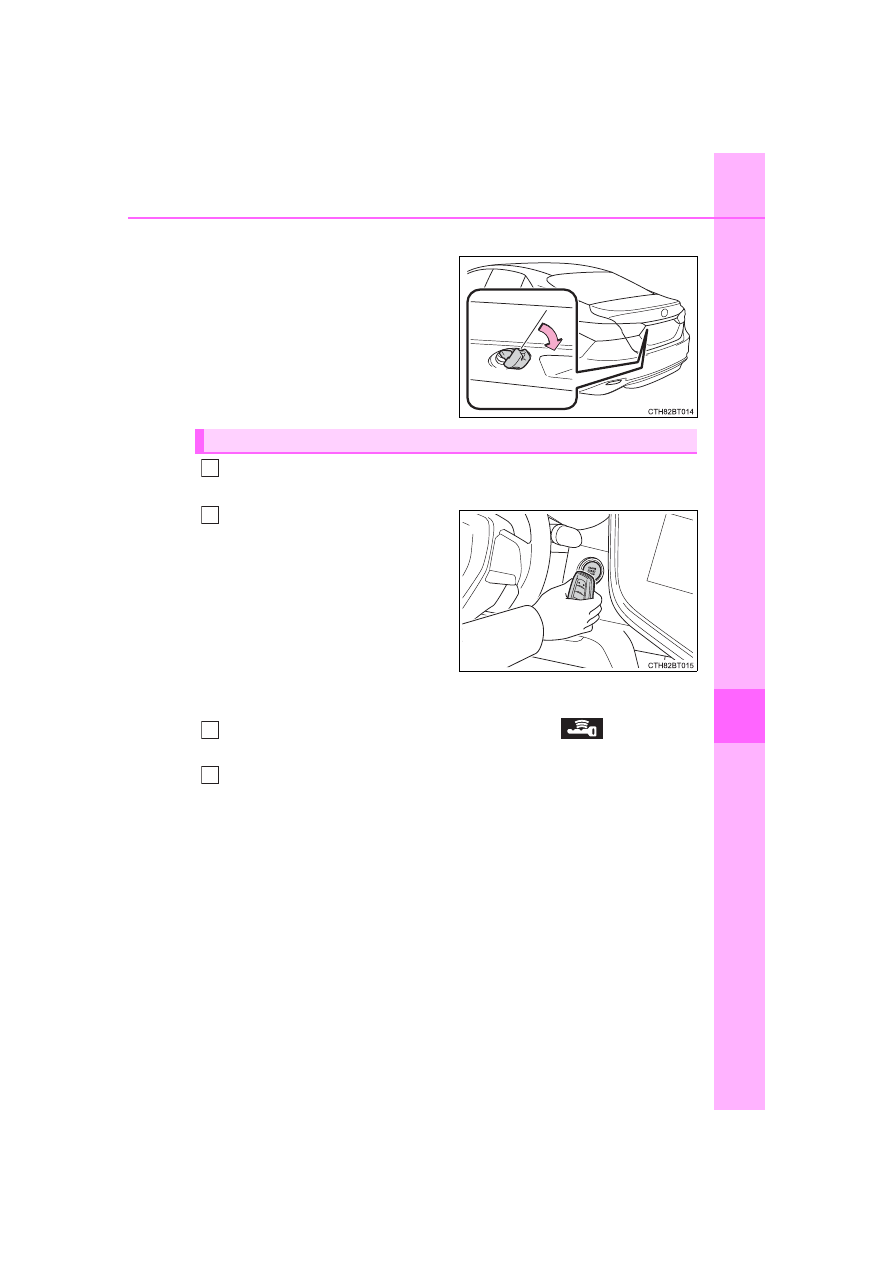

Trunk
Turn the mechanical key clock-
wise to open.

Ensure  that  the  shift  lever  is  in  P  and  firmly  depress  the  brake
pedal.
Touch  the  Toyota  emblem  side
of  the  electronic  key  to  the
engine switch.

When  the  electronic  key  is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When  the  smart  key  system  is
deactivated  in  customization  set-
ting,  the  engine  switch  will  turn  to
ACCESSORY mode.

Firmly depress the brake pedal and check that

is displayed

on the multi-information display.
Press the engine switch shortly and firmly.

In the event that the engine still cannot be started, contact your Toyota
dealer.

Starting the engine

528

7-2. Steps to take in an emergency

CAMRY_U

■

Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when
stopping the engine.

■

Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(

P. 466)

■

Changing engine switch modes
Release the brake pedal and press the engine switch in step

above.

The engine does not start and modes will be changed each time the switch is
pressed. (

P. 209)

■

When the electronic key does not work properly

●

Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features:

P. 567)

●

Check if battery-saving mode is set. If it is set, cancel the function.
(

P. 159)

WARNING

■

When using the mechanical key and operating the power windows or
the moon roof or panoramic moon roof
Operate the power window or the moon roof or panoramic moon roof after
checking to make sure that there is no possibility of any passenger having
any of their body parts caught in the window or the moon roof or panoramic
moon roof. Also, do not allow children to operate the mechanical key. It is
possible for children and other passengers to get caught in the power win-
dow or the moon roof or panoramic moon roof.

Content .. 31 32 33 34 ..
