6-1. Specifications

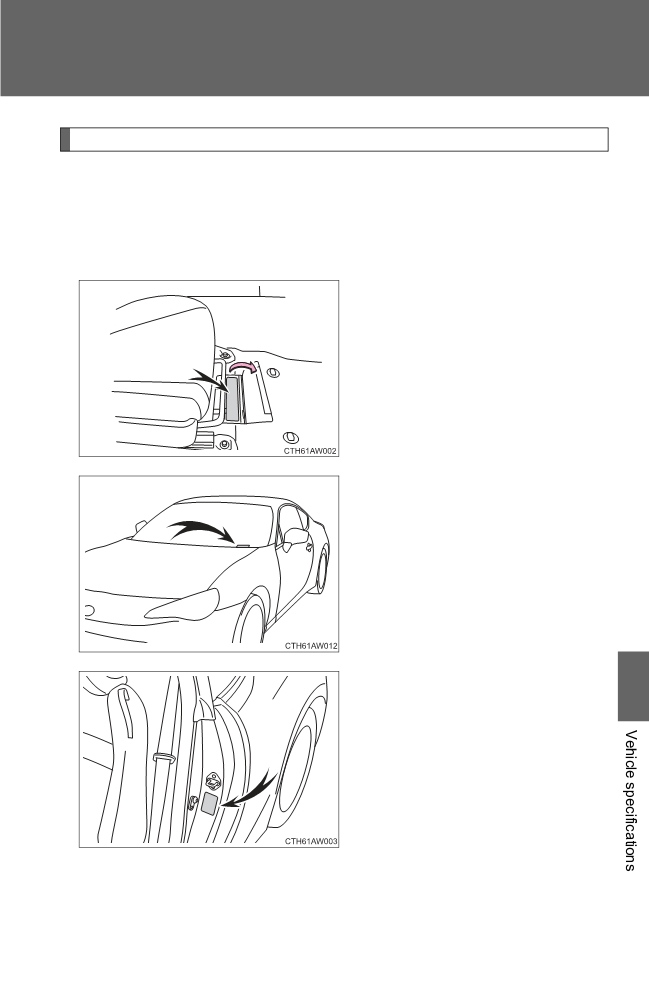

Vehicle identification
■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is located on the
top left of the body panel.
This number is also on the Certi-
6
fication Label.
459
6-1. Specifications

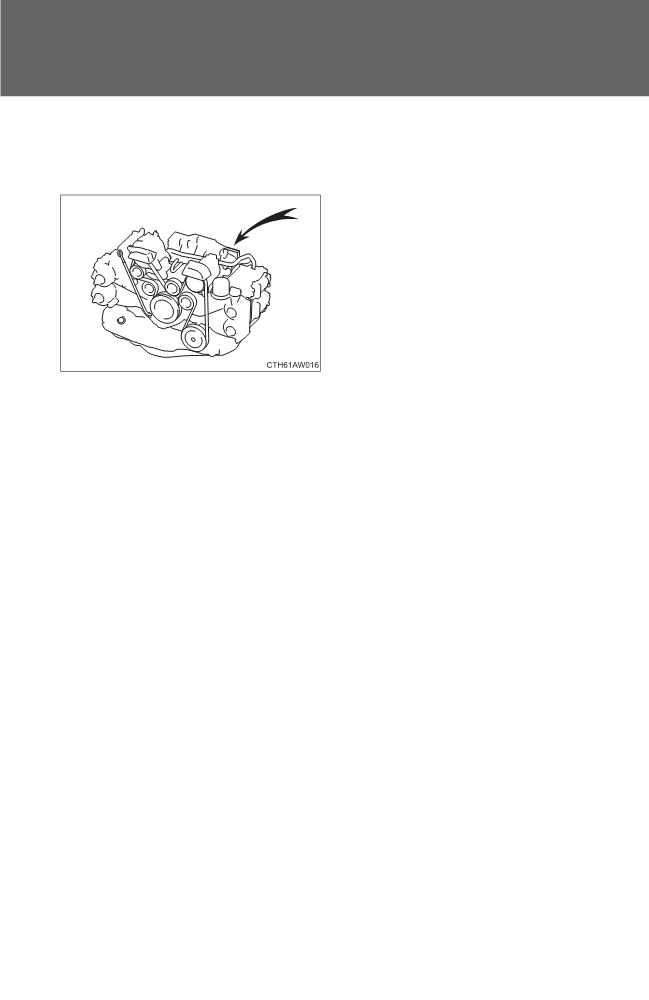

■ Engine number
The engine number is stamped on the engine block as shown.
460
6-1. Specifications
Engine
Model
FA20
Horizontally opposed, liquid cooled 4 cylinder, 4-
Type
stroke gasoline
Bore and stroke
3.39 3.39 in. (86.0 86.0 mm)
Displacement
121.93 cu.in. (1998 cm3)
Drive belt tension
Automatic adjustment
Fuel
Fuel type
Unleaded gasoline only
Octane rating
93 (Research octane number 98) or higher*
Fuel tank capacity
13.2 gal. (50 L, 11.0 Imp. gal.)
(Reference)
*: If unleaded gasoline with an octane rating of 93 (98 RON) is not available,
unleaded gasoline with an octane rating of 91 (95 RON) may be used with
no detriment to engine durability or driveability.
6
461
6-1. Specifications

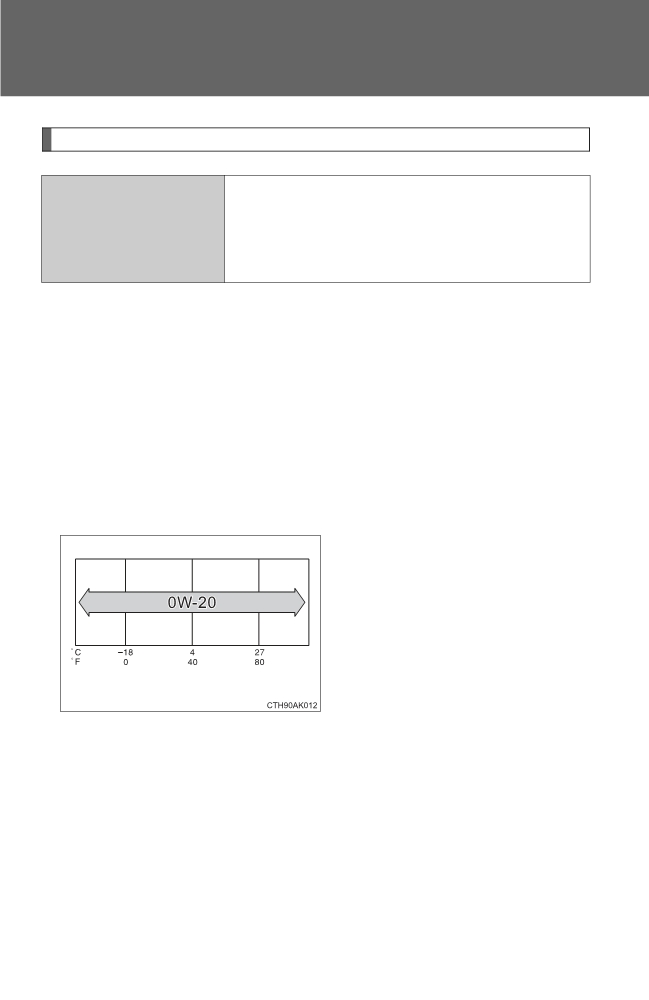

Lubrication system
Oil capacity
(Drain and refill
reference*)
Without filter
5.5 qt. (5.2 L, 4.6 Imp. qt.)
With filter
5.7 qt. (5.4 L, 4.8 Imp. qt.)
*:
The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
Outside temperature
change.
462
6-1. Specifications
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.

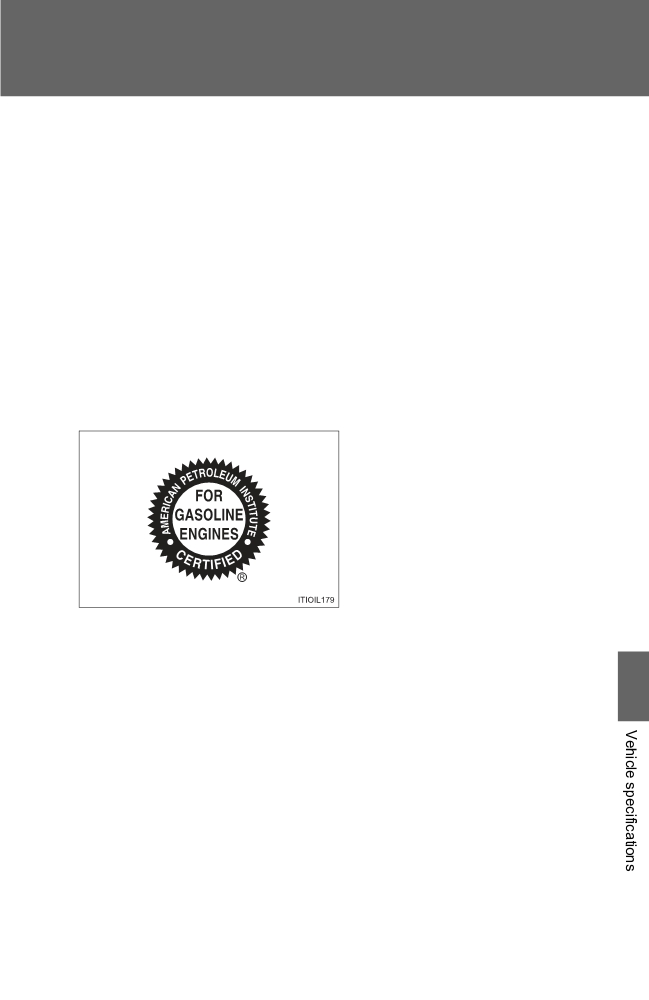

How to read oil container label:
The International Lubricant Specification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oil you should use.
6
463
6-1. Specifications
Cooling system
Vehicles with an automatic transmission
7.9 qt. (7.5 L, 6.6 Imp. qt.)
Capacity
Vehicles with a manual transmission
7.6 qt. (7.2 L, 6.3 Imp. qt.)
Use either of the following.
• “TOYOTA Genuine 50/50 Pre-mixed Super Long
Life Coolant BLUE”
• Similar high-quality ethylene glycol-based non-
Coolant type
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Ignition system
Spark plug
Make
DENSO ZXE27HBR8
Gap
0.031 in. (0.8 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
464
6-1. Specifications
Electrical system
Battery
Specific gravity reading at
1.250 1.290 Fully charged
68F (20C):
1.160 1.200 Half charged
1.060 1.100 Discharged
Charging rates
Quick charge
15 A max.
Slow charge
5 A max.
Differential
Oil capacity (Refer-
1.20 qt. (1.15 L, 1.01 Imp. qt.)
ence)
• Toyota Genuine Differential Gear Oil LX
Oil type and viscosity*
• Other LSD gear oil that meets API GL-5 and
SAE 75W-85
*: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to satisfy the above specification. Please con-
tact your Toyota dealer for further details.
NOTICE
6
■ Differential gear oil
Using a differential gear oil other than “Toyota Genuine Differential Gear Oil
LX” may cause occurrences of rattling noises and vibrations while idling and
poor fuel consumption.
Never use different brands together.
465
6-1. Specifications
Automatic transmission
Fluid capac-
7.9 qt. (7.5 L, 6.6 Imp. qt.)
ity*
Fluid type
TOYOTA Genuine ATF WS
*: The fluid capacity is provided as a reference. If replacement is necessary,
contact your Toyota dealer.
NOTICE
Using automatic transmission fluid other than “TOYOTA Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission accom-
panied by vibration, and ultimately damage the automatic transmission of your
vehicle.
Manual transmission
Gear oil capacity (Reference)
2.3 qt. (2.2 L, 1.9 Imp. qt.)
Use either of the following:
• “TOYOTA Genuine MG Gear Oil special
Gear oil type and viscosity
II”
• Other gear oil that meets API GL-3* and
SAE 75W-90 specifications
*: The recommended oil grade is API GL-3. However, API GL-4 can also be
used.
NOTICE
■ Manual transmission gear oil
Using a manual transmission gear oil other than “TOYOTA Genuine MG
Gear Oil special II” may cause occurrences of rattling noises while idling and
poor fuel consumption.
Never use different brands together.
466
6-1. Specifications
Clutch
Pedal free play
0.2 0.6 in. (5 15 mm)
Fluid type
SAE J1703 or FMVSS No.116 DOT 3
Brakes
Pedal clearance*1
2.16 in. (55 mm) Min.
Pedal free play
0.020 0.106 in. (0.5 2.7 mm)
Brake pad wear limit
0.06 in. (1.5 mm)
Parking brake lining wear limit
0.06 in. (1.5 mm)
Parking brake lever travel*2
7 8 clicks
Fluid type
SAE J1703 or FMVSS No.116 DOT 3
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running.
*2: Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N,
20.4 kgf).
6
467
6-1. Specifications
Steering
Free play
Less than 1.2 in. (30 mm)
Tires and wheels
Type A
Tire size
215/45R17 87W, T135/80D16 101M
Tire inflation pressure
Front: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
(Recommended cold tire
Rear: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
inflation pressure)
Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size
17 7 J, 16 4T (compact spare)
Wheel nut torque
89 ft•lbf (120 N•m, 12.2 kgf•m)
Type B
Tire size
P215/45R17 87V, T135/80D16 101M
Tire inflation pressure
Front: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
(Recommended cold tire
Rear: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
inflation pressure)
Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size
17 7 J, 16 4T (compact spare)
Wheel nut torque
89 ft•lbf (120 N•m, 12.2 kgf•m)
468
6-1. Specifications
Light bulbs
Light Bulbs
Bulb No.
W
Type
Front side marker lights
#194
3.8
A
Exterior
License plate lights
W5W
5
A
Back-up lights
W16W
16
A
Trunk light
W5W
5
B
Door courtesy lights (if
Interior
T10
5
B
equipped)
Interior light
10
C
A: Wedge base bulbs (clear)
B: Wedge base bulbs (amber)
C: Double end bulbs
6
469
6-1. Specifications
Fuel information
The engine is designed to operate at maximum performance using
unleaded gasoline with an octane rating of 93 (98 RON) or higher. If
an octane rating of 93 (98 RON) fuel is not readily available in your
area, unleaded gasoline with an octane rating of 91 (95 RON) may be
used with no detriment to engine durability or driveability. However,
you may notice a slight decrease in maximum engine performance
and you may hear some knocking (pinging) of an engine while using
an octane rating of 91 (95 RON) fuel.
If the octane rating is less than 91, damage to the engine may occur
and may void the vehicle warranty.
■ Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
● Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
470
6-1. Specifications
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
■ Fuel octane rating
This octane rating is the average of the Research Octane and Motor Octane
numbers and is commonly referred to as the Anti Knock Index.
Using a gasoline with a lower octane rating can cause persistent and heavy
knocking, which can damage the engine. Do not be concerned if your vehi-
cle sometimes knocks lightly when you drive up a hill or when you acceler-
ate. Contact your Toyota dealer if you use a fuel with the specified octane
rating and your vehicle knocks heavily or persistently.
■ Gasoline for California-certified LEV
If your vehicle was certified to California’s low emission vehicle (LEV) stan-
dards as indicated on the underhood tune-up label, it is designed to optimize
engine and emission performance with gasoline that meets the clean burn-
ing low-sulfur California gasoline specifications. If you live in any other state
than California, your vehicle will operate on gasoline meeting Federal speci-
fications. Gasoline sold outside California is permitted to have higher sulfur
levels, which may affect the performance of your vehicle’s catalytic converter
and may produce a sulfur exhaust odor or smell. Toyota recommends that
you try a different brand of unleaded gasoline having lower sulfur to deter-
mine if the problem is fuel related before returning your vehicle to an autho-
rized dealer for service.
6
471
6-1. Specifications
■ Toyota recommends the use of gasoline containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives con-
centration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■ Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol is available in many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.

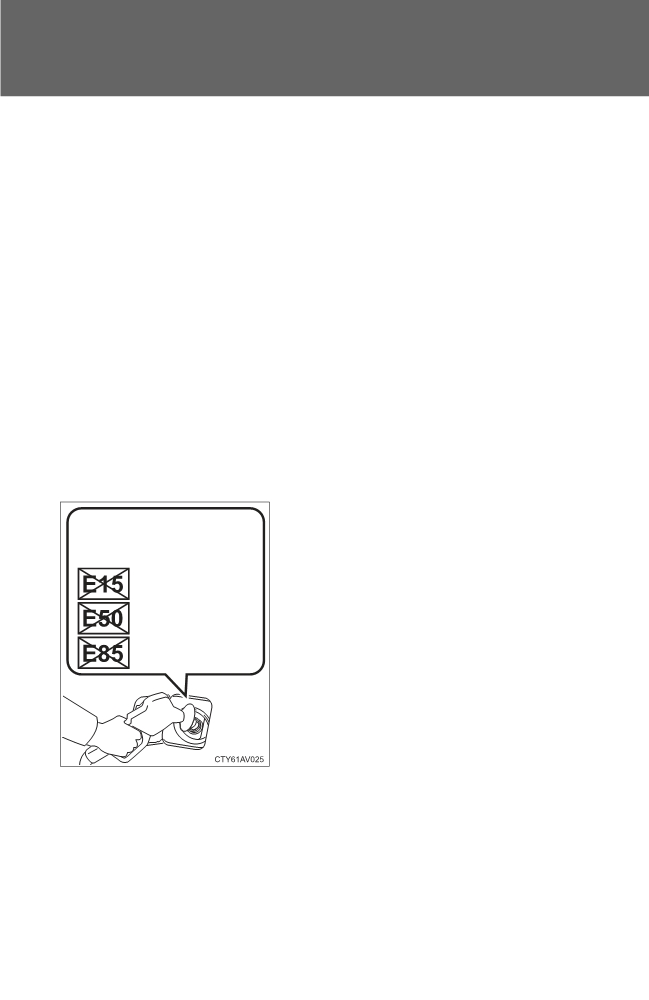

■Non-recommendation of the use of blended gasoline
● Use only gasoline containing a maxi-
DO NOT use gasoline
mum of 10% ethanol.
containing more than 10%
DO NOT use any flex-fuel or gasoline
ethanol.
that could contain more than 10% etha-
(15% ethanol)
nol, including from any pump labeled
E15, E30, E50, E85 (which are only
(50% ethanol)
some examples of fuel containing more
(85% ethanol)
than 10% ethanol).
● If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 93.
● Toyota DOES NOT recommend the use of gasoline containing methanol.
472
6-1. Specifications
■ Toyota does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota DOES NOT recommend the use of gasoline that contains MMT. If
fuel containing MMT is used, your emission control system may be
adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
NOTICE
■ Notice on fuel quality
● Do not use improper fuels. If improper fuels are used the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated may cause persistent heavy knocking.
At worst, this may lead to engine damage and will void the vehicle war-
ranty.
■ Fuel-related poor driveability
6
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle's paint.
473
6-1. Specifications

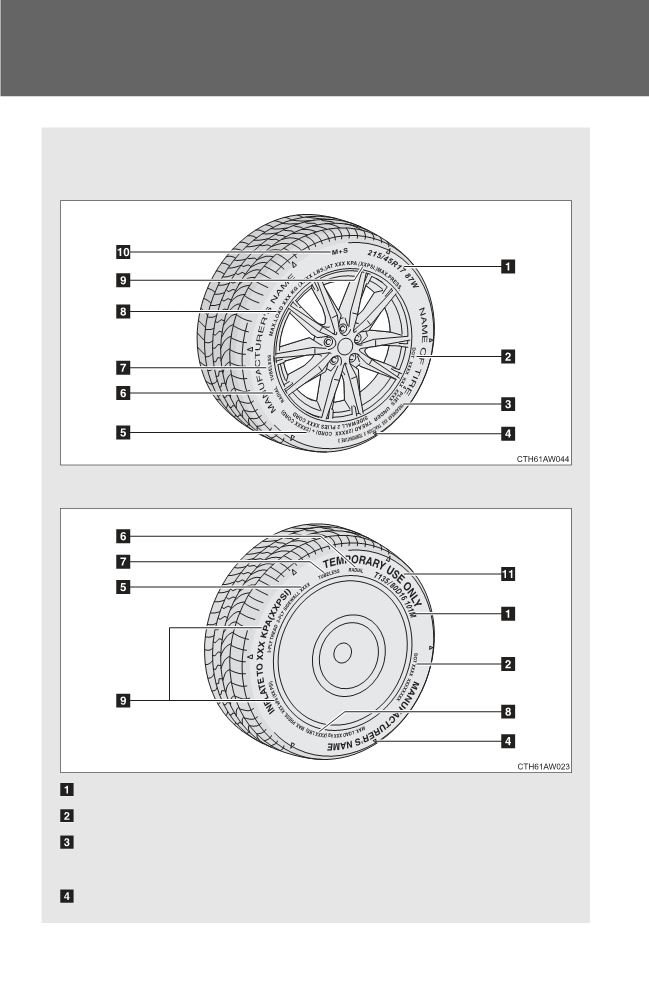

Tire information
Typical tire symbols
Standard tire
Compact spare tire
Tire size
(P. 477)
DOT and Tire Identification Number (TIN)
(P. 476)
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
Location of treadwear indicators
(P. 345)
474
6-1. Specifications
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the
strands which form the plies in a tire.
Radial tires or bias-ply tires
A radial tire has
“RADIAL” on the sidewall. A tire not marked
“RADIAL” is a bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly filled in the
tire. A tube type tire has a tube inside the tire and the tube main-
tains the air pressure.
Load limit at maximum cold tire inflation pressure
(P. 348)
Maximum cold tire inflation pressure
(P. 468)
This means the pressure to which a tire may be inflated.
Summer tire or all season tire
(P. 348)
An all season tire has “M+S” on the sidewall. A tire not marked
“M+S” is a summer tire.
“TEMPORARY USE ONLY”
(P. 429)
A compact spare tire is identified by the phrase “TEMPORARY
USE ONLY” molded into its sidewall. This tire is designed for tem-
porary emergency use only.
6
475
