5-5. Using the driving support systems
459

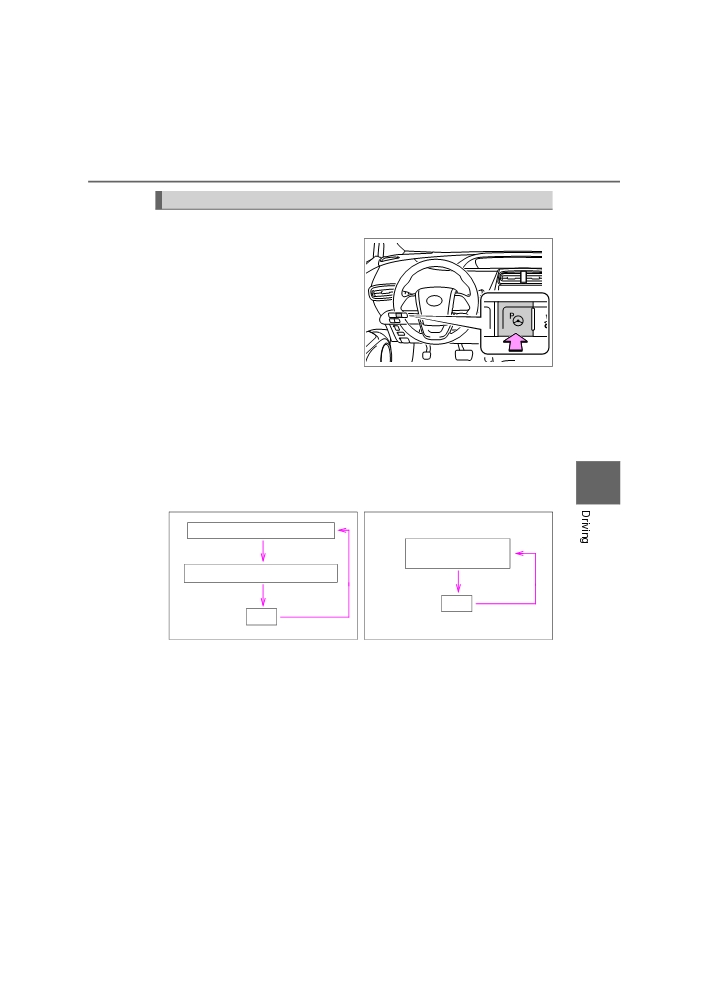

Switching assist mode
■ Switching using the S-IPA switch
Press the switch
This allows you to switch func-
tions and cancel or restart assist
modes.
IO55PH104
While the power switch is on, the vehicle speed is approximately
30 km/h (19 mph) or less, each time the S-IPA switch is pressed the
function switches as follows.
The selected function is indicated on the operation display area of the
multi-information display (P. 460).
When the S-IPA switch is
When the S-IPA switch is
pressed with the shift position
pressed with the shift position
5
not in P
in P
Parallel parking assist mode
Exit parallel parking
assist mode
Back-in parking assist mode*
Off
Off
*: The back-in parking assist mode can be switched to when its operating
conditions are met (P. 479). When the operating conditions are not met,
it switches to off.
PRIUS PHV_OM_OM47A89E_(EE)
460
5-5. Using the driving support systems

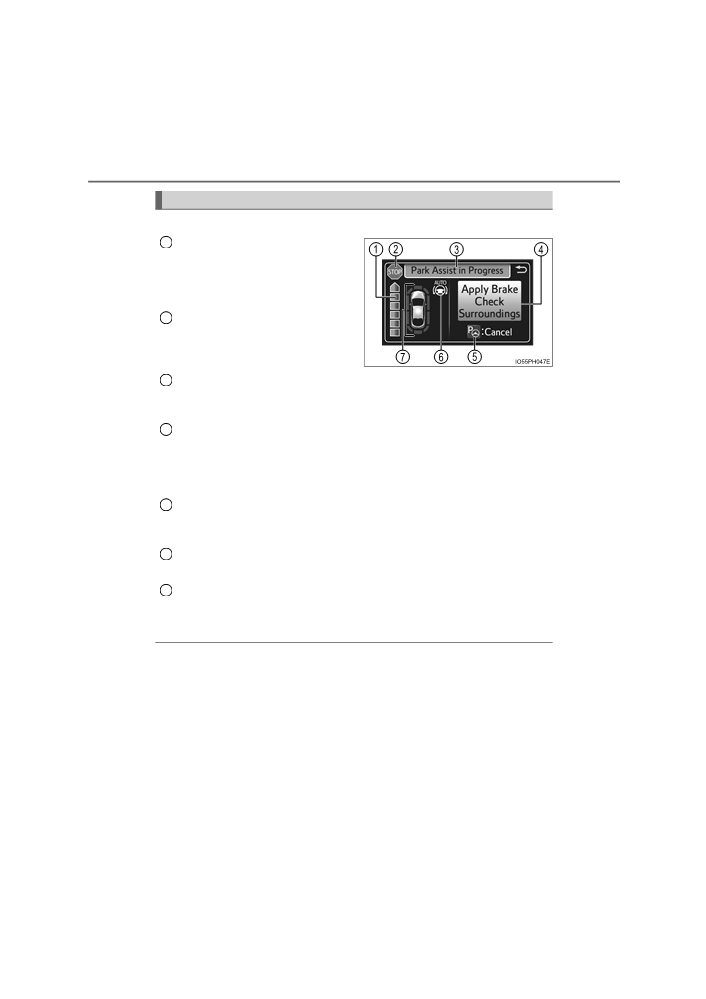

Guidance screen
The guidance screen is displayed on the multi-information display.
1
Assistance level indicator
Displays a gauge indicating the
level until the vehicle’s stopping
position/the position at which assist
control ends.
2
Stop display
When illuminated, depress the
brake pedal and stop the vehicle at
once.
Operation display area
3
Displays the operating condition of the Simple Intelligent Parking Assist
System.
4
Advice display
Follow the instructions on the display and perform any indicated opera-
tions. As an example, the illustration shows the display indicating it is nec-
essary to depress the brake pedal in order to control the vehicle speed and
to confirm the safety of your surroundings.
5
S-IPA switch icon
Displayed when the assist mode can be changed and the system can be
turned off or on using the S-IPA switch.
6
Steering wheel auto operation display
Displays when the steering wheel auto operation is being performed.
7
Toyota parking assist-sensor display/door position (open/close) dis-
play
P. 433
■ S-IPA indicator inside the meter (P. 203)
This indicator illuminates when the steering wheel auto operation is being
performed by the Simple Intelligent Parking Assist System. After control
ends, the indicator blinks for a short period of time and then turns off.
■ Toyota parking assist-sensor pop-up display
While the Simple Intelligent Parking Assist System is operating, if the Toyota
parking assist-sensor function detects an obstacle, the Toyota parking assist-
sensor display automatically pops up on the guidance screen (P. 433),
regardless of whether the Toyota parking assist-sensor function is on or off.
(P. 432)
PRIUS PHV_OM_OM47A89E_(EE)
5-5. Using the driving support systems
461
Canceling or stopping assist mode
Assist mode will be canceled or stopped in the following cases.
■ Assist control is canceled when
● The system temperature preservation function operates
● There is a system malfunction
● System determined that the parking environment is not suitable
for assist to continue
When assist control is canceled, firmly grasp the steering wheel,
depress the brake pedal and stop the vehicle.
Start again from the beginning, as the system will already be can-
celed. When continuing to park manually, operate the steering
wheel as you normally would.
■ Assist control is stopped when
● The steering wheel is operated
● The vehicle speed exceeds 7 km/h (4 mph) during assist control
● The Intelligent Clearance Sonar function operates
5
When assist control is stopped, it can be resumed by following the
guidance shown on the screen.

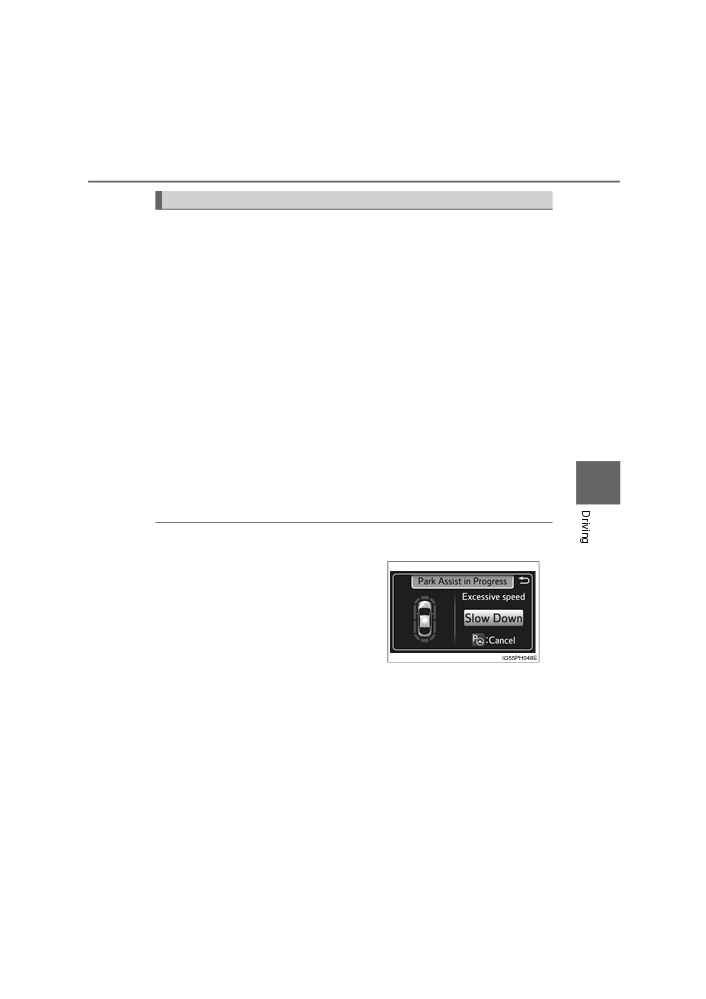

■ If the vehicle speed is about to exceed the speed limit during assist con-
trol
A buzzer sounds and the message indi-
cating there is possibility that the vehicle
speed may exceed the speed limit.
When the message is displayed, immedi-
ately depress the brake pedal to deceler-
ate. If the vehicle continues to accelerate,
assist control will be canceled when the
vehicle speed exceeds a certain speed.
(P. 484)
PRIUS PHV_OM_OM47A89E_(EE)
462
5-5. Using the driving support systems

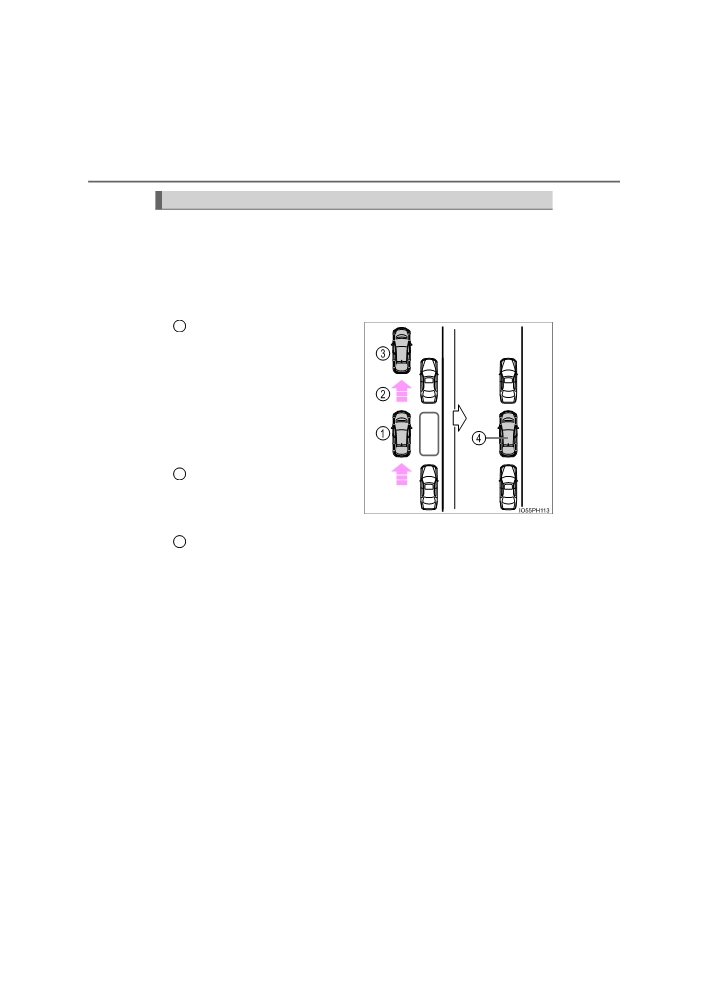

How to parallel park (parallel parking assist mode)
■ Function summary
If a parking space can be detected, you will be guided forward until
you reach the assist control starting position, and then the parallel
parking assist mode can be used. Furthermore, depending on the
parking space and other conditions, multi-turn maneuvering assist
control is also provided if necessary.
Continue moving forward
1
with the vehicle parallel to
the curb or road, and stop so
that the center of the target
parking spot appears nearly
perpendicular to the vehicle.
Then press the S-IPA switch
1 time to select the parallel
parking assist mode.
Travel straight ahead paral-
2
lel with the road or curb so
that the parking space is
detected.
A sound is issued and a display is shown to notify you when the
3
vehicle reaches a position where assist control can be used to
begin backing up from, and then when the shift position is
changed according to guidance provided by the system, steering
wheel auto operation begins.
If the detected parking space or road width (distance to the side of the
road across from the parking space) is narrow, or if there are obstacles
in front of the vehicle, guidance will not be issued.
PRIUS PHV_OM_OM47A89E_(EE)
5-5. Using the driving support systems
463
4
Parking is complete
This completes the assist mode. Depending on the condition of the
parking space, guidance to starting points for moving forward and back-
ing up, as well as the steering wheel auto operation, are repeated any
time multi-turn maneuvering is necessary following step
3
from the
time the vehicle begins backing up until parking completes.

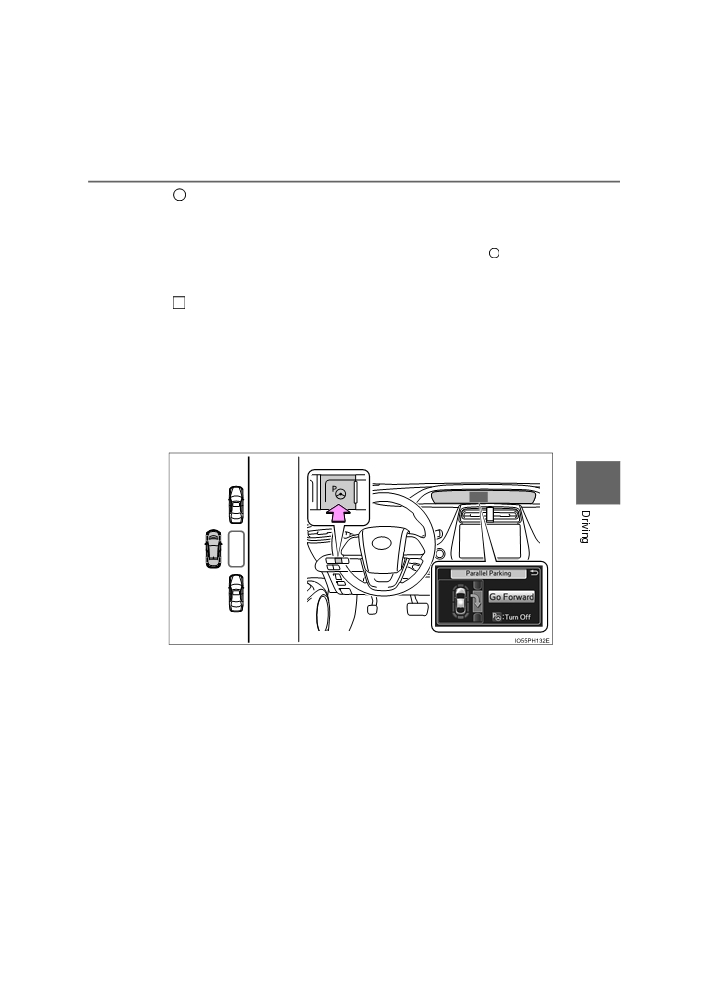

■ Parking
Stop so that the center of the target parking spot appears nearly
1
perpendicular to vehicle. Then press the S-IPA switch 1 time and
check that the display on the multi-information display switches
to “Parallel Parking”.
● The mode switches each time the S-IPA switch is pressed.
(P. 459)
● When the vehicle speed is approximately 30 km/h (19 mph) or
higher, pressing the S-IPA switch will not cause the screen to
switch to the “Parallel Parking” display.
5
PRIUS PHV_OM_OM47A89E_(EE)
464
5-5. Using the driving support systems

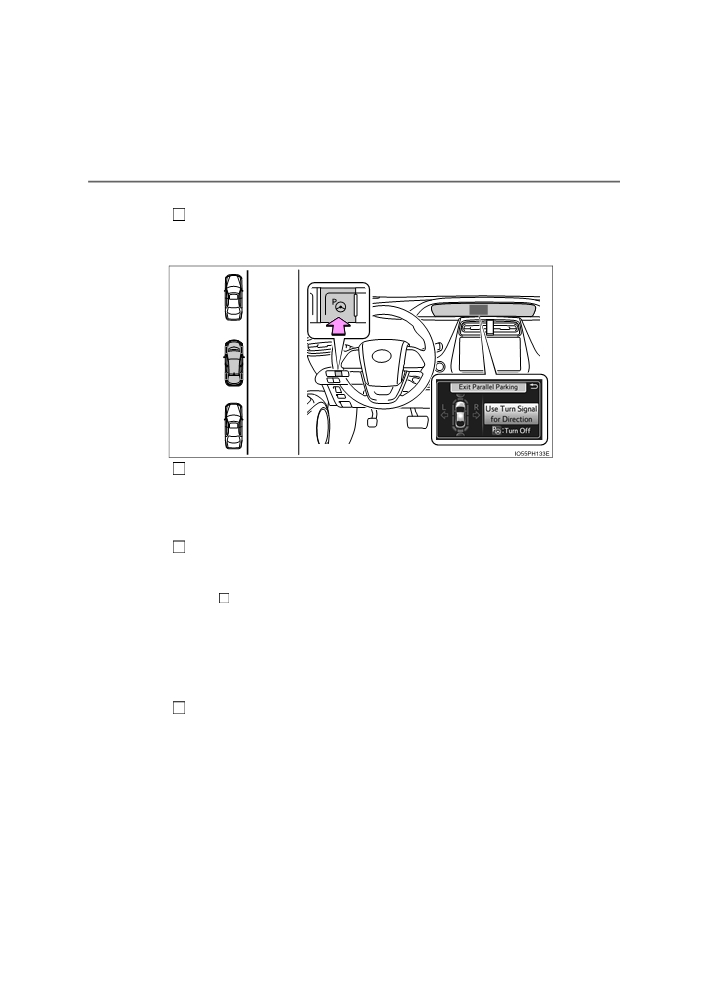

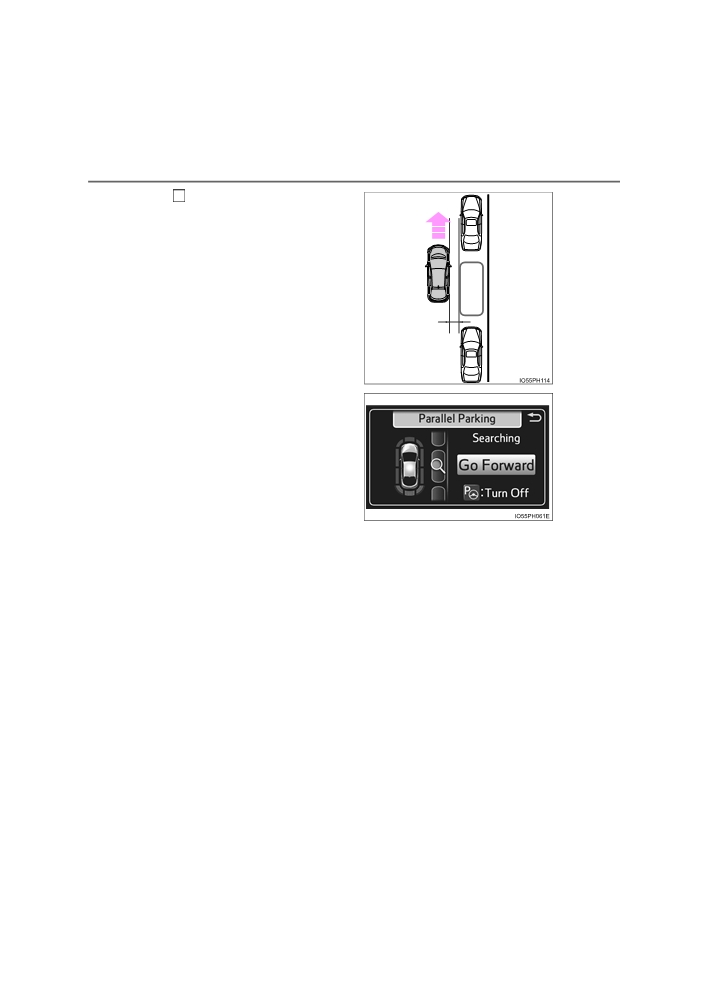

2
Travel straight ahead paral-
lel with the road
(or curb),
and maintain a gap of
approximately
1 m (3.3 ft.)
from any parked vehicles.
● Proceed slowly.
● The system will begin
searching for a parking
1 m
space.
(3.3 ft.)
● While searching for a
space, the turn signal lever
(P. 339) can be operated
to select a parking space
on the left or right.
● When stopping the func-
tion, press the S-IPA
switch once to turn the
function off.
● When a parking space is
detected, the screen will
change.
PRIUS PHV_OM_OM47A89E_(EE)

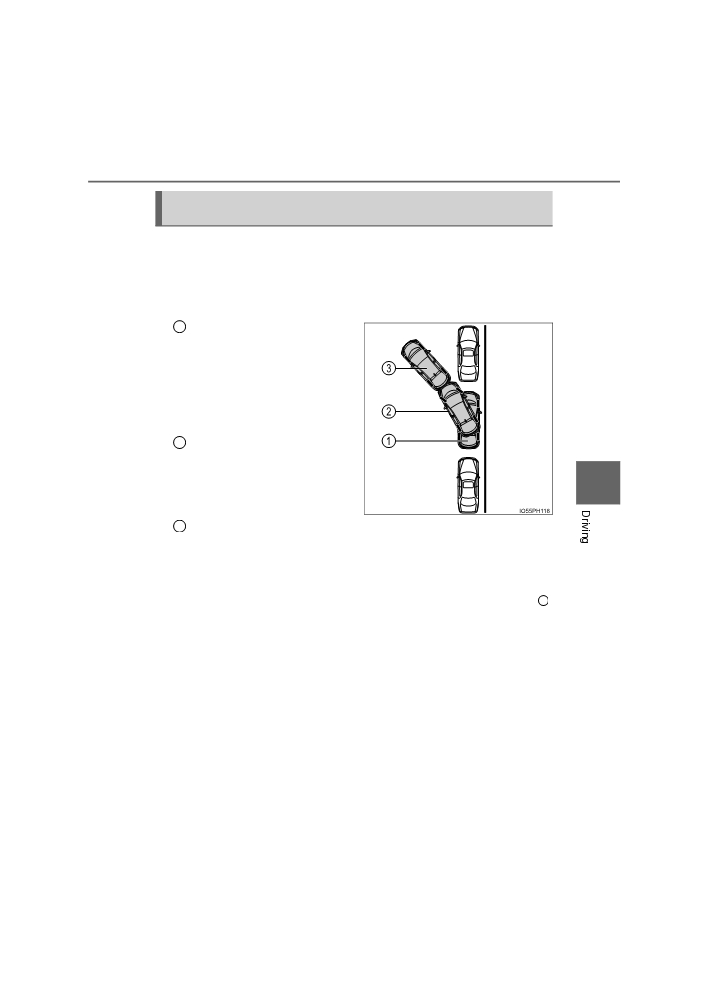

5-5. Using the driving support systems
465

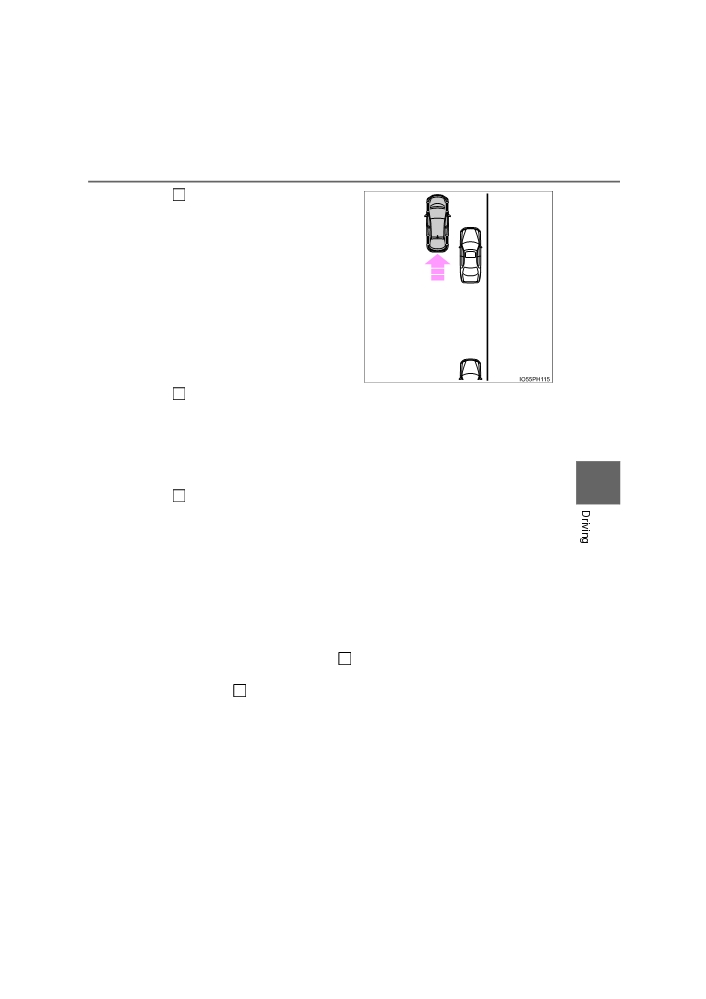

3
When a beep sounds once
and the stop display (P. 460)
is shown on the display, stop
the vehicle.
4
When the shift position is changed to R, a high-pitched beep is
emitted and assist control will start.
● When the steering wheel auto operation starts, the steering
wheel auto operation display (P. 460) and assistance level
indicator (P. 460) will be shown in the display area.
● To stop assist control, press the S-IPA switch.
5
Assume an ordinary posture for backing up, rest your hands
5
lightly on the steering wheel without applying any force, directly
confirm the safety of the area to the rear and around the vehicle,
confirm that there are no obstacles in the parking space, and
slowly back up while adjusting your speed by depressing the
brake pedal.
● When backing up too quickly, a sharp beeping sound is emit-
ted and assist control is stopped. (P. 484)
● When the vehicle cannot be cleanly entered within the target
parking spot on the first try and multi-turn maneuvering is nec-
essary, proceed to step
6
When multi-turn maneuvering is not necessary, proceed to
step
12
PRIUS PHV_OM_OM47A89E_(EE)

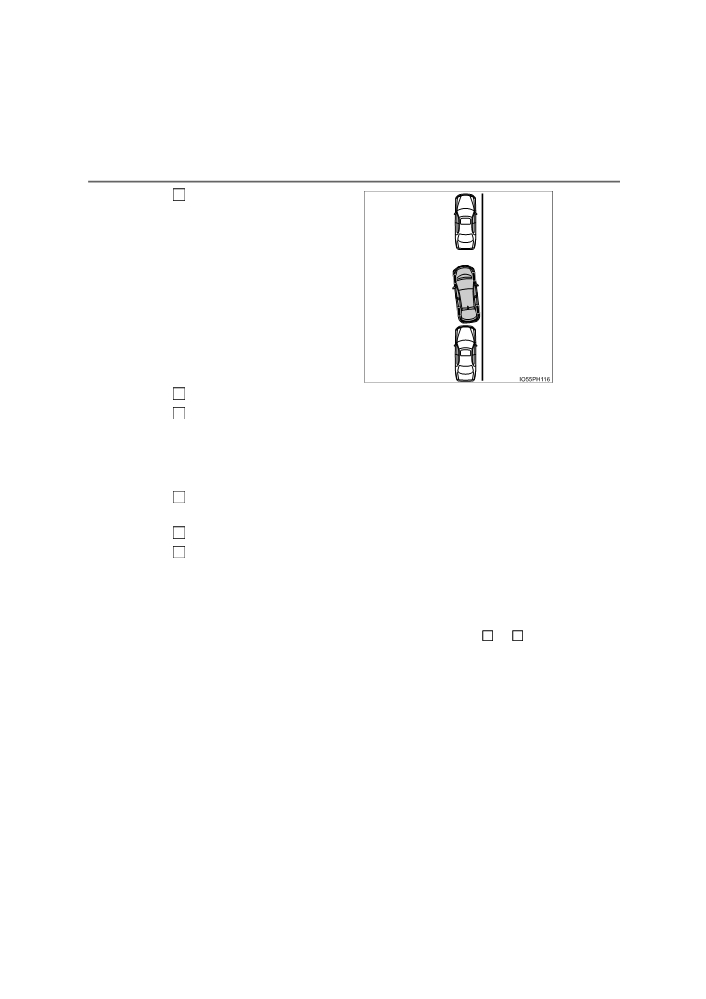

466
5-5. Using the driving support systems

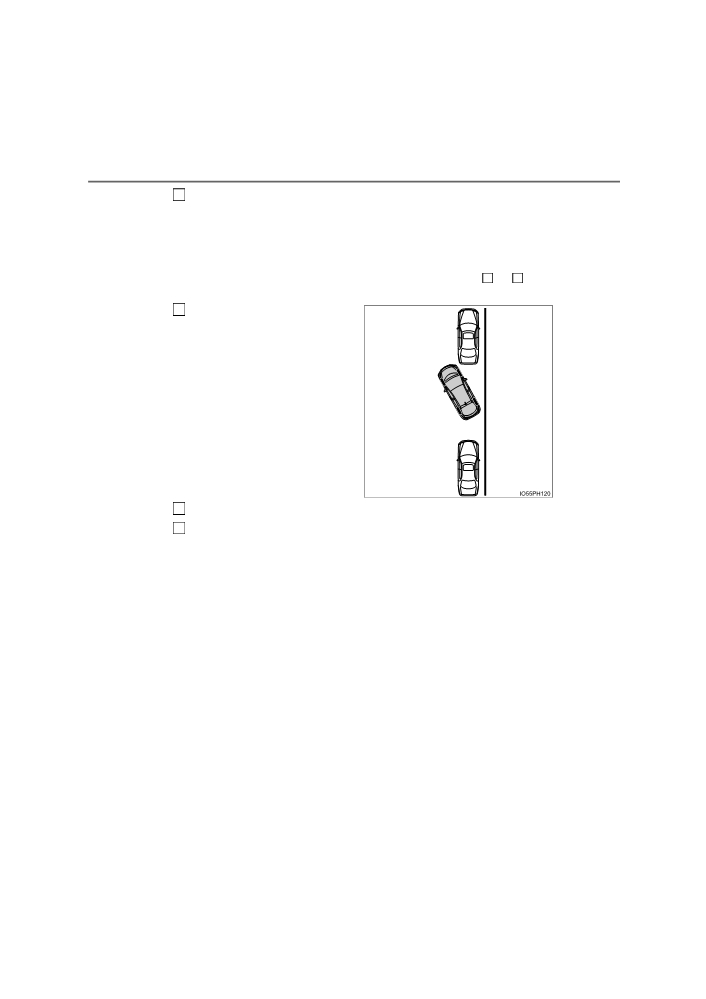

6
When a beep sounds once
and the stop display (P. 460)
is shown on the display, stop
the vehicle.
Change the shift position to D.
7
Assume an ordinary driving posture, rest your hands lightly on
8
the steering wheel without applying any force, directly confirm
the safety of the area to the front and around the vehicle and
slowly proceed forward while adjusting your speed by depressing
the brake pedal.
When a beep sounds once and the stop display (P. 460) is
9
shown on the display, stop the vehicle.
Change the shift position to R.
10
Assume an ordinary posture for backing up, rest your hands
11
lightly on the steering wheel without applying any force, directly
confirm the safety of the area to the rear and around the vehicle
and slowly back up while adjusting your speed by depressing the
brake pedal.
Depending on the condition of the parking space, steps
6
to
11
may
need to be repeated.
PRIUS PHV_OM_OM47A89E_(EE)

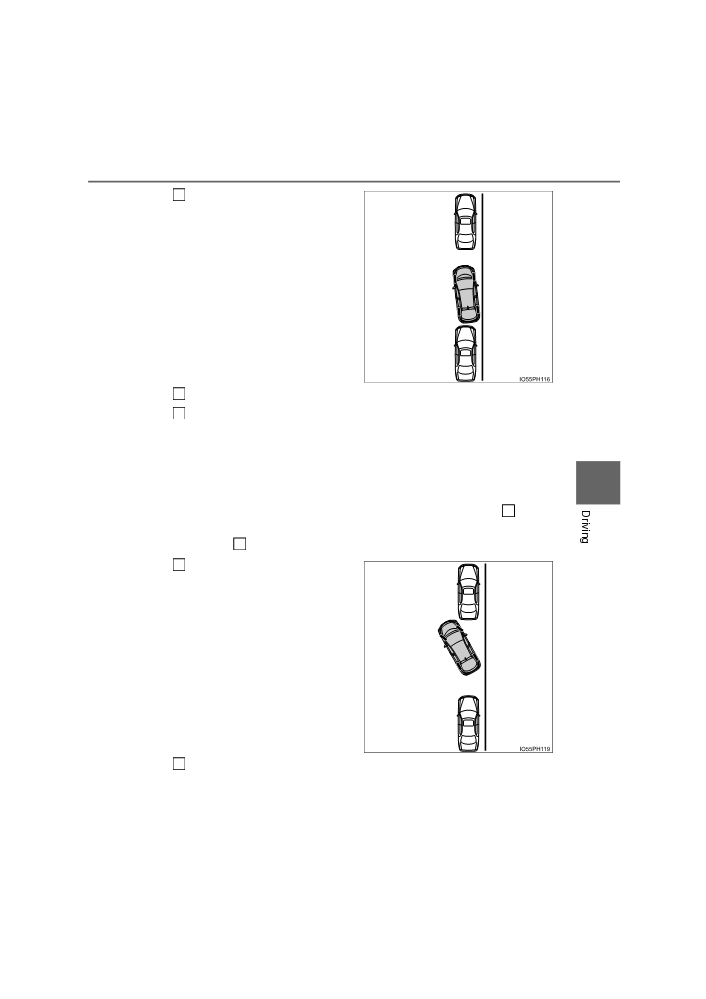

5-5. Using the driving support systems
467

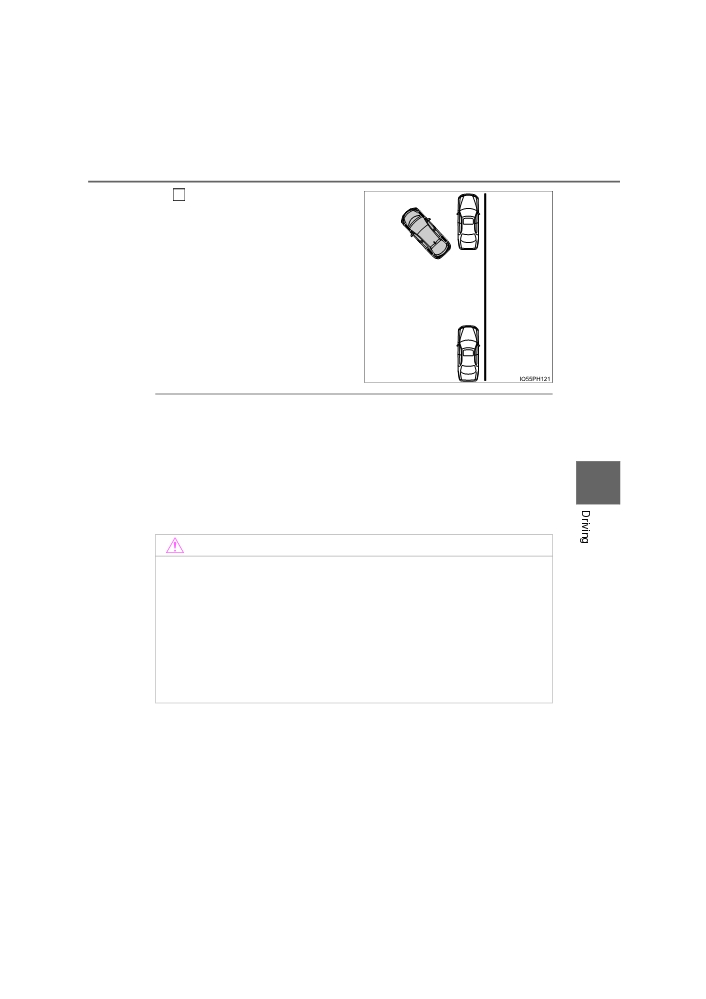

When the vehicle is almost entirely within the target parking spot,
12
a high-pitched beep is emitted and the stop display is shown on
the display, stop the vehicle.
This completes the parallel parking assist mode.
● After stopping, feel free to maneuver the vehicle to reach the
desired parking spot.
● Be sure to back up while checking the area to the front and
rear of the vehicle directly and by using the mirrors.
■ Parallel parking assist mode operating conditions
● In order to operate the parallel parking assist mode correctly, drive slowly (at
a speed at which the vehicle can be quickly stopped) parallel to the road (or
shoulder) while maintaining a distance of approximately 1 m (3 ft.) to any
parked vehicles.
● The function cannot be used when the vehicle speed is approximately
30 km/h (19 mph) or higher.
● The front side sensors and rear side sensors are used to detect parked
vehicles and determine the parking spot. Therefore, when detection is not
possible (P. 490), guidance is not issued.
5
● If there are no parked vehicles, the parking spot cannot be determined.
Therefore, the parallel parking assist mode cannot be operated.
● If unable to detect the environment surrounding the parking space, the par-
allel parking assist mode may not be able to operate.
● Guidance will continue until the vehicle speed meets or exceeds approxi-
mately 30 km/h (19 mph) or the function is turned off using the S-IPA switch.
■ Timing for pressing the S-IPA switch
In the following cases, the assist mode may also operate during the steps
taken to park using the parallel parking assist mode. However, in these
cases, conduct parking procedures according to the information on the multi-
information display.
● In step
1
the S-IPA switch is pressed after already passing over the target
parking spot.
If the vehicle is not stopped in step
1
, pressing the S-IPA switch 1 time
while the vehicle is in motion allows you to select “Parallel Parking” and
proceed directly to step
2
●The vehicle is moved up to the position in step
3
without the S-IPA switch
being pressed. Then the S-IPA switch is pressed after having changed the
shift position to R.
PRIUS PHV_OM_OM47A89E_(EE)
468
5-5. Using the driving support systems
NOTICE
● If the road surface has any dips or inclines, the target parking spot cannot
be correctly set. Therefore, the vehicle may be parked at an angle or may
deviate from the parking spot. In these cases, do not use the parallel park-
ing assist mode.

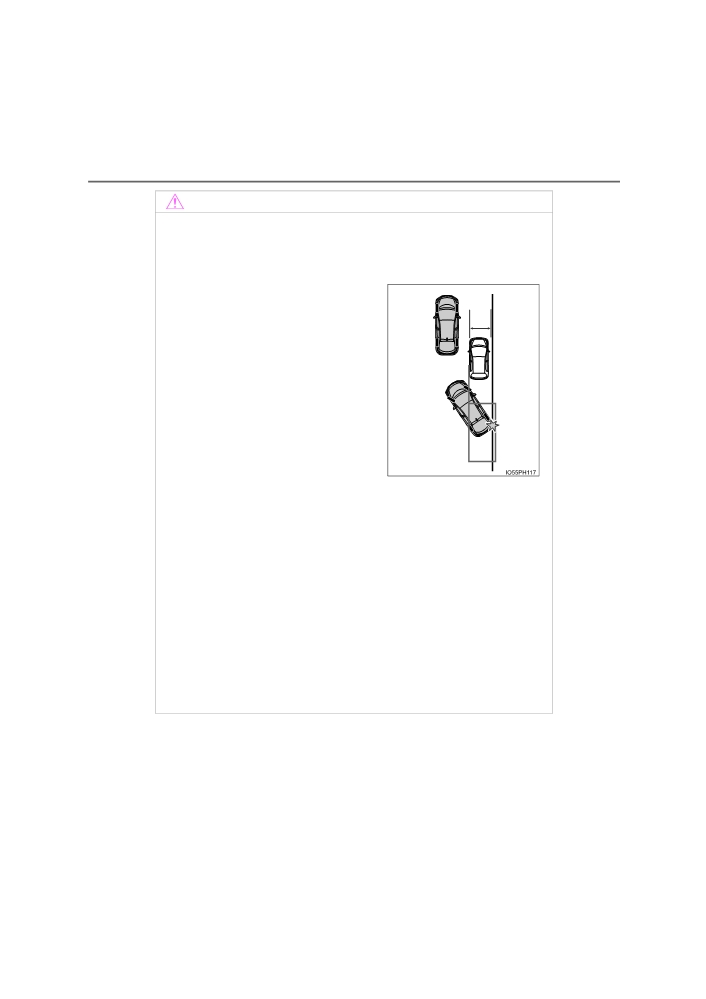

●When the other parked vehicle is nar-
row or parked extremely close to the
curb, assist control will also guide the
vehicle to a position close to the curb.
If it seems the vehicle may make con-
tact with the curb or any other obsta-
cles, or if it seems the tire position will
deviate from the intended parking spot,
stop the vehicle by depressing the
brake pedal, and then press the S-IPA
switch to turn off the system.
● When there is a wall or other obstacle on the inner side of the parking
space, or when another parked vehicle extends into the road from its park-
ing spot, the target parking spot may be set in a position that juts out
slightly into the road.
●Depending on the surrounding environment, such as other parked vehi-
cles, the vehicle may be parked at an angle or may deviate from the park-
ing spot. Manually adjust vehicle alignment as necessary.
●The system provides assistance to guide the vehicle based on position of
adjacent vehicles, even if there are obstacles, bumps, drops or curb
stones in the parking space.
If it seems the vehicle may make contact, stop the vehicle by depressing
the brake pedal, and then press the S-IPA switch to turn off the system.
● It may not be possible to detect objects that are low to the ground. Directly
confirm the safety of your surroundings and, if it seems the vehicle may
make contact with an obstacle, stop the vehicle by depressing the brake
pedal.
PRIUS PHV_OM_OM47A89E_(EE)
5-5. Using the driving support systems
469
How to depart from a parallel parking position (exit parallel park-
ing assist mode)
■ Function summary
When departing from a parallel parking position, select the direction
you would like to depart in, and steering wheel operation assist con-
trol will be provided to guide the vehicle to a position from which
you can take off.
With the shift position in P,
1
press the S-IPA switch,
select exit parallel parking
assist mode, and then oper-
ate the turn signal lever to
select the desired departure
direction.
Steering wheel auto opera-
2
tion starts when the shift
position is changed accord-
5
ing to guidance provided by
the system.
A sound is issued and a display is shown to notify you when the
3
vehicle reaches a position from which you can take off.
Depending on the condition of the parking space, guidance to starting
points for moving forward and backing up, as well as the steering wheel
auto operation, are repeated any time multi-turn maneuvering is neces-
sary from the time the steering wheel auto operation begins in step
2
up until the vehicle reaches a position from which it can take off.
PRIUS PHV_OM_OM47A89E_(EE)
470
5-5. Using the driving support systems
■ Using the exit parallel parking assist mode to depart
With the shift position in P, press the S-IPA switch and check that
1
the display on the multi-information display switches to “Exit Par-
allel Parking”.
Operate the turn signal lever (P. 339) to select whether you
2
would like to depart to the left or right.
If there are any obstacles in the direction the vehicle is departing in, the
system determines that it is not possible to depart, and assist control is
stopped.
When the shift position is changed to R (or D) according to the
3
advice display on the screen (P. 460), a high-pitched beep is
emitted and assist control will start.
Step
4
and onward is for cases in which the advice display shows “Shift
to [R]” after operating the turn signal lever to select a departure direc-
tion.
● When the steering wheel auto operation starts, the steering
wheel auto operation display (P. 460) and assistance level
indicator (P. 460) will be shown in the display area.
● To stop assist control, press the S-IPA switch.
Assume an ordinary posture for backing up, rest your hands
4
lightly on the steering wheel without applying any force, directly
confirm the safety of the area to the rear and around the vehicle
and slowly back up while adjusting your speed by depressing the
brake pedal.
● When backing up too quickly, a sharp beeping sound is emit-
ted and assist control is stopped. (P. 484)
PRIUS PHV_OM_OM47A89E_(EE)
5-5. Using the driving support systems
471
5
When a beep sounds once
and the stop display (P. 460)
is shown on the display, stop
the vehicle.
Change the shift position to D.
6
Assume an ordinary driving posture, rest your hands lightly on
7
the steering wheel without applying any force, directly confirm
the safety of the area to the front and around the vehicle and
slowly proceed forward while adjusting your speed by depressing
the brake pedal.
5
● When departure cannot be accomplished on the first try and
multi-turn maneuvering is necessary, proceed to step
8
● When multi-turn maneuvering is not necessary, proceed to
step
14
(P. 473).
8
When a beep sounds once
and the stop display (P. 460)
is shown on the display, stop
the vehicle.
9
Change the shift position to R.
PRIUS PHV_OM_OM47A89E_(EE)
472
5-5. Using the driving support systems
Assume an ordinary posture for backing up, rest your hands
10
lightly on the steering wheel without applying any force, directly
confirm the safety of the area to the rear and around the vehicle
and slowly back up while adjusting your speed by depressing the
brake pedal.
Depending on the condition of the parking space, steps
5
to
10
may
need to be repeated.
When a beep sounds once
11
and the stop display (P. 460)
is shown on the display, stop
the vehicle.
Change the shift position to D.
12
Assume an ordinary driving posture, rest your hands lightly on
13
the steering wheel without applying any force, directly confirm
the safety of the area to the front and around the vehicle and
slowly proceed forward while adjusting your speed by depressing
the brake pedal.
PRIUS PHV_OM_OM47A89E_(EE)
5-5. Using the driving support systems
473
14
When the vehicle has nearly
reached the take-off point, a
high-pitched beep is emitted
and assist control finishes.
From there, grasp the steer-
ing wheel and proceed for-
ward.
■ Exit parallel parking assist mode
● During assist control, if the driver determines that they are at a position
where take-off is possible and operates the steering wheel, assist control is
stopped at that position.
●Assist control cannot be used if there are no parked vehicles ahead, or if the
gap between the front of your vehicle and the vehicle parked ahead is too
5
large.
● When using the exit parallel parking assist mode, the assist mode may be
not be able to operate depending on the surrounding environment.
NOTICE
●The detection range of the sensors (P. 437) is limited. Directly confirm
the safety of your surroundings, and if there is a possibility of a contact
accident, stop the vehicle by depressing the brake pedal.
● It may not be possible to detect objects that are low to the ground. Directly
confirm the safety of your surroundings and, if it seems the vehicle may
make contact with an obstacle, stop the vehicle by depressing the brake
pedal.
●When departing for a position from which you can take off, directly confirm
the safety of your surroundings.
PRIUS PHV_OM_OM47A89E_(EE)
474
5-5. Using the driving support systems

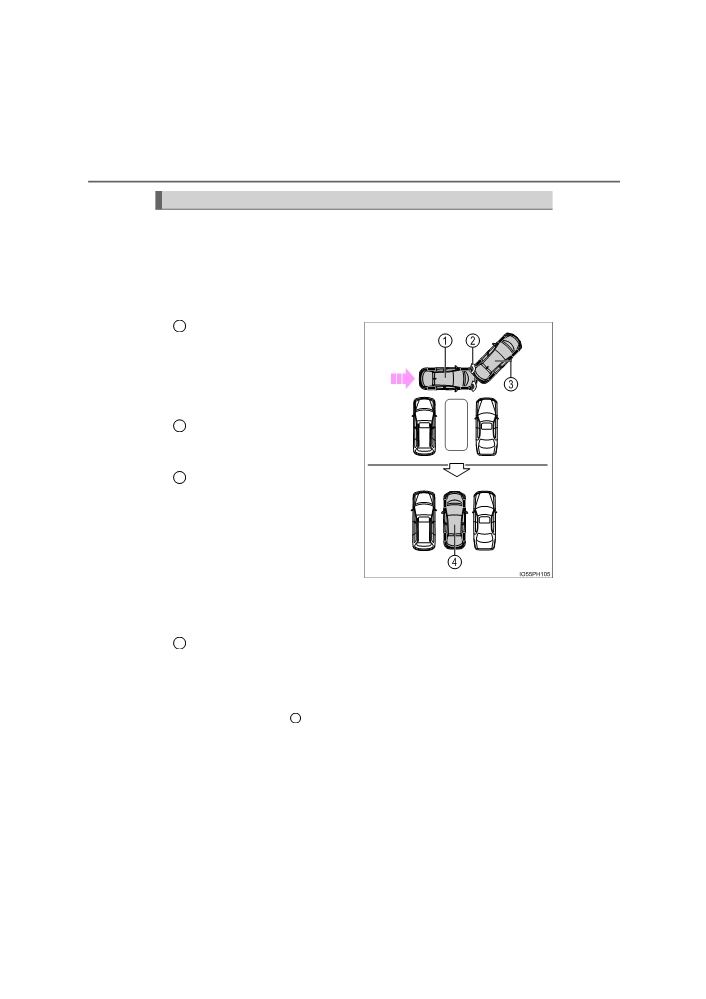

How to park next to other vehicles (back-in parking assist mode)
■ Function summary
Stop so that the center of the target parking spot appears nearly
perpendicular to the vehicle. If the space is detectable, the forward
guidance function can be used. Furthermore, depending on the
parking space and other conditions, multi-turn maneuvering assist
control is also provided if necessary.
Stop so that the center of the
1
target parking spot appears
nearly perpendicular to the
vehicle. Then press the S-
IPA switch 2 times to select
back-in parking assist mode.
Steering wheel auto opera-
2
tion starts when the vehicle
begins to move.
A sound is issued and a dis-
3
play is shown to notify you
when the vehicle reaches the
position to start backing up
from.
If the detected parking space or
road width (distance to the side
of the road across from the park-
ing space) is narrow, or if there
are obstacles in front of the vehi-
cle, guidance will not be issued.
Parking is complete
4
This completes the assist mode.
Depending on the condition of the parking space, guidance to starting
points for moving forward and backing up, as well as the steering wheel
auto operation, are repeated any time multi-turn maneuvering is neces-
sary following step
3
from the time the vehicle begins backing up until
parking completes.
PRIUS PHV_OM_OM47A89E_(EE)
5-5. Using the driving support systems
475

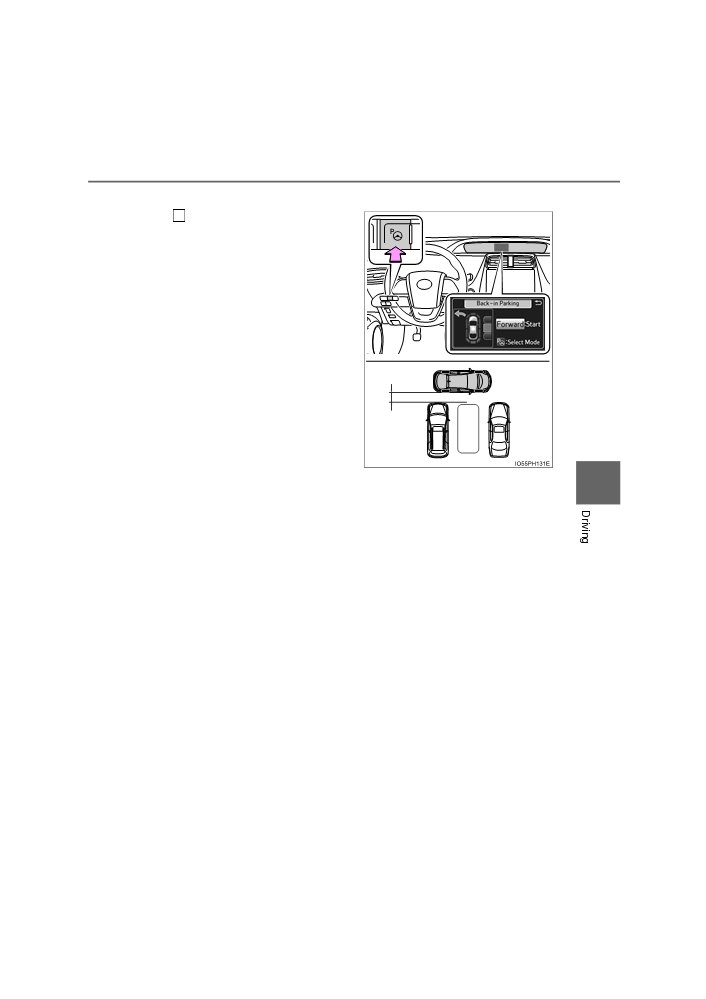

■ Parking
Stop so that the center of the
1
target parking spot appears
nearly perpendicular to vehi-
cle. Then press the S-IPA
switch 2 times and check that
the display on the multi-infor-
mation display switches to
“Back-in Parking”.
● Visually check the area in
the direction of the arrow
indicating the direction of
the steering wheel auto
operation and the target
1 m
parking spot on the dis-
(3.3 ft.)
play.
● The mode switches each
time the S-IPA switch is
5
pressed. (P. 459)
● When the shift position is not in D or B, the screen will not
switch to the “Back-in Parking” display.
● When the vehicle speed has been detected, the screen
switches to the “Parallel Parking” display. To switch the screen
to the “Back-in Parking” display, stop the vehicle completely
and press the S-IPA switch again.
● The turn signal lever (P. 339) can be operated to select
whether you would like to park to the left or right.
● The system cannot be used when the parking space is narrow
or there is not a sufficient enough area for assist control to
operate. Please refer to the information shown on the multi-
information display to use a different parking space.
PRIUS PHV_OM_OM47A89E_(EE)
