5-4. Refueling

357

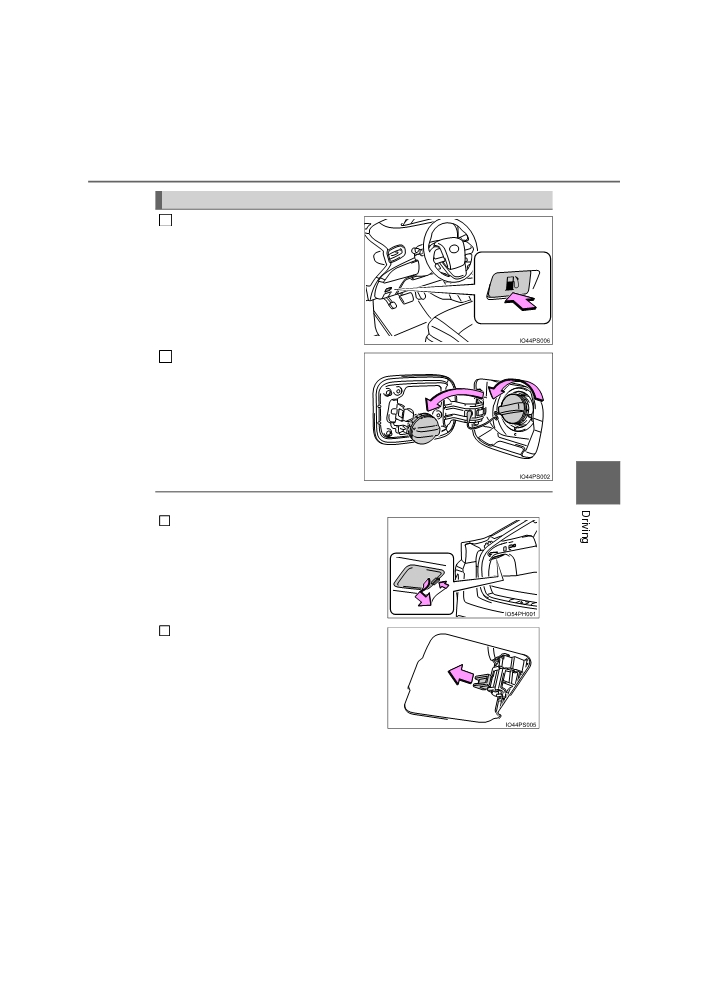

Opening the fuel tank cap

Press the opener to open the

1

fuel filler door.

Turn the fuel tank cap slowly to

2

open and hang it on the back of

the fuel filler door.

5

■ When the fuel filler door cannot be opened by pressing the inside switch

1

Open the back door and remove the

cover underneath the luggage compart-

ment light.

2

Pull the lever backward and check that

the fuel lid opens.

PRIUS PHV_OM_OM47A89E_(EE)

358

5-4. Refueling

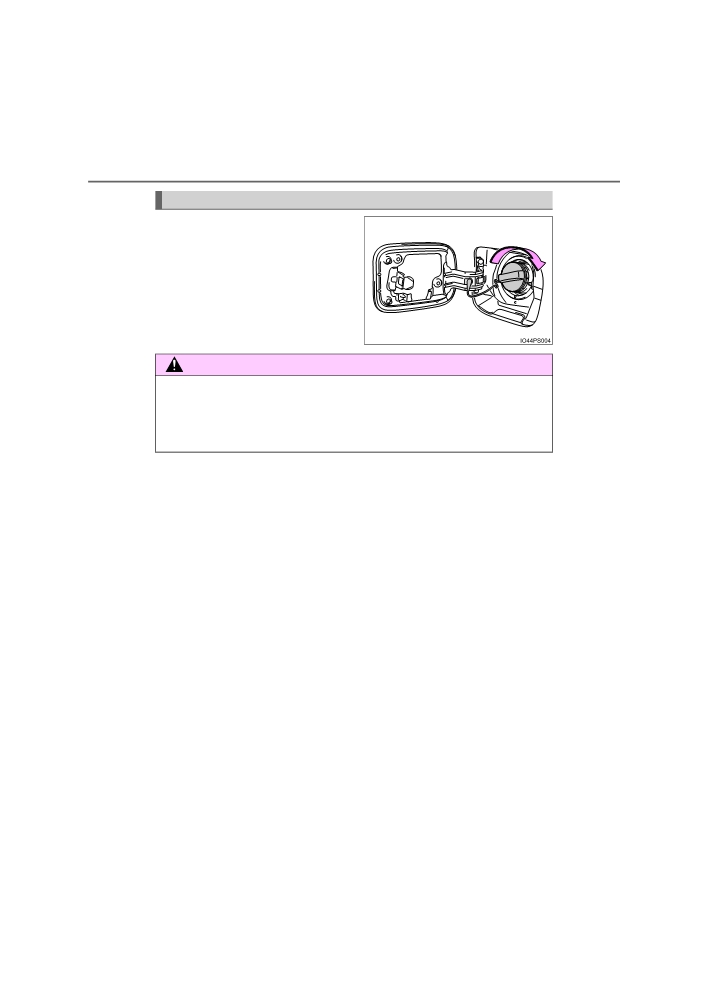

Closing the fuel tank cap

After refueling, turn the fuel tank

cap until you hear a click. Once

the cap is released, it will turn

slightly in the opposite direction.

WARNING

■ When replacing the fuel tank cap

Do not use anything but a genuine Toyota fuel tank cap designed for your

vehicle. Doing so may cause a fire or other incident which may result in

death or serious injury.

PRIUS PHV_OM_OM47A89E_(EE)

5-5. Using the driving support systems

359

Toyota Safety Sense

The Toyota Safety Sense consists of the following drive assist

systems and contributes to a safe and comfortable driving expe-

rience:

◆ PCS (Pre-Crash Safety system)

P. 368

◆ LDA (Lane Departure Alert with steering control)

P. 382

◆ AHS (Adaptive High-beam System)

P. 345

◆ RSA (Road Sign Assist)

P. 392

5

◆ Dynamic radar cruise control with full-speed range

P. 397

WARNING

■ Toyota Safety Sense

The Toyota Safety Sense is designed to operate under the assumption that

the driver will drive safely, and is designed to help reduce the impact to the

occupants and the vehicle in the case of a collision or assist the driver in

normal driving conditions.

As there is a limit to the degree of recognition accuracy and control perfor-

mance that this system can provide, do not overly rely on this system. The

driver is always responsible for paying attention to the vehicle’s surround-

ings and driving safely.

PRIUS PHV_OM_OM47A89E_(EE)

5-5. Using the driving support systems

361

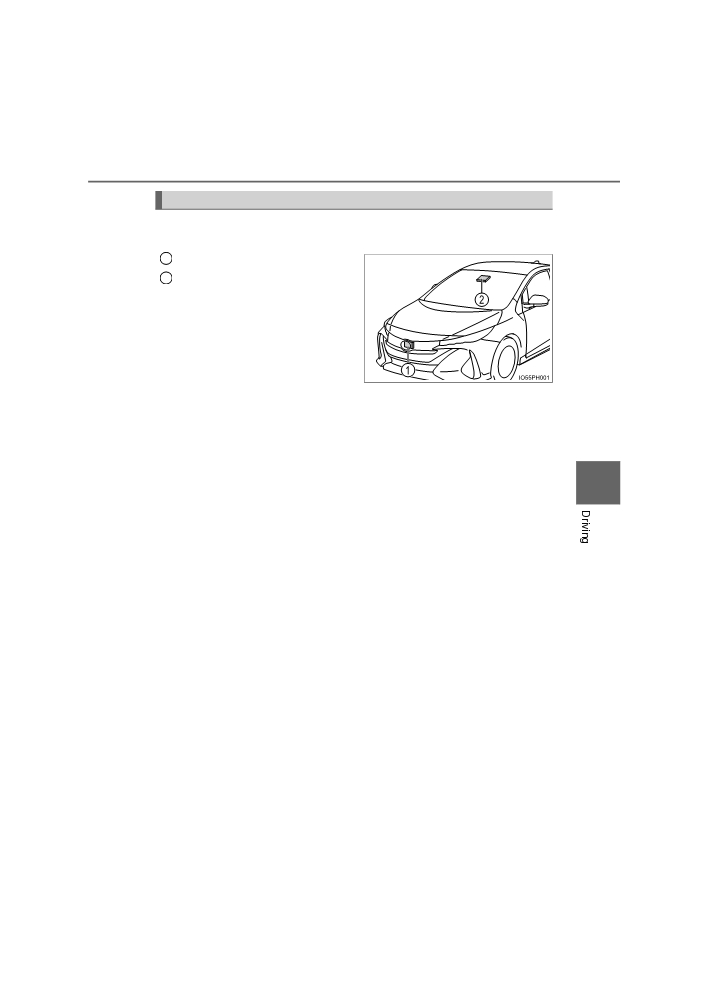

Sensors

Two types of sensors, located behind the front grille and windshield,

detect information necessary to operate the drive assist systems.

1

Radar sensor

2

Camera sensor

5

PRIUS PHV_OM_OM47A89E_(EE)

362

5-5. Using the driving support systems

WARNING

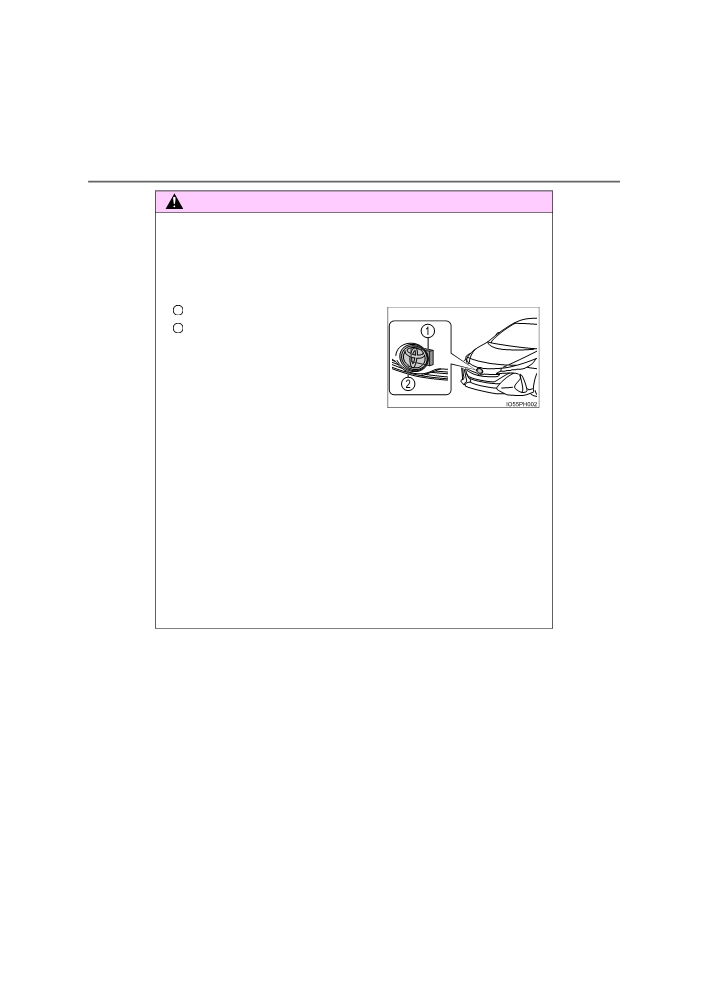

■ To avoid malfunction of the radar sensor

Observe the following precautions.

Otherwise, the radar sensor may not operate properly, possibly leading to

an accident resulting in death or serious injury.

● Keep the radar sensor and front grille emblem clean at all times.

1

Radar sensor

2

Front grille emblem

If the front of the radar sensor or the

front or back of the front grille emblem

is dirty or covered with water droplets,

snow, etc., clean it.

Clean the radar sensor and front grille

emblem with a soft cloth so you do not

mark or damage them.

●Do not attach accessories, stickers (including transparent stickers) or

other items to the radar sensor, front grille emblem or surrounding area.

●Do not subject the radar sensor or surrounding area to a strong impact.

If the radar sensor, front grille, or front bumper has been subjected to a

strong impact, have the vehicle inspected by any authorized Toyota dealer

or repairer, or another duly qualified and equipped professional.

●Do not disassemble the radar sensor.

●Do not modify or paint the radar sensor, front grille emblem or surrounding

area.

● If the radar sensor, front grille, or front bumper needs to be removed and

installed, or replaced, contact any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

PRIUS PHV_OM_OM47A89E_(EE)

5-5. Using the driving support systems

363

WARNING

■ To avoid malfunction of the camera sensor

Observe the following precautions.

Otherwise, the camera sensor may not operate properly, possibly leading to

an accident resulting in death or serious injury.

●Keep the windshield clean at all times.

• If the windshield is dirty or covered with an oily film, water droplets,

snow, etc., clear the windshield.

• If a glass coating agent is applied to the windshield, it will still be neces-

sary to use the windshield wipers to remove water droplets, etc. from

the area of the windshield in front of the camera sensor.

• If the inner side of the windshield where the camera sensor is installed

is dirty, contact any authorized Toyota dealer or repairer, or another duly

qualified and equipped professional.

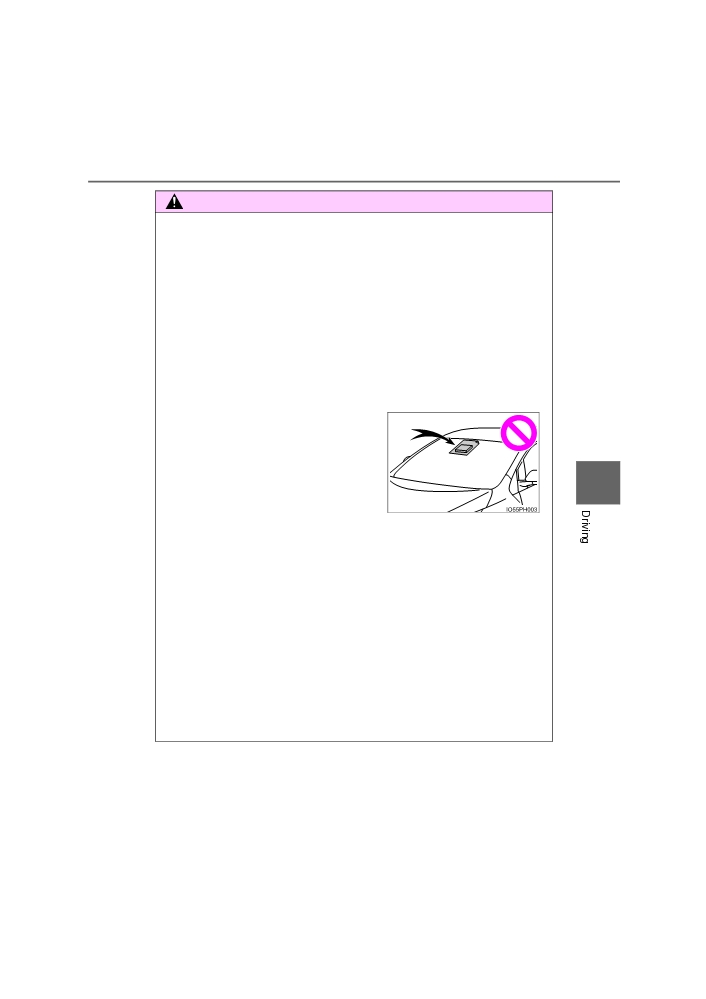

●Do not install an antenna or attach stick-

ers (including transparent stickers) or

other items to the area of the windshield

in front of the camera sensor (shaded

area in the illustration).

5

● If the part of the windshield in front of the camera sensor is fogged up or

covered with condensation or ice, use the windshield defogger to remove

the fog, condensation or ice. (P. 509)

● If water droplets cannot be properly removed from the area of the wind-

shield in front of the camera sensor by the windshield wipers, replace the

wiper insert or wiper blade.

• To replace the wiper insert: P. 613

• If the wiper blades need to be replaced, contact any authorized Toyota

dealer or repairer, or another duly qualified and equipped professional.

●Do not attach window tinting to the windshield.

●Replace the windshield if it is damaged or cracked.

If the windshield needs to be replaced, contact any authorized Toyota

dealer or repairer, or another duly qualified and equipped professional.

●Do not get the camera sensor wet.

●Do not allow bright lights to shine into the camera sensor.

PRIUS PHV_OM_OM47A89E_(EE)

5-5. Using the driving support systems

365

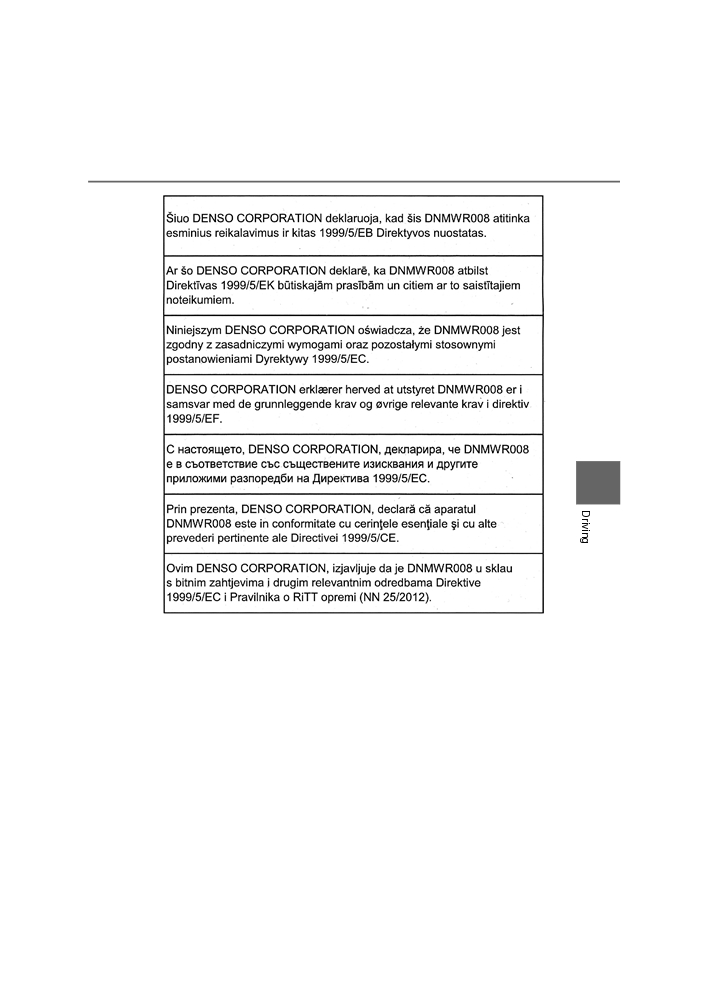

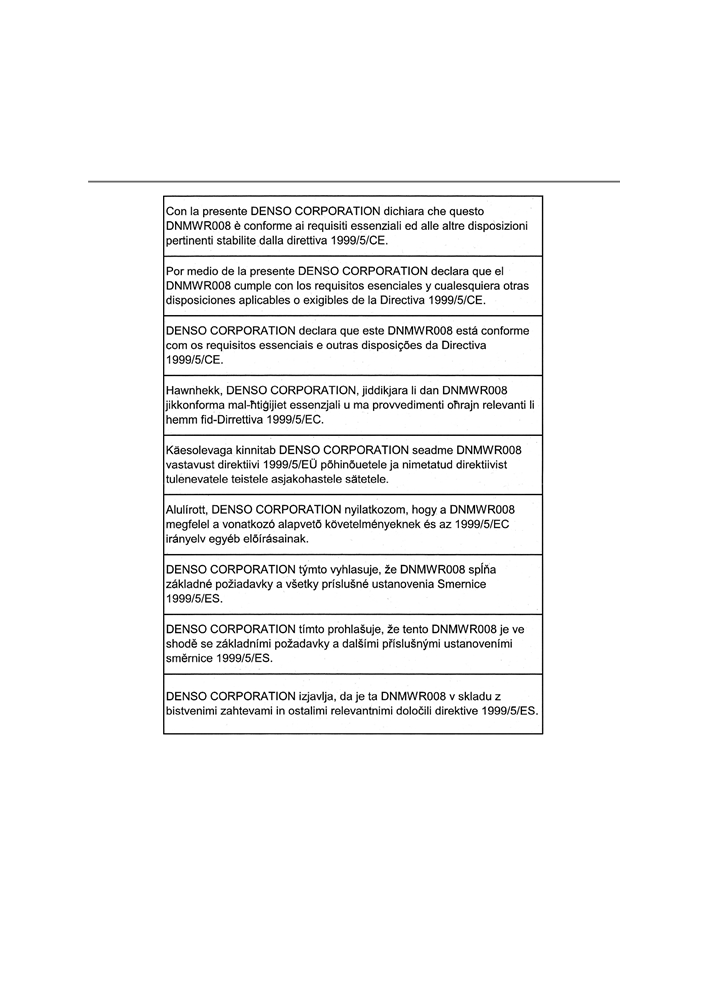

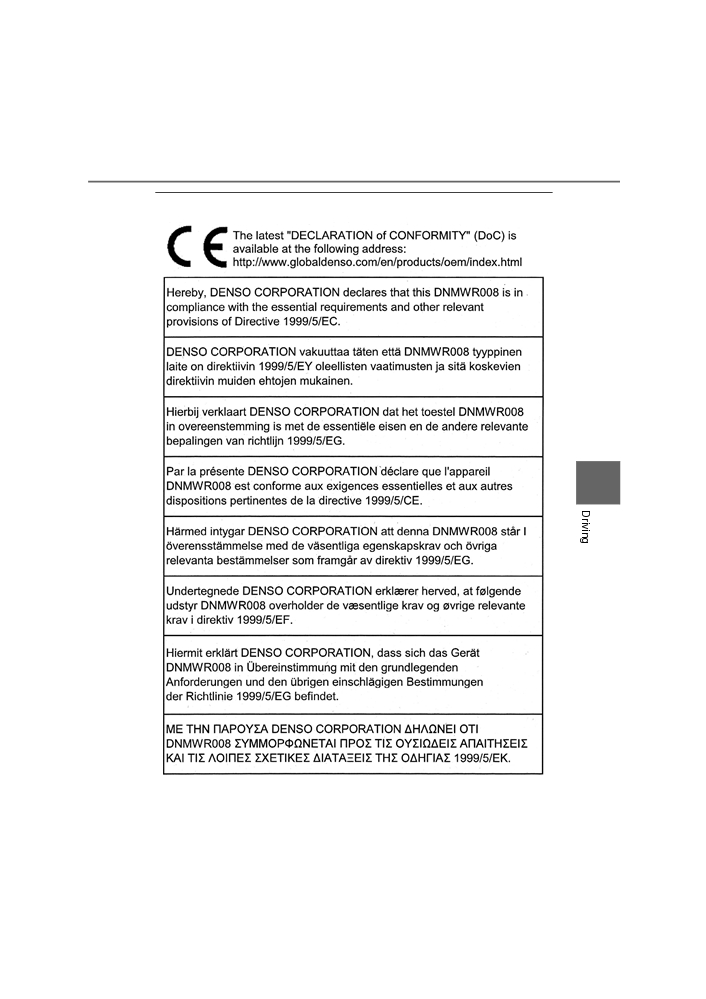

■ Certification

5

PRIUS PHV_OM_OM47A89E_(EE)

366

5-5. Using the driving support systems

PRIUS PHV_OM_OM47A89E_(EE)

5-5. Using the driving support systems

367

5

PRIUS PHV_OM_OM47A89E_(EE)

368

5-5. Using the driving support systems

PCS (Pre-Crash Safety system)

The pre-crash safety system uses a radar sensor and camera

sensor to detect vehicles and pedestrians*1 in front of your vehi-

cle. When the system determines that the possibility of a frontal

collision with a vehicle or pedestrian is high, a warning operates

to urge the driver to take evasive action and the potential brake

pressure is increased to help the driver avoid the collision. If the

system determines that the possibility of a frontal collision with

a vehicle or pedestrian is extremely high, the brakes are auto-

matically applied*2 to help avoid the collision or help reduce the

impact of the collision.

The pre-crash safety system can be disabled/enabled and the warn-

ing timing can be changed. (P. 372)

*1: Depending on the region in which the vehicle was sold, the pedestrian

detection function may not be available. Contact any authorized Toyota

dealer or repairer, or another duly qualified and equipped professional for

details.

*2: Depending on the region in which the vehicle was sold, the pre-crash

braking function (automatic braking function) may not be available. Con-

tact any authorized Toyota dealer or repairer, or another duly qualified

and equipped professional for details.

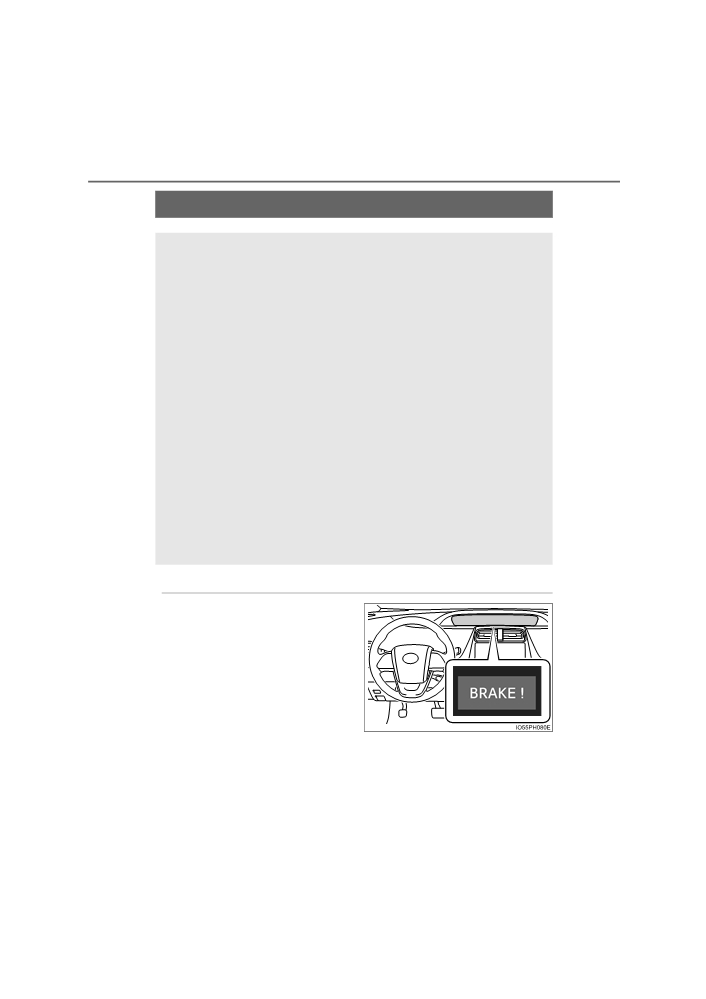

◆ Pre-crash warning

When the system determines

that the possibility of a frontal

collision is high, a buzzer will

sound and a warning message

will be displayed on the multi-

information display to urge the

driver to take evasive action.

PRIUS PHV_OM_OM47A89E_(EE)

370

5-5. Using the driving support systems

WARNING

■ Limitations of the pre-crash safety system

●The driver is solely responsible for safe driving. Always drive safely, taking

care to observe your surroundings.

Do not use the pre-crash safety system instead of normal braking opera-

tions under any circumstances. This system will not prevent collisions or

lessen collision damage or injury in every situation. Do not overly rely on

this system. Failure to do so may lead to an accident, resulting in death or

serious injury.

●Although this system is designed to help avoid a collision or help reduce

the impact of the collision, its effectiveness may change according to vari-

ous conditions, therefore the system may not always be able to achieve

the same level of performance.

Read the following conditions carefully. Do not overly rely on this system

and always drive carefully.

• Conditions under which the system may operate even if there is no pos-

sibility of a collision: P. 376

• Conditions under which the system may not operate properly: P. 378

●Do not attempt to test the operation of the pre-crash safety system your-

self, as the system may not operate properly, possibly leading to an acci-

dent.

■ Pre-crash braking*3

● When the pre-crash braking function is operating, a large amount of brak-

ing force will be applied.

● If the vehicle is stopped by the operation of the pre-crash braking function,

the pre-crash braking function operation will be canceled after approxi-

mately 2 seconds. Depress the brake pedal as necessary.

●The pre-crash braking function may not operate if certain operations are

performed by the driver. If the accelerator pedal is being depressed

strongly or the steering wheel is being turned, the system may determine

that the driver is taking evasive action and possibly prevent the pre-crash

braking function from operating.

● In some situations, while the pre-crash braking function is operating, oper-

ation of the function may be canceled if the accelerator pedal is depressed

strongly or the steering wheel is turned and the system determines that

the driver is taking evasive action.

● If the brake pedal is being depressed, the system may determine that the

driver is taking evasive action and possibly delay the operation timing of

the pre-crash braking function.

*3: Depending on the region in which the vehicle was sold, the pre-crash

braking function may not be available.

PRIUS PHV_OM_OM47A89E_(EE)

5-5. Using the driving support systems

371

WARNING

■ When to disable the pre-crash safety system

In the following situations, disable the system, as it may not operate prop-

erly, possibly leading to an accident resulting in death or serious injury:

●When the vehicle is being towed

●When your vehicle is towing another vehicle

● When transporting the vehicle via truck, boat, train or similar means of

transportation

●When the vehicle is raised on a lift with the hybrid system operating and

the tires are allowed to rotate freely

● When inspecting the vehicle using a drum tester such as a chassis dyna-

mometer or speedometer tester, or when using an on vehicle wheel bal-

ancer

●When a strong impact is applied to the front bumper or front grille, due to

an accident or other reasons

● If the vehicle cannot be driven in a stable manner, such as when the vehi-

cle has been in an accident or is malfunctioning

● When the vehicle is driven in a sporty manner or off-road

5

● When the tires are not properly inflated

● When the tires are very worn

● When tires of a size other than specified are installed

●When tire chains are installed

● When a compact spare tire or an emergency tire puncture repair kit is used

● If equipment (snow plow, etc.) that may obstruct the radar sensor or cam-

era sensor is temporarily installed to the vehicle

PRIUS PHV_OM_OM47A89E_(EE)

372

5-5. Using the driving support systems

Changing settings of the pre-crash safety system

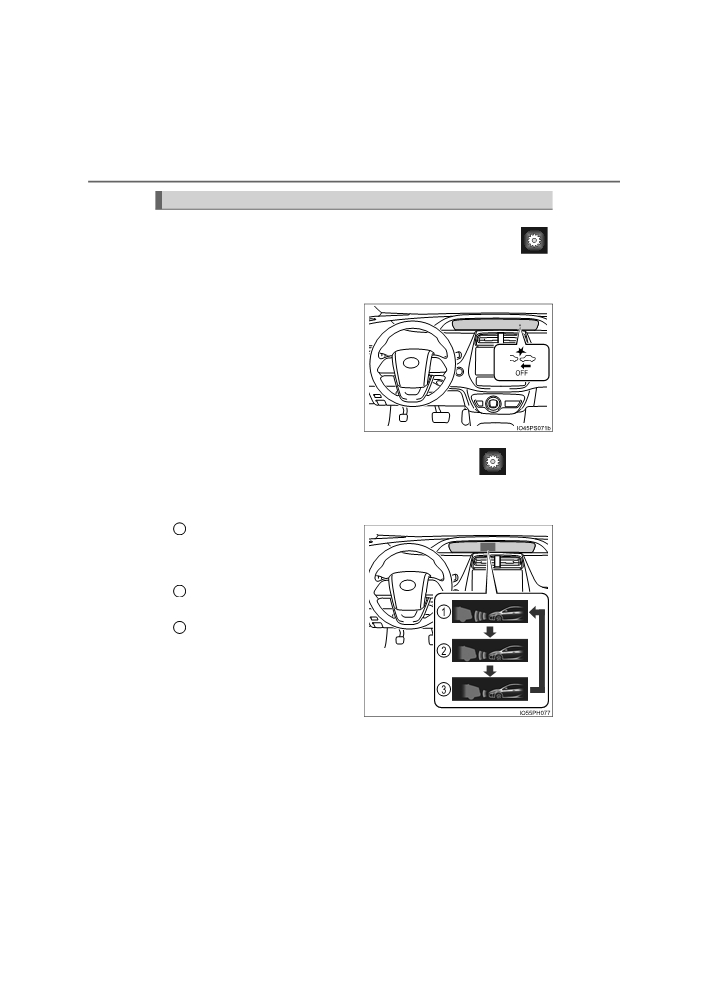

■ Enabling/disabling the pre-crash safety system

The pre-crash safety system can be enabled/disabled on the

screen (P. 242) of the multi-information display.

The system is automatically enabled each time the power switch is

turned to ON mode.

If the system is disabled, the

PCS warning light will turn on.

■ Changing the pre-crash warning timing

The pre-crash warning timing can be changed on the

screen

(P. 242) of the multi-information display.

The operation timing setting is retained when the power switch is turned

off.

1

Far

The warning will begin to oper-

ate earlier than with the default

timing.

2

Middle

This is the default setting.

3

Near

The warning will begin to oper-

ate later than with the default

timing.

PRIUS PHV_OM_OM47A89E_(EE)

5-5. Using the driving support systems

373

■ Operational conditions

Availability of the pedestrian detection function and pre-crash braking func-

tion depend on the region in which the vehicle was sold.

Regions

Function availability

The pedestrian detection function and pre-crash

Region A

braking function are available

The pedestrian detection function is not available

Region B

and the pre-crash braking function is available

The pedestrian detection function and pre-crash

Region C

braking function are not available

Read the following for details:

 Region A

(The pedestrian detection function and pre-crash braking function are avail-

able)

The pre-crash safety system is enabled and the system determines that the

possibility of a frontal collision with a vehicle or pedestrian is high.

Each function is operational at the following speeds:

5

● Pre-crash warning:

• Vehicle speed is between approximately

10 and 180 km/h (7 and

110 mph). (For detecting a pedestrian, vehicle speed is between approxi-

mately 10 and 80 km/h [7 and 50 mph].)

• The relative speed between your vehicle and the vehicle or pedestrian

ahead is approximately 10 km/h (7 mph) or more.

● Pre-crash brake assist:

• Vehicle speed is between approximately 30 and 180 km/h (19 and

110 mph). (For detecting a pedestrian, vehicle speed is between approxi-

mately 30 and 80 km/h [19 and 50 mph].)

• The relative speed between your vehicle and the vehicle or pedestrian

ahead is approximately 30 km/h (19 mph) or more.

● Pre-crash braking:

• Vehicle speed is between approximately

10 and 180 km/h (7 and

110 mph). (For detecting a pedestrian, vehicle speed is between approxi-

mately 10 and 80 km/h [7 and 50 mph].)

• The relative speed between your vehicle and the vehicle or pedestrian

ahead is approximately 10 km/h (7 mph) or more.

PRIUS PHV_OM_OM47A89E_(EE)

Content   ..  20  21  22  23   ..
