Toyota Prius Plug-in Hybrid (2017 year). Manual - part 9

136

2-2. Charging

Power sources that can be used

An external power source that fulfills the following criteria is

necessary for charging this vehicle. Confirm this before

charging.

WARNING

■ Warnings for electrical faults

Make sure to observe the precautions in this Owner’s Manual when

charging the vehicle.

Failure to use a power source that fulfills the requirements, or failure to

observe regulations while charging could lead to an accident, possibly

resulting in death or serious injury.

Power sources

● Connect to an AC 220 V - 240 V socket with a Residual Current Cir-

cuit-Breaker (RCCB) and a circuit breaker. Use of a 13A individual

circuit is strongly recommended to ensure charging cable will oper-

ate properly.

● We strongly recommend that you use an exclusive connection from

the junction box for charging.

If you connect on a socket that is on a shared circuit, and other

electrical appliances are used on other sockets on the same circuit,

then the circuit breaker might trip.*

● Ensure that the junction box is equipped with a Residual Current

Circuit-Breaker (RCCB). If it is not, have one installed by a duly

qualified professional.

● When charging outdoors, make sure to connect to a rain-tight

socket that is certified for outdoor use.

Checking Residual Current Circuit-Breaker

(RCCB) operation

before its use is recommended.

● Check whether there are any local EV-charging regulations in

place, and adhere to them.

*: For detailed information, consult an electrician.

PRIUS PHV_OM_OM47A89E_(EE)

2-2. Charging

137

■ The charging environment

For safe charging, the following charging equipment and settings are recom-

mended.

● Rain-tight socket

When charging outdoors, connect the plug to a rain-tight socket, and ensure

that the plug remains waterproof while the plug is connected.

● Dedicated circuit

• To reduce the risk of fire, connect only to an at least 13A branch circuit

with an over-current protection.

• To reduce the risk of electric shock when working with the plug, connect

2

to a socket that has a Residual Current Circuit-Breaker (RCCB) installed.

● Remote switch

Allows the electricity from the socket to be interrupted by operating a switch,

thus allowing safe removal and insertion of the plug on rainy days.

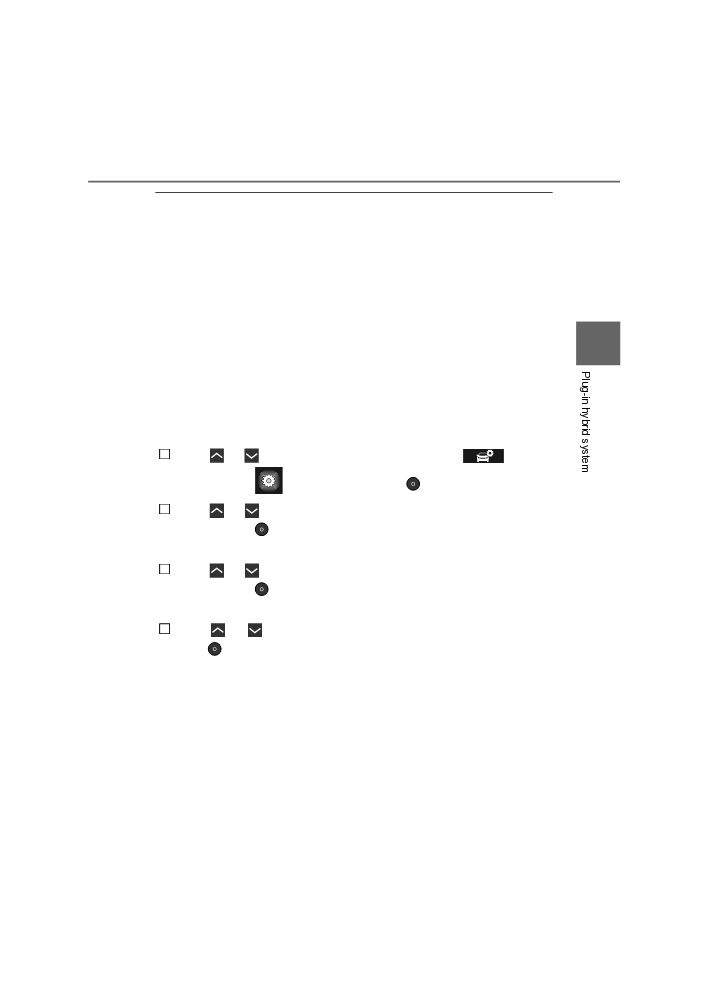

■ When your circuit breaker trips during charging

The upper limit of the charging current can be changed in the “Vehicle Set-

tings” settings on the multi-information display.

1

Press

or

of the meter control switches to select

(Vehicle

Settings) in the

screen, and then press

2

Press

or

of the meter control switches to select “Charge Setting”,

and then press

The “Charge Setting” screen will display.

3

Press

or

of the meter control switches to select “Charge Setting”,

and then press

The “Charge Current” screen will display.

4

Press

or

of the meter control switches to select “8A”, and then

press

The maximum charging current during charging will be restricted to 8A.*

If the breaker still trips while charging, even after changing the upper limit of

the charging current, check if the connected power source meets the speci-

fied charging conditions. (P. 136)

*: Restricting the charging current will lengthen the charging time.

PRIUS PHV_OM_OM47A89E_(EE)

138

2-2. Charging

WARNING

■ Power sources precautions

Observe the following precautions.

If you do not follow them, fire, electrical shock and/or damages may occur,

possibly resulting in death or serious injury.

●Connect to an AC 220 V - 240 V socket with a Residual Current Circuit-

Breaker (RCCB) and supplied by a circuit breaker in line with local regula-

tions. Use of an individual circuit provided with at least 13A is strongly rec-

ommended.

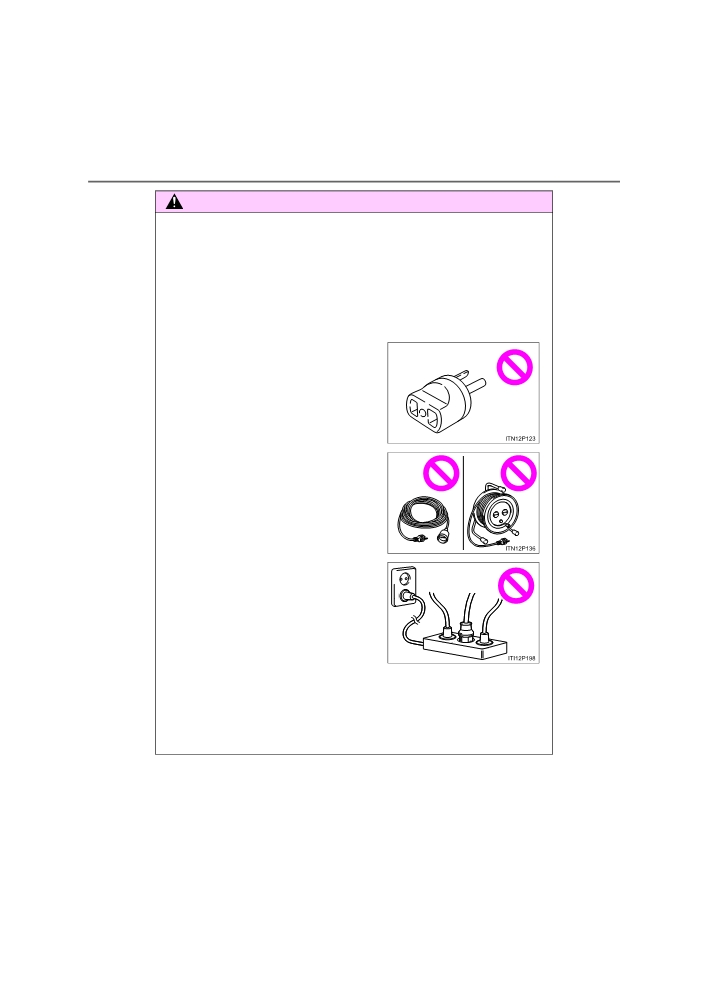

●Do not connect the charging cable to a

multi-socket adapter, multi-plugs, or

conversion plug.

●Connecting the charging cable to an

extension cord is strictly prohibited. The

extension cord may overheat and does

not contain a Residual Current Circuit-

Breaker (RCCB).

●Do not connect to a power strip.

●Use of a block heater socket which fails to meet the requirements is pro-

hibited for charging.

● Make sure to connect the charging connector and charging inlet directly.

Do not connect a converting adaptor or extension cord between the

charging connector and charging inlet.

PRIUS PHV_OM_OM47A89E_(EE)

2-2. Charging

139

Charging methods

The following methods can be used to charge the hybrid battery

(traction battery).

◆ Charging from an external power source (P. 152)

This is a charging method used when charging from an AC socket

(220 V-240 V) with the charging cable equipped to the vehicle or

2

charging at a public charging station.

The charging start time (or departure time) and day can be set to carry

out charging using the timer at the desired date and time. (P. 163)

◆ Using the hybrid battery (traction battery) charge mode

(P. 93)

The plug-in hybrid system can be switched to hybrid battery (trac-

tion battery) charge mode to charge the hybrid battery (traction bat-

tery) using electricity generated by gasoline engine operation.

The maximum charge amount in the hybrid battery (traction battery)

charge mode is approximately 80% of the fully charged capacity for the

charging from an external power source.

◆ Solar charging system (if equipped) (P. 175)

In certain conditions, when the vehicle is parked, the hybrid battery

(traction battery) can be charged by using electricity generated by

the solar panel equipped to the roof of the vehicle.

The maximum charge amount of the solar charging system is approxi-

mately 90% of the fully charged capacity for the charging from an exter-

nal power source. (This does not mean the battery can be fully charged

in one day.)

PRIUS PHV_OM_OM47A89E_(EE)

140

2-2. Charging

Estimated charging time

The time required to charge the hybrid battery (traction battery) differs

according to the charging voltage and charging current.

Connected power

Charging station

Home power source

source

Charging voltage*1

AC 230 V

AC 230 V

Charging current*2

16A

10A

Estimated charging

Approximately 3 hours

Approximately 2 hours

time*3

10 minutes

*1: The charging voltage may differ depending on the target region.

*2: This is the maximum value. Furthermore, the upper limit of the charging

current can be changed in the “Vehicle Settings” settings. (P. 137)

*3: The time required for charging to complete depends on conditions such as

the remaining charge of the hybrid battery (traction battery) and the outside

temperature.

PRIUS PHV_OM_OM47A89E_(EE)

2-2. Charging

141

■ Charging time may increase

In the following situations, charging time may become longer than normal:

● In very hot or very cold temperatures.

●The vehicle is consuming a lot of electricity, for example, when the head

light switch is on etc.

● There is a power outage during charging.

● There is an interruption in the electrical supply.

● There is a drop in the voltage of external power source.

● The charge in the 12-volt battery is low, for example due to the vehicle being

2

left unused for a long period of time.

●The maximum charging current is set to 8A through the “Vehicle Settings”

settings. (P. 137)

● When the “Traction Battery Heater” operates.

● When the “Traction Battery Cooler” is operated before charging.

(if

equipped) (P. 142)

■ Using a DC Charger

DC Chargers cannot be used with this vehicle.

Charging-linked functions

This vehicle is equipped with several functions that are linked with

charging.

■ “Traction Battery Heater”

When the outside temperature is low and the charging cable is con-

nected to the vehicle, this function automatically warms the hybrid

battery (traction battery) until it reaches or exceeds a certain tem-

perature.

● When the charging cable is removed from the vehicle or remains

connected to the vehicle for approximately 3 days, the system

automatically stops.

● When the charging timer is used (P. 163), this function will

operate according to the timer settings.

PRIUS PHV_OM_OM47A89E_(EE)

142

2-2. Charging

■ “Traction Battery Cooler” (if equipped)

When the hybrid battery (traction battery) is hot, this function pro-

tects it by using the vehicle air conditioning to cool it before

charging is carried out.

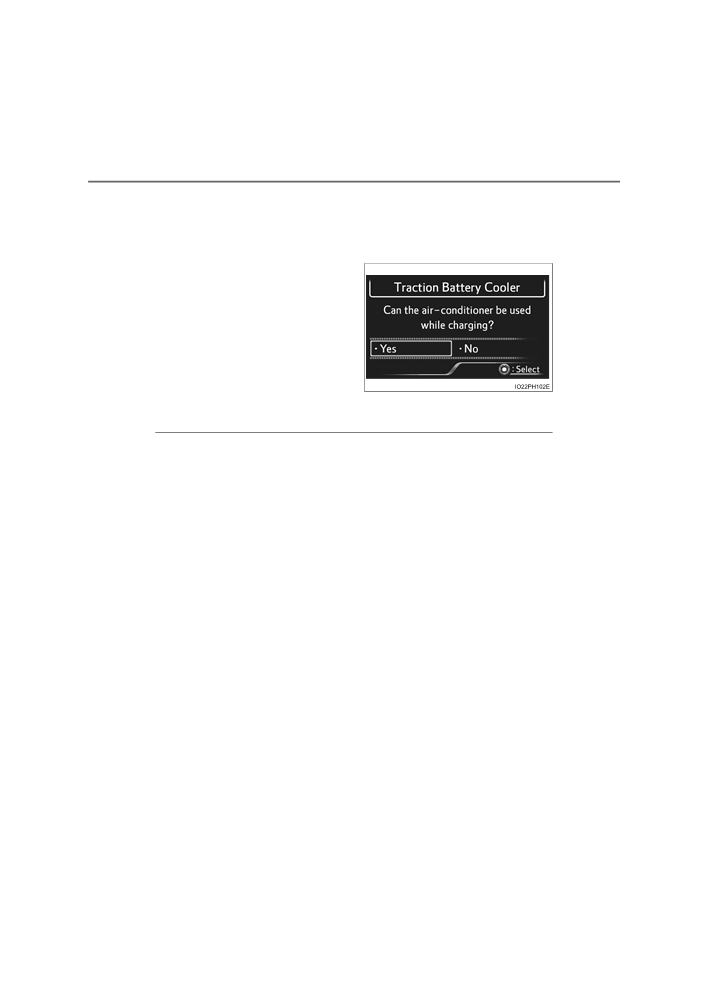

When the hybrid battery (trac-

tion battery) is above a certain

temperature and the power

switch is turned off, a check

screen is displayed on the

multi-information display that

indicates whether “Traction Bat-

tery Cooler” is implemented.

When “No” is selected, the hybrid battery (traction battery) cooling sys-

tem does not operate.

■“Traction Battery Heater”

● “Traction Battery Heater” may operate when charging is not being per-

formed.

● When “Traction Battery Heater” is operating, the charging indicator illumi-

nates.

● When “Traction Battery Heater” is operating during charging, the charging

time may be longer than normal.

● If the outside temperature becomes high while “Traction Battery Heater” is

operating, charging may complete earlier than the “Departure” time set.

(P. 163)

● “Traction Battery Heater” can be turned on and off in the “Vehicle Settings”

settings on the multi-information display. (P. 708)

PRIUS PHV_OM_OM47A89E_(EE)

144

2-2. Charging

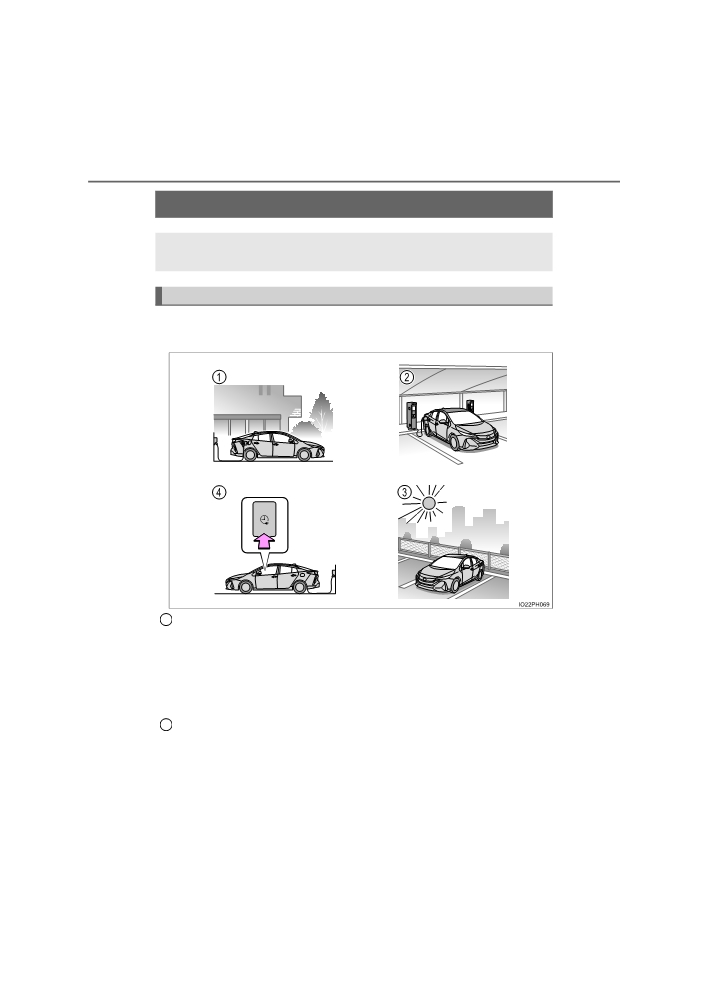

Charging tips

This section explains methods for using the charging function

for this vehicle and checking information related to charging.

Systematically charging

To enable the use of EV mode, we recommend systematically

charging the vehicle.

Before leaving home

1

In order to use EV mode, charge the hybrid battery (traction battery) at

home before leaving.

The charging timer function (P. 163) can be used to set the system to

automatically fully charge the hybrid battery (traction battery) before your

desired departure time. It is also possible to set the air conditioning to

make the interior in a comfortable state before your desired departure time.

2

At your destination

Use a public charging station to charge the hybrid battery (traction battery).

If there are no charging facilities at your destination, the hybrid battery

(traction battery) can be charged using the hybrid battery (traction battery)

charge mode. (P. 91)*

PRIUS PHV_OM_OM47A89E_(EE)

2-2. Charging

145

3

While parking

For vehicles with a solar charging system, solar charging is performed to

charge the hybrid battery (traction battery) when the necessary conditions

such as parking are met. (P. 175)

After returning home

4

In order to drive the next time, charge the hybrid battery (traction battery).

Settings the charge schedule allows you to charge the hybrid battery (trac-

tion battery) at the desired time such as late at night or early in the morn-

ing. Furthermore, the charging timer can be set to automatically charge the

hybrid battery (traction battery) every day or at the same time on certain

2

days. (P. 163)

Vehicles with a solar charging system:

When the hybrid battery (traction battery) is fully charged, charging the

battery via the solar charging system is not performed. If you are not plan-

ning on driving the vehicle for a few days, refraining from charging the

vehicle until right before you plan on using it will allow the solar charging

system to be used effectively.

*: When using the hybrid battery (traction battery) charge mode while parked,

make sure that no flammable objects are near the vehicle and the vehicle is

parked in a well-ventilated area. (P. 100)

PRIUS PHV_OM_OM47A89E_(EE)

146

2-2. Charging

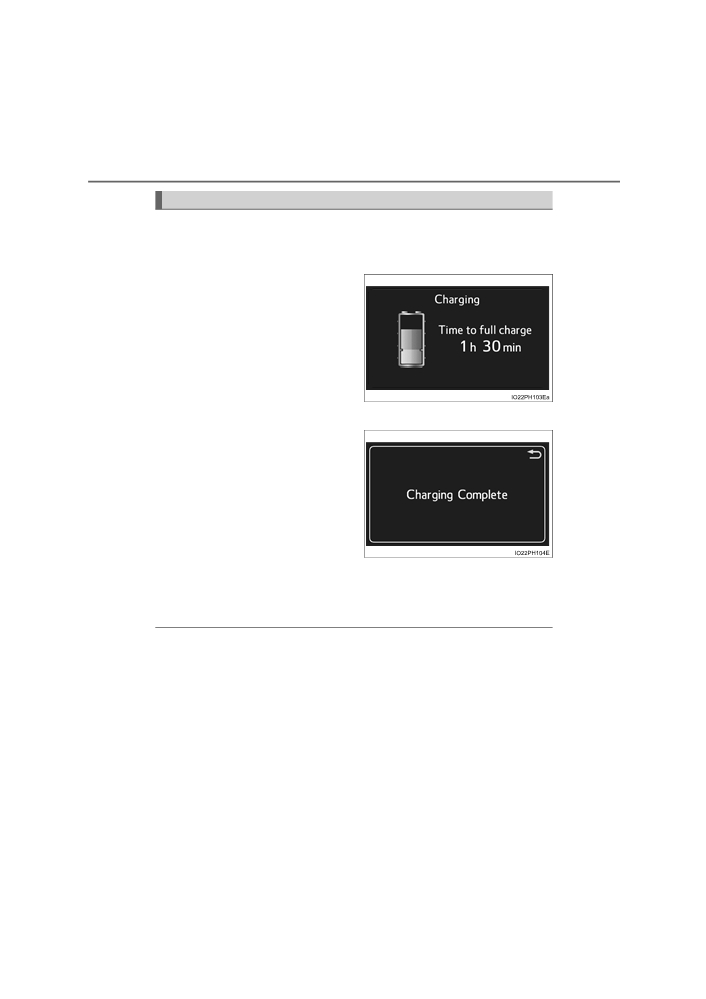

Checking information related to charging

Information related to charging can be displayed and checked on the

vehicle’s multi-information display.

■ While charging

When any door is opened

during charging, the current

charging condition and remain-

ing time until charging is com-

plete can be checked.

■ After charging is complete

After charging is complete, the

first time that the hybrid system

is started, a message detailing

the results of the charging is

displayed. Also, a message is

displayed if an operation that

cannot be performed or a situa-

tion that charging cannot be

performed

occurs

during

charging is performed.

When a message is displayed, follow the instructions displayed on the

screen. (P. 184)

■ Combination meter display during charging

If approximately 100 seconds elapse after the power switch is turned to ON

mode during charging, the power switch will automatically turn off and the dis-

play will disappear.

PRIUS PHV_OM_OM47A89E_(EE)

2-2. Charging

147

Things to know before charging

Make sure to read the following precautions before connecting

the charging cable to the vehicle and charging the hybrid battery

(traction battery).

Charging precautions

This vehicle has been designed to allow charging from an external

2

power source using a charging cable for exclusive use with standard

household AC sockets.

However, the vehicle differs greatly from standard household electri-

cal goods in the following ways, and incorrect usage could cause fire

or electric shock, possibly leading to death or serious injury.

● The charging operation is designed to operate at 10A continuously

for the charge duration (up to 3 hours 10 minutes). (P. 140)

● Charging can be conducted outdoors.

To charge properly, follow the procedure after reading the explanation

below. Charging is intended to be carried out by licensed drivers only

who properly understand the charging procedure.

● Charging should not be carried out by children.

● When charging with a charging equipment, follow the procedures

for using each equipment.

● When charging using a public charging facility, check the setting of

the charging timer function.

• When the charge schedule is registered, temporarily turn off the

function or turn “Charge Now” on. (P. 169, 171)

• When the charge schedule is set to ON, charging will not start

even if the charging cable is connected. Also, charging fee may

occur due to connection of the charging cable.

PRIUS PHV_OM_OM47A89E_(EE)

148

2-2. Charging

Confirm the following before charging

Before charging, always check the following items.

● The parking brake is applied.(P. 340)

● The headlights are switched off or set to AUTO, and lights such as

the emergency flashers and interior lights etc. are switched off.

If these light switches are turned ON, then these features will consume

electricity, and charging time will increase.

● The power switch is off. (P. 327)

Inspecting the charging cable

Before charging, make sure that each part of the charging cable is in

good condition. (P. 127)

■Safety functions

● The hybrid system will not start while the charging cable is attached to the

vehicle, even if the power switch is operated.

●If the charging cable is connected while the “READY” indicator is illumi-

nated, the hybrid system will stop automatically and driving will not be possi-

ble.

● When the charging cable is connected to the vehicle, the shift position can-

not be changed from P to another position.

■ During charging

The followings occur, however, it does not indicate a malfunction.

● The charging starting time may differ depending on the state of the vehicle.

● During charging, the sound of the fan may be heard from the charging

equipment cooling air intake vents. (P. 151)

● During and after charging, the rear seat and its surrounding area in which

the charging equipment is installed may get warm.

PRIUS PHV_OM_OM47A89E_(EE)

150

2-2. Charging

WARNING

■ Caution when charging

People with implantable cardiac pacemakers or cardiac resynchronization

therapy-pacemakers should not carry out the charging procedure. Ask

someone else to do it.

●Do not approach the charging equipment and charging cable while

charging.

Charging procedure may affect the operation of such devices.

●Do not remain in the vehicle during charging.

Charging procedure may affect the operation of such devices.

●Do not enter the vehicle even to take something out of the luggage com-

partment.

Charging procedure may affect the operation of such devices.

■ When the charging cable is connected to the vehicle

Do not operate the shift lever.

In the unlikely event that the charging cable has been damaged, the shift

position may change from P to another position and the vehicle could move,

possibly leading to an accident.

NOTICE

■ Precautions when handling charging cable

Make sure to observe the following precautions. Failure to observe these

precautions may result in damage to the charging cable and charging inlet.

● Insert the charging connector straight into the charging inlet.

● After inserting the charging connector, do not apply excessive force to or

twist the connector. Also, do not lean on the connector or hang any objects

from it.

●Do not step on or trip over the charging cable.

● Before removing the charging connector, make sure that it is unlocked.

(P. 158)

● After removing the charging cable, promptly return it to its proper location.

●After removing the charging connector, securely install the charging inlet

cap.

PRIUS PHV_OM_OM47A89E_(EE)

2-2. Charging

151

NOTICE

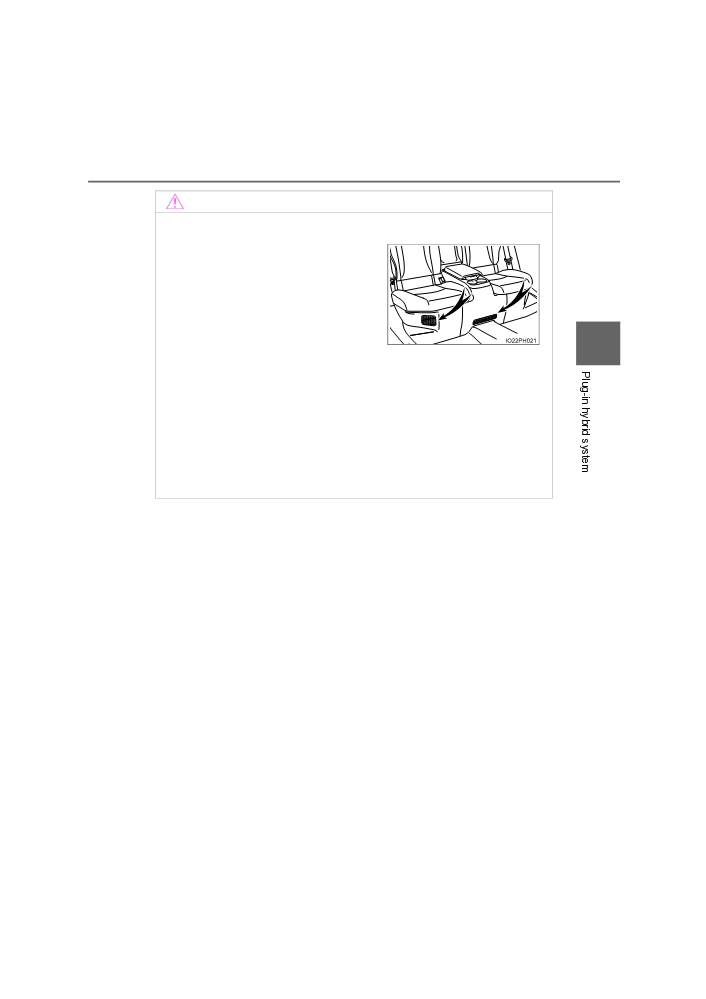

■ Charging equipment cooling air intake vents

The grilles under the rear seats are the

cooling air intake vents for the charging

equipment installed under the seats.

Make sure to observe the following pre-

cautions regarding the cooling air intake

vents. Failure to observe these precau-

tions may result in a charging system

2

malfunction.

●Do not block the air intake vents with seat covers or luggage

● If the air intake vents are clogged with dust, clean them with a vacuum

cleaner

●Do not allow water or foreign matter to enter the air intake vents

●Do not spill large amounts of water near the air intake vents

If water is spilled, have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and equipped professional

and do not charge the hybrid battery (traction battery) before the inspec-

tion.

PRIUS PHV_OM_OM47A89E_(EE)

152

2-2. Charging

How to charge

This section explains the procedure for charging the hybrid bat-

tery (traction battery) with the equipped charging cable.

When using a charging station, make sure to check the opera-

tion instructions on the charging station.

When the charge schedule is registered, make sure “Charge Now”

is turned on before charging. (P. 171)

Confirm the following before charging

P. 148

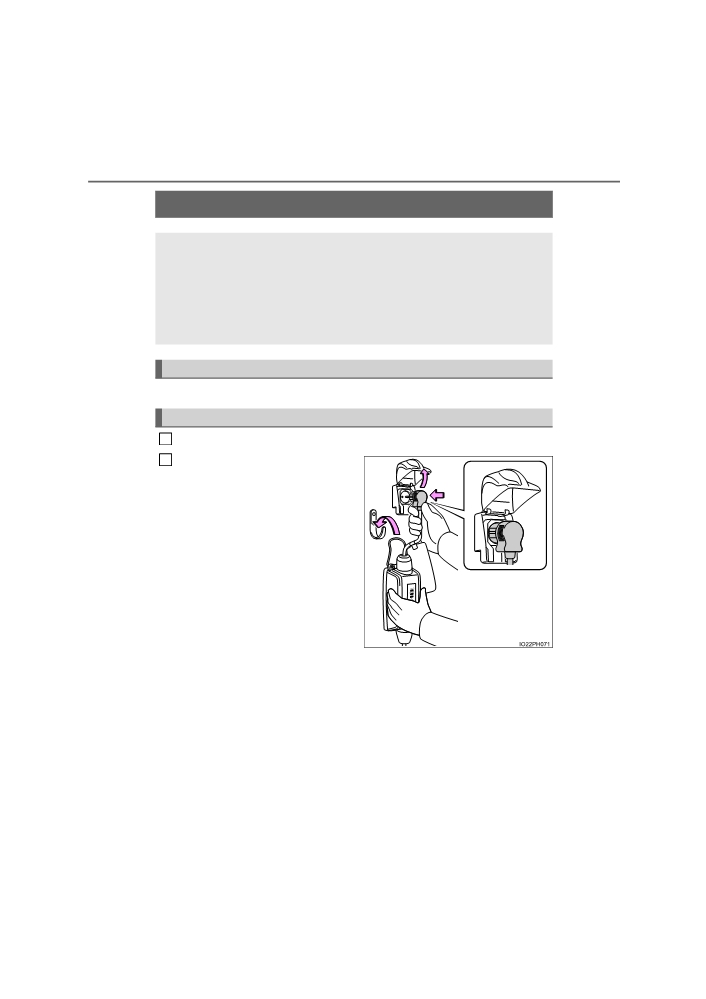

When charging

1

Prepare the charging cable.

2

When using the Mode

2

charging cable:

Make sure to hold the body of

the plug and insert it firmly into

the socket.

If you have a remote switch, turn it

on.

Check that the power indicator on

the CCID (Charging Circuit Inter-

rupting Device) is illuminated. (If it

is not illuminated, refer to P. 179)

In order to reduce the load on the

socket and plug, when inserting

the plug, use a string, etc. to hang

the CCID (Charging Circuit Inter-

rupting Device) on a hook or equiv-

alent.

PRIUS PHV_OM_OM47A89E_(EE)

Content   ..  7  8  9  10   ..
