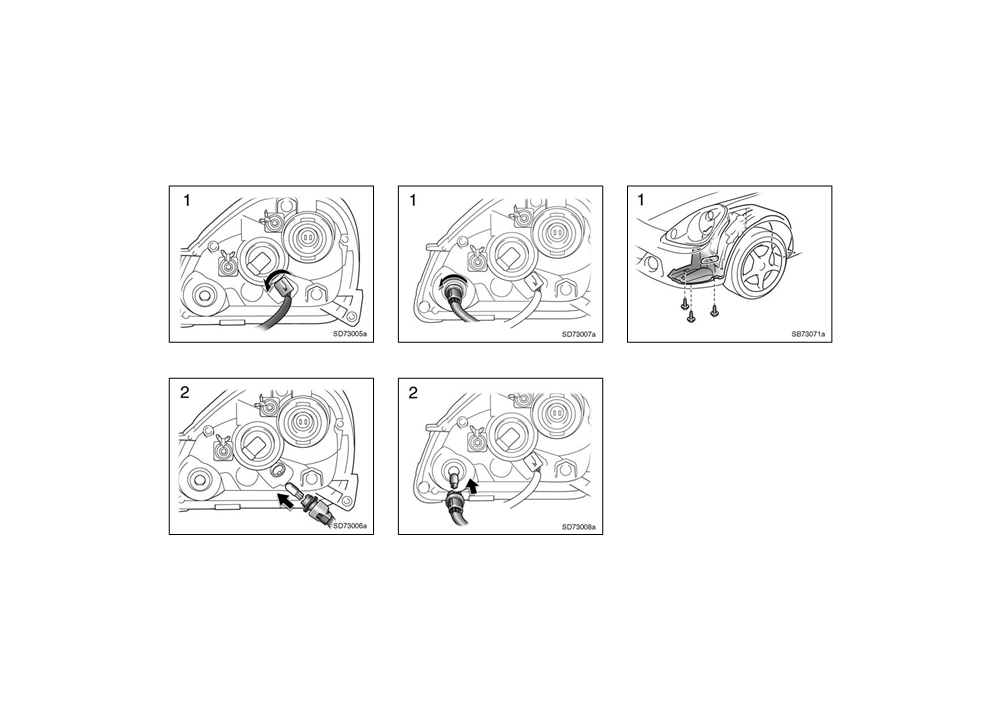

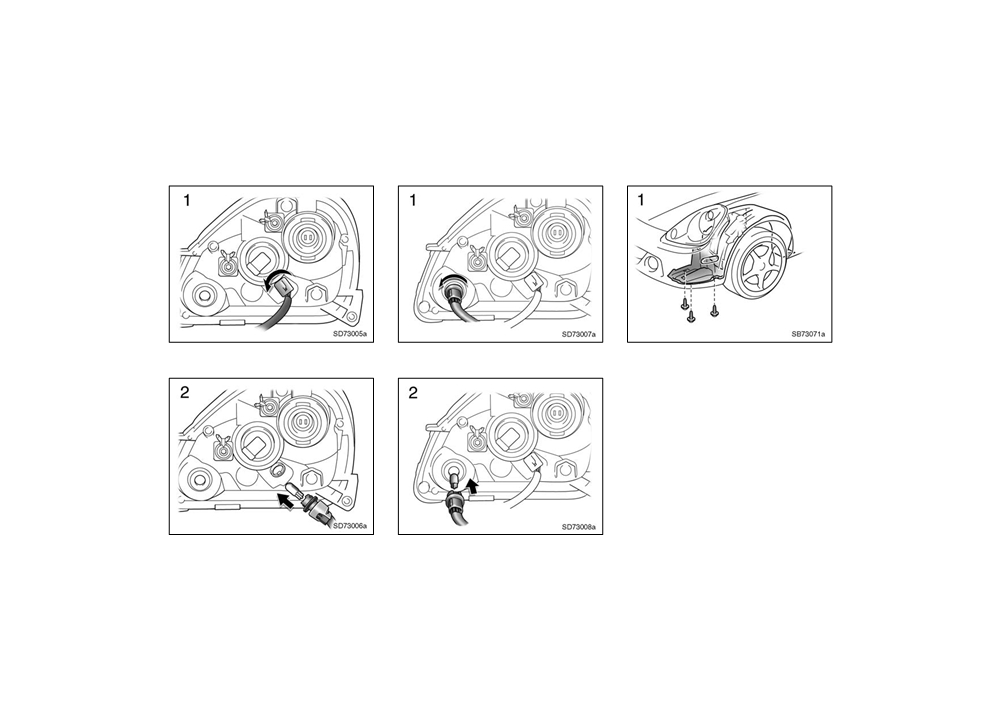

—Parking lights

—Front turn signal lights

—Front side marker lights

Phillips−head screw: Use a phillips−head

screwdriver.

233

2005 MR2 from Aug. ’04Prod. (OM17527U)

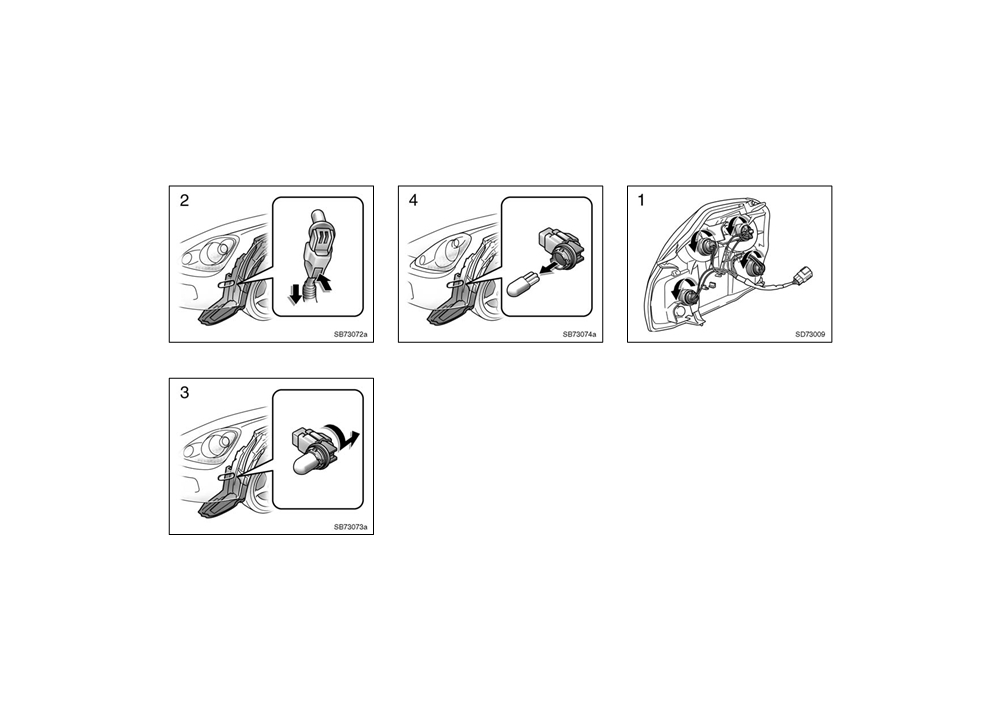

—Rear turn signal, stop/tail,

stop and back−up lights

234

2005 MR2 from Aug. ’04Prod. (OM17527U)

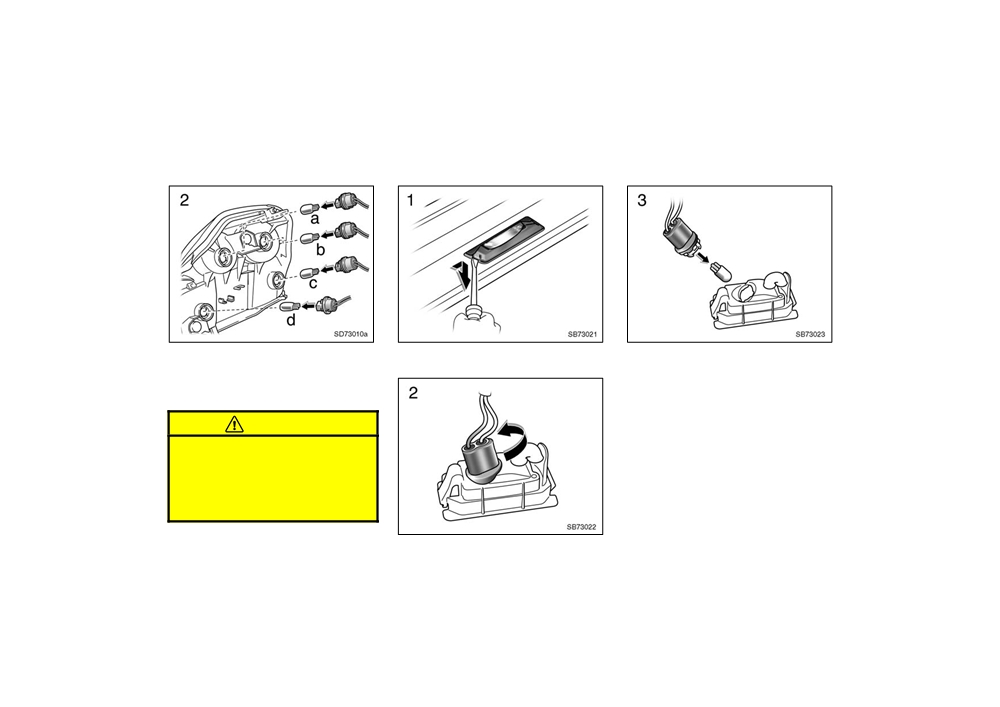

—License plate lights

a: Back−up light

b: Rear turn signal light

c: Stop/tail light

d: Stop light

CAUTION

Be careful when you work in the area

around the engine after driving in or-

der to prevent burning yourself. The

engine hood, the support rod, or sur-

rounding area could be hot after driv-

ing.

235

2005 MR2 from Aug. ’04Prod. (OM17527U)

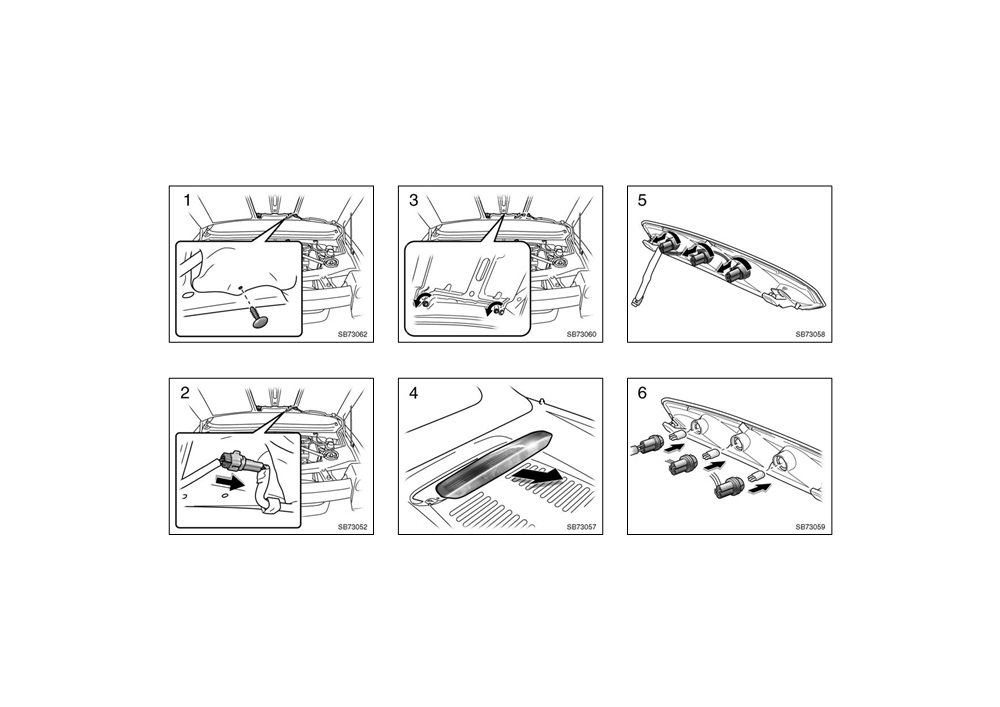

—High mounted stop light

236

2005 MR2 from Aug. ’04Prod. (OM17527U)

CAUTION

Be careful when you work in the area

around the engine after driving in or-

der to prevent burning yourself. The

engine hood, the support rod, or sur-

rounding area could be hot after driv-

ing.

237

2005 MR2 from Aug. ’04Prod. (OM17527U)

238

2005 MR2 from Aug. ’04Prod. (OM17527U)

SECTION 8

SPECIFICATIONS

Specifications

Dimensions and weight

240

Engine

240

Fuel

240

Service specifications

241

Tires

244

Fuses

245

239

2005 MR2 from Aug. ’04Prod. (OM17527U)

Dimensions and weight

Engine

Fuel

Overall length mm (in.)

3885

(153.0)

Model:

Fuel type:

1ZZ−FE

Unleaded gasoline, Octane Rating

87

Overall width mm (in.)

1695

(66.7)

(Research Octane Number 91) or higher

Type:

Overall height mm (in.)

1240

(48.8)∗

4 cylinder in line, 4 cycle, gasoline

Fuel tank capacity, L (gal., Imp. gal.):

Wheelbase

mm (in.)

2450

(96.5)

48 (12.7, 10.6)

Bore and stroke, mm (in.):

Front tread

mm (in.)

1475

(58.1)

79.0

91.5

(3.11

3.60)

Rear tread

mm (in.)

1460

(57.5)

Displacement, cm3 (cu. in.):

1794 (109.5)

Vehicle capacity weight

(occupants + luggage)

kg (lb.)

193

(425)

∗: Unladen vehicle

240

2005 MR2 from Aug. ’04Prod. (OM17527U)

Service specifications

ENGINE

ENGINE LUBRICATION

Oil grade:

API grade SL

“Energy−Conserving” or

Valve clearance (engine cold), mm (in.):

Oil capacity

(drain and refill), L

(qt., Imp.

ILSAC multigrade engine oil.

Intake

0.15—0.25 (0.006—0.010)

qt.):

Exhaust

0.25—0.35 (0.010—0.014)

With filter

3.7 (3.9,

3.3)

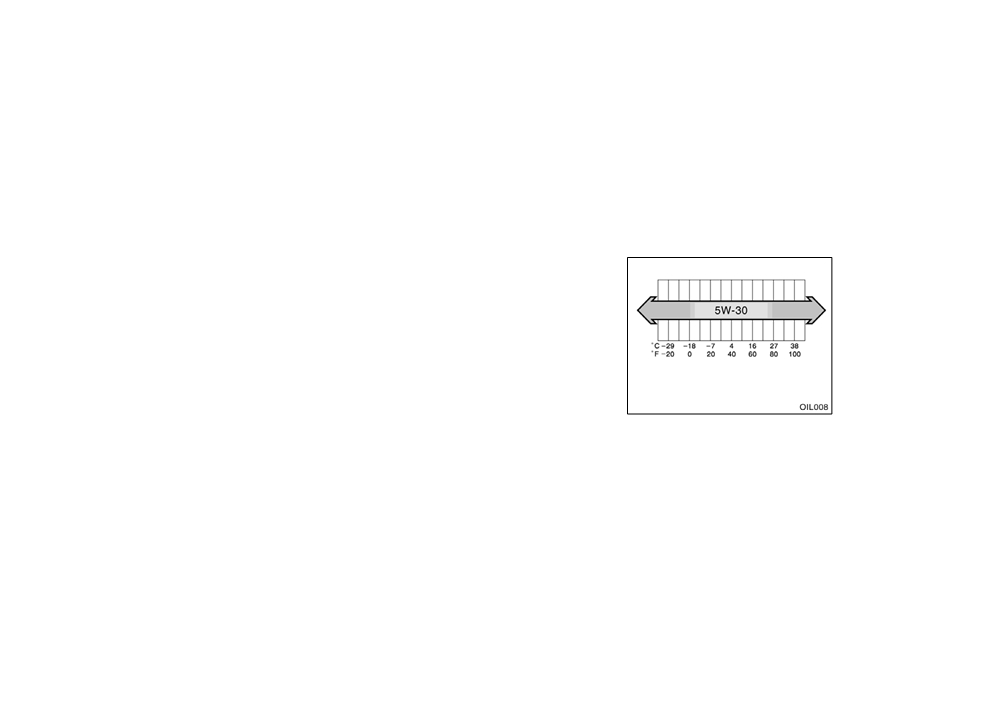

Recommended oil viscosity:

Without filter

3.5 (3.7,

3.1)

Spark plug type:

SAE 5W−30

DENSO

SK16R11

“Toyota Genuine Motor Oil” is used in

NGK

IFR5A11

your Toyota vehicle. Use Toyota approved

“Toyota Genuine Motor Oil” or equivalent

Spark plug gap, mm (in.):

to satisfy the following grade and viscos-

1.1

(0.043)

ity.

Outside temperature

Please contact your Toyota dealer for fur-

ther details.

241

2005 MR2 from Aug. ’04Prod. (OM17527U)

COOLING SYSTEM

CLUTCH (manual transmission only)

SEQUENTIAL MANUAL TRANSMISSION

SYSTEM

Total capacity, L (qt., Imp. qt.):

Pedal free play, mm (in.):

10.4

(11.0,

9.2)

5—15 (0.2—0.6)

Fluid type:

Coolant type:

Fluid type:

Sequential M/T Fluid or equivalent

SAE J1703 or FMVSS No.116 DOT 3

NOTICE: Using Fluid other than Toyota

“Toyota Super Long Life Coolant” is

used in your Toyota vehicle at factory

MANUAL TRANSAXLE

Genuine Sequential M/T Fluid may

fill. In order to avoid technical problems,

cause deterioration in shift performance

Oil capacity, L

(qt., Imp. qt.):

only use

“Toyota Super Long Life

and durability, and ultimately damage

Vehicle with limited−slip differential

the sequential manual transmission of

Coolant” or similar high quality ethylene

1.8 (1.9, 1.6)

glycol based non−silicate, non−amine,

your vehicle.

non−nitrite, and non−borate coolant with

Vehicle without limited−slip differential

1.9 (2.0, 1.7)

long−life hybrid organic acid technology.

(Coolant with long−life hybrid organic

Oil type:

acid technology is a combination of low

Gear oil API GL−4 or GL−5

phosphates and organic acids.)

Recommended oil viscosity:

Do not use plain water alone.

SAE 75W−90

Please contact your Toyota dealer for

SEQUENTIAL MANUAL TRANSAXLE

further details.

Oil capacity, L

(qt., Imp. qt.):

BATTERY

Vehicle with limited−slip differential

Open voltage∗ at 20_C (68_F):

2.1 (2.2, 1.8)

12.6—12.8 V

Fully charged

Vehicle without limited−slip differential

12.2—12.4 V

Half charged

2.3 (2.4, 2.0)

11.8—12.0 V

Discharged

Oil type:

∗: Voltage that is checked

20 minutes af-

Gear oil API GL−4 or GL−5

ter the key is removed with all the lights

Recommended oil viscosity:

turned off

SAE 75W−90

Charging rates:

5 A max.

242

2005 MR2 from Aug. ’04Prod. (OM17527U)

BRAKES

STEERING

Minimum pedal clearance when depressed

Wheel free play:

with the force of

490 N (50 kgf, 110 lbf)

Less than 30 mm (1.2 in.)

with the engine running, mm (in.):

Power steering fluid type:

85 (3.4)

Toyota P.S fluid EH or equivalent

Pedal free play, mm (in.):

1—6 (0.04—0.24)

Pad wear limit, mm (in.):

1.0

(0.04)

Parking brake adjustment when pulled with

the force of 196 N (20 kgf, 44 lbf):

5—8 clicks

Fluid type:

SAE J1703 or FMVSS No.116 DOT 3

243

2005 MR2 from Aug. ’04Prod. (OM17527U)

Tires

Tire size and cold tire inflation pressure:

Except spare tire

Tire inflation pressure

Tire size

Wheel size

kPa (kgf/cm2 or bar, psi)

Front

185/55R15 81V

180

(1.8,

26)

15

6JJ

Rear

215/45R16 86W

220

(2.2,

32)

16

7JJ

Spare tire

Tire inflation pressure

Tire size

Wheel size

kPa (kgf/cm2 or bar, psi)

185/55R15 81V

180

(1.8,

26)

15

6JJ

Wheel nut torque, N·m (kgf·m, ft·Ibf):

103

(10.5,

76)

NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pres-

sure” through “Aluminum wheel precautions”, page 213 through 221 in Section 7−2.

244

2005 MR2 from Aug. ’04Prod. (OM17527U)

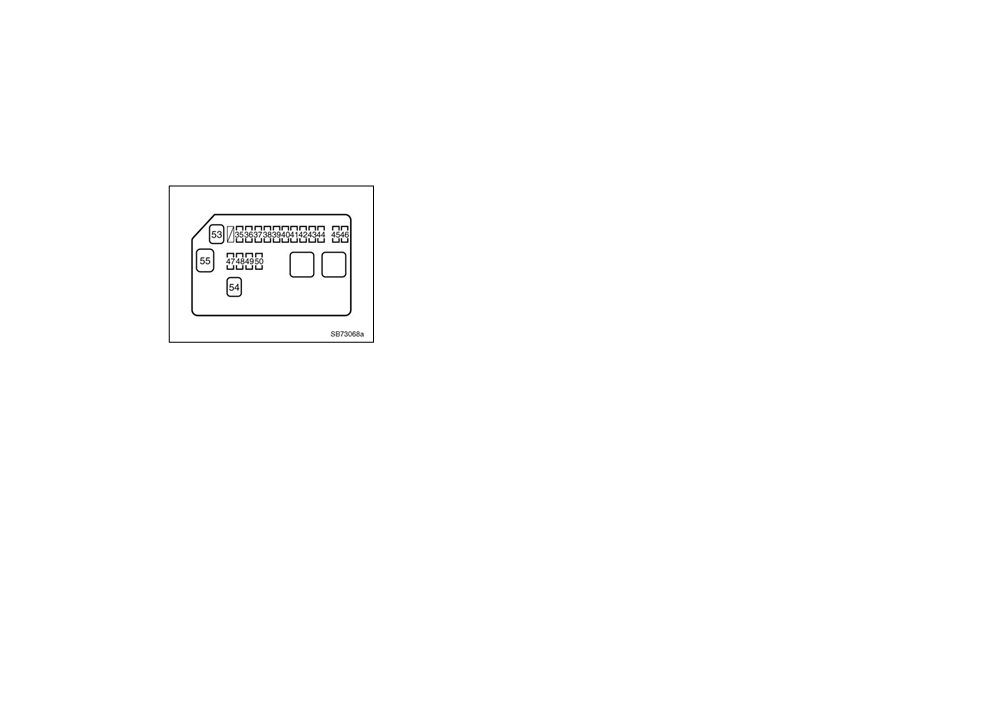

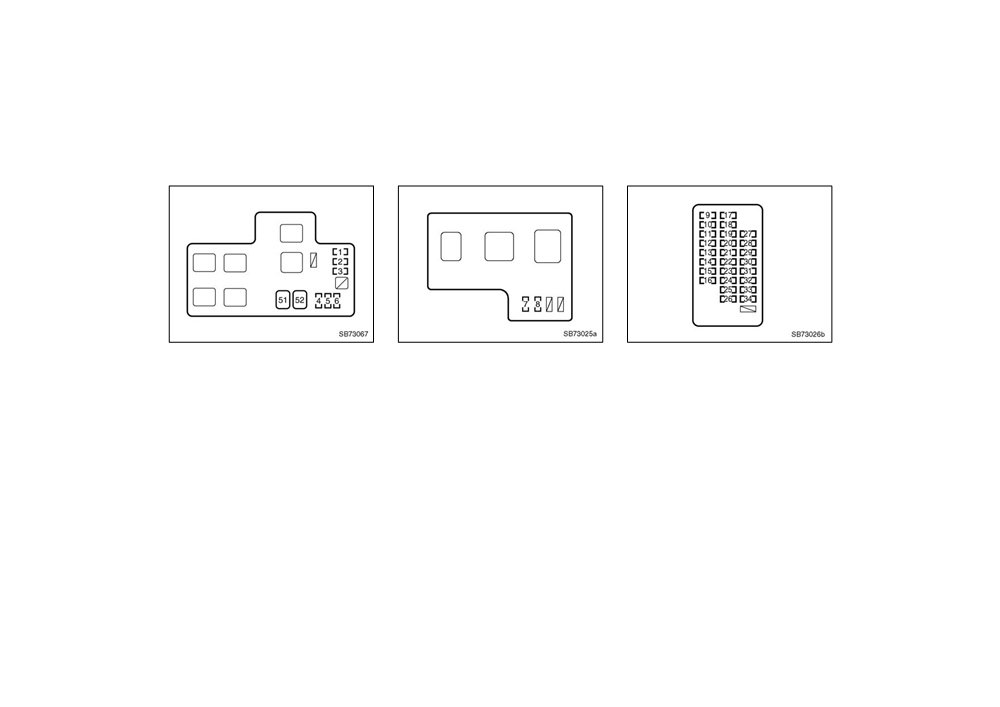

Fuses

Trunk room

Trunk room

Instrument panel

Fuses (type A)

10. HTR 10 A: Air conditioning system

17. DEF 25 A: Rear window defogger sys-

tem

1. 30 A: Spare fuse

11. WIPER

20 A: Windshield wiper and

washer

18. OBD 7.5 A: On−board diagnosis sys-

2. 15 A: Spare fuse

tem

12. ECU−IG 7.5 A: Power Steering system,

3. 20 A: Spare fuse

anti−lock brake system

19. AM1

7.5 A:

“GAUGE”

“ACC”

“TURN”

4. RDI FAN 30 A: Electric cooling fans

“ECU−IG”

“WIPER”

“WASHER”

“SRS”

13. FAN−IG 7.5 A: Electric cooling fans

5. ABS1 30 A: Anti−lock brake system

“HTR 10A” “FAN−IG” fuses

14. TURN 7.5 A: Turn signal lights, emer-

6. CDS FAN 30 A: Electric cooling fans

20. ACC 25 A: “RADIO2” “CIG” fuses

gency flashers

7. HEAD LH UPR 10 A: Left−hand head-

21. DOOR 15 A: Power door lock system

15. GAUGE 7.5 A: Power window system,

light

(high beam)

gauges and meters, back−up lights,

22. FR FOG 15A: Front fog light

8. HEAD RH UPR

10 A: Right−hand

charging system, rear window defogger

23. STOP 15 A: Stop lights, high mounted

headlight

(high beam)

system

stop light, sequential manual transmis-

9. WASHER 10 A: Windshield wiper and

16. SRS 7.5 A: SRS airbag system

sion system

washer

245

2005 MR2 from Aug. ’04Prod. (OM17527U)

33.

CIG 15 A: Cigarette lighter

46. HEAD LH LWR 10A: Left−hand head-

light

(low beam)

34.

I/UP 7.5 A: Engine idle up system

47. EFI2 7.5 A: Multiport fuel injection sys-

35.

ALT−S 7.5 A: Charging system

tem/sequential multiport fuel injection

36.

ECU−B1 25 A: “ECU−B” “DOME” fuses

system

37.

SMT−B 10A: Sequential manual trans-

48. ST 7.5 A: Starter system

mission system

49. SMT−IG 10A: Sequential manual trans-

38.

HORN 10 A: Horn

mission system

39.

HAZ 15 A: Turn signal lights, emergen-

50. DRL NO.1 7.5 A: Daytime running light

cy flashers

system

40.

AM2 15 A: Starter system, multiport

Fuses (type B)

fuel injection system/sequential multi-

51. ABS2 50 A: Anti−lock brake system

Engine compartment

port fuel injection system, SRS airbag

system

52. EHPS 50 A: Power steering system

41.

IG2

15 A: Ignition system, multiport

53. MAIN

40 A: Starter system,

“DRL

24. TAIL1 20 A: “TAIL2” “PANEL” fuses

fuel injection system/sequential multi-

NO.1”

“HEAD LH LWR”

“HEAD RH

25. D P/W 20 A: Power window system

port fuel injection system

LWR” fuses

26. P P/W 20 A: Power window system

42.

EFI1 15 A: Multiport fuel injection sys-

54. HTR 40 A: Air conditioning system

27. RADIO1 15 A: Power antenna, audio

tem/sequential multiport fuel injection

Fuses (type C)

28. DOME 10 A: Clock

system, engine immobilizer system

55. ALT

100 A:

“AM1”

“D P/W”

“P P/W”

43.

ETCS 15A: Multiport fuel injection sys-

29. ECU−B

10 A: Daytime running light

“DOOR” “STOP” “EHPS” “DEF” “TAIL1”

tem/sequential multiport fuel injection

system, gauges and meters

“OBD” “HTR 40A” fuses

system

30. TAIL2

10 A: Taillights, parking lights,

44.

HPU 30A: Sequential manual transmis-

license plate lights, gauges and meters

sion system

31. PANEL 7.5 A: Clock, illuminations

45.

HEAD RH LWR 10A: Right−hand head-

32. RADIO2

7.5 A: Gauges and meters,

light

(low beam)

outside rear view mirror system, clock

246

2005 MR2 from Aug. ’04Prod. (OM17527U)
