PARK ASSIST / MONITORING  –  ULTRASONIC SENSOR

PM

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE REAR BUMPER COVER (See page

ET-17

)

3.

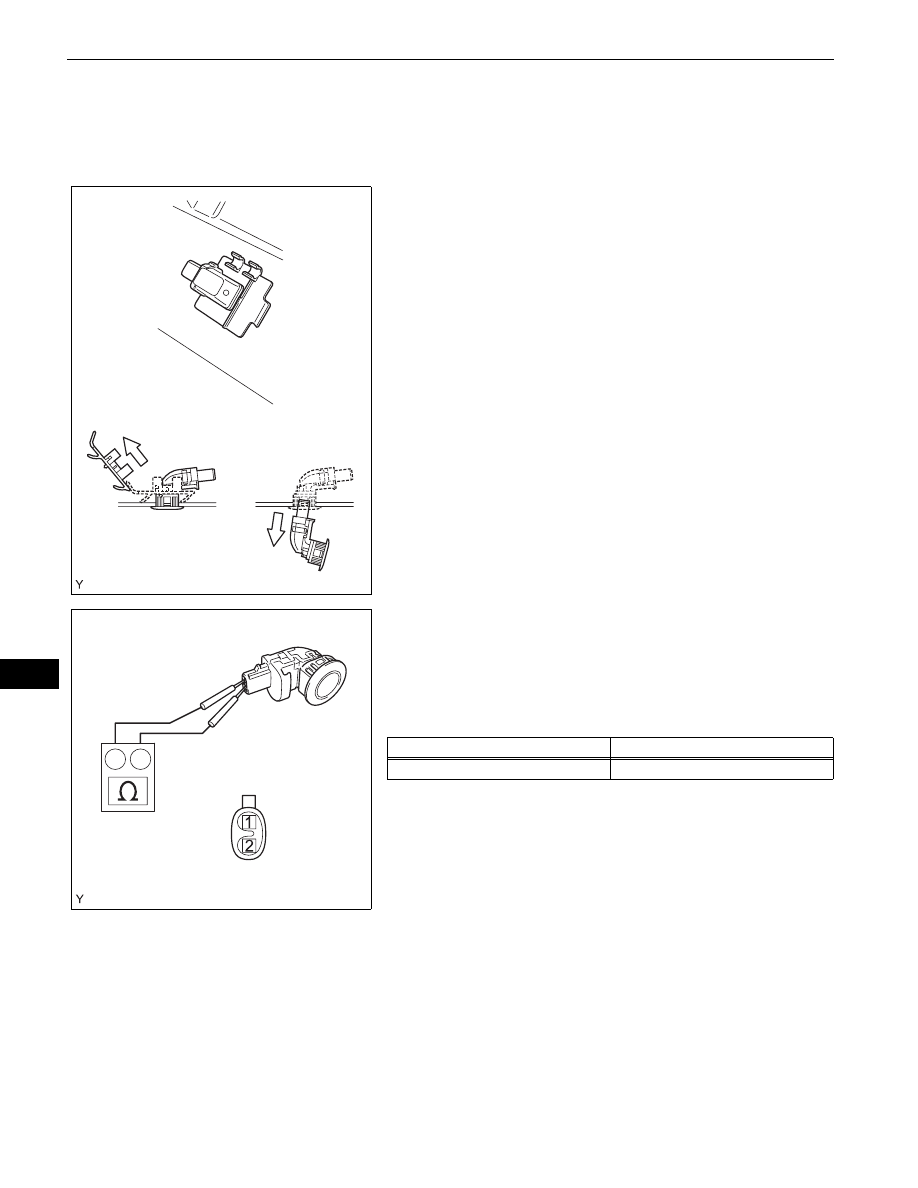

REMOVE ULTRASONIC SENSOR
(a) Disconnect the ultrasonic sensor connector.
(b) Remove the retainer and the ultrasonic sensor as

shown in the illustration.

INSPECTION

1.

INSPECT ULTRASONIC SENSOR
(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance

between the terminals.
Standard resistance

If the result is not as specified, replace the
ultrasonic sensor.

B138492

Ohmmeter

B138494E01

Tester Connection

Specified Condition

1 (E) - 2 (S)

8 to 12 k

Ω

PARK ASSIST / MONITORING  –  ULTRASONIC SENSOR

PM–39

PM

INSTALLATION

HINT:
The procedure described below is for the LH side. Use the
same procedure for both the RH and LH sides, unless
otherwise specified.

1.

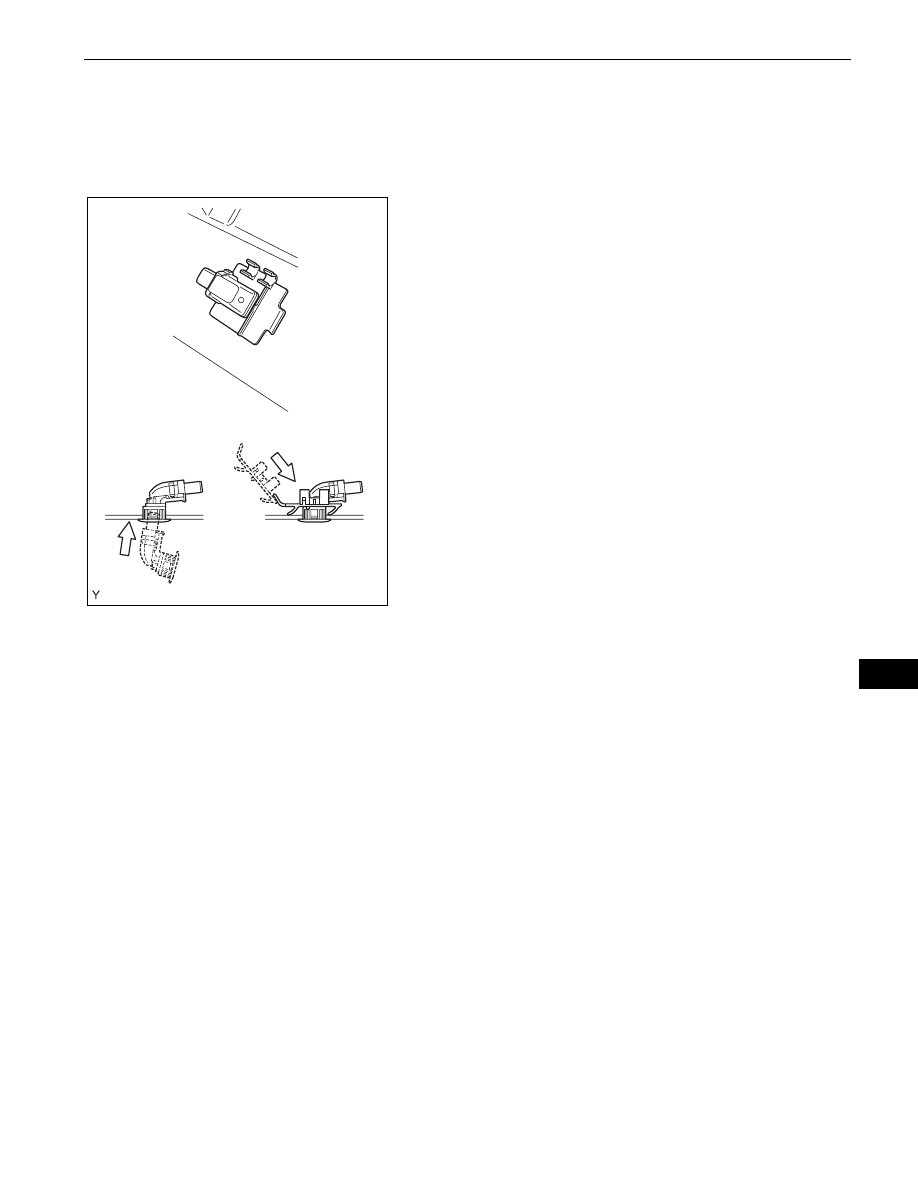

INSTALL ULTRASONIC SENSOR
(a) Install the ultrasonic sensor with the retainer as

shown in the illustration.

(b) Connect the ultrasonic sensor connector.

2.

INSTALL REAR BUMPER COVER (See page

ET-25

)

3.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B138493

PM–40

PARK ASSIST / MONITORING  –  BACK SONAR SWITCH ASSEMBLY

PM

BODY ELECTRICAL

PARK ASSIST / MONITORING

BACK SONAR SWITCH ASSEMBLY

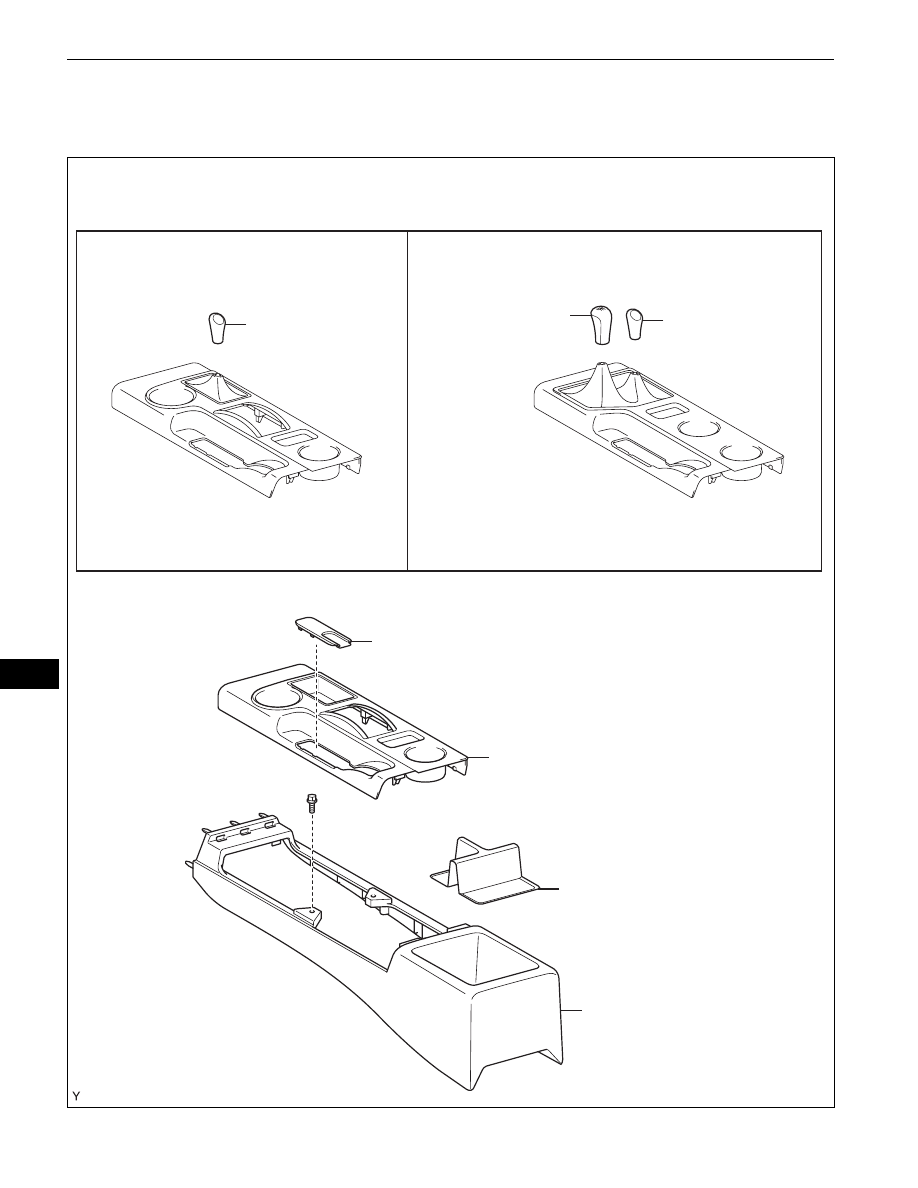

COMPONENTS

FRONT CONSOLE BOX

FRONT CONSOLE BOX
BOTTOM MAT

FRONT CONSOLE BOX UPPER
PANEL SUB-ASSEMBLY

PARKING BRAKE HOLE
COVER SUB-ASSEMBLY

SHIFT LEVER KNOB
SUB-ASSEMBLY

SHIFT LEVER KNOB
SUB-ASSEMBLY

x4

SHIFT LEVER KNOB
SUB-ASSEMBLY

for Manual Transmission:

for Automatic Transmission 4WD:

B135184E01

PARK ASSIST / MONITORING  –  BACK SONAR SWITCH ASSEMBLY

PM–41

PM

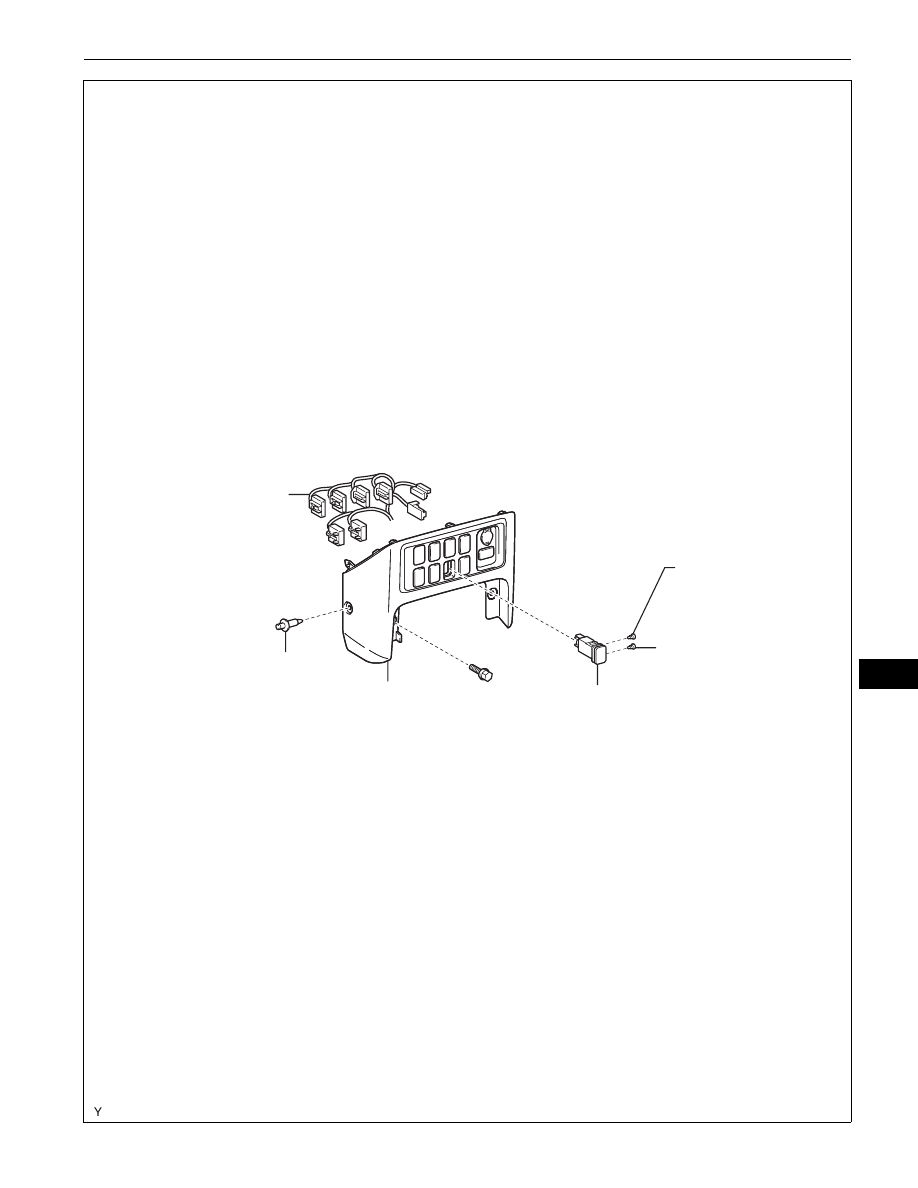

BACK SONAR
SWITCH ASSEMBLY

BACK SONAR
SWITCH BULB

BACK SONAR
SWITCH BULB CAP

INSTRUMENT LOWER
COVER SUB-ASSEMBLY

CLIP

x2

x2

INSTRUMENT PANEL
WIRE

B138461E01
