北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

When the operation indicator on

the push-button ignition switch
flashes in orange, contact a
SUBARU dealer immediately.

NOTE

When doors are not locked because

the access key fob is left inside the
trunk, you cannot open the trunk lid by
pushing the trunk opener button on the
trunk lid. Press the trunk opener switch
for approximately 1 second to open the
trunk lid. Refer to “To open the trunk lid
from inside” F2-36.
.

Do not leave the access key fob

inside the trunk. Depending on the
status of the access key fob and
situation, the trunk lockout protect
function may not operate. Make sure
that you carry the access key fob, and
close the trunk lid.
.

Even when the access key fob is

within the operating ranges inside the
vehicle, the access key warning for
engine start may be provided depend-
ing on the status of the access key fob
and the environmental conditions.

When the access key fob is taken out

of the vehicle through an open window,
the access key takeout warning or
passenger access key takeout warning
will not be provided.

List of warnings

CAUTION

When any of the following warnings
occurs even if the access key warn-
ing indicator does not appear, take
the appropriate action.

– CONTINUED –

Instruments and controls/Warning and indicator lights

3-29

(170,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Inside warning

chime

Outside warning

chime

Operation indicator

on push-button igni-

tion switch

Status

Action

Ding, ding ...
(intermittent)

—

The driver’s door was opened while the
push-button ignition switch is “ACC” (in
CVT models, when the select lever is in
the “P” position.)

Switch the push-button ignition switch to
“OFF”, or close the driver’s door.
*When exiting the vehicle, be sure to
switch the push-button ignition switch to
“OFF”.

The push-button ignition switch was
switched to “OFF” while the driver’s door
is open.

Close the driver’s door.

Ding

Short beep

(2 seconds)

—

Lockout warning:
All doors were closed after the locking of
all doors was set by using the door lock
lever or power door locking switch while
the access key fob is inside the vehicle.

Take out the access key fob from the
vehicle, and lock the doors.
*The doors cannot be locked while the
access key fob is inside the vehicle.
*A chirp sound will be heard, and all
doors will be unlocked.

—

Short beep

(2 seconds)

—

Trunk lockout warning:
The trunk was closed with the access key
fob in it while all doors are locked (or
during the automatic lock time period).

Take out the access key fob from the
trunk, and close the trunk.
*By pressing the trunk opener button
after this warning chime sounds, the
trunk can be unlocked.

Access key lock-in warning:
The door lock sensor was touched while
the push-button ignition switch is “OFF”
and the access key fob is inside the
vehicle.

Take out the access key fob from the
vehicle, and lock the doors.
*If the access key fob is inside the
vehicle, the doors cannot be locked.

—

Beep, beep ...

(5 beeps)

—

Door ajar warning:
The door lock sensor is touched while the
push-button ignition switch is in the
“OFF” position and another door or the
trunk is opened.

Close the doors securely and lock them.
*If one of the doors is opened, the doors
cannot be locked.

Instruments and controls/Warning and indicator lights

3-30

(171,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Inside warning

chime

Outside warning

chime

Operation indicator

on push-button igni-

tion switch

Status

Action

Ding

Long beep

(60 seconds max.)

—

Power warning:
The door lock sensor was touched while
carrying the access key fob and the
push-button ignition switch is in a posi-
tion other than “OFF” and the select lever
is in the “P” position.

Open the door and return the access key
fob inside the vehicle, or switch the push-
button ignition switch to “OFF”.
*If the push-button ignition switch is not
switched to “OFF”, the doors cannot be
locked.

Ding, ding ...

(7 seconds)

—

Access key warning:
The vehicle was driven while the access
key fob is not inside the vehicle.

Carry the access key fob, and drive the
vehicle.

Ding

—

Access key warning for engine start:
The push-button ignition switch was
pressed while the access key fob is not
inside the vehicle.

Carry the access key fob, and press the
push-button ignition switch.

Ding

Beep, beep, beep

(3 beeps)

—

Access key takeout warning:
The driver exited the vehicle with the
access key fob and closed the driver’s
door while the push-button ignition
switch is in a position other than “OFF”
and the select lever is in the “P” position.

Switch the push-button ignition switch to
“OFF”, and get out of the vehicle.

Ding

Beep, beep, beep

(3 beeps)

—

Passenger access key takeout warn-
ing:
A fellow passenger exited the vehicle
with the access key fob and closed a
door other than the driver’s door while
the push-button ignition switch is in a
position other than “OFF”.

Return the access key fob to inside the
vehicle, or switch the push-button ignition
switch to “OFF”.

Long beep

(continuous)

Long beep

(continuous)

—

Access key takeout without “P” posi-
tion warning:
The driver exited the vehicle with the
access key fob and closed the driver’s
door while the push-button ignition
switch is in a position other than “OFF”
and the select lever is in a position other
than the “P” position.

Shift the select lever to the “P” position,
switch the push-button ignition switch to
“OFF” and exit the vehicle.

– CONTINUED –

Instruments and controls/Warning and indicator lights

3-31

(172,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Inside warning

chime

Outside warning

chime

Operation indicator

on push-button igni-

tion switch

Status

Action

Long beep

(continuous)

—

Select lever position warning:
.

Case 1: The driver’s door was

opened while the push-button igni-
tion switch is in a position other than
“OFF” and the select lever is in a
position other than the “P” position.

Case 2: The engine is turned off by

pressing the push-button ignition
switch and the select lever is in a
position other than the “P” position.

Case 1: Shift the select lever to
the “P” position, switch the push-
button ignition switch to “OFF” and
exit the vehicle.

Case 2: Start the engine, shift
the select lever to the “P” position,
switch the push-button ignition
switch to “OFF” and exit the vehicle.

Ding

—

The battery of the access key fob is low.

Replace the battery of the access key
fob.

Ding

—

Flashes in green

(15 seconds max.)

Steering lock warning:
The engine start procedure was per-
formed, but the steering is still locked.

While turning the steering wheel right and
left lightly, depress the brake pedal and
press the push-button ignition switch.

Ding

—

Flashes in orange

System malfunction warning:
A malfunction was detected in the power
system or steering lock.

Contact a SUBARU dealer immediately
and have the vehicle inspected.

NOTE

An electronic chirp will sound while the select lever is in the “R” position. In this case, the select lever position warning chime
will not sound.

Instruments and controls/Warning and indicator lights

3-32

(173,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Security indicator light

This indicator light shows the status of the
alarm system. It also indicates operation of
the immobilizer system.

Alarm system

It blinks to show the driver the operational
status of the alarm system. For detailed
information, refer to “Alarm system” F2-
24.

Immobilizer system

The security indicator light starts blinking
in the following conditions.

For models with “keyless access with
push-button start system”:
.

Immediately after turning the push-

button ignition switch to the “OFF” position.
.

Immediately after opening or closing

the driver’s door when all of the following
conditions are met.

– The push-button ignition switch is in
the “ON” or “ACC” position.
– The access key fob is outside the
vehicle.
– The engine is not running.
– In the event that an unauthorized
key is used (for example, the key is
unregistered or the ID code does not
match), the power is not switched to
“ON” and the security indicator light

continues blinking.

For models without “keyless access
with push-button start system”:
.

Approximately 60 seconds after turning

the ignition switch from the “ON” position to
the “ACC” or “LOCK” position.
.

Immediately after pulling out the key.

If the indicator light does not blink in the
above conditions, it may indicate that
immobilizer system may be malfunction-
ing. Contact your nearest SUBARU dealer
immediately.

In the event that an unauthorized key (for
example, an unauthorized duplicate) is
used, the security indicator light illumi-
nates. For details about the immobilizer
system, refer to “Immobilizer” F2-22.

NOTE

The security indicator light remains

off in the following conditions. It means
that the matching of the ID code is
completed and the immobilizer system
is deactivated, and it does not indicate
a malfunction.

Models with “keyless access with
push-button start system”:

– while the engine is running
– the push-button ignition switch

has been turned to the “ON” or
“ACC” position and the driver’s
door has not been opened or closed

Models without “keyless access
with push-button start system”:

– while the engine is running
– for approximately 60 seconds
after the ignition switch is turned
from the “ON” position to the “ACC”
or “LOCK” position
– when the ignition switch is in the
“ON” position.

Even if a malfunction occurs, such

as the security indicator light flashes
irregularly, it will not affect the func-
tionality of the immobilizer system.

– CONTINUED –

Instruments and controls/Warning and indicator lights

3-33

(174,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

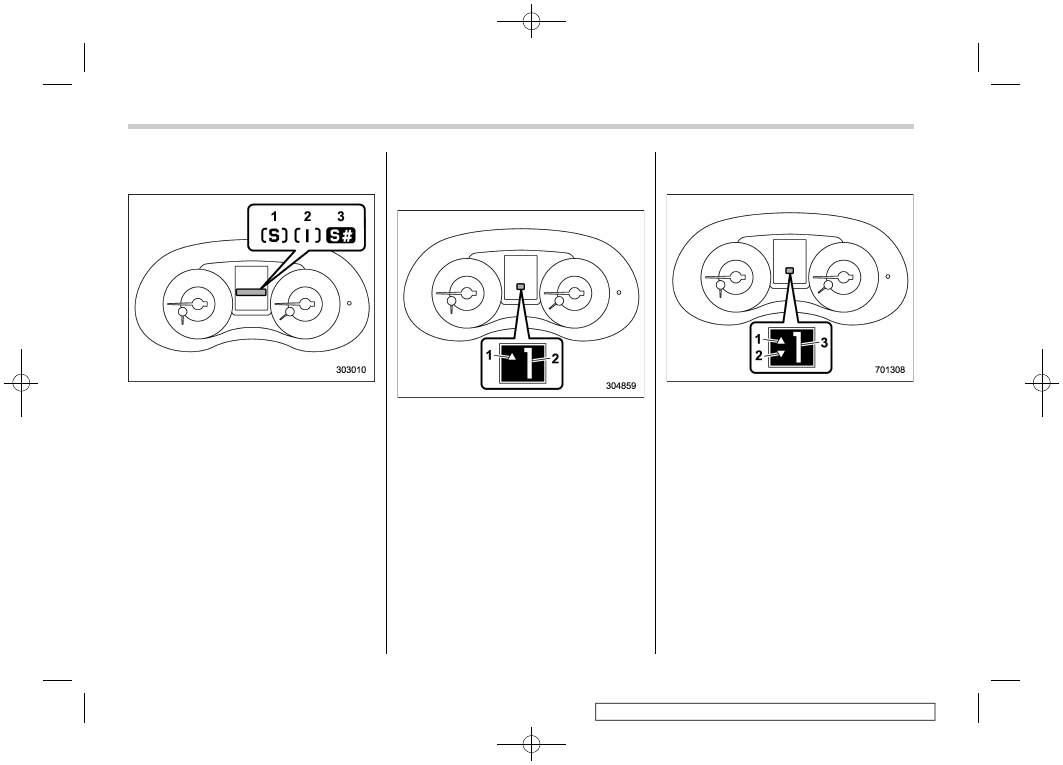

SI-DRIVE indicator (if
equipped)

Sport (S) mode

Intelligent (I) mode

Sport Sharp (S#) mode

This indicator shows the current SI-DRIVE
mode.
For details of SI-DRIVE mode, refer to “SI-
DRIVE” F7-28.

Gear position indicator (MT
models)/Shift-up indicator
(STI)

Shift-up indicator (STI)

Gear position indicator

The gear position indicator shows the
position of the shift lever.

While driving, the shift-up indicator ap-
pears and informs the driver about the
upshift timing for fuel-efficient driving.

The shift-up indicator can be activated or
deactivated.

Refer to “Gear Position Indicator Setting
(MT models)” F3-43.

Select lever/gear position in-
dicator (CVT models)

Upshift indicator

Downshift indicator

Select lever/gear position indicator

This indicator shows the position of the
select lever.

When the manual mode is selected, the
gear position indicator (which shows the
current gear selection) and the upshift/
downshift indicator light up. Refer to
“Continuously variable transmission” F7-
23.

While the Sport Sharp (S#) mode is
selected, the select lever/gear position
indicator remains on and the upshift/
downshift indicators is off. However, while

Instruments and controls/Warning and indicator lights

3-34

(175,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

using the manual mode with the Sport
Sharp (S#) mode selected, the upshift/
downshift indicators will be on.

Turn signal indicator
lights

These lights show the operation of the turn
signal or lane change signal.
If the indicator lights do not blink or blink
rapidly, the turn signal bulb may be burned
out. Replace the bulb as soon as possible.
Refer to “Replacing bulbs” F11-44.

High beam indicator
light

This light shows that the headlights are in
the high beam mode.
This indicator light also illuminates when
the headlight flasher is operated.

High Beam Assist indi-
cator light (green) (if
equipped)

This light illuminates when the High Beam
Assist function is activated. For details
about the High Beam Assist function, refer
to “High beam assist function (models with
the EyeSight system)” F3-67.

High Beam Assist
warning indicator
(yellow) (if equipped)

This warning indicator appears when the
High Beam Assist function malfunctions.
When this warning indicator appears, have
your vehicle inspected by your SUBARU
dealer.

Cruise control indicator

This indicator appears when the cruise
control main button is pressed to activate
the cruise control function. For details,
refer to “To set cruise control” F7-54.
If this light blinks, do not use the cruise
control. In addition, if it blinks frequently,
contact your SUBARU dealer for an
inspection.

CAUTION

If the CHECK ENGINE warning light/
malfunction indicator light illumi-
nates, the cruise control indicator
flashes at the same time. At this
time, avoid driving at high speed and
have your vehicle inspected at a
SUBARU dealer as soon as possi-
ble.

Cruise control set indi-
cator

This indicator appears when vehicle speed
has been set to use the cruise control
function. Refer to “To set cruise control”
F7-54.

Automatic headlight
beam leveler warning
light (models with LED
headlights)

This light illuminates when the automatic
headlight beam leveler does not operate
normally.
If this light illuminates while driving or does
not turn off approximately 3 seconds after
turning the ignition switch to the “ON”
position, have your vehicle inspected at
your SUBARU dealer.

Front fog light indicator
light (if equipped)

This indicator light illuminates while the
front fog lights are illuminated.

– CONTINUED –

Instruments and controls/Warning and indicator lights

3-35

(176,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Headlight indicator
light

This indicator light illuminates under the
following conditions.
.

when the light switch is turned to the

“

” or “

” position

when the light control switch is in the

“AUTO” position and the headlights illumi-
nate automatically

Driver’s control center differ-
ential auto indicator (STI)

This indicator functions while the ignition
switch is “ON”. When it appears, it indi-
cates that the driver’s control center
differential is set to the auto mode. It
disappears when the driver’s control cen-
ter differential is set to the manual mode.

For details, refer to “Driver’s Control
Center Differential (C.DIFF/DCCD) (STI)”
F7-18.

Driver’s control center dif-
ferential auto [+] indicator
(STI)

When the AUTO [+] mode is set, the AUTO
[+] indicator appears.
For details, refer to “Driver’s Control
Center Differential (C.DIFF/DCCD) (STI)”
F7-18.

Driver’s control center dif-
ferential auto [−] indicator
(STI)

When the AUTO [−] mode is set, the AUTO
[−] indicator appears.
For details, refer to “Driver’s Control
Center Differential (C.DIFF/DCCD) (STI)”
F7-18.

Driver’s control center differ-
ential indicator and warning
(STI)

Indicator

When you select the manual mode of the
driver’s control center differential, these
indicators will appear. They indicate the
initial limited slip differential (LSD) torque
that is currently selected for the center
differential.

Instruments and controls/Warning and indicator lights

3-36

(177,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Warning indicator

All the indicators will flash when the
driver’s control center differential has a
malfunction. Have the vehicle inspected
by your SUBARU dealer. For details, refer
to “Driver’s Control Center Differential (C.
DIFF/DCCD) (STI)” F7-18.
If a malfunction occurs in the vehicle (for
example, when the rear differential oil
becomes hot), all of the indicators may
disappear. In this case, the setting value
for the initial limited slip differential (LSD)
torque of the driver’s control center differ-
ential (C.DIFF/DCCD) will be cancelled.
However, it does not indicate a malfunction
of the C.DIFF/DCCD itself.

REV indicator light (STI)

This indicator light illuminates when the
engine speed reaches the level that was
previously set. This indicator light also
flashes when the tachometer needle en-
ters the red zone. For details, refer to “REV
indicator light and buzzer (STI)” F3-12.

Steering Responsive
Headlight warning indi-
cator/Steering Respon-
sive Headlight OFF indi-
cator (if equipped)

This indicator appears when the Steering
Responsive Headlight is deactivated.
Also, the indicator flashes when a mal-
function occurs in the Steering Respon-
sive Headlight. Refer to “Steering Respon-
sive Headlight (SRH)” F3-71.

BSD/RCTA warning in-
dicator (if equipped)

This warning indicator appears when the
BSD/RCTA is malfunctioning. In this case
the BSD/RCTA warning indicator will be
shown on the combination meter display
(color LCD). When this indicator appears,
have your vehicle inspected by your
SUBARU dealer as soon as possible.

BSD/RCTA OFF indica-
tor (if equipped)

The indicator appears when the BSD/
RCTA is deactivated. In this case the
BSD/RCTA OFF indicator will be shown
on the combination meter display (color
LCD). For details, refer to “BSD/RCTA”
F7-57.

RAB warning
indicator (if equipped)

This indicator illuminates if the Reverse
Automatic Braking System malfunctions.
Refer to “Reverse Automatic Braking
System” F7-66.

RAB OFF indicator light
(if equipped)

This indicator illuminates when the Re-
verse Automatic Braking System is turned
OFF, or when the Reverse Automatic
Braking System is suspended temporarily.
Refer to “Reverse Automatic Braking
System” F7-66.

Instruments and controls/Warning and indicator lights

3-37

(178,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Combination meter display
(color LCD)

WARNING

Always pay adequate attention to
safe driving when operating the
combination meter display (color
LCD) while the vehicle is in motion.
When operation of the combination
meter display (color LCD) interferes
with your ability to concentrate on
driving, stop the vehicle before
performing operations on the
screen. Also, do not concentrate on
the display while driving. Doing so
may cause you to look away from the
road and could result in an accident.

Various information will be shown on the
combination meter display (color LCD).
Also, a warning message will appear on
the display if a malfunction, etc. is
detected. In addition, several settings for
the displayed content can be performed.

Combination meter display (color LCD)
1)

ECO gauge (refer to “ECO gauge” F3-
12.)

Warning screen (refer to “Warning
screen” F3-39.)/Basic screen (refer to
“Basic screens” F3-40.)

Cruise control information display/
C.DIFF/DCCD indicator

Warning indication (refer to “Warning
indication” F3-41.)

Select lever/gear position indicator (refer
to “Select lever/gear position indicator
(CVT models)” F3-34.)

SI-DRIVE indicator light (refer to “SI-
DRIVE indicator” F3-34.)

Odometer (refer to “Odometer” F3-9.)/
double trip meter (refer to “Double trip
meter” F3-9.)

Control switch
1)

Up (select)

/SET (enter)

Down (select)

Instruments and controls/Combination meter display (color LCD)

3-38

(179,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Basic operation

Pull “

” or “

” of the control switch

toward you to switch the screens and
selection items. Pull the “

/SET” switch

toward you to select and set the item.

If there are some useful messages, such
as vehicle information, warning informa-
tion, etc., they will interrupt the current
screen, and appear on the display accom-
panied by a beep. If such a screen is
displayed, take proper action according to
the message shown on the screen.

The warning screen will return to the
original screen after a few seconds. While
the “

” information reminder is shown on

the display, it may be possible to display
the warning screen again. To recall the
message marked with “

” on the display,

pull the “

/SET” switch toward you.

Welcome screen (opening
animation) and Good-bye
screen (ending animation)

When the driver’s door is opened and
closed after unlocking the door, the Wel-
come screen (opening animation) will
appear on the combination meter display
(color LCD) for approximately 20 seconds.
When the ignition switch is turned to the
“LOCK”/“OFF” position, the combination
meter display (color LCD) gradually turns
off while showing the Good-bye screen
(ending animation).

NOTE

The welcome screen and the good-

bye screen may differ in the actual
words and appearance.
.

Once the Welcome screen appears,

it takes a certain period of time to
display it again.
.

The Welcome screen will disappear

after turning the ignition switch to the
“ON” position while the Welcome
screen is displayed.
.

If you open any of the doors while

the Welcome screen is displayed, the
door ajar warning will appear.
.

You can set the Welcome screen and

Good-bye screen to on or off. For
details, refer to “Welcome Good-bye
Screen” F3-43.

Warning screen

Example of warning

If a warning or a malfunction is detected, a
message will appear. Take the appropriate
actions based on the messages indicated.

– CONTINUED –

Instruments and controls/Combination meter display (color LCD)

3-39

(180,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

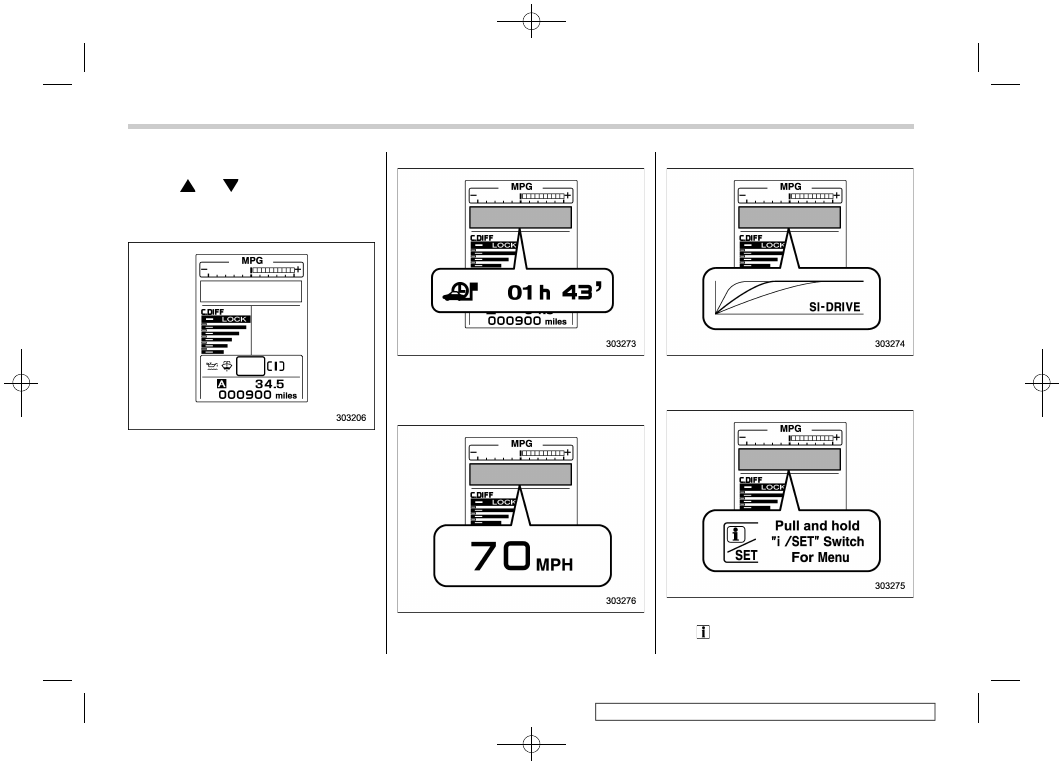

Basic screens

Pull the “

” or “

” switch on the steering

wheel to change the screen that is always
displayed.

Default screen:

Journey time screen:

This screen displays the journey time (the
time that has elapsed since the ignition
switch was turned to the “ON” position).

Digital speedometer:

SI-DRIVE mode screen:

This screen indicates the current SI-
DRIVE mode with its throttle angle.

Menu screen entering screen:

While this screen is selected, pull and hold
the “

/SET” switch to enter the menu

Instruments and controls/Combination meter display (color LCD)

3-40

(181,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

screen.

Warning indication

Warning indication

When the corresponding situation occurs,
the following warning indications will be
displayed.

Mark

Name

Page

Engine low oil level
warning indicator

3-17

BSD/RCTA warning in-
dicator (if equipped)

3-37

BSD/RCTA OFF indi-
cator (if equipped)

3-37

Steering Responsive
Headlight OFF indicator
(if equipped)

3-37

High beam assist warn-
ing indicator (yellow)

3-35

Windshield washer fluid
warning indicator

3-18,
3-76,

11-38

Access key warning in-
dicator (if equipped)

3-28

RAB warning indicator
(if equipped)

3-37

RAB OFF indicator (if
equipped)

3-37

Menu screens

Pull and hold the “

/SET” switch to enter

the menu screens when all of the following
conditions are satisfied.
.

The vehicle has been completely

stopped.
.

The select lever is in the “P” position

(CVT models).
.

The shift lever is in the neutral position

(MT models).
.

The menu screen entering screen is

selected.

Pull the “

” or “

” switch to select the

menu. Pull the “ /SET” switch to enter the
selected menu.

NOTE

If you enter the “Go Back” menu, the
system will return to the previous
screen.

– CONTINUED –

Instruments and controls/Combination meter display (color LCD)

3-41

(182,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

The menu list is as follows.

Top menu

Menu option

Possible settings

Initial settings

Screen Settings

Welcome Good-bye Screen

On/Off

Gauge Initial Movement

On/Off

Gear Position Indicator Setting (MT models)

On/Off

Languages

Select the display language.

The default language settings
vary depending on individual
countries. (For U.S. models:
English)

SRH (if equipped)

―

On/Off

REV settings (STI)

REV Indicator Light

On/Off

Off

REV Alarm Level Engine Speed

2000 rpm - RED ZONE

2000 rpm

REV Buzzer

On/Off

Off

EyeSight (models with the
EyeSight system)

Warning Volume

Max/Mid/Min

Mid

Lead Vehicle Acquisition Sound

On/Off

Lead Vehicle Moving Monitor Function

On/Off

EyeSight Assist Monitor EyeSight Assist Monitor

Red indicator

On/Off

EyeSight Assist Monitor
Yellow indicator

On/Off

EyeSight Assist Monitor
Green indicator

On/Off

BSD/RCTA (if equipped)

Warning Volume

Max/Mid/Min/OFF

Mid

RAB (models with the EyeSight
system)

Warning Volume

Max/Mid/Min

Mid

Sonar Audible Alarm

On/Off

Default Settings

―

Yes/No

―

Instruments and controls/Combination meter display (color LCD)

3-42

(183,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Screen Settings

After entering the “Screen Settings” menu,
select one of the following menus.

Welcome Good-bye Screen

The welcome screen/good-bye screens
can be activated or deactivated. Select
“On” to activate the screens. Select “Off” to
deactivate the screens.

Gauge Initial Movement

The movement of the meter needles and
gauge needles that occurs when the
ignition switch is turned to the “ON”
position can be activated or deactivated.
Select “On” to activate. Select “Off” to
deactivate.

Gear Position Indicator Setting
(MT models)

Display of the shift position indicator can
be activated or deactivated. Select “On” to
activate display of the shift position in-
dicator or “Off” to deactivate it.

Languages

Operate the “

” or “

” switch on the

steering wheel to display the preferred
language. Then pull the “

/SET” switch to

select the displayed language.

SRH (if equipped)

Select “On” to activate the Steering Re-
sponsive Headlight (SRH). Select “Off” to
deactivate the SRH.

REV settings (STI)

NOTE

If the setting of the REV Indicator Light
is “Off”, the setting menus of the REV
Alarm Level Engine Speed and the REV
Buzzer are not displayed.

After entering the “REV settings” menu,
select any of the following menus.

REV Indicator Light

Display of the REV indicator light can be
activated or deactivated. Select “On” to
activate display of the REV indicator light
or “Off” to deactivate it.

REV Alarm Level Engine Speed

The alarm-level engine speed can be set
(in 100 rpm steps) within the range from
2,000 rpm to the red zone.

REV Buzzer

The REV buzzer can be activated or
deactivated. Select “On” to activate the
REV buzzer or “Off” to deactivate it.

EyeSight (models with the EyeSight
system)

NOTE

Refer to the Owner’s Manual supple-
ment for the EyeSight system.

BSD/RCTA (if equipped)

After entering the “BSD/RCTA” menu,
select the “Warning Volume” menu. You
can set the volume of the warning buzzer
for RCTA (Rear Cross Traffic Alert). You
can select “Max”, “Mid”, “Min” or “Off”.

RAB (models with the EyeSight
system)

After entering the “RAB” menu, select one
of the following menus.

NOTE

For details about the Reverse Auto-
matic Braking system, refer to “Re-
verse Automatic Braking System” F7-
66.

Warning Volume

The volume of the warning sound that is
activated when the Reverse Automatic
Braking system is in operation can be set
in 3 stages (“Max”, “Mid” and “Min”).

– CONTINUED –

Instruments and controls/Combination meter display (color LCD)

3-43

(184,1)

北米Model "A1720BE-A" EDITED: 2018/ 3/ 9

Sonar Audible Alarm

The Reverse Automatic Braking system is
equipped with a function that emits a
warning sound when the system operates.
The function can be activated or deacti-
vated. Select “On” to set the warning
sound to active. Select “Off” to set the
warning sound to inactive.

Default Settings

Select “Yes” to use the menu screen to
restore customized settings to the factory
default settings. Select “No” to return to the
previous screen without restoring to the
factory default settings.

Multi-function display (color
LCD)

WARNING

Always pay adequate attention to
safe driving when operating the
multi-function display while the ve-
hicle is in motion. When operation of
the multi-function display is disturb-
ing your awareness and ability to
concentrate on driving, stop the
vehicle in a safe place before per-
forming operations on the screen.
Also, do not concentrate on the
display while driving. Doing so may
cause you to look away from the
road and could result in an accident.

The multi-function display has the follow-
ing functions.

Description

Page

Displays useful messages,
such as warning information,
etc.

3-46

Displays basic screens (e.g.
fuel consumption screen, etc.)

3-47

Sets and adjusts maintenance
notification

3-58

Registers driving history

3-60

Sets and customizes car op-
eration

3-61

Reverse Automatic Braking
system (if equipped)

7-66

Also, use the multi-function display to set
and initialize the multi-function display
itself.

NOTE

Illustrations show the display for

U.S.-spec. models as an example. For
models other than U.S.-spec. models,
elements in the illustrations (such as
the display indication and measure-
ment unit) may be different than the
ones for U.S.-spec. models.
.

When the vehicle is in motion,

certain functions and selections may
not be available.
.

The images shown in this Owner’s

Manual are sample images. The actual
images may vary depending on the

Instruments and controls/Multi-function display (color LCD)

3-44

Subaru WRX STI (2019 year). Manual - part 11
