Subaru Forester (2019 year). Manual - part 28

(442,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

(443,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

11-1. Maintenance schedule.................................. 443
11-2. Maintenance precautions ............................. 443

Before checking or servicing in the engine

compartment .................................................... 444

When checking or servicing in the engine

compartment .................................................... 444

When checking or servicing in the engine

compartment while the engine is running.......... 445

11-3. Maintenance tips........................................... 445

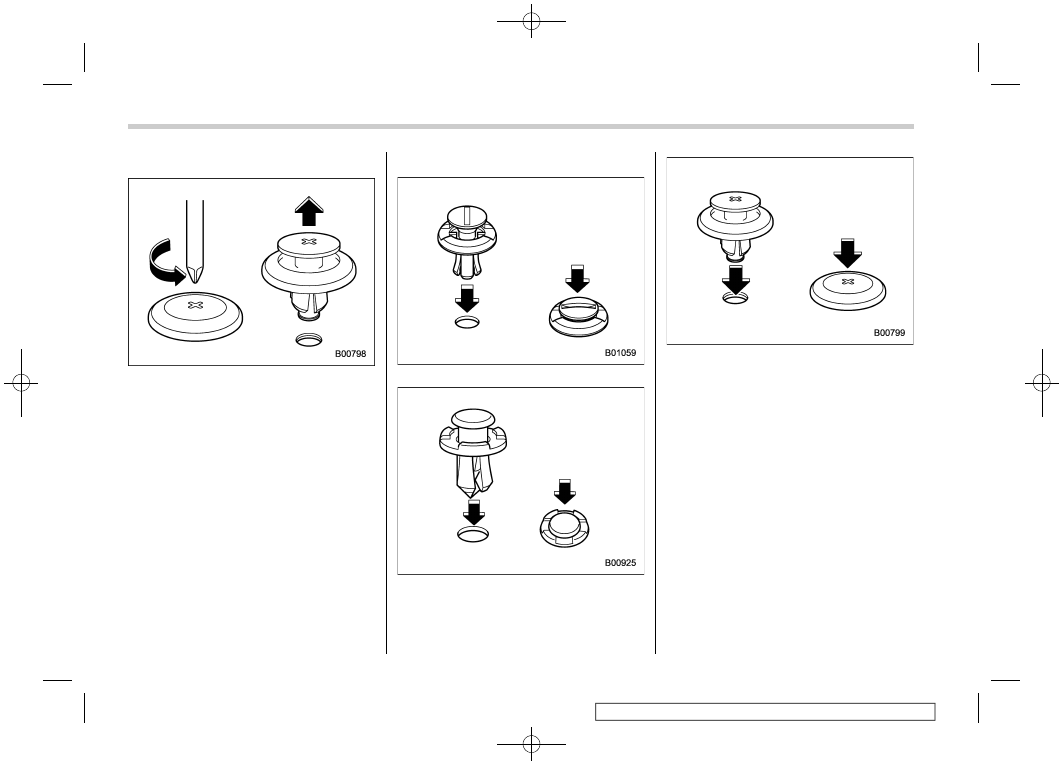

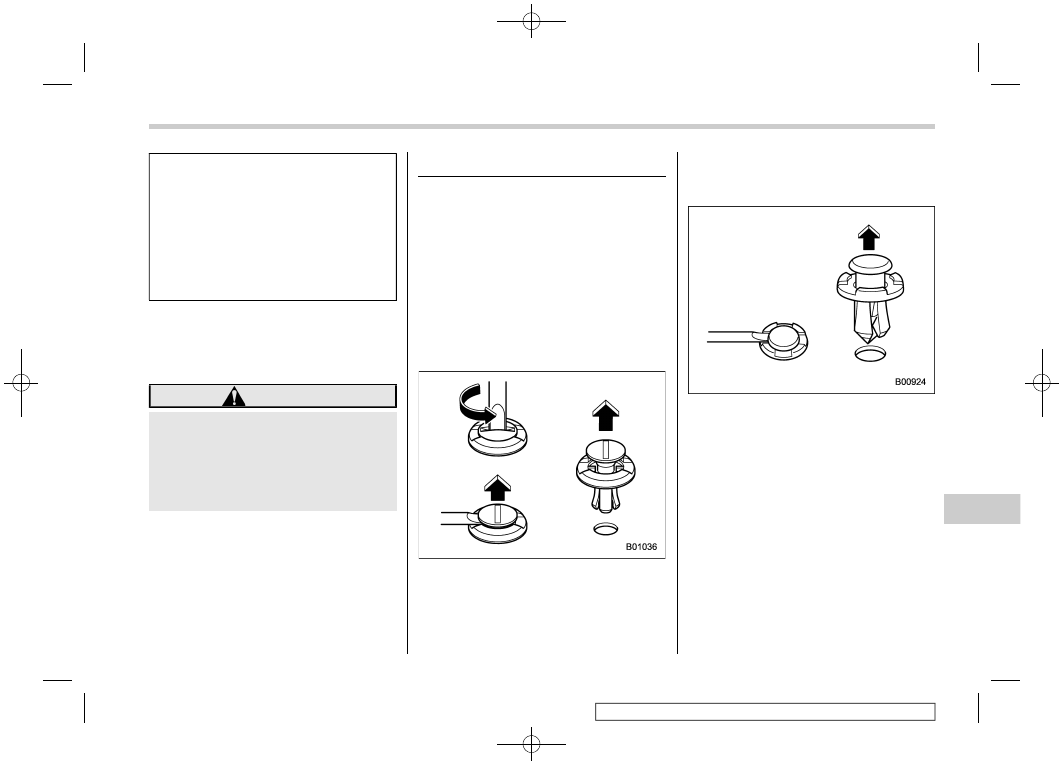

Removing and reinstalling clips .......................... 445

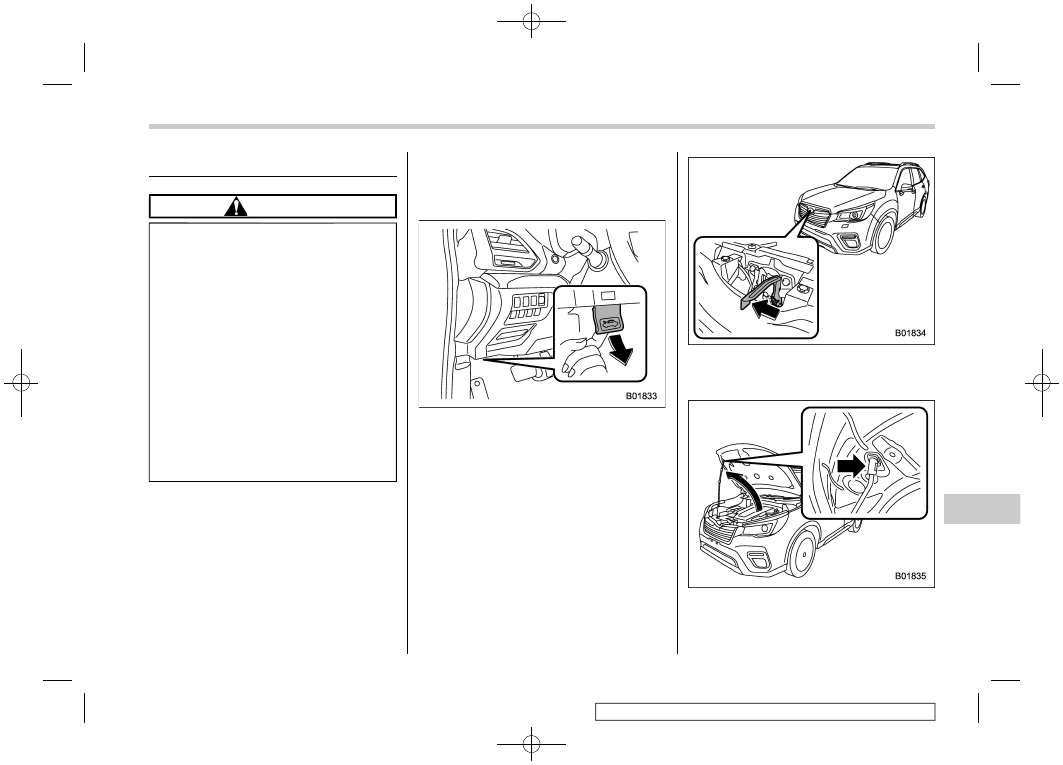

11-4. Engine hood .................................................. 447

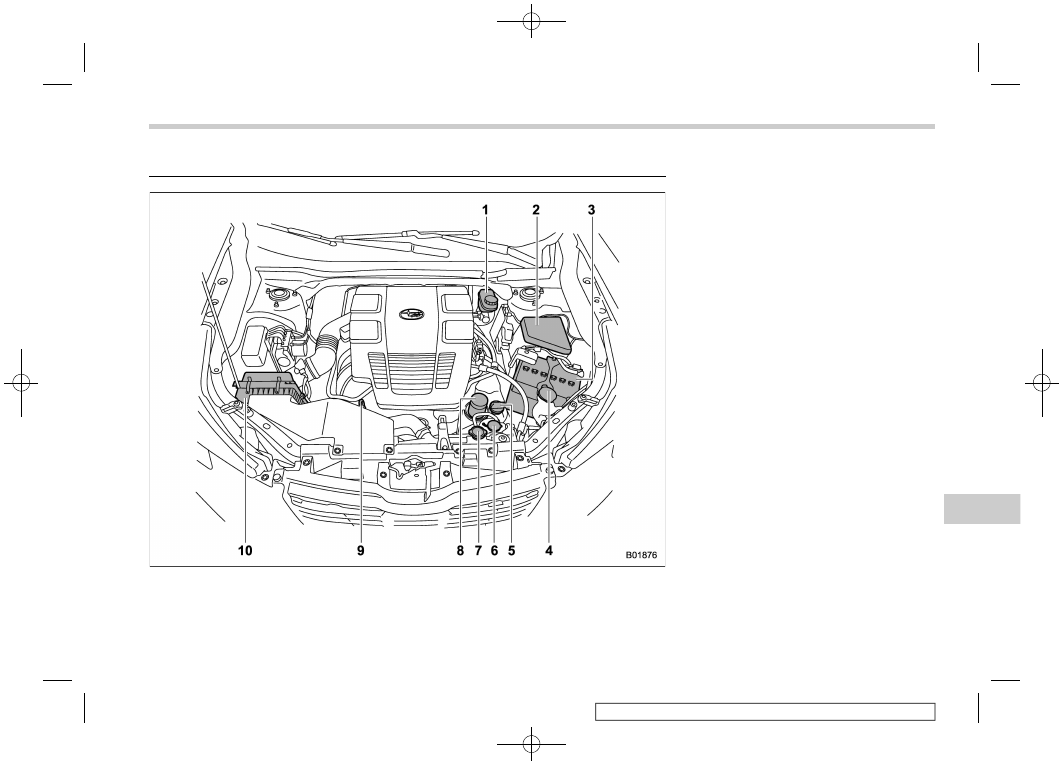

11-5. Engine compartment overview .................... 449
11-6. Engine oil....................................................... 450

Engine oil consumption ...................................... 450

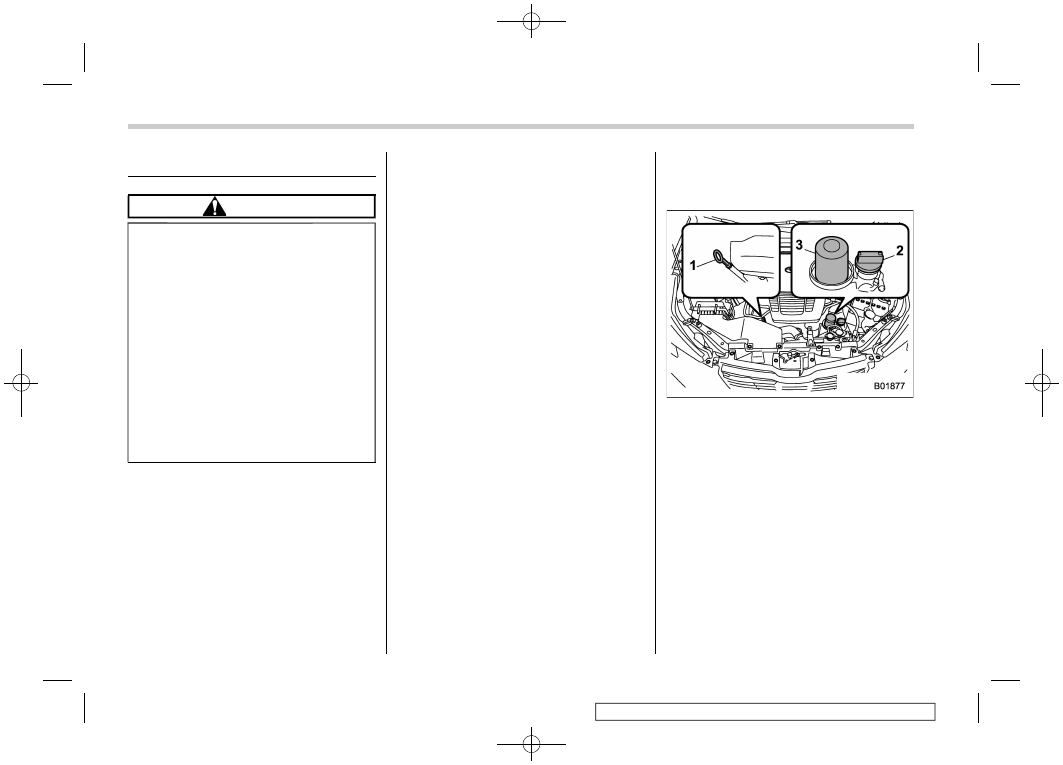

Locations of the oil level gauge, oil filler cap

and oil filter ...................................................... 450

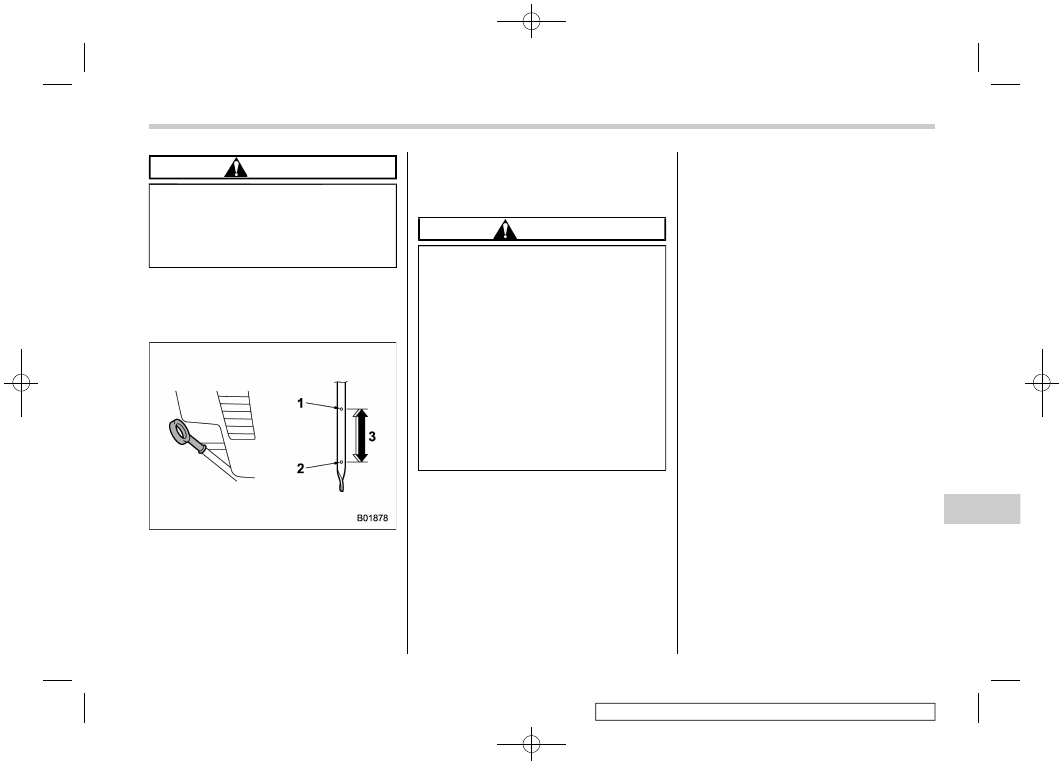

Checking the oil level ......................................... 450
Changing the oil and oil filter.............................. 451
Recommended grade and viscosity..................... 452
Synthetic oil ....................................................... 452

11-7. Cooling system ............................................. 452

Safety precautions.............................................. 452
Cooling fan, hose and connections ..................... 453

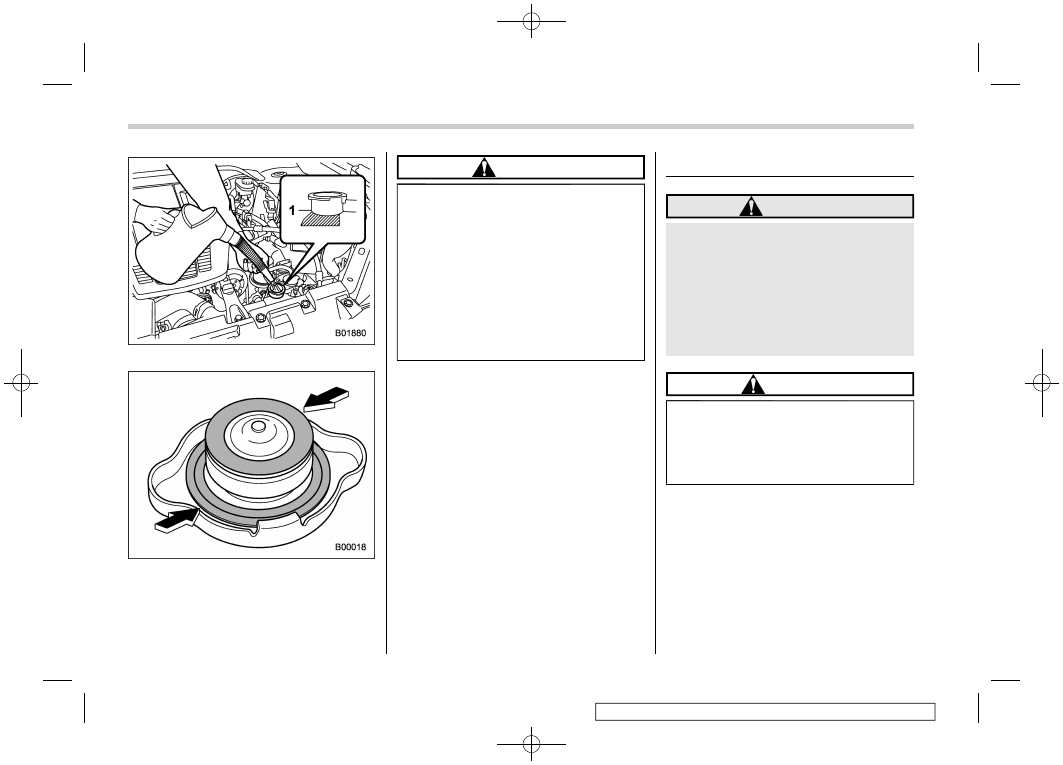

Engine coolant ................................................... 453

11-8. Air cleaner element....................................... 454

Replacing the air cleaner element ....................... 455

11-9. Spark plugs ................................................... 456

Recommended spark plugs................................. 456

11-10. Drive belts ................................................... 456

11-11. Continuously variable transmission

fluid ................................................................456

11-12. Front differential gear oil and rear

differential gear oil ........................................457

Recommended grade and viscosity .................... 457

11-13. Brake fluid ....................................................457

Checking the fluid level ...................................... 457
Recommended brake fluid.................................. 458

11-14. Brake booster ..............................................458
11-15. Brake pedal ..................................................458
11-16. Replacement of brake pad ..........................459

Breaking-in of new brake pads ........................... 459

11-17. Tires and wheels..........................................459

Types of tires ..................................................... 459
Tire pressure monitoring system (TPMS)

(U.S.-spec. models) .......................................... 460

Tire inspection ................................................... 461
Tire pressures and wear..................................... 462
Wheel balance.................................................... 463
Wear indicators .................................................. 464
Rotational direction of tires ................................ 465
Tire rotation ....................................................... 465
Tire replacement ................................................ 466
Wheel replacement............................................. 467

11-18. Alloy wheels.................................................467
11-19. Windshield washer fluid..............................467

Adding the windshield washer fluid .................... 468
Windshield washer fluid ..................................... 468

Maintenance and service

(444,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

11-20. Replacement of wiper blades..................... 469

Windshield wiper blade assembly ....................... 469
Window wiper blade rubber ................................ 470
Rear window wiper blade assembly .................... 471
Rear window wiper blade rubber ......................... 471

11-21. Battery ......................................................... 473
11-22. Fuses ........................................................... 474
11-23. Installation of accessories ......................... 475
11-24. Replacing bulbs .......................................... 476

Headlights (models with LED headlights) ............ 476
Front turn signal light ......................................... 477
Front position light (if equipped) ......................... 478
Front side marker light (if equipped) ................... 478

Front fog light (if equipped)................................ 479
Rear turn signal lights........................................ 479
Backup light....................................................... 481
License plate light.............................................. 482
Vanity mirror light .............................................. 483
Door step light ................................................... 483
Dome light and cargo area light.......................... 483
Other bulbs........................................................ 483

11-25. Replacing key battery .................................484

Safety precautions ............................................. 484
Replacing battery of access key fob ................... 484
Replacing transmitter battery ............................. 485

Maintenance and service

(445,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

11-1. Maintenance schedule

U.S. models
The scheduled maintenance items re-
quired to be serviced at regular intervals
are shown in the “Warranty and Mainte-
nance Booklet”. For details, read the
separate “Warranty and Maintenance
Booklet”.

Canada models
The scheduled maintenance items re-
quired to be serviced at regular intervals
are shown in the “Warranty and Service
Booklet”. For details, read the separate
“Warranty and Service Booklet”.

Except for U.S. and Canada models
Some items of your vehicle are required to
be serviced at scheduled intervals. For
details about your maintenance schedule,
read the separate “Warranty and Main-
tenance Booklet”.

NOTE

For models with a multi-function dis-
play (color LCD), you can set a remin-
der to be displayed when a scheduled
maintenance item is almost due. For
details, refer to “Maintenance settings”
FP222.

11-2. Maintenance precau-
tions

When maintenance and service are re-
quired, it is recommended that all work be
done by an authorized SUBARU dealer.

If you perform maintenance and service by
yourself, you should familiarize yourself
with the information provided in this sec-
tion on general maintenance and service
for your SUBARU.

Incorrect or incomplete service could
cause improper or unsafe vehicle opera-
tion. Any problems caused by improper
maintenance and service performed by
you are not eligible for warranty coverage.

WARNING

Always select a safe area when

performing maintenance on your
vehicle.

Always be very careful to avoid

injury when working on the vehi-
cle. Remember that some of the
materials in the vehicle may be
hazardous if improperly used or
handled, for example, battery
acid.

Your vehicle should only be ser-

viced by persons fully competent
to do so. Serious personal injury
may result to persons not experi-
enced in servicing vehicles.

Always use the proper tools and

make certain that they are well
maintained.

Never get under the vehicle sup-

ported only by a jack. Always use
safety stands to support the
vehicle.

Never keep the engine running in

a poorly ventilated area, such as
a garage or other closed areas.

Do not smoke or allow open

flames around the fuel or battery.
This will cause a fire.

Because the fuel system is under

pressure, replacement of the fuel
filter should be performed only
by your SUBARU dealer.

Wear adequate eye protection to

guard against getting oil or fluids
in your eyes. If something does
get in your eyes, thoroughly
wash them out with clean water.

Do not tamper with the wiring of

the SRS airbag system or seat-
belt pretensioner system, or at-
tempt to take its connectors

– CONTINUED –

Maintenance schedule

443

Maintenance

and

service

(446,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

apart, as this may activate the
system or render it inoperative.
NEVER use a circuit tester for
this wiring. If your SRS airbag or
seatbelt pretensioner needs ser-
vice, consult your nearest
SUBARU dealer.

NOTE

SUBARU does not endorse the use of
non-SUBARU approved flushing sys-
tems and strongly advises against
performing these services on a
SUBARU vehicle. Non-SUBARU ap-
proved flushing systems use chemi-
cals and/or solvents which have not
been tested or approved by SUBARU.
SUBARU warranties do not cover any
part of the vehicle which is damaged by
adding or applying chemicals and/or
solvents other than those approved or
recommended by SUBARU.

Before checking or servicing
in the engine compartment

WARNING

Always stop the engine and apply

the parking brake firmly to pre-
vent the vehicle from moving.

Always let the engine cool down.

Engine parts become very hot
when the engine is running and
remain hot for some time after the
engine has stopped.

Do not spill engine oil, engine

coolant, brake fluid or any other
fluid on hot engine components.
This may cause a fire.

When the ignition switch is in the

“ON” position, the cooling fan
may operate suddenly even when
the engine is stopped. If your
body or clothes come into con-
tact with a rotating fan, that could
result in serious injury. To avoid
risk of injury, perform the follow-
ing precautions.

– Models with push-button start

system:
Always turn the push-button
ignition switch to the “OFF”
position and confirm that the
operation indicator on the
switch is turned off. Then take
the access key fob out from
the vehicle.

– Models without push-button

start system:
Always remove the key from
the ignition switch.

Before performing any servicing

on a vehicle equipped with a
remote engine start system (a
dealer option), temporarily place
the remote engine start system in
service mode to prevent it from
unexpectedly starting the engine.

When checking or servicing
in the engine compartment

CAUTION

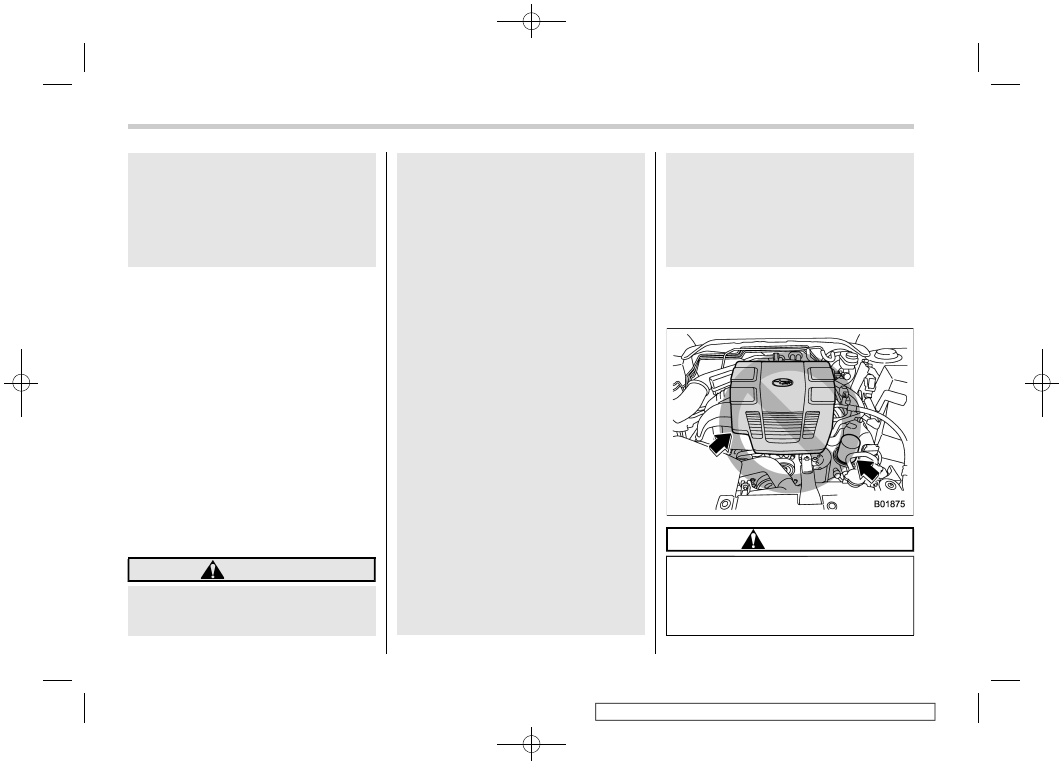

Do not touch the engine cover

while checking the components
in the engine compartment.
Doing so may cause your hand
to slip off the cover and result in

Maintenance precautions

444

(447,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

an unexpected injury.

Do not touch the oil filter until the

engine has cooled down comple-
tely. Doing so may result in a burn
or other injury. Note that the oil
filter becomes very hot when the
engine is running and remains
hot for some time after the engine
has stopped.

When checking or servicing
in the engine compartment
while the engine is running

WARNING

A running engine can be dangerous.
Keep your fingers, hands, clothing,
hair and tools away from the cooling
fan, drive belt and any other moving
engine parts. Removing rings,
watches and ties is advisable.

11-3. Maintenance tips

Some clips and fender linings must be
removed before replacing the air cleaner
elements or specific bulbs.

Removing and reinstalling
clips

Removing clips

There are several types of clips used for
your vehicle.

Type A clips

1. Turn the clips counterclockwise using
a flat-head screwdriver until the center
portion of the clip is raised.
2. Remove the clips with a flat-head
screwdriver using leverage.

3. Remove the entire clip by pulling it up.

Type B clips

1. Pull out the center portion of the clip
using a flat-head screwdriver as shown in
the illustration.
2. Pull the protruded center portion to
remove the entire body of the clip.

– CONTINUED –

Maintenance tips

445

Maintenance

and

service

(448,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

Type C clips

1. Turn the clip counterclockwise using a
Phillips screwdriver until the center portion
of the clip is raised.
2. Remove the entire clip by pulling it up.

Reinstalling clips

Type A clips

Type B clips

Type C clips

Insert the clip without the center portion
first and then push the center portion of the
clip into the hole.

Maintenance tips

446

(449,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

11-4. Engine hood

CAUTION

Be extremely careful not to catch

fingers or other objects when
closing the engine hood.

Do not push the hood forcibly to

close it. It could deform the metal.

Be extremely careful opening the

engine hood when the wind is
strong. The engine hood could
close suddenly, possibly causing
injuries from slamming.

Do not install accessories other

than genuine SUBARU parts to
the engine hood. If the engine
hood becomes too heavy, the
stay may not be able to support
holding it open.

To open the hood:
1. If the wiper blades are lifted off the
windshield, return them to their original
position.

2. Pull the hood release knob under the
instrument panel.

3. Release the secondary hood release
by moving the lever between the front grille
and the hood toward the left.

4. Lift up the hood, release the hood prop
from its retainer and put the end of the
hood prop into the slot in the hood.

– CONTINUED –

Engine hood

447

Maintenance

and

service

(450,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

To close the hood:
1. Lift the hood slightly and remove the
hood prop from the slot in the hood and
return the prop to its retainer.
2. Lower the hood to a height of approxi-
mately 5.9 in (15 cm) above its closed
position and then let it drop.
3. After closing the hood, be sure the
hood is securely locked.

If this does not close the hood, release it
from a slightly higher position.

WARNING

Always check that the hood is
properly locked before you start
driving. If it is not, it might fly open
while the vehicle is moving and
block your view, which may cause
an accident and serious bodily in-
jury.

Engine hood

448

(451,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

11-5. Engine compartment overview

Brake fluid reservoir (page 457)

Fuse box (page 474)

Battery (page 473)

Windshield washer tank (page 467)

Engine oil filler cap (page 450)

Engine coolant reservoir (page 453)

Radiator cap (page 453)

Engine oil filter (page 451)

Engine oil level gauge (page 450)

10) Air cleaner case (page 454)

Engine compartment overview

449

Maintenance

and

service

(452,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

11-6. Engine oil

CAUTION

If the level gauge cannot be

pulled out easily, twist the level
gauge right and left, then gently
pull it out. Otherwise, you may be
injured accidentally straining
yourself.

Use only engine oil with the

recommended grade and vis-
cosity.

Be careful not to spill engine oil

when adding it. If oil touches the
exhaust pipe, it may cause a bad
smell, smoke, and/or a fire. If
engine oil gets on the exhaust
pipe, be sure to wipe it off.

Engine oil consumption

Some engine oil will be consumed while
driving. The rate of consumption can be
affected by such factors as transmission
type, driving style, terrain and tempera-
ture. Under the following conditions, oil
consumption can be increased and may
require refilling between maintenance in-
tervals.

When the engine is new and within the

break-in period.
.

When the engine oil is of lower quality.

When the incorrect oil viscosity is used.

When engine braking is employed

(repeatedly).
.

When the engine is operated at high

engine speeds (for extended periods of
time).
.

When the engine is operated under

heavy loads (for extended periods of time).
.

When towing a trailer

When the engine idles for extended

periods of time.
.

When the vehicle is operated in stop-

and-go and/or heavy traffic situations.
.

When the vehicle is used under severe

thermal conditions.
.

When the vehicle accelerates and

decelerates frequently.

Under these or similar conditions, you
should check your oil at least every 2nd
fuel fill-up and change your engine oil more
frequently. Different drivers in the same
car may experience different results. If
your oil consumption rate is greater than
expected, contact your authorized
SUBARU dealer who may perform a test
under controlled conditions.

Locations of the oil level
gauge, oil filler cap and oil
filter

Oil level gauge

Oil filler cap

Oil filter

Checking the oil level

1. Park the vehicle on a level surface and
turn the ignition switch to the “LOCK”/
“OFF” position. If you check the oil level
just after turning the ignition switch to the
“LOCK”/“OFF” position, wait a few minutes
for the oil to drain back into the oil pan
before checking the level.

Engine oil

450

(453,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

CAUTION

If the level gauge cannot be pulled
out easily, twist the level gauge right
and left, then gently pull it out.
Otherwise, you may be injured acci-
dentally straining yourself.

2. Pull out the level gauge, wipe it clean,
and insert it again.
3. Be sure the level gauge is correctly
inserted until it stops.

Full level

Low level

Approximately 1.1 US qt (1.0 liter, 0.9 Imp
qt) from low level to full level

4. Pull out the oil level gauge again.
5. Check the oil levels on both sides of the
level gauge. The engine oil level must be

judged by the lowest of the two levels. If
the oil level is below the low level mark,
add oil so that the full level is reached.

CAUTION

Be careful not to touch the engine

oil filter when removing the oil
filler cap. Doing so may result in a
burn, a pinched finger, or may
cause some other injury.

Use only engine oil with the

recommended grade and vis-
cosity.

Be careful not to spill engine oil

when adding it. If oil touches the
exhaust pipe, it may cause a bad
smell, smoke, and/or a fire. If
engine oil gets on the exhaust
pipe, be sure to wipe it off.

To add engine oil, remove the engine oil
filler cap and slowly pour engine oil
through the filler neck. After pouring oil
into the engine, you must use the level
gauge to confirm that the oil level is
correct.

NOTE

To prevent overfilling the engine oil,

do not add any additional oil above the
upper level when the engine is cold.

The engine low oil level warning light

may stay illuminated when the engine
is started straight after topping up or
changing the engine oil. In such cases,
park the vehicle on a level surface and
wait for more than a minute until the oil
level settles, after which the warning
light will turn off. Refer to “Engine low
oil level warning light” FP170.

Changing the oil and oil filter

Change the oil and oil filter according to
the maintenance schedule in the “War-
ranty and Maintenance Booklet”.
The engine oil and oil filter must be
changed more frequently than listed in
the maintenance schedule when driving
on dusty roads, when short trips are
frequently made, or when driving in ex-
tremely cold weather.

NOTE

Changing the engine oil and oil filter

should be performed by a well-trained
expert. Contact your SUBARU dealer
for changing the engine oil and oil filter.
Fully trained mechanics are on standby
at a SUBARU dealer to utilize the
special tools, spare parts and recom-
mended oil for this work, and also, used
oils are properly disposed of.
.

If performing oil replacement your-

– CONTINUED –

Engine oil

451

Maintenance

and

service

(454,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

self, observe the local regulations and
dispose of waste oil properly.

Recommended grade and
viscosity

CAUTION

Use only engine oil with the recom-
mended grade and viscosity.

Refer to “Engine oil” FP489.

NOTE

Engine oil viscosity (thickness) affects
fuel economy. Oils of lower viscosity
provide better fuel economy. However,
in hot weather, oil of higher viscosity is
required to properly lubricate the en-
gine.

Synthetic oil

You should use synthetic engine oil that
meets the same requirements given for
conventional engine oil. When using syn-
thetic oil, you must use oil of the same
classification, viscosity and grade shown
in this Owner’s Manual. Refer to “Engine
oil” FP489. Also, you must follow the oil
and filter changing intervals shown in the
“Warranty and Maintenance Booklet”.

NOTE

Synthetic oil of the grade and viscosity
noted in chapter 12 is the recom-
mended engine oil for optimum engine
performance. Conventional oil may be
used if synthetic oil is unavailable.

11-7. Cooling system

Safety precautions

WARNING

Never attempt to remove the radiator
cap until the engine has been shut
off and has cooled down completely.
Since the coolant is under pressure,
you may suffer serious burns from a
spray of boiling hot coolant when
the cap is removed.

CAUTION

Vehicles are filled at the factory

with SUBARU Super Coolant that
does not require the first change
for 11 years/137,500 miles (11
years/220,000 km). This coolant
should not be mixed with any
other brand or type of coolant
during this period. Mixing with a
different coolant will reduce the
life of the coolant. Should it be
necessary to add the coolant for
any reason, use only SUBARU
Super Coolant.

If the SUBARU Super Coolant is
diluted with another brand or

Cooling system

452

(455,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

type, the maintenance interval is
shortened to that of the mixing
coolant.

Do not splash the engine coolant

over painted parts. The alcohol
contained in the engine coolant
may damage the paint surface.

Cooling fan, hose and con-
nections

Your vehicle employs an electric cooling
fan which is thermostatically controlled to
operate when the engine coolant reaches
a specific temperature.

If the radiator cooling fan does not operate
even when the coolant temperature high
warning light blinks or illuminates in RED,
the cooling fan circuit may be defective.
Refer to “Coolant temperature low indica-
tor light/Coolant temperature high warning
light” FP168.

Check the fuse and replace it if necessary.
Refer to “Fuses” FP474 and “Fuse panel
located in the engine compartment”
FP497.
If the fuse is not blown, have the cooling
system checked by your SUBARU dealer.

If frequent addition of coolant is necessary,
there may be a leak in the engine cooling

system. It is recommended that the cooling
system and connections be checked for
leaks, damage, or looseness.

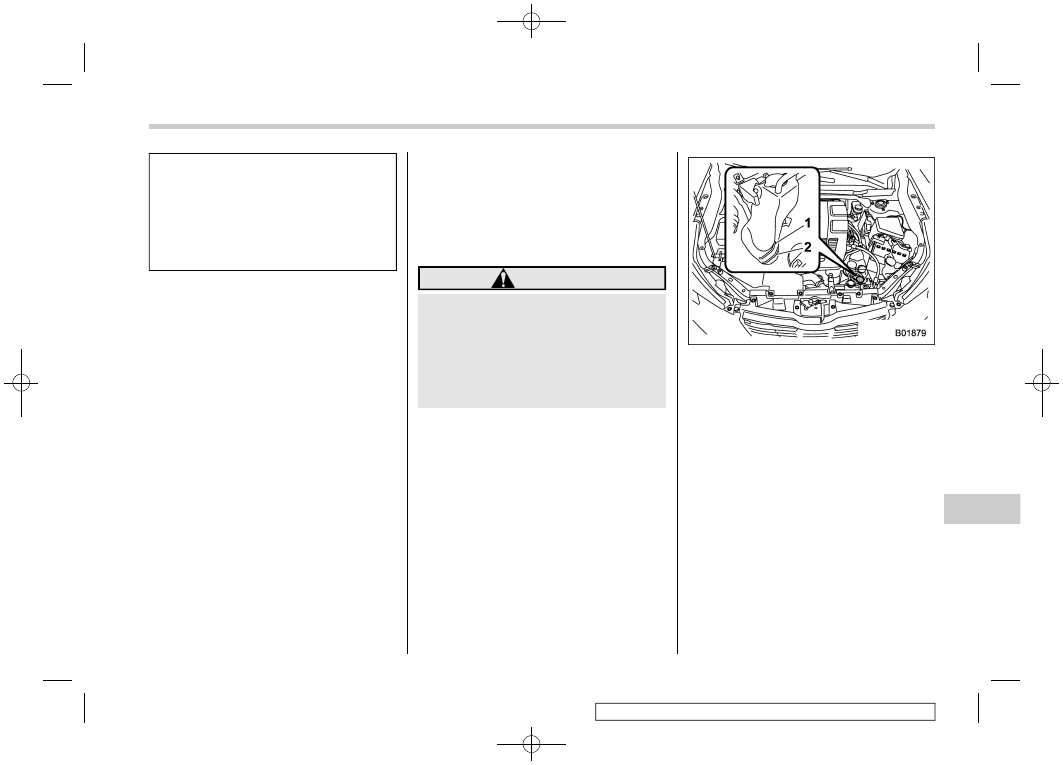

Engine coolant

Checking the coolant level

WARNING

“FULL” level mark

“LOW” level mark

Check the coolant level at each fuel stop.
1. Check the coolant level on the outside
of the reservoir while the engine is cool.
2. If the level is close to or lower than the
“LOW” level mark, add coolant up to the
“FULL” level mark. If the reserve tank is
empty, remove the radiator cap and refill
coolant up to just below the filler neck as
shown in the following illustration.

– CONTINUED –

Cooling system

453

Maintenance

and

service

(456,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

Fill up to this level.

3. After refilling the reserve tank and the
radiator, reinstall the cap and check that
the rubber gaskets inside the radiator cap
are in the proper position.

CAUTION

Be careful not to spill engine

coolant when adding it. If coolant
touches the exhaust pipe, it may
cause a bad smell, smoke, and/or
a fire. If engine coolant gets on
the exhaust pipe, be sure to wipe
it off.

Do not splash the engine coolant

over painted parts. The alcohol
contained in the engine coolant
may damage the paint surface.

Changing the coolant

It may be difficult to change the coolant.
Have the coolant changed by your
SUBARU dealer if necessary.

The coolant should be changed according
to the maintenance schedule in the “War-
ranty and Maintenance Booklet”.

11-8. Air cleaner element

WARNING

Do not operate the engine with the
air cleaner element removed. The air
cleaner element not only filters in-
take air but also stops flames if the
engine backfires. If the air cleaner
element is not installed when the
engine backfires, you could be
burned.

CAUTION

When replacing the air cleaner ele-
ment, use a genuine SUBARU air
cleaner element. If it is not used, it
will cause a negative effect to the
engine.

The air cleaner element functions as a filter
screen. When the element is perforated or
removed, engine wear will be excessive
and engine life shortened.

It is not necessary to clean or wash the air
cleaner element.

Air cleaner element

454

(457,1)

北米Model "A8240BE-B" EDITED: 2018/ 7/ 5

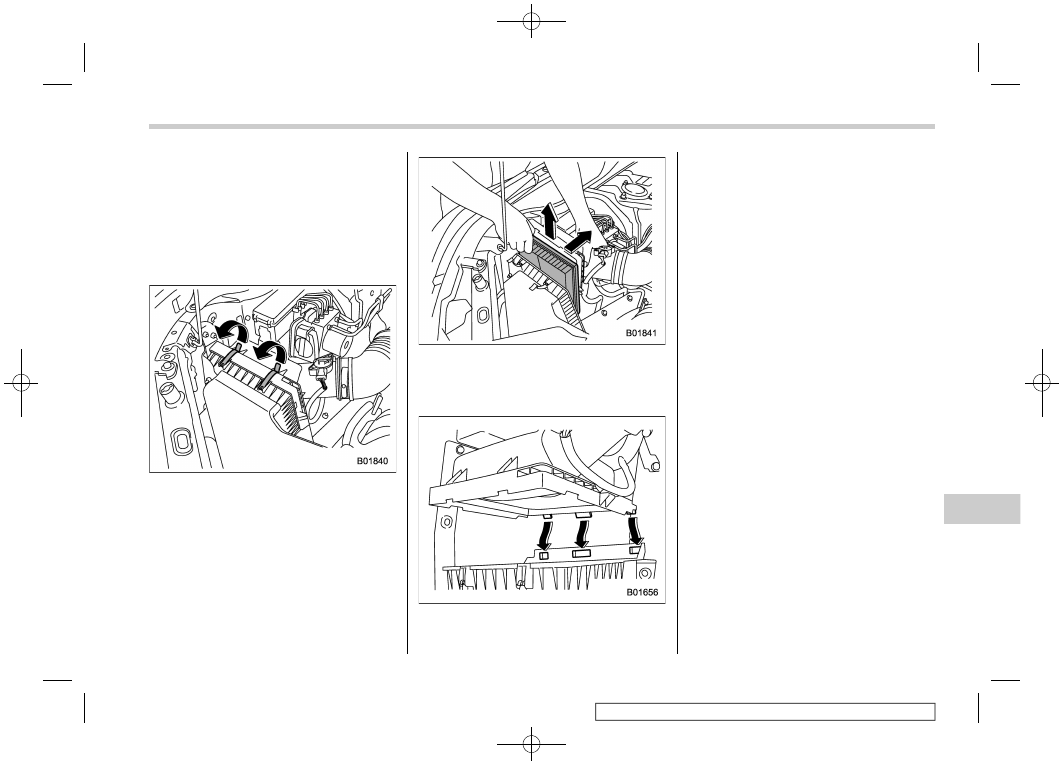

Replacing the air cleaner ele-
ment

Replace the air cleaner element according
to the maintenance schedule in the “War-
ranty and Maintenance Booklet”. Under
extremely dusty conditions, replace it
more frequently. It is recommended that
you always use genuine SUBARU parts.

1. Unsnap the two clips holding the air
cleaner case (rear).
2. Open the air cleaner case and pull the
cover rearward while lifting it up.

3. Remove the air cleaner element.
4. Clean the inside of the air cleaner case
(both front and rear) with a damp cloth and
install a new air cleaner element.

5. To install the air cleaner case (rear),
insert the three projections on the air

cleaner case (rear) into the slits on the air
cleaner case (front).
6. Install in the reverse order of removal.

NOTE

Install the air cleaner element so that
the surface with “UPR” printed on it
faces upward.

Air cleaner element

455

Maintenance

and

service

Content .. 26 27 28 29 ..
