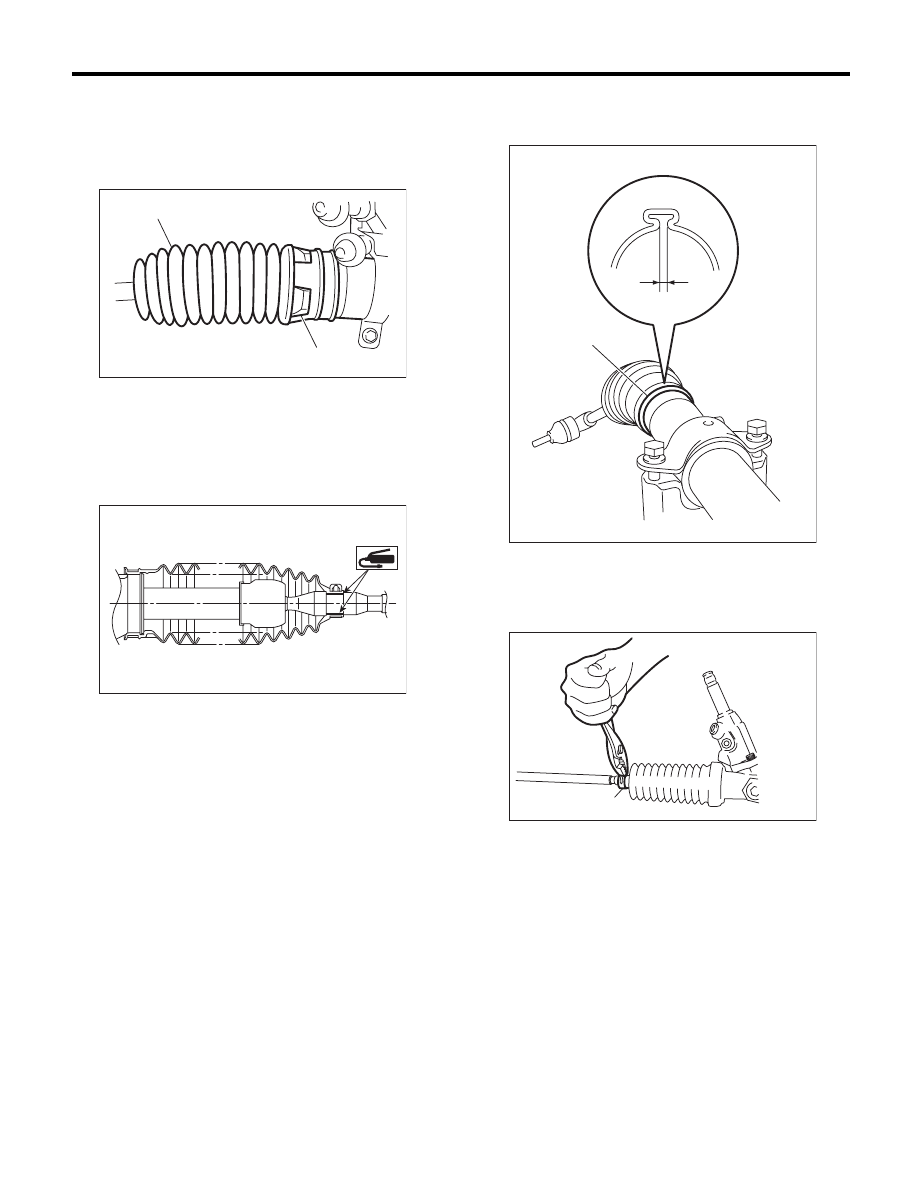

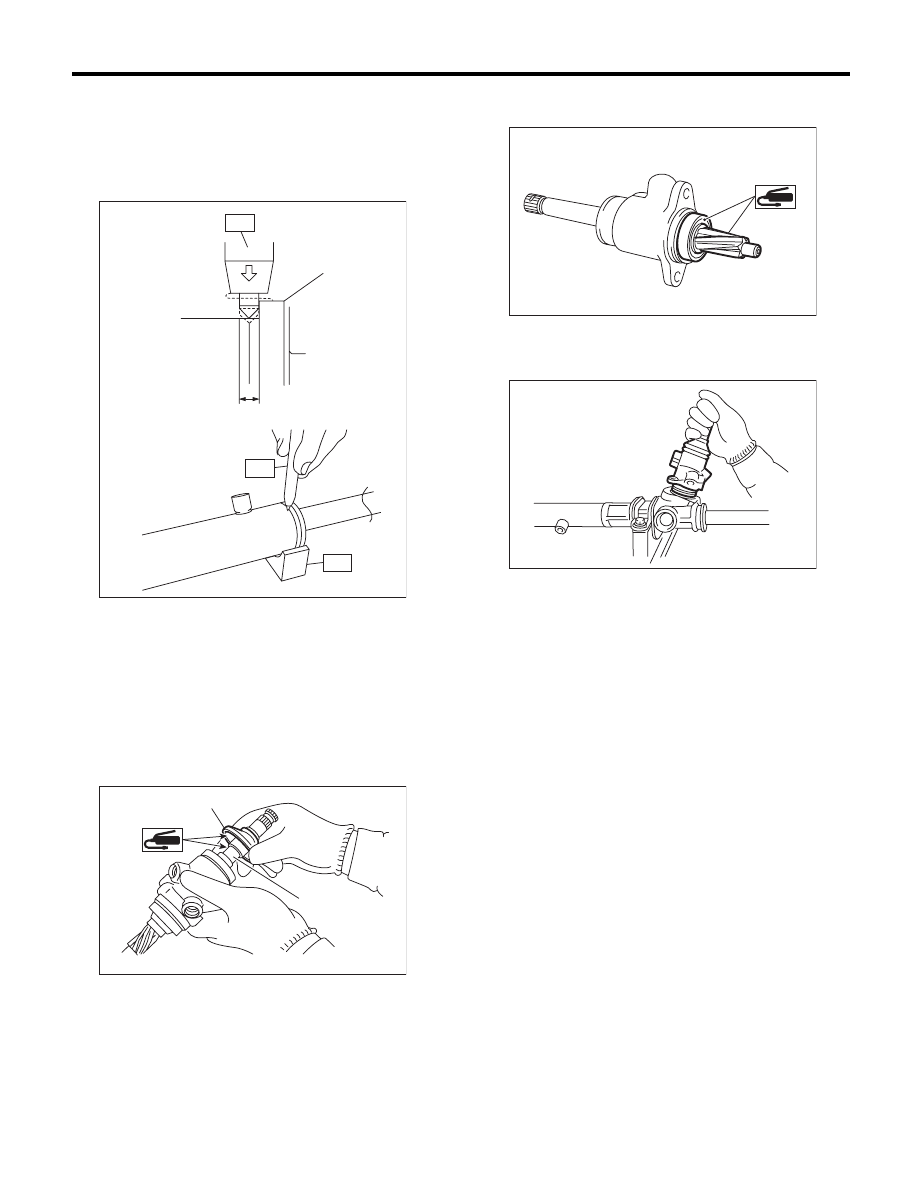

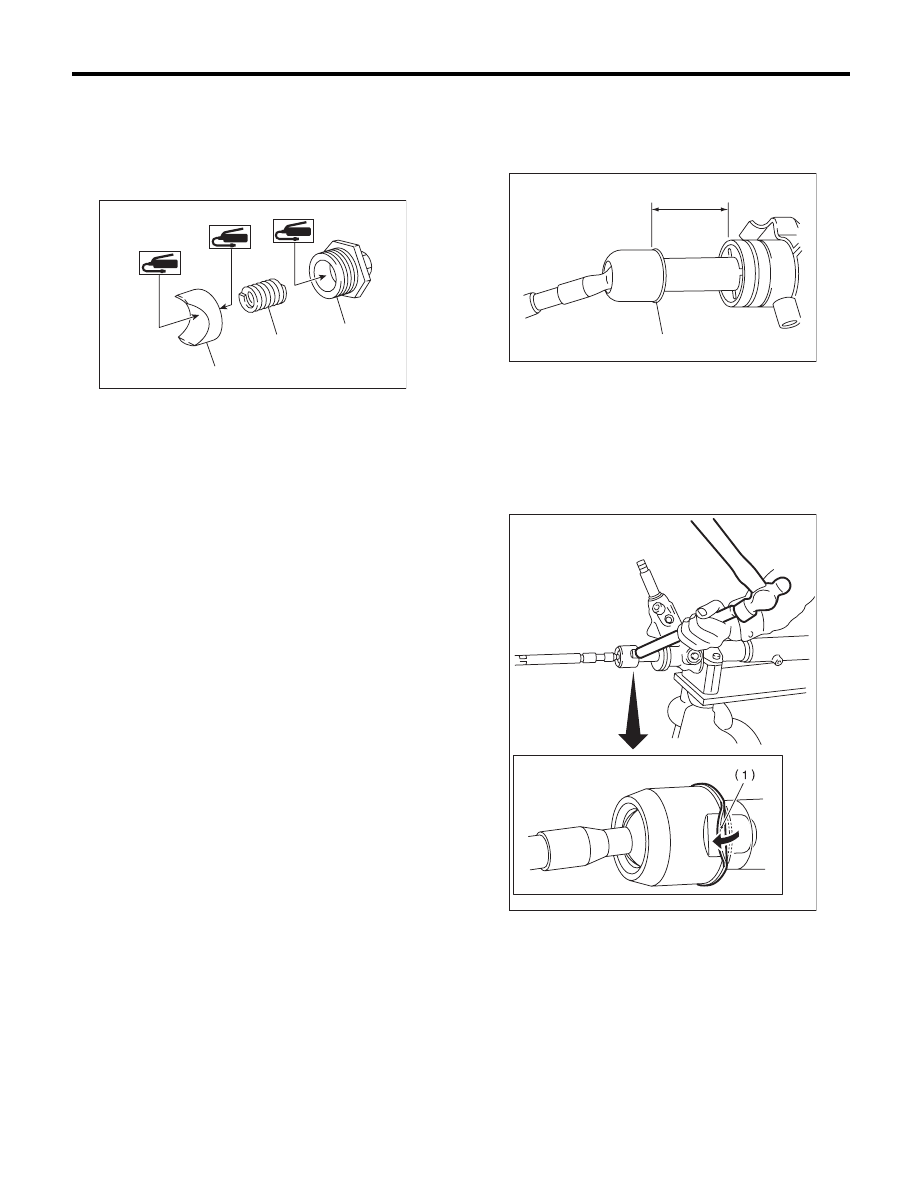

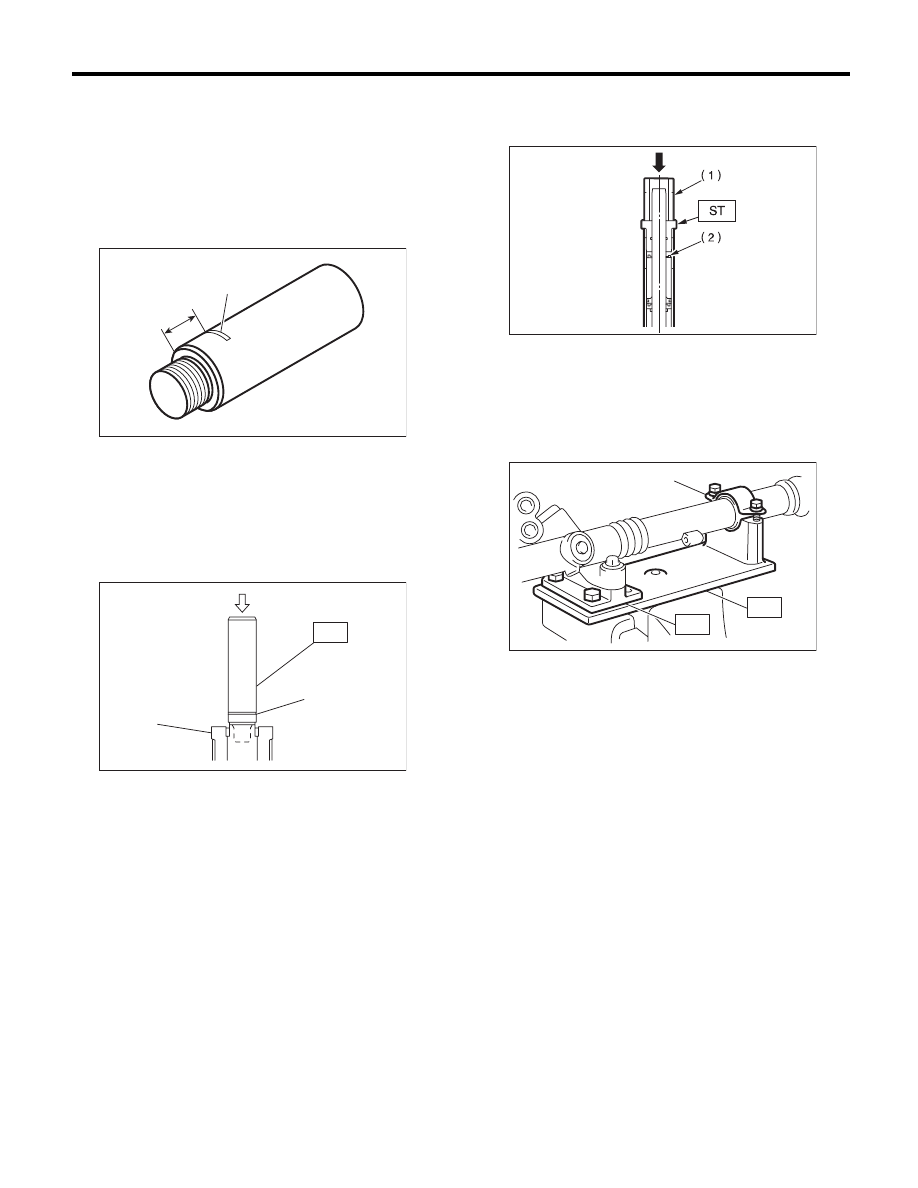

PS-26 Steering Gearbox POWER ASSISTED SYSTEM (POWER STEERING) 11) Put a mark at the specified position measured Specified position: Except for 2.5 GT-B and 3.0 R-LTD: 13.5 mm (0.53 in) 2.5 GT-B and 3.0 R-LTD: 18.9 mm (0.74 in) ST 34199FE000 INSTALLER & REMOVER 12) Set the ST to the end of rack. 34199FE000 INSTALLER & REMOVER 13) Using a press, press-fit until the mark on ST is 14) Remove the ST and holder. 926390001 COVER & REMOVER 16) Make the ST and the pipe through the rack, and 34199AG010 INSTALLER 17) Secure the gearbox in a vise using ST. 926200000 STAND ST2 34199AG000 BOSS D 18) Tighten a new holder. Tightening torque: 70 N·m (7.1 kgf-m, 51.6 ft-lb) (1) 13.5 mm (0.53 in) or 18.9 mm (0.74 in) (2) Put a mark. (1) Mark (2) Holder PS-00851 (1) (2) PS-00522 ST (1) (2) (1) Pipe (2) Outer side oil seal (1) Clamp PS-00852 PS-00492 (1) ST1 ST2 |
