5AT-56
Turbine Speed Sensor 1
AUTOMATIC TRANSMISSION

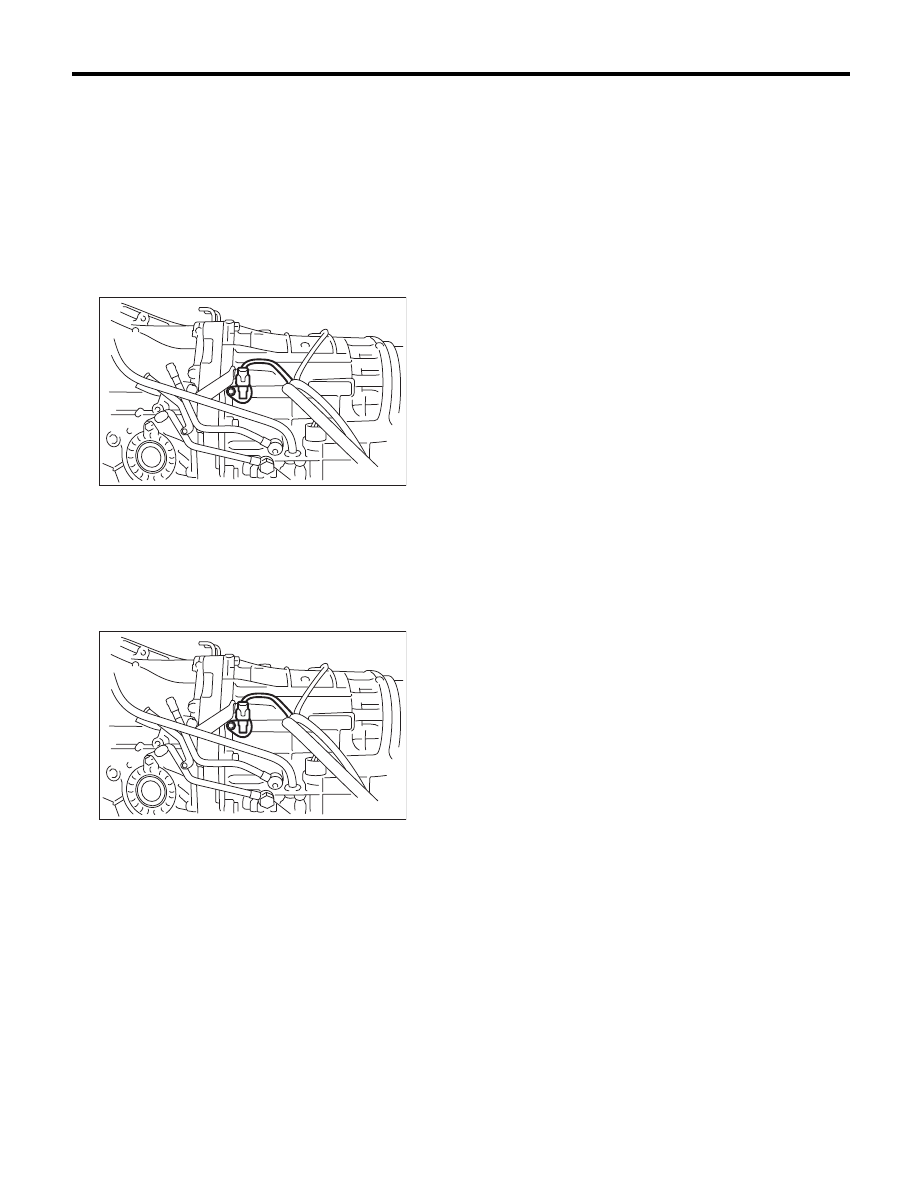

16.Turbine Speed Sensor 1
A: REMOVAL
1) Remove the intercooler. (Turbo model) <Ref. to
IN(H4DOTC)-12, REMOVAL, Intercooler.>
2) Remove the air intake chamber. (Non-turbo
model) <Ref. to IN(H6DO)-7, REMOVAL, Air Intake
Chamber.>
3) Lift up the vehicle.
4) Disconnect the turbine speed sensor 1 connec-
tor.
5) Remove the turbine speed sensor 1.
B: INSTALLATION
1) Install the turbine speed sensor 1.
Tightening torque:
7 N·m (0.7 kgf-m, 5.2 ft-lb)
2) Connect the turbine speed sensor 1 connector.
3) Lower the vehicle.
4) Install the intercooler. (Turbo model) <Ref. to
IN(H4DOTC)-13, INSTALLATION, Intercooler.>
5) Install the air intake chamber. (Non-turbo model)
<Ref. to IN(H6DO)-7, INSTALLATION, Air Intake
Chamber.>
AT-01387
AT-01387
