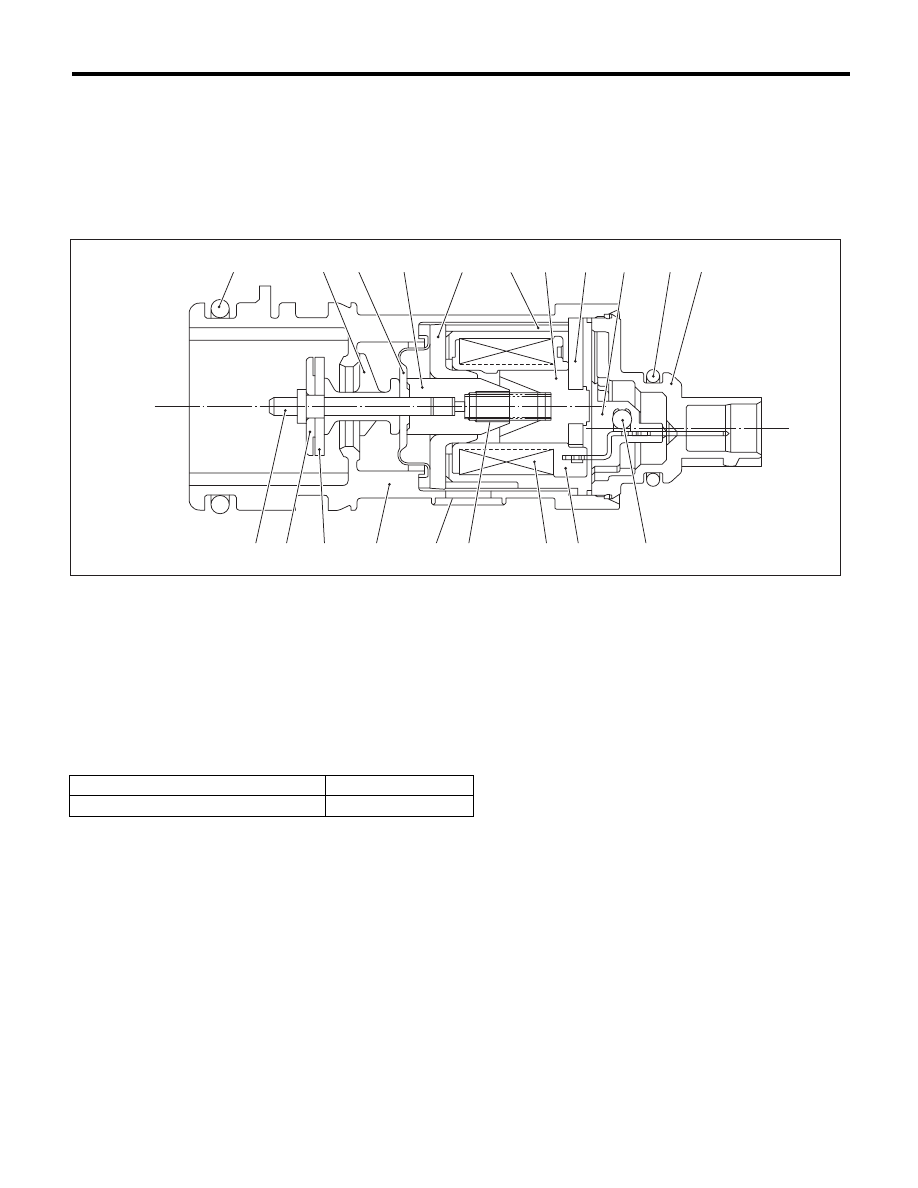

GD(H6DO)-124 Diagnostic Trouble Code (DTC) Detecting Criteria GENERAL DESCRIPTION CE:DTC P0447 EVAPORATIVE EMISSION CONTROL SYSTEM VENT CONTROL CIRCUIT OPEN 1. OUTLINE OF DIAGNOSIS Detect open or short circuit of the drain valve. 2. COMPONENT DESCRIPTION 3. ENABLE CONDITION 4. GENERAL DRIVING CYCLE Always perform the diagnosis continuously. (1) Bobbin (8) Magnetic plate (14) Retainer (2) Coil (9) Shaft (15) Diaphragm (3) Diode (10) Plate (16) Movable core (4) Stator core (11) Valve (17) Spring (5) End plate (12) Housing (18) Cover (6) Body (13) Filter (19) O-ring (7) Yoke Secondary Parameters Enable Conditions None
EN-02294 ( 1 ) ( 2 ) ( 3 ) ( 4 ) ( 5 ) ( 6 ) ( 7 ) ( 8 ) ( 9 ) (10) (11) (12) (13) (17) (14) (15) (16) (18) (19) (19) |
