Harness Components Location

WIRING SYSTEM

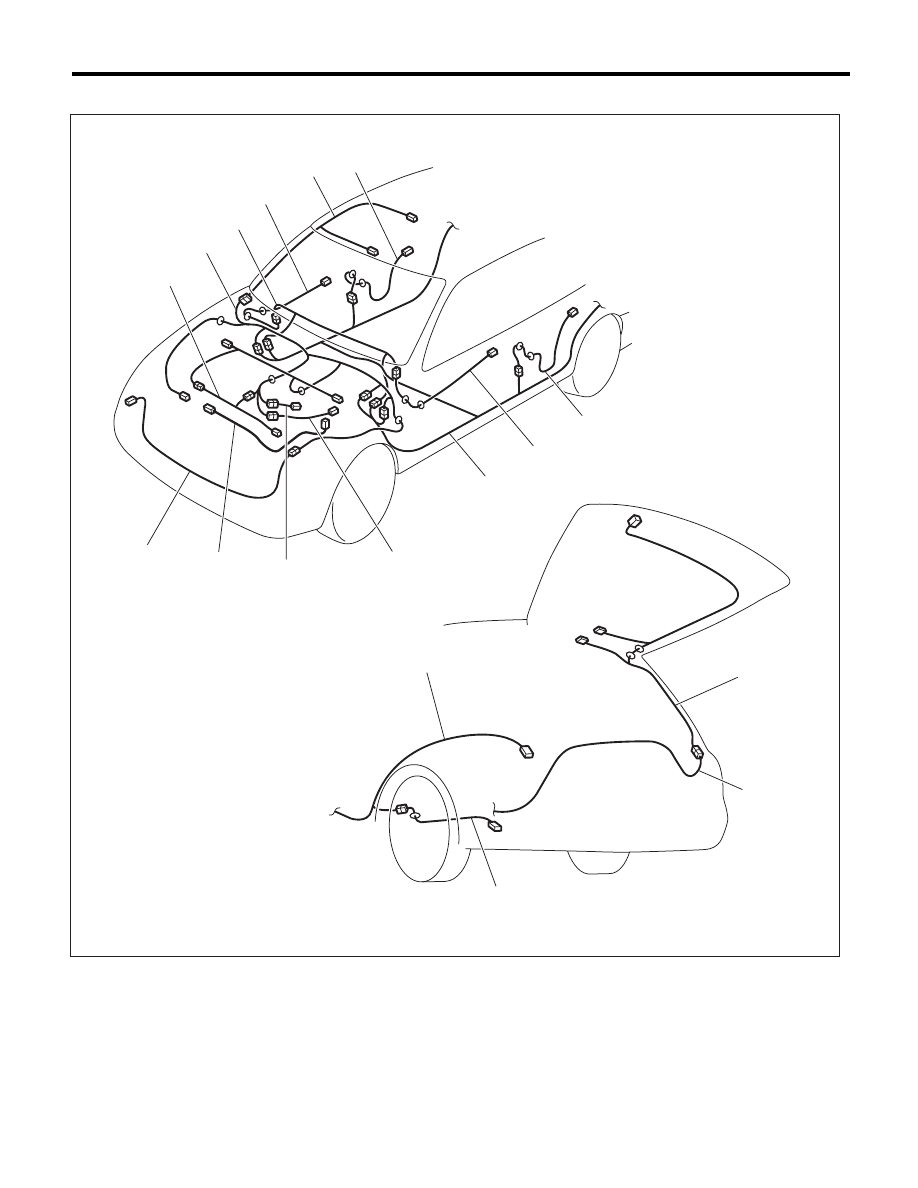

2. WAGON MODEL

(1)

Front wiring harness

(6)

Rear door cord RH

(11)

Front door cord LH

(2)

Engine wiring harness

(7)

Rear wiring harness

(12)

Transmission cord

(3)

Bulkhead wiring harness

(8)

Roof cord

(13)

Rear oxygen sensor cord

(4)

Instrument panel wiring harness

(9)

Rear gate cord

(14)

Generator cord

(5)

Front door cord RH

(10)

Rear door cord LH

(15)

Fuel cord

WI-15915

(6)

(4)

(3)

(5)

(8)

(1)

(7)

(11)

(10)

(9)

(7)

(7)

(15)

(14)

(2)

(13)

(12)

WI-205

Front Wiring Harness

WIRING SYSTEM

54.Front Wiring Harness

A: LOCATION

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

F3

3

Gray

B-1



Front clearance and front turn signal light RH

F5

1

Black

C-2

 Horn

F6

2

Brown

C-1



Front fog light RH

F9

16

Black

B-4



Secondary air relay holder

F11

2

Gray

C-3



Secondary air pump

F16

2

Gray

C-1



Sub fan motor (H4 Turbo model)

Black

C-1



Sub fan motor (H4 Non-turbo model)

F17

2

Gray

C-2



Main fan motor (H4 Turbo model)

Black

C-2



Main fan motor (H4 Non-turbo model)

F19

3

Gray

C-3



Front clearance and front turn signal light LH

F21

2

Brown

D-3



Front fog light LH

F24

2

Black

C-2

 Magnet

clutch

F25

1

C-2



Generator terminal B

F26

3

Green

C-2

 Generator

F27

22

Black

B-4

 Relay

holder

F35

12

Blue

B-4



Main fuse box (M/B)

F36

7

B-4



F37

20

B-4



F47

1

Black

C-2

 Horn

F58

3

Gray

C-3

 Headlight

LH

F59

3

Gray

C-1

 Headlight

RH

F70

2

B-4



Main fuse box (M/B)

F78

2

Black

C-2

 Ambient

sensor

F102

2

Black

C-2

 Keyless

buzzer

F106

3

Gray

B-1



Radiator fan control unit (H6 model)

F108

18

B-4

B361

Through joint connector

F109

24

B-3

B360

F115

2

Gray

C-2



A/C lock sensor (H6 model)

: White or natural color

WI-206

Front Wiring Harness

WIRING SYSTEM

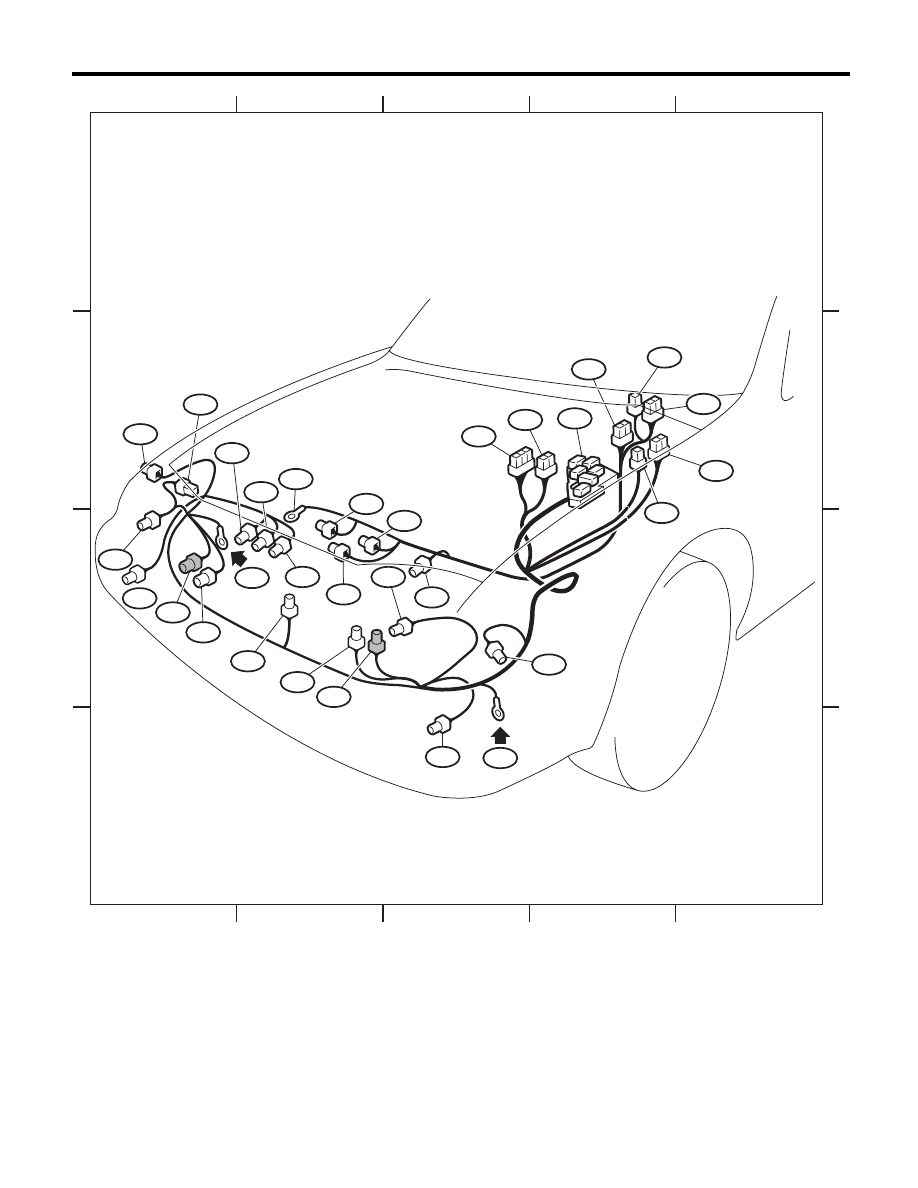

WI-15916

1

2

3

4

5

1

2

3

4

5

A

B

C

D

A

B

C

D

F6

F26

F25

F115

F11

F5

F24

F58

F35

F21

F17

F17

F78

GB-2

GB-1

F3

F106

F59

F108

F27

F109

F19

F16

F16

F37

F36

F102

F47

*2

*1

*2

*2

*1

*1: NON-TURBO MODEL
*2: TURBO  MODEL

F70

F9

WI-207

Bulkhead Wiring Harness (In Engine Compartment)

WIRING SYSTEM

55.Bulkhead Wiring Harness (In Engine Compartment)

A: LOCATION

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

B3

5

Black

B-2



Mass air flow and intake air temperature sensor

B6

2

Gray

B-2



Front ABS wheel speed sensor RH

B8

5

Gray

B-4

 Front

wiper

motor

B10

4

Gray

B-4

 Pressure

switch

B11

20

Gray

B-3

T4

Transmission (AT model)

B12

8

Gray

B-3

T3

Transmission cord (Turbo • H6 model)

12

Gray

B-3

T3

Transmission cord (SOHC model)

B14

1

Black

B-3

 Starter

motor

B15

2

Gray

B-4



Front ABS wheel speed sensor LH

B16

2

Gray

B-4



Brake fluid level switch

B19

4

Green

B-2

T5

Rear oxygen sensor cord (turbo, 5AT, 5MT model)

Gray

B-2

T5

Rear oxygen sensor cord (Turbo, 6MT model)

B20

16

Brown

B-3

E1

Engine wiring harness (H6 model)

B21

54

Black

B-3

E2

Engine wiring harness

B22

16

Brown

B-3

E3

Engine wiring harness (H6 model)

B24

2

Gray

B-3

T1

Back-up light switch (H4 Non-turbo model)

B25

2

Brown

B-4

T2

Neutral position switch (H4 Non-turbo model)

B128

4

Gray

B-3

T9

Transmission harness (Turbo model)

B143

20

B-4



Main fuse box (M/B)

B144

9

Brown

B-4



B145

7

Brown

B-4



B146

2

Gray

C-4



Front washer motor

B147

2

Gray

C-4

 Rear

washer

motor

B186

8

B-4



Main fuse box (M/B)

B301

26

Black

B-2

 ABS

control

module

B310

46

Black

B-2



VDC control module

B321

2

Black

B-2

 Hood

switch

B360

16

Gray

B-4

F109

Through joint connector

B361

14

Gray

B-4

F108

: White or natural color

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

AB13

2

Yellow

C-3



Front sub sensor LH

AB16

2

Yellow

B-1



Front sub sensor RH
