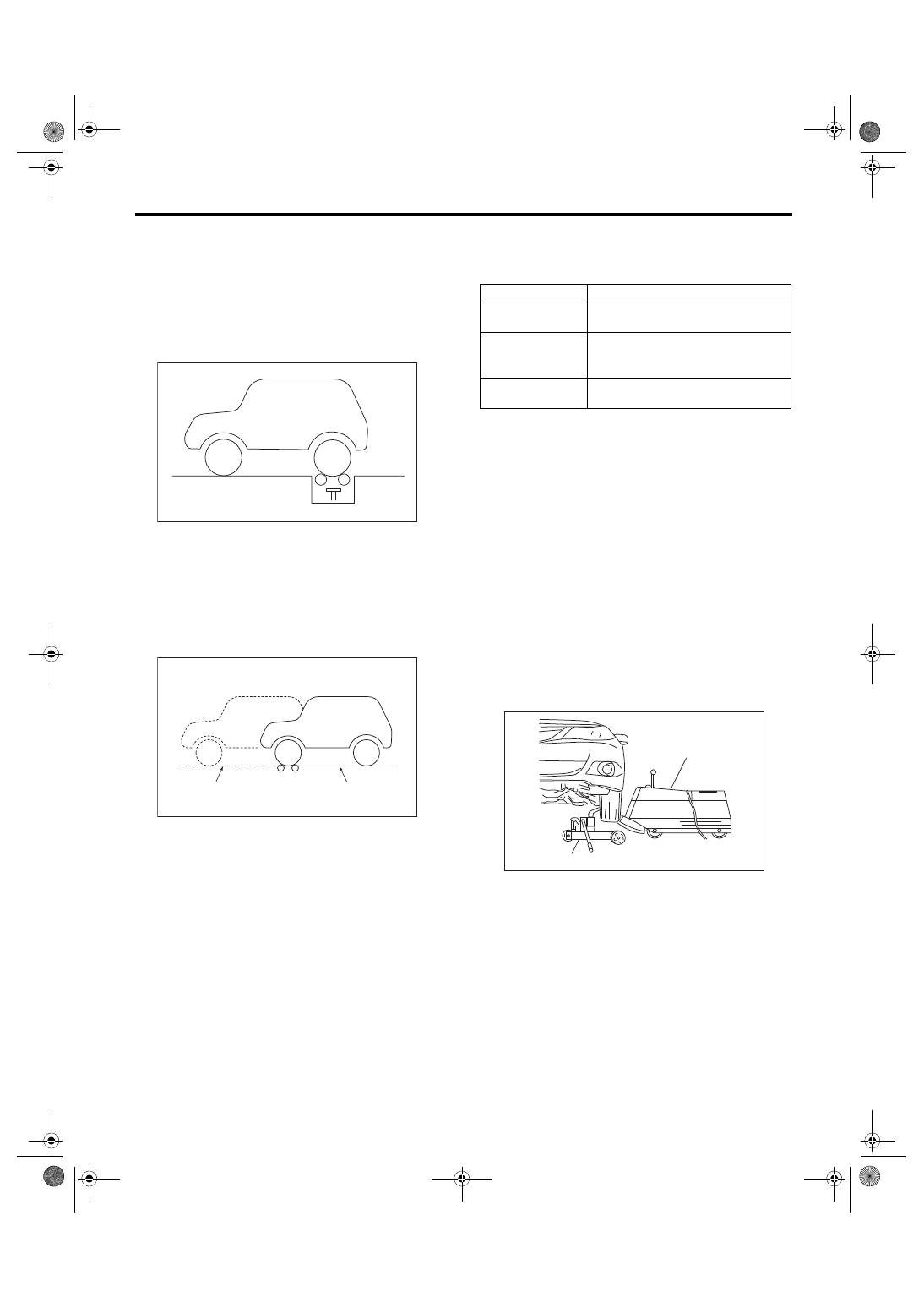

NT-17 Note NOTE 16.SPEEDOMETER TEST 1) Set the vehicle on speedometer tester. Fix the vehicle using a pulling metal (chain or wire) to the front and rear towing hooks or tie- down hook to prevent the lateral runout of the rear wheels and sudden jumping out of the ve- hicle. 2) Conduct the speedometer test work. Do not operate the clutch quickly and do not ac- celerate or decelerate suddenly during work. 17.BRAKE TEST 1) Keep the front or rear wheels on the ground dur- ing measurement. 2) When the brake dragging force is large. • Check the dragging of brake pad or brake shoe. 18.ON THE CAR WHEEL BALANCING CAUTION: • Carry out the procedures after measuring the balance of each single tire. • Set the vehicle so that the front and rear wheels are the same height. • Release the parking brake during measure- ment. • Rotate each wheel by hands, and make sure it rotates without dragging. • Do not operate the clutch quickly and do not accelerate or decelerate suddenly during work. • When an error is indicated during engine drive, do not use the motor drive together. 1) Set the rigid rack to the specified locations of side sill, jack up the front or rear two wheels of non- measuring side and set the pickup stands to two wheels of measuring side. 2) For drive wheel, drive the tires with engine for measurement. 3) For non-drive wheel, drive the tires from the on the car wheel balancer for measurement. (A) Brake tester (C) Position for measuring rear wheel NT-00458 (C) (A) (B) NT-00029
Braking force Rear wheel total 10% or more of load on front or rear Difference between 8% or less of load on front or rear Grand total 50% or more of vehicle weight at the (A) Balancer body NT-00374 (A) (B) |
