SL-47

SECURITY AND LOCKS

Immobilizer Control Module

22.Immobilizer Control Module

A: NOTE

The control of immobilizer system is carried out in
body integrated module.

B: REMOVAL

<Ref. to SL-44, REMOVAL, Body Integrated Mod-
ule.>

C: INSTALLATION

Install in the reverse order of removal.

SL-48

SECURITY AND LOCKS

Immobilizer Antenna

23.Immobilizer Antenna

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the screws, and detach the upper col-
umn cover and lower column cover.

3) Remove the instrument panel lower cover. <Ref.
to EI-50, REMOVAL, Instrument Panel Lower Cov-
er.>

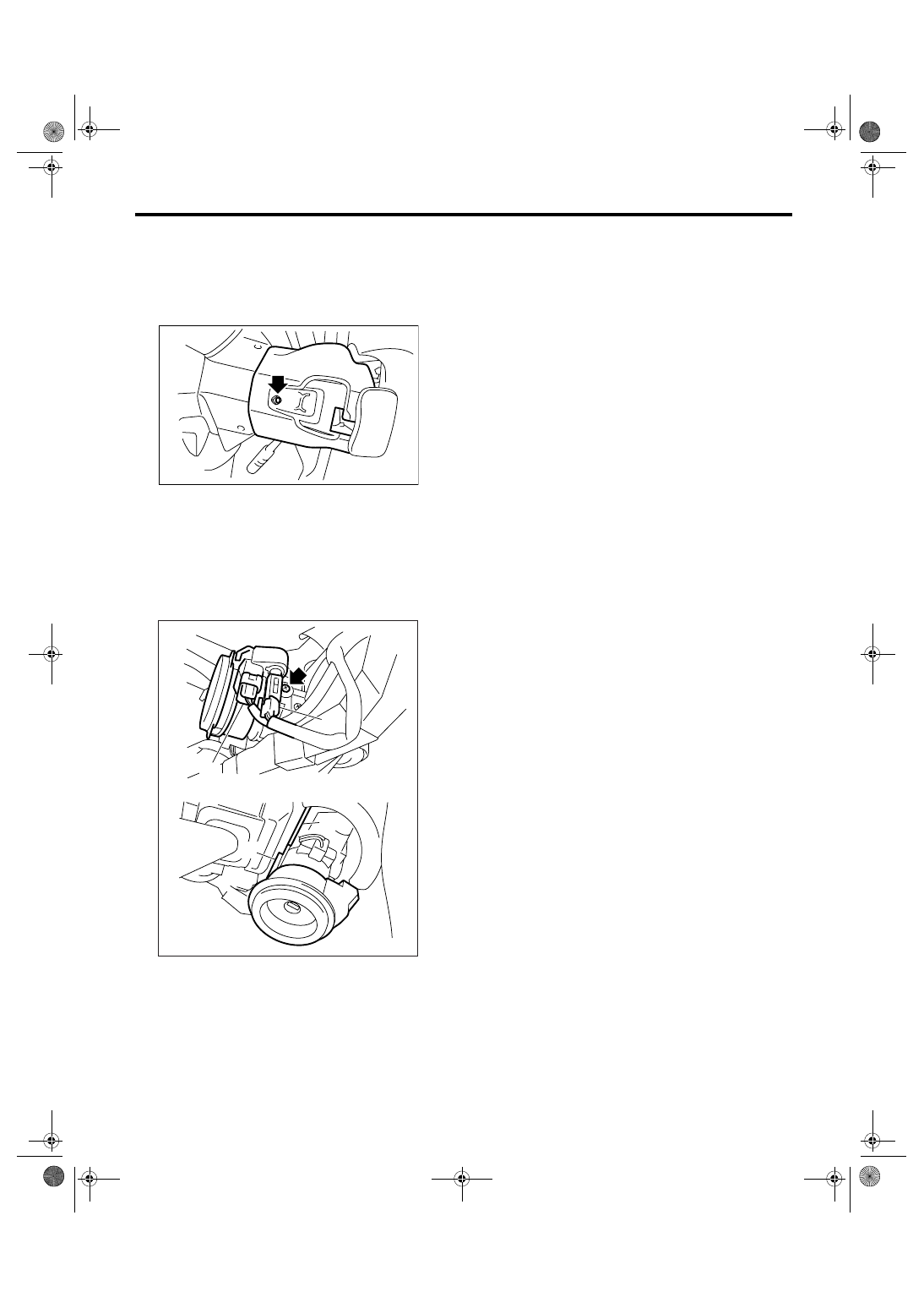

4) Disconnect the immobilizer antenna connector
(A) and ignition switch lighting connector (B).
5) Loosen the screw and release the lock (D) at op-
posite side using flat-tip screwdriver (1), and then
detach the immobilizer antenna (C).

CAUTION:
Do not apply excessive force to remove the im-
mobilizer antenna and lock. Otherwise they
may be broken because those parts are the
products made of a plastic.

B: INSTALLATION

Install in the reverse order of removal.

SL-00258

(D)

(1)

SL-00315

(A)

(C)

(B)
