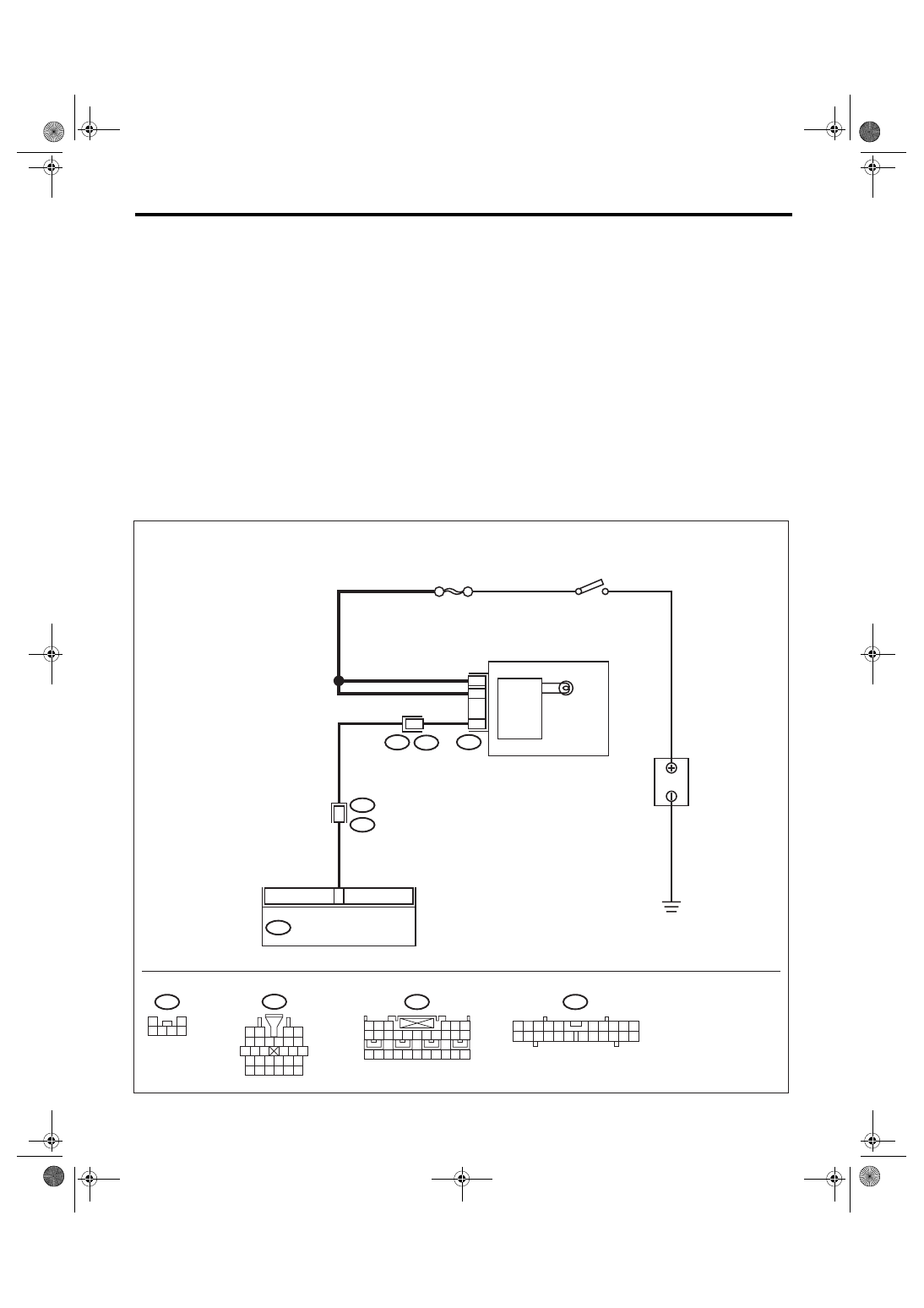

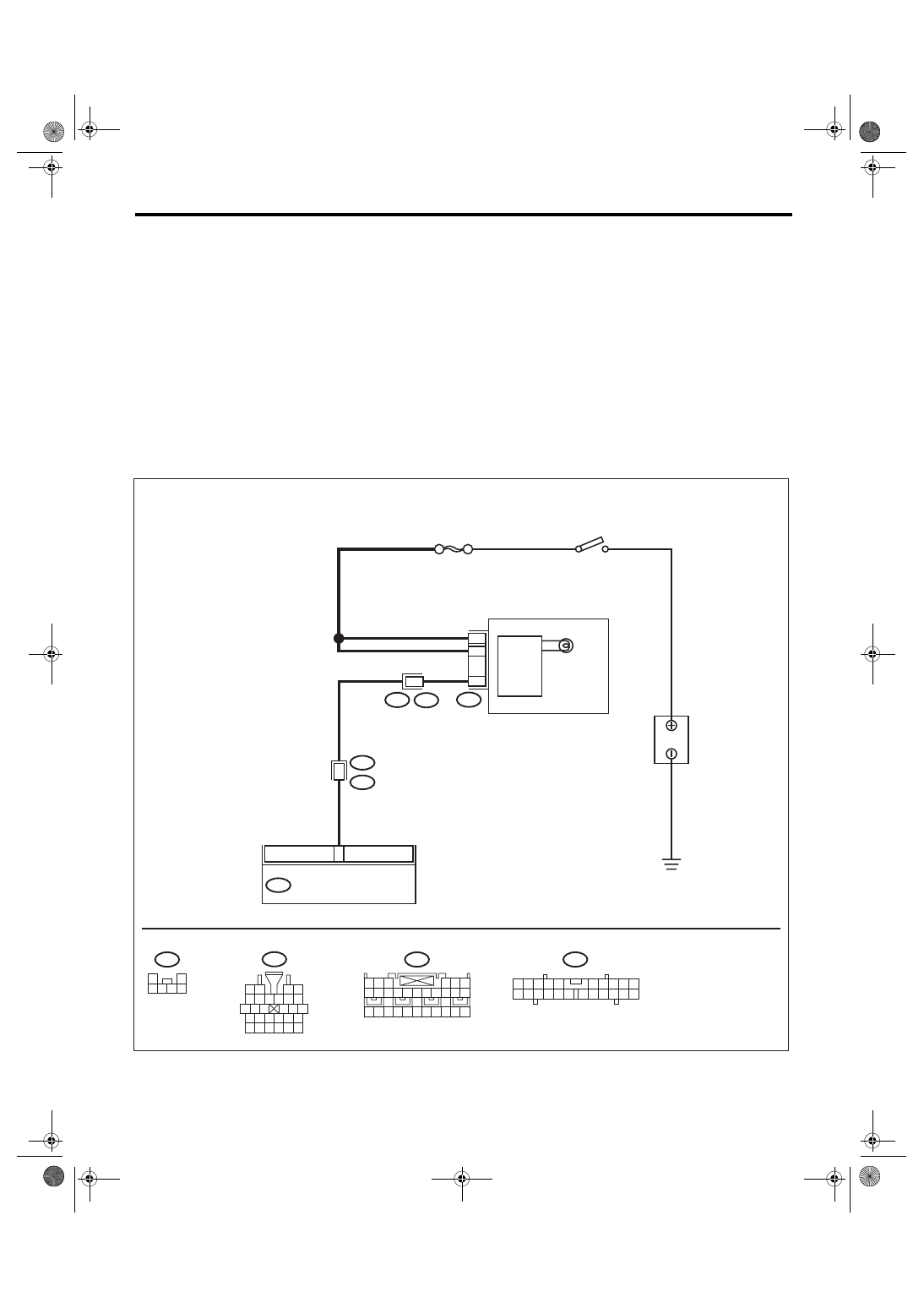

AIRBAG SYSTEM (DIAGNOSTICS)
Clear Memory Mode
10.Clear Memory Mode
A: OPERATION
1) Remove the instrument panel lower cover under.
2) Disconnect the ground terminal harness from
check connector harness on the side of heater unit.
NOTE:
The harness (black) of ground terminal is wrapped
by tapes with the harness of check connector.
3) Turn the ignition switch to ON.

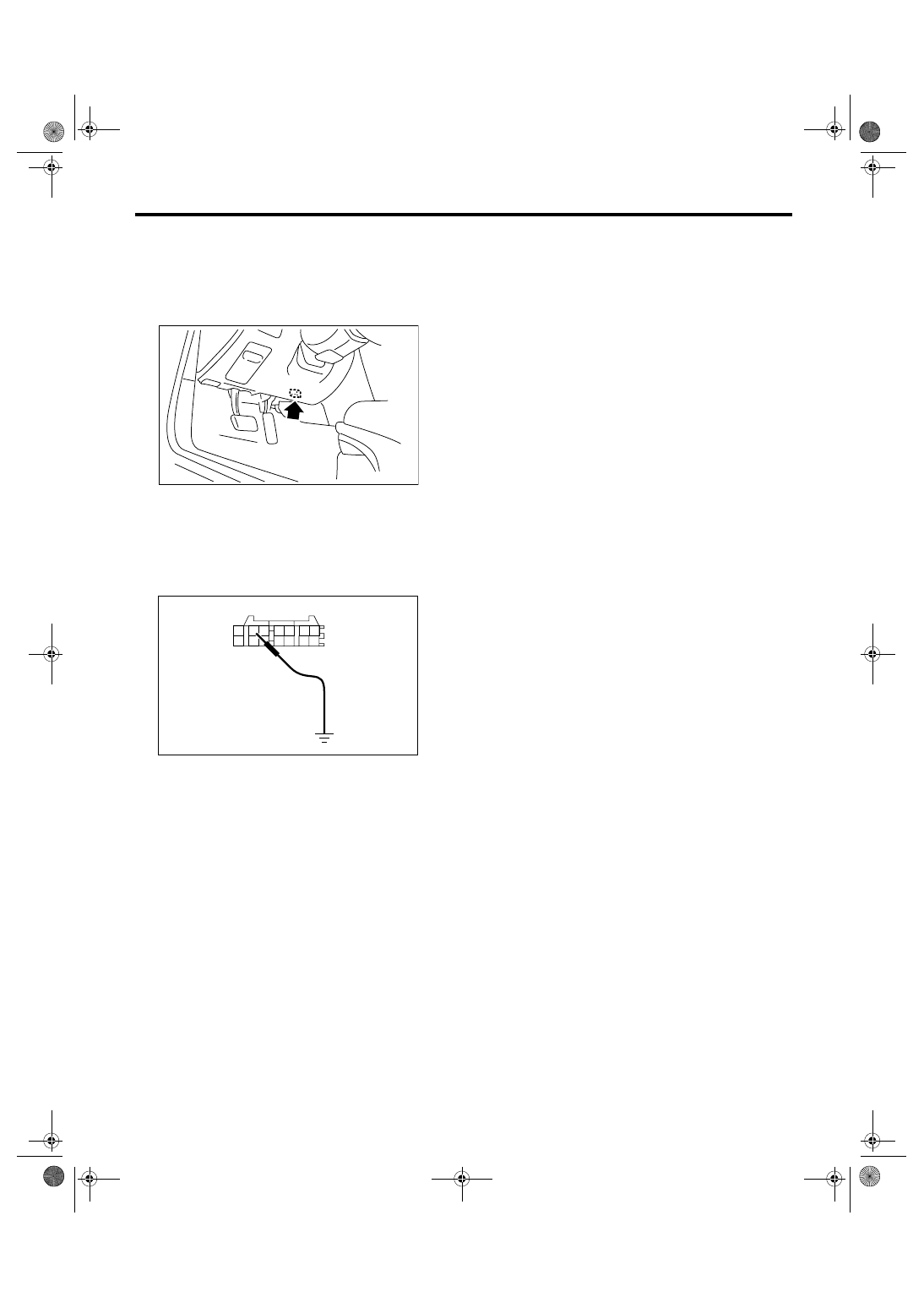

4) Connect one of the ground terminals to the
check connector terminal No. 2.
CAUTION:
Do not connect the ground terminal to the con-
nector except for the check connector terminal
No. 2 and No. 3.
5) While the warning light blinks, connect another
ground terminal to the check connector terminal
No. 3.
6) Once the memory is erased, the warning light re-
turns the normal blink rate (0.6 sec. on). If normal
blink rate is not displayed, defective in parts still re-
main. Having repaired such parts, erase the mem-
ory again and confirm that the blink rate has
returned to normal.
7) After the memory has been cleared, disconnect
the ground terminal from the check connector.
8) Wind the tape around the ground terminal and
return it to its original position.
