ME(H6DO)-15

MECHANICAL

General Description

D: PREPARATION TOOL

1. SPECIAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

18250AA010

CYLINDER HEAD
TABLE

• Used for replacing valve guides.
• Used for removing and installing valve spring.

18232AA000

ENGINE STAND

Used for disassembling and assembling engine.

498497100

CRANKSHAFT
STOPPER

Used for stopping rotation of flywheel or drive
plate when loosening / tightening crank pulley
bolt.

18254AA000

PISTON GUIDE

Used for installing piston in cylinder.

ST18250AA010

ST18232AA000

ST-498497100

ST18254AA000

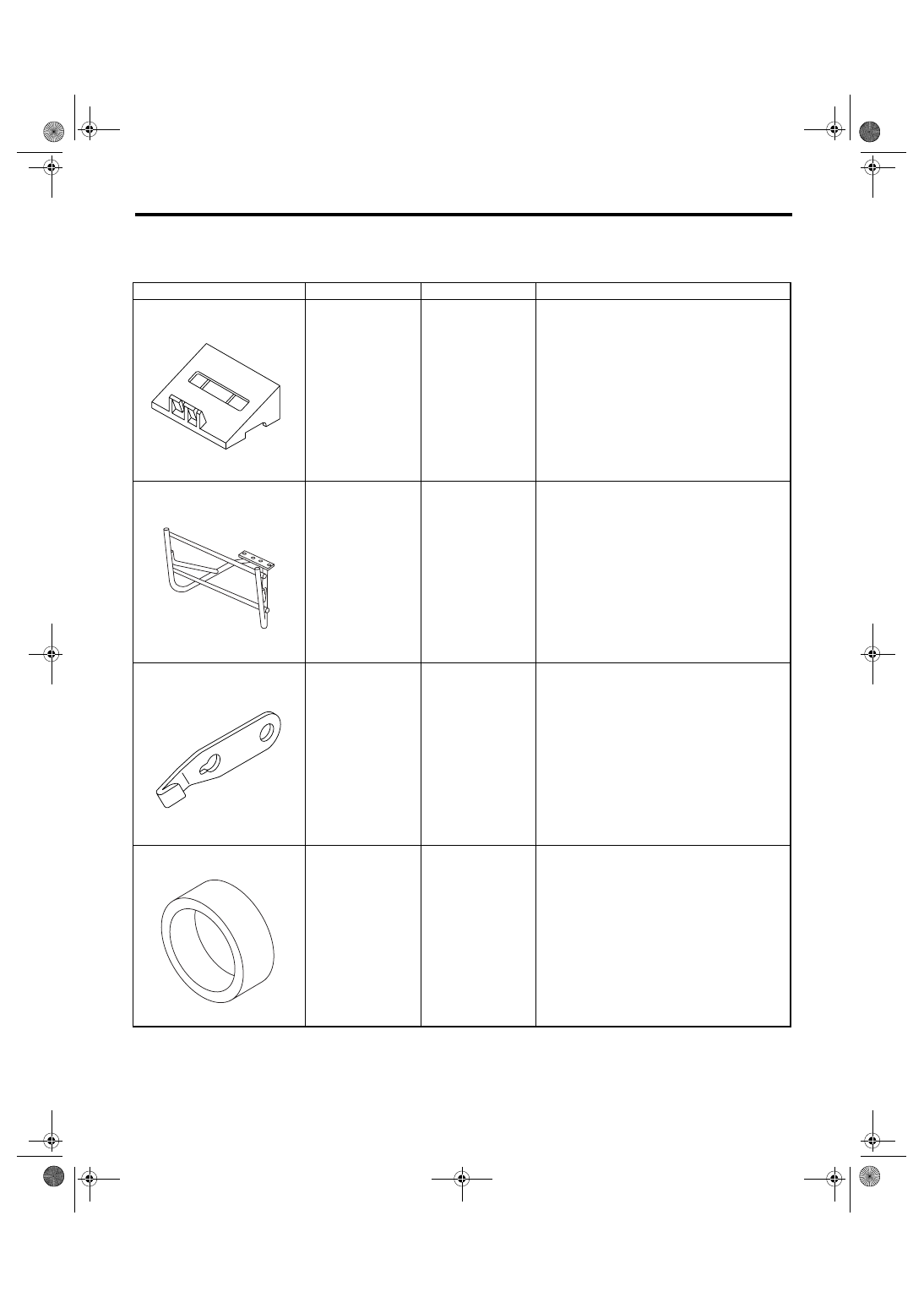

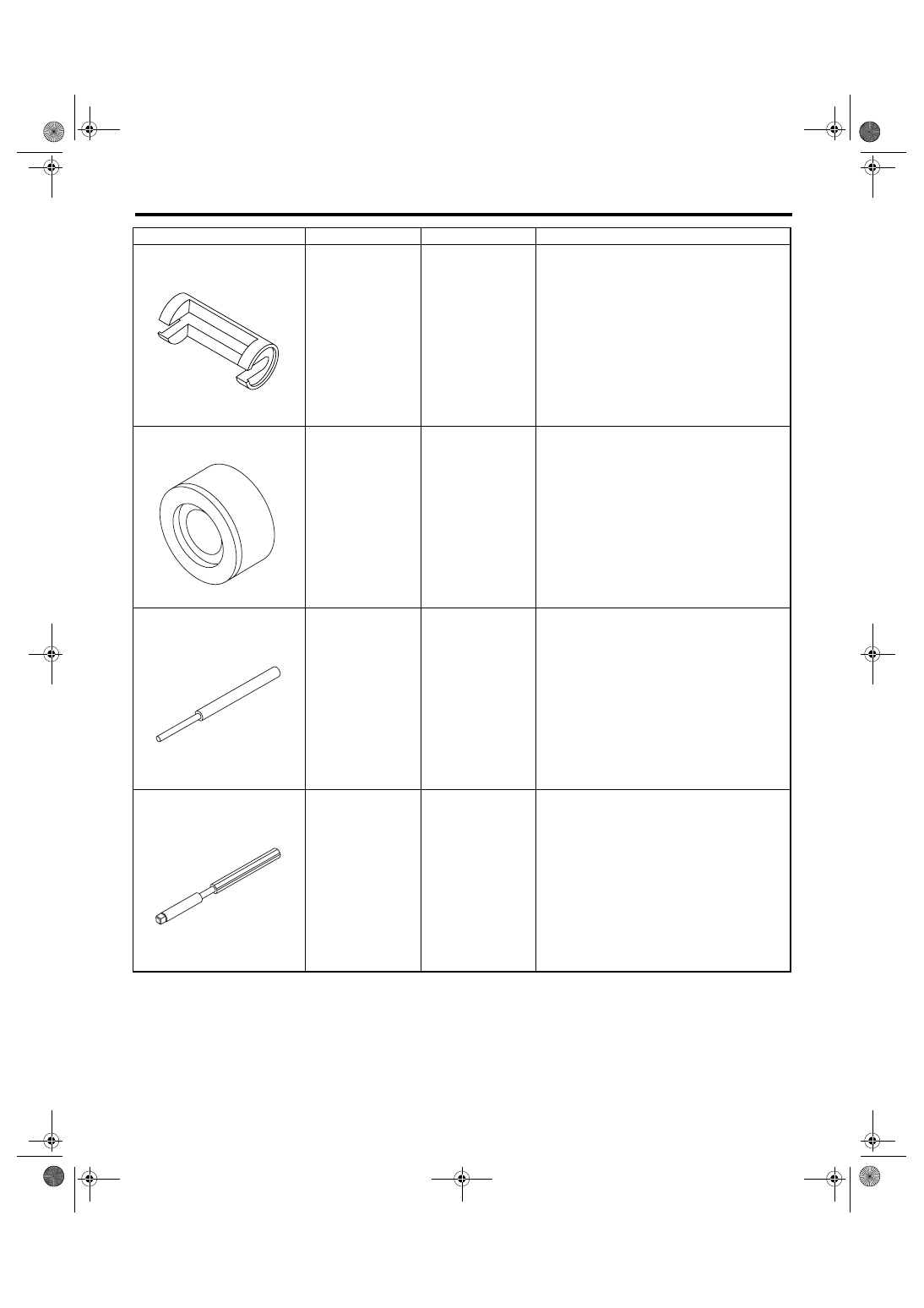

ME(H6DO)-16

MECHANICAL

General Description

499585500

VALVE OIL SEAL
GUIDE

Used for press-fitting of intake and exhaust valve
guide oil seals.

18253AA000

PISTON PIN GUIDE

Used for installing piston pin, piston and con-
necting rod.

18350AA000

CONNECTING ROD
BUSHING
REMOVER AND
INSTALLER

Used for removing and installing connecting rod
bushing.

499097500

PISTON PIN
REMOVER ASSY

Used for removing piston pin.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499585500

ST18253AA000

ST18350AA000

ST-499097500

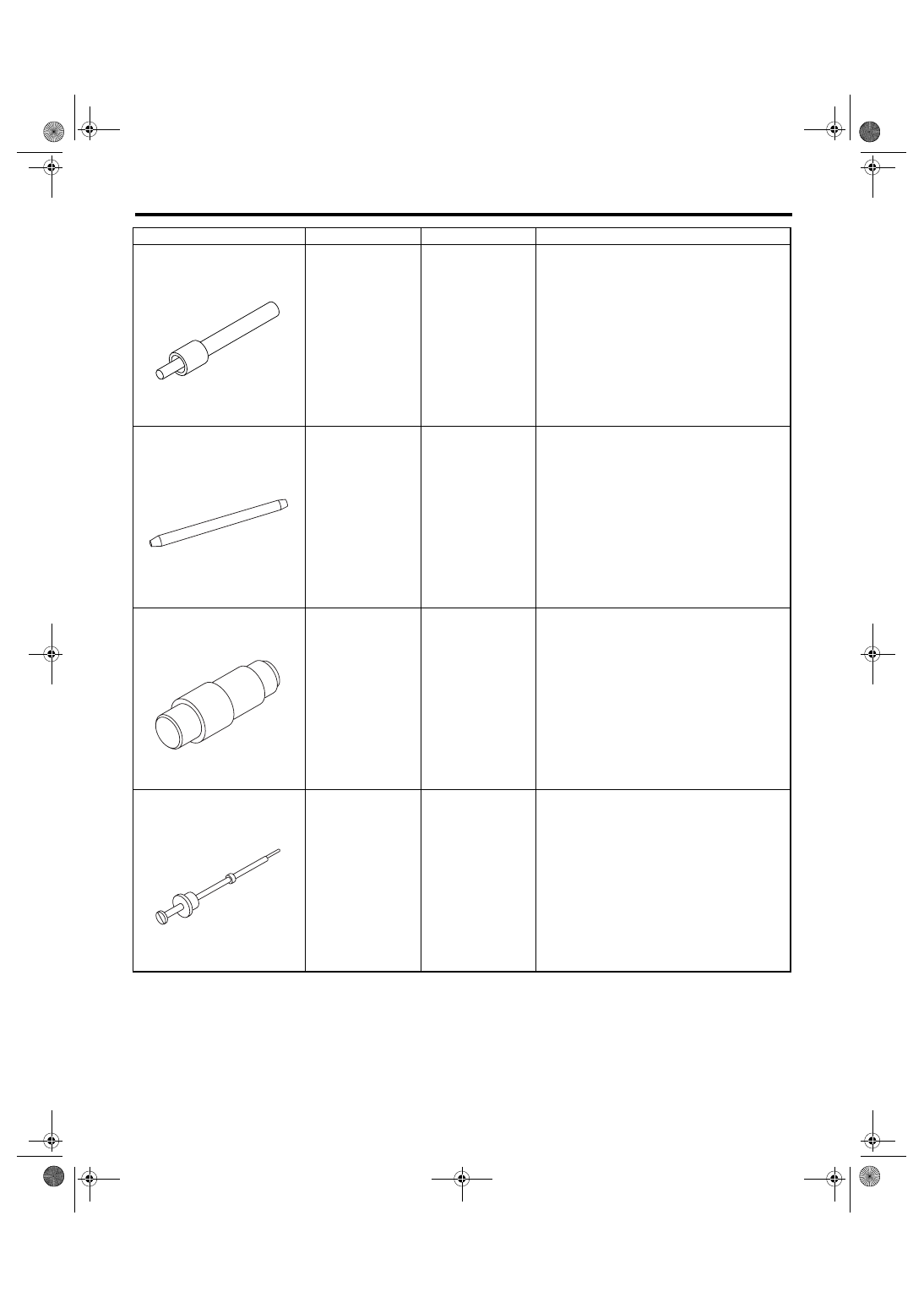

ME(H6DO)-17

MECHANICAL

General Description

499977500

CAM SPROCKET
WRENCH

Used for removing and installing intake cam
sprocket.

18231AA020

CAM SPROCKET
WRENCH

Used for removing and installing exhaust cam
sprocket.

499587200

CRANKSHAFT OIL
SEAL INSTALLER

• Used for installing crankshaft oil seal.
• Used with CRANKSHAFT OIL SEAL GUIDE
(499597100).

499597100

CRANKSHAFT OIL
SEAL GUIDE

• Used for installing crankshaft oil seal.
• Used with CRANKSHAFT OIL SEAL
INSTALLER (499587200).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499977500

ST18231AA020

ST-499587200

ST-499597100

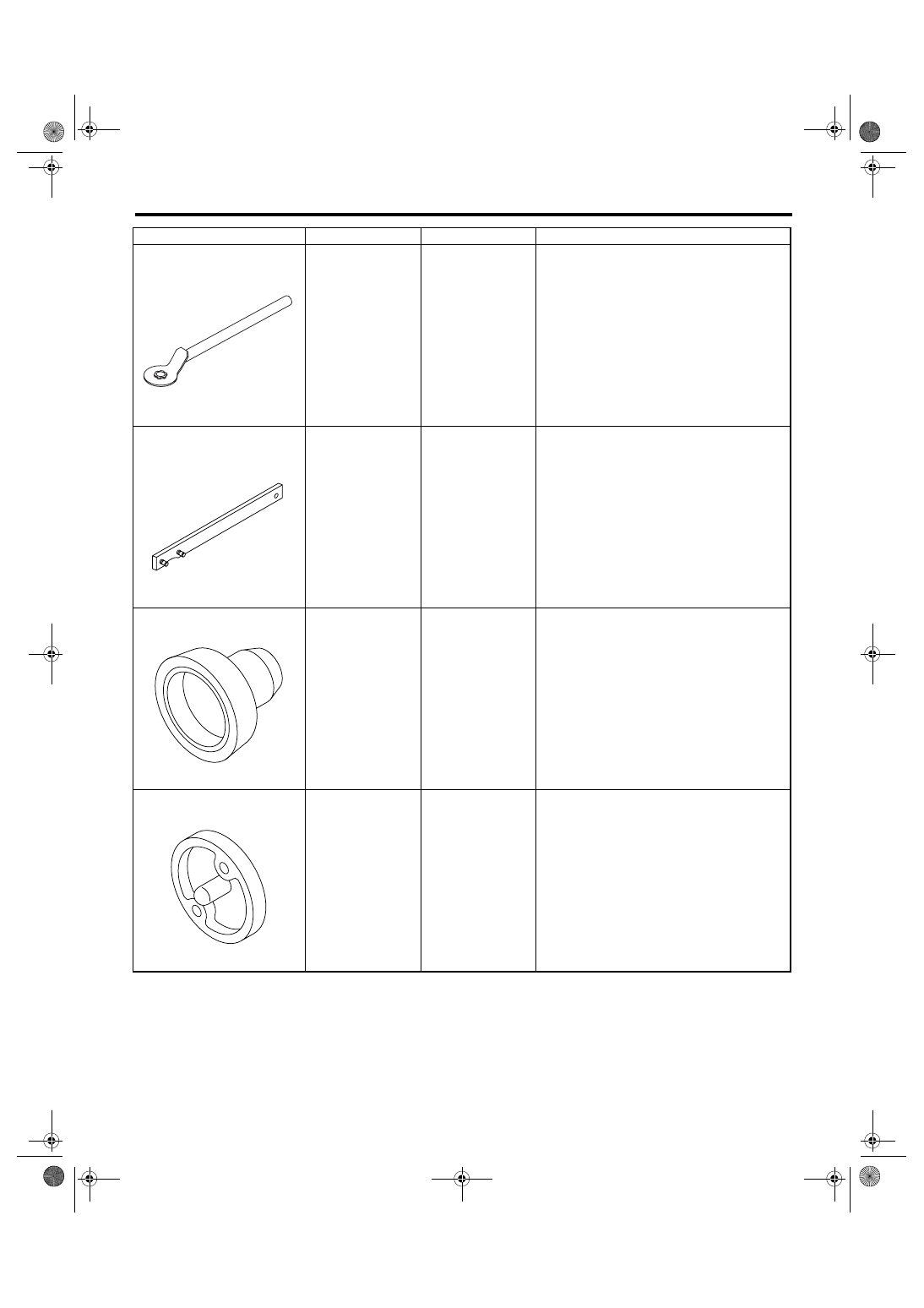

ME(H6DO)-18

MECHANICAL

General Description

499718000

VALVE SPRING
REMOVER

Used for removing and installing valve spring.

18251AA040

VALVE GUIDE
ADJUSTER

Used for installing valve guides.

499765700

VALVE GUIDE
REMOVER

Used for removing valve guides.

499765900

VALVE GUIDE
REAMER

Used for reaming valve guides.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499718000

ST18251AA040

ST-499765700

ST-499765900
