WI-365

WIRING SYSTEM

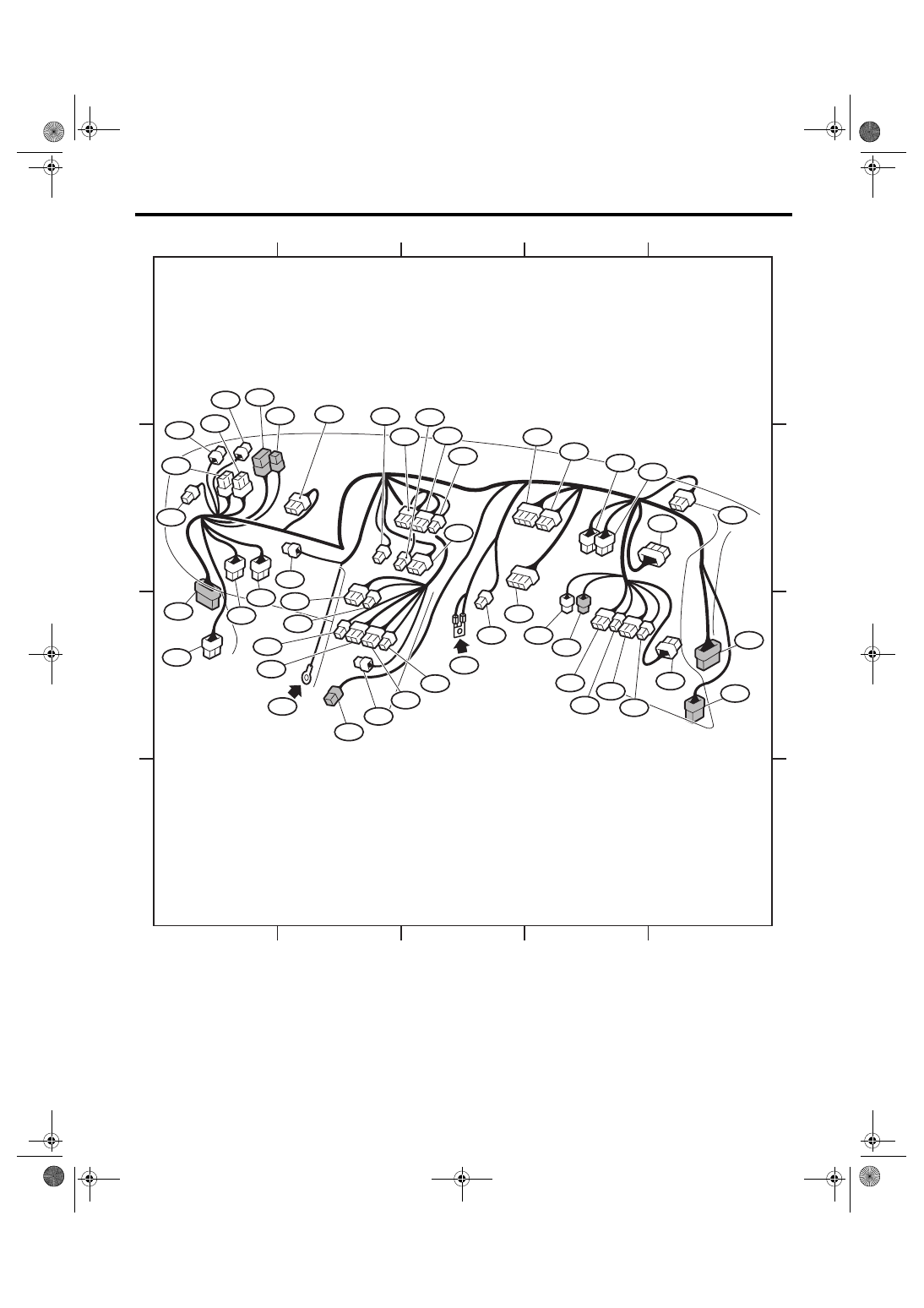

Instrument Panel Wiring Harness

1

2

3

4

5

1

2

3

4

5

A

B

C

D

A

B

C

D

WI-07485

GB-3

GR

i96

i51

i98

i97

i3

i95

i2

i22

i91

i89

i90

i103

i10

i11

i83

i82

i59

i50

i101

i99

i24

i29

i86

i55

i84

i80

i1

i53

i81

i5

i78

i79

i6

i39

i100

i23

i17

i15

i88

i85

i26

i102

i76

i77

WI-366

WIRING SYSTEM

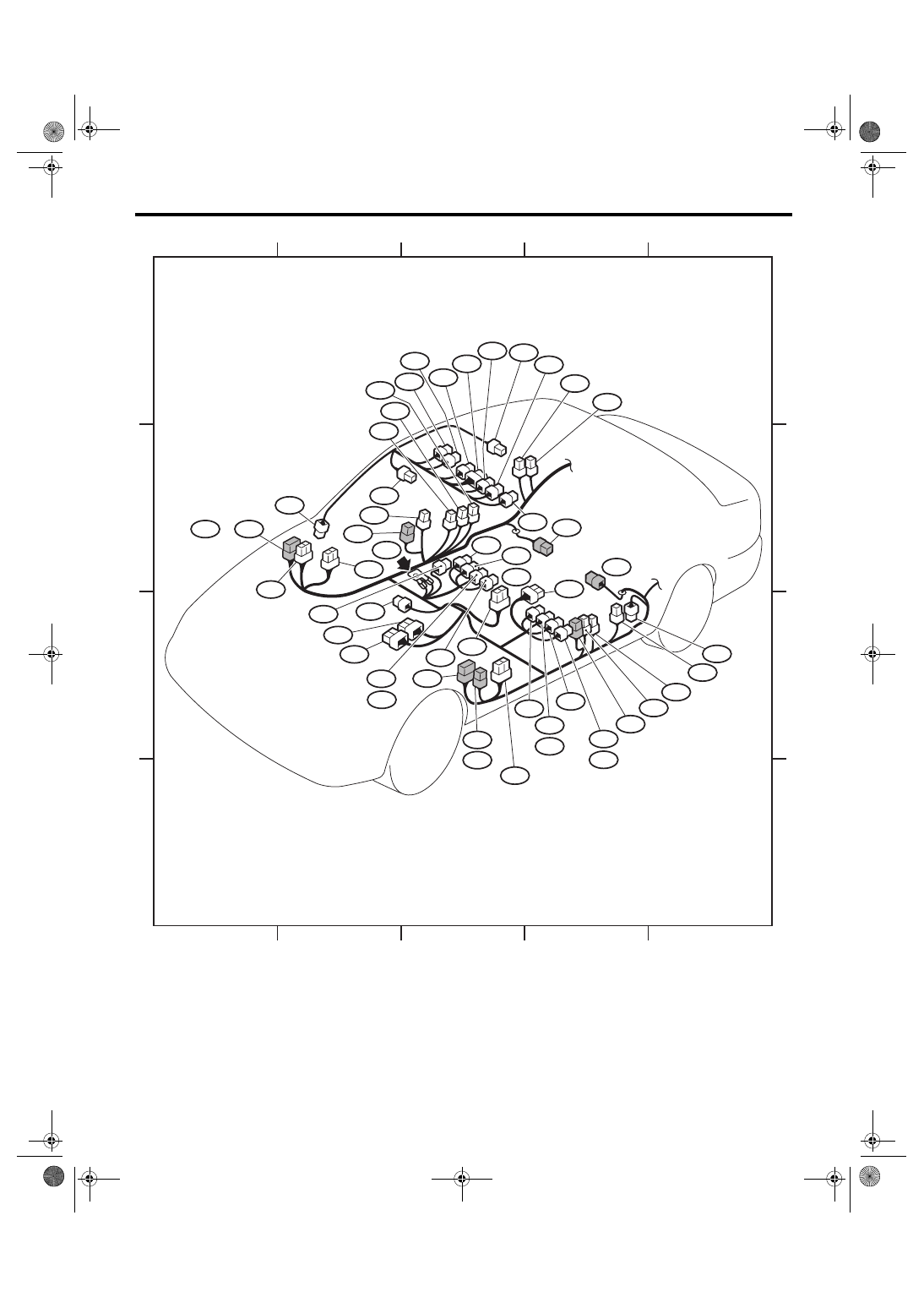

Rear Wiring Harness

58.Rear Wiring Harness

A: LOCATION

1. SEDAN MODEL

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

R1

16

★

C-3

B97

Bulkhead wiring harness (LHD)

20

★

B-2

Bulkhead wiring harness (RHD)

R2

16

★

B-2

B98

Bulkhead wiring harness (LHD)

8

★

C-3

Bulkhead wiring harness (RHD)

R4

1

Black

C-3

Parking brake switch

R8

4

★

C-4

Front seat belt switch LHD (Driver’s side)

B-3

Front seat belt switch RHD (Driver’s side)

R9

3

★

C-4

Front door switch LH

R10

8

★

C-4

D22

Rear door cord (Passenger’s side)

R12

3

★

B-3

Front door switch RH

R13

8

★

B-3

D28

Rear door cord (Driver’s side)

R16

3

★

B-4

Rear door switch RH

R41

4

★

C-4

Seat heater LH

R43

20

★

C-3

Seat heater switch

R44

4

★

B-3

Seat heater RH

R50

16

★

B-2

B90

Bulkhead wiring harness

R51

2

Black

B-3

Vanity mirror illumination RH

R52

3

★

B-3

Interior light

R54

2

Black

B-3

Vanity mirror illumination LH

R55

10

Gray

B-3

Sunroof control module

R56

2

★

B-3

Spot map light

R72

2

Black

B-4

Rear ABS wheel speed sensor RH

R73

2

Black

B-4

Rear ABS wheel speed sensor LH

R98

18

★

B-2

i53

Instrument panel wiring harness

R107

4

★

B-3

Front seat belt switch LHD (Passenger’s side)

C-4

Front seat belt switch RHD (Passenger’s side)

R109

2

Black

C-4

Power seat LHD (Driver’s side)

B-3

Power seat RHD (Driver’s side)

R110

18

★

C-4

Audio amplifier (Model with McIntosh)

R128

5

★

B-3

Sunroof switch

R142

2

Black

C-4

Fuel pump condenser

R166

5

★

B-3

Seat belt warning light

R167

18

★

C-3

i102

Instrument panel wiring harness (LHD)

16

★

Instrument panel wiring harness (RHD)

R168

20

★

C-3

Fuse & relay box (F/B) (LHD)

20

★

B-2

Fuse & relay box (F/B) (RHD)

R187

5

Black

B-3

Tilt switch

R188

2

Black

B-3

Power seat LHD (Passenger’s side)

C-4

Power seat RHD (Passenger’s side)

R192

2

★

B-3

Seat buzzer

R220

3

★

B-3

Minus ion producer/Rear view mirror

★: Non-colored

WI-367

WIRING SYSTEM

Rear Wiring Harness

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

AB17

20

Yellow

C-3

Airbag control module LH (Model with side airbag, curtain
airbag)

12

Yellow

Airbag control module LH

AB18

20

Yellow

C-2

Airbag control module RH (Model with side airbag, curtain
airbag)

12

Yellow

Airbag control module RH

AB19

2

Yellow

C-4

AB20

Airbag module (Side) LH

AB21

2

Yellow

C-4

Pretensioner LH

AB23

4

Yellow

C-4

Side airbag sensor LH

AB24

2

Yellow

B-3

AB25

Airbag module (Side) RH

AB26

2

Yellow

B-3

Pretensioner RH

AB28

4

Yellow

B-3

Side airbag sensor RH

AB30

2

Orange

B-3

Lap seat belt pretensioner RH

AB34

4

Yellow

B-3

Curtain airbag sensor RH

★: Non-colored

WI-368

WIRING SYSTEM

Rear Wiring Harness

1

2

3

4

5

1

2

3

4

5

A

B

C

D

A

B

C

D

WI-07486

R50

GB-8

R128

R56

R55

R73

R110

R4

AB17

AB18

R192

AB23

R142

AB26

AB28

R220

R166

AB30

R12

R13

R51

R9

R10

R167

AB24

R54

R44

AB21

R187

R52

AB34

R16

R168

R98

AB19

R1

R2

*1

*2

R1

R2

*1

*2

R8

*1

R107

*2

R188

R109

*2

*1

R168

*1

R109

R188

*2

*1

R107

*1

R8

*2

R41

R43

R72

*2

*1: LHD model
*2: RHD model
