Subaru Legacy (2005 year). Service manual - part 1002

EI-65

EXTERIOR/INTERIOR TRIM

Sun Visor

27.Sun Visor

A: REMOVAL

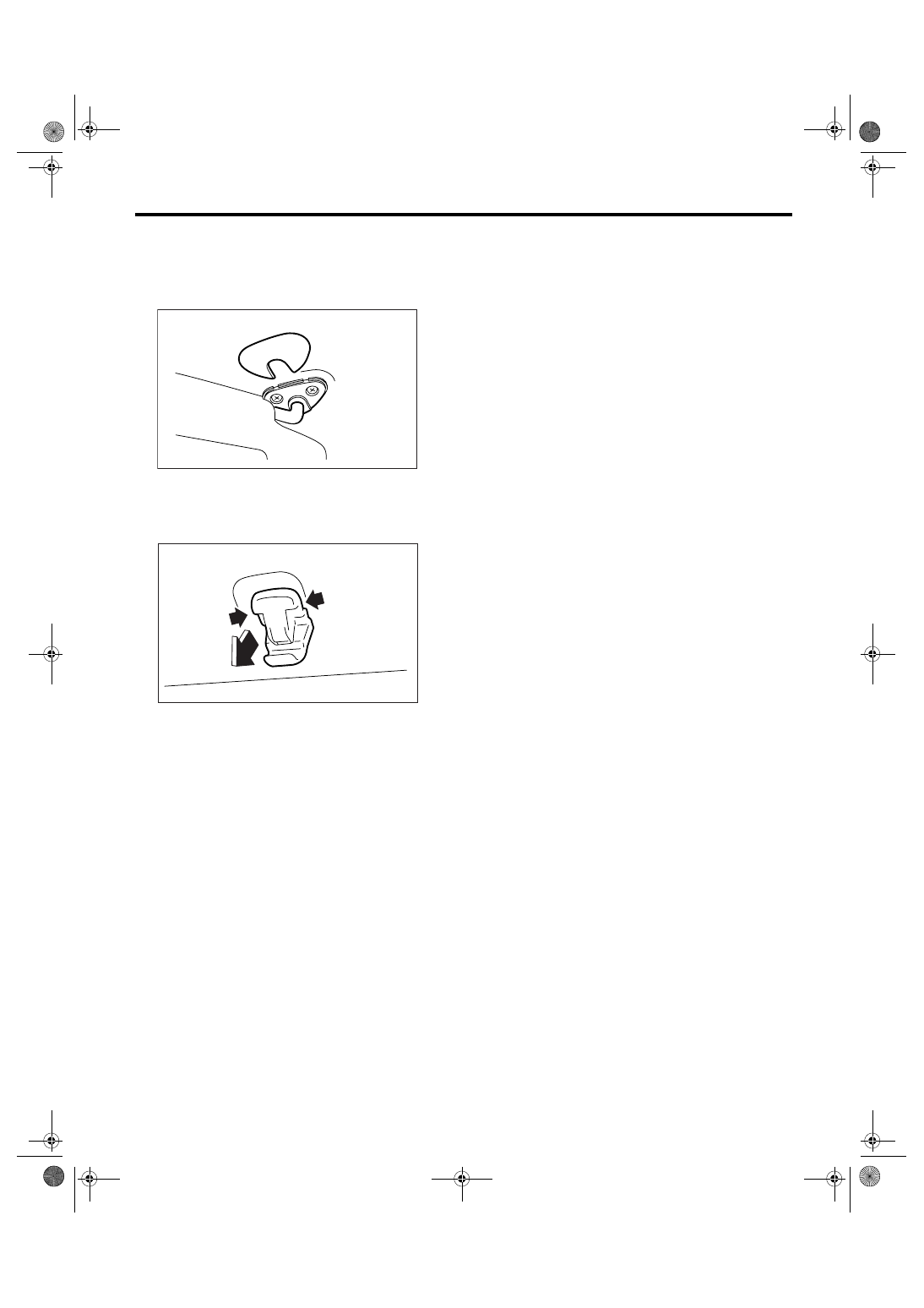

1) Remove the cover, loosen the mounting screws,
and remove the sun visor.

2) Remove the connector. (Model with vanity mirror
light)
3) While pressing the (A) on the both side using flat
tip screwdriver, pull the sun visor hook to remove it.

B: INSTALLATION

Install in the reverse order of removal.

EI-00661

EI-00662

(A)

(A)

EI-66

EXTERIOR/INTERIOR TRIM

Assist Grip

28.Assist Grip

A: REMOVAL

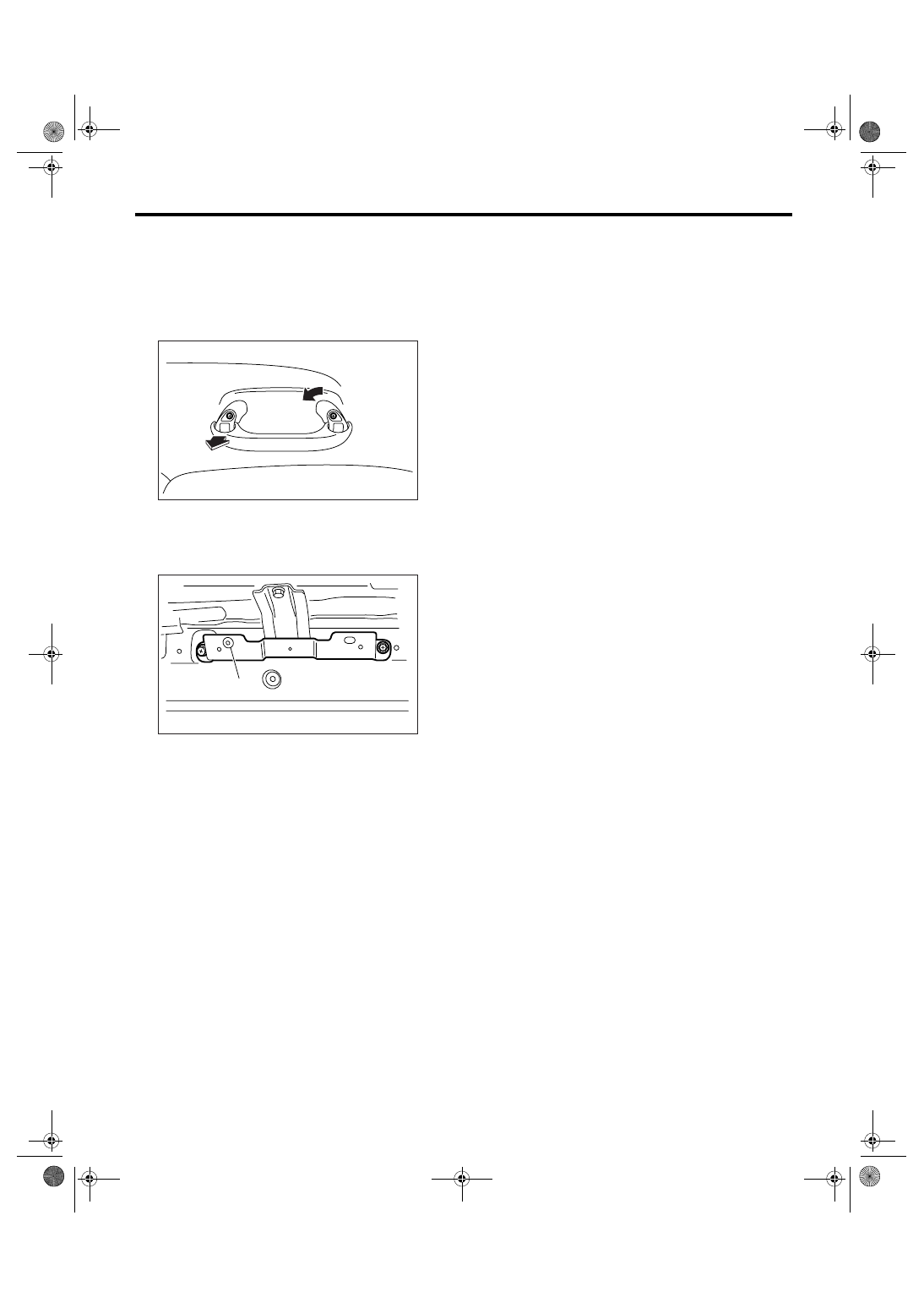

1) Remove the screw cover, and remove the screw
inside.
2) Pull the left side of assist grip toward you, and ro-
tate the right side of it counterclockwise to remove.

3) Remove the roof trim. <Ref. to EI-67, REMOV-
AL, Roof Trim.>
4) Remove the bolts, and remove the assist grip
bracket.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

7.5 N

⋅

m (0.77 kgf-m, 5.53 ft-lb)

CAUTION:
Be sure to install the grommet to assist grip
bracket.
When the assist grip is installed with no grom-
met, it may cause the faulty returning.

(A) Grommet

EI-00809

EI-01065

(A)

EI-67

EXTERIOR/INTERIOR TRIM

Roof Trim

29.Roof Trim

A: REMOVAL

1. SEDAN MODEL

1) Disconnect the ground cable from battery.
2) Remove the front seats. <Ref. to SE-7, REMOV-
AL, Front Seat.>
3) Remove the rear seat. <Ref. to SE-14, REMOV-
AL, Rear Seat.>
4) Remove the console box. <Ref. to EI-53, RE-
MOVAL, Console Box.>
5) Remove the center console. <Ref. to EI-54, RE-
MOVAL, Center Console.>
6) Remove the select lever. (AT model)
<Ref. to CS-22, REMOVAL, Select Lever.>
7) Remove the spot map light. <Ref. to LI-34, RE-
MOVAL, Spot Map Light.>
8) Remove the room light. <Ref. to LI-35, REMOV-
AL, Room Light.>
9) Remove the sun visor. <Ref. to EI-65, REMOV-
AL, Sun Visor.>
10) Remove the assist grip. <Ref. to EI-66, RE-
MOVAL, Assist Grip.>
11) Remove the upper inner trim. <Ref. to EI-62,
REMOVAL, Upper Inner Trim.>
12) Remove the rear quarter trim. <Ref. to EI-63,
SEDAN MODEL (MODEL WITH CURTAIN AIR-
BAG), REMOVAL, Rear Quarter Trim.>
13) Remove the sunroof opening trim. (Model with
sunroof)

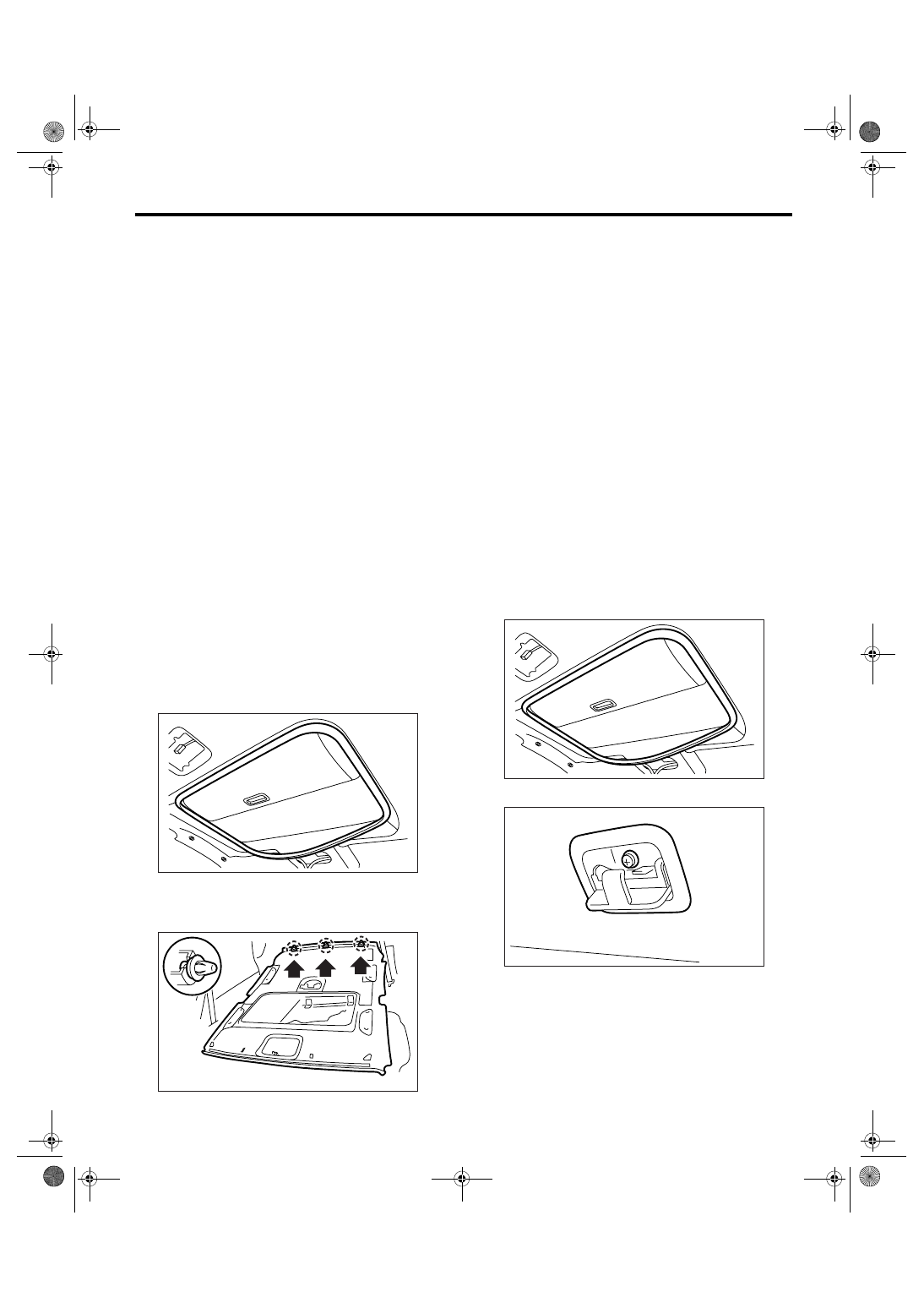

14) Remove the clips and each harness, and re-
move the roof trim.
15) Pull out the roof trim from vehicle.

2. WAGON MODEL

1) Disconnect the ground cable from battery.
2) Remove the spot map light. <Ref. to LI-34, RE-
MOVAL, Spot Map Light.>
3) Remove the room light. <Ref. to LI-35, REMOV-
AL, Room Light.>
4) Remove the luggage room light. <Ref. to LI-36,
REMOVAL, Luggage Room Light.>
5) Remove the sun visor. <Ref. to EI-65, REMOV-
AL, Sun Visor.>
6) Remove the assist grip. <Ref. to EI-66, REMOV-
AL, Assist Grip.>
7) Remove the upper inner trim. <Ref. to EI-62, RE-
MOVAL, Upper Inner Trim.>
8) Remove the rear quarter trim. <Ref. to EI-63,
WAGON MODEL, REMOVAL, Rear Quarter
Trim.>

CAUTION:
Do not remove the roof end trim with excessive
force. Otherwise roof trim may be damaged.
Roof trim and roof end trim are fastened by riv-
ets.
9) Remove the sunroof opening trim. (Model with
sunroof)

10) Remove the coat hook.

EI-00501

EI-00667

EI-00501

EI-00668

EI-68

EXTERIOR/INTERIOR TRIM

Roof Trim

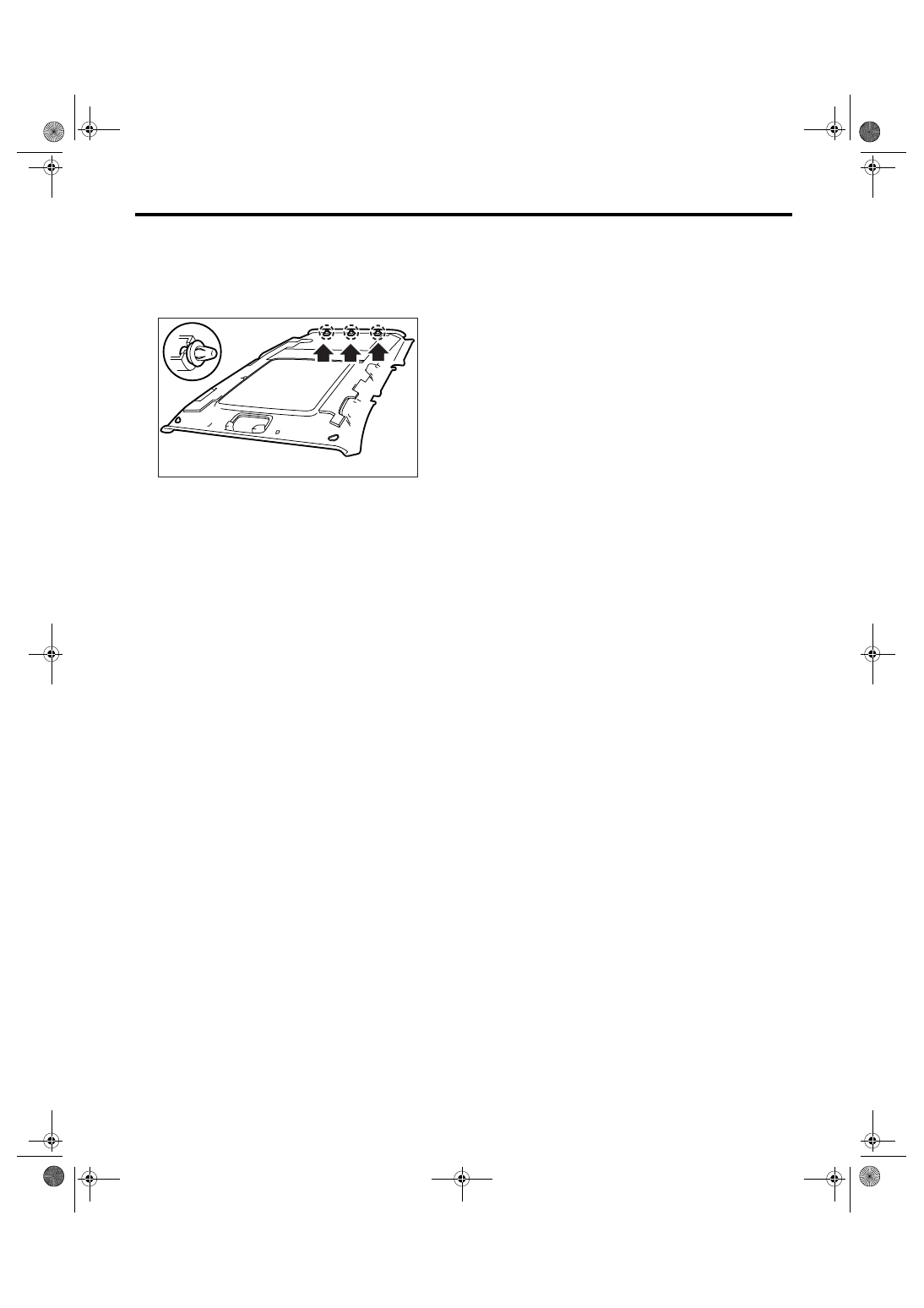

11) Remove the clips and each harness, pull out
the rear center seat belt, and remove the roof trim.

CAUTION:
Do not remove the roof end trim with excessive
force. Otherwise roof trim may be damaged.

B: INSTALLATION

1. SEDAN MODEL

Install in the reverse order of removal.

2. WAGON MODEL

Install in the reverse order of removal.

EI-00669
