SsangYong: Engine Euro 4. Service manual - part 48

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

21

1491

DIAGNOSIS

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

I

N

T

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

ڟگګٻڍڒڋڃڞڎڤڄ

ڟگګٻڍڒڋڃڞڎڤڄ

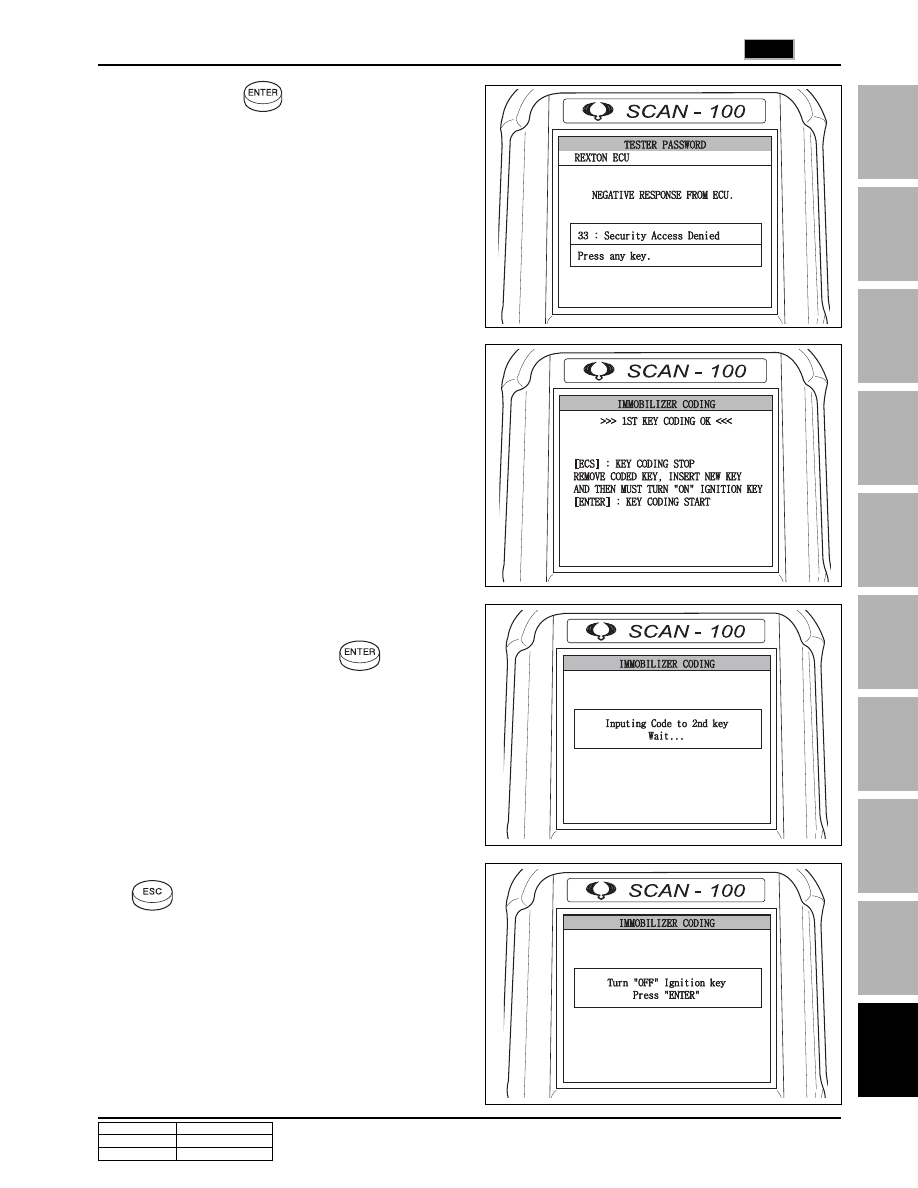

12. If the coding is completed successfully, the comple-

tion message as shown in figure appears, and then
key coding completion screen is displayed.

13. If you want to code for additional keys, remove the

first key from key switch and insert the second key.

Turn it to “ON” position and press

 to proceed.

The second key coding message appears and then
key coding completion screen is displayed.

11. When you press

, the immobilizer coding is

activated. When the coding is failed, the failure
screen as shown in figure appears.

14. When the immobilizer coding is completed, press

. The completion message as shown in fig-

ure appears.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

22

1491

DIAGNOSIS

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

ڟگګٻڍڒڋڃڞڎڤڄ

ڟگګٻڍڒڋڃڞڎڤڄ

ڨڤڮڞڠڧڧڜکڠڪڰڮ

ڨڤڮڞڠڧڧڜکڠڪڰڮ

ڞڎڤ

ڞڎڤ

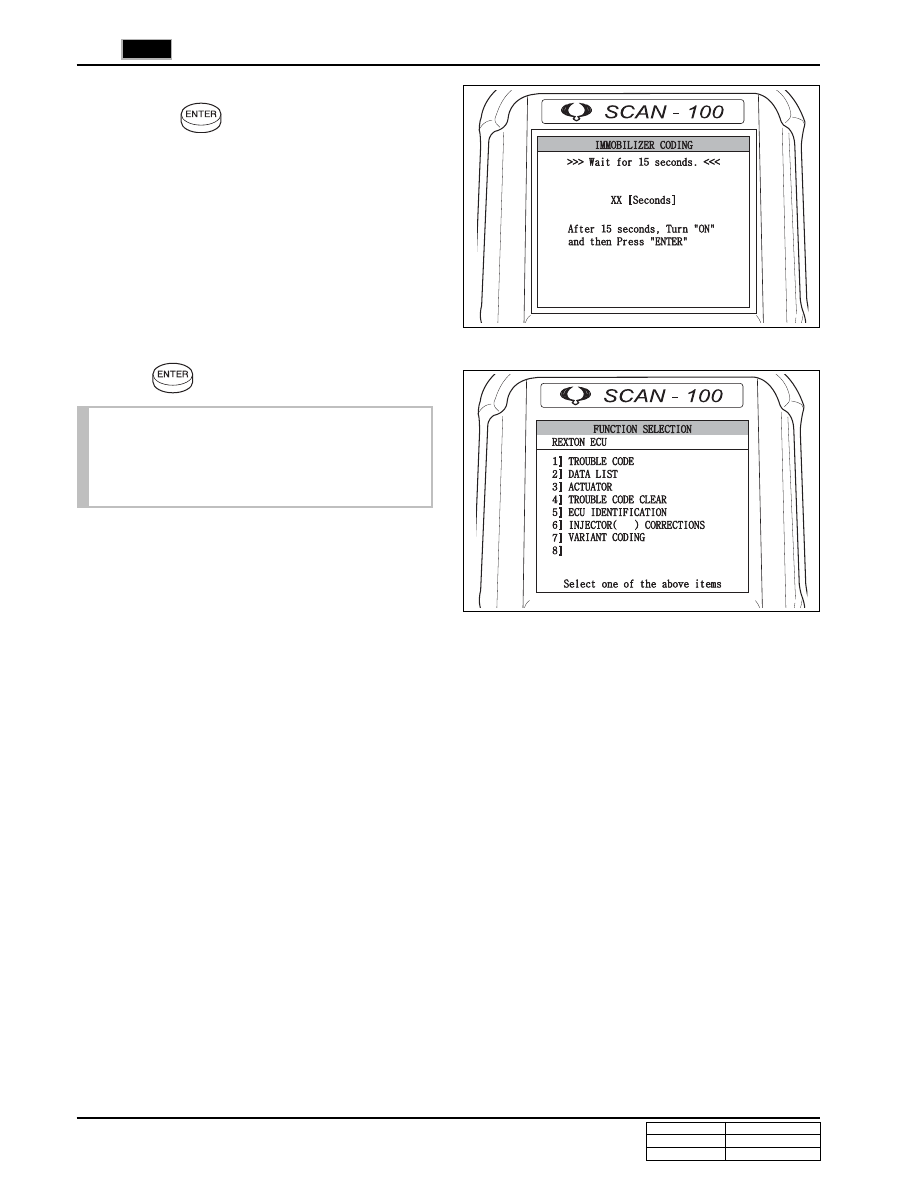

15. When you turn the ignition key to “OFF” position

and press

, the message screen as shown

in figure appears. Wait for 15 seconds and turn the
ignition key to “ON” position.

• Make sure that the data for the four entries (1]

TROUBLE CODE, 5] ECU IDENTIFICATION, 6] INJEC-
TOR CORRECTION and 8] VARIENT CODING) are
correctly entered.

NOTE

16. Press

 to return to “MAIN MENU” screen.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

23

1491

DIAGNOSIS

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

I

N

T

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

ڟگګٻڍڒڋڃڞڎڤڄ

ڟگګٻڍڒڋڃڞڎڤڄ

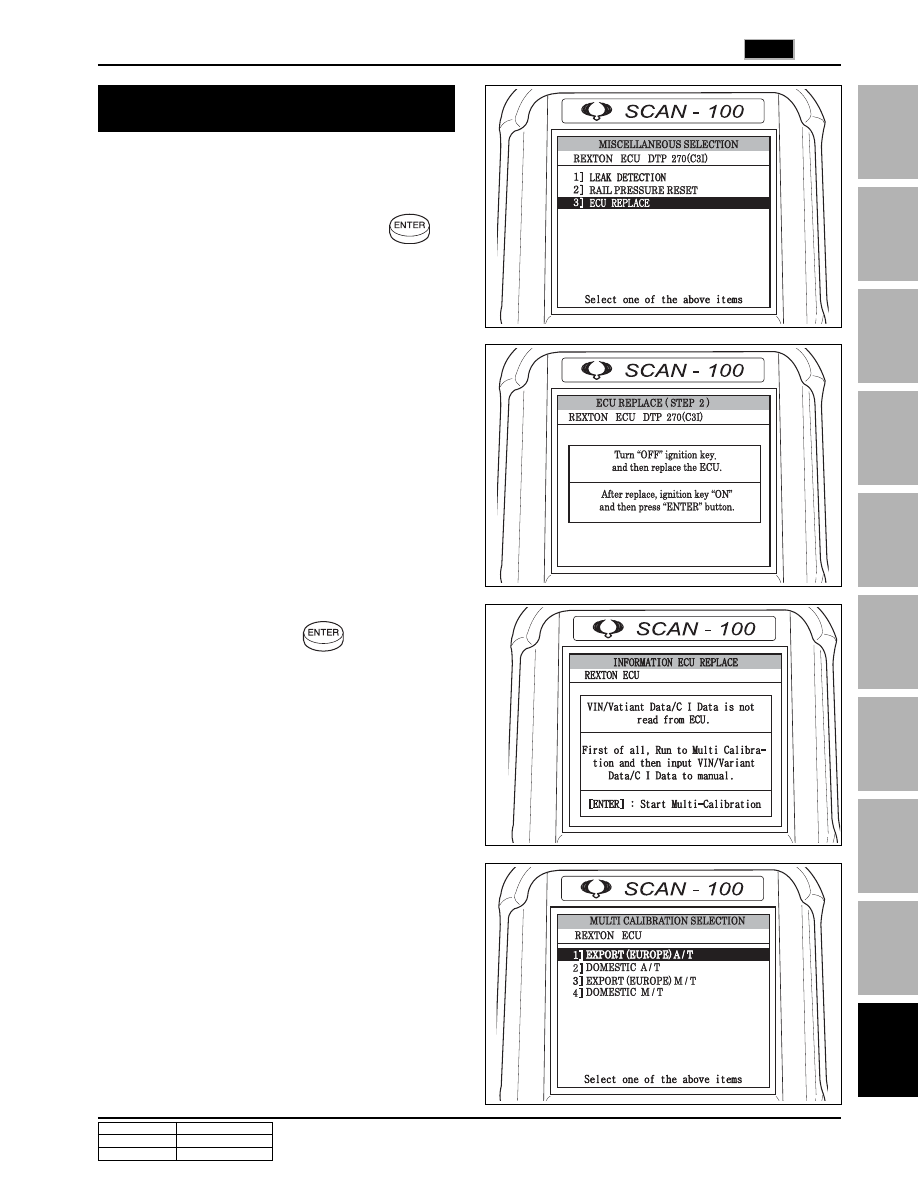

ECU Replace
(Scan-100 Communication is not available)

If the Scan-100 communication is not available due to
ECU failure, replace the ECU as follows.

1. Replace the ECU with new one.

2. Select “3] ECU REPLACE” and press

 on

“FUNCTION SELECTION” screen.

4. VIN/Variant Data/Injector Code(C2I or C3I) Data is

not read from ECU. Press

 to run the multi

calibration.

5. Select the appropriate model on “MULTI CALIBRA-

TION SELECTION” screen.

- Vehicle with A/T: 1] EXPORT (EUROPE) A/T

3. If the versions of ECUs are not matched, program

the new ECU after replacement.

ڟگګٻڍڒڋڃڞڎڤڄ

ڟگګٻڍڒڋڃڞڎڤڄ

ڎ

ڎ

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

24

1491

DIAGNOSIS

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

ڟگګٻڍڒڋڃڞڎڤڄ

ڟگګٻڍڒڋڃڞڎڤڄ

ڨڤڮڞڠڧڧڜکڠڪڰڮ

ڨڤڮڞڠڧڧڜکڠڪڰڮ

ڞڎڤ

ڞڎڤ

ڟگګٻڍڒڋڃڞڎڤڄ

ڟگګٻڍڒڋڃڞڎڤڄ

ڵڋڎڟڰڋڋڋڋڋڋڋڋڋڋڋڋ

ڵڋڎڟڰڋڋڋڋڋڋڋڋڋڋڋڋ
کڞڝڎړ

کڞڝڎړ
ڜڋڌ

ڜڋڌ
ڟڴګڥڎڍړڋڋڋڋڋڌ

ڟڴګڥڎڍړڋڋڋڋڋڌ
ٻٻٻٻٻڍڋڋڑڈڋڏڈڋڎ

ٻٻٻٻٻڍڋڋڑڈڋڏڈڋڎ

ڱڤکٻڲۍۄۏۀ

ڱڤکٻڲۍۄۏۀ

ڟگګٻڍڒڋڃڞڎڤڄ

ڟگګٻڍڒڋڃڞڎڤڄ

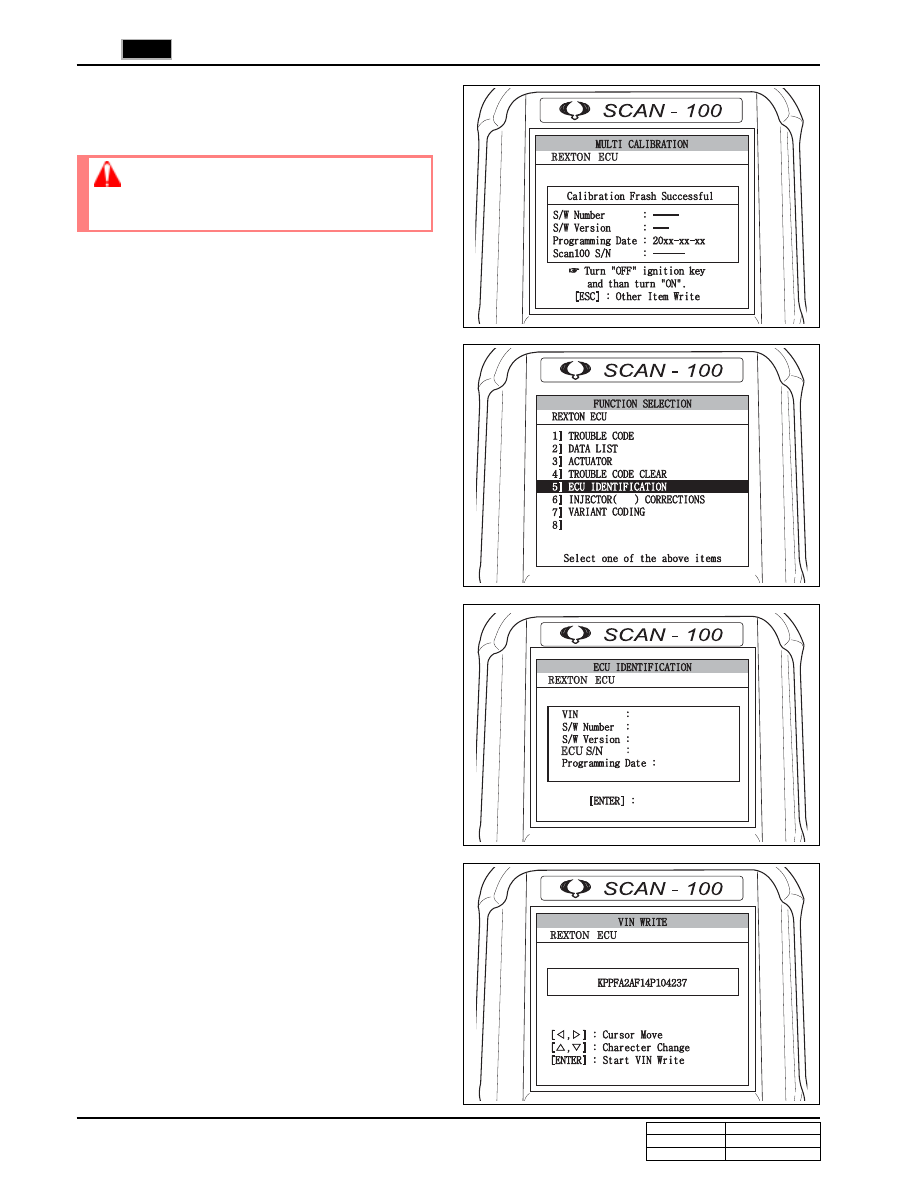

6. If the MULTI-CALIBRATION is completed

successfully, the message screen shown in the fig-
ure is displayed.

9. Press “ENTER” and enter the VIN again.

10. Enter the VIN into the number plate on the screen.

To change the number to the character, use the
arrow keys.

7. To enter the data manually, press “ESC” on the

screen in Step 5 and return to main screen. To en-
ter the VIN, variant data, and injector code(C2I or
C3I), select “5] ECU IDENTIFICATION”, “6] INJEC-
TOR (C2I or C3I) CORRECTIONS” and “7] VARI-
ANT CODING”.

8. To enter the VIN, select “5] ECU IDENTIFICATION”

and press “ENTER”.

• The VIN/Variant Data/Injector Code (C2I or C3I)

Data should be input manually.

NOTICE
