SsangYong: Engine Euro 4. Service manual - part 45

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

1491

DIAGNOSIS

D27DTP/D27DT (EU4) SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

ڟگګٻڍڒڋڃڞڎڤڄ

ڨڤڮڞڠڧڧڜکڠڪڰڮ

ڞڎڤ

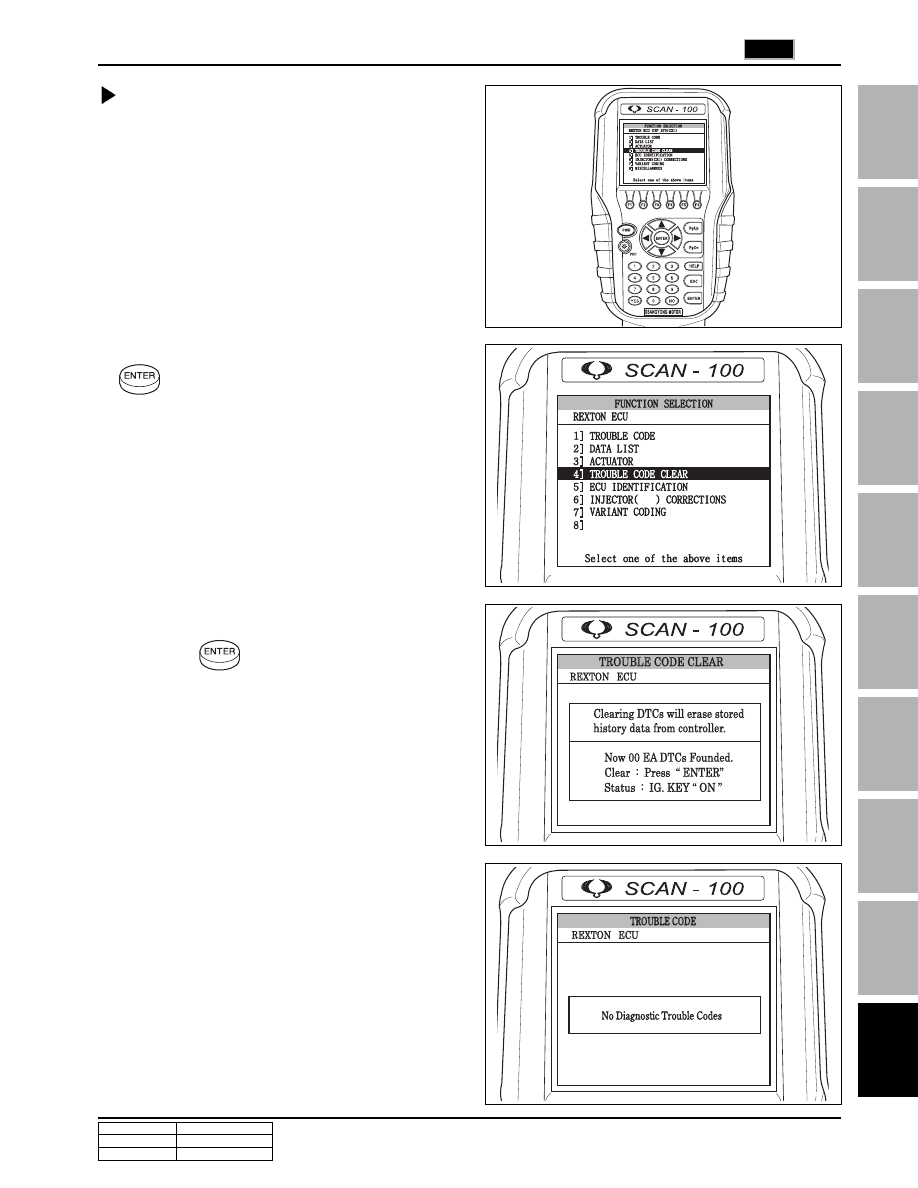

1. Select “4] TROUBLE CODE CLEAR” and press

on “FUNCTION SELECTION” screen.

2. The “DIAGNOSTIC TROUBLE CODES” screen is

displayed.

If you press

key, the trouble code is cleared.

But, the active trouble code (C) cannot be cleared.

Trouble Code Clearing

Ú Preceding Work: Perform the “Entering Diagnosis

Procedures”

3. When the procedure is completed, return to “1]

TROUBLE CODE” screen and check if the trouble
codes have been completely cleared. But, the active
trouble code (C) cannot be cleared.

ڟگګٻڍڒڋڃڞڎڤڄ

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

1491

DIAGNOSIS

D27DTP/D27DT (EU4) SM - 2006.08

D27DTP/D27DT (EU4)

ڟگګٻڍڒڋڃڞڎڤڄ

ڨڤڮڞڠڧڧڜکڠڪڰڮ

ڞڎڤ

ڟگګٻڍڒڋڃڞڎڤڄ

ڵڋڎڟڰڋڋڋڋڋڋڋڋڋڋڋڋ

ڵڋڎڟڰڋڋڋڋڋڋڋڋڋڋڋڋ
کڞڝڎړ

کڞڝڎړ
ڜڋڌ

ڜڋڌ
ڟڴګڥڎڍړڋڋڋڋڋڌ

ڟڴګڥڎڍړڋڋڋڋڋڌ
ٻٻٻٻٻڍڋڋڑڈڋڏڈڋڎ

ٻٻٻٻٻڍڋڋڑڈڋڏڈڋڎ

ڱڤکٻڲۍۄۏۀ

ڟگګٻڍڒڋڃڞڎڤڄ

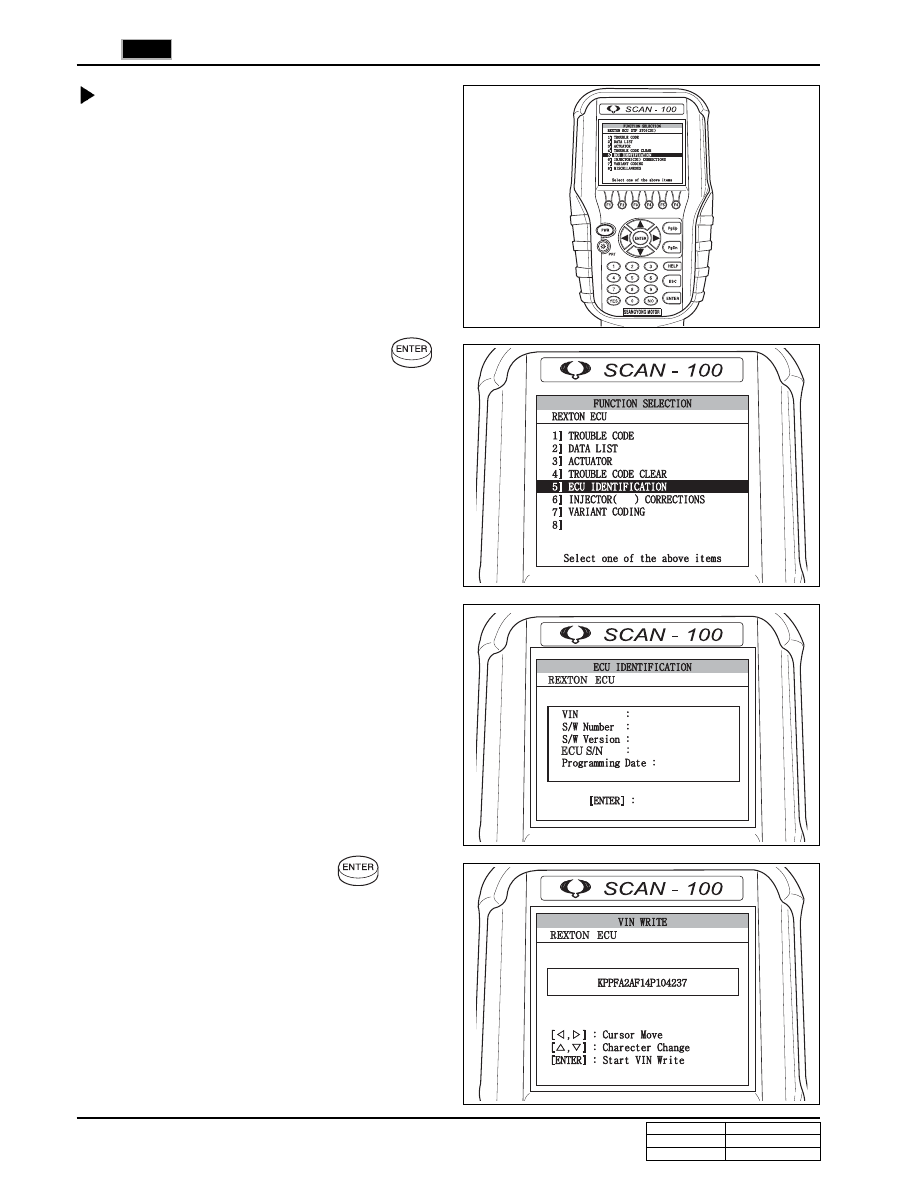

1. Select “5] ECU IDENTIFICATION” and press

on “FUNCTION SELECTION” screen.

2. The “ECU IDENTIFICATION” screen showing the VIN,

ECU software number, ECU software version and pro-
gramming date is displayed.

ECU Identification

Ú Preceding Work: Perform the “Entering Diagnosis

Procedures”

3. If you have replaced the ECU, press

to enter

the vehicle identification number.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

1491

DIAGNOSIS

D27DTP/D27DT (EU4) SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

ڟگګٻڍڒڋڃڞڎڤڄ

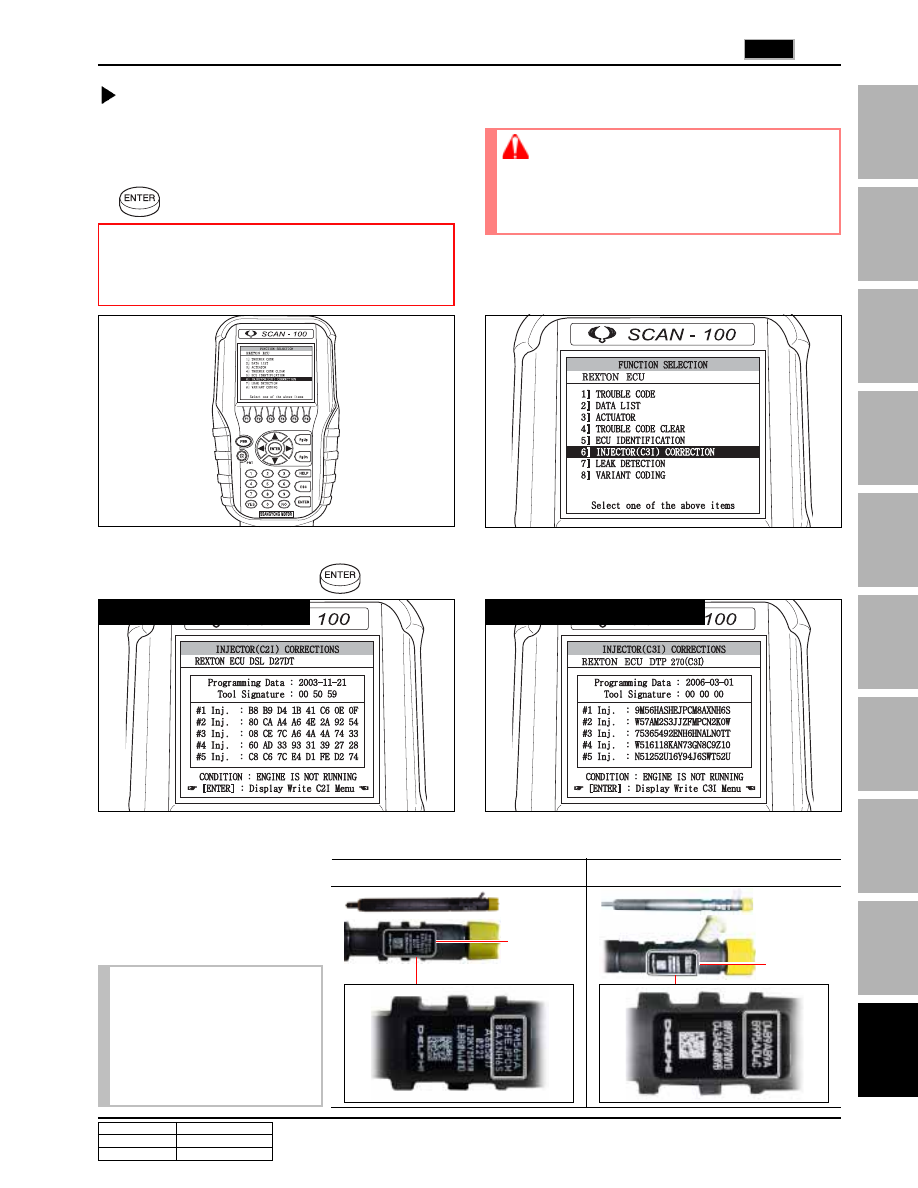

2. The “INJECTOR (C2I or C3I) CODING” screen showing the current C2I or C3I coding values of #1 to #5 injector is

displayed. If necessary, press

key and enter the value.

Injector Coding (C2I/C3I)

Ú Preceding Work: Perform the “Entering Diagnosis

Procedures”

1. Select “6] INJECTOR (C2I) CODING” and press

on “FUNCTION SELECTION” screen.

C3I Label

D27DTP (POWER UP) Engine

D27DT Engine

3. If you have replaced the ECU, enter the C2I or C3I value for the relevant injector.

* Coding of D27DTP (POWER UP) Engine Injector:

C3I (20 digits)

* Coding of D27DT Engine Injector: C2I (16 digits:

samp with current version)

D27DT Engine: C2I Coding

D27DTP Engine: C3I Coding

C2I Label

• If the injector/ECU has been replaced or the injec-

tor system failure is suspected, go to C2I or C3I
Coding item and check the injector and coded in-
jector C2I or C3I value.

NOTICE

• The C2I value of injector is on

the label.

• C2I coding number: 16 digits

(ex, C0 2D 835....)

• C3I coding number: 20 digits

(ex, ZD87E03R....)

NOTE

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

1491

DIAGNOSIS

D27DTP/D27DT (EU4) SM - 2006.08

D27DTP/D27DT (EU4)

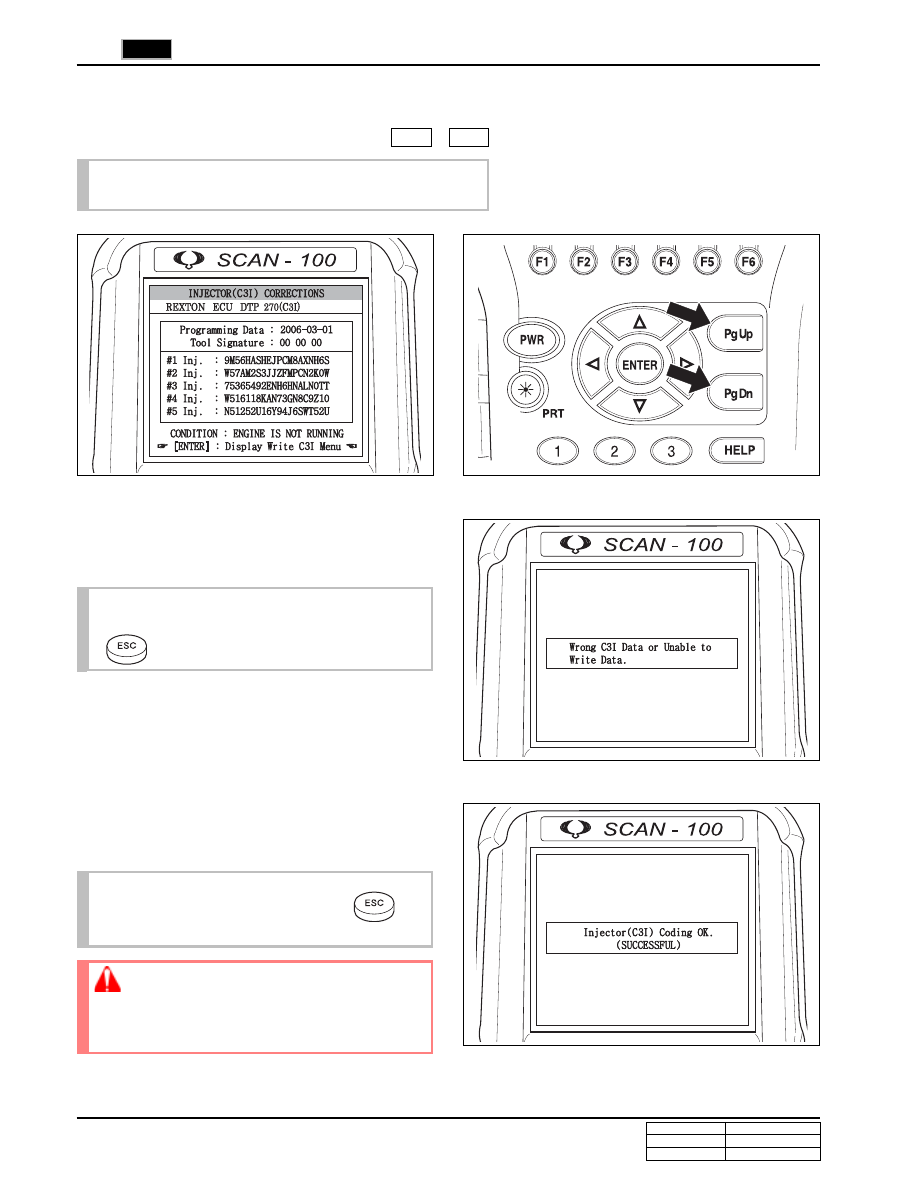

3-2. If you enter the invalid C2I or C3I value of the rel-

evant injector, the message as shown in figure ap-
pears with alarm sound.

3-1. If you press [ENTER] on C3I (C2I) display, the recoding menu of C3I or C2I appears.

C3I is coded by using alphabet letters up to Z. If you want to change a number in the coding letters, press the
number keypad of SCAN-100. If you press PgUp or PgDn key, you can enter alphabet letters again.

3-3. If you enter the valid C2I or C3I value of the relevant

injector, the message as shown in figure appears
with alarm sound.

• If you want to return to previous screen, press

key. You can see the previous C2I or C3I value.

NOTE

• When coding C2I or C3I, if you select the engine

out of the models, the injector coding items per-
taining to the engine appear.

NOTICE

• If you return to previous screen, press

key.

Then, the new C2I or C3I values are displayed.

NOTE

• The alphanumeric letters are from A ~ Z followed by 0 ~ 9.

NOTE
