SsangYong: Engine Euro 4. Service manual - part 18

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

9

1431

INTAKE SYSTEM

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

I

N

T

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

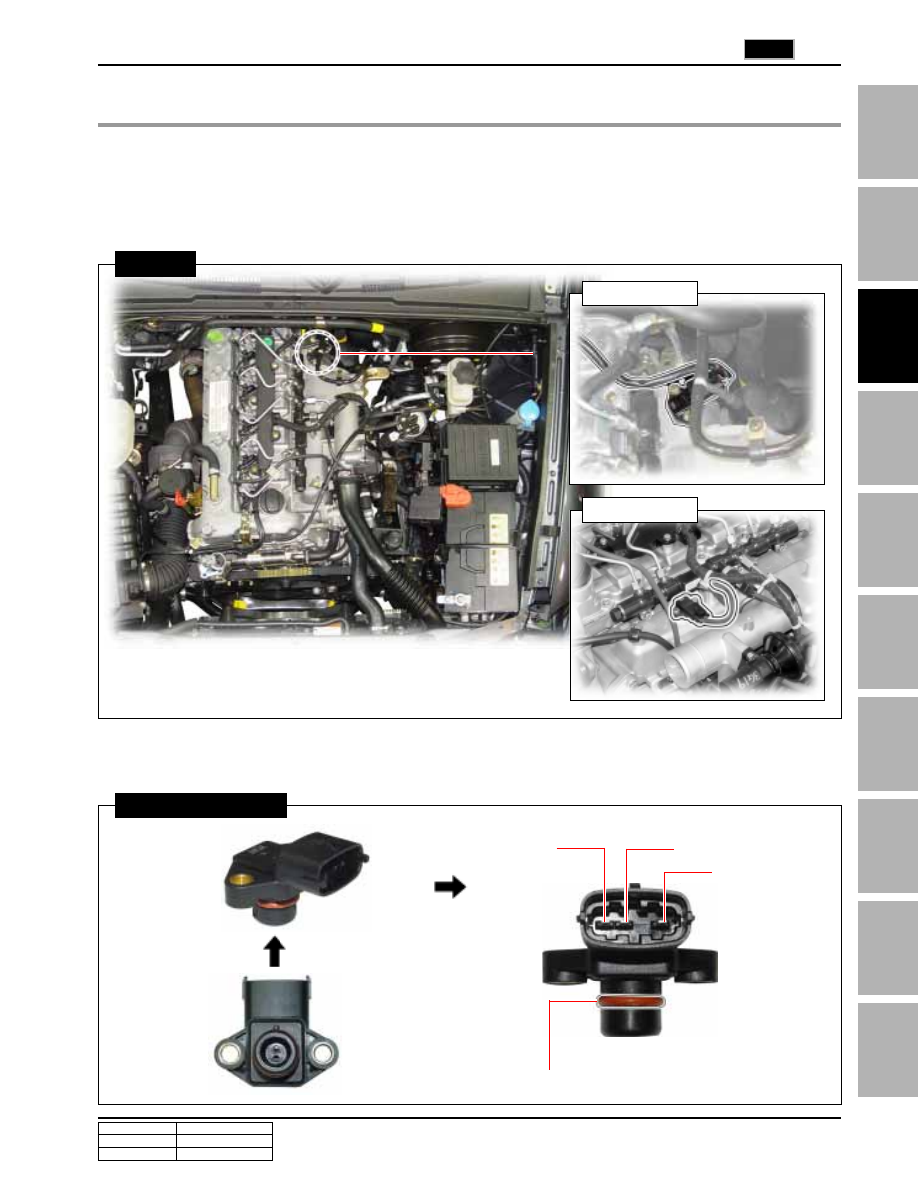

1. OVERVIEW AND LOCATION

The location and the specifications of boost pressure sensor for the D27DTP (POWER UP) engine are changed due
to the mounted VGT turbo charger and additional throttle body.

BOOST PRESSURE SENSOR

Location

The boost pressure sensor is piezo-electric element type and consists of three terminal. It determines the injection
timing and calibrates the injection volume depending on the intake air. Also, it determines whether to stop the EGR.

O-Ring

Boost  Pressure Sensor

Ground (-)

Supply power (5V)

Signal

D27DTP Engine

D27DTP Engine

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

10

1431

INTAKE SYSTEM

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

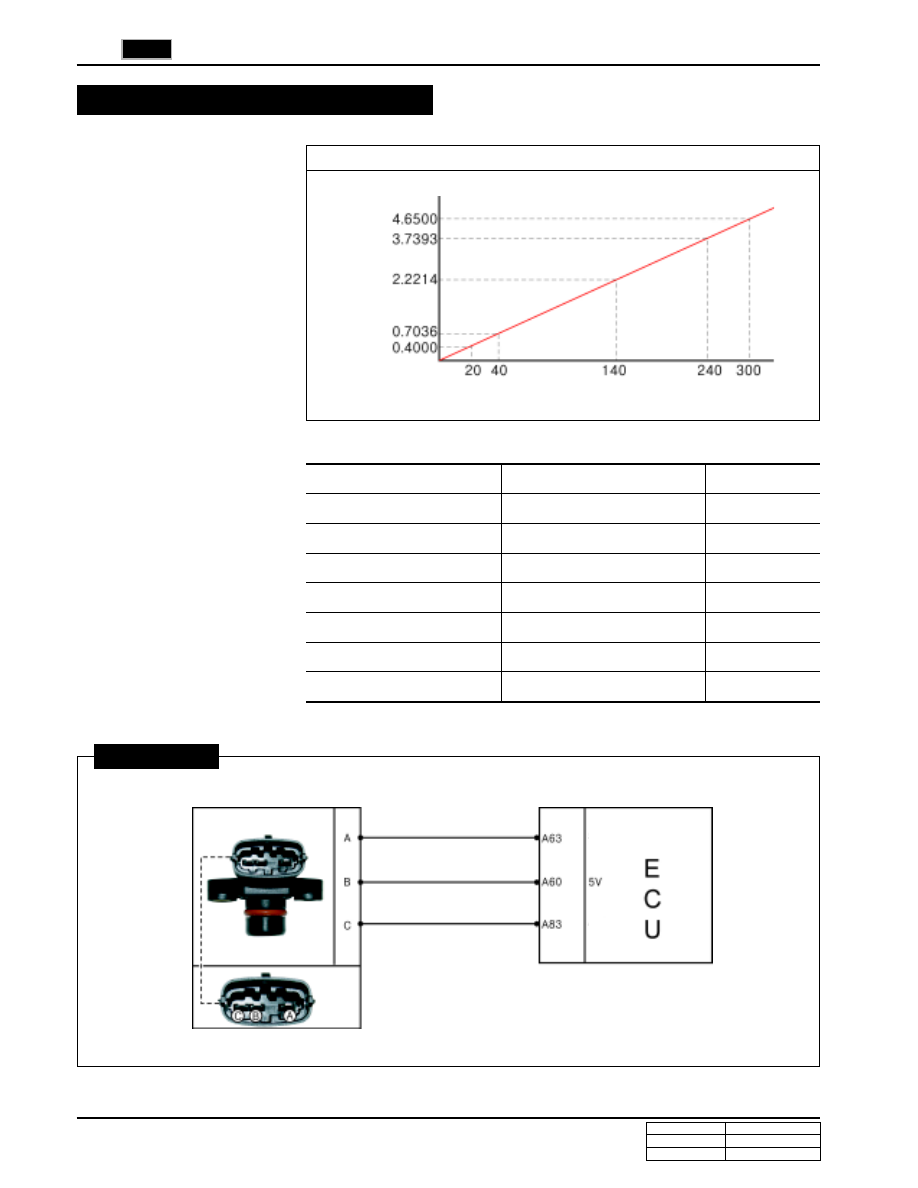

Formula for Calculating Output Voltage

Vo = Vs x (P x 0.004 - 0.04)

Vo: Output voltage

Vs: Supply voltage

P: Applied voltage

Items

Pressure range

Temperature range

Temperature range (storage)

Supply voltage

Max. current

Response

Tightening torque

D27DTP (POWER UP) Engine

20 ~ 300 KPa

-40 ~ 125°C

-40 ~ 125°C

4.75 ~ 5.25 V

12.5 mA

T

R



≤ 7 ms

8 ~ 10 Nm

D27DT Engine

20 ~ 250 KPa

-40 ~ 110°C

-40 ~ 125°C

4.85 ~ 5.35 V

10 mA

T

R



≤ 7 ms

10 Nm

Booster Pressure Sensor (Based on D27DTP Engine)

Circuit Diagram

Pressure

Voltage

GND

Signal

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

11

1431

INTAKE SYSTEM

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

ENGINE

FUEL

I

N

T

AKE

EXHAUST

PRE-HEA

TING

LUB

COOLING

SWITCHABLE

ECU

DIAGNOSIS

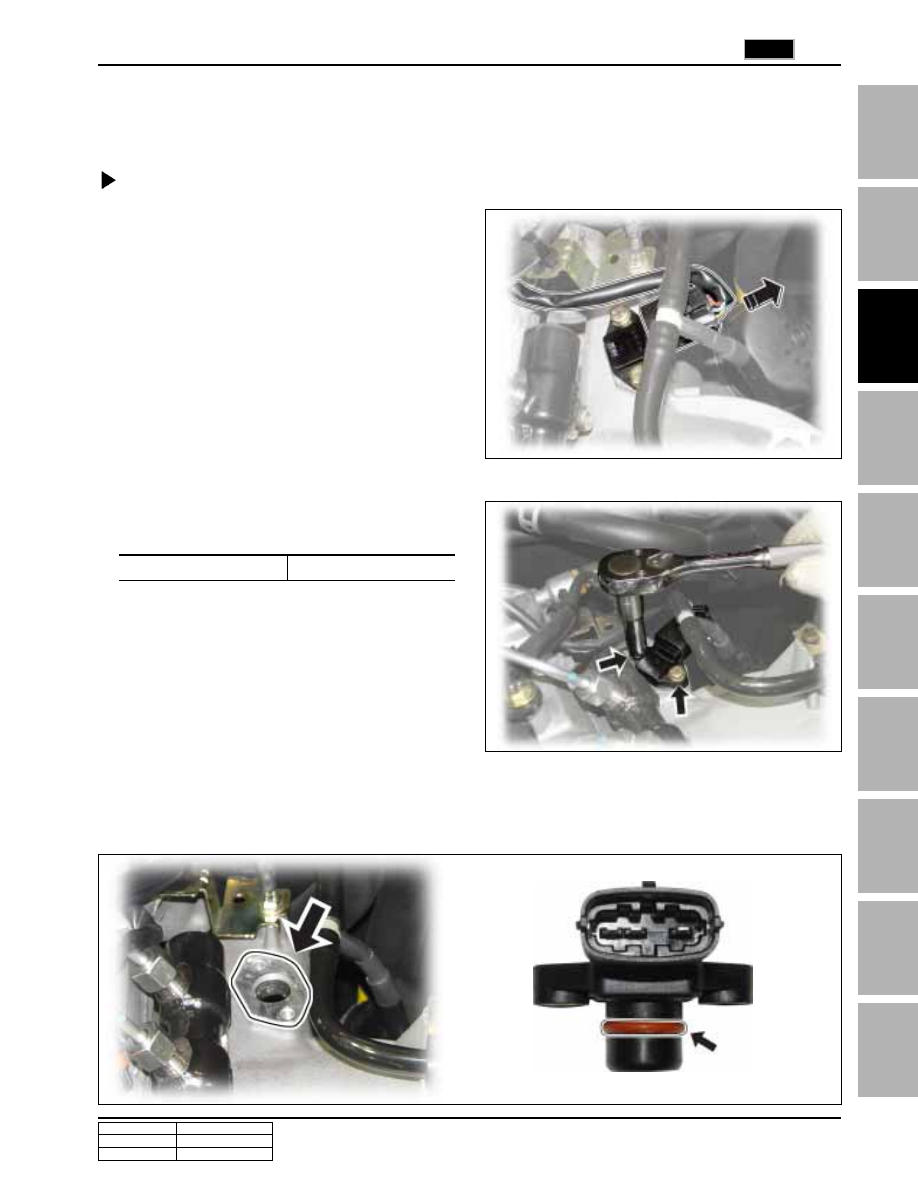

2. Unscrew two mounting bolts and remove the boost

pressure sensor from the intake manifold.

3. When installing, clean the mating surface of the boost pressure sensor and the intake manifold and be careful not

to damage the O-ring.

O-ring

2. REMOVAL AND INSTALLATION OF BOOST PRESSURE SENSOR

Ú

Ú

Ú

Ú

Ú Preceding Work: Remove the engine acoustic cover.

Removal and Installation

Tightening torque

10 ± 1.0 Nm

1. Disconnect the connector of the boost pressure

sensor.
