SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 467

Wiring Diagram for Power Supplies  4-7

Electrical Wiring Diagram

(LHD)

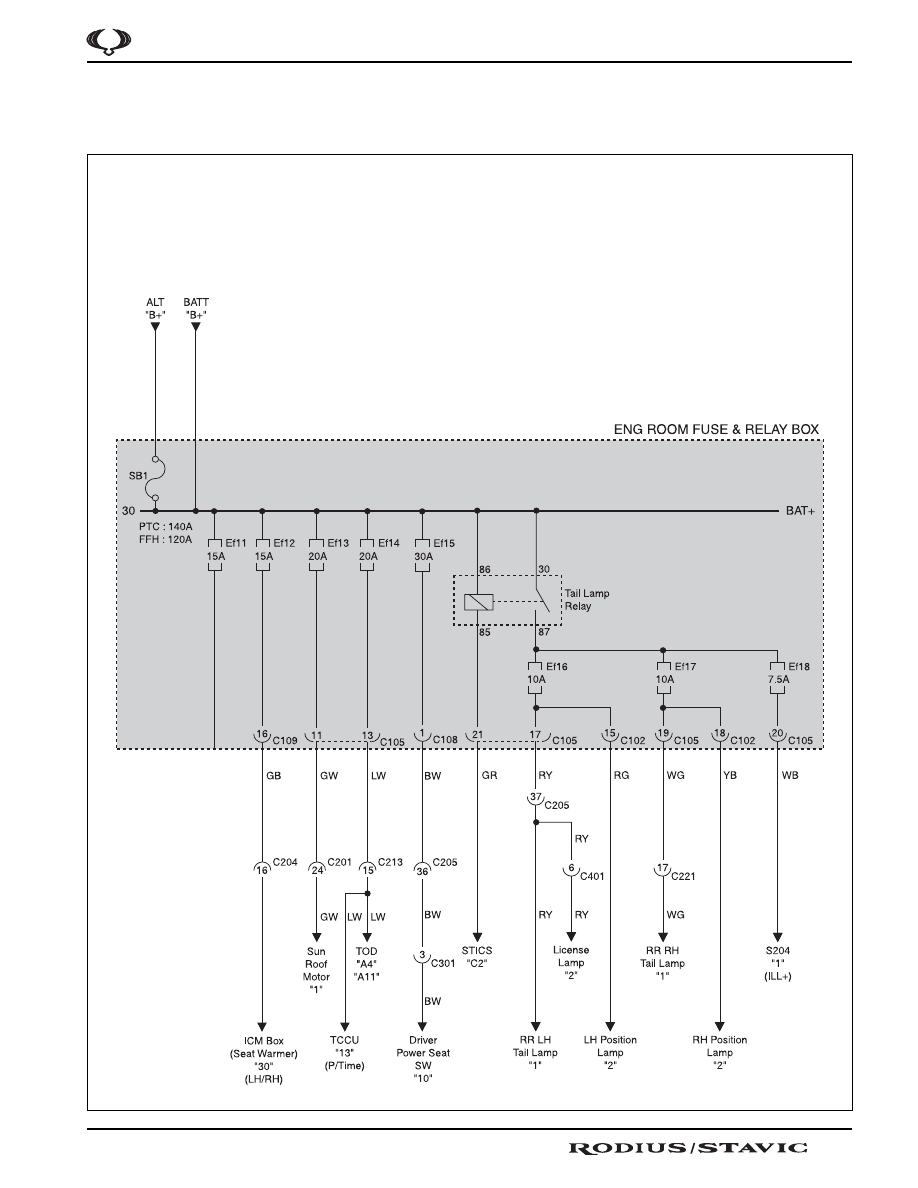

6) Ef11 ~ Ef18

4-8  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

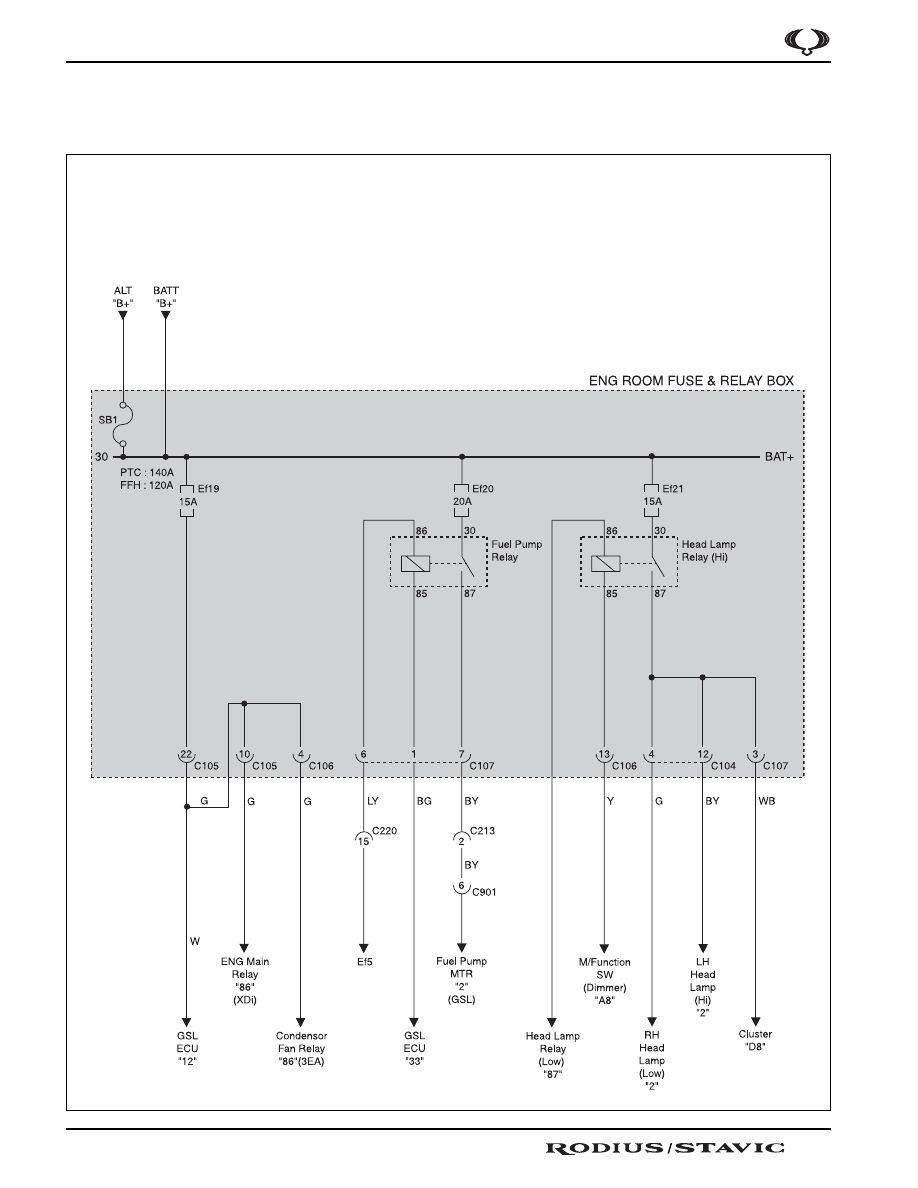

7) Ef19 ~ Ef21

Wiring Diagram for Power Supplies  4-9

Electrical Wiring Diagram

(LHD)

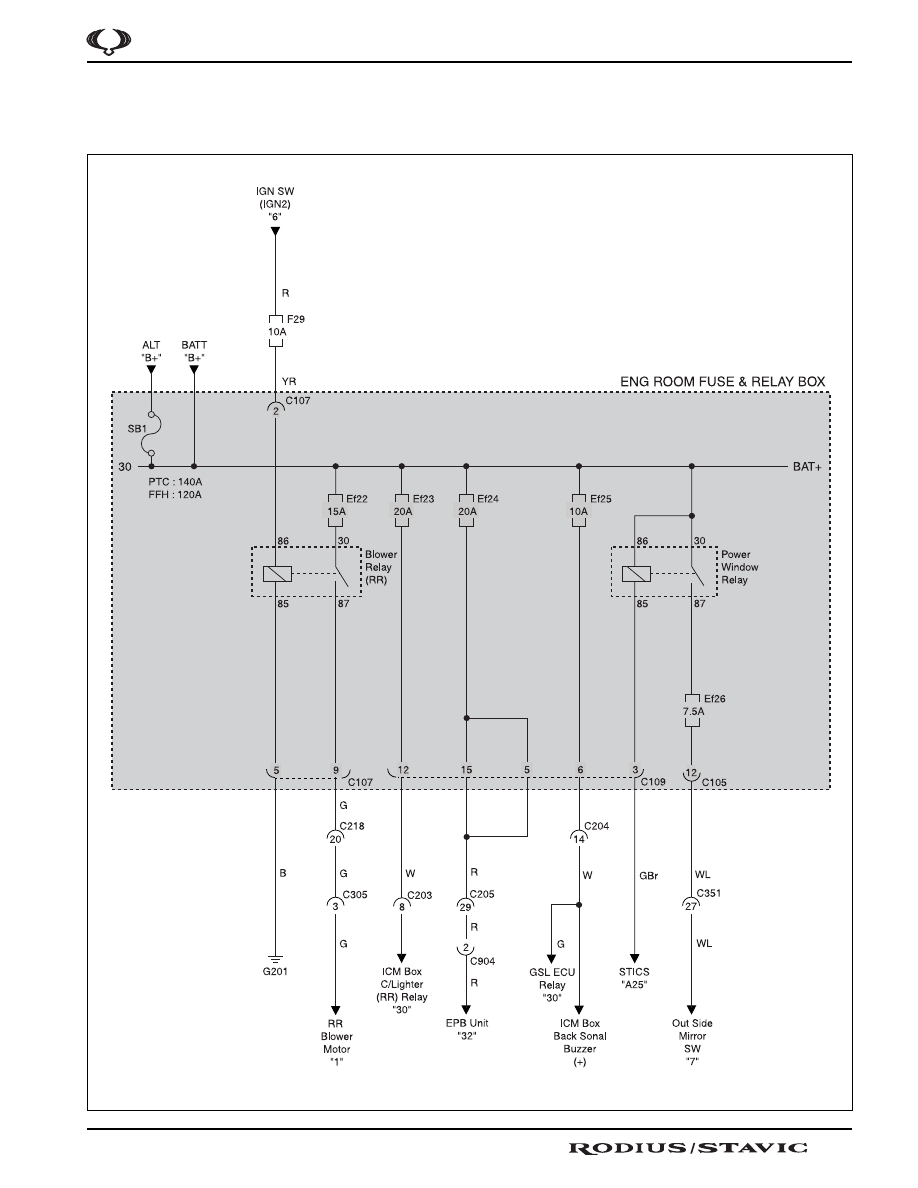

8) Ef22 ~ Ef26

4-10  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

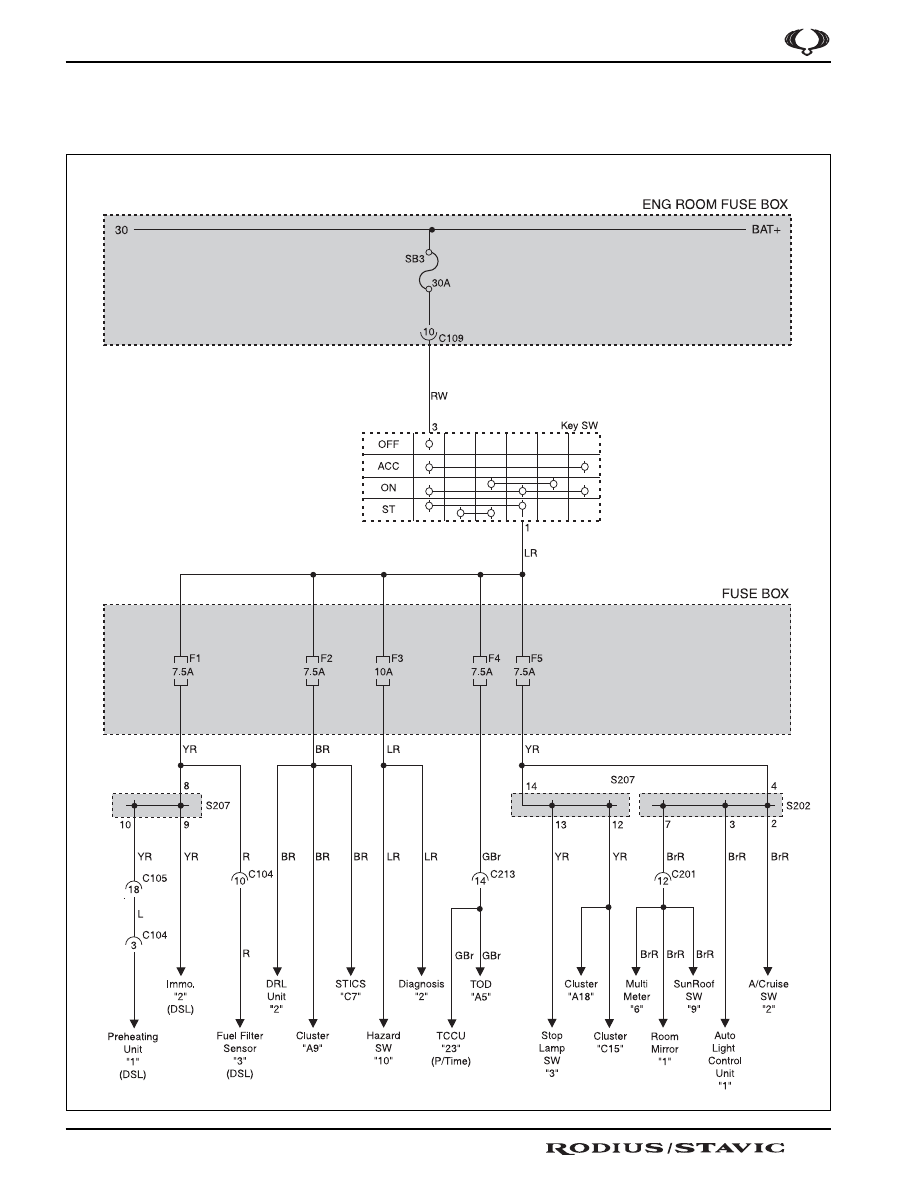

2. I.P FUSE BOX

1) F1 ~ F5
