SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 430

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

34

5A

2. SEAT LAYOUT

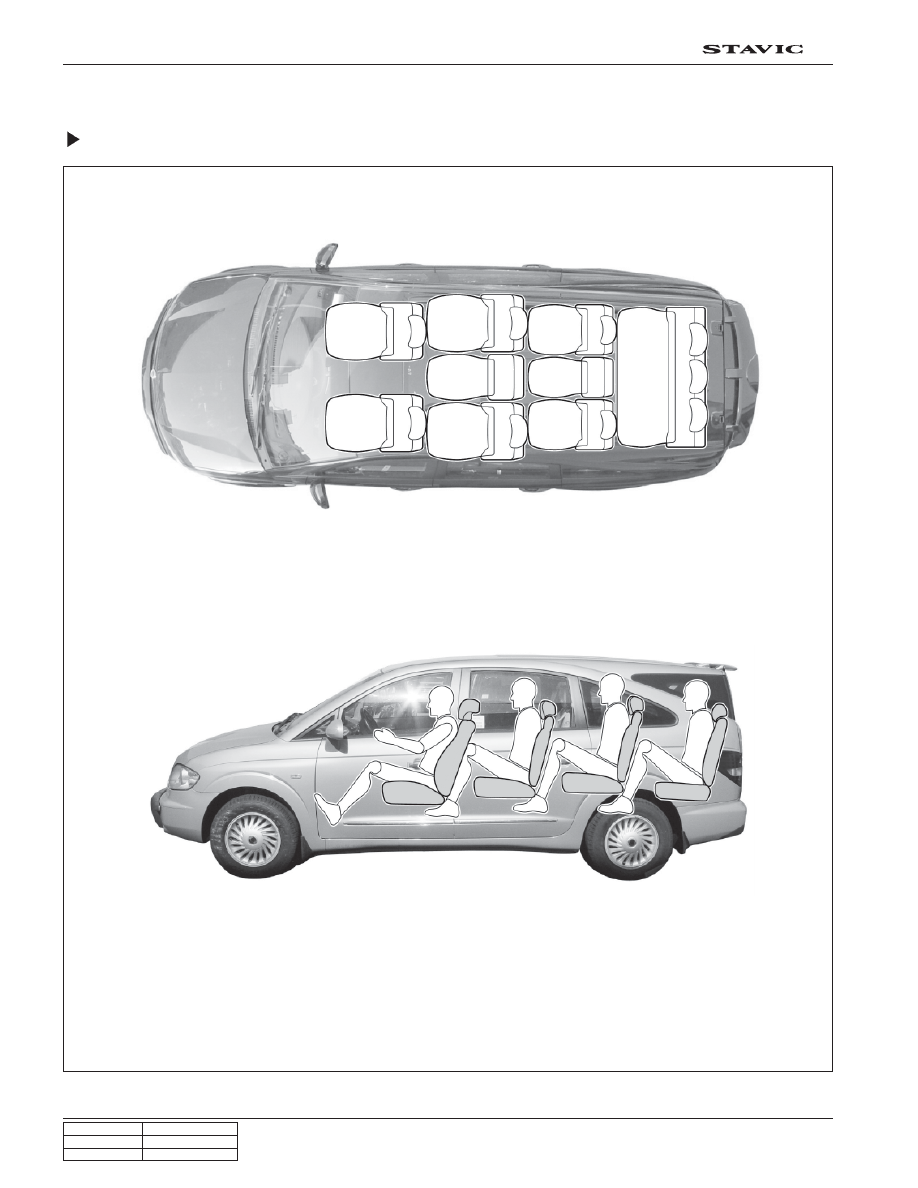

Layout - 11 Passengers

• Front seat : Move 36 mm from the far

end to the front

• Rear 1st seat : Movable

• Rear 2nd seat : Movable

• Rear 3rd seat : Fixed

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

35

5A

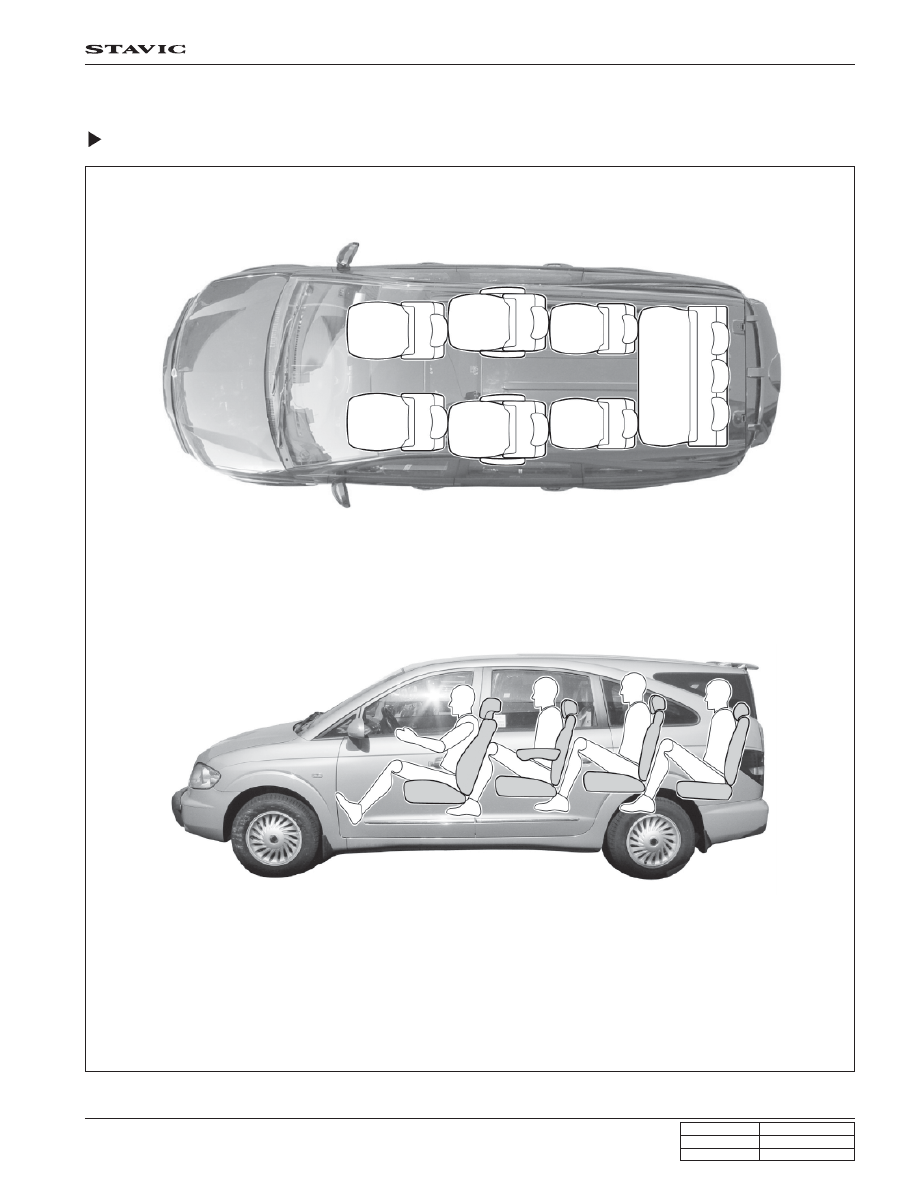

Layout - 9 Passengers

• Front seat : Move 36 mm from the far

end to the front

• Rear 1st seat : Movable

• Rear 2nd seat : Movable

• Rear 3rd seat : Fixed

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

36

5A

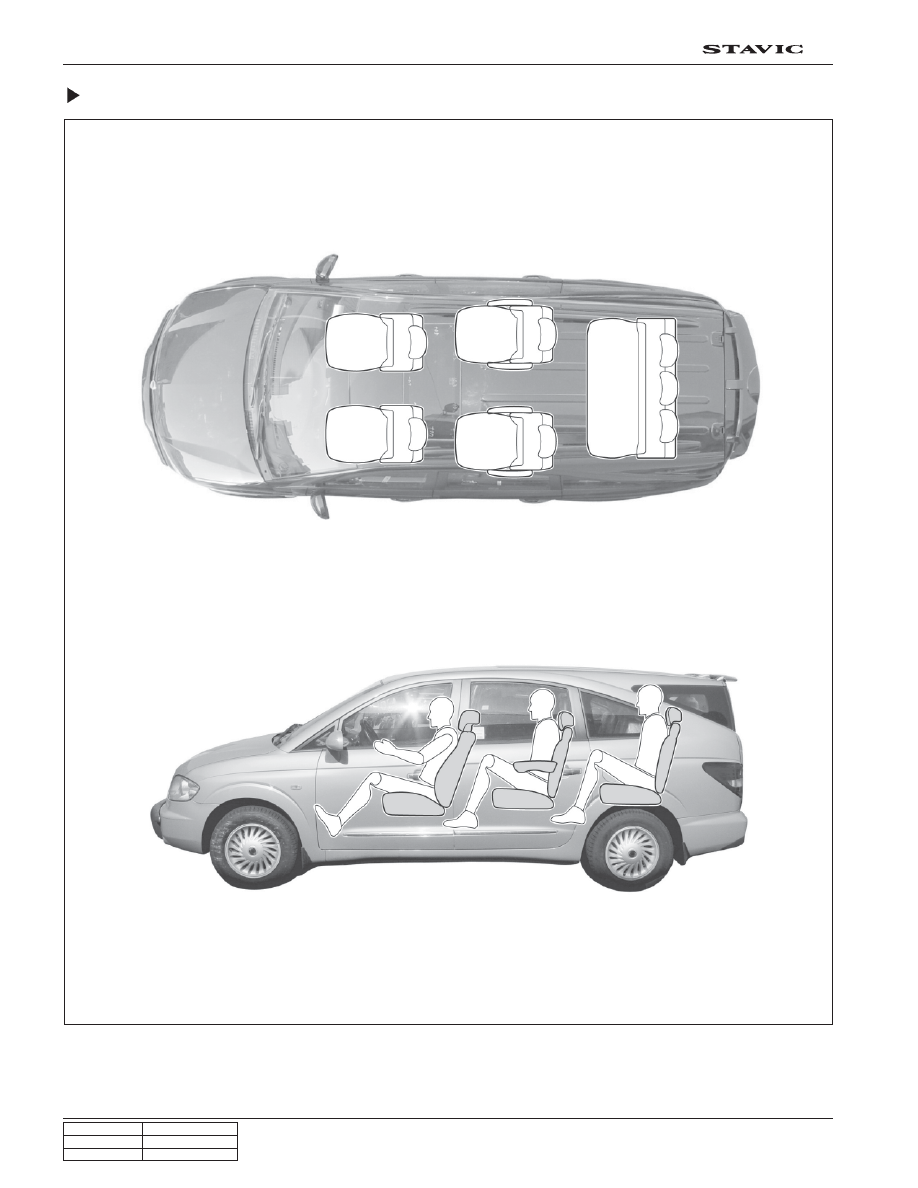

Layout - 7 Passengers

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

37

5A

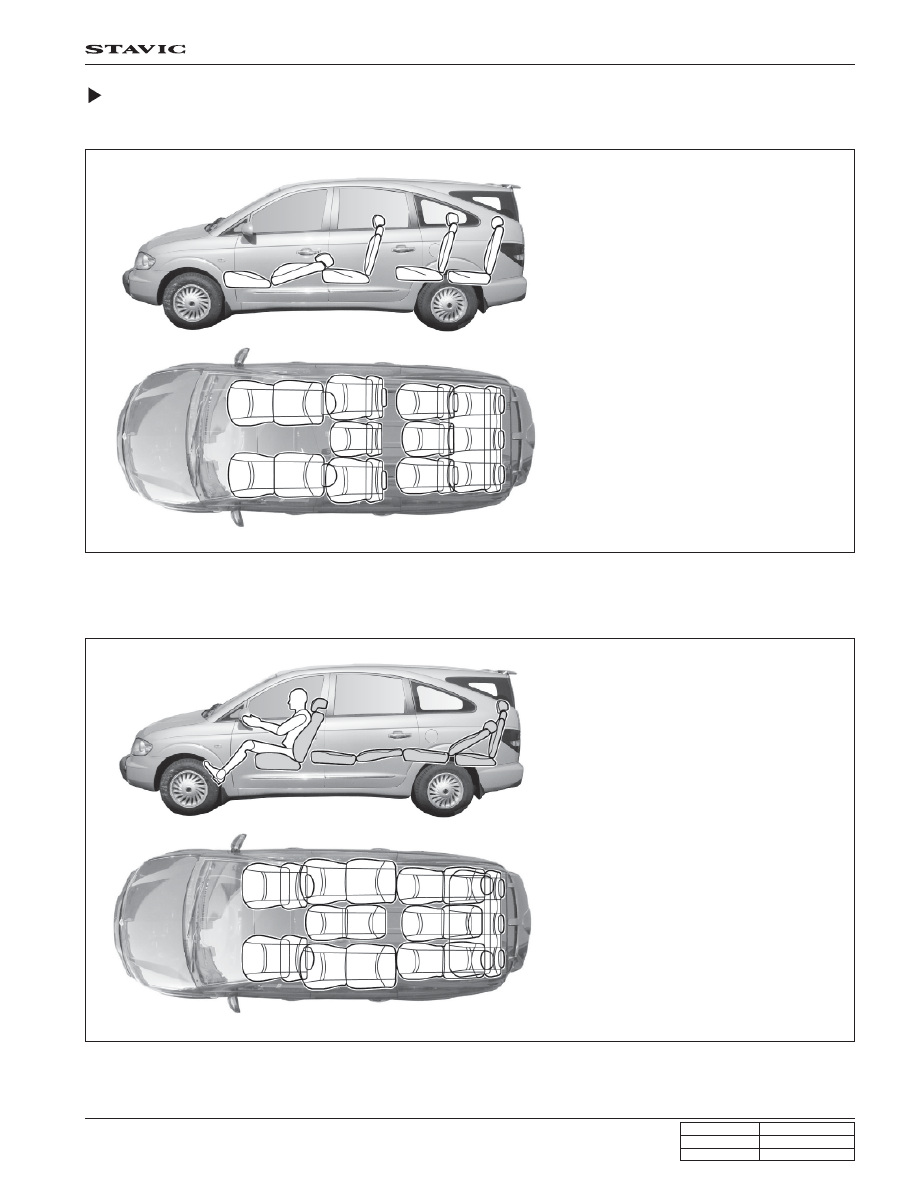

Various Seat Arrangement

• Front seat & rear 1st seat : Semi full flat

• Front seat : Move to the far front

Back semi full flat

• Rear 1st seat : Move to the far end

• Rear 2nd seat: Move to the far end

• Rear 3rd seat : Fixed

• Front seat : Move 36 mm from the far

end to the front

• Rear 1st seat : Move to the far front

Remove head rest

Back full flat

• Rear 2nd seat: Move to the far end

Back semi full flat

• Rear 3rd seat : Fixed

• Rear 1st & 2nd seat full flat
