SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 403

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

25

BRAKE - GENERAL

STAVIC - 2004.09

4J

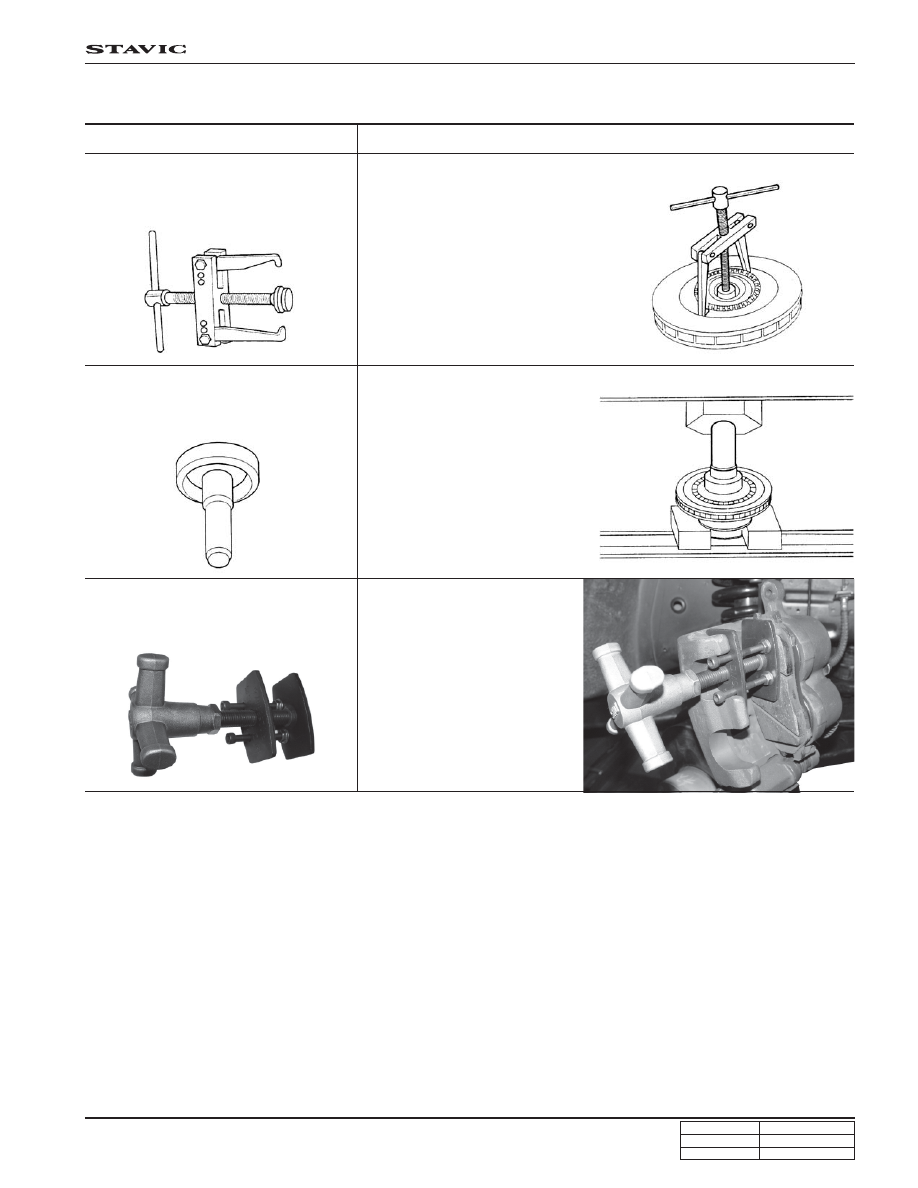

4. SPECIAL TOOLS AND EQUIPMENT

Name and Part Number

Application

661 589 16 33 00 (W 99 48 002 0A)

Front ABS tooth wheel puller

Removal of ABS front brake
tooth wheel

661 589 17 33 00 (W 99 48 003 0A)

Front ABS tooth wheel installer

Installation of ABS front brake
tooth wheel

Piston Puller

Compression of caliper piston

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

32

BRAKE - GENERAL

STAVIC - 2004.09

4J

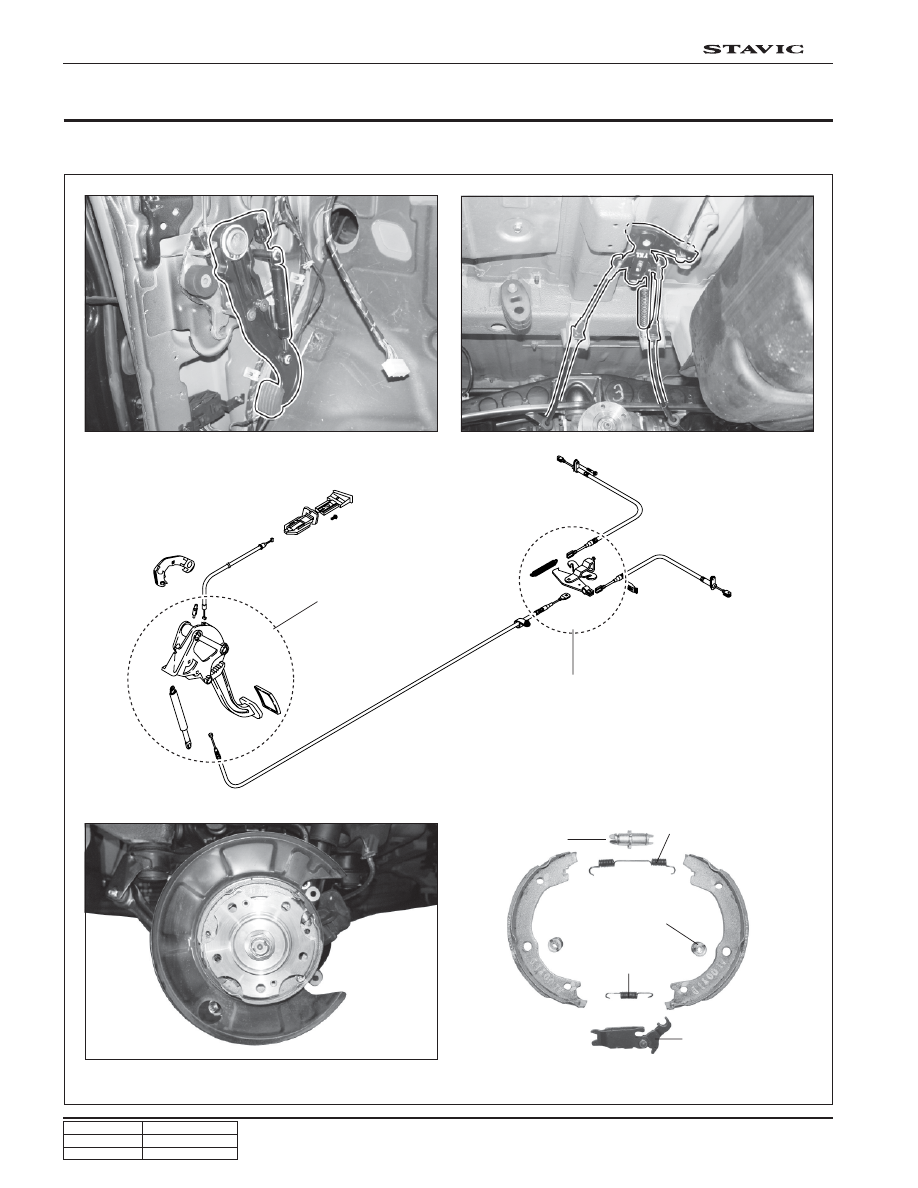

PARKING BRAKE

1. COMPONENTS

Adjusting bolt

Operating lever

Return spring - lower

Shoe holding spring

Return spring - upper

Pedal assembly

Equalizer assembly

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

33

BRAKE - GENERAL

STAVIC - 2004.09

4J

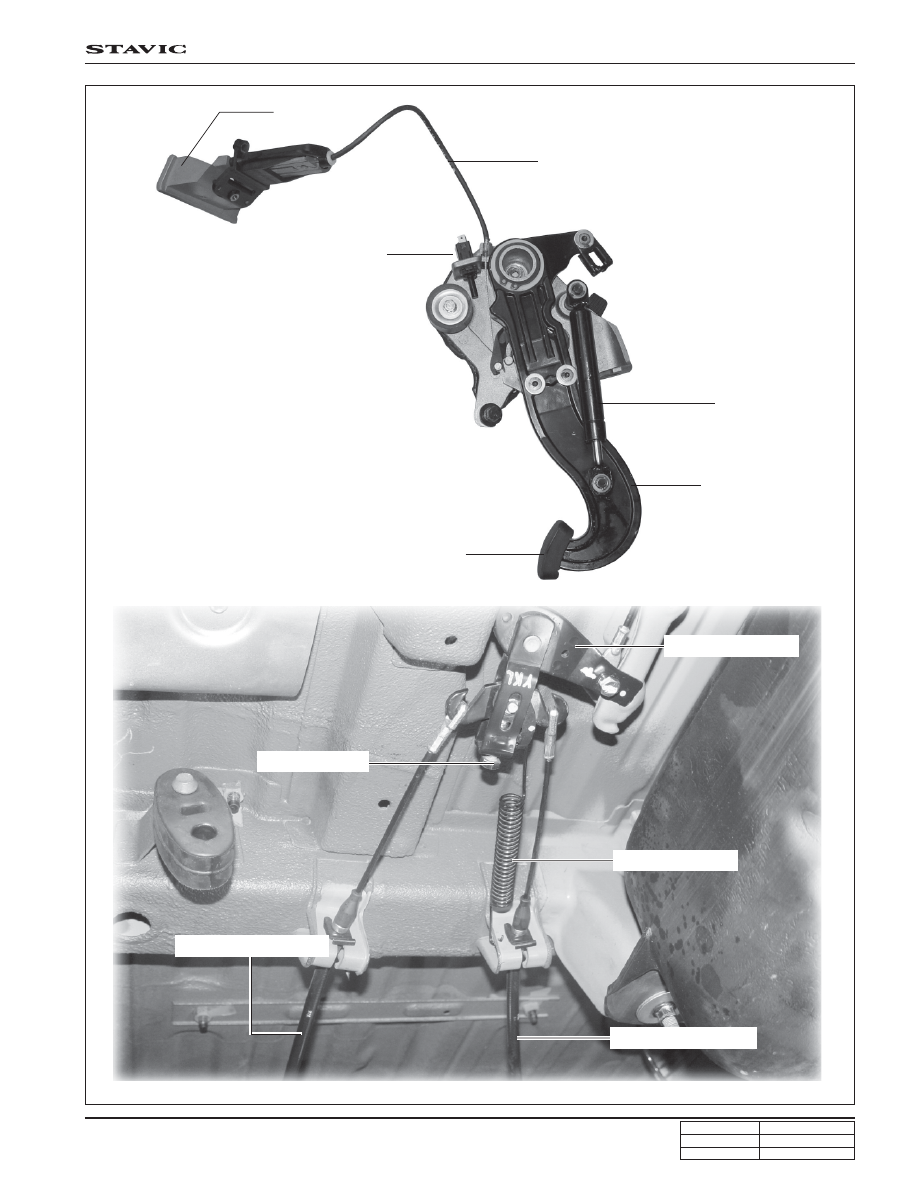

Release cable

Release lever

Parking brake switch

Brake damper

Pedal assembly

Pedal

Equalizer assembly

Equalizer bolt

Tension spring

Rear brake cable - LH

Rear brake cable - RH

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

34

BRAKE - GENERAL

STAVIC - 2004.09

4J

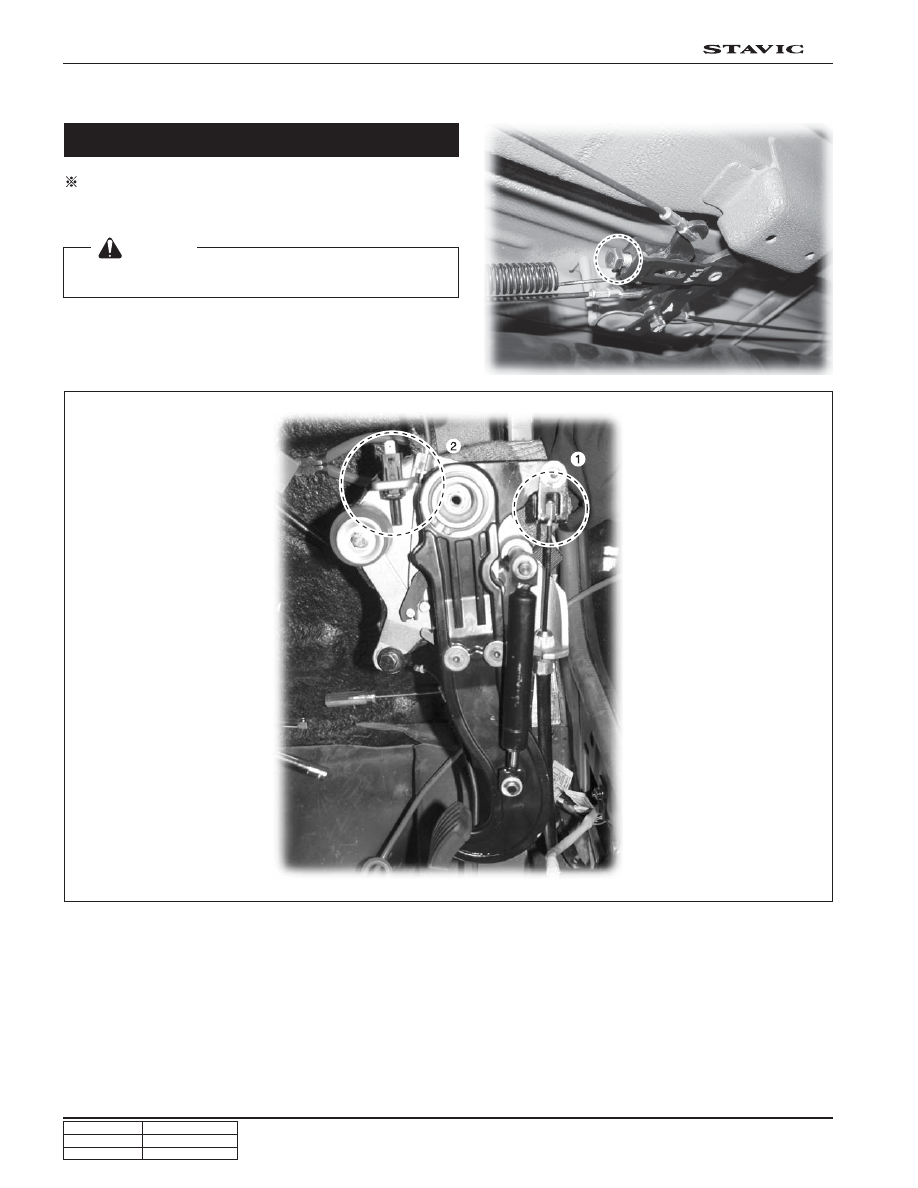

2. Remove the clamping ring from pedal assembly and disconnect the brake cable (1).

3. Disconnect the parking brake switch (2).

 Preceding work : Remove lower cover - crash pad

1. Release the equalizer bolt.

Pedal Assembly

2. REMOVAL AND INSTALLATION

 [Notice]

Replace bolt when reinstall.
