WHEELS & TIRE
STAVIC - 2004.09
4H
Weight point
Balance weight
Weight point
Balance weight

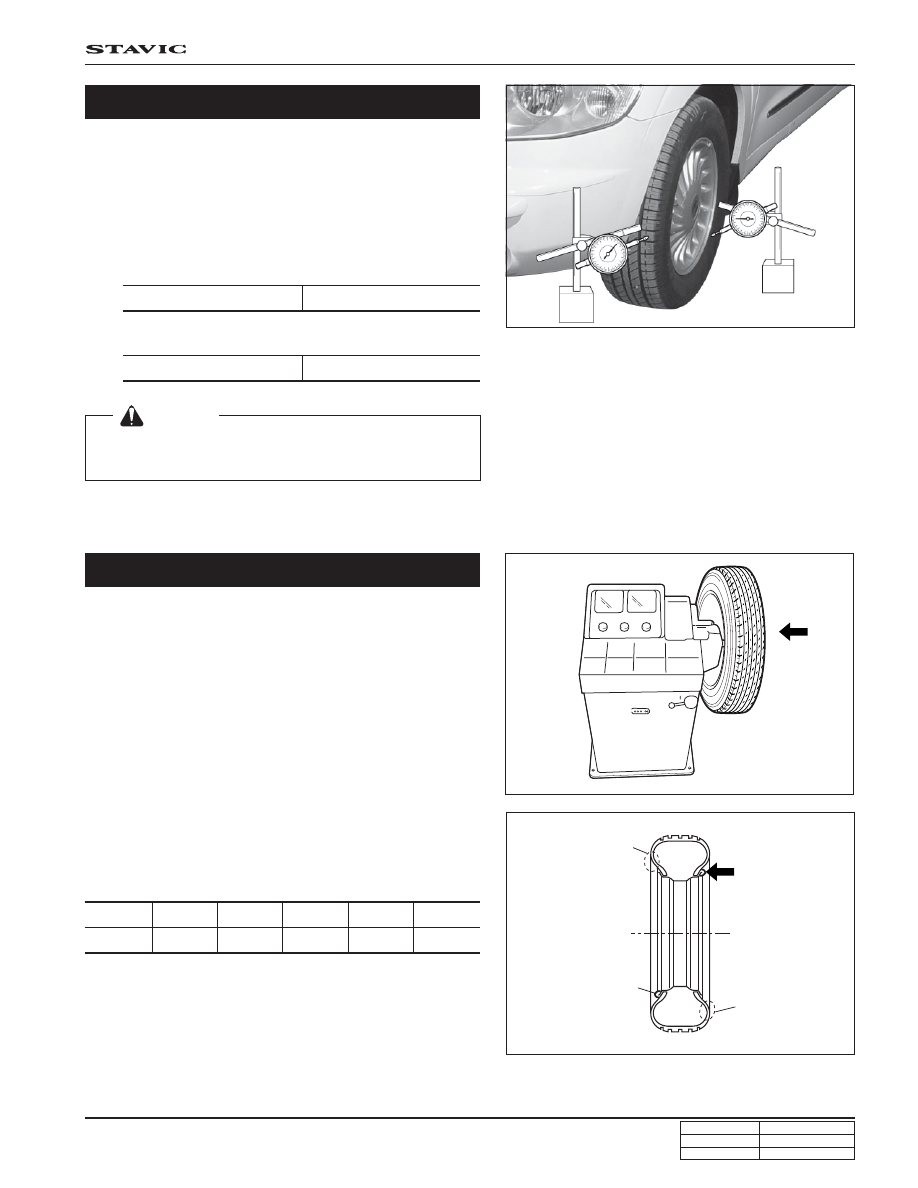

Measure wheel runout with an accurate dial indicator. Mea-
surement may be taken with the wheels either on or off the
vehicle, using an accurate mounting surface such as a wheel
balancer. Measurements may be taken with or without the
tire mounted on the wheel.
1. Measure the dial runout and lateral runout on both the
inboard and outboard rim flanges.
Specification
2.66 mm
Specification
2.03 mm
50 g
1.80 oz
60 g
2.10 oz
20 g
0.7 oz
30 g
1.10 oz
40 g
1.40 oz
10 g
0.4 oz
Wheel Runout
Wheel Balance
2. Measure free radial runout on the tire tread.
Balance is the easiest procedure to perform and should be
done first if the vibration occurs at high speeds or if the tires or
the wheels are replaced.
When proceeding the wheel balancing procedure refer to the
following;
1. Do not the wheel weight over two at the inboard and the
outboard flanges.
2. The total weight ofthe wheel weight should not exceed
the 150 g (3.5 ounces)
3. Balancing the assemblies with the factory aluminum
wheels requires the use of the special nylon-coated, clip-
on wheel weights.
Balance weight
[Notice]
If any measurement exceeds the above specifications, replace
the applicable tires or wheels.
