STAVIC - 2004.09

4H

Caster (+)

Caster 0

Caster (-)

Steering
axle

Center line

Front side

Steering

axle

Center line

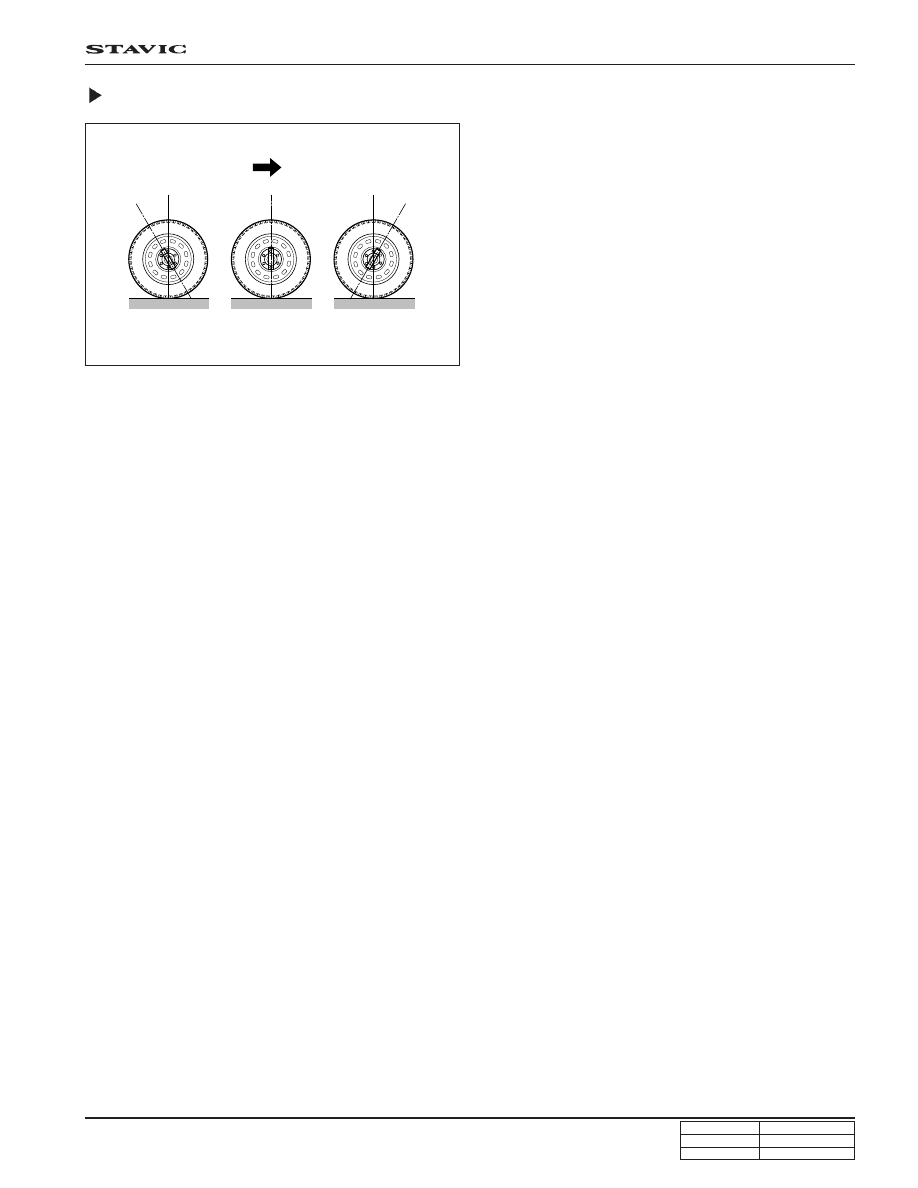

Caster

Caster is the tilting of the uppermost point of the steering
axis either forward or backward from the vertical when
viewed from the side of the vehicle. A backward tilt is posi-
tive and a forward tilt negative. Caster influences direc-
tional control of the steering but does not affect tire wear.

Weak springs or overloading a vehicle will affect caster.
One wheel with more positive caster will pull toward the
center of the car. This condition will cause the car to move
or lean toward the side with the least amount of positive
caster. Caster is measures in degrees and is not
adjustable.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

8

WHEELS & TIRE

STAVIC - 2004.09

4H

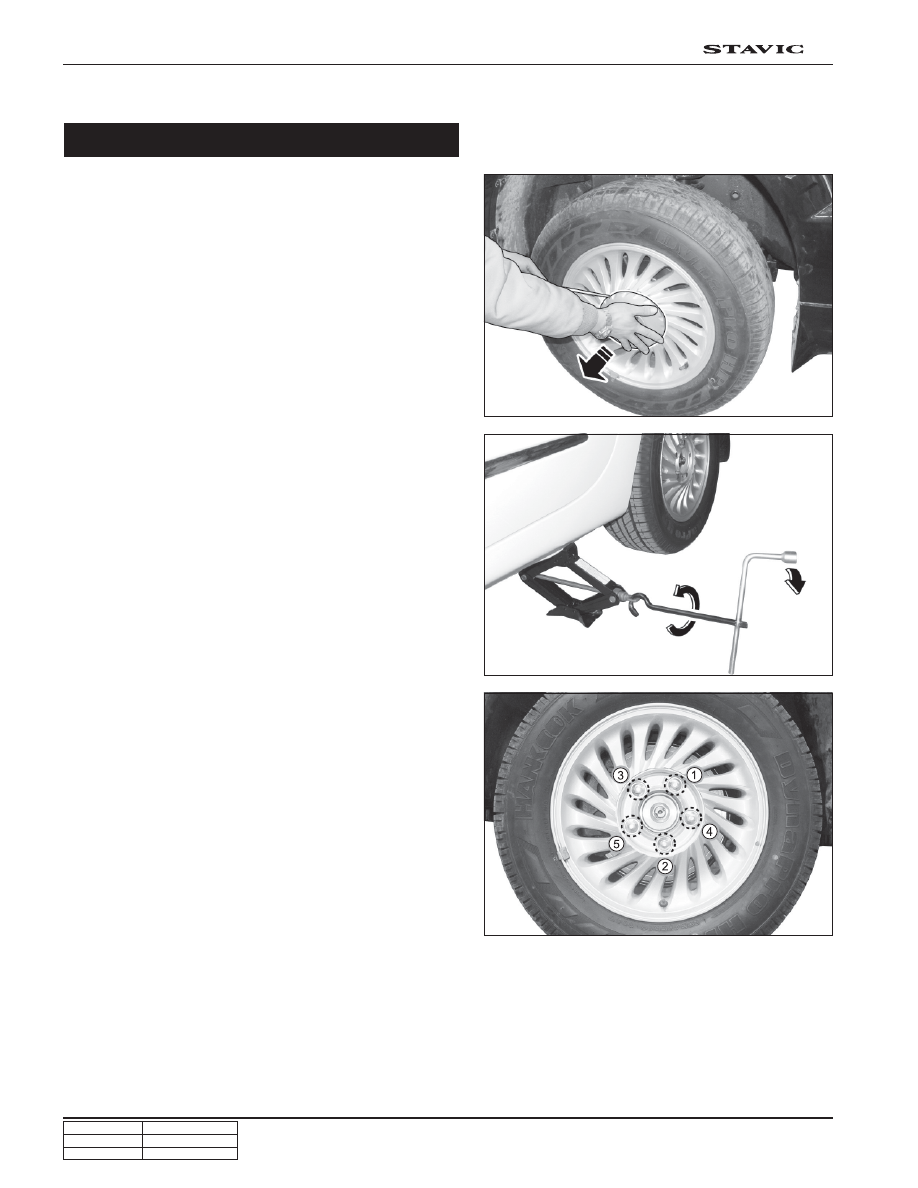

1. Remove the wheel cap.

2. Support the vehicle with safety jack.

Loosen the wheel nuts and raise the vehicle carefully.

5. REMOVAL AND INSTALLATION

3. Remove the wheel nuts.

Tire

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

9

WHEELS & TIRE

STAVIC - 2004.09

4H

4. Install in the reverse order of removal.

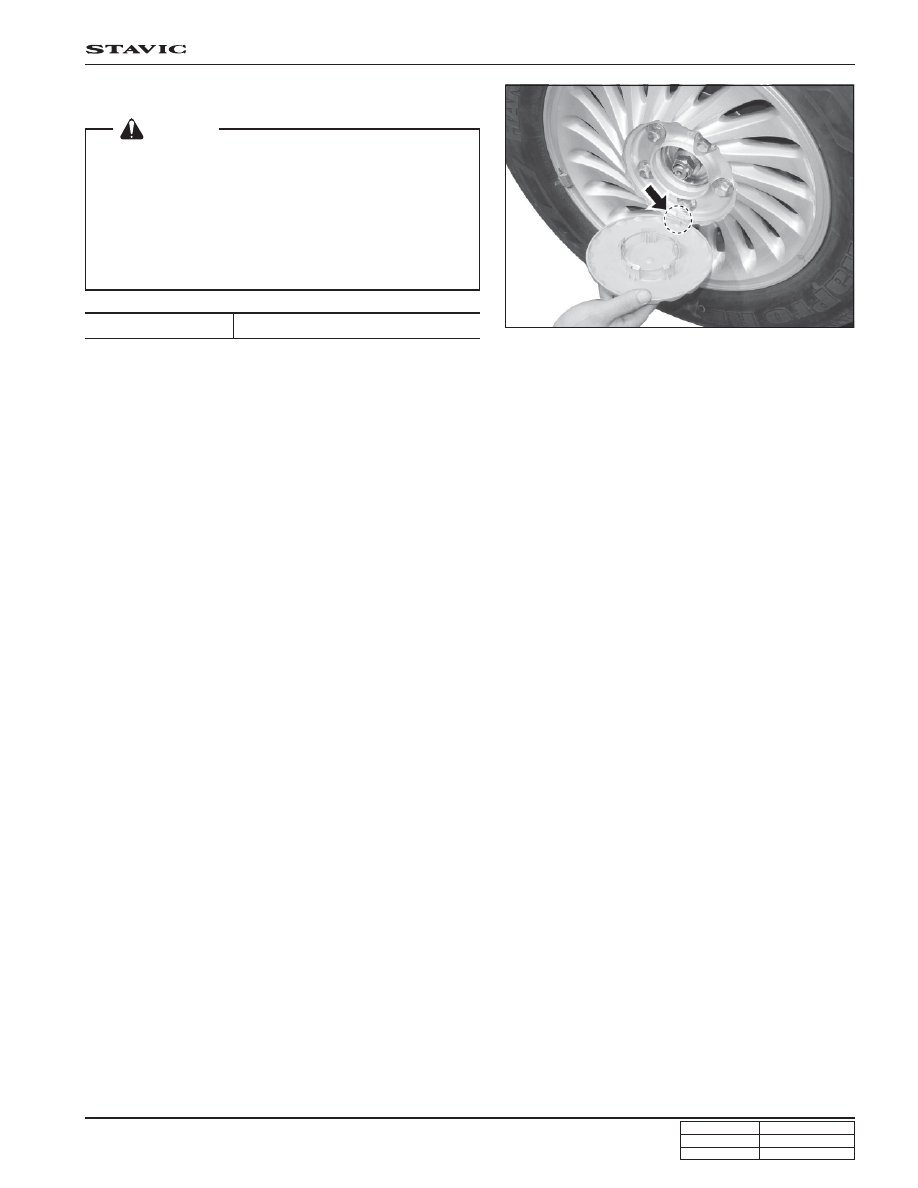

 [Notice]

•

Clean the mating surface of wheel and hub. Do not apply
grease or oil to bolts and nut. It may cause the looseness of
the fasteners.

•

Lift up the vehicle until the tire is off approx. 3 mm from
ground.

•

Tighten the wheel nuts by the order as shown in the figure
with several steps.

Tightening torque

Aluminum wheel: 120 ~ 130 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

10

WHEELS & TIRE

STAVIC - 2004.09

4H

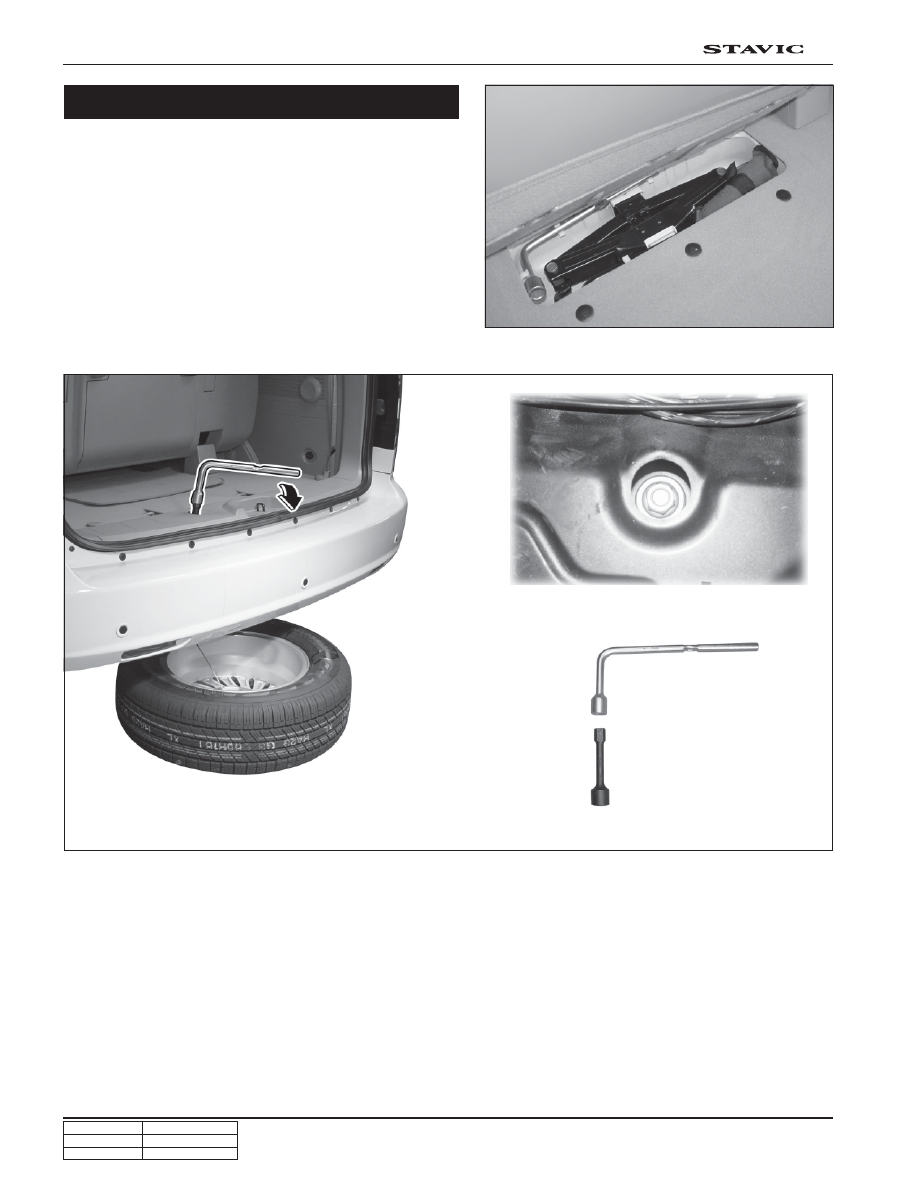

1. Prepare the spare tire handle and wheel nut wrench.

2. Install the handle through the hole at the rear side of the

vehicle.

3. Connect the wheel nut wrench at the end of the handle.

Spare Tire

4. Turn the wheel nut wrench counterclockwise until the wire is loosened.
