SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 375

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

11

REAR SUSP & AXLE

STAVIC - 2004.09

4F

2. COMPONENTS

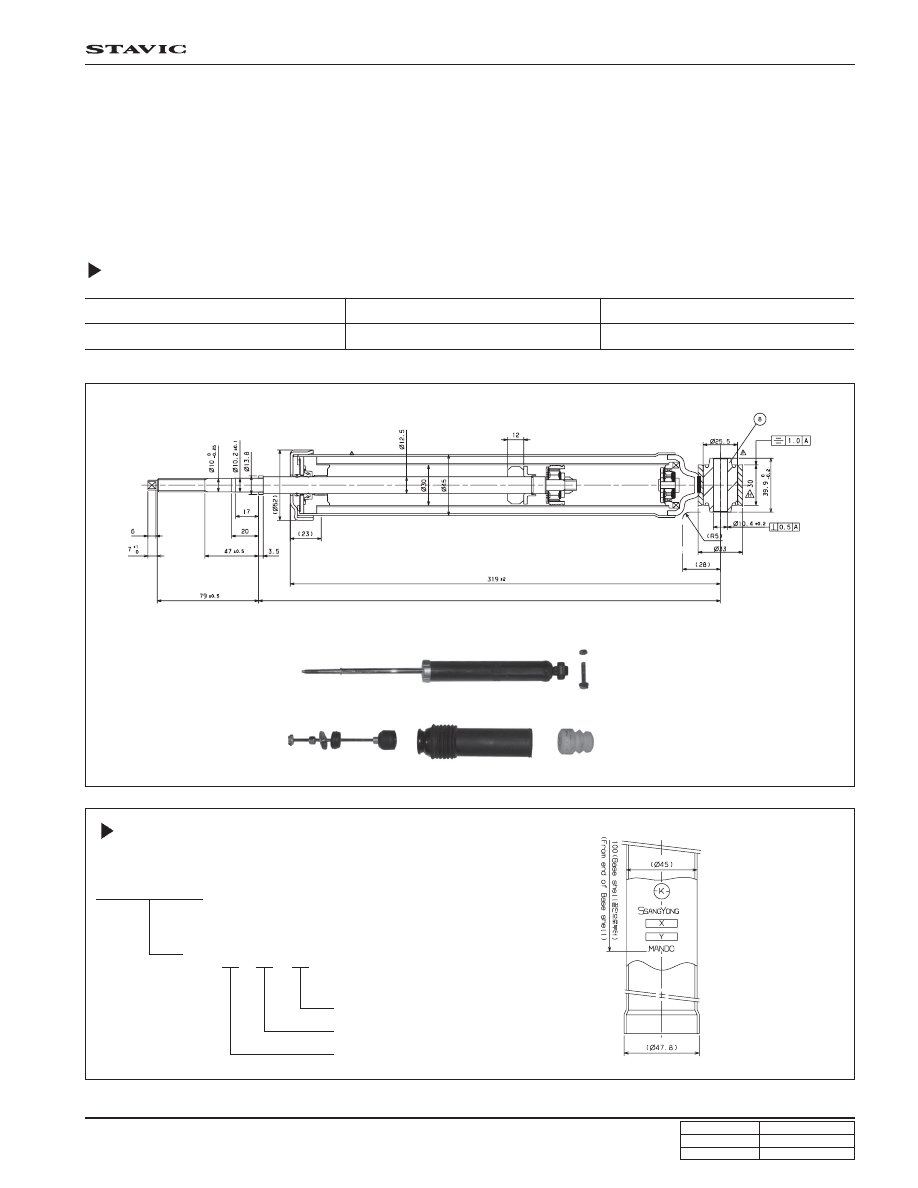

1) Rear Shock Absorber

• Keep the suitable distance when compressed and

expanded.

• Minimum length is 10 mm longer than the minimum length

under compression.

Specification

Working distance

160.4 mm

Min. length

326.6 mm

Max. length

487 mm

Marking Point

X : Part No.

Y : Lot Number

Ex :  3     C     12

12 ......... Day

3 ........... Month

2003 ...... Year

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

12

REAR SUSP & AXLE

STAVIC - 2004.09

4F

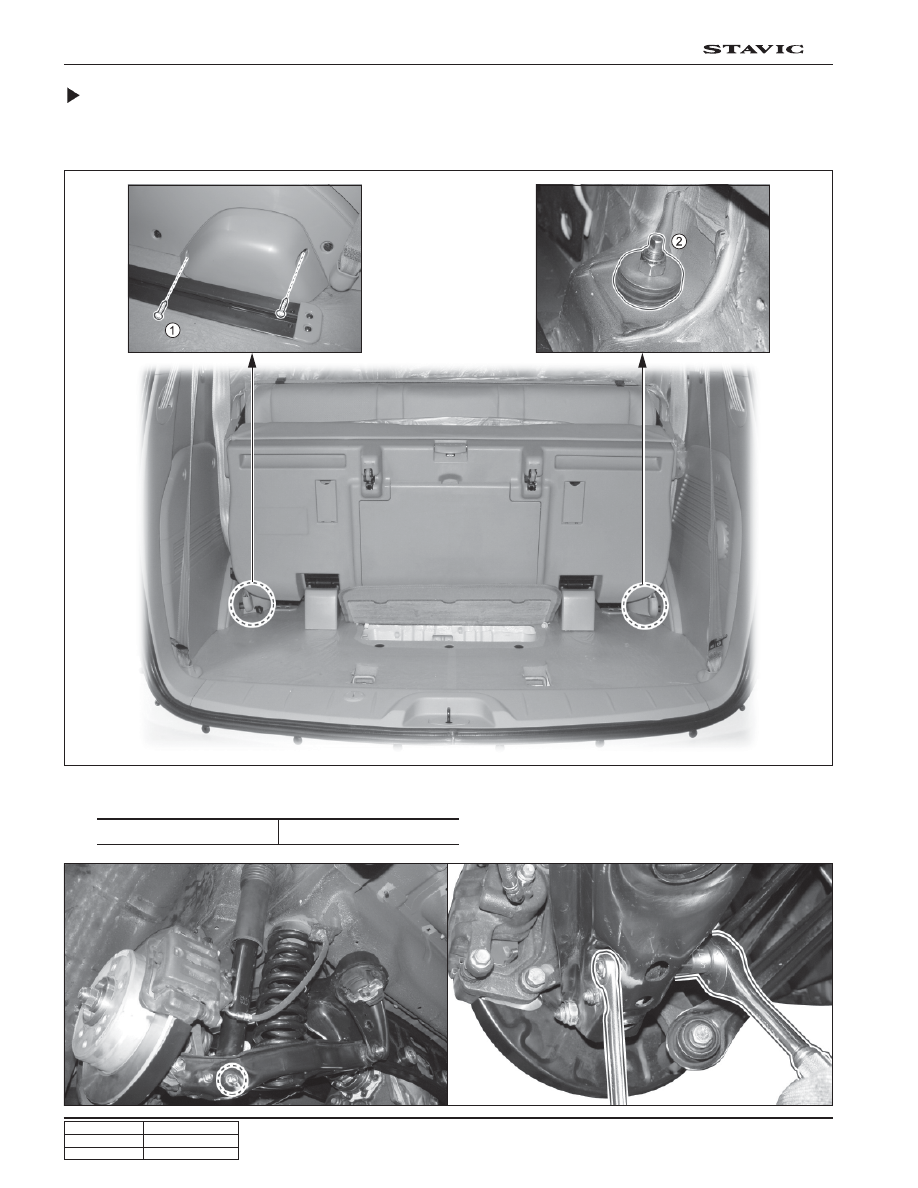

Removal and Installation

1. Move the 2nd raw seat to the front end and unscrew

the rear shock absorber upper cover mounting bolt (1).

2. Remove the rear shock absorber upper nut (2), washer

and bush.

3. Unscrew the lower mounting nut on the spring link (17 mm).

Tightening torque

50 ~ 60 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

13

REAR SUSP & AXLE

STAVIC - 2004.09

4F

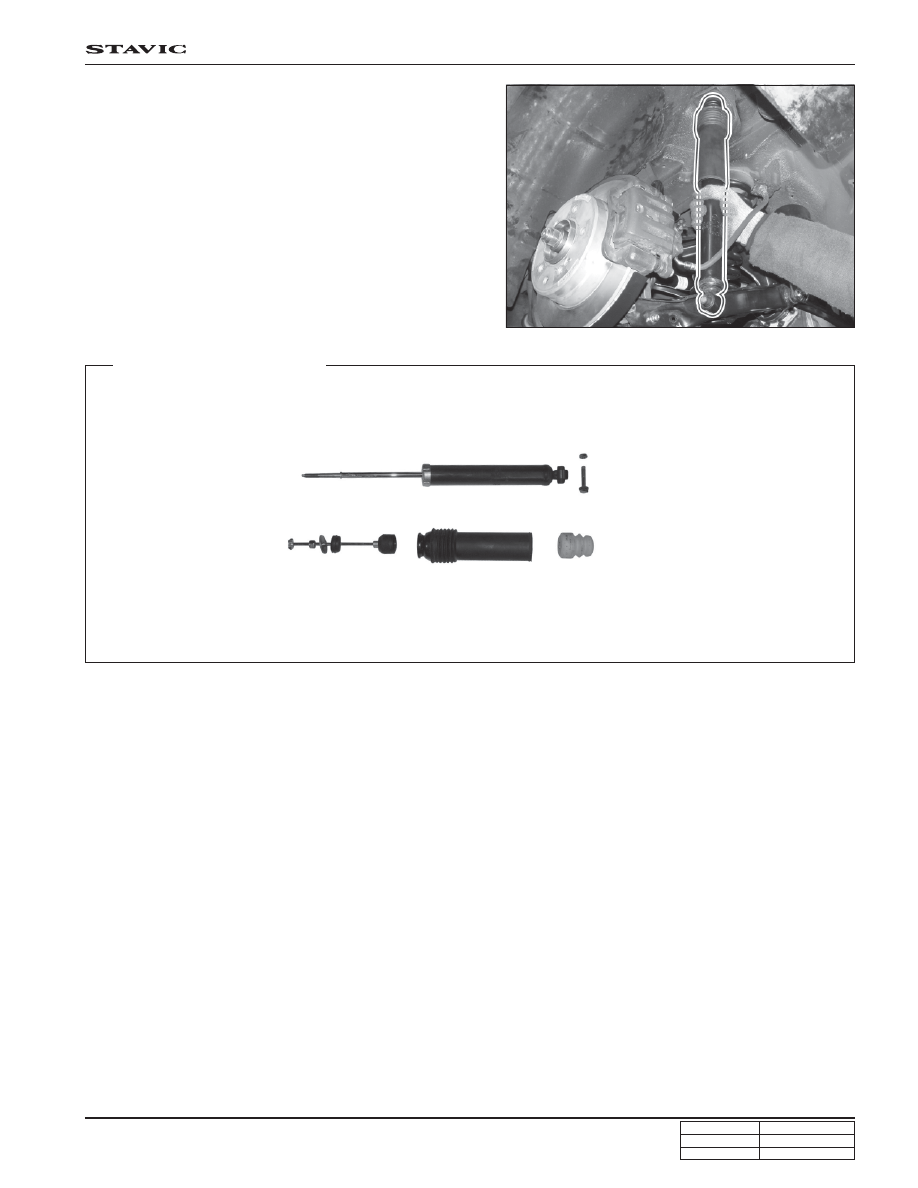

4. Remove the shock absorber as pushing upward.

Shock absorber assembly

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

14

REAR SUSP & AXLE

STAVIC - 2004.09

4F

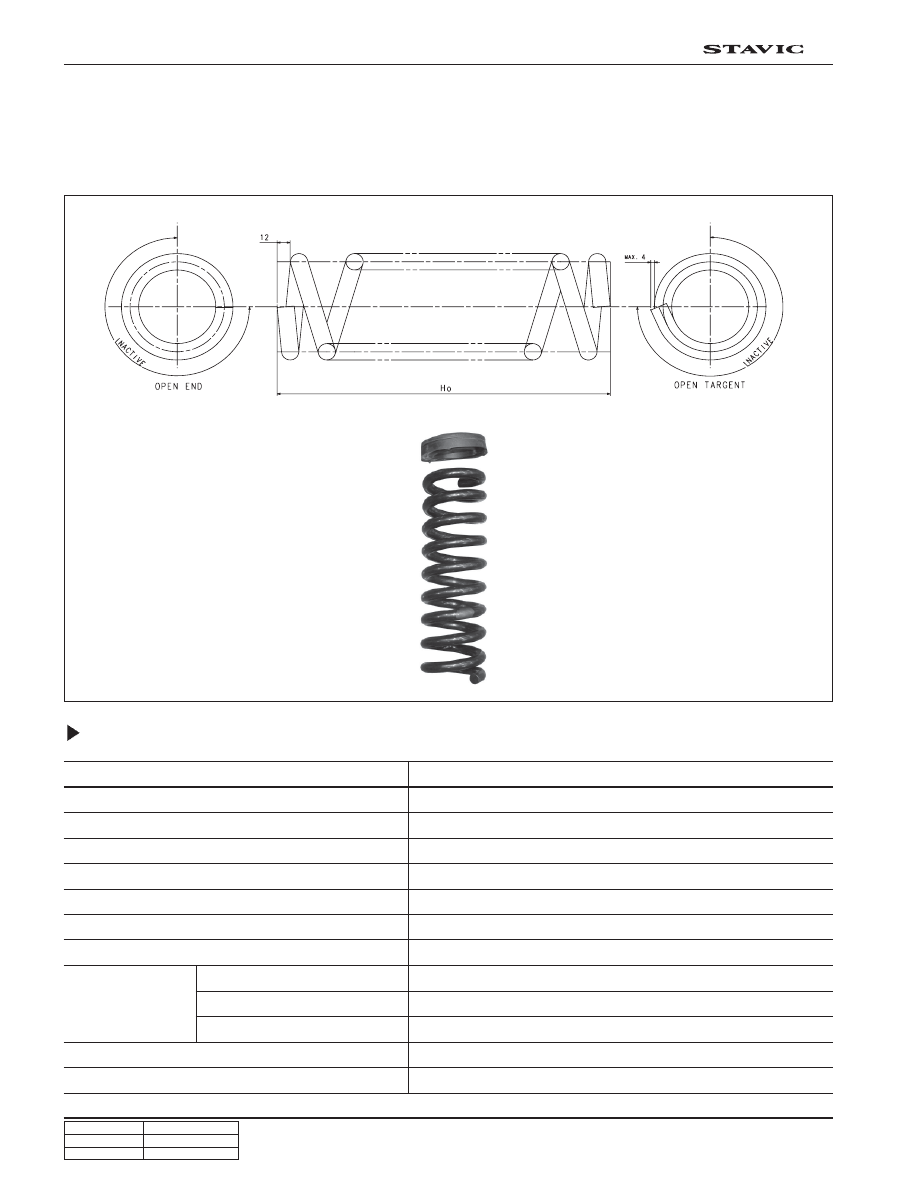

2) Coil Spring

• Steel for high tensional spring is adapted.

• Maintain more than 20 mm of freeplay when compressed.

• Spring seat applied.

Specification

4WD

45110-21000

12.0 ± 5%

15.9

69.1

85.0

9.55

8.35

250

880.0

62.1

Right

323.3

Part Number

Spring constant (kg/mm)

Coil diameter (mm)

Coil inner diameter (mm)

Pitch (mm)

Number of winding

Number of active winding

Winding direction

Spring length (mm)

C.V.W

Height (mm)

Weight (kg)

Strength (kg/mm/mm)
