FRONT SUSP & AXLE

STAVIC - 2004.09

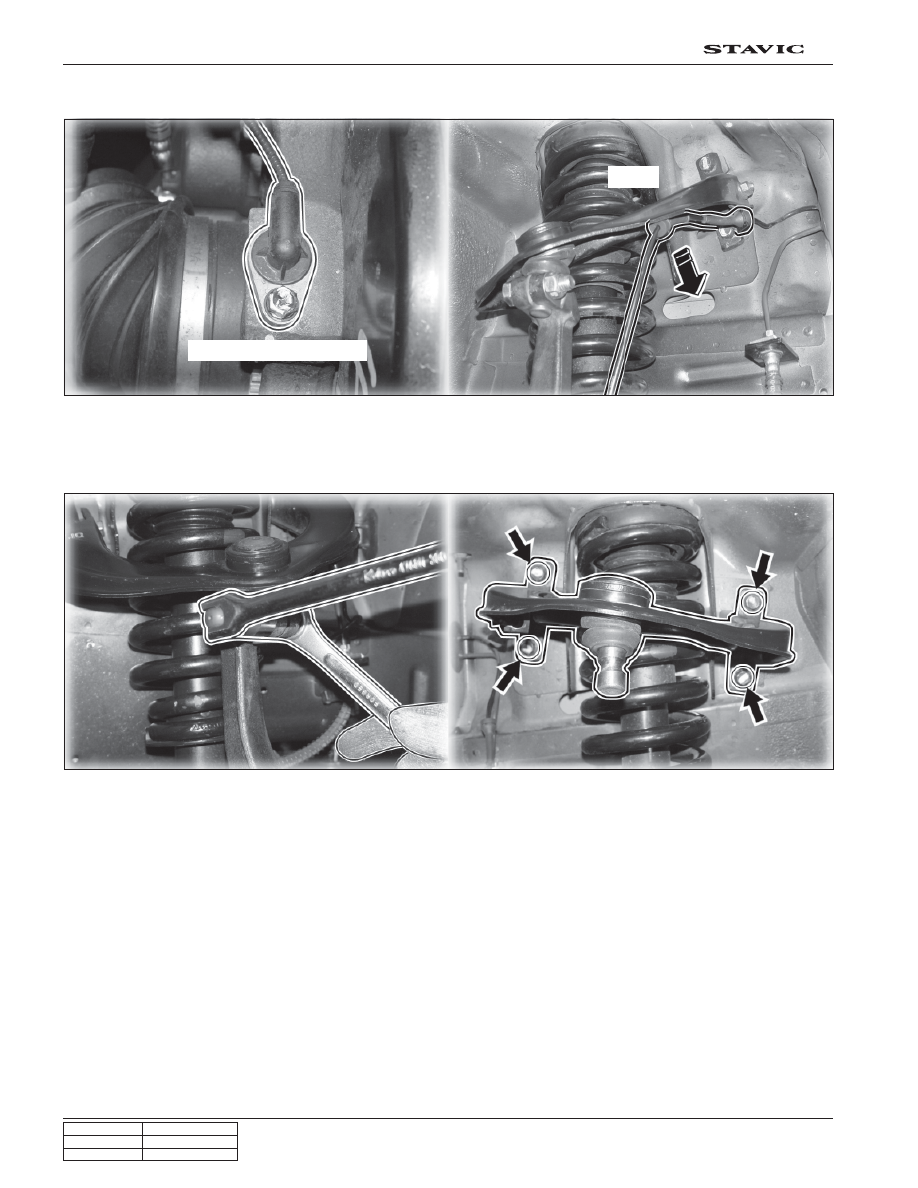

1. Remove wheel speed sensor and cable. (10 mm - 1EA, Tightening torque : 6 ~ 8 Nm)

2. Unscrew knuckle upper mounting bolt/nut (19 mm - 1EA) and upper arm mounting bracket bolts (14 mm - 4EA) to

remove upper arm assembly.

Knuckle upper bolt (Upper arm ball joint)

Tightening torque : 140 ~ 160 Nm

Upper arm mounting bracket bolts

Tightening torque : 140 ~ 160 Nm

Cable

Speed sensor mounting bolt

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

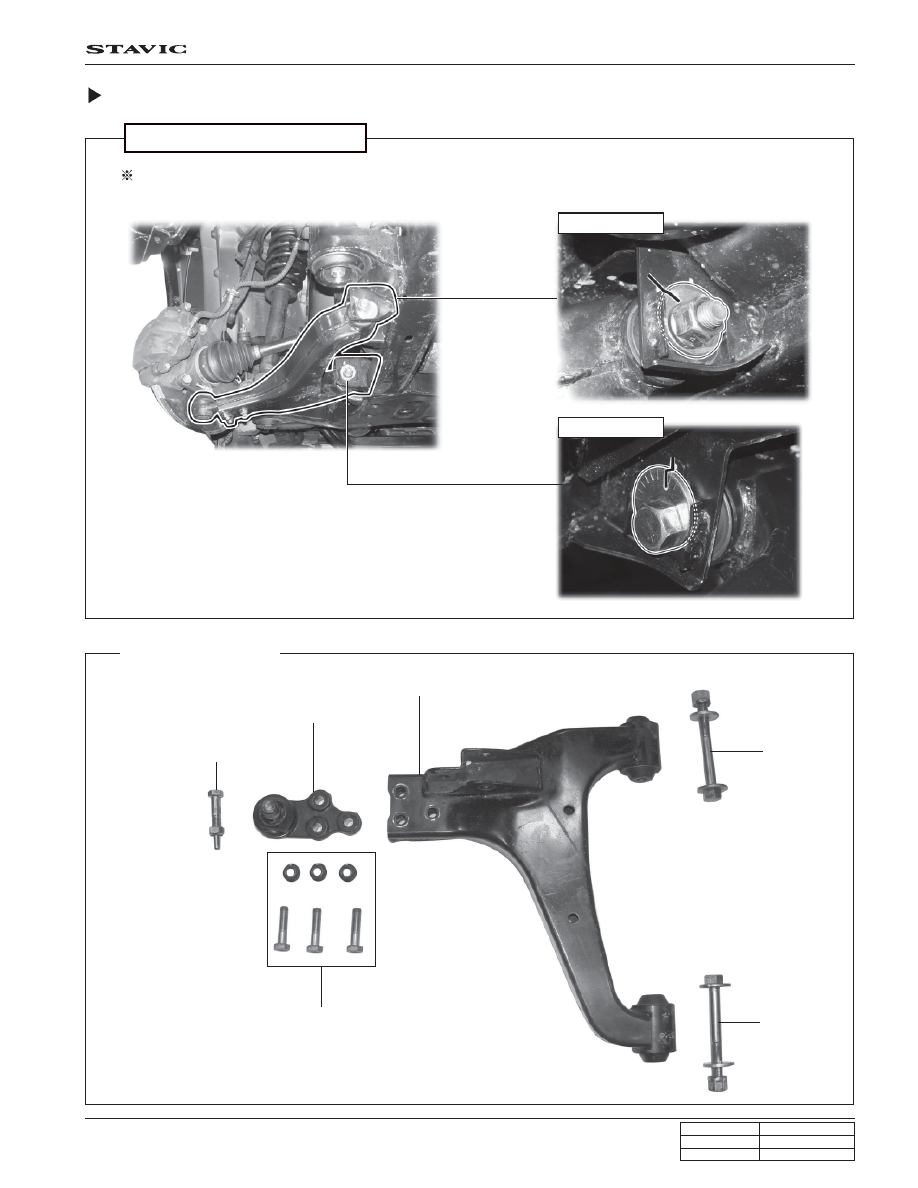

When you need to remove lower arm assembly, leave a mark on the lower arm mounting bolts (Front /
Rear) for wheel alignment job.

Check point before removal

Lower arm assembly

Lower arm

Ball joint

mounting bolt

Ball jont

Washer / Bolt

Cam bolt

Lower Arm Assembly

Front

Rear

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

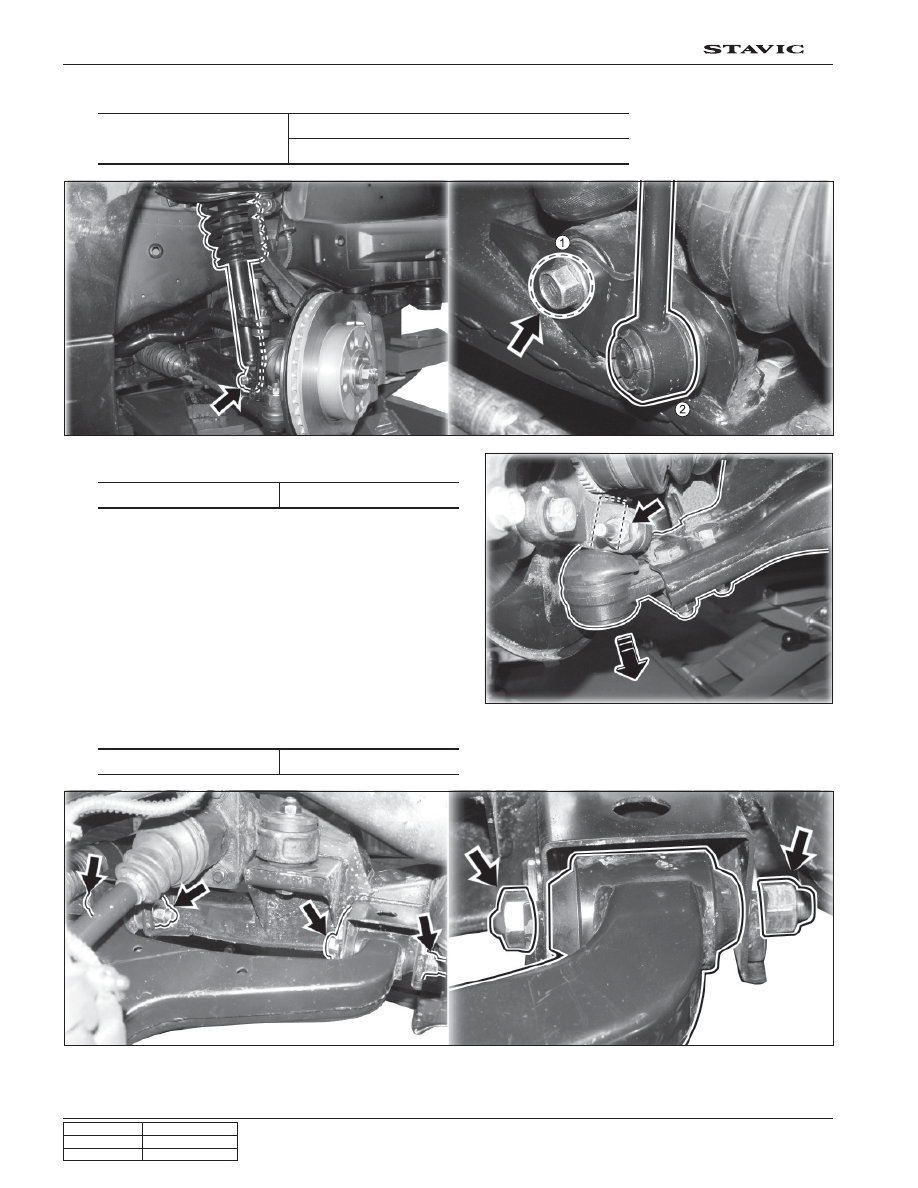

1. Unscrew the shock absorber lower mounting bolt/nut (1) and stabilizer link low nut (2).

2. Unscrew lower arm ball joint bolt/nut (Knuckle).

3. Unscrew lower arm bolt/nut (Frame).

4. Remove lower arm assembly from the sub frame.

5. Install in the reverse order of removal.

Tightening torque

Shock absorber lower bolt/nut : 110 ~ 130 Nm

Stabilizer link lower nut : 110 ~ 120 Nm

Tightening torque

120 ~ 140 Nm

Tightening torque

180 ~ 190 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

Coil spring & shock absorber

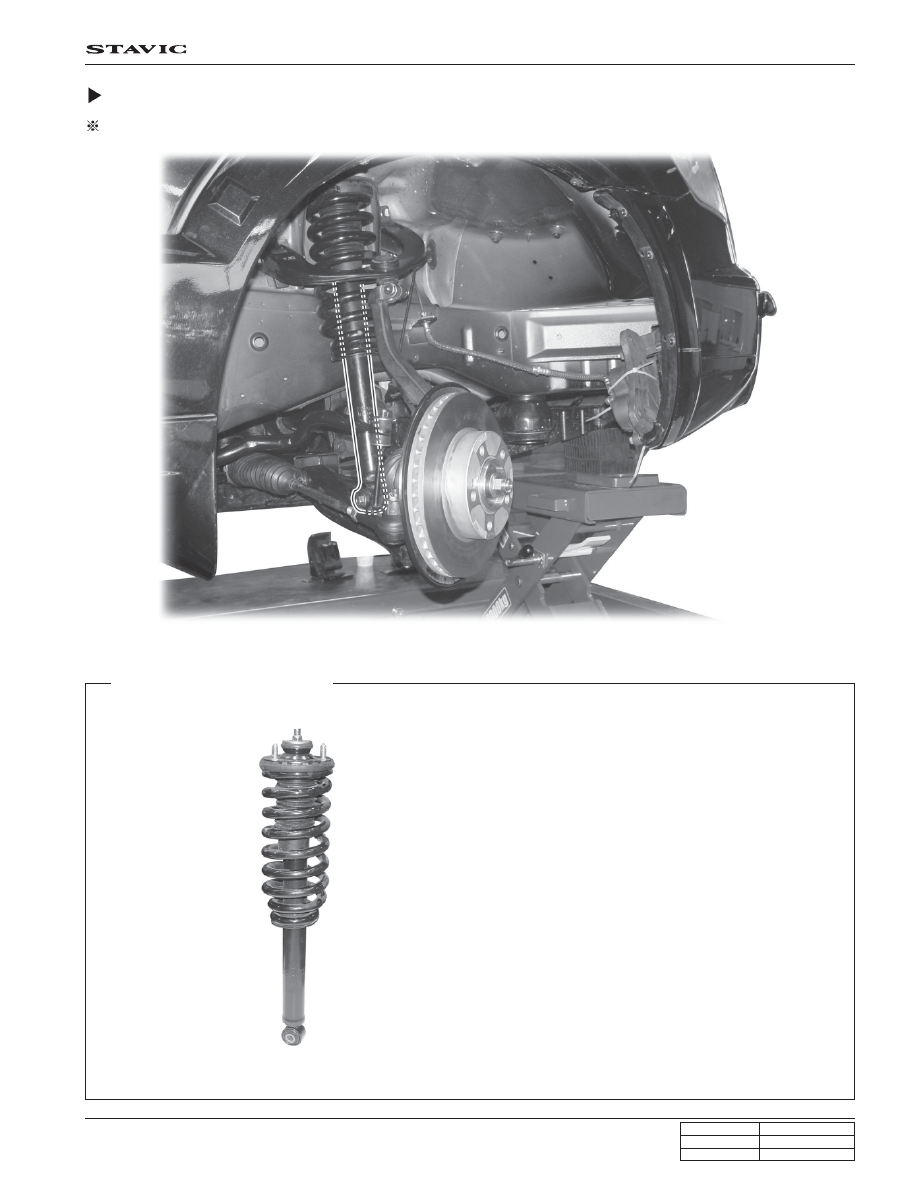

1. Use a special tool to remove the coil spring

from shock absorber assembly.

2. Keep the specified end gap between shock

absorber and adjust bolt (10 mm).

Coil Spring & Shock Absorber Assembly

Preceding Work: Remove the tire and wheel speed sensor.
