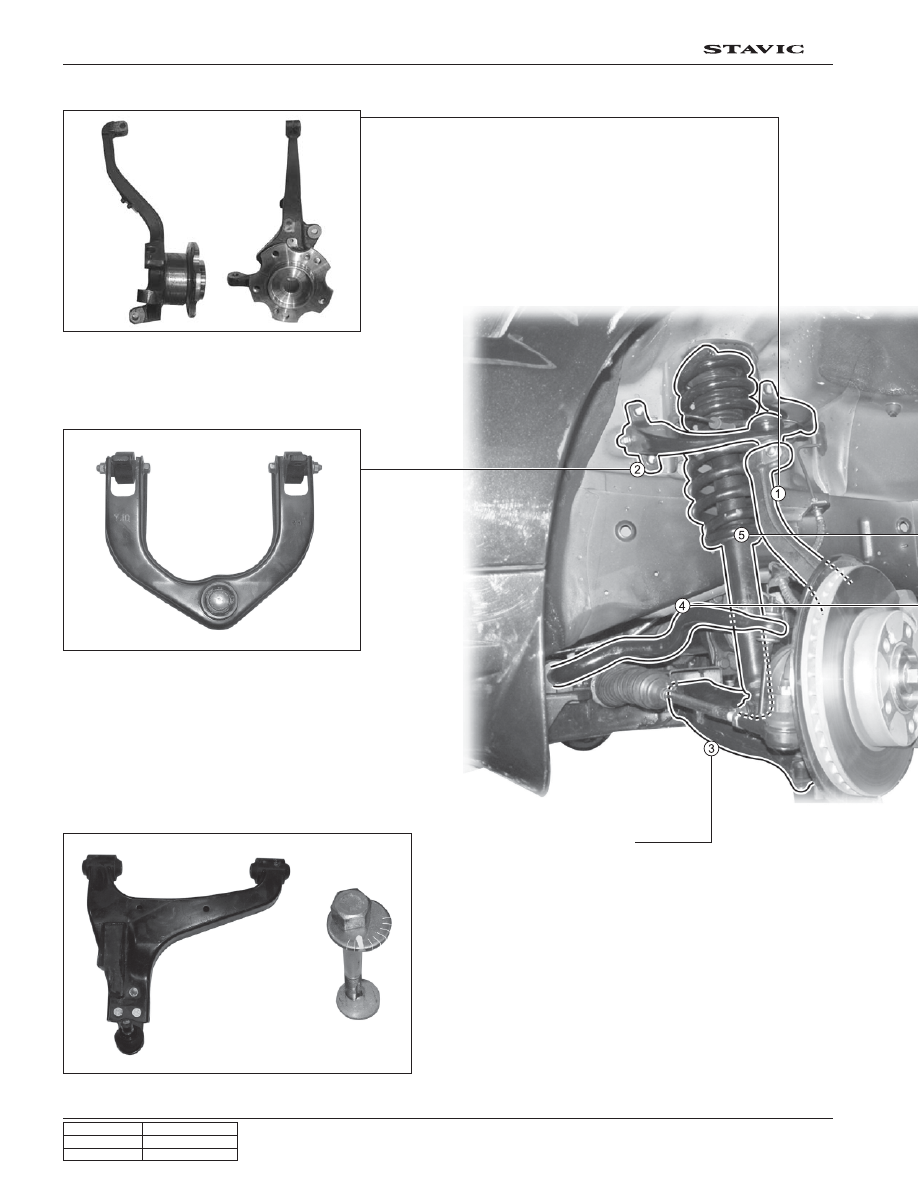

1) Knuckle (4WD)

1. There are two types of knuckle (4WD, 2WD)

2) Upper arm

1. Minimized gap between coil spring and tire (15mm).

2. Optinized ball joint angle against fluctuating.

3) Lower arm assembly

Cam bolt

1. Shock absorber mounted on the bush is

connected to the sub frame with upper arm and
lower arm. It suports the load, at the same time,
it absorbs shock and vibration transferred to the
vehicle.

2. Front mount bush is set on the sub frame and

camber bolt for camber/caster adjustment is
assembled to the lower arm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

9

4E

Mounting bracket

Mounting bracket

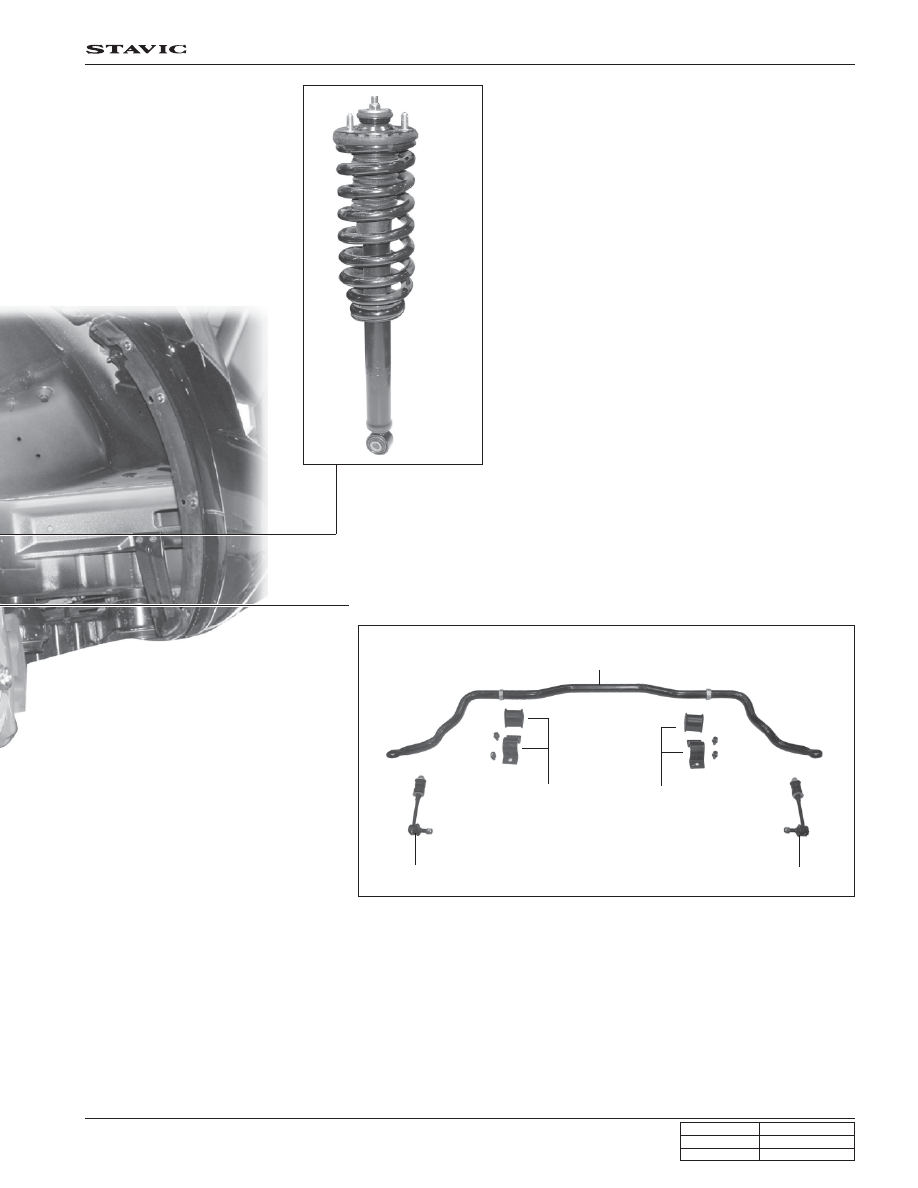

4) Stabilizer bar assembly

Stabilizer link

Stabilizer bar

Stabilizer link

Stabilizer bars are part of a car’s suspension system.

They are sometimes also called anti-sway bars or anti-roll bars.

Their purpose in life is to try to keep the car’s body from “rolling” in a sharp
turn.

5) Shock absorber and coil spring

Shock absorber and coil spring is a device for damping
sudden and rapid motion, as the recoil of a spring-
mounted object from shock.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

10

4E

Specification

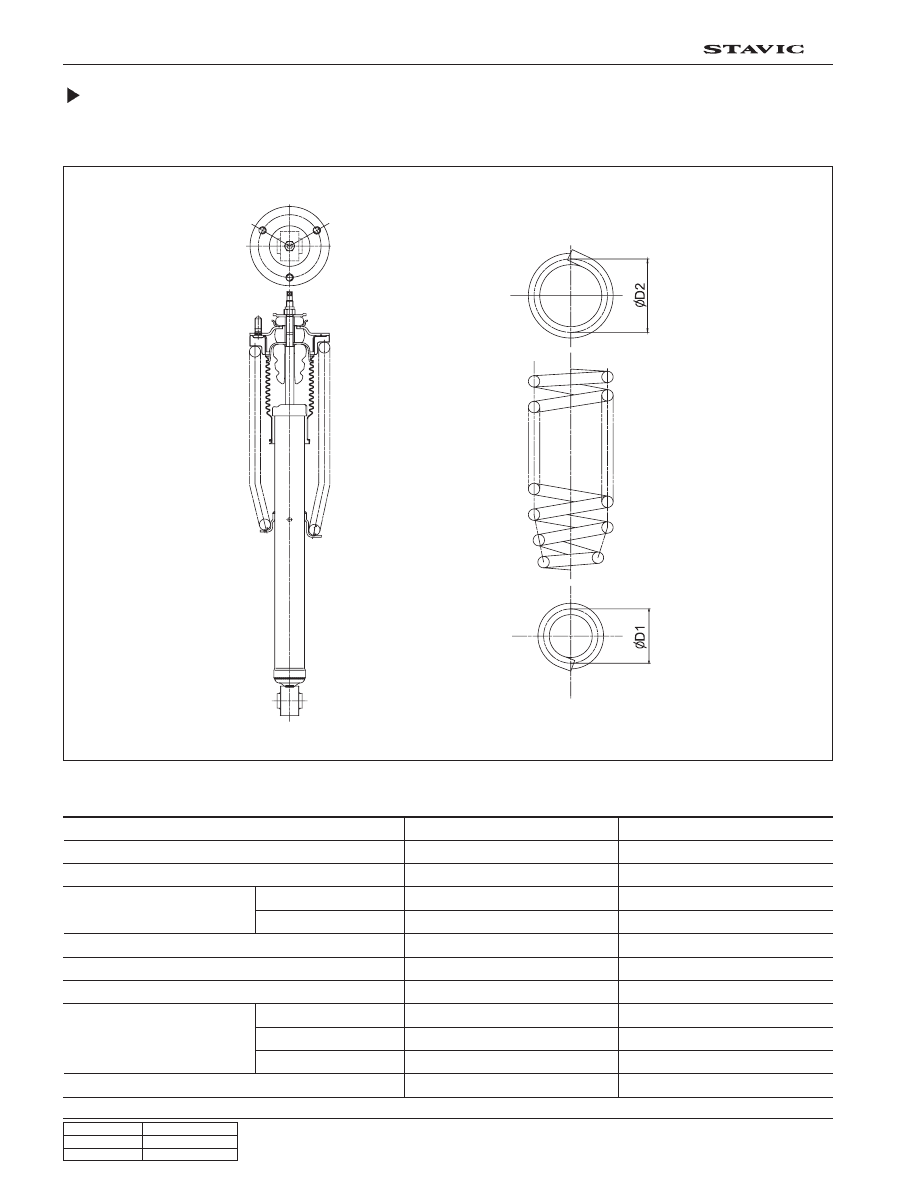

Structure of Shock Absorber and Coil Spring

1. Coil spring

Spring constant (kg/mm)

Coil diameter (mm)

Pitch (mm)

Number of winding

Number of active winding

Winding direction

4WD

8.8 ± 5 %

16.7

75.0

105.0

85.0

9.36

7.86

256.0

1047 ± 5 %

65.8

Rightward

2WD

8.8 ± 5 %

16.6

75.0

105.0

85.0

9.36

7.86

256.0

905 ± 5 %

68.2

Leftward

Coil inner diameter (mm)

C.V.W
(Curved vehicle weight)

D1

D2

Height (mm)

Weight (kg)

Strength (kg/mm)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FRONT SUSP & AXLE

STAVIC - 2004.09

11

4E

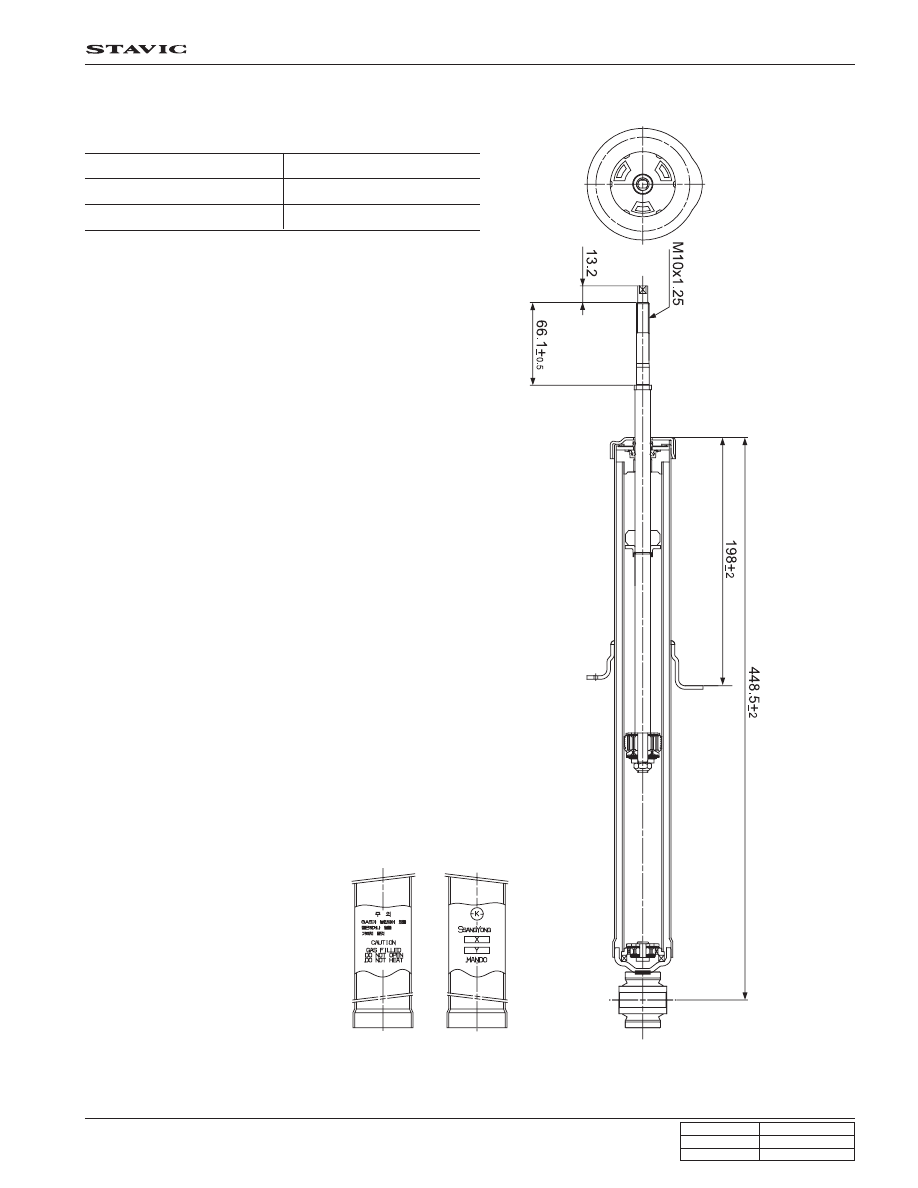

2. Shock Absorber Assembly

Specification

Max. working distance

Min. working distance

Working distance

540 (mm)

452 (mm)

88 (mm)
