LAMP

STAVIC - 2004.09

18

2I

INTERIOR LAMPS

1. LOCATIONS OF INTERIOR LAMPS

Side (third row set) room lamp

Side (second row set) room lamp

 1. Front room lamp

 : one at both sides (12V – 5W)

The front room lamps (1, 2) are turned on when pushing the lamp
body regardless of the positions of front room lamp coupled switch.
Press the lamp body again to turn off.

Front room lamps (driver’s and passenger’s) are turned on when
opening one of front doors with this switch (A) pressed in.

2. Rear room lamp (in second and third row seats)

: one at both sides (12V – 5W)

Rear room lamps are turned on and off when the switch (1) is
pressed in and out.

Four rear room lamps are turned on when opening a rear door
with this switch pressed in. The rear room lamps are turned off
when closing the door.

3. Center console lamp

: one at back of center console (12V – 5W)

Center console lamp is turned on when opening
a door.

Front room lamp switch

(coupled operation with door)

Rear room lamp switch

(coupled operation with door)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

19

2I

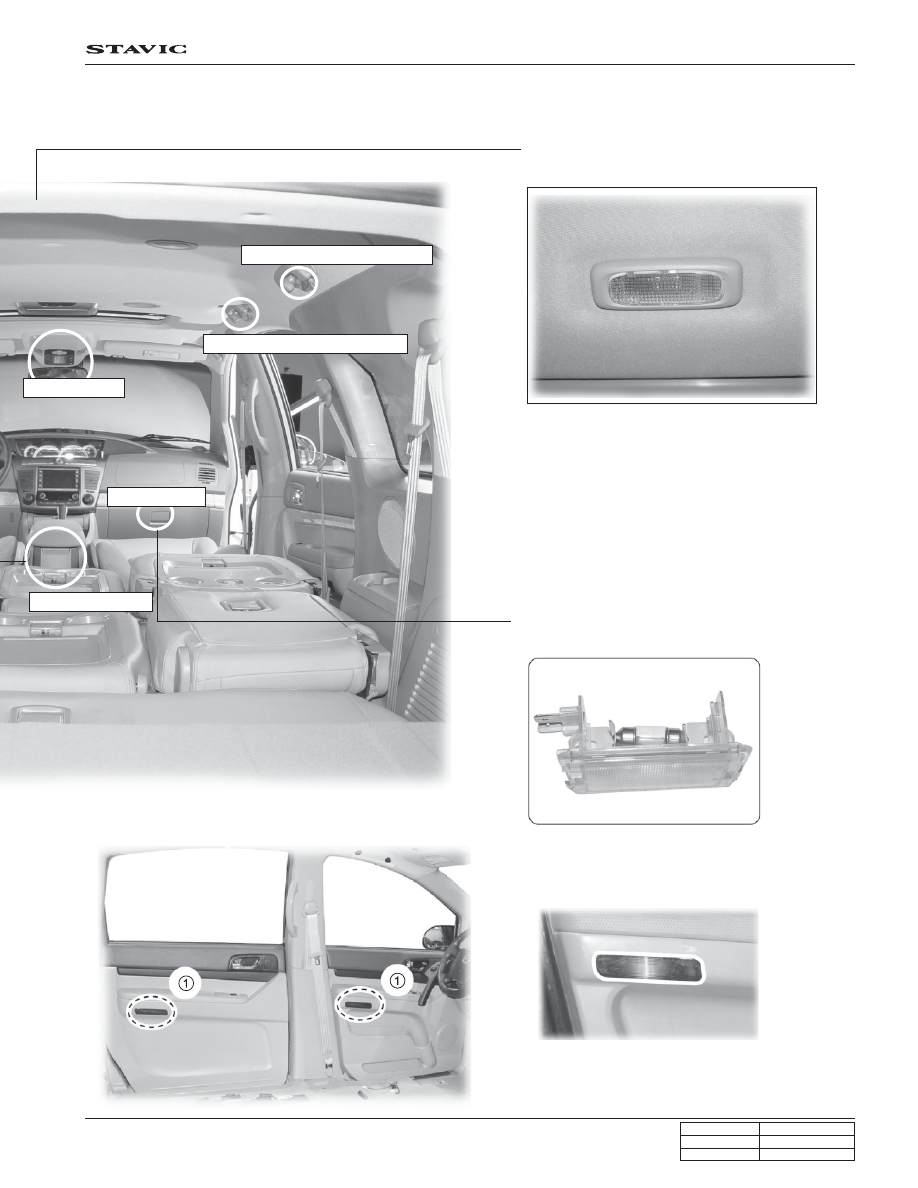

Rear (third row set) room lamp

Rear (second row set) room lamp

Front room lamp

Glove box lamp

Center console lamp

4. Luggage room lamp

: one at center (12V – 5W)

Luggage room lamp is turned on and off when the
switch (1) is pressed in and out.

Luggage lamp is turned on and off when opening
and closing one of rear doors with the front room
lamp switch pressed in.

5. Glove box lamp

: one at center (12V – 5W)

6. Door courtesy lamp

: one at each door (12V – 5W)

Door courtesy lamp is turned on when opening a door while
the ignition switch is in “ON” position.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

20

2I

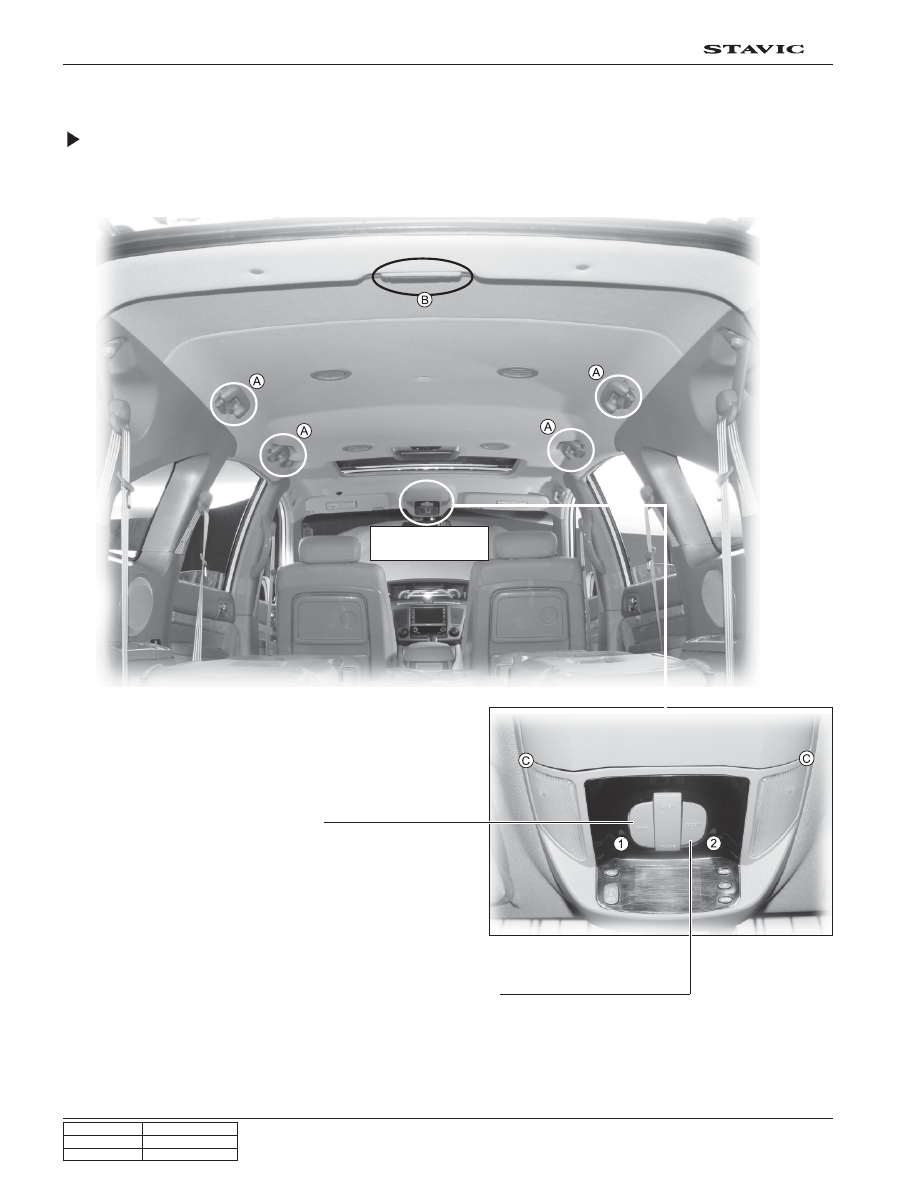

2. DOOR COUPLED ROOM LAMP SWITCH OPERATION

Front/Rear Door Coupled Operation

Door coupled room

lamp switch

1. Front door coupled

room lamp switch

Front room lamps (C) are turned on when open-
i n g   o n e   o f   f r o n t   d o o r s   w i t h   t h i s   s w i t c h   ( 1 )
pressed in. The front room lamps are dimmed out
after closing the door.

2. Rear door coupled room

lamp switch

1. Rear room lamps (A) and luggage room lamp (B) are turned on when

opening a rear door with this switch (2) pressed in. The lamps are
dimmed out after closing the door.

2. Rear and luggage room lamps are turned on only when the side room

lamp coupled switch is pressed in.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

21

2I

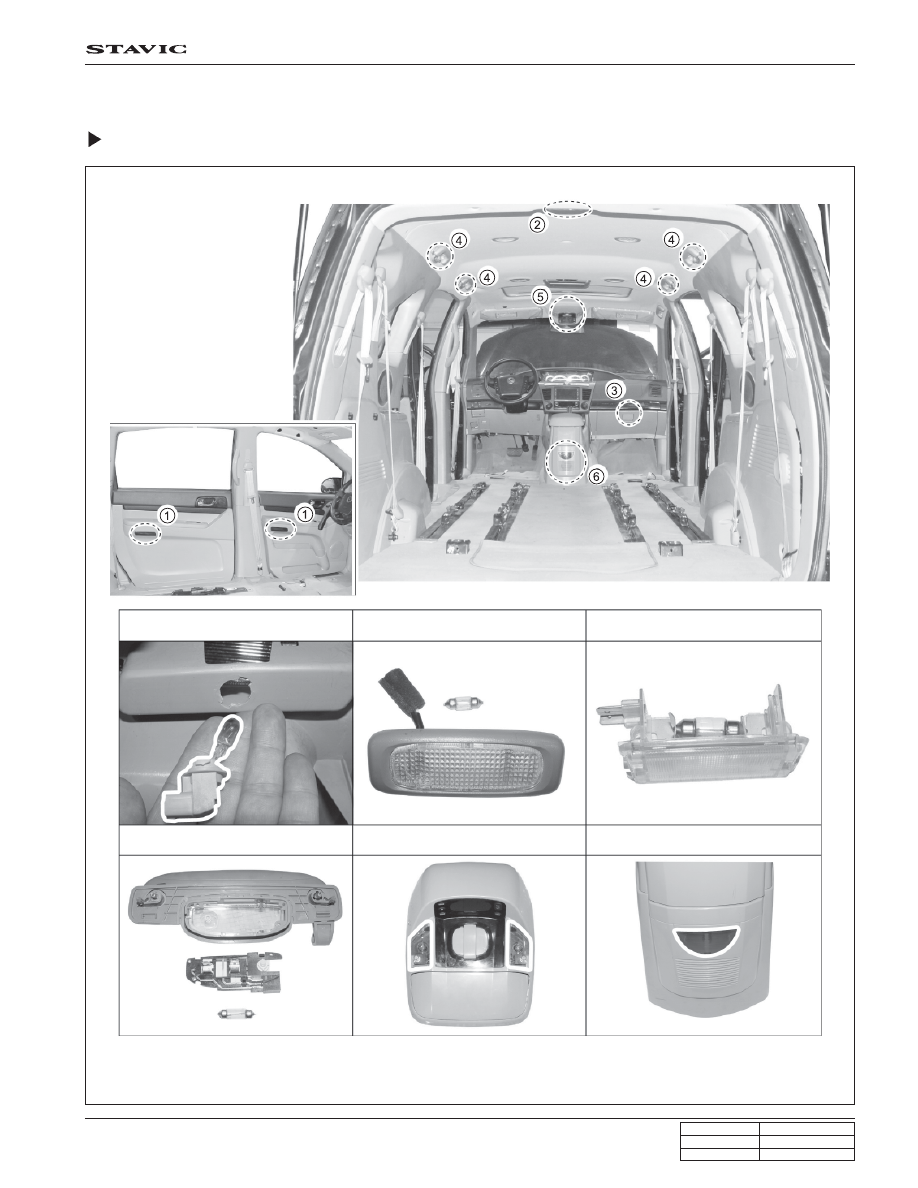

3. REMOVAL AND INSTALLATION OF INTERIOR LAMPS

Locations of Interior Lamps

1. Door courtesy lamp

2. Luggage room lamp

3. Glove box lamp assembly

4. Interior room lamp assembly

5. Front room lamp assembly

6. Center console lamp assembly
