PARKING ASSISTANCE SYSTEM

STAVIC - 2004.09

11

2H

Parking Aid Unit

Preceding work: Removal of rear lower quarter trim cover

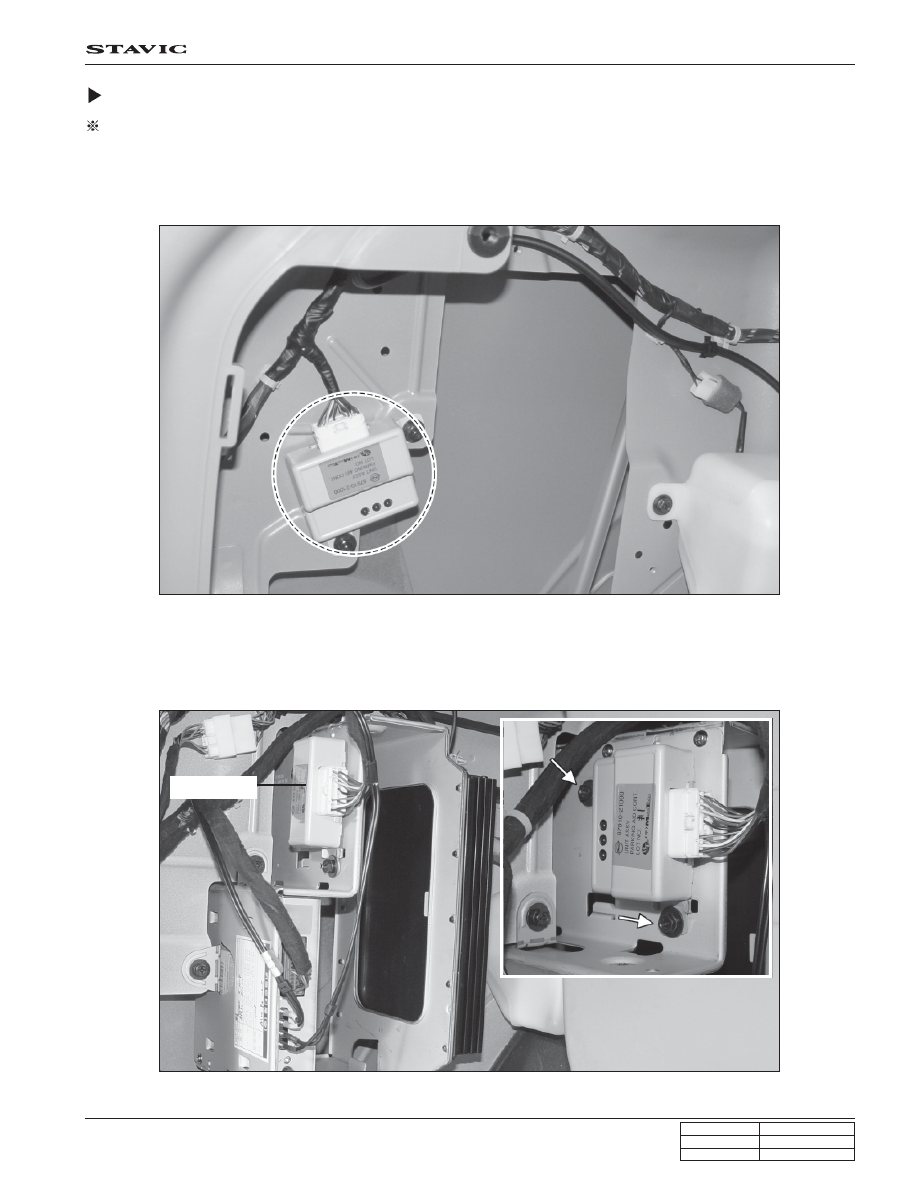

Disconnect the unit connector and remove the parking aid unit.

- In AV system non-equipped vehicle

- In AV system equipped vehicle

PAS unit

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

PARKING ASSISTANCE SYSTEM

STAVIC - 2004.09

12

2H

REARVIEW CAMERA

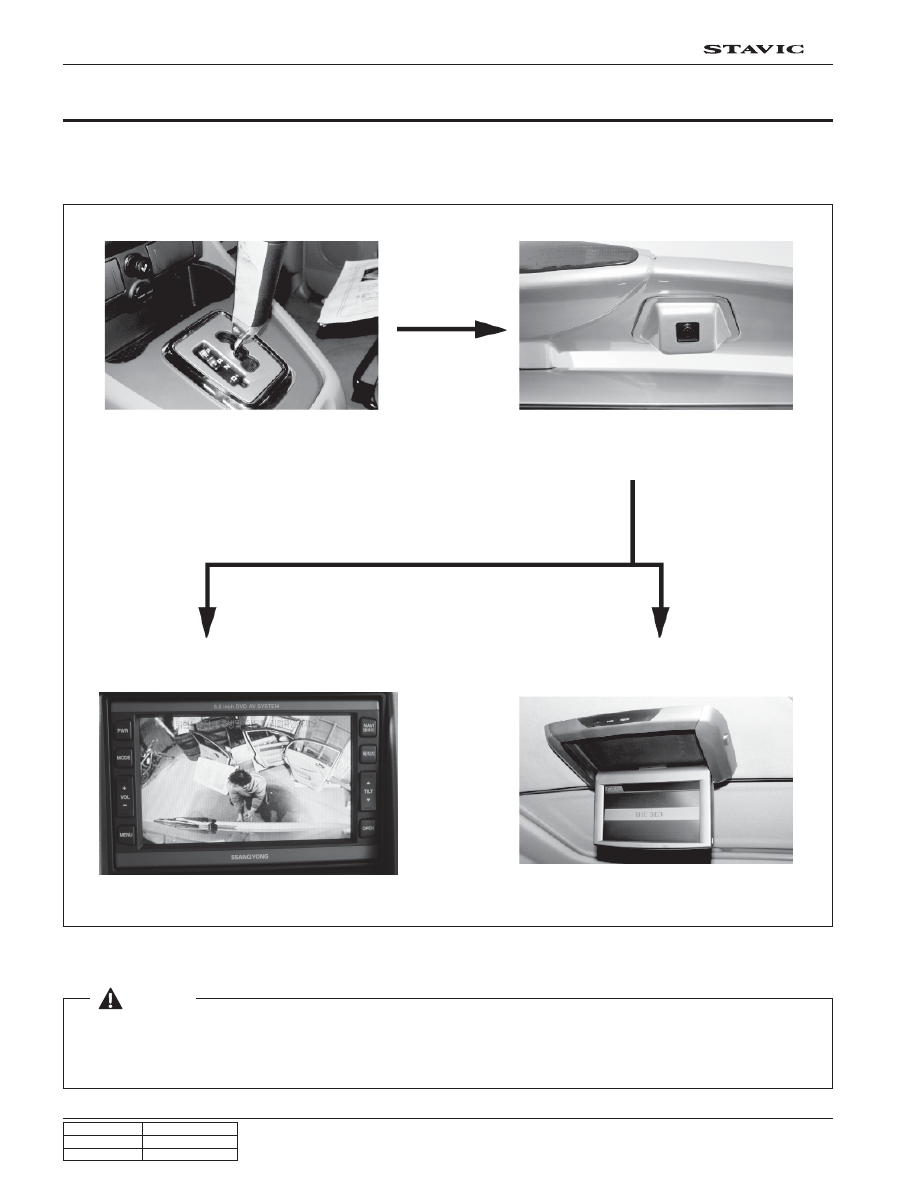

This is a supplementary parking aid system to display the rearview when the gear selector lever is moved into “R”
position.

The audio and video mode in rear A/V system are not changed when selecting R position while A/V system is in use.

“R” position

Operates only when the gear selector lever is

in “R” position

Rearview camera

Front monitor

Rear monitor

The rear monitor displays the rearview only

when the A/V system is not in use.

Power supply

The rearview camera displays the rearview

 [Notice]

•

The real distance is different from what you see in monitor because the camera uses wide-angle lens.

•

Note that the display does not show everything in the rear area.

•

Keep the camera lens clean with a lens cleaner.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

PARKING ASSISTANCE SYSTEM

STAVIC - 2004.09

13

2H

1. OPERATIONAL PRINCIPLE OF REARVIEW CAMERA

In the rearview camera equipped vehicle, the monitors display when selecting “R” position for safe parking. The operating
conditions are as below:

General

When selecting R position while A/V system is in use:

• The video mode in front A/V system is changed to rearview monitoring mode. However, the audio mode stays on.

• The video mode in front A/V system resumes when shifting out from “R” position.

• The audio and video mode in rear A/V system are not changed.

When selecting R position while A/V system is not in use:

• Both monitors are automatically turned on to display rearview.

• Both monitors are automatically turned off when shifting out from “R” position.

Operating Conditions and Modes of Rearview Camera

The rearview camera cannot operate alone. If the gear selector lever stays in “R” position more than 3 seconds with
the ignition key “ON” or engine running, the rearview appears on the monitors automatically regardless of displays
by head unit.

Auto mode

* Automatic operating mode

When selecting R position while A/V system is not in use (Ignition switch “ON”, engine running):

• Both monitors are automatically turned on to display rearview.

• Both monitors are automatically turned off when shifting out from “R” position.

When selecting R position while A/V system is in use (Ignition switch “ON”, engine running):

• The video mode in front A/V system is changed to rearview monitoring mode. However, the audio mode stays on.

• The video mode in front A/V system resumes when shifting out from “R” position.

• The audio and video mode in rear A/V system are not changed.

 [Notice]

When the rearview mode is activated, the AV system doesn’t work even though the buttons on the AV unit are pressed.

However, the monitor angle can be adjusted when the AV system is changed to the rearview mode with the head unit turned
off. And, the monitor angle and volume can be adjusted when the AV system is changed to the rearview mode with the head
unit turned on.

 [Notice]

•

The real distance is different from what you see in monitor because the camera uses wide-angle lens.

•

Note that the display does not show everything in the rear area.

•

Keep the camera lens clean with a lens cleaner.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

PARKING ASSISTANCE SYSTEM

STAVIC - 2004.09

14

2H

2. REARVIEW CAMERA OPERATION

The reverse signal works as an operation signal for rearview camera. If it receives reverse signal, the rearview camera is
turned on even though the AV unit is turned off.

The rearview camera consists of AV unit (including monitor), reverse signal, battery voltage and rearview camera.

The AV unit receives the power from battery and if it receives the reverse signal, supplies the power to rearview camera.
When the rearview camera operates, it transmits color video signal to the A/V unit then the rearview is displayed on the
monitor.

3. REARVIEW CAMERA INSTALLATION

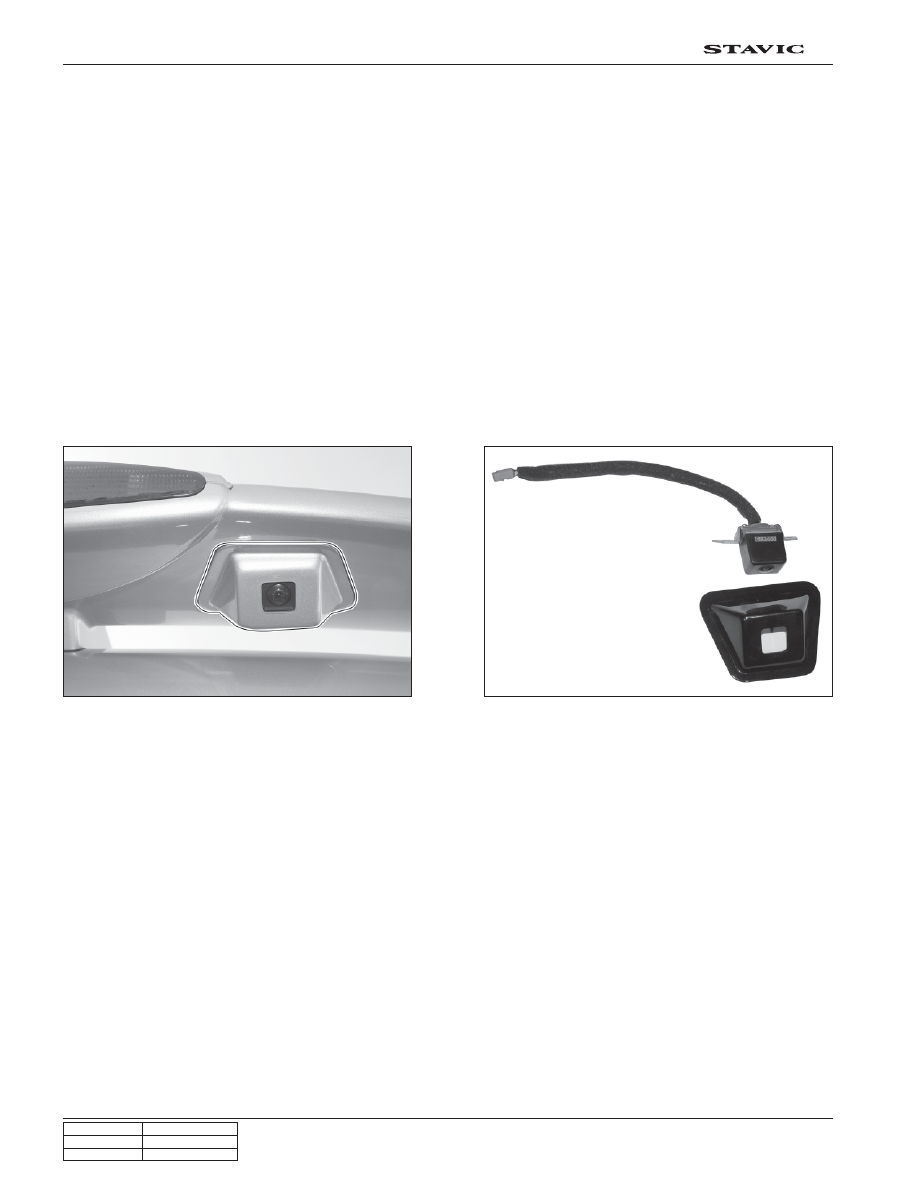

The rearview camera is securely installed on the rear spoiler with high torque and strong adhesive. Do not apply exces-
sive force to remove it. Otherwise, it could be damaged.
