Removal and Installation

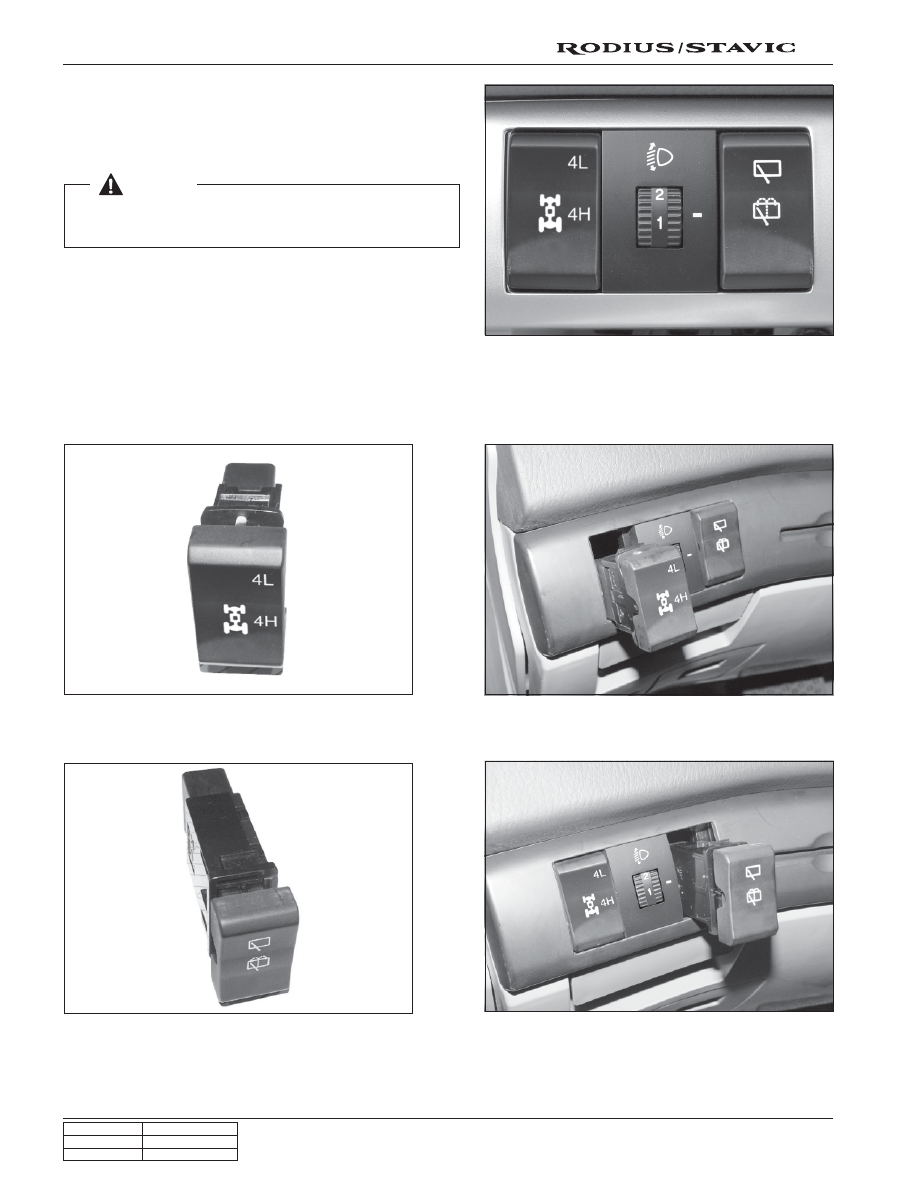

1. Remove the driver side lower switch panel and remove

the switch bezels.

 [Notice]

Be careful not to damage the surroundings during its removal
procedures.

2. Disconnect the connectors and remove the switches.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

19

2E

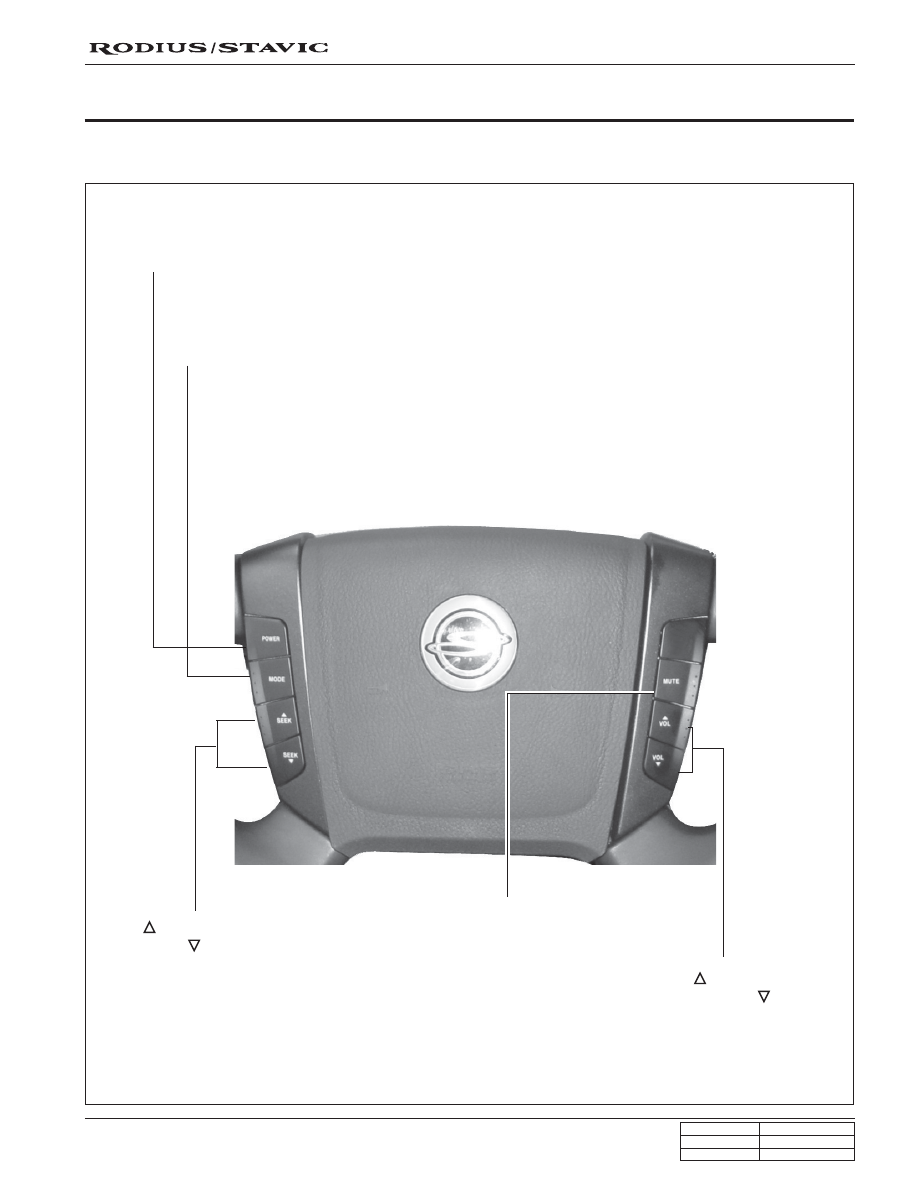

SWITCHES ON STEERING WHEEL

1. AUDIO REMOTE CONTROL SWITCH

POWER

Turns on and off the audio system.

MODE

Changes the audio mode in order as below:

• In radio mode

- Press briefly: Manual searching for a station.

- Press and hold: Automatic searching for a station.

• In CD (DVD) player/Cassette tape mode

- Press briefly: Replay next/previous track.

- Press and hold: Move forward/backward in current tract.

SEEK

SEEK

VOLUME

VOLUME

Increases or decreases the volume.

MUTE

Stops audio output from audio system.
To resume the audio output, press the
button again.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

20

2E

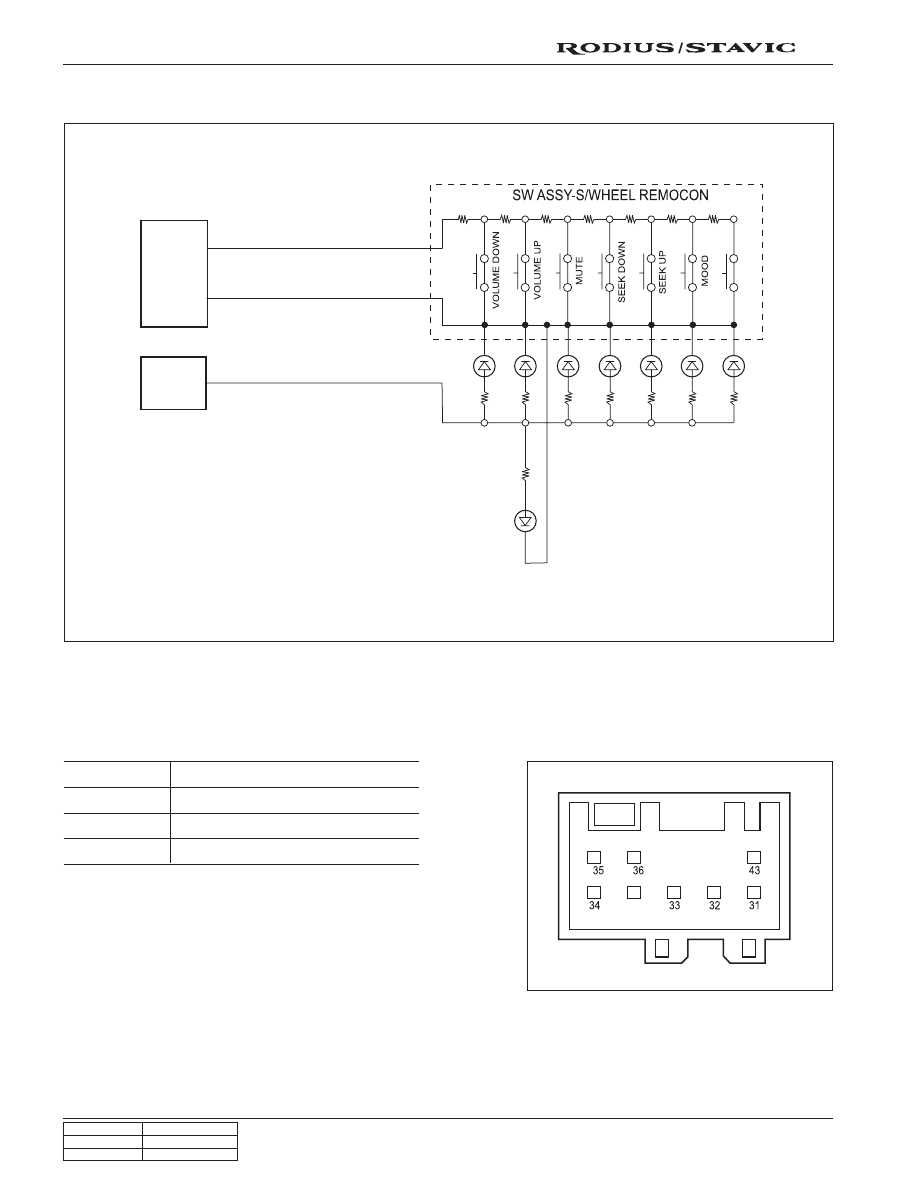

2. CIRCUIT DIAGRAM OF AUDIO REMOTE CONTROL SWITCH

Audio

switches

Tail

lamp
relay

Pin number

31

32

33

Descriptions

Audio signal

Audio ground

Tail lamp relay

POWER ON/OFF

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

21

2E

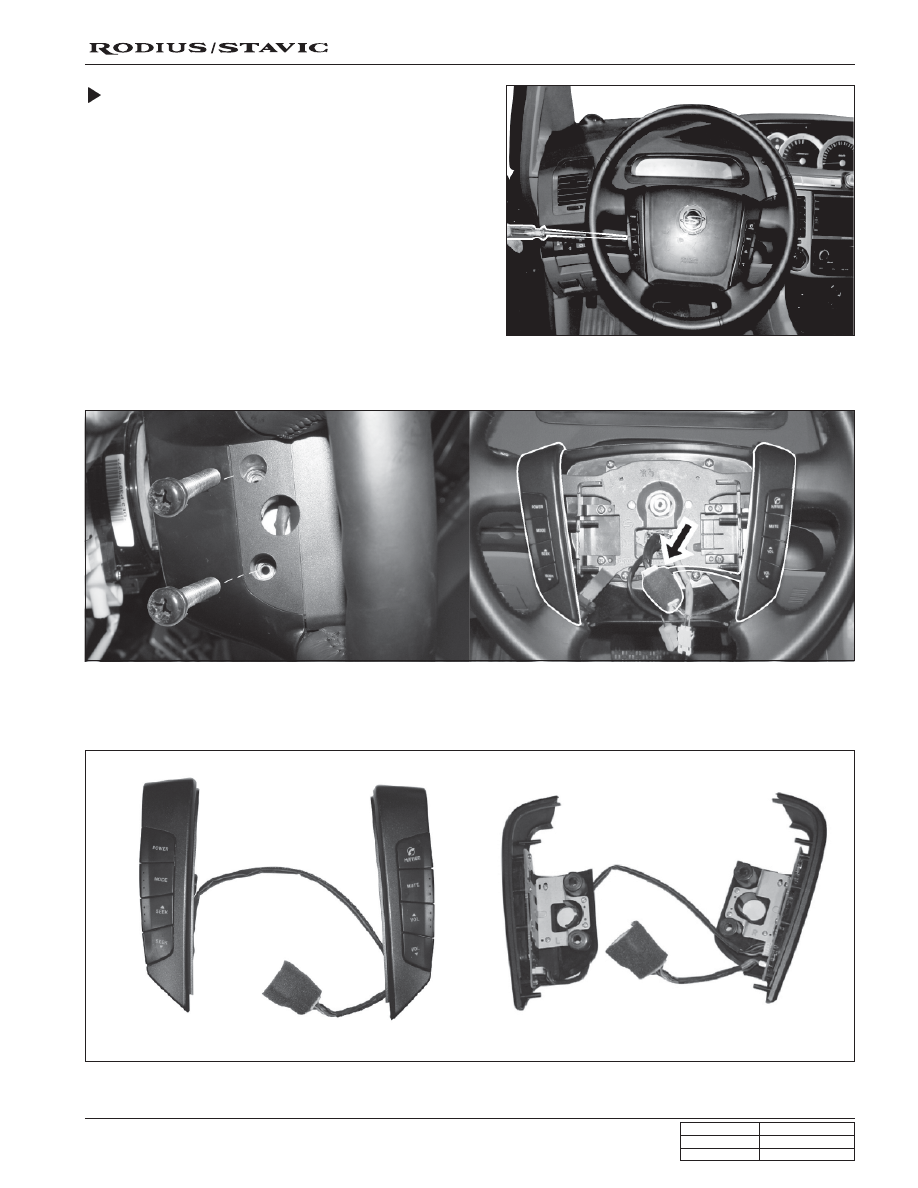

Remote control switch on steering
wheel

1. Remove the screws at both sides.

2. Remove the air bag module (horn) from the steering

wheel.

4. Remove the remote control switch from the steering wheel.

3. Unscrew the bolts and disconnect the remote control switch connector.
