SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 248

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

2

2E

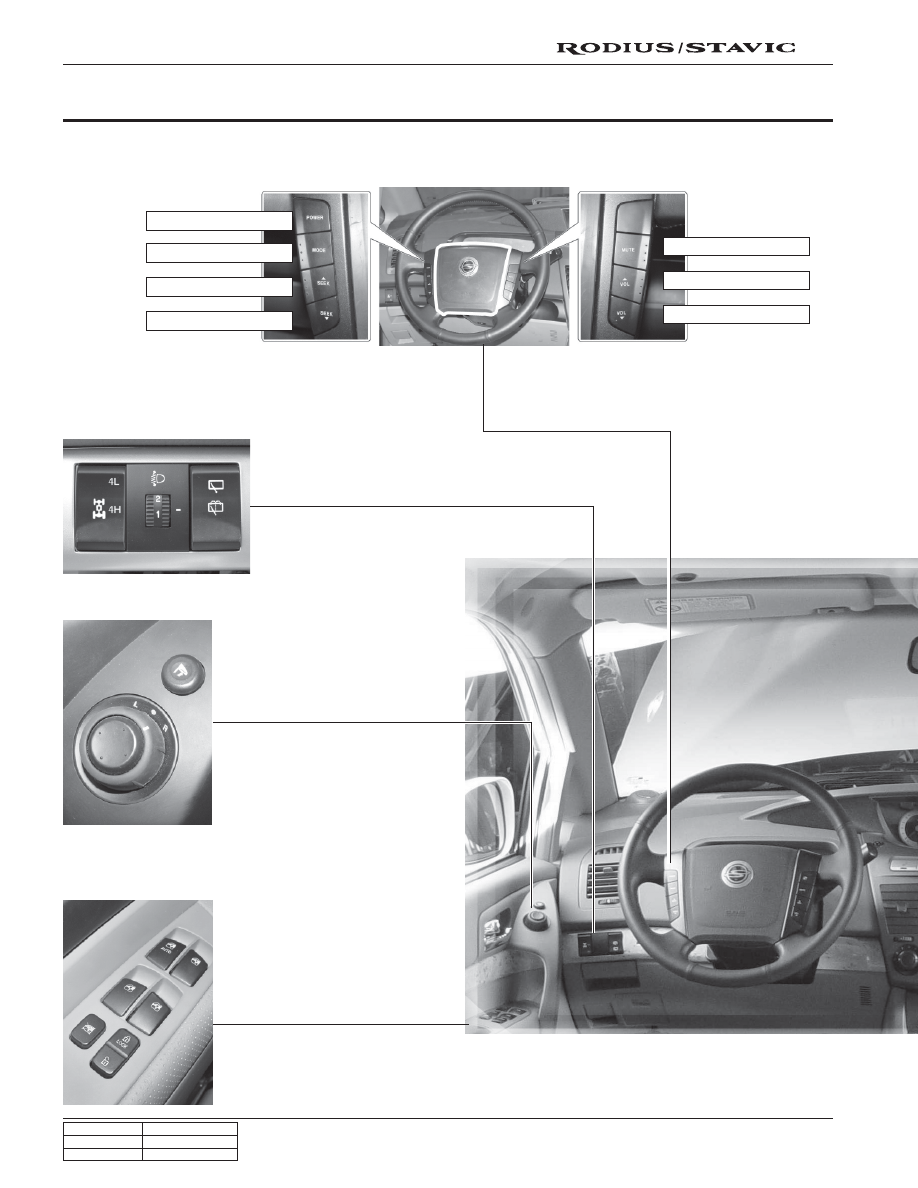

INTERIOR SWITCHES

4WD switch and rear

washer/wiper switch

Outside rearview mirror control

and folding switch

Window switch

Audio remote control switch

Audio power button

Mode button

SEEK button – Up

SEEK button - Down

Mute button

Volume button - Up

Volume button - Down

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

3

2E

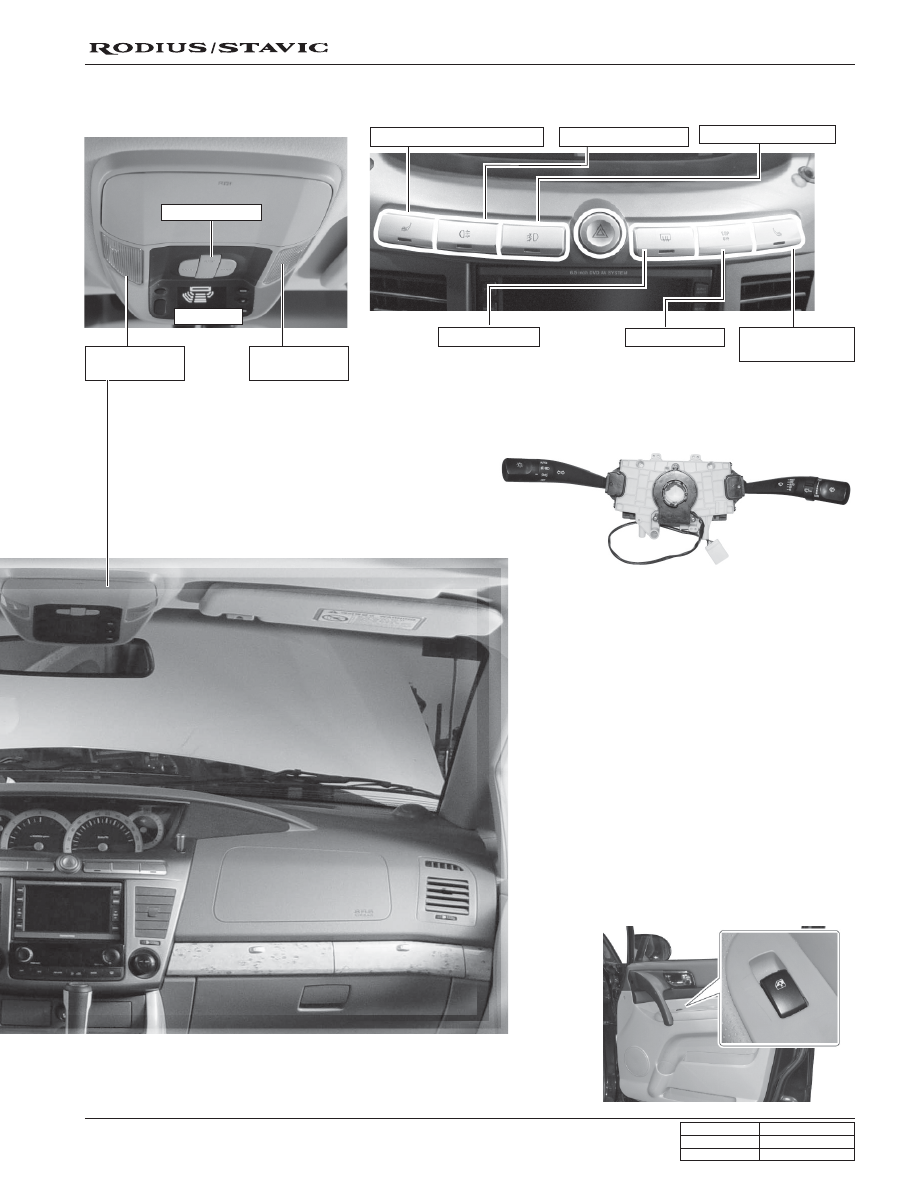

Multifunction switch

Room lamp and sun roof switch

(multi-meter integrated type)

Sun roof switch

Front room lamp

operation

Multi-meter

Front room lamp

operation

Driver’s seat warmer switch

Hazard warning flasher switch

Window switch

Front fog lamp switch

Rear fog lamp switch

Defogger switch

ESP

OFF

 switch

Passenger’s seat

warmer switch

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

4

2E

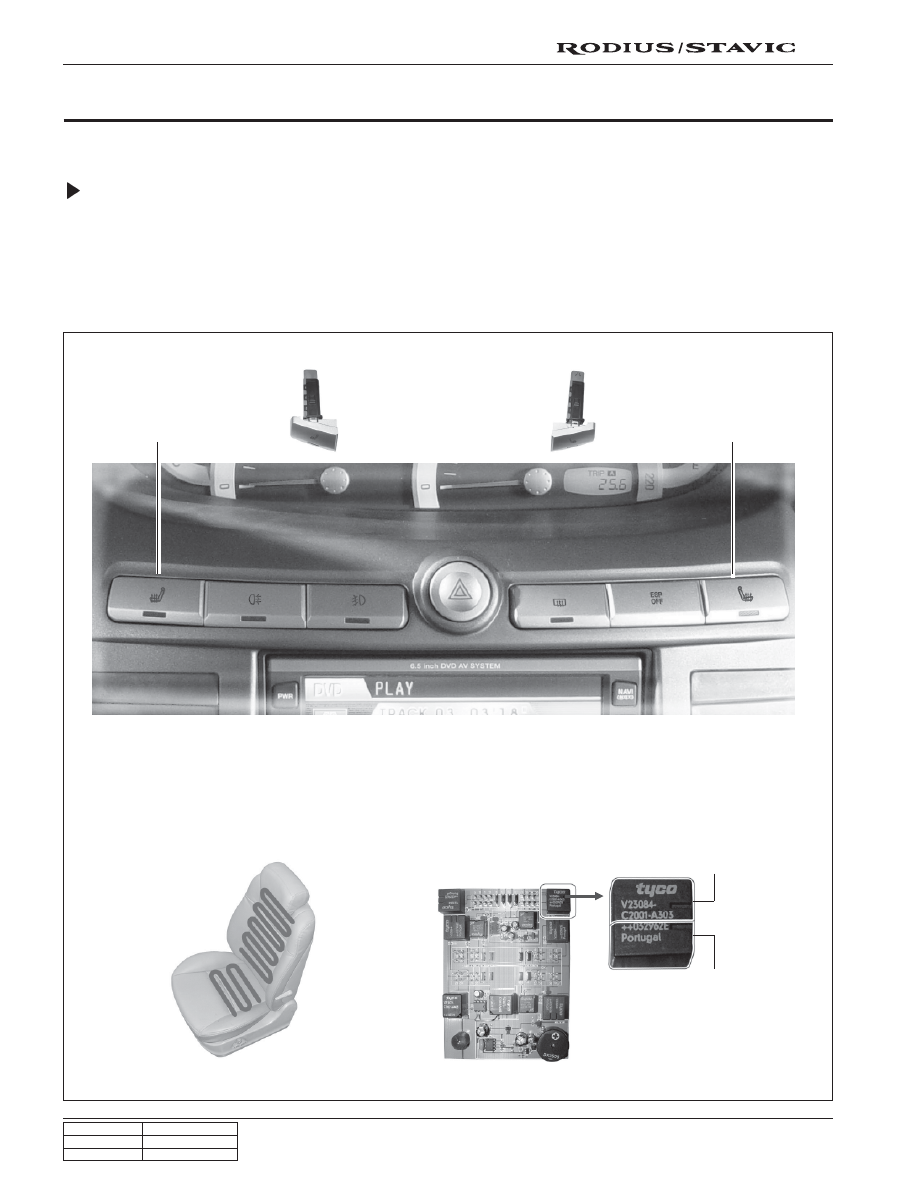

SWITCHES

1. CENTER SWITCH

Seat Warmer Switch

The seat warmer relay is installed in ICM box and the seat heated wire is installed in the driver’s and passenger’s seat.

When the seat warmer switch is operated, the seat cushion and seatback gets warm. If the temperature of seat surface
gets 40 ± 5°C, the thermistor cuts or connects the power to heated wire to maintain the temperature to the specified
level.

The is no control switch and unit to control the temperature of the seat surface temperature.

Driver’s seat warmer

switch

Passenger’s seat

warmer switch

Seat heated wire (driver’s and

passenger’s seat)

Seat heated wire (driver’s and passenger’s seat)

– in ICM box

Seat heated wire relay - LH

Seat heated wire relay - RH

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

5

2E

Rated capacity: DC 12V, 1A

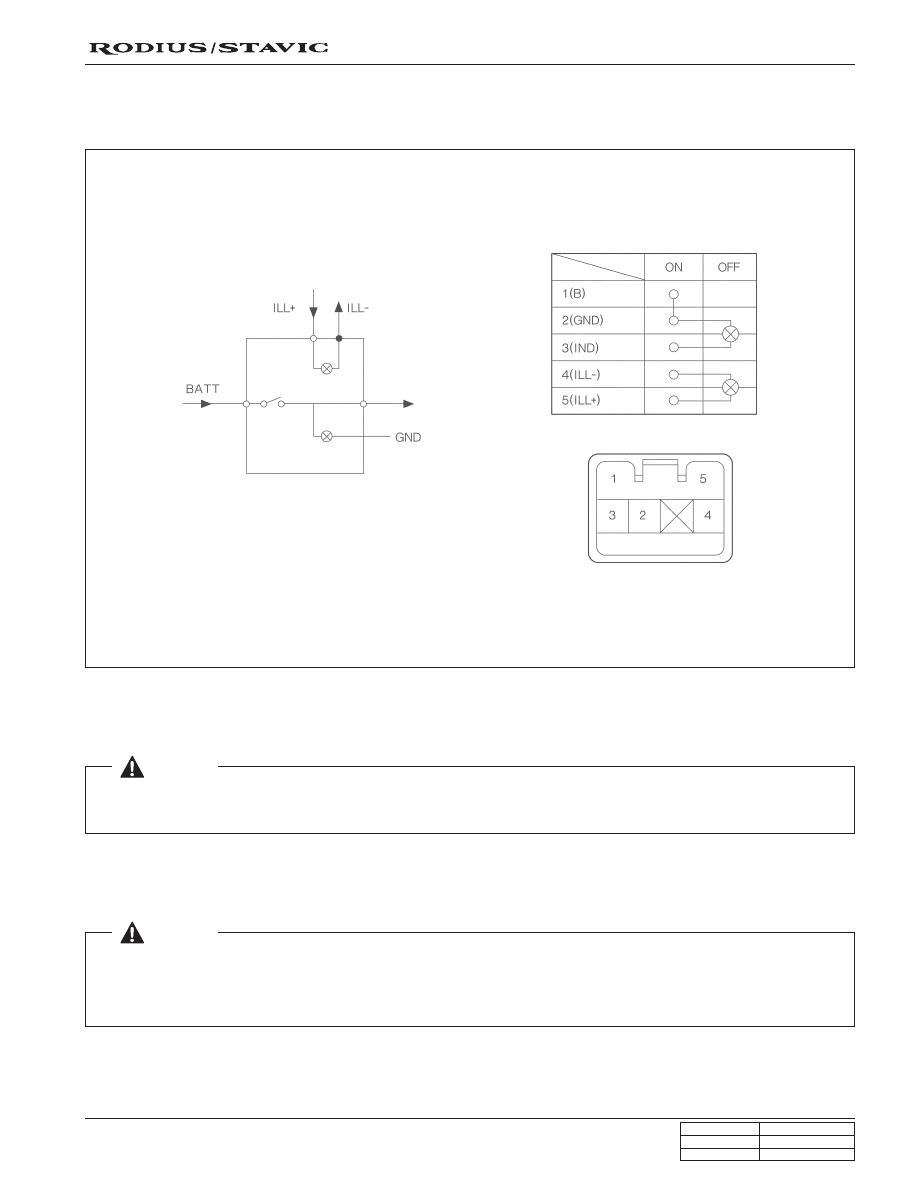

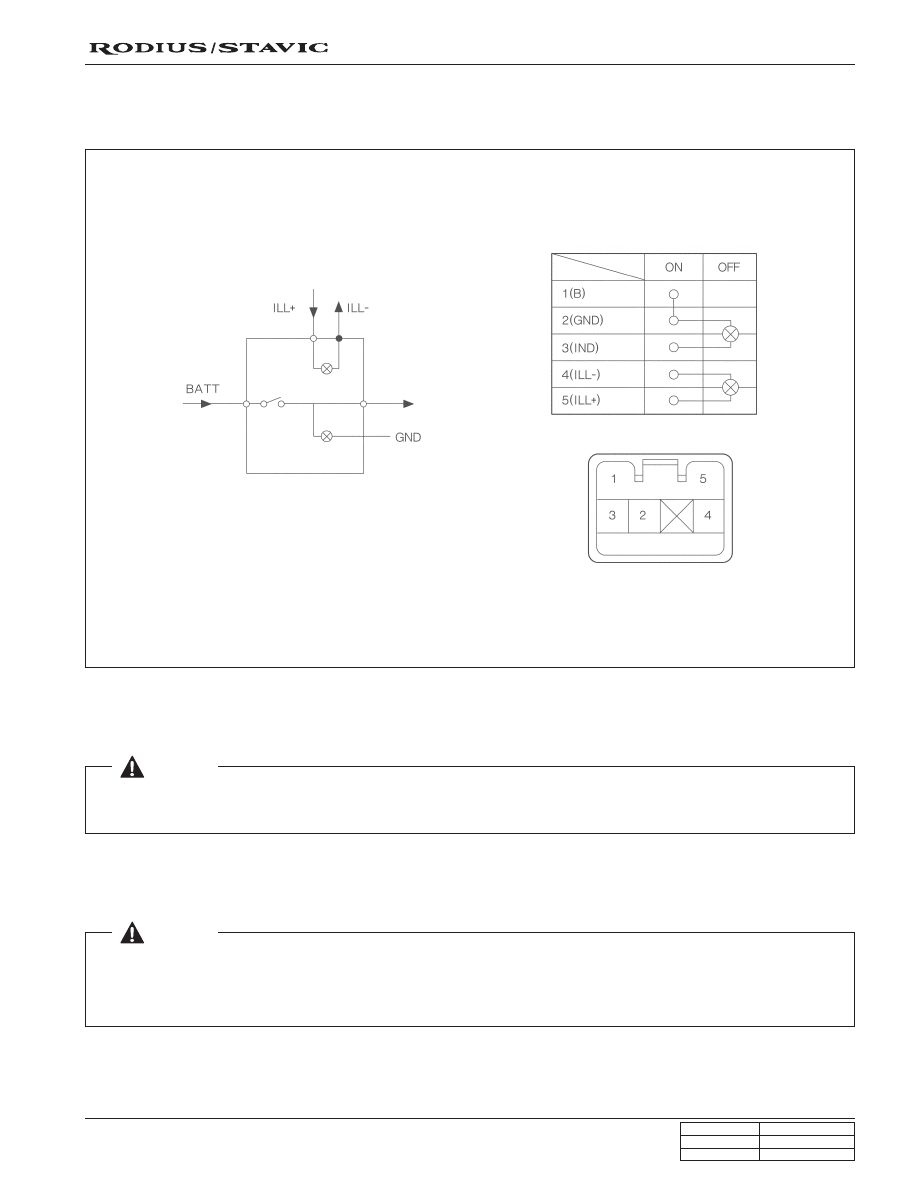

Connector Terminals and Circuit

- Internal circuit diagram of seat warmer switch

Seat warmer relay
(in ICM box)

 [Notice]

- Do not place anything sharp on the seat.

- When cleaning the seats, do not use organic solvents such as benzene or thinner.

- Do not use this function when the engine is not running. The battery could be discharged.

 [Notice]

The temperature of seat surface should be increased over 20

°

C within 3 minutes after turning on the switch while a person

(height: 175 ± 5 cm, weight: 75 ± 5 kg).
