3) HBA (Hydraulic Brake Assist System)

(1) Purpose

HBA (Hydraulic Brake Assist) system helps in an emergency braking situation when the driver applies

the brake fast, but not with sufficient pressure, which leads to dangerously long braking distance. ECU

recognizes the attempt at full braking and transmits the signal calling for full brake pressure from the

hydraulic booster. An inexperienced, elderly or physically weak driver may suffer from the accident by

not fully pressing the brake pedal when hard braking is required

under emergency. The HBA System increases the braking force under urgent situations to enhance

the inputted braking force from the driver.

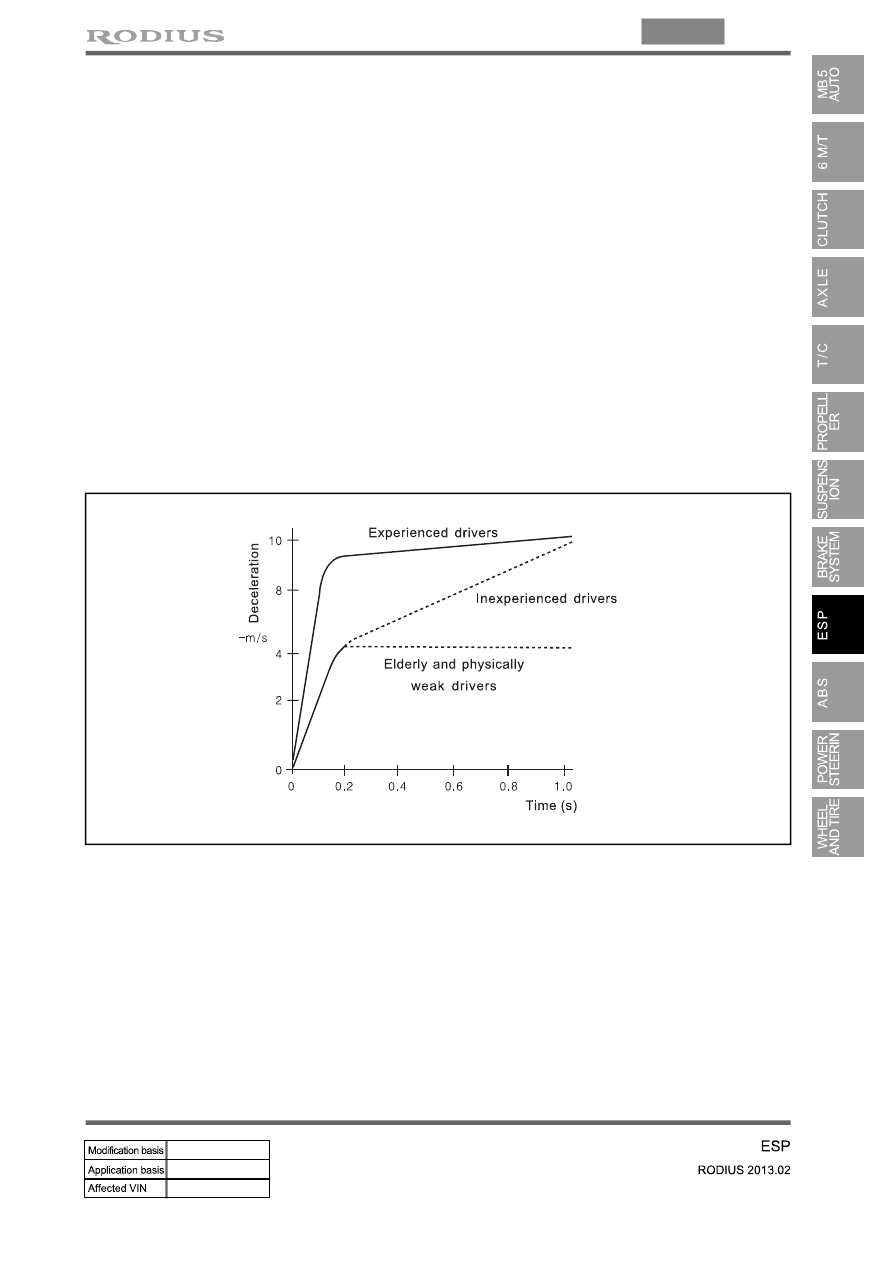

Based on the fact that some drivers depress the brake pedal too soft even under when hard braking is

necessary, the HECU system is a safety supplementary system that builds high braking force during

initial braking according to pressure value of the brake pressure sensor and the pressure changes of

the pressure sensor intervals.

When the system is designed to apply high braking force when brake pedal is depressed softly by an

elderly or physically weak driver, the vehicle will make abrupt stopping under normal braking situation

due to high braking pressure at each wheels.

09-18

(2) Operation

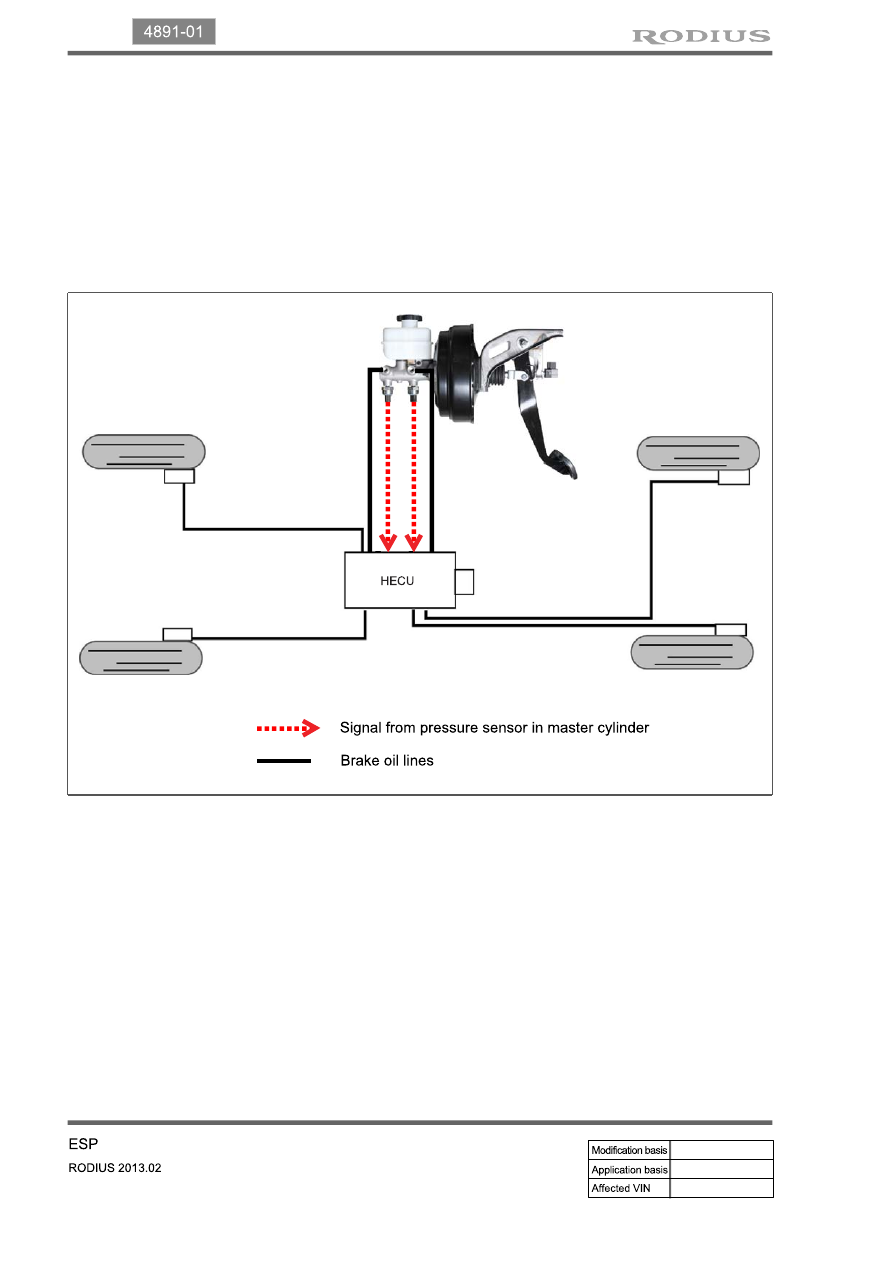

The brake pressure value and the changed value of the pressure sensor are the conditions in which

the HBA System operates. There are 2 pressure sensors under the master cylinder. When the ESP

ECU system determines that emergency braking is present, the pump operates, the brake fluid in the

master cylinder is sent to the pump and the braking pressure is delivered to the wheels via the inlet

valves.

If the drive depress the brake pedal slowly, the pressure change is not high. In this case, only the

conventional brake system with booster is activated.

09-19

4891-01

4) ARP (Active Roll-Over Protection)

The ARP (Active Roll-over Protection) system is a safety assistant device that minimizes, by controlling

brakes and the engine, the physical tendency of the vehicle rollover during sharp lane changes or U-

turns. For the system, software is added to the existing ESP system and no additional device or switch

is needed. One must note that the ARP system, just as general assistant devices including the ABS, is

only a safety assistant device using the ESP system and its function is useless when the situation

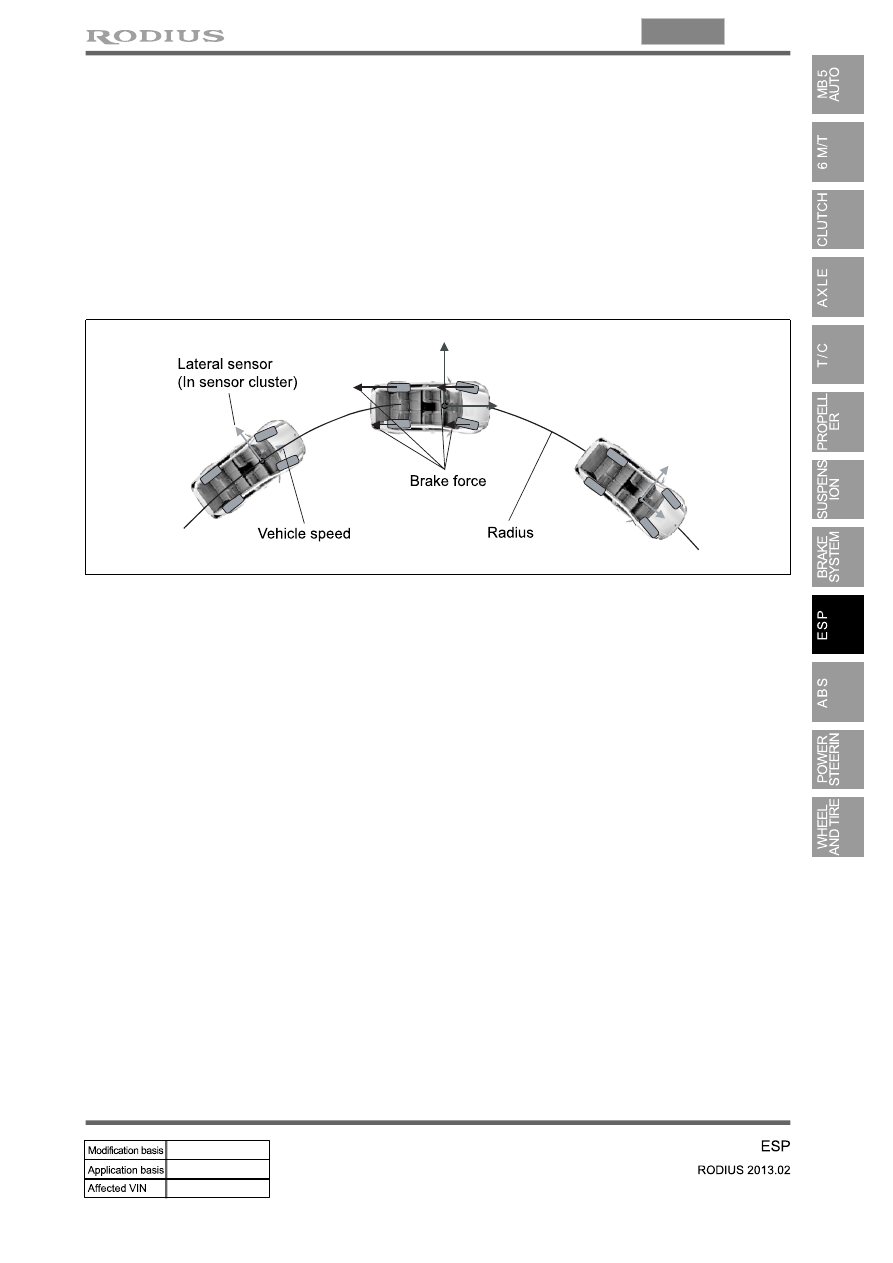

overcomes the physical power. Following picture shows how the ARP compensates the vehicle

position by varying each wheel's braking power to overcome the physical tendency of the vehicle

rollover during sharp turns.

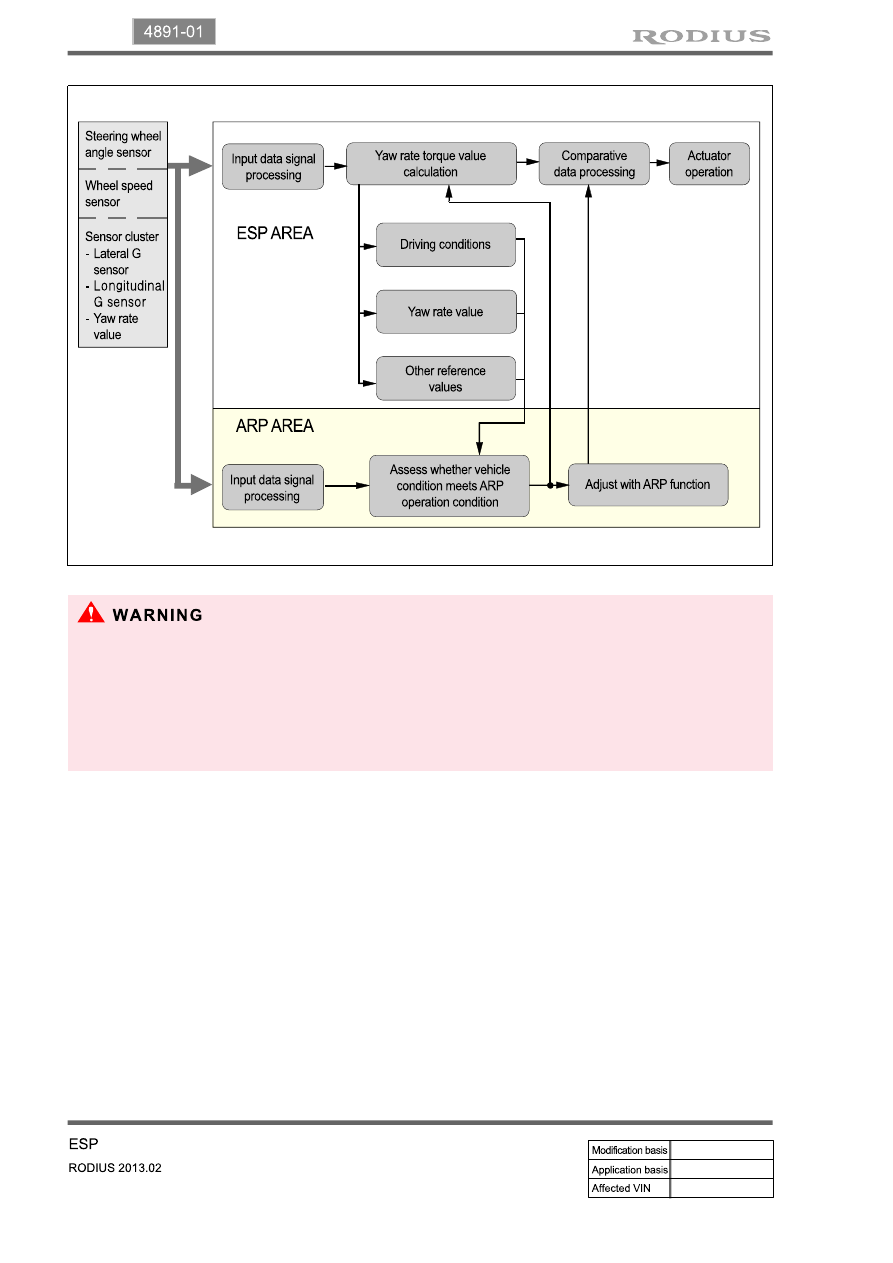

The vehicle driving condition is controlled by the internally programmed logic according to the input

signals from wheel speed sensor, steering angle sensor and lateral sensor.

09-20

During the ARP operation, vehicle safety (rollover prevention) takes the first priority and thus,

stronger engine control is in effect. Consequently, the vehicle speed decreases rapidly, so the

driver must take caution for the vehicle may drift away from the lane.

The ARP function is still available even when turning off the ESP system by ESP OFF switch.

However, if the ESP system is shut off due to a system failure, the ARP system is also not

available.

-

-
