08-12

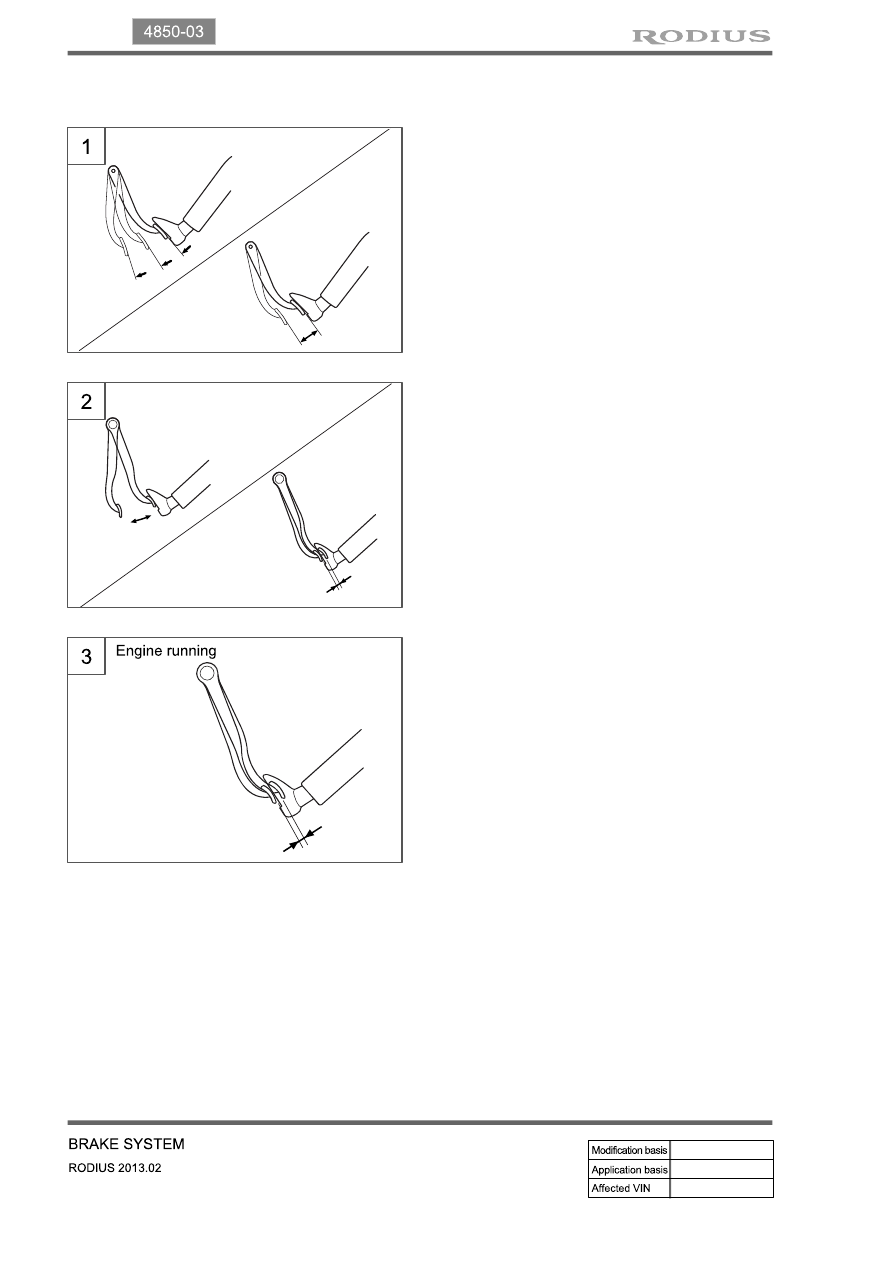

Let the engine run for 1 to 2 minutes and

stop it. If the brake pedal stroke is shortened

as pumping the brake pedal, the system is

normal. If not, the system is defective.

1.

Depress the brake pedal several times with

engine off. If the brake goes down when

starting engine with pedal depressed, the

system is normal. If not, the system is

defective.

2.

If the above three checks are OK, the system is

normal. If any condition is not met, check the

valve, vacuum hose and brake booster.

3) Brake Booster

OK

NG

Engine stopped

Engine running

Depress the brake pedal when the engine is

running. If the pedal height is not changed

for 30 seconds after stopping the engine, the

system is normal. If not, the system is

defective.

3.

08-13

4850-03

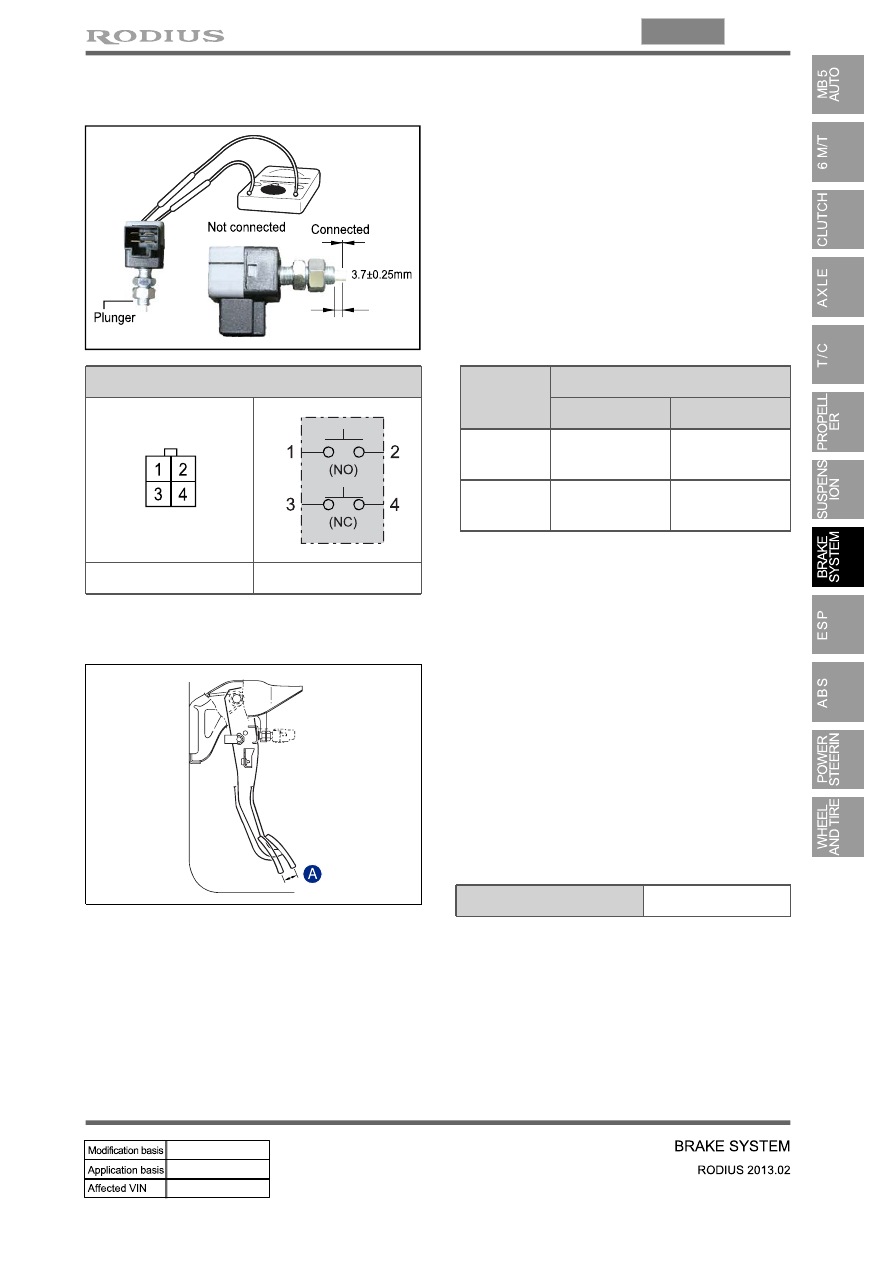

Stop Lamp Switch

Connector

Internal circuit

4) Stop Lamp Switch

Connect the multimeter to stop lamp switch

connector (N.O.) and check if the continuity

exists when pushing in the plunger. If the

continuity doesn't exist, the stop lamp switch

is normal.

Connect the multimeter to stop lamp switch

connector (N.C.) and check if the continuity

exists when pushing in the plunger. If the

continuity doesn't exist, the stop lamp switch

is normal.

1.

2.

Type

Plunger

Pushed

Not pushed

N.C Continuity

Not continuity

N.O

Not continuity

Continuity

5) Pedal Free Play

Check the pedal free play with below

procedures:

-

Stop the engine.

Depress the brake pedal several times to

discharge the vacuum pressure of the

brake booster.

Depress the brake pedal until you feel the

resistance, and measure the movement

(A).

1.

2.

3.

Specified value(A)

3 ~ 10 mm

If the free play is below the specified value, check if

the clearance between the outer case of the stop

lamp and the brake pedal is within the specified

range. If the clearance is out of the specified range,

the clearance between the clevis pin and the brake

pedal arm is too large. Check the components and

repair if needed.

08-14

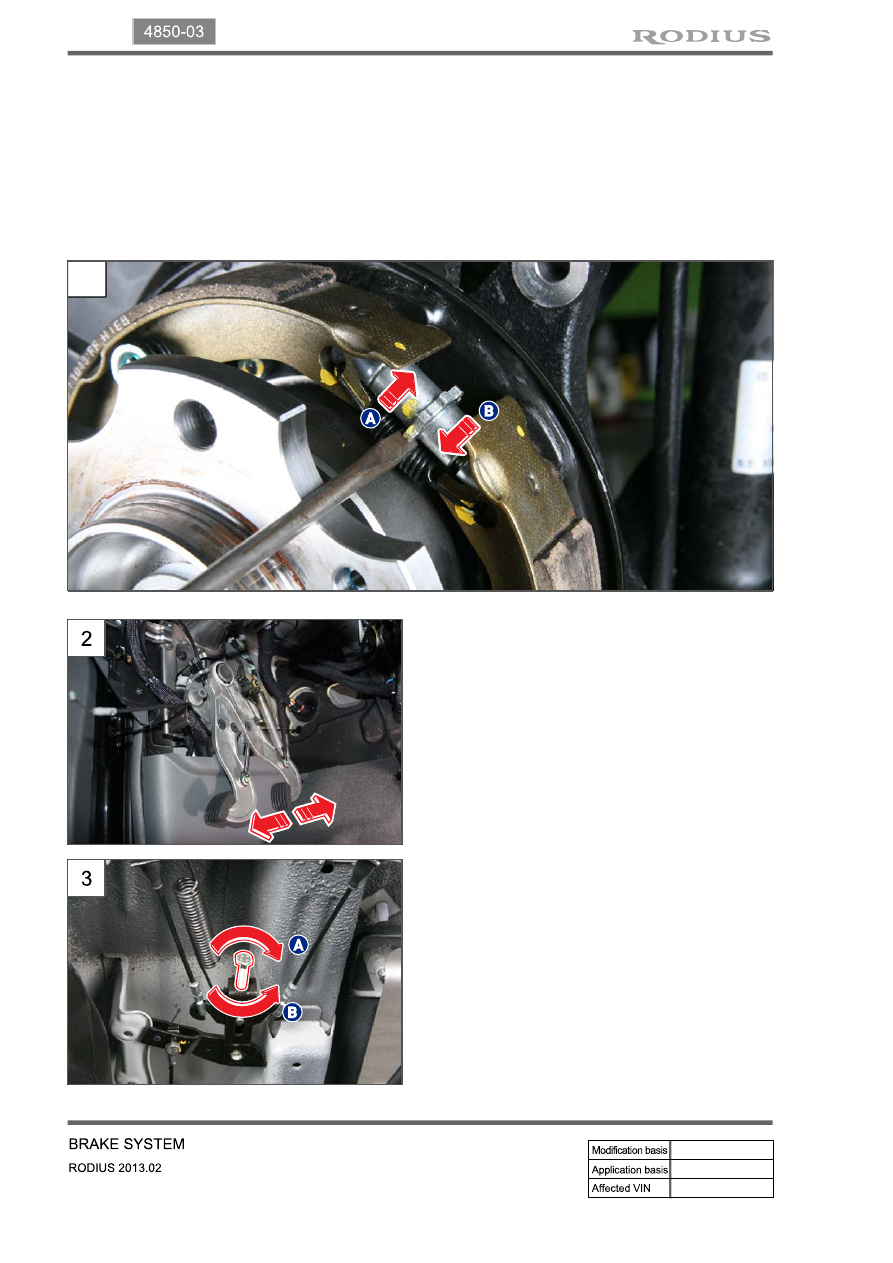

Parking Brake Adjustment

▶

Adjust the brake adjuster using a flat-bladed screwdriver so that the parking brake shoe is tight on the

inner face of the brake disk when installing it, then unscrew the adjuster by 4 ~ 5 notch. (Clearance

between the inner face of brake disk and brake shoe should be about 0.2 mm)

1.

Turn in direction of (A) to decrease the clearance

Turn in direction of (B) to increase the clearance

-

 -

1

Adjust the parking brake shoe, depress the

parking brake pedal 5 times and release it.

2.

Adjust the equalizer assembly bolt under

the vehicle so that the equalizer assembly

stops at the first notch when the parking

brake pedal is depressed with a force of 19

to 22 kgf.

3.

Turn in the direction of (A) to tension the

parking brake cable

Turn in the direction of (B) to loosen the

parking brake cable

-

-

08-15

4850-03

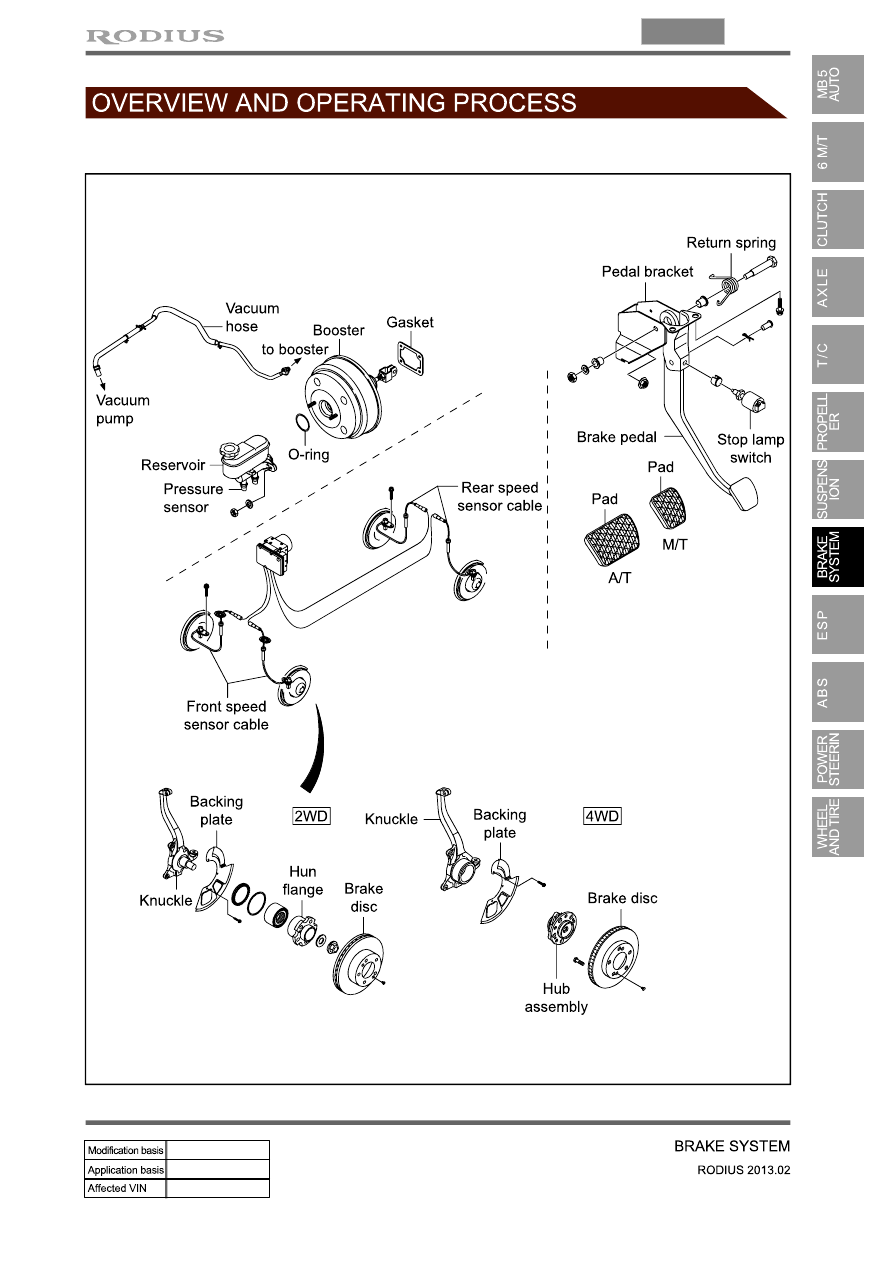

1. COMPONENTS
