09-12

6. FLOW CHART

11-3

8910-05

1. SPECIFICATION

1) Audio Head Unit

Item

Specification

Audio

Voltage

DC 14.4V

Operating voltage

DC 10.8V~16.0V

Output

45W/1ch 4ch

Current consumption

5 A or less Up to 10 A

Leakage current

3 mA or less

Radio

Frequency

FM: 87.5~108MHz

AM: 531~1602KHz

MW: 522~1620KHZ

LW: 144~290KHZ

Preset

FM1: 6ch
FM2: 6ch

AM: 6ch

MW : 6ch

LW : 6ch

Usable sensitivity

AM: 25dBu

FM: 10dBu

S/N raito (limit value)

AM: 54dB

FM: 60dB

LCD

Type

FSTN

Operating voltage

9.0V VDD: 3.0~3.3V

Operating temperature

-30℃ ~ +80℃

Operating temperature

-40℃ ~ +85℃

Size (W x H)

132X36

Bluetooth

Component

MD-5XR (Bluetooth multimedia module)

Application technology

Bluetooth 2.0+EDR (Enhanced Data Rate)

Specification

Supports HFP, A2DP, AVRCP profile formats

(HFP, A2DP: profile for calling)

(AVRCP: profile for listening music)

11-4

2) Micro Pole Antenna

3) Speaker

Item

Specification

Front tweeter speaker

Speaker size

42 mm

Max. input

25 W

Impedance

5 KHz of 4Ω ±15%

Front door speaker

Speaker size

6.5 inch

Max. input

40 W

Impedance

400 Hz of 4Ω ±15%

Quarter speaker

Speaker size

171X241 mm, 6X9 inch

Max. input

40 W

Impedance

300 Hz of 4Ω ±15%

Item

Specification

Operating current

Max. 150 mA

Operating voltage

DC 10.5 V ~ 16 V

Operating temperature

-30℃ ~ +60℃

Storage temperature

-40℃ ~ +80℃

I/O impedance

75Ω (FM)

4) Handsfree microphone

Item

Specification

Storage temperature

-30 ~ 80℃

Operating temperature

-40 ~ 85℃

Sensitivity

-35 ± 2 dB

Impedance

Up to 2.2 ㏀

S/N ratio*

60dB or higher

S/N ratio (signal to noise ratio): Describes noise level in relation to the signal level in dB

*

11-5

8910-05

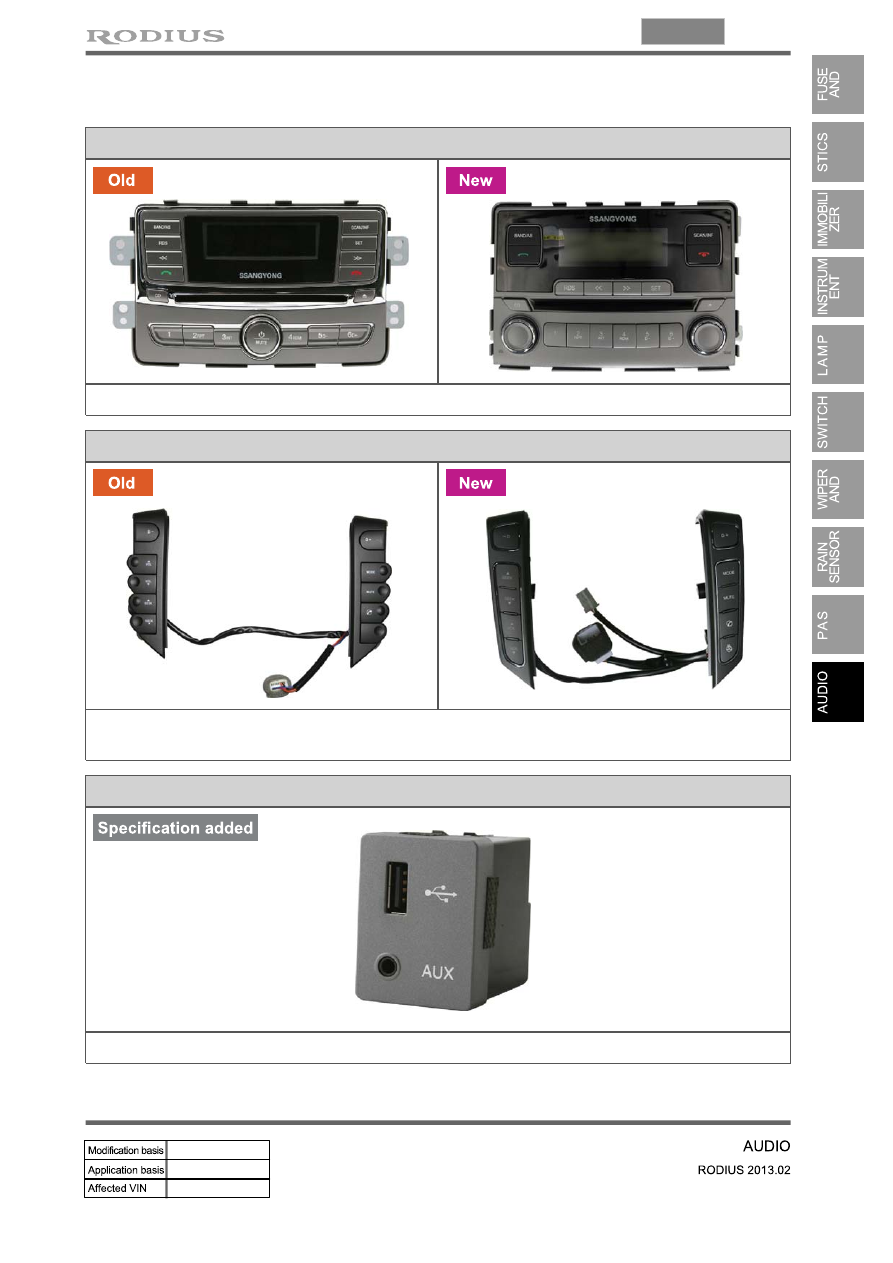

Audio head unit assembly

Bluetooth setting mode and design changed

Steering wheel switch

- Power button deleted, steering wheel heating (option) switch added
- Design changed

2. MAJOR CHANGES

USB/AUX jack assembly

Ø3.5 3-pole stereo AUX input and USB port used, USB/AUX jack assembly added
