04-5

8010-01

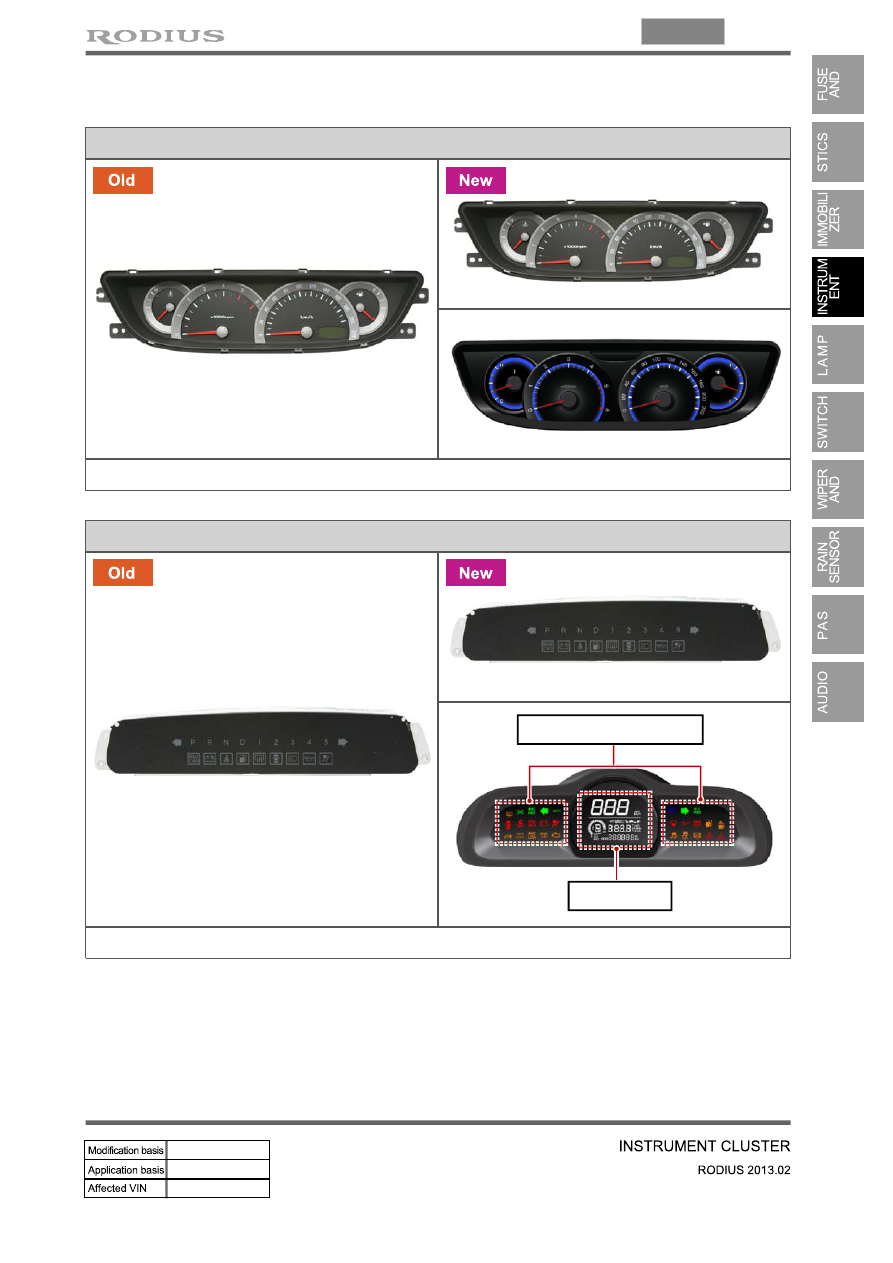

Warning box

- Warning box introduced

Instrument cluster

- Black face cluster introduced

2. MAJOR CHANGES

Warning/indicator lamp

LCD screen

04-6

Warning Box

Standard

Black face

Cluster

Standard

Black face

TRIP switch

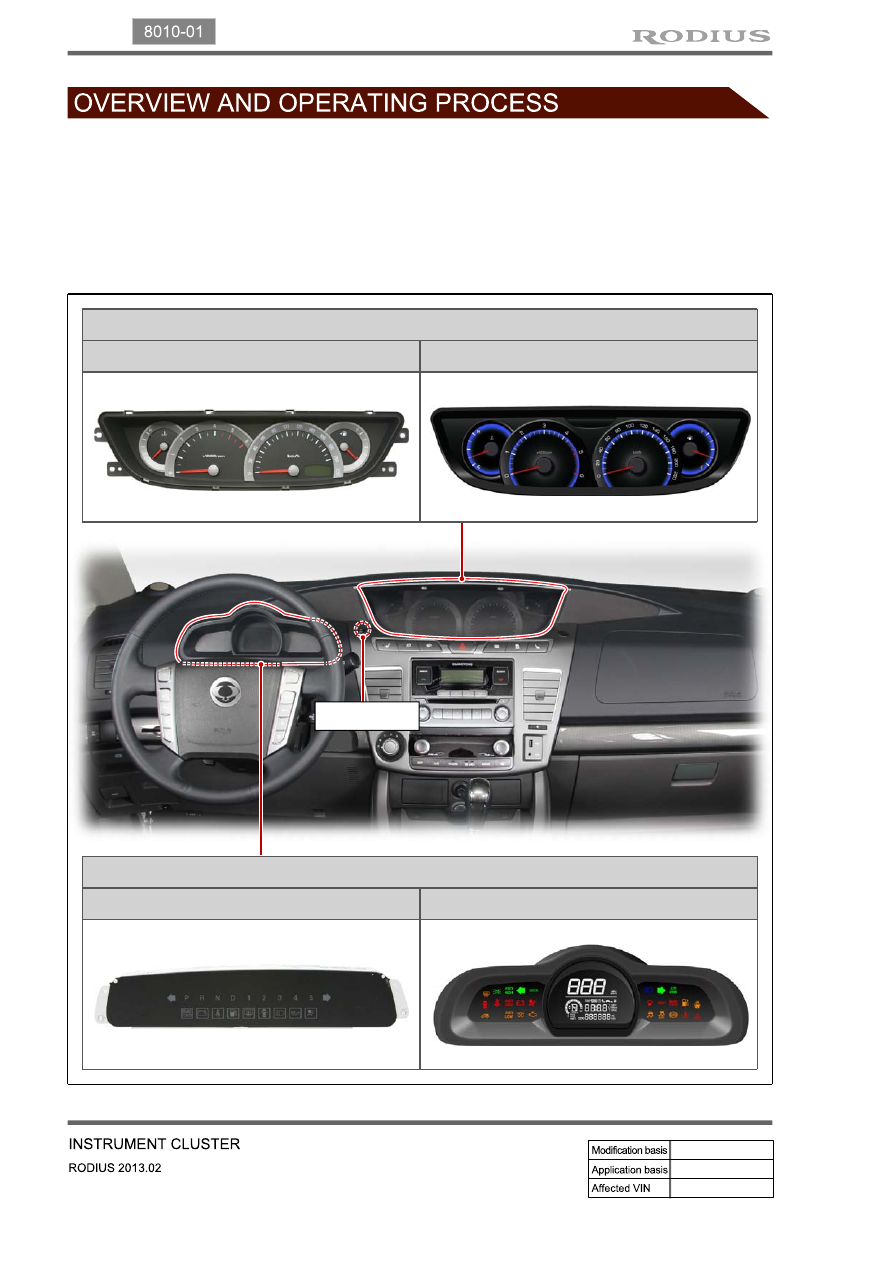

2. LAYOUT

1. OVERVIEW

The instrument cluster for this vehicle consists of the Meter cluster and the Warning lamp/Indicator

cluster.

07-3

8310-01

1. BULB SPECIFICATIONS

Description

Amount

Specification

(EU)

Specification

(General)

Exterior
lamp

Headlamp

High beam + DRL

2

55W + 15W

55W

Low beam

2

55W

←

Turn signal lamp

2

21W

←

Position lamp

2

5W

←

Front fog lamp

2

H16

←

Side repeater

2

5W

←

Rear
combination
lamp

Tail (stop) lamp

4

5W(21W)

←

Turn signal lamp

2

21W

←

Back-up lamp

2

16W

←

Rear fog lamp

2

21W

-

License plate lamp

2

5W

←

High mounted stop lamp

5

5W

←

Interior lamp Front room lamp

2

5W

←

Glove box lamp

1

5W

←

Door courtesy lamp

4

5W

←

Side room lamp

4

5W

←

Rear room lamp

1

5W

←

07-4

Front fog lamp

Fog lamp design changed

Headlamp

Design and function changed

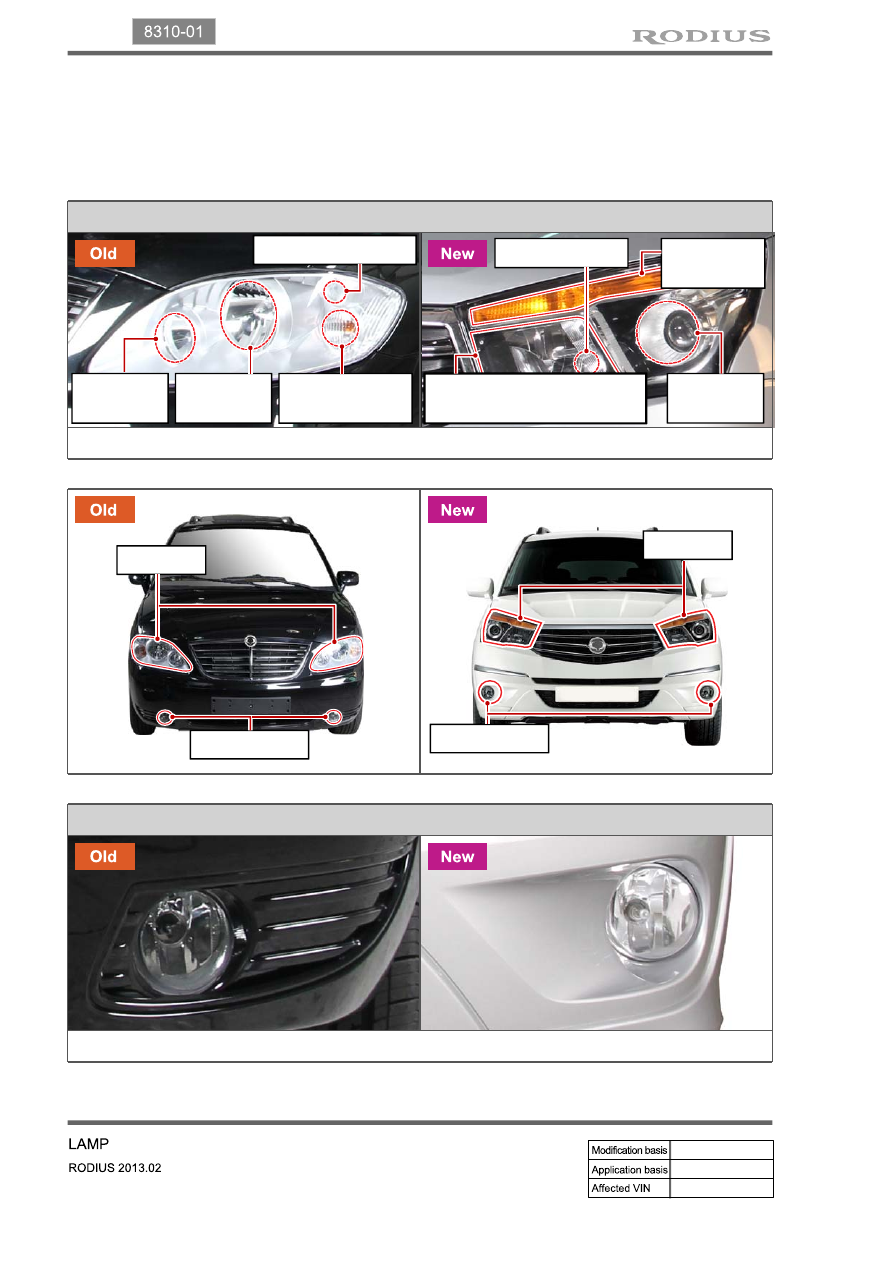

2. MAJOR CHANGES

1) Exterior Lamp

Front view

▶

Headlamp

Tail lamp (12V-5W)

Turn signal lamp

(12V-28W)

Low beam

(12V-55W)

High beam

(12V-55W)

Low beam

(H7-55W)

Tail lamp (W5W)

Turn signal

lamp (P21W)

High beam + DRL

(EU: 55W+15W, GEN: 55W)

Front fog lamp

Headlamp

Front fog lamp
