1. SPECIFICATIONS

Item

Item

Specification

Immobilizer

unit

Operating voltage

(CAN)

6.0 V to 16.0 V

(6.0 V ~18.0 V)

Operating temperature

-30℃ ~ 80℃

Coil inductance

420 uH ± 20 uH

Modulation method

FSK

(Frequency Shift Keying : frequency

displacement)

Frequency

134.2 KHz ± 4 KHz

Transponder

Frequency

134.2 KHz ± 4 KHz

Operating temperature

-40℃ ~ +85℃

Transponder coding

Up to 5

2. CAUTIONS

The vehicle owner must observe the service works when deleting the transponder codes or

registering additional keys.

In any cases, the immobilizer system can not be removed from the vehicle. If you attempt to

remove it and damage the system, starting will be impossible, so never attempt to remove,

damage or modify it.

The remote engine starter cannot be installed to the vehicle equipped with the immobilizer

system.

Do not drop or shock to the transponder in the ignition key as it may be damaged.

With a damaged transponder, the engine cannot be started.

For the vehicle with the immobilizer, there can be a problem in starting the vehicle or the system

error:

1.

2.

3.

4.

5.

6.

When more than one immobilizer keys come into contact with (each) other(s) or key is close

to any device sending or receiving electromagnetic fields or waves

When the ignition key is close to any electronic or electric devices such as lighting equipment,

security keys or security cards

When the ignition key is close to a magnetic or metal object or a battery

-

-

 -

03-4

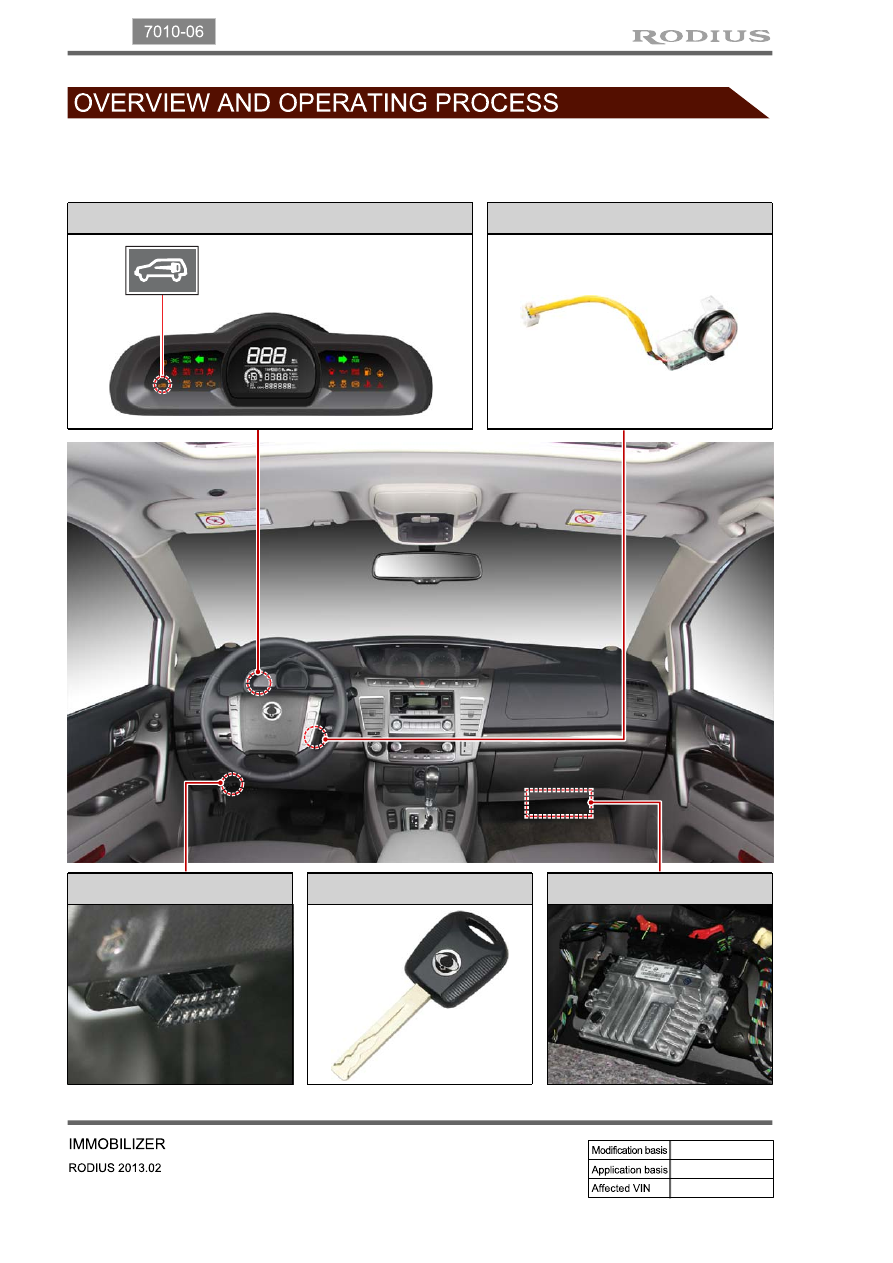

1. SYSTEM LAYOUT

1) Location

Immobilizer Warning Lamp

Immobilizer Unit

ECU

REKES Key

Diagnostic Connector
