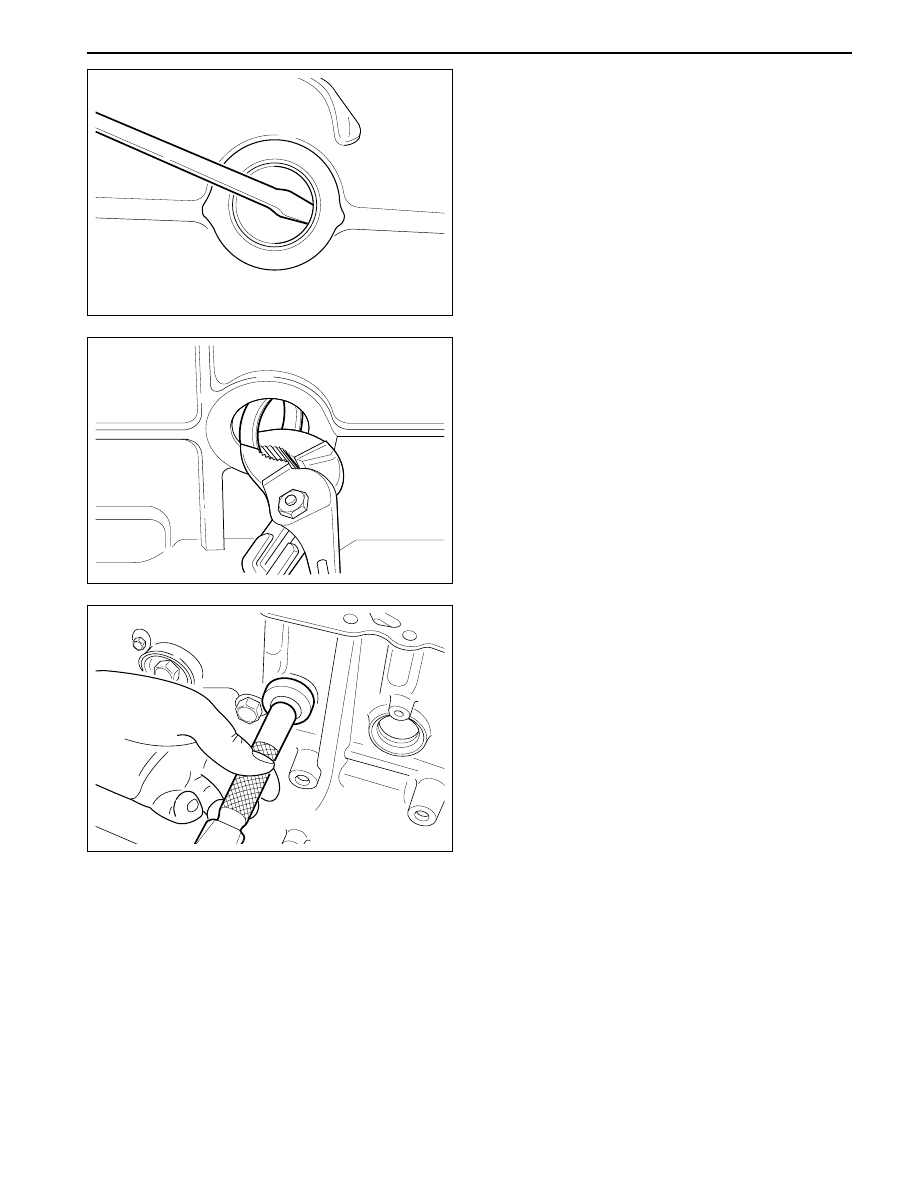

DIESEL ENGINE MECHANICAL 1B3-155 SSANGYONG Y200 YAD1B3Z0 YAD1B4B0 YAD1BK80 Tools Required 102 589 00 15 00 Drift 102 589 12 15 00 Drift Replacement Procedure 1. Completely drain the coolant. 2. Remove any parts which impede access. (Example : transmission, injection pump) 3. Place the screwdriver to the deepdrawn edge of the core plug and pull forward and then rotate 90°. 5. Thoroughly clean the sealing surface and apply Loctite 241. 6. Install the new core plug by using a drift. 7. Install the removed parts and fill the coolant. Notice: The adhesive must be allowed to harden 8. Warm up the engine and check the coolant for leaks. 4. Pull out the core plug with pliers. |
