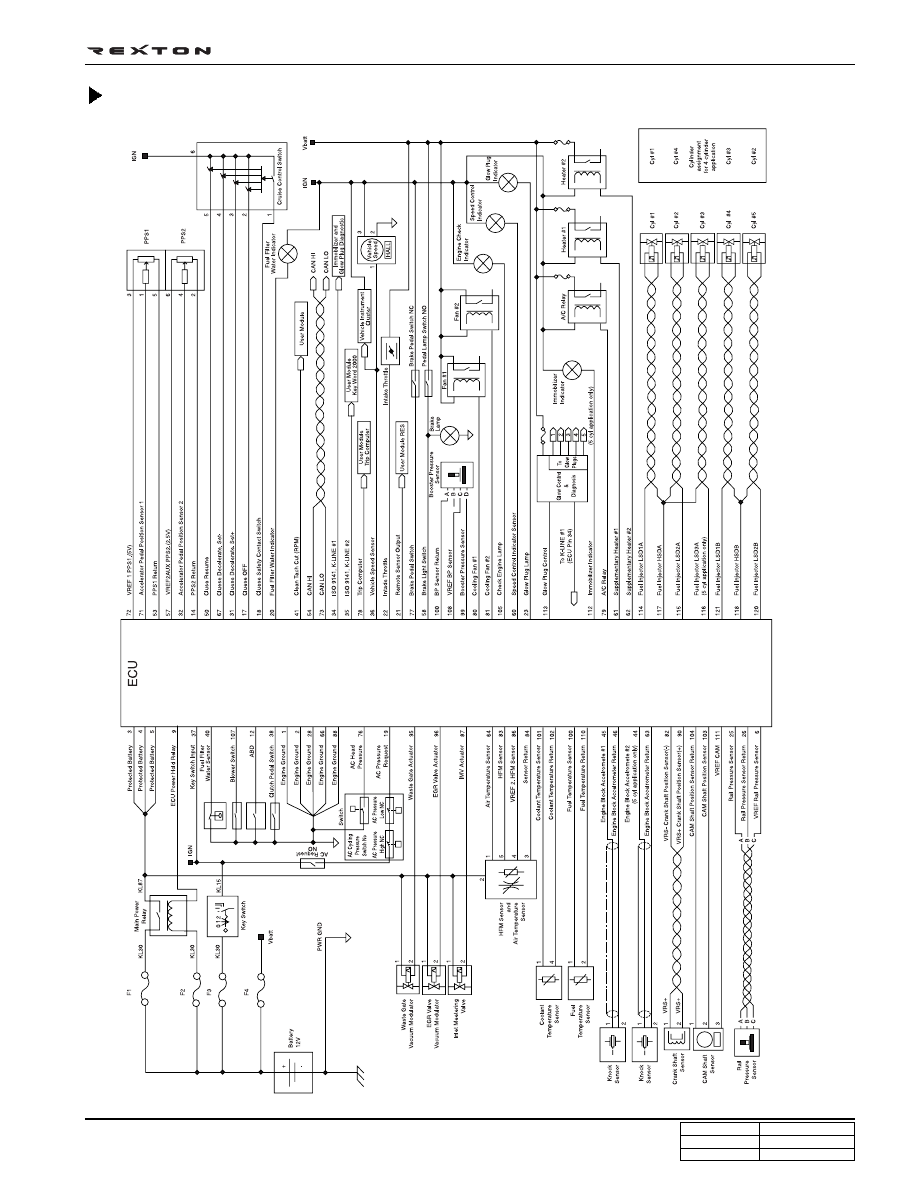

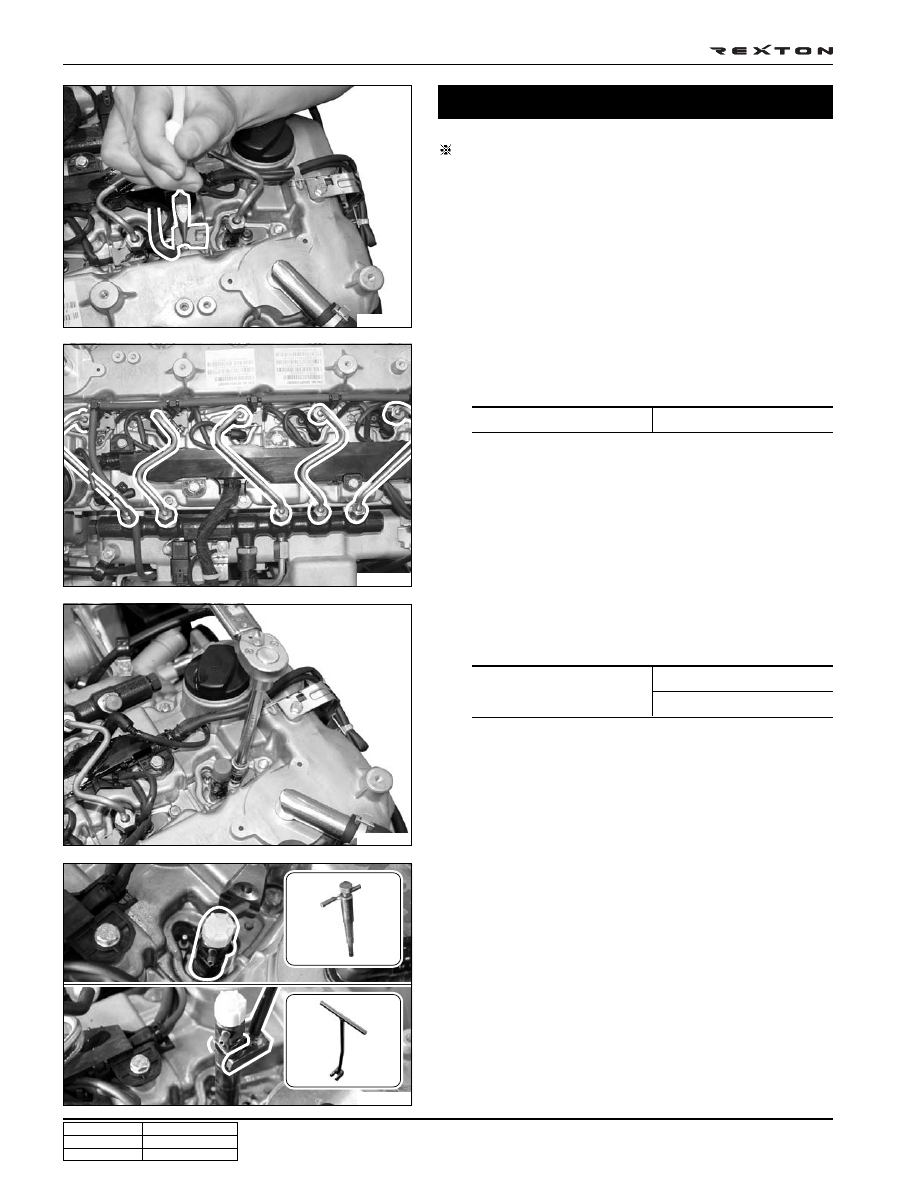

DI07-60 CHANGED BY EFFECTIVE DATE AFFECTED VIN FUEL SYSTEM DI ENG SM - 2004.4 Y220_07115 Y220_07116 Y220_07117 Y220_07118 Removal and Installation Preceding Work: Removal of engine cover 1. Disconnect the injector return hose. 3. Unscrew the bolts and remove the fuel pipes. Installation Notice 4. Unscrew the injector holder bolts. Installation Notice 6. Remove the injectors with a special tool. Notice a special tool. • Clean carbon deposite in hole with specific tool. 7. Install in the reverse order of removal. C2I on label fitted on engine. Notice 2. Remove the relevant connector for the injector. 5. Disconnect the injector holder. Notice Plug the openings with sealing caps. Installation Notice • Replace the fuel pipes with new ones. • Plug the openings of the common rail with sealing caps. Replace the bolts and washer with new ones. Tightening torque 40 ± 10 Nm Tightening torque 9 ± 1.0 Nm 180° ± 10° |
