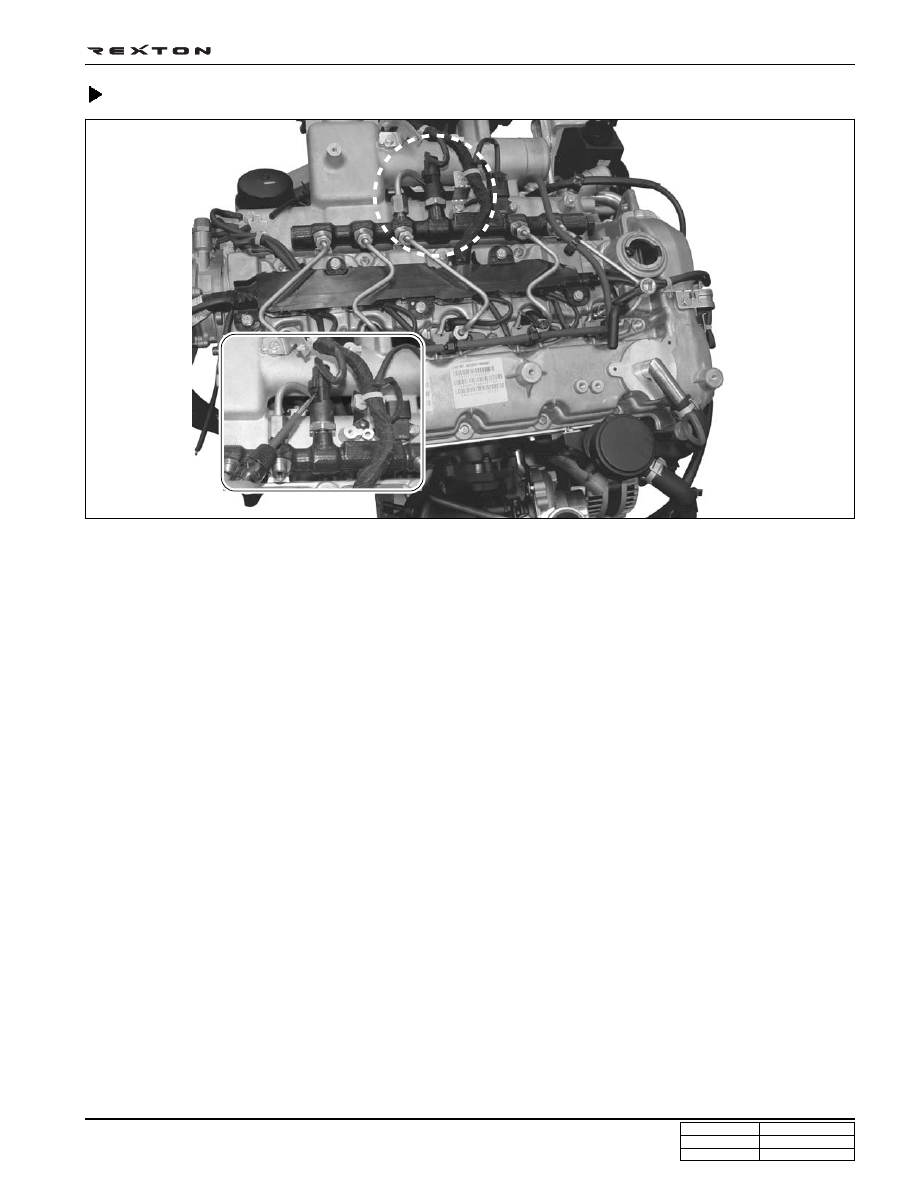

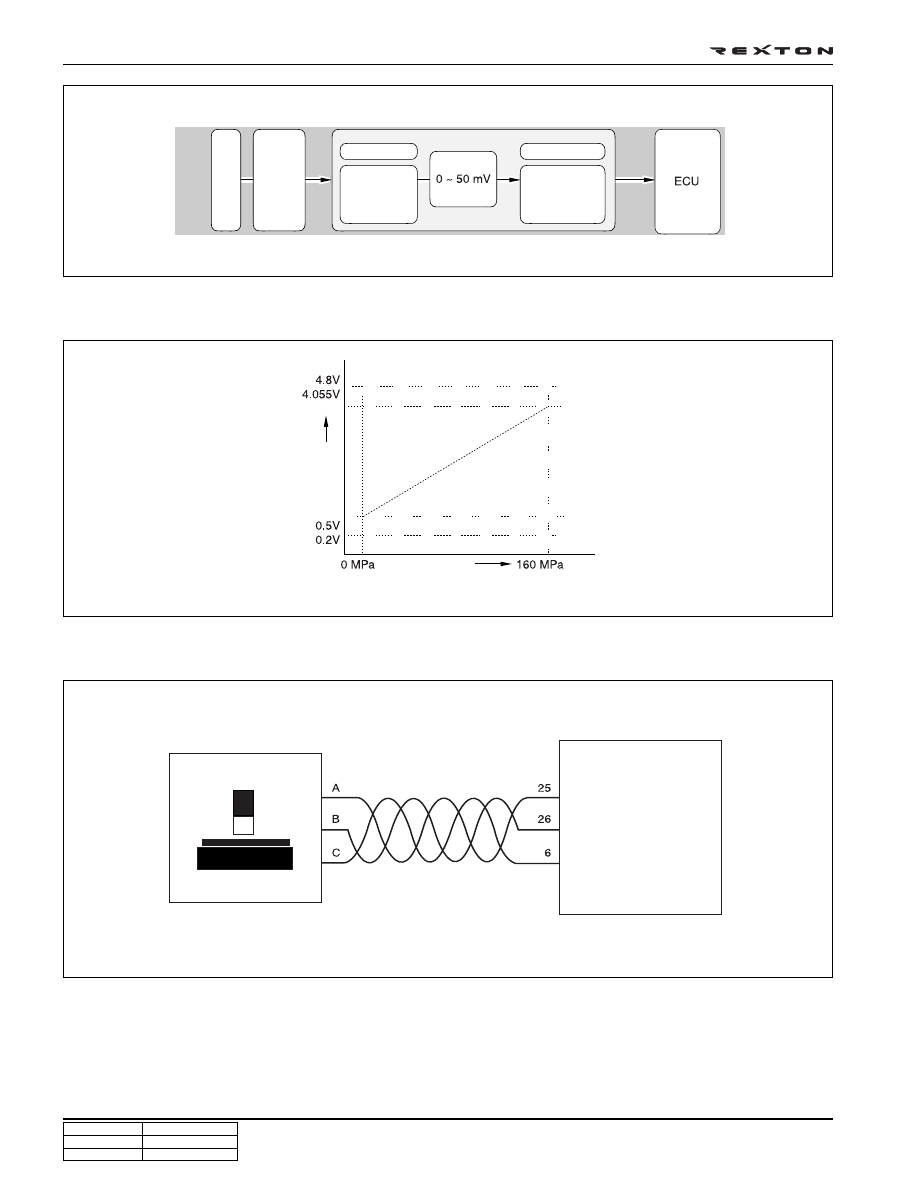

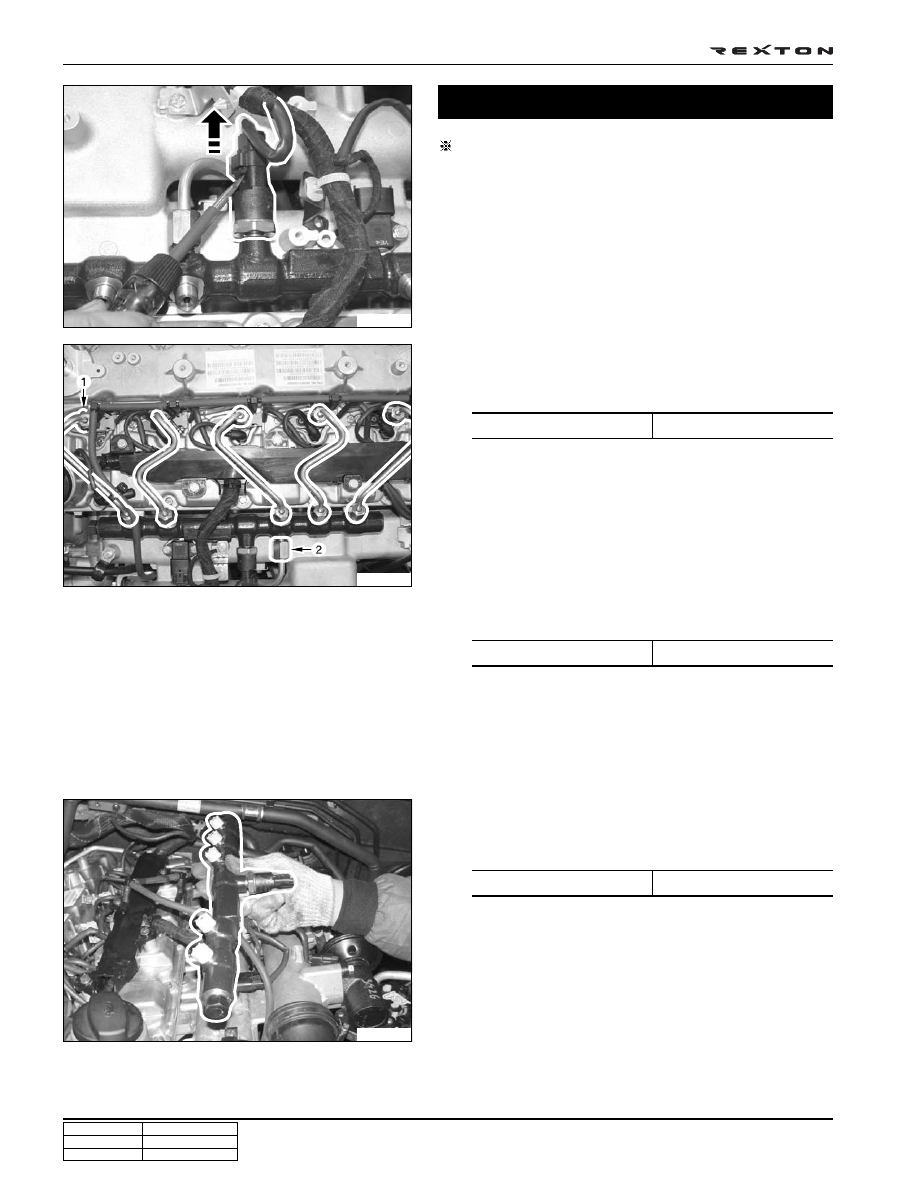

DI07-44 CHANGED BY EFFECTIVE DATE AFFECTED VIN FUEL SYSTEM DI ENG SM - 2004.4 Preceding Work: Removal of engine cover 1. Disconnect the fuel pressure sensor connector. Removal and Installation Y220_07090 Y220_07092 Y220_07093 Tightening torque 25 ± 2.5 Nm Tightening torque 40 ± 10 Nm Tightening torque 40 ± 10 Nm Notice • Replace the fuel pipes with new ones. • Plug the openings of hole in the common rail with sealing caps. • Check pressure is low before opening the circuit. Notice • Replace the fuel pipes with new ones. • Plug the openings of hole in the common rail with sealing caps. Notice • Replace the fuel pipes with new ones. • Plug the openings of hole in the common rail with sealing caps. Notice • Replace the fuel pipes with new ones. • Plug the openings of hole in the common rail with sealing caps. 2. Unscrew the nuts and remove the fuel supply main pipe from the fuel line. Installation Notice 3. Unscrew the high fuel pressure line nuts and remove the fuel pipes. Installation Notice 4. Unscrew the bolts and remove the common rail asssembly. Installation Notice 5. Install in the reverse order of removal. |
