08-8

5. TROUBLESHOOTING

Problem

Cause

Action

Vehicle rolling

Broken stabilizer bar

Replace

Faulty shock absorber

Replace

Abnormal noise.

Loosening mounting

Retighten

Damaged or worn wheel bearing

Replace

Damaged shock absorber

Replace

Damaged tire

Replace

Poor riding

Over inflated tire

Adjust pressure

Faulty shock absorber

Replace

Loosened wheel nut

Tighten as specified torque

Bent or broken coil spring

Replace

Damaged tire

Replace

Worn bushing

Replace

Vehicle pulls to one side

Deformed arm assembly

Replace

Worn bushing

Replace

Bent or broken coil spring

Replace

Hard steering

Excessive resistance of lower arm ball

joint

Replace

Insufficient tire pressure

Replace

Faulty power steering

Replace

Unstable steering

Worn or loosened lower arm bushing

Retighten or replace

Vehicle bottoming

Worn or broken coil spring

Replace

Vehicle height lowered

Over loaded on the vehicle

-

Defective shock absorber

Replace

Defective coil spring

Replace

08-9

4411-01

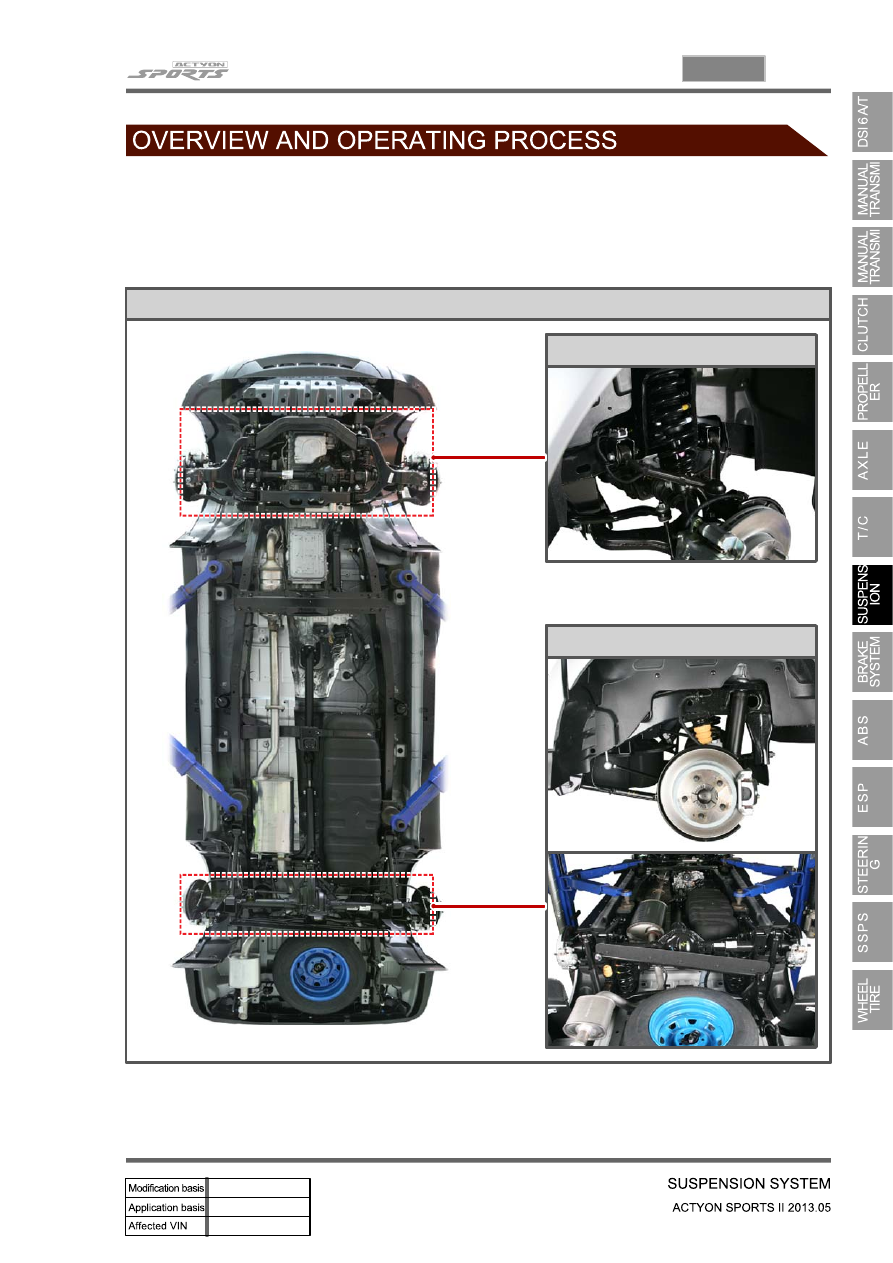

Under View (4WD, Automatic Transmission)

Rear suspension

1. SUSPENSION

The suspension is the device to connect the axle and vehicle. It absorbs the vibrations and impacts from

road surface, which enhances the comforts, driving force, braking force and drivability.

Front suspension

08-10

2. FRONT SUSPENSION (DOUBLE WISHBONE)

Advantage

▶

The advantage of a double wishbone suspension is that it is fairly easy to work out the effect of

moving each joint, so the kinematics of the suspension can be tuned easily and wheel motion can

be optimized.

It is also easy to work out the loads that different parts will be subjected to which allows more

optimized lightweight parts to be designed.

They also provide increasing negative camber gain all the way to full jounce travel unlike the

MacPherson strut which provides negative camber gain only at the beginning of jounce travel and

then reverses into positive camber gain at high jounce amounts.

1.

2.

3.

Disadvantage

▶

The disadvantage is that it is slightly more complex than other systems like a MacPherson strut. Due to

the increased number of components within the suspension setup it takes much longer to service and is

heavier than an equivalent MacPherson design.

1.

2.

Double wishbone suspension is an independent suspension design using two (occasionally parallel)

wishbone-shaped arms to locate the wheel. Each wishbone or arm has two mounting points to the chassis

and one joint at the knuckle. The shock absorber and coil spring mount to the wishbones to control vertical

movement. Double wishbone designs allow the engineer to carefully control the motion of the wheel

throughout suspension travel, controlling such parameters as camber angle, caster angle, toe pattern, roll

center height, scrub radius, scuff and more.

Lower arm

Upper arm

Shock absorber

Stabilizer

08-11

4411-01

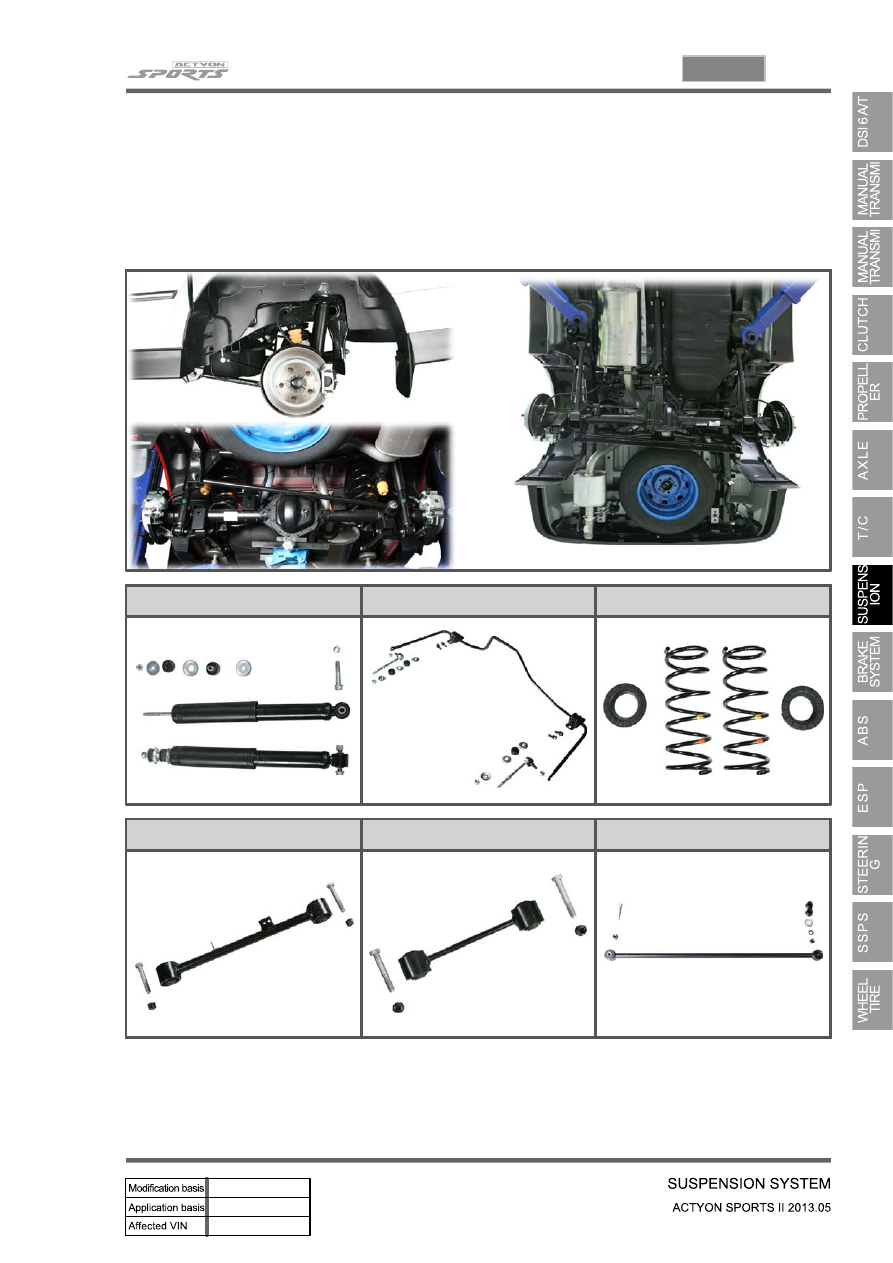

3. REAR SUSPENSION (MULTI LINK TYPE)

Multi-link (5-Link) type suspension is the independent suspension. It provides good ride comfort and

drivability by reducing the coil spring weight. Also, it increases the space for passenger compartment by

lowering the floor. This type of suspension consists of multiple links such as coil spring, shock absorber,

upper and lower arms, lateral rod and stabilizer bar.

Shock absorber

Stabilizer bar

Rear coil spring

Lower arm

Upper arm

Lateral rod
