SsangYong Actyon Sports II. Service manual - part 52

15-6

Glow plug

Differential pressure

sensor

Camshaft position

sensor

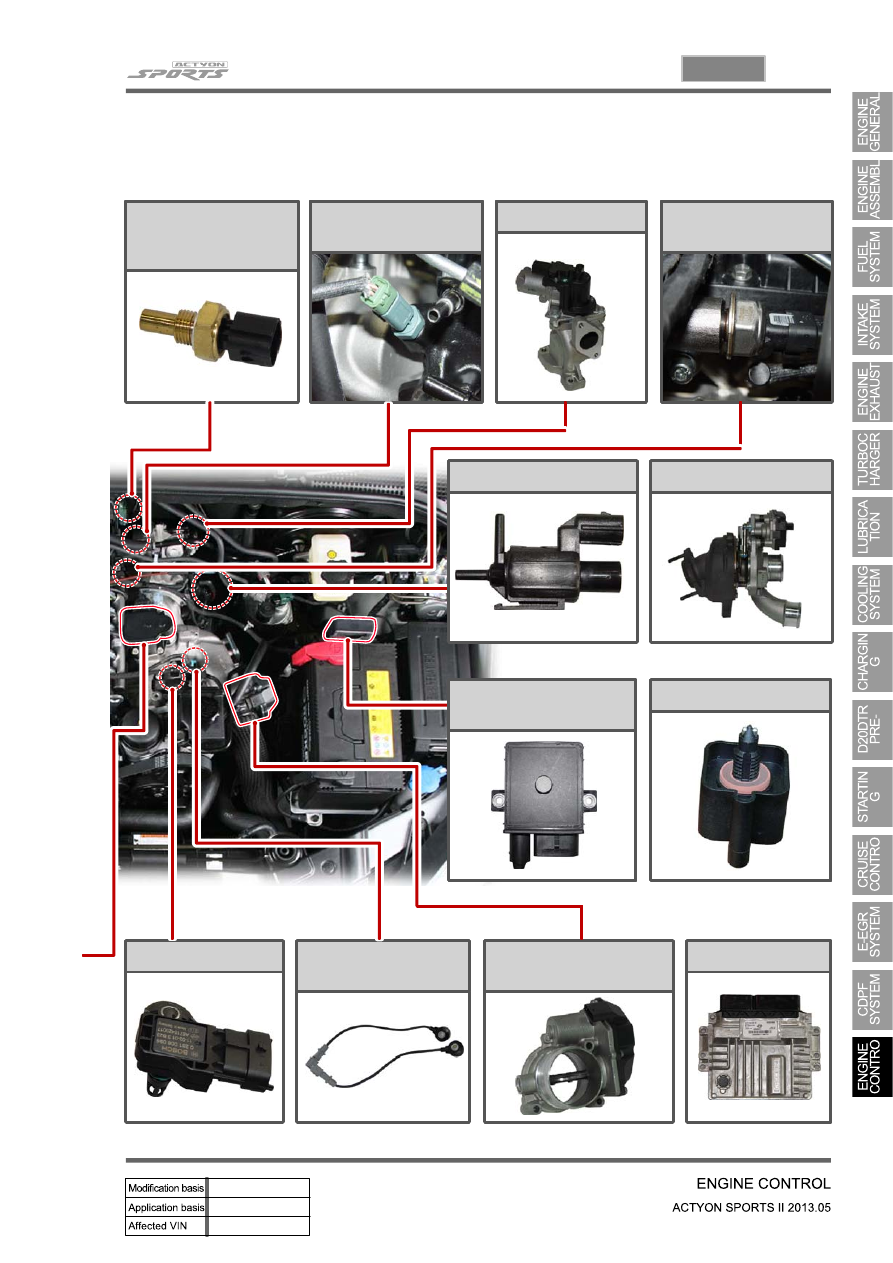

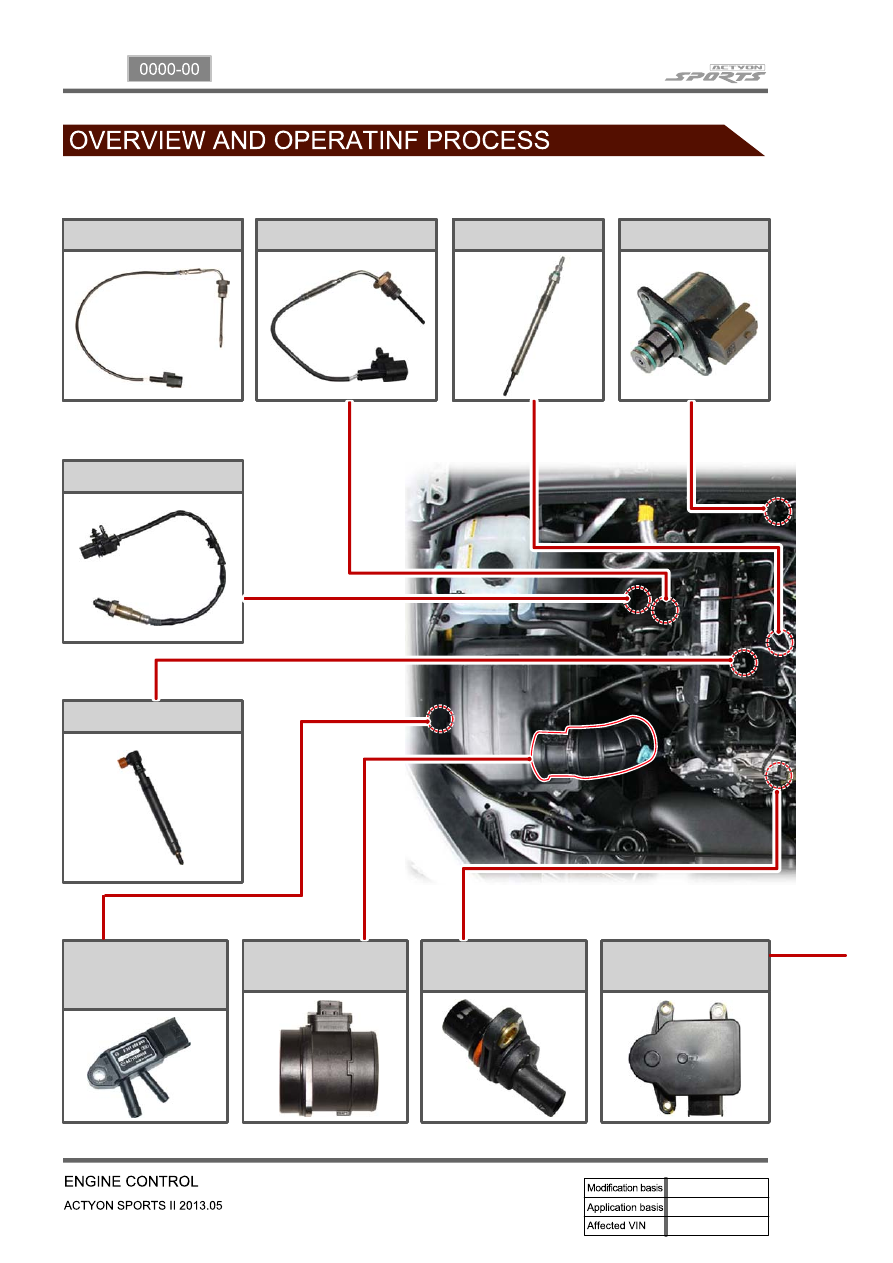

1. MAJOR COMPONENTS

Rear EGT sensor

Oxygen sensor

Front EGT sensor

HFM (air mass/

temperature)

Injector (C3I)

Variable swirl valve

actuator

IMV

15-7

0000-00

Fuel rail pressure

sensor

EGR valve

Fuel temperature

sensor

Electric throttle body

Knock sensor

(2 ea)

Coolant temperature

sensor

T-MAP sensor

D20DTR ECU

E-VGT actuator

Water sensor

GCU (Preglow control

unit)

E-EGR bypass valve

15-8

2. SYSTEM OPERATION

1) Input/Output of ECU

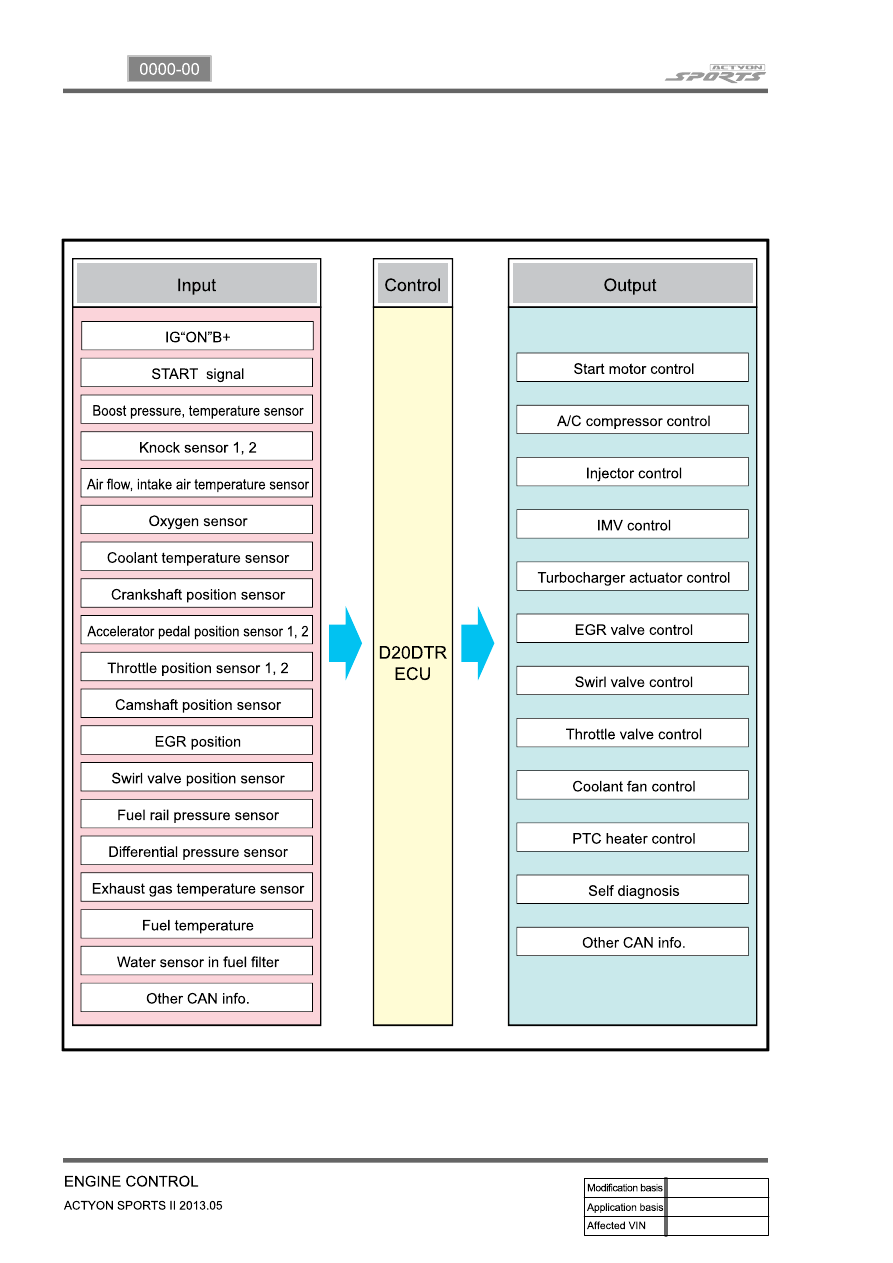

(1) ECU Block diagram
