4) Cylinder Block

(1) Overview

The major dimensions in D20DTR are similar to

D20DTR engine. It has two mounting

bosses for knock sensor and meets the

requirements for EURO5 regulation.

(2) Layout

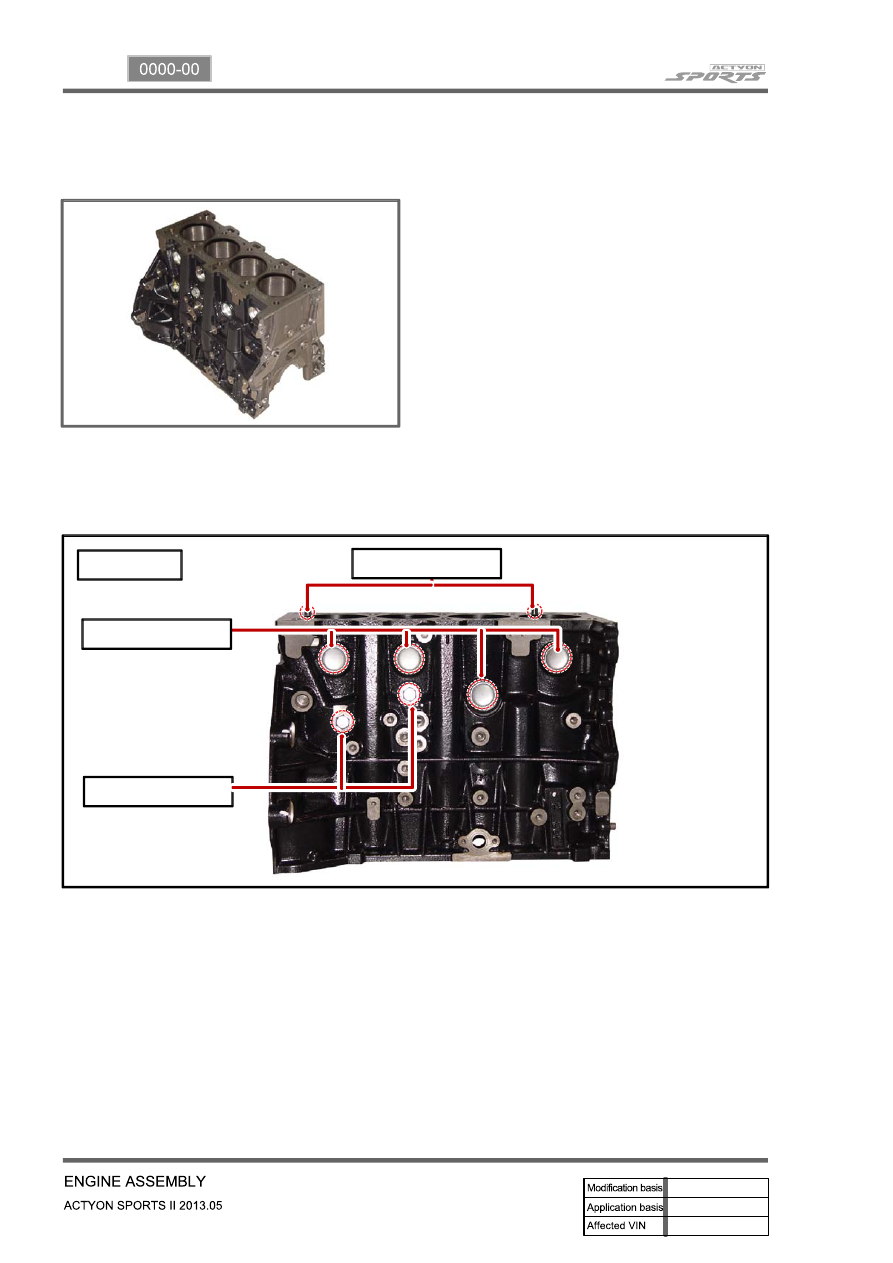

Right side

Spring pin

Expansion plug

Screw plug

02-47

0000-00

Left side

Expansion plug

(3) Features

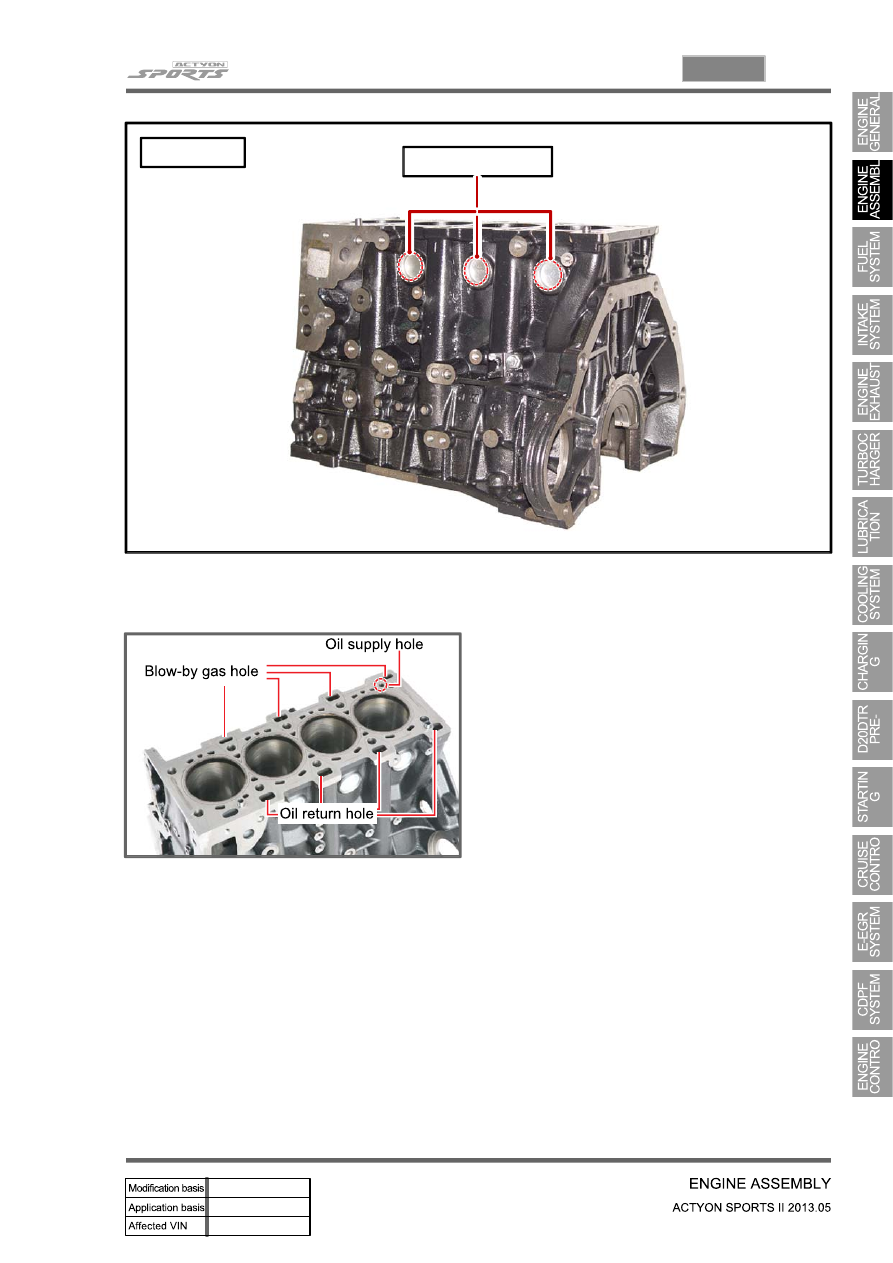

For simple manufacturing, the crankcase blow-

by gas passage and the oil return hole are made

by casting on the cylinder block.

02-48

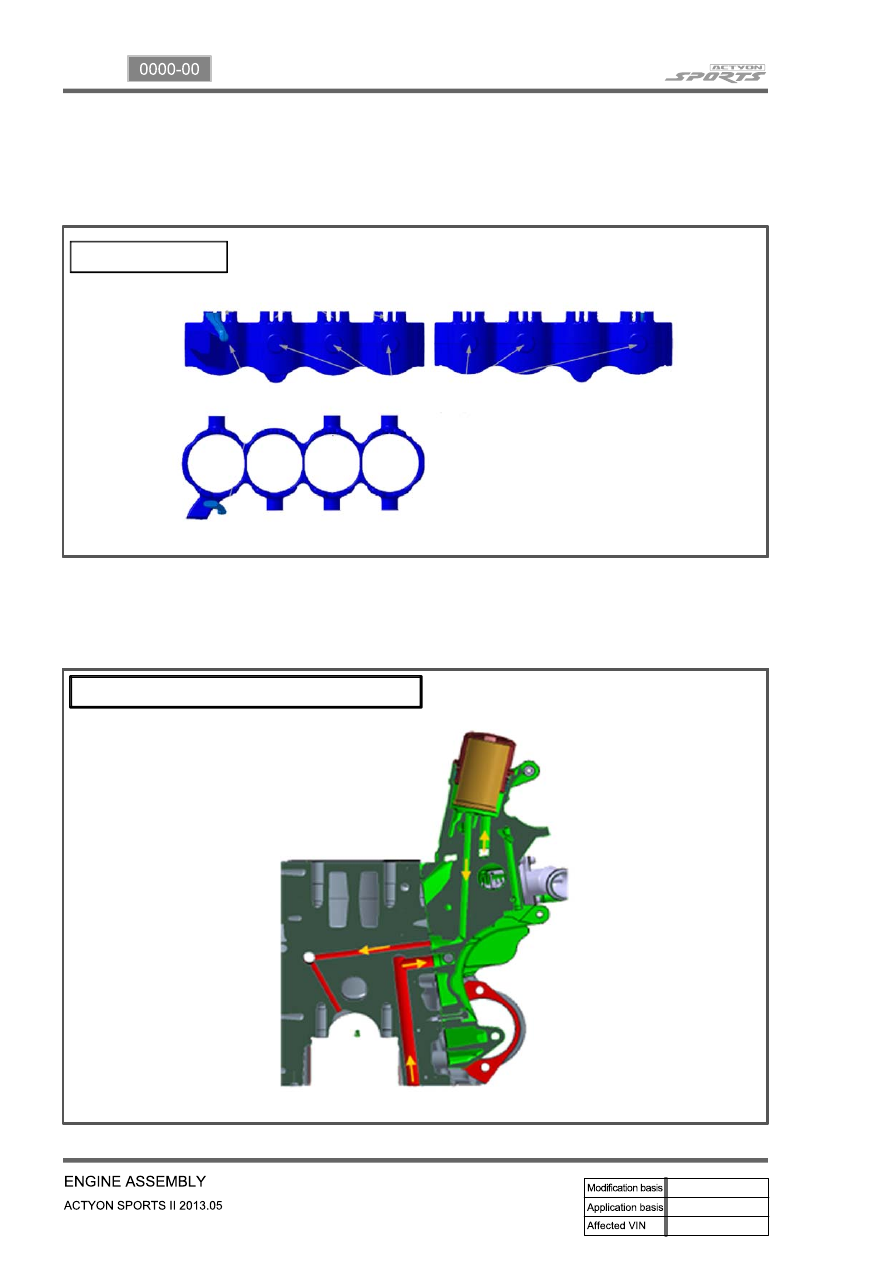

The bottom side of water jacket is desgined as sine wave to strengthen the structure of crankcase. The

main flow of coolant starts from outlet port of water pump and goes along the longitudinal direction of

engine. The coolant passage from cylinder head to inlet port of water pump is integrated in cylinder head.

The engine oil from oil pump is supplied to the main oil gallery through oil channel, oil filter module and

cross bore in cylinder block without using external pipes. This oil is supplied to main bearing, cylinder

head and MBU. And, it is sprayed to the chain through the chain tensioner connected to cross bore.

Crankcase cross bore for oil supply

Water jacket core

03-3

2210-01

1. SPECIFICATION

Description

Specification

Fuel

Diesel

Fuel filter

Type

Fuel heater + priming pump + water

separator integrated type

Filter type

Changeable filter element type

Water accumulating capacity

200 cc

Heater capacity

250W 13.5V

Injector

System pressure

1800 bar

High pressure fuel

pump

Type

Eccentric cam/Plunger type

Operating type

Gear driven type

Normal operating temperature

-40 ~ 125˚C

Operating pressure

1800 bar

Operating temperature

-30 ~ 120˚C

Low pressure fuel

pump

Type

Vane type

Gear ratio (pump/engine)

0.5 : 1

Pressure

6 bar

Fuel tank

Capacity

75 L

Material

Steel

Fuel sender

Single sender type

Change interval

EU

every 40,000 km

GEN

every 45,000 km

Water separation

interval

EU

every 20,000 km

GEN

every 15,000 km
