Renault Kangoo VAN Z.E. (2012 year). Manual - part 4

1.50

CHILD SAFETY: fitting a child seat

(2/5)

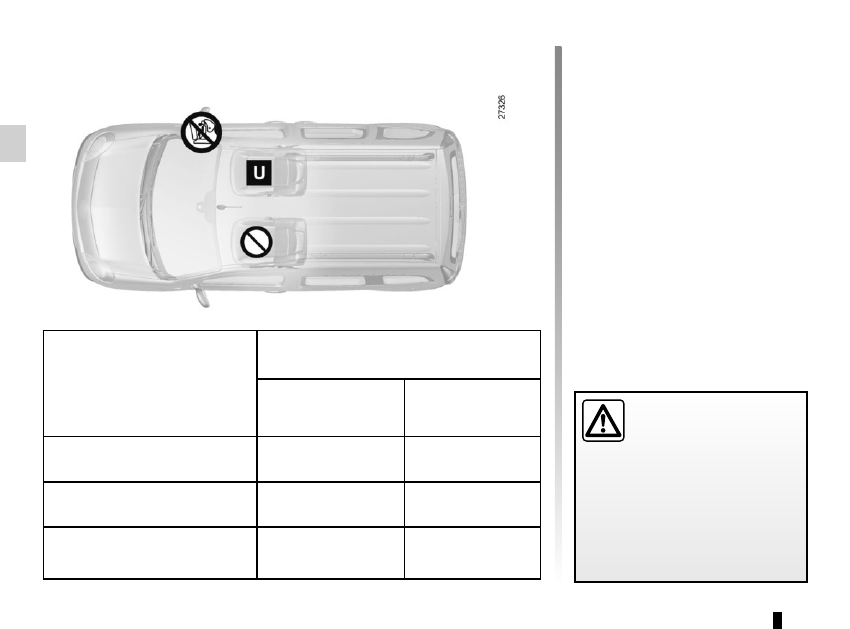

Child seat attached using the belt

Seat which allows a child seat

with “Universal” approval to be attached

by a seat belt.

Seat not suitable for fitting child

seats.

Check the status of the front

airbag before fitting a child seat or al-

lowing a passenger to use the seat.
(1) Before fitting a child seat: position

the vehicle seat as far back as pos-

sible.

Type of seat group

(weight of the child)

Seats suitable for fitting a child seat

Front passenger seat (1)

WITH PASSENGER

AIR BAG (2)

WITHOUT

PASSENGER

AIR BAG

Group 0, 0+

(weight below 13 kg)

Group I

(weight from 9 kg to 18 kg)

Groups II and III

(weight from 15 kg to 36 kg)

(2) RISK OF DEATH OR

SERIOUS INJURY: Before

installing a child seat on the

front passenger seat, check

that the airbag has been deacti-

vated (refer to “Child safety: front

passenger airbag deactivation and

activation” in Section 1).

2-seat version

1.51

CHILD SAFETY: fitting a child seat

(3/5)

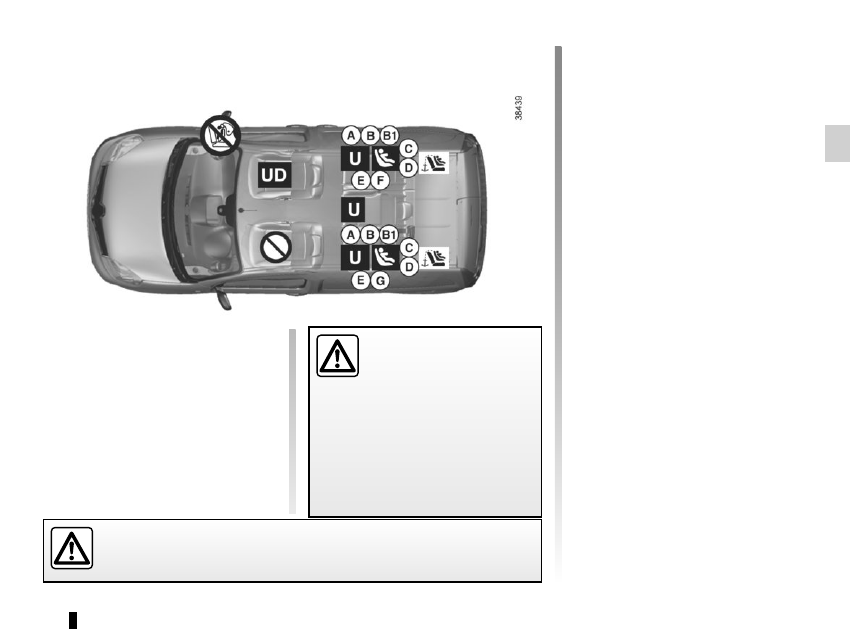

Child seats attached using the

ISOFIX mounting

Seat which allows an ISOFIX.

child seat to be fitted.

Check the status of the air bag

before fitting a child seat or allowing a

passenger to use the seat.

Seat not suitable for fitting child

seats.

The rear seats are fitted with

an anchorage point which allows a

forward-facing ISOFIX child seat with

universal approval to be fitted. The an-

chorage points are located in the lug-

gage compartment and are visible.
The size of the ISOFIX child seat is in-

dicated by a letter:
– A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

– C: rear-facing seats in group 1 (9 to

18 kg);

– D and E: shell seat or rear-facing

seats in group 0 or 0+ (less than

13 kg);

– F and G: carrycots in group 0 (less

than 10 kg).

Child seat attached using the belt

Seat which allows a standard-

ised “Universal” seat to be fitted using

a seat belt;

−

Seat which only allows a rear-

facing standardised “Universal” seat to

be installed using a seat belt.

Using a child safety system which is not approved for this vehicle will not

correctly protect the baby or child. They risk serious or even fatal injury.

RISK OF DEATH OR

SERIOUS INJURY: Before

fitting a rear-facing child

seat on the front passenger

seat, check that the airbag has been

deactivated (refer to the information

on “Child safety: front passenger

airbag deactivation/activation” in

Section 1).

5-seat version

1.52

CHILD SAFETY: fitting a child seat

(4/5)

5-seat version

Type of child seat

Weight of

the child

Seat size

ISOFIX

Front passenger

seat (1) (2)

Rear side seats

Rear centre seat

Carrycot fitted across the

vehicle

Group 0

< 10 kg

F, G

U - IL (3)

U (3)

Shell seat/rear-facing seat

Group 0, 0+ and 1

< to 13 kg

and 9 to

18 kg

C, D, E

U - IL (4)

U (4)

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

U - IUF - IL (5)

U (5)

Booster seat

Group 2 and 3

15 to 25 kg

and 22 to

36 kg

U (5)

(1) RISK OF DEATH OR SERIOUS INJURY: Before fitting a rear-facing child seat on the front passenger seat, check

that the airbag has been deactivated (refer to the information on “Child safety: front passenger airbag deactivation/

activation” in Section 1).

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

1.53

X = Seat not suitable for fitting child seats.

U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.

IUF/IL = On equipped vehicles, seat which allows an approved “Universal/semi-universal” or “vehicle specific” child seat to be at-

tached using the ISOFIX system; check that it can be fitted.

(2) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,

tilting the seatback slightly (approximately 25°).

(3) A carrycot is fitted crosswise and occupies at least two seats (the child’s feet are placed nearest the door).

(4) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(5) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the

headrest, or remove it if necessary. In addition, do not push the seat in front of the child further than halfway along its runners,

or incline the seatback more than 25°.

CHILD SAFETY: fitting a child seat

(5/5)

1.54

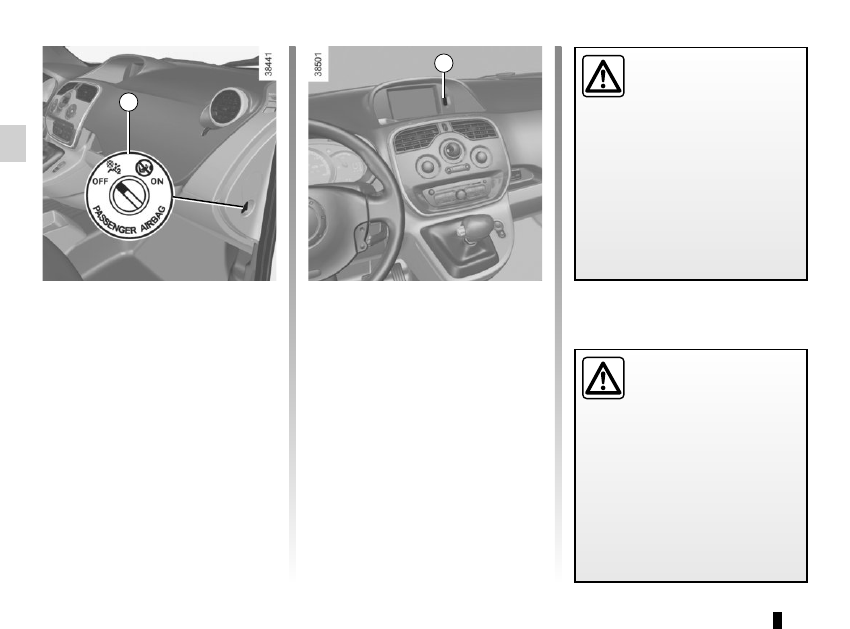

Deactivating the front

passenger air bags

(on equipped vehicles)
You must deactivate the devices in ad-

dition to the front passenger seat belt

before fitting a child seat in the front

passenger seat.

To deactivate the airbags: with the

vehicle stopped and the ignition off,

press and turn lock 1 to the OFF posi-

tion.
With the ignition on, you must check

that warning light 2 is lit on the central

display and, depending on the vehicle,

that the message “passenger airbag

off” is displayed.
NB: on equipped vehicles, the side

airbag is also deactivated.
This light remains permanently lit to

let you know that you can fit a child

seat.

CHILD SAFETY: deactivating/activating the front passenger airbag

(1/3)

The passenger air bag must

only be deactivated or acti-

vated with the ignition off.
If it is interfered with when

the vehicle is being driven, indicator

lights

and

will come

on.
Switch the ignition off then on again

to reset the air bag in accordance

with the lock.

DANGER
Since front passenger

airbag triggering and the

position of a rear-facing

child seat are incompatible, NEVER

use a restraining device for rear-

facing children on a seat with an

ACTIVATED AIRBAG in front of it.

This provides a risk of DEATH or

SERIOUS INJURY to the CHILD.

1.55

CHILD SAFETY: deactivating/activating the front passenger airbag

(2/3)

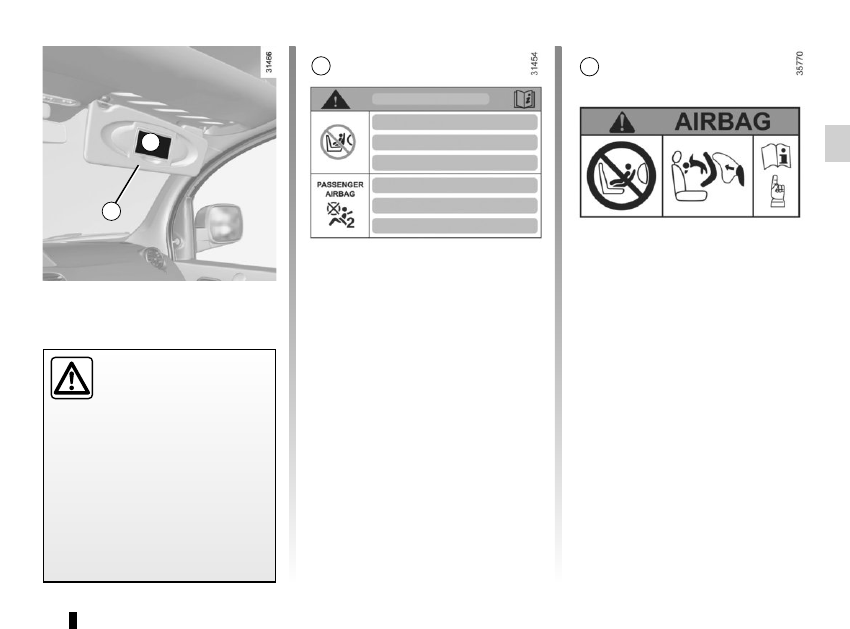

The markings on the dashboard and

labels A on each side of the passen-

ger sun visor 3 (for example, the labels

shown above) will remind you of these

instructions.

DANGER
Since front passenger

airbag triggering and the

position of a rear-facing

child seat are incompatible, NEVER

use a restraining device for rear-

facing children on a seat with an

ACTIVATED AIRBAG in front of it.

This provides a risk of DEATH or

SERIOUS INJURY to the CHILD.

1.56

The passenger air bag must

only be deactivated or acti-

vated with the ignition off.
If it is interfered with when

the vehicle is being driven, indicator

lights

and

will come

on.
Switch the ignition off then on again

to reset the air bag in accordance

with the lock.

Operating faults

In the event that the front passenger air

bag activation/deactivation system is

faulty, child seats must not be fitted to

the front seat.
Allowing any other passenger to sit in

that seat is not recommended.
Contact your approved Dealer as soon

as possible.

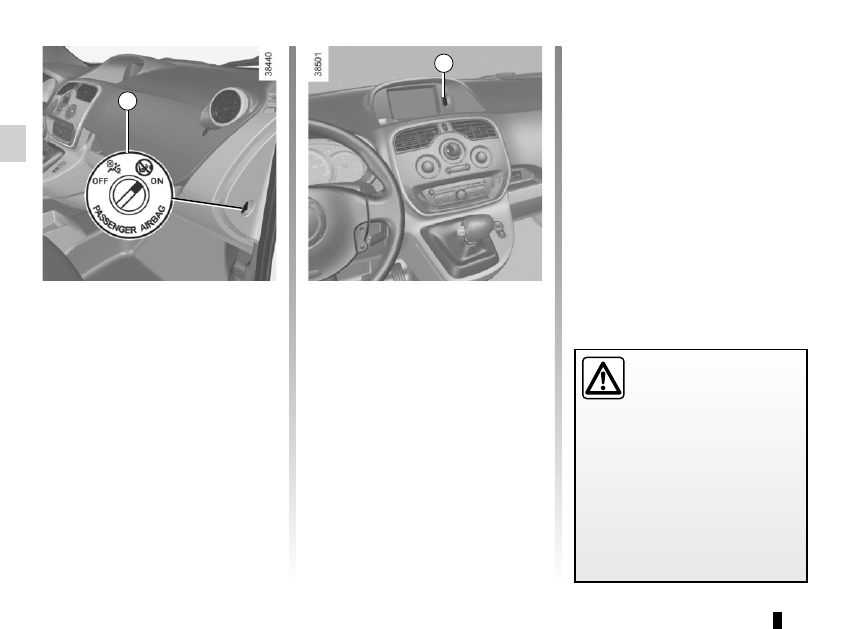

Activation of the front

passenger air bag

You should reactivate the air bag as

soon as you remove the child seat from

the front passenger seat to ensure the

protection of the front passenger in the

event of an impact.
Reactivating the airbags: with the

vehicle stopped and the ignition off,

press and turn lock 1 to the ON posi-

tion.

With the ignition on, you must check

that the warning light 2 is off.
The front passenger seat belt additional

restraint systems are activated.

CHILD SAFETY: deactivating/activating the front passenger airbag

(3/3)

1.57

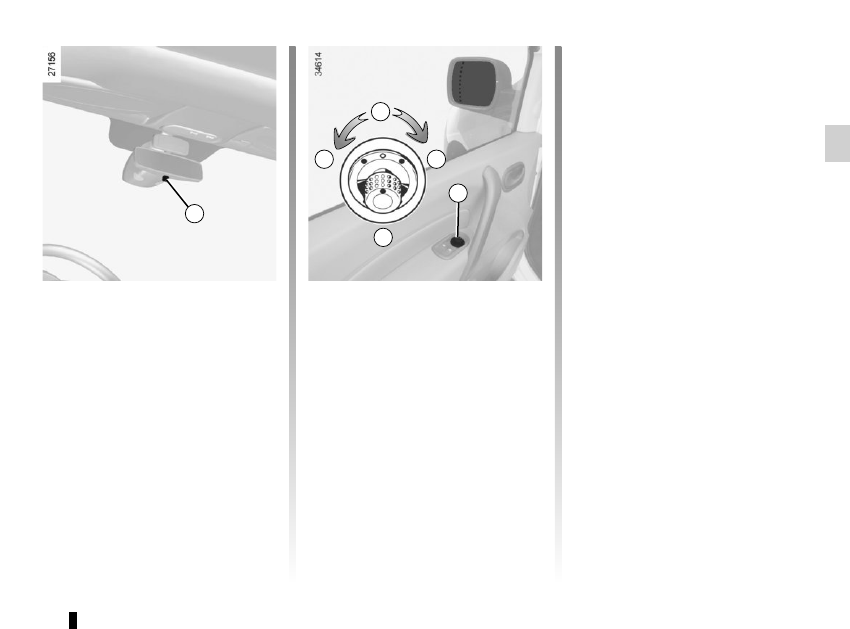

Interior rear view mirror

The interior rear view mirror is adjusta-

ble. When driving at night, tilt lever 1 to

avoid being dazzled by the headlights

of the vehicle behind.

REAR-VIEW MIRRORS

Heated door mirrors

When the engine is started, mirror de-

icing is activated with the rear screen

de-icing/demisting.

Folding door mirrors

Move button 2 to position D to fold the

door mirrors in. To reset them for driv-

ing, return to position B.
If you fold the door mirrors in manually

before resetting them to driving posi-

tion B, you must first turn button 2 to

position D.

Door mirrors with electrical

adjustment

With the ignition on, turn button 2:
– position A to adjust the left-hand

door mirror;

– position C to adjust the right-hand

door mirror.

B is the inactive position.

1.58

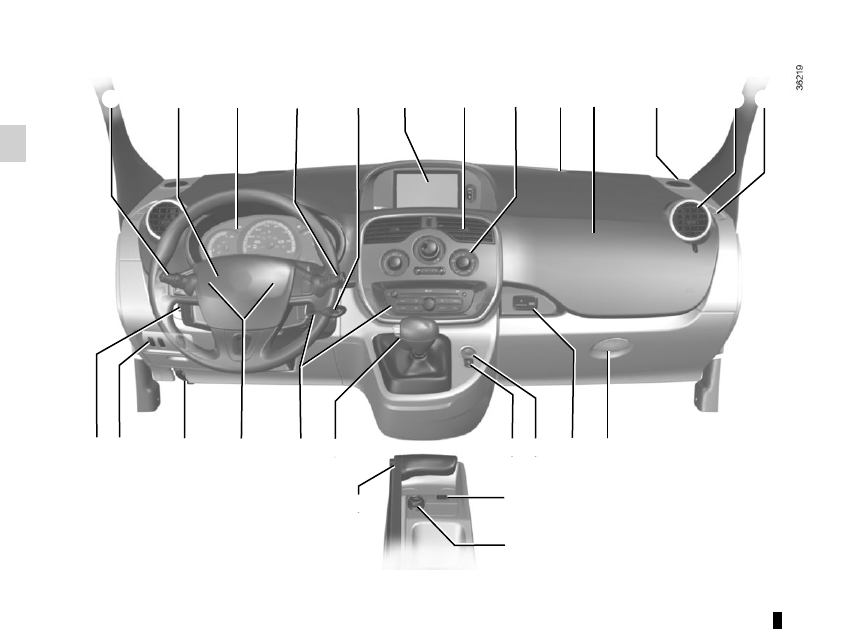

DRIVING POSITION, LEFT-HAND DRIVE

(1/2)

1.59

21 Gear lever.

22 Remote control/location for radio,

navigation system.

23 Cruise control/speed limiter con-

trols.

24 Bonnet release control.

25 Controls for:

– Vertical headlight adjustment;

– Parking distance control.

26 Controls for:

– Cruise control/speed limiter;

– Activating/deactivating the pe-

destrian horn;

– additional heating.

1 Stalk for:

–

direction indicator lights;

– exterior lights;

– front fog lights;

– rear fog lights.

2 – Horn,

– location for driver’s air bag.

3 Instrument panel.

4 Stalk for:

– windscreen wipers;

– windscreen washer;

– trip computer and warning

system.

5 Ignition switch.

6 Multimedia display or touchscreen:

– seat belt reminder warning light;

– airbag deactivation warning

light;

– navigation;

– clock;

– exterior temperature.

7 Centre air vent.

8 Controls for ventilation, heating

and de-icing.

9 Windscreen demister outlet.

10 Location for passenger air bag.

11 Speaker.

12 Side air vent.

13 Side window demister outlet.

14 Glove box.

15 Storage space or accessories

socket.

16 Hazard warning lights switch.

17 Central door locking/unlocking

switch.

18 ECO mode switch.

19 Cigarette lighter or accessories

socket.

20 Handbrake.

DRIVING POSITION, LEFT-HAND DRIVER

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1.60

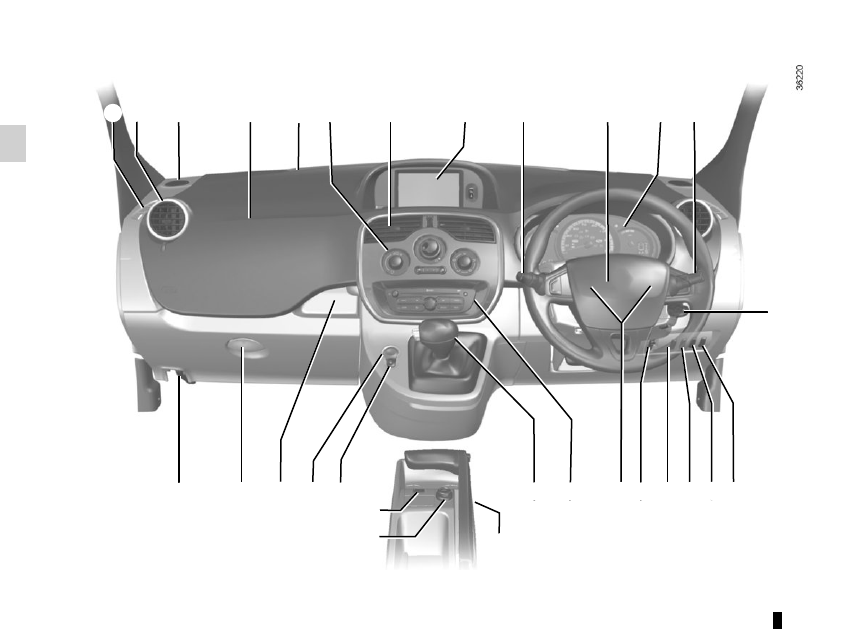

DRIVING POSITION: RIGHT-HAND DRIVE

(1/2)

1.61

DRIVING POSITION: RIGHT-HAND DRIVE

(2/2)

20 Location for radio, navigation

system.

21 Gearstick

22 Handbrake.

23 Cigarette lighter or accessories

socket.

24 ECO mode switch.

25 Door electric locking/unlocking

switch.

26 Hazard warning lights switch.

27 Storage space or accessories

socket.

28 Glovebox.

29 Bonnet release control.

10 – Horn.

– Location for driver’s air bag.

11 Instrument panel.

12 Stalk for:

– windscreen wipers;

– windscreen washer;

– trip computer and warning

system.

13 Ignition switch.

14 Cruise control/speed limiter main

control.

15 Additional heating switch.

16 Activation/deactivation control for

the horn.

17 Parking distance control switch.

18 Headlight adjustment control.

19 Cruise control/speed limiter con-

trols.

1 Side window demister outlet.

2 Side air vent.

3 Speaker.

4 Location for passenger air bag.

5 Windscreen demister outlet.

6 Controls for ventilation, heating

and de-icing.

7 Centre air vent.

8 Multimedia display or touchscreen:

– seat belt reminder warning light;

– airbag deactivation warning

light;

– navigation;

– clock;

– exterior temperature.

9 Stalk for:

–

direction indicator lights,

– exterior lights;

– front fog lights;

– rear fog lights.

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1.62

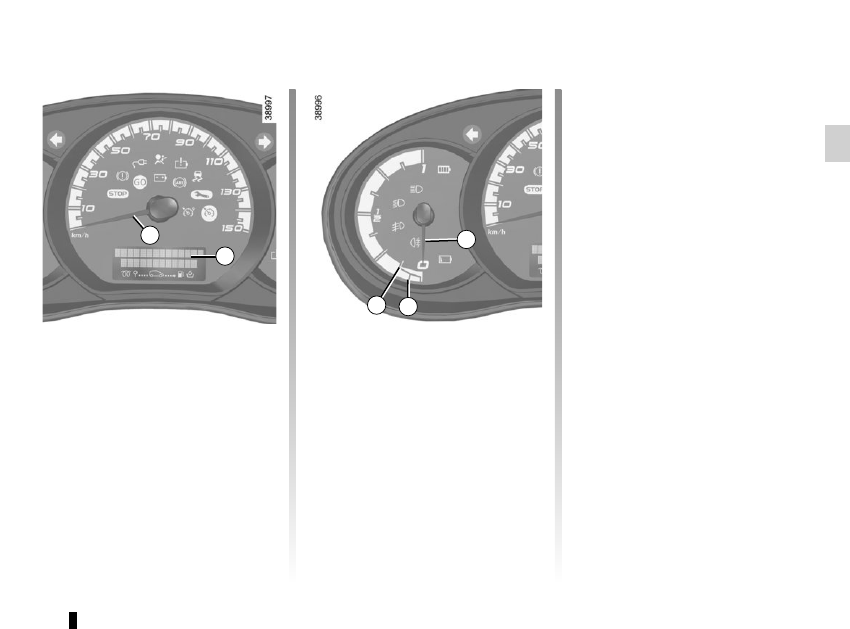

12V battery charge warning

light

If it comes on when you are driving, it

indicates that the circuit is overcharged

or has discharged. Stop and consult an

approved Dealer as soon as possible.

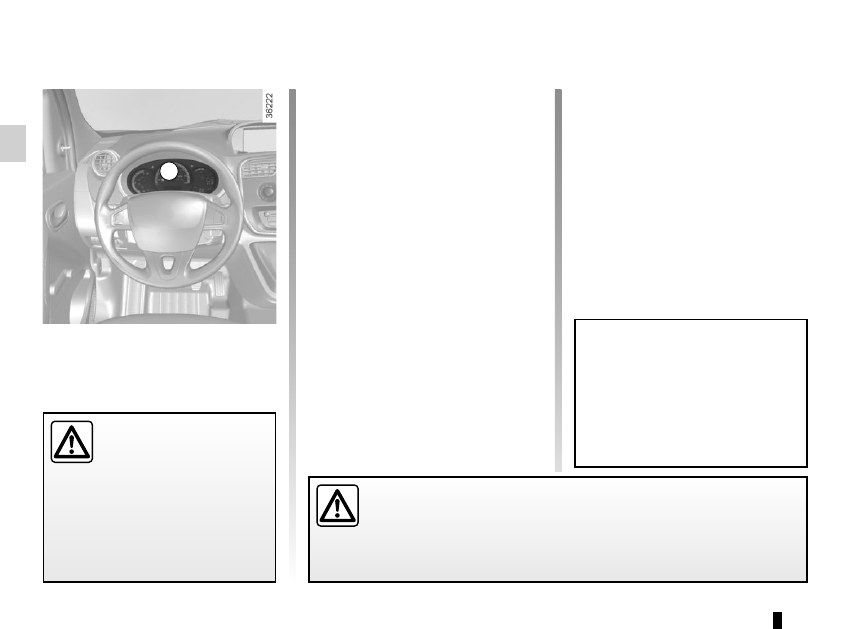

Instrument panel A

In some cases, the appearance of a

warning light is accompanied by a mes-

sage.

WARNING LIGHTS

(1/3)

If no lights or sounds are apparent, this indicates a fault in the instrument

panel. This indicates that it is essential to stop immediately (as soon as

traffic conditions allow). Ensure that the vehicle is correctly immobilised

and contact an approved Dealer.

Warning light

re-

quires you to stop immedi-

ately, for your own safety,

as soon as traffic conditions allow.

Switch off the engine and do not re-

start it. Contact an approved Dealer.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

The

warning light means

you should drive very carefully to

an approved Dealer as soon as pos-

sible. If you fail to follow this recom-

mendation, you risk damaging your

vehicle.

Main beam headlight tell-tale

light

Dipped beam headlight tell-

tale

Front fog light tell-tale light

Rear fog light tell-tale

Left-hand direction indicator

tell-tale light

Right-hand direction indica-

tor tell-tale light

Vehicle ready for driving

warning light

This comes on when the engine is

started.

Charging cord plugged in

warning light

This comes on when the charging cord

is plugged into the vehicle.

1.63

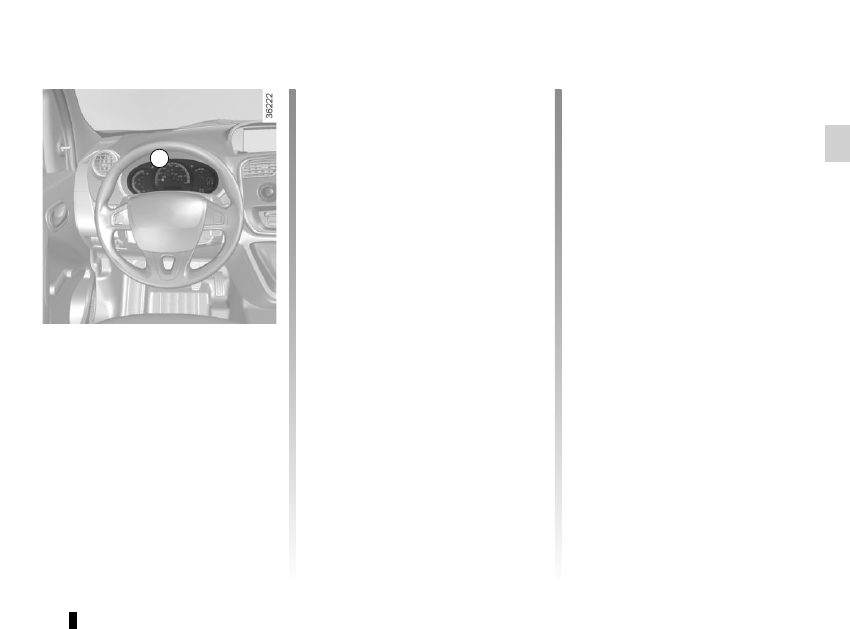

WARNING LIGHTS

(2/3)

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Air bag warning light

This comes on when the igni-

tion is switched on and goes out after

a few seconds. If it does not come on

when the ignition is switched on or if it

flashes, there is a fault in the system.

Contact an approved Dealer as soon as

possible.

Low fuel level or additional

heating warning light

This comes on when the ignition is

switched on and goes out after a few

seconds. If it comes on while driving,

accompanied by a beep, this means

the imminent end of fuel power for the

additional heating.

™

Seat belt reminder light

Depending on the vehicle, it is

displayed on the instrument panel or on

the central display of the dashboard. It

remains on when the engine is started

if your seat belt is not fastened. A beep

sounds at a low volume for 30 seconds,

then at a high volume for 90 seconds.

Brake circuit fault warning

light

If it comes on during braking and is ac-
companied by the

warning light

and a beep, it indicates that the fluid

level in the circuit is low or that there is

a braking system fault. Stop as soon as

traffic conditions allow and contact an

approved Dealer.

Warning light

This lights up when the ignition is

switched on and goes out as soon as

the engine is started. It can light up in

conjunction with other warning lights

and/or messages on the instrument

panel.

It means you should drive very care-

fully to an approved dealer as soon as

possible. If you fail to follow this recom-

mendation, you risk damaging your ve-

hicle.

Cruise control and

speed limiter indica-

tor lights
Refer to the information on the “Speed

limiter” and “Cruise control” in Section

STOP light

This lights up when the ignition is

switched on and goes out as soon as

the engine is started. It comes on with

other warning lights and/or messages.
It requires you to stop immediately, for

your own safety, as soon as traffic con-

ditions allow. Switch off the engine and

do not restart it.
Contact an approved Dealer.

1.64

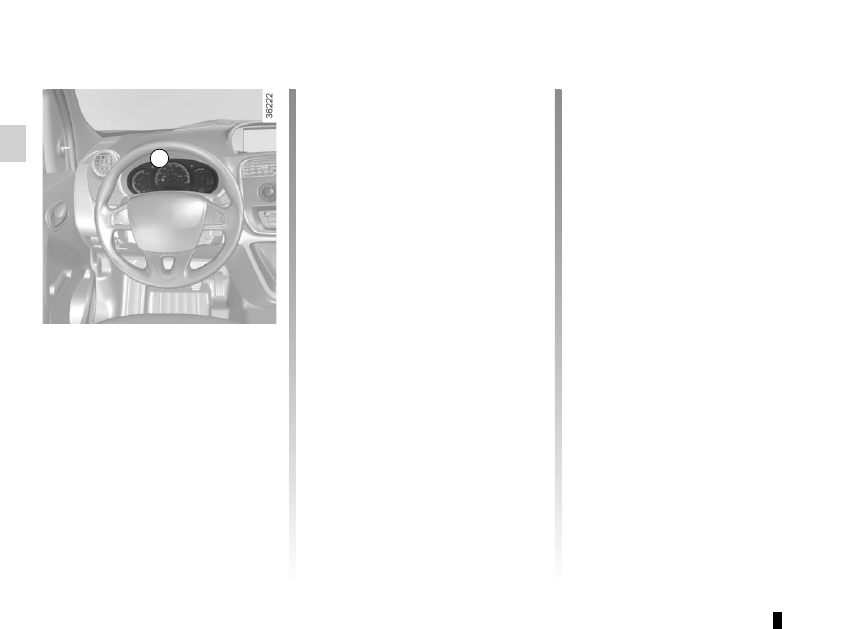

WARNING LIGHTS

(3/3)

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Electrotechnical system

warning light

When the blue warning light comes on,

this indicates that the traction battery

temperature is too low.

When the orange warning light comes

on, this indicates the traction battery or

the engine temperature is too high. Opt

for a calmer driving style.

If either of these warning lights come

on, this may lead to reduced vehicle

performance.

Anti-lock braking warning

light

This lights up when the ignition is

switched on and goes out after a few

seconds.

If it does not go out after the ignition is

switched on, or lights up when driving,

there is a fault with the ABS. Braking

will then be as normal, without the ABS

system.

Contact an approved Dealer as soon as

possible.

Low traction battery level

warning light

This comes on when the traction bat-

tery charge level has reached the re-

serve threshold. Please see the infor-

mation on “Displays and indicators” in

Section 1.

Electrotechnical system

warning light

If this comes on while driving, it indi-

cates an electrotechnical fault relating

to the “400V” electrical circuit. Please

contact an authorised dealer as soon

as possible.

Low fuel level or additional

heating warning light

This comes on when the ignition is

switched on and goes out after a few

seconds. When driving, if it comes on

together with a beep, the minimum fuel

level has been reached.

Driving correction device

warning light

Please refer to the information on

“Driver correction devices and aids” in

Section 2.

Not used

1.65

DISPLAYS AND INDICATORS

(1/3)

Overspeed buzzer

Depending on the vehicle, a beep

sounds for 10 seconds approximately

every 40 seconds as long as the ve-

hicle is travelling at over 72 miles per

hour (120 km/h).

Note: depending on the vehicle, the de-

sired speed may be programmed; con-

sult an approved Dealer.

Multifunction display 2

Please refer to the information on the

“Trip computer: general information” in

Section 1.

Speedometer 1

Vehicle speed is limited to approxi-

mately 80 mph (130 km/h).
Depending on your vehicle, this speed

can be permanently limited to a set

value.

The presence and operation of the display and indicators DEPENDS ON THE LEVEL OF EQUIPMENT AND THE COUNTRY.

Charge level 3

The gauge indicates the level of energy

remaining.

Reserve threshold 5

This indicates that the battery is at ap-

proximately 12% charge. Warning light

comes on, along with a beep.

To optimise your range, please see the

information on “Recommendations:

saving energy” in Section 2.

Immobilisation threshold

imminent 4
This indicates that the battery is at less

than 6% charge. A beep sounds every
10 seconds and warning light

flashes.

The message “Limited performance”

may also be displayed on the instru-

ment panel.
Motor performance gradually de-

creases until the vehicle comes to a

stop.
Please see the information on “Towing:

breakdown recovery” in Section 5.

Content .. 2 3 4 5 ..
