CHILD SAFETY: deactivating/activating the front passenger air bag

(3/3)

Activating the front

passenger air bags

You should reactivate the airbags as

soon as you remove the child seat from

the front passenger seat to ensure the

protection of the front passenger in the

event of an impact.

The passenger airbag must

only be deactivated or acti-

vated when the vehicle is

stationary.

If it is interfered with when the vehi-

cle is being driven, indicator lights

and

will come on.

Switch the ignition off then on again

to reset the airbag in accordance

with the lock position.

Operating faults

It is forbidden to fit a rear-facing child

seat to the front passenger seat if the

airbags activation/deactivation system

is faulty.
Allowing any other passenger to sit in

that seat is not recommended.
Contact your approved dealer as soon

as possible.

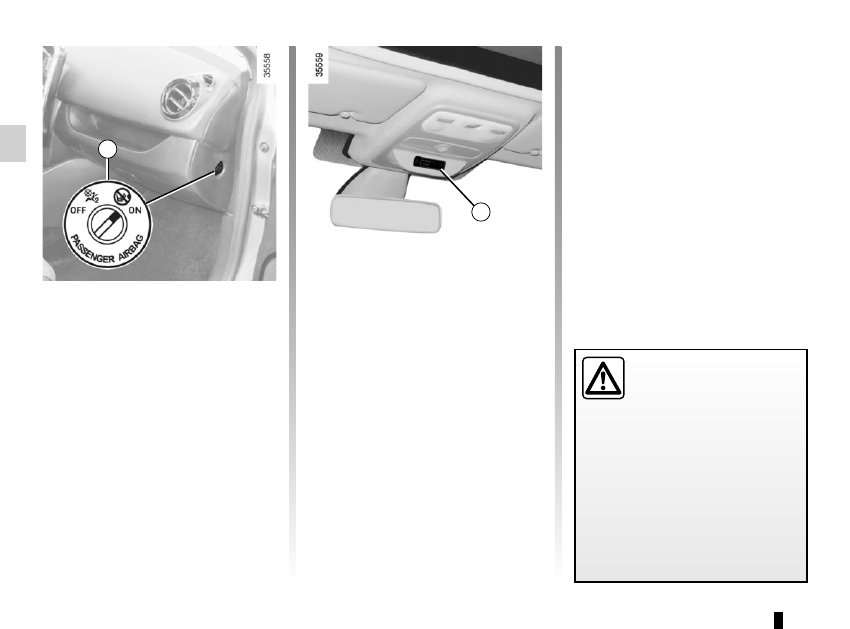

To reactivate the airbags: with the

vehicle stopped and the ignition off,

push and turn lock 1 to the ON position.

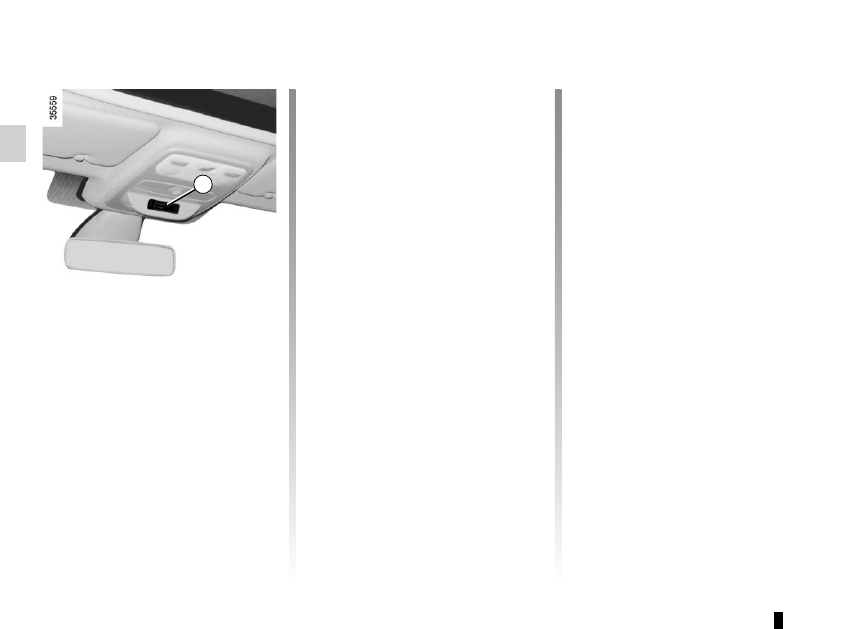

With the ignition switched on, you must

check that the warning light

out and that the warning light

comes on the display 2 after each start-

up for around 60 seconds.
The front passenger seat belt additional

restraint systems are activated.

1.51

Power Assisted Steering

Never drive with an inadequately

charged battery.

Variable power assisted

steering

The variable power assisted steering

system is equipped with an electronic

control system which alters the level of

assistance to suit the vehicle speed.
Steering is made easier during parking

manoeuvres (for added comfort) whilst

the force needed to steer increases

progressively as the speed rises (for

enhanced safety at high speeds).

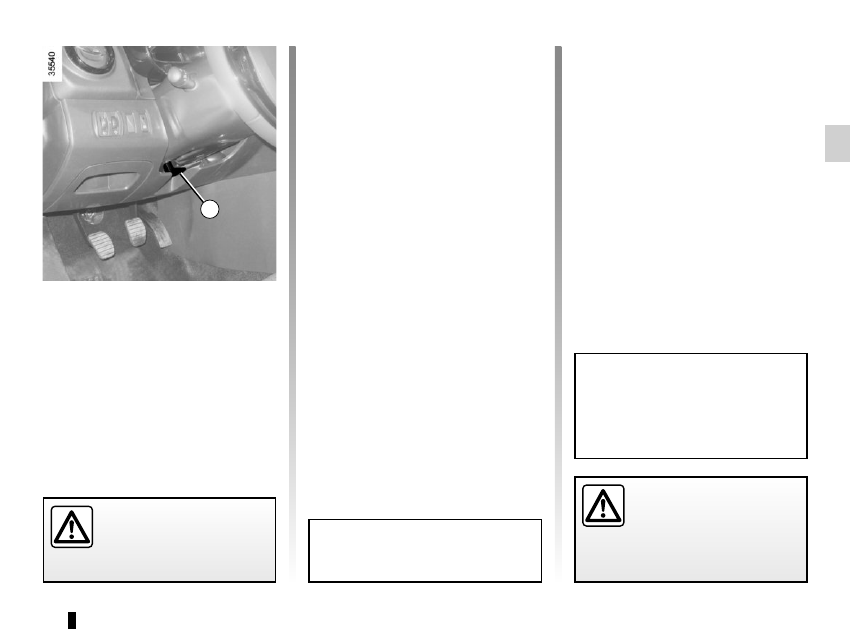

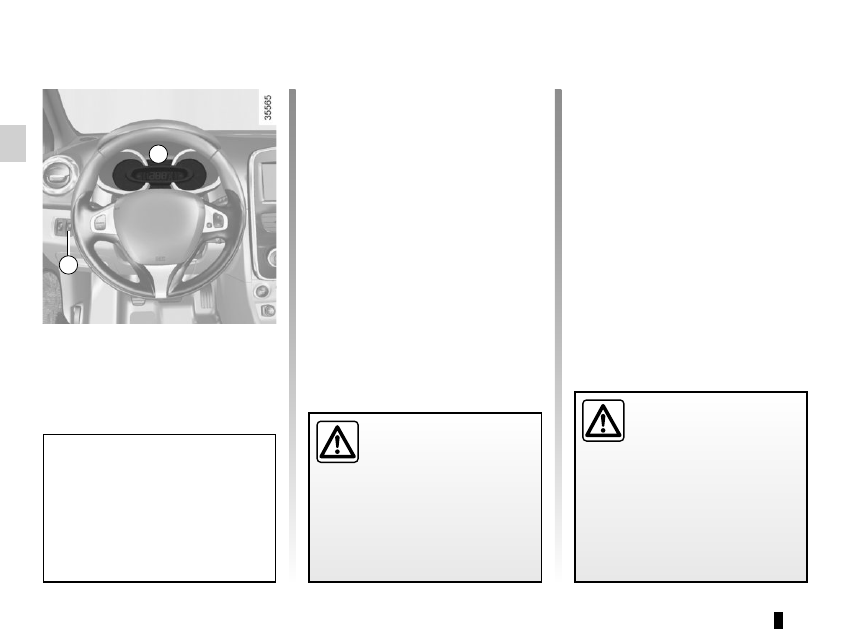

Adjusting the steering wheel

height and depth

Pull lever 1 and place the steering

wheel in the required position; push the

lever beyond the point of resistance to

lock the steering wheel in place.
Make sure that the steering wheel is

correctly locked.

For safety reasons, only

adjust the steering wheel

when the vehicle is station-

ary.

STEERING WHEEL/POWER-ASSISTED STEERING

Never switch off the igni-

tion when travelling down-

hill, and avoid doing so in

normal driving (assistance

is not provided).

With the engine switched off, or if

there is a system fault, it is still pos-

sible to turn the steering wheel. The

force required will be greater.

Never leave the steering wheel at

full lock while stationary.

1.52

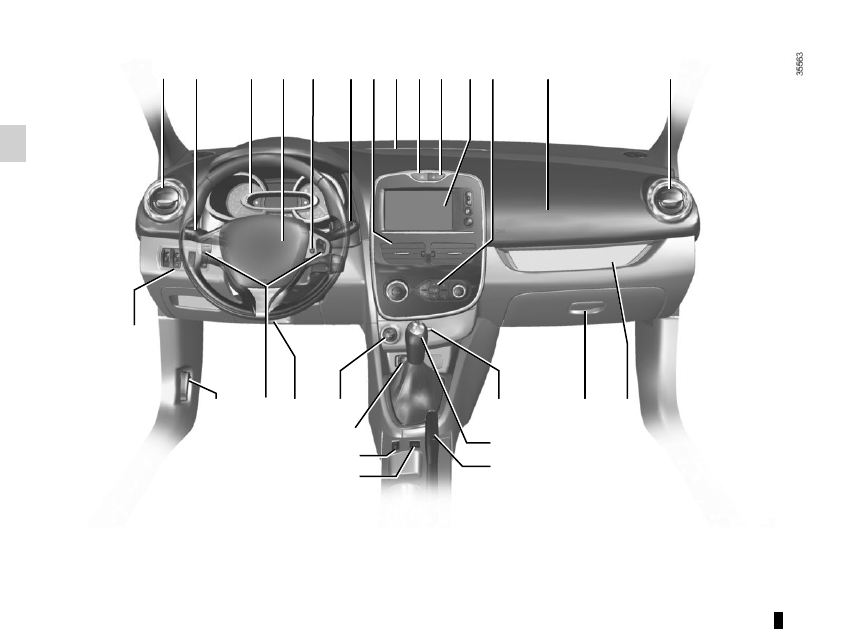

DRIVING POSITION: LEFT-HAND DRIVE

(1/2)

11 12

1.53

DRIVING POSITION: LEFT-HAND DRIVE

(2/2)

1 Side air vent.

2 Stalk for:

– direction indicator lights;

– exterior lights;

– front fog lights;

– rear fog lights.

3 Instrument panel.

4 Driver Airbag and horn location.

5 Multimedia system voice control

button.

6 Stalk:

– windscreen and rear screen

wash/wipe;

– trip computer and warning

system information readout.

7 Centre air vents.

8 Windscreen demister outlet.

9 Hazard warning lights switch.

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

10 Door electric locking switch.

11 Multimedia touch-screen.

12 Heating or air conditioning controls.

13 Passenger

Airbag location.

14 Side air vent.

15 Storage space.

16 Glovebox.

17 RENAULT card reader.

18 Gear lever.

19 Handbrake.

20 Activation/deactivation control for

ECO mode.

21 Cruise control/speed limiter

control.

22 Cigarette lighter/accessories

socket.

23 Engine start/stop button.

24 Control for adjusting steering

wheel height and reach.

25 Cruise control/speed limiter

controls.

26 Bonnet release control.

27 Controls for:

–

electric headlight beam adjust-

ment,

–

instrument panel lighting dimmer,

–

activate/deactivate the parking

distance control system,

–

activation/deactivation of the

function Stop and Start.

1.54

DRIVING POSITION: RIGHT-HAND DRIVE

(1/2)

4 5 6 7

8 9

12 13 14

23
22

1.55

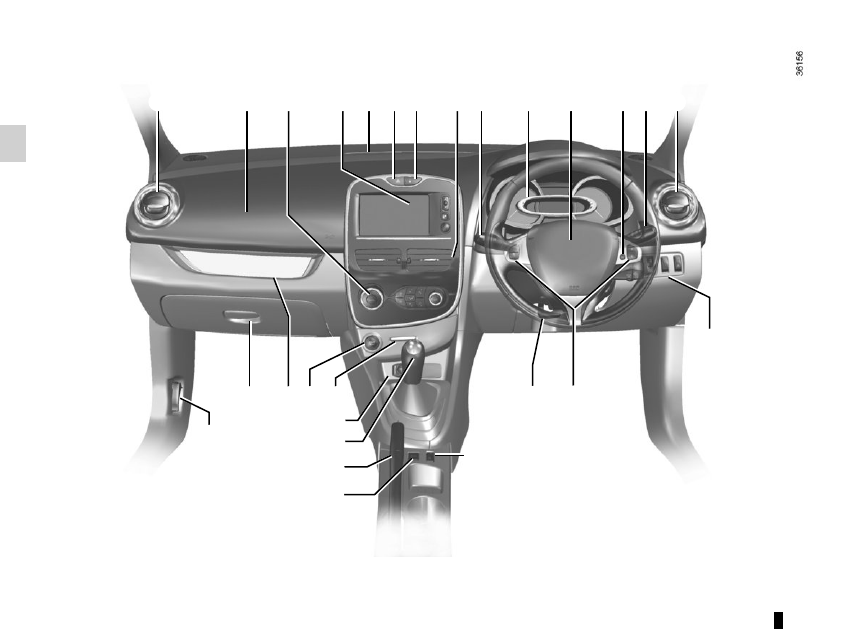

DRIVING POSITION: RIGHT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1 Side air vent.

2 Passenger

Airbag location.

3 Heating or air conditioning con-

trols.

4 Multimedia touch-screen.

5 Windscreen demister outlet.

6 Hazard warning lights switch.

7 Door electric locking switch.

8 Centre air vents.

9 Stalk:

– direction indicator lights;

– exterior lights;

– front fog lights;

– rear fog lights.

10 Instrument panel.

11 Driver Airbag and horn location.

12 Multimedia system voice control

button.

13 Stalk:

– windscreen and rear screen

wash/wipe;

– trip computer and warning

system information readout.

14 Side air vent.

15 Controls for:

–

electric headlight beam adjust-

ment,

–

instrument panel lighting dimmer,

–

activate/deactivate the parking

distance control system,

–

activation/deactivation of the Stop

and Start function.

16 Cruise control/speed limiter con-

trols.

17 Control for adjusting steering

wheel height and reach.

18 Cruise control/speed limiter main

control.

19 Activation/deactivation control for

ECO mode.

20 Handbrake.

21 Gear lever.

22 Cigarette lighter/accessories

socket.

23 RENAULT card reader.

24 Engine start/stop button.

25 Storage space.

26 Glovebox.

27 Bonnet release control.

1.56

WARNING LIGHTS

(1/5)

Side light warning light

Main beam headlight tell-

tale

Dipped beam headlight tell-

tale

Front fog light tell-tale

Rear fog light telltale

Left-hand direction indicator

tell-tale

Right-hand direction indica-

tor tell-tale

Air bag warning light

This lights up when the ignition

is switched on and goes out after a few

seconds.

If it does not come on when the igni-

tion is switched on, or comes on when

the engine is running, there is a fault in

the system.

Contact your approved Dealer as soon

as possible.

Low fuel level warning light

This lights up when the ignition

is switched on and goes out after a few

seconds.

If it lights up when driving, fill up with

fuel as soon as possible. There is only

approximately 30 miles (50 km) worth

of fuel left.

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

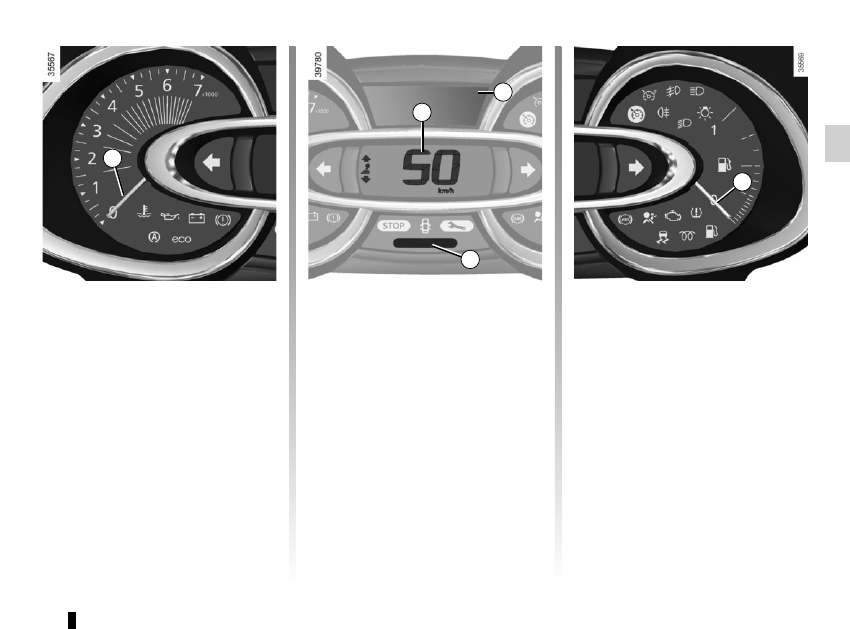

Instrument panel A: lights up when

the ignition is switched on. The bright-

ness can be adjusted by turning control

knob 1.

In some cases, the appearance of a

warning light is accompanied by a mes-

sage.

The

warning light means

you should drive very carefully to

an approved dealer as soon as pos-

sible. If you fail to follow this recom-

mendation, you risk damaging your

vehicle.

Warning light

re-

quires you to stop immedi-

ately, for your own safety,

as soon as traffic conditions allow.

Switch off the engine and do not re-

start it. Contact an approved Dealer.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.57

WARNING LIGHTS

(2/5)

STOP light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started. It comes on with

other warning lights and/or messages,

and is accompanied by a beep.
It requires you to stop immediately, for

your own safety, as soon as traffic con-

ditions allow. Switch off the engine and

do not restart it.
Contact an approved Dealer.

Oil pressure warning light
This lights up when the ignition

is switched on and goes out after a few

seconds.
If it comes on on the road, accompa-
nied by the

warning light and

a beep, stop immediately and cut the

ignition.
Check the oil level. If the level is normal,

the indicator light is being lit by some-

thing else. Contact an approved Dealer.

Warning light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started. It can light up in

conjunction with other indicator lights

and/or messages on the instrument

panel.

It means you should drive very care-

fully to an approved dealer as soon as

possible. If you fail to follow this recom-

mendation, you risk damaging your ve-

hicle.

Handbrake on and brake cir-

cuit incident warning light

This comes on when the ignition is

switched on and goes out as soon as

the handbrake is released.

If it comes on during braking and is ac-
companied by the

warning light

and a beep, it indicates that the fluid

level in the circuit is low or that there is

a braking system fault.

Stop as soon as traffic conditions allow

and contact an approved Dealer.

Battery charge warning light
This lights up when the ignition

is switched on and goes out after a few

seconds.
If it comes on on the road, accompa-
nied by the

warning light and a

beep, this indicates an overload or dis-

charge in the electrical circuit.
Stop as soon as traffic conditions allow

and contact an approved Dealer.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.58

Anti-lock braking warning

light

This lights up when the ignition is

switched on and goes out after a few

seconds.

If it lights up when you are driving, it in-

dicates a fault in the anti-lock braking

system.

Braking will then be as normal, without

the ABS. Contact an approved Dealer

as soon as possible.

Coolant temperature warn-

ing light

This comes on when the ignition is

switched on.
If it turns red, stop and let the engine

idle for a minute or two.
The temperature should lower and the

warning light should return to a blue

colour. If not, stop the engine. Let the

engine cool down before checking the

coolant.
Contact an approved Dealer.

WARNING LIGHTS

(3/5)

Electronic Stability Program

(ESP) and traction control

system warning light
This lights up when the ignition is

switched on and goes out after a few

seconds.
There are several reasons for the war-

ning light to come on: please refer to

the information on “Driver correction

devices and aids” in Section 2.

Toxic Fume Filter System

Warning Light

For vehicles equipped with this option,

the light comes on when the ignition is

switched on then goes out.

– If it lights up continuously, consult

your approved dealer as soon as

possible;

– if it flashes, reduce the engine speed

until the light stops flashing. Contact

your approved Dealer as soon as

possible.

Refer to the information on “Advice:

antipollution, fuel economy and driving”

in Section 2.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.59

WARNING LIGHTS

(4/5)

Preheating warning light

(diesel version)

This should come on when the igni-

tion is switched on. It indicates that the

heater plugs are in operation.
It goes out when preheating is com-

plete. The engine can be started.

Î¦

Speed limiter and cruise

control indicator lights

See the information on the “Speed lim-

iter” and “Cruise control” in Section 2.

Engine standby warning

light

Please see information about “Stop and

Start function” in Section 2.

Unavailability of engine

standby warning light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.

Tyre pressure loss warning
Please refer to the information

on the “Tyre pressure loss warning” in

Section 2.

Door(s) open warning light

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Š‰

Gear change indicator

This lights up to advise you to

change to a higher gear (up arrow) or

lower gear (down arrow).

ECO mode warning light
This comes on when ECO

mode is activated.
Please refer to the information on “Eco-

driving” in Section 2.

1.60

WARNING LIGHTS

(5/5)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

On display B

Passenger airbag ON

Please refer to the information

on “Child safety: deactivating/activating

the front passenger airbag” in Section 1.

Passenger airbag OFF

Please refer to the information

on “Child safety: deactivating/activating

the front passenger airbag” in Section 1.

Front seat belt reminder

warning light

This lights up on the central display

when the engine is started then, if the

driver’s or front passenger’s seat belt

(if this seat is occupied) is not fastened

and the vehicle has reached approxi-

mately 12 mph (20 km/h), it flashes and

a bleep sounds for around 2 minutes.
Note: an object placed on the passen-

ger seat base may activate the warning

light in some cases.

Rear seat belt reminder (depending

on vehicle)

the

warning light on the cen-

tral display lights up accompanied by a

message on the instrument panel indi-

cating the number of seat belts buck-

led for approximately 30 seconds each

time:

– the vehicle is started;

– a door is opened;

– a rear seat belt is fastened or unfas-

tened.

Check that the rear passengers are

wearing seat belts and that the number

of seat belt shown as fastened corre-

sponds to the number of rear bench

seat places occupied.

1.61

DISPLAYS AND INDICATORS

(1/2)

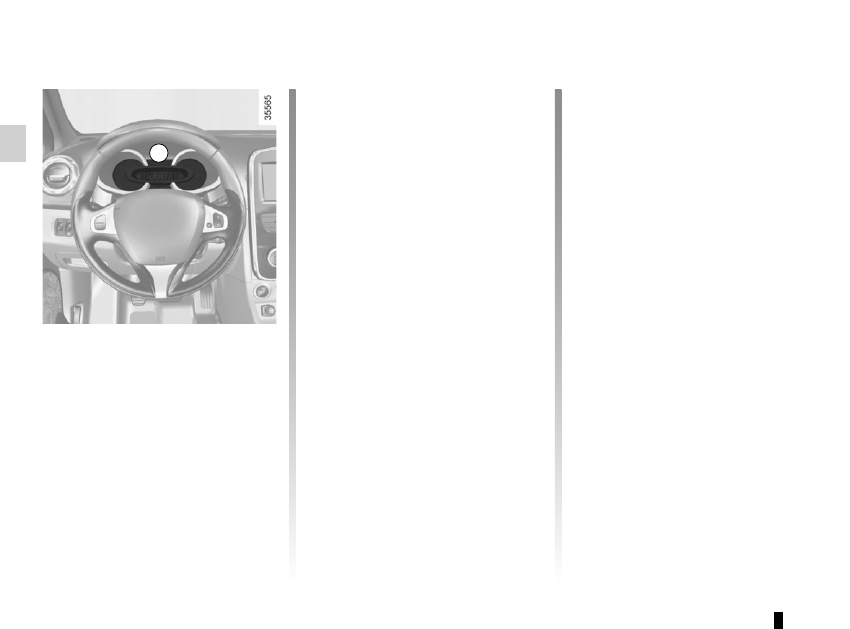

Rev counter 1

(graduations x 1000)

Speedometer 2

(km or miles per hour)

Overspeed buzzer

Depending on the vehicle, a buzzer

sounds for approximately 10 seconds

every 40 seconds, as long as the ve-

hicle is travelling in excess of 72 mph

(120 km/h).

Driving style indicator 4

Please refer to the information on

“Driving advice, Eco-driving” in

Section 2.

Low engine oil level warning

When the engine is started, display 3

alerts the driver when the oil level is at

its minimum. Refer to the information

on the “Engine oil level” in Section 4.

Fuel gauge 5

1.62

Instrument panel 5 in miles

(option to switch to km/h)

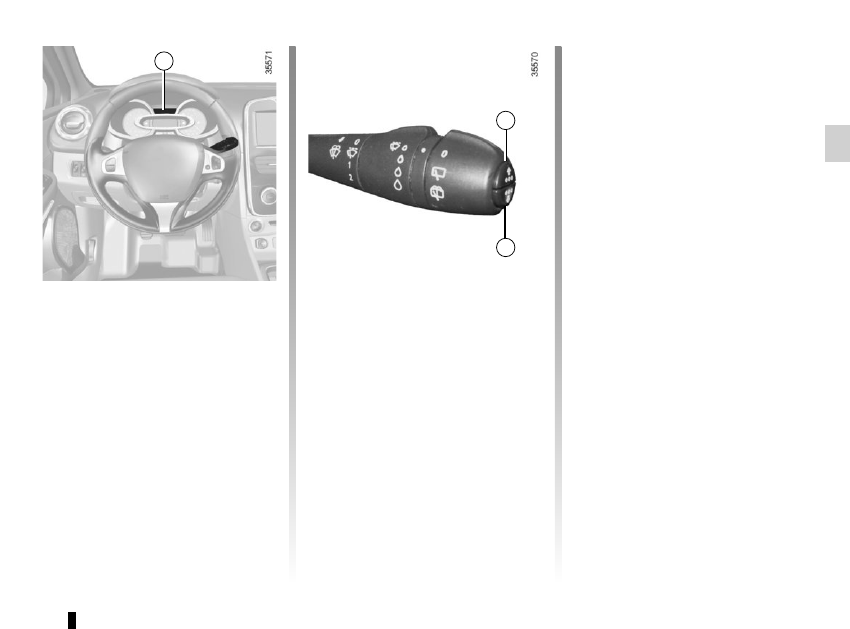

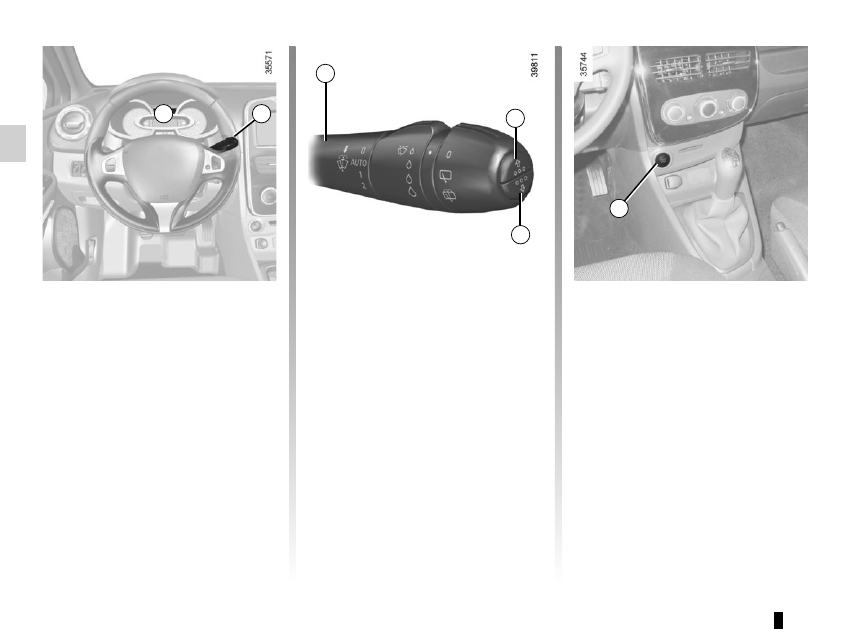

– With ignition off, press button 7 or 8

at the end of stalk 6 and the start

button 9;

– the speedometer unit indicator

flashes for approximately ten sec-

onds, then the new unit is displayed:

release button 7 or 8 when the unit

stops flashing.

To return to the previous mode, repeat

the same operation.
Note: once the battery is switched off,

the trip computer and warning system

automatically returns to the original unit

of measurement.

DISPLAYS AND INDICATORS

(2/2)

1.63

ON-BOARD COMPUTER: general information

(1/2)

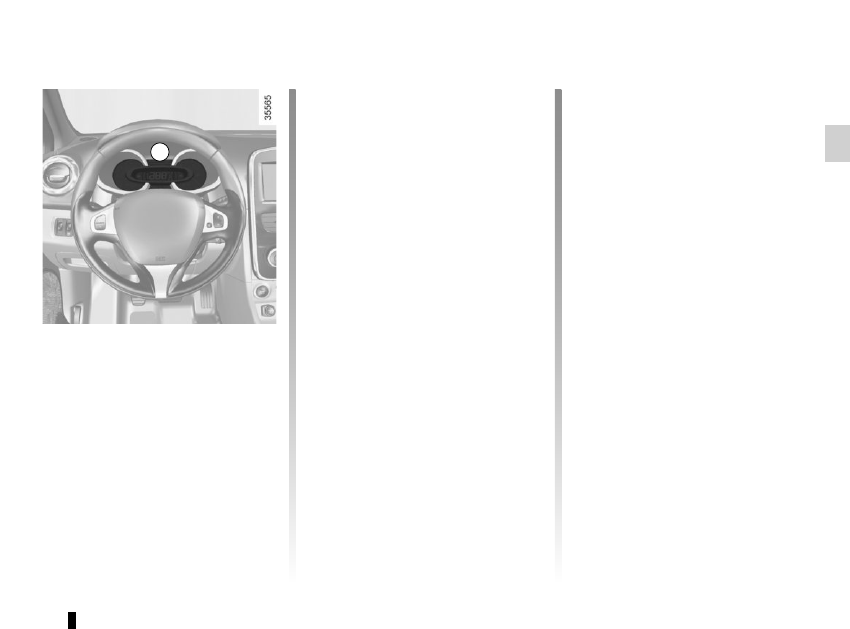

On-board computer 1

Depending on the vehicle, this includes

the following functions:
– distance travelled;

– journey settings;

– information messages;

– operating fault messages (con-

nected to the

warning light);

– warning messages (connected to the

warning light);

– vehicle settings customisation menu.
All these functions are described on the

following pages.

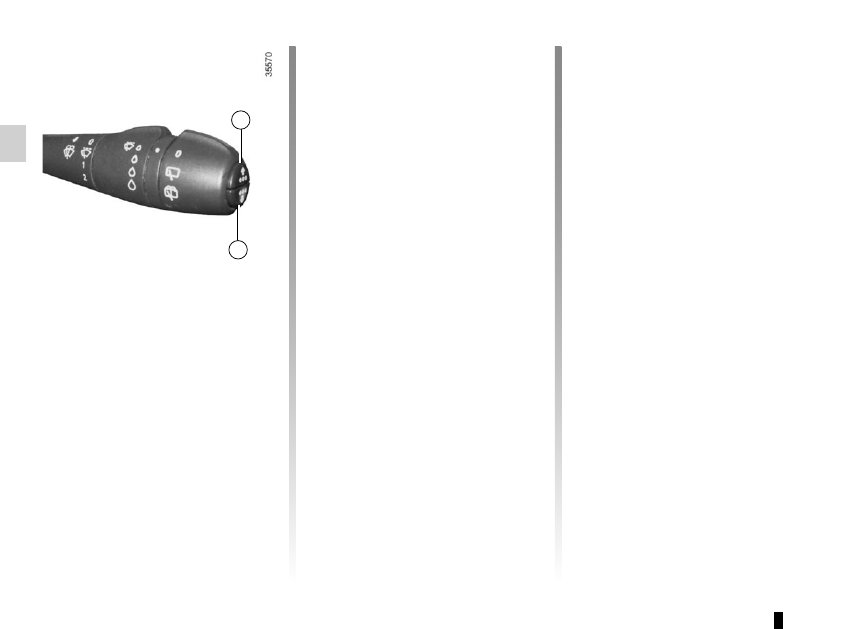

Display selection keys 2

and 3

Scroll through the following information

upwards (key 2) or downwards (key 3)

by pressing briefly and successively

(the display depends on the vehicle

equipment and country).
a) total mileage and trip mileage re-

corder;

b) fuel used;

c) average fuel consumption;

d) current fuel consumption;

e) estimated range;

f) distance travelled;

g) average speed;

h) distance before service;

– service

counter;

– oil change counter;

i) Reset the tyre pressure

j) Cruise control and speed limiter pro-

grammed speed

k) Clock and temperature

l) Trip log, operating faults and infor-

mation message readout

1.64

ON-BOARD COMPUTER: general information

(2/2)

Resetting the trip mileage

With “trip mileage recorder” selected on

the display, press button 2 or 3 until the

mileage recorder resets to zero.

Resetting the journey

parameters (reset button)

With one of the trip parameters selected

as the display, press and hold button 2

or 3 until the display resets.

Interpreting some of the

values displayed after

resetting

The values showing average fuel con-

sumption, range and average speed

will become more stable and reliable

the further you travel after pressing the

reset button.
For the first few miles after pressing

the reset key you will notice that the

range increases as you travel. This

range takes into account the average

fuel consumption since the last time the

reset button was pressed. Therefore,

the average fuel consumption may de-

crease when:
–

the vehicle stops accelerating;

–

the engine reaches its operating

temperature (if the engine was cold

when the reset key was pressed);

–

when driving from an urban area

onto the open road.

Automatic resetting of the

journey parameters

Resetting occurs automatically when

the maximum value of any of the pa-

rameters is exceeded.

1.65

TRIP COMPUTER: trip settings

(1/5)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

101778 km

a) Total mileage and trip mileage recorder.

112.4 km

FUEL USED

b) Journey parameters.

Fuel used.

Fuel consumed since the last reset.

AVERAGE

c) Average fuel consumption since the last reset.

The value is displayed after having travelled at least 400 metres since the last

reset.

5.8 L/100

CURRENT

d) Current fuel consumption.

This value is displayed after a speed of approximately 20 mph (30 km/h) is reached.

7.4 L/100

Content .. 2 3 4 5 ..
