Renault Captur (2018 year). Manual

4.17

You should not:

Position objects such as deodorants,

scents etc. near air vents as this could

damage your dashboard trim.

Use high-pressure

cleaning equipment or

sprays inside the pas-

senger compartment:

without careful use, this equipment

could impair the correct functioning

of the electrical or electronic compo-

nents in the vehicle, or have other

detrimental effects.

INTERIOR TRIM MAINTENANCE

(2/2)

Removal/replacing removable

equipment originally fitted in

the vehicle

If you need to remove equipment in

order to clean the passenger com-

partment (for example, mats), always

ensure that they are correctly refitted

and are the right way around (the driv-

er’s mat should be fitted on the driver’s

side, etc.) and fit them with the compo-

nents supplied with the equipment (for

example, the driver mat should always

be fixed using the pre-fitted mounting

components).
With the vehicle stationary, always

ensure that nothing will impede driving

(anything obstructing the pedals, heel

wedged by the mat etc.).

4.18

SEAT COVERINGS

(1/5)

Depending on the vehicle, it is possible

to remove the seat covers (cleaning,

customisation, etc.).

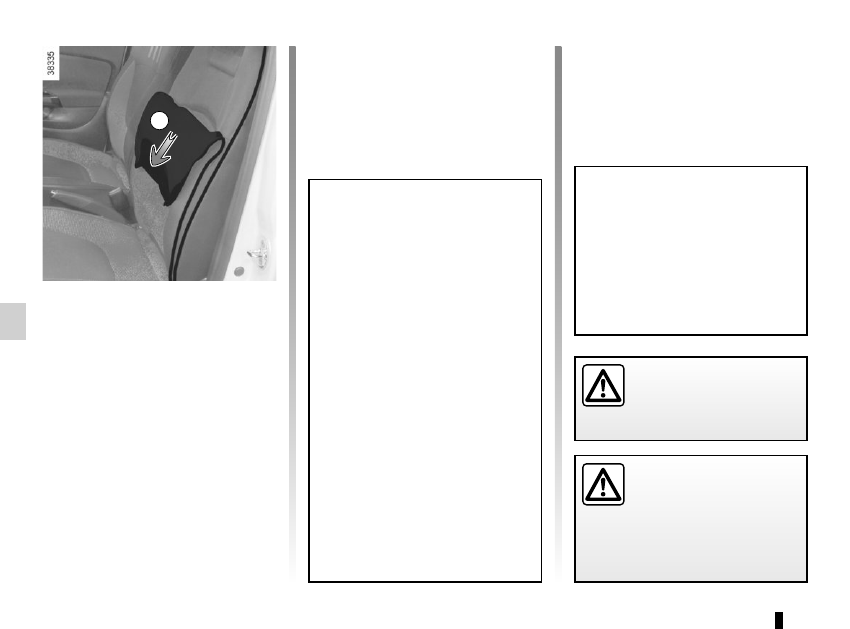

Principle of seat cover

removal

Whether it’s for the back or the base,

always remove as shown in the pic-

ture above A : do not rip the self-grip

bands out.

Precautions in use
Once the covers are removed:

– do not use the seats;

– take care with the self-grip bands.
Washing instructions
Follow the washing instructions

shown on the seat covers (labels) in

particular;

– wash the seat covers separately

from other materials;

– spin at a maximum speed of

800 rpm;

– do not wash them more than five

times.

Once they are dry, do not fold the

seat covers and do not pile them up

(they may show marks).
Serious risk of deterioration.

For safety reasons, carry

out these operations when

the vehicle is stationary.

With the seat covers off,

ensure that the seatbelt

buckles and ISOFIX attach-

ments are clear.

Depending on the vehicle, certain

seat covers have markings to show

that the front passenger seat has

ISOFIX attachments. Make sure

when refitting or replacing the seat

cover that it has the same markings

as the original.

4.19

SEAT COVERINGS

(2/5)

For safety reasons, carry

out these operations when

the vehicle is stationary.

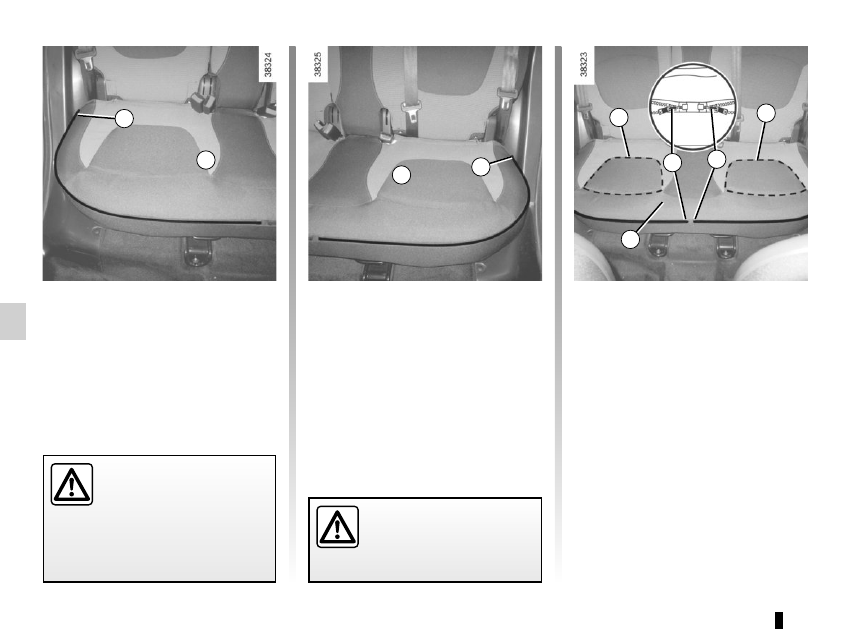

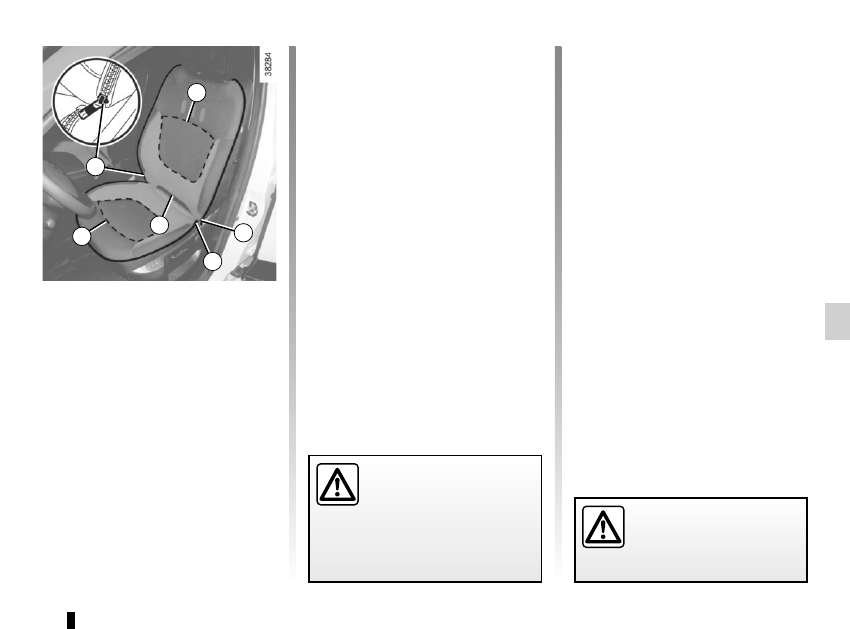

Removing the base cover
– Open the zip fastener 4 of the base;

– remove the cover according to the

method shown (movement A).

Replacing the base cover
– Position the base cover;

– close the zip fastener 4 for the base;

– attach the self-grip bands 6.

Replacing the seatback cover
– Incline the seatback towards the

rear;

– position the cover on the seatback;

– close the zip fasteners 1 and 3;

– attach the self-grip bands 2;
– attach the self-grip bands 5 between

the seatback and the base;

Front seat

Taking off the seatback cover
– Incline the seatback towards the

rear;

– open the zip fasteners 1 and 3 on the

seatback;

– remove the self-grip bands 5 be-

tween the seatback and the base;

– remove the cover according to the

method shown (movement A).

With the seat covers off,

ensure that the seatbelt

buckles and ISOFIX attach-

ments are clear.

4.20

Rear bench seat

– Bring the front seats forward;
– reinsert the headrest for the rear

bench seat;

– disengage the seat belts.

When moving the rear

seats, ensure that nothing

obstructs the anchorage

points (passenger’s arm or

leg, a pet, gravel, cloth, toys, etc.).

Removing the base cover B
– Open the zip fasteners 7 and 8 for

the base B;

– remove the cover according to the

method shown (movement A).

For safety reasons, carry

out these operations when

the vehicle is stationary.

Replacing the base cover B
–  Position the cover on the base B;
–  close the zip fasteners 7 and 8;
–  attach the self-grip bands 9.

SEAT COVERINGS

(3/5)

4.21

SEAT COVERINGS

(4/5)

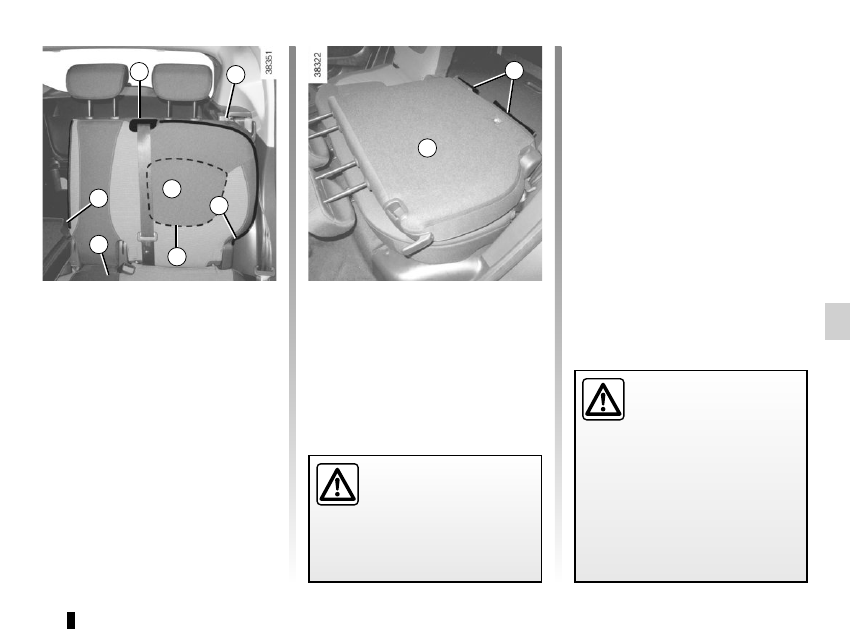

Removing the seatback cover C
– fold down the seatback C to the base

using the stalk 11;

– remove the self-grip bands 15 be-

tween the seatback and the base;

– reinsert the seatback C and ensure

that it is well locked;

– open the zip fasteners 12 and 14 for

the seat back C;

– remove the cover according to the

method shown (movement A).

Replacing the seatback cover C
– Position the cover on the seat-

back C;

– keep the rear central seatbelt out of

the way to position the cover;

– close the zip fastener 12 and 14 of

the seatback C;

– attach the self-grip bands;
– ensure that the seatback cover is

correctly positioned C under the

guide of the central seatbelt 10;

– attach the self-grip bands 13;
– slide the lower cover between the

seatback C and the base B;

– fold down the seatback C to the base

using the stalk 11;

– attach the self-grip bands 15 be-

tween the seatbackC and the

base B;

– reinsert the seatback C and ensure

that it is well locked;

When refitting the seat-

back, make sure it is cor-

rectly locked in place.

If seat covers are fitted,

make sure these do not prevent the

seatback latch from locking in.

Make sure that the seat belts are

positioned correctly.

Reposition the headrests.

With the seat covers off,

ensure that the seatbelt

buckles and ISOFIX attach-

ments are clear.

4.22

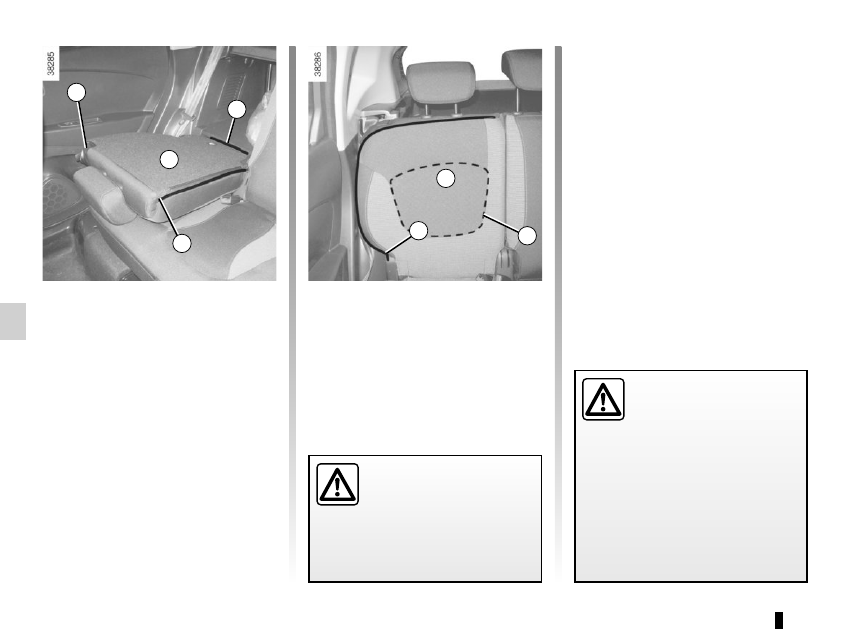

Replacing the seatback cover D
– Position the cover on the seat-

back D;

– close the zip fastener 20;

– attach the self-grip bands 19;

– slide the lower cover between the

seatback D and the base;

– move the seatback D onto the base

using the stalk16;

– close the zip fastener 18 of the seat

back D;

– attach the self-grip bands 17 be-

tween the seatback and the base;

– raise the seatback D completely and

ensure that it is well locked.

SEAT COVERINGS

(5/5)

– open the zip fastener 20 of the seat

back D;

– remove the cover according to the

method shown (movement A).

Removing the seatback cover D
– Fold down the seatback D to the

base using the stalk 16;

– remove the self-grip bands 17 be-

tween the seatback and the base;

– open the zip fastener 18 of the seat

back D;

– reinsert the seatback D and ensure

that it is well locked;

When moving the rear

seats, ensure that nothing

obstructs the anchorage

points (passenger’s arm or

leg, a pet, gravel, cloth, toys, etc.).

When refitting the seat-

back, make sure it is cor-

rectly locked in place.

If seat covers are fitted,

make sure these do not prevent the

seatback latch from locking in.

Make sure that the seat belts are

positioned correctly.

Reposition the headrests.

5.1

Section 5: Practical advice

Puncture, emergency spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.2

Tyre inflation kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.4

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.7

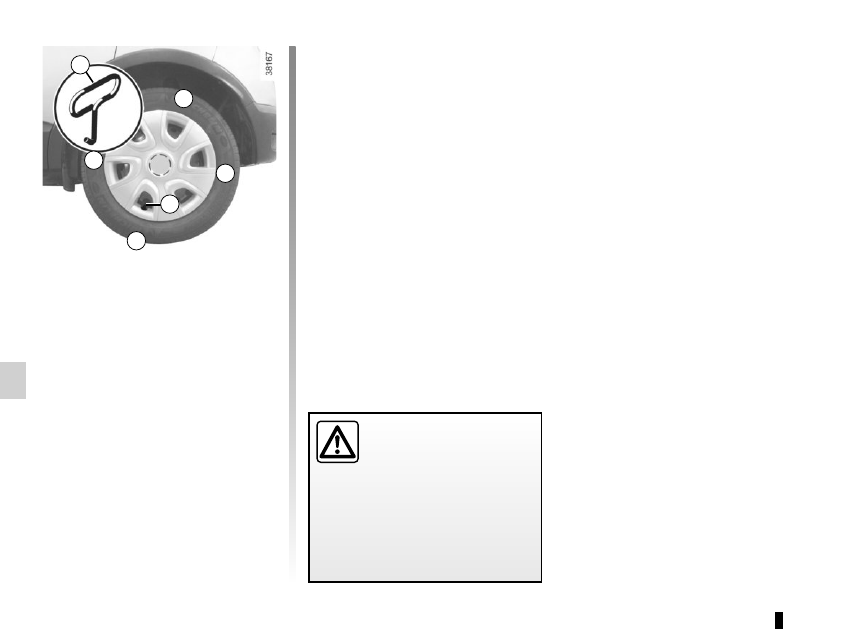

Wheel trims - wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.8

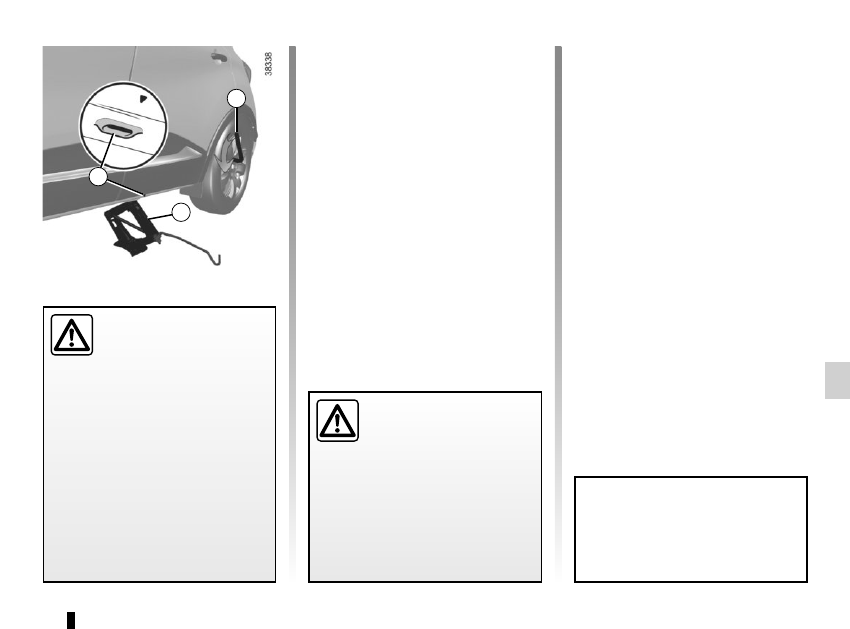

Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.9

Tyres (tyre and wheel safety, use in winter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.11

Headlights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.14

Rear lights and side lights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.18

Interior lighting (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.20

Fitting a radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.22

Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.23

RENAULT card: battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.28

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.29

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.31

Wipers (replacing blades) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.32

Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.34

Operating faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.36

5.2

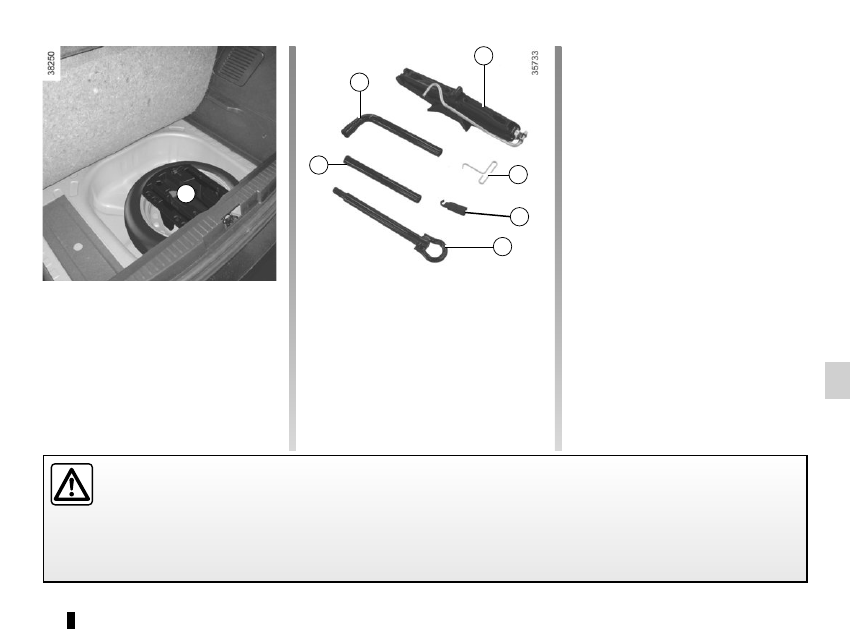

In case of puncture

Depending on the vehicle, a tyre infla-

tion kit or emergency spare wheel is

provided (refer to the following pages).
Vehicle fitted with a tyre pressure

loss warning system

If under-inflated (puncture, low pres-

sure etc.), the warning light



the instrument panel comes on. See

“Tyre pressure loss warning” in

Section 2.

If the emergency spare wheel has been stored for several years, have it

checked by your Dealer to ensure that it is safe to use.
Vehicle fitted with an emergency spare wheel that differs from the

other wheels:

– Never fit more than one emergency spare wheel to the same vehicle.
– Replace the emergency spare wheel as soon as possible with a wheel identi-

cal to the original one.

– When this is fitted to the vehicle, which must only be a temporary measure, the

driving speed must not exceed the speed indicated on the label on the wheel.

– Fitting an emergency spare wheel may alter the way the vehicle usually runs.

Avoid sudden acceleration or deceleration and reduce your speed when cor-

nering.

– If you need to use snow chains, fit the emergency spare wheel to the rear axle

and check the tyre pressure.

– The warning light



on the instrument panel flashes for several seconds,

then stays on.

PUNCTURE, EMERGENCY SPARE WHEEL (1/2)

If the vehicle is parked on

the hard shoulder, you must

warn other road users of

your vehicle’s presence

with a warning triangle or with other

devices as per the legislation apply-

ing to the country you are in.

5.3

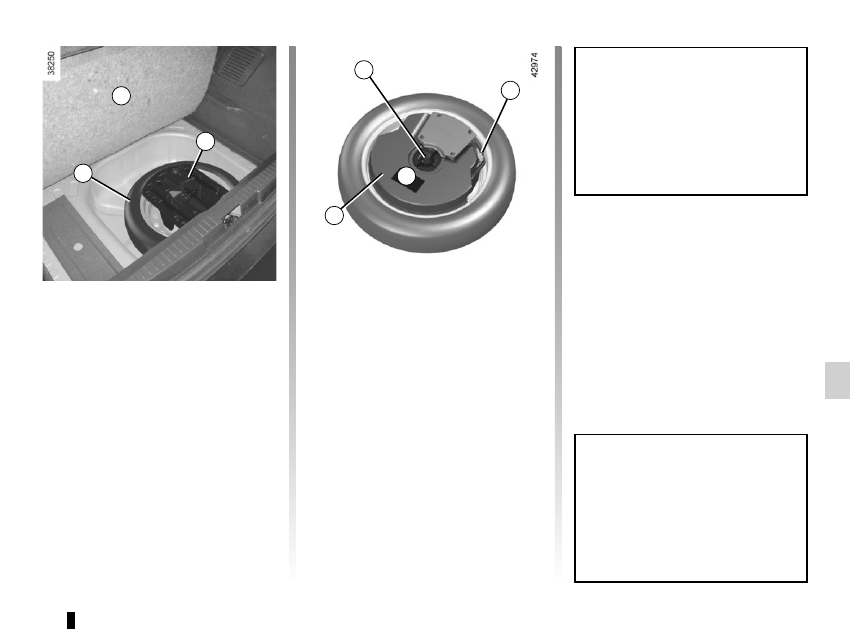

Vehicle not fitted with a

subwoofer

– Open the tailgate;

– place the mobile floor in the mid-way

position (please refer to the section

on “Boot storage” in Section 3);

– lift the boot carpet 2;

– unscrew the central mounting lo-

cated under the jack;

– remove the tool kit 3;

– remove the emergency spare

wheel 1.

Vehicle fitted with a

subwoofer

– Open the tailgate;

– place the mobile floor in the mid-way

position (please refer to the section

on “Boot storage” in Section 3);

– lift the boot carpet 2;

– loosen the central mounting 4, dis-

connect the power cable 5 from the

subwoofer 6 and remove the sub-

woofer (refer to the label A stuck to

the subwoofer);

– remove the emergency spare

wheel 1.

Remove the subwoofer 6, refit it and

reconnect it in the same position

again. Handle it carefully. If not, this

could impair the correct functioning

of the subwoofer.

PUNCTURE, EMERGENCY SPARE WHEEL (2/2)

It is not recommended to replace

and reconnect the subwoofer if a

tyre is punctured: this may cause

damage to the subwoofer.

5.4

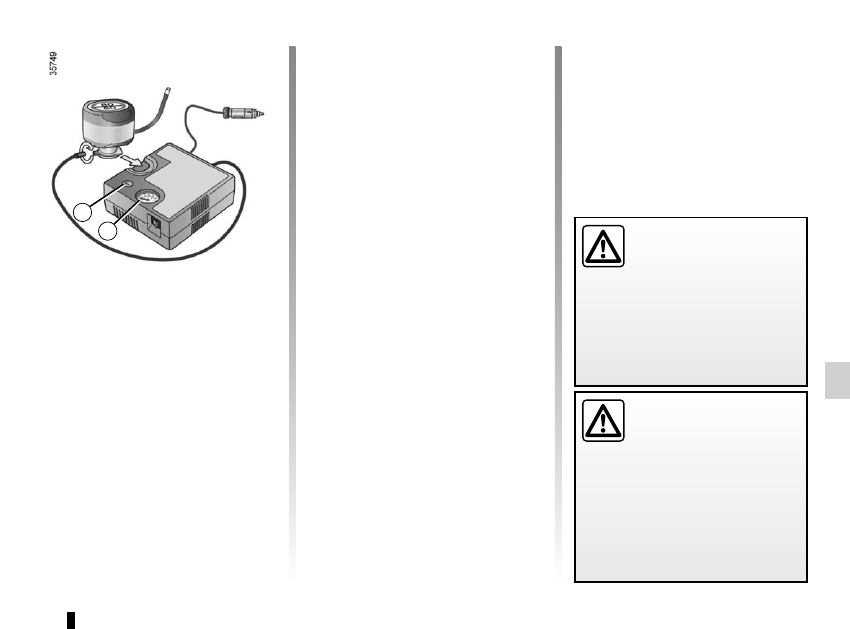

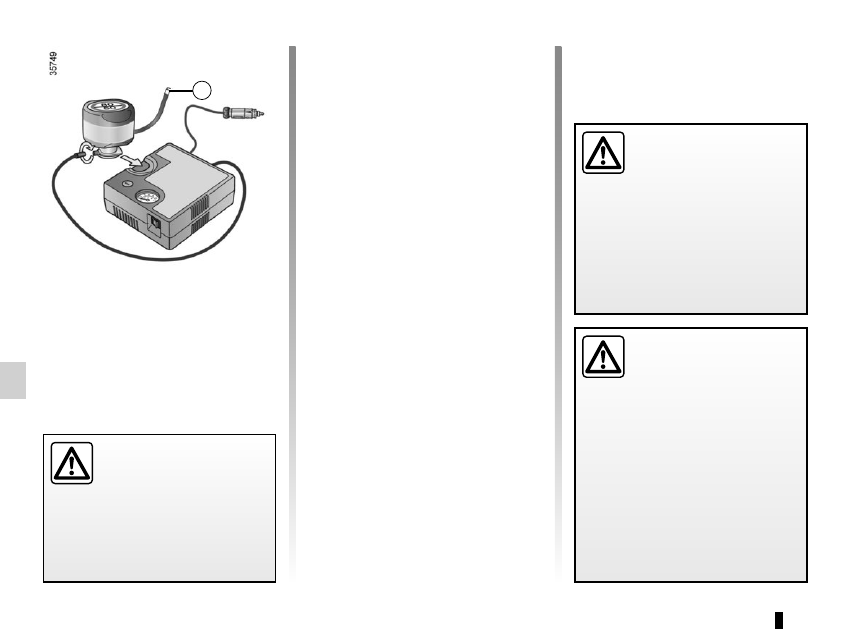

TYRE PRESSURE KIT

(1/3)

The kit is only approved for

inflating the tyres of the ve-

hicle originally equipped

with the kit.

It must never be used to inflate

the tyres of another vehicle, or any

other inflatable object (rubber ring,

rubber boat, etc.).
Avoid spillage on skin when han-

dling the repair product bottle. If

droplets do leak out, rinse them off

with plenty of water.
Keep the repair kit away from chil-

dren.
Do not dispose of the empty bottle

in the countryside. Return it to your

approved dealer or to a recycling or-

ganisation.
The bottle has a limited service

life which is indicated on its label.

Check the expiry date.
Contact an approved dealer to re-

place the inflation tube and repair

product bottle.

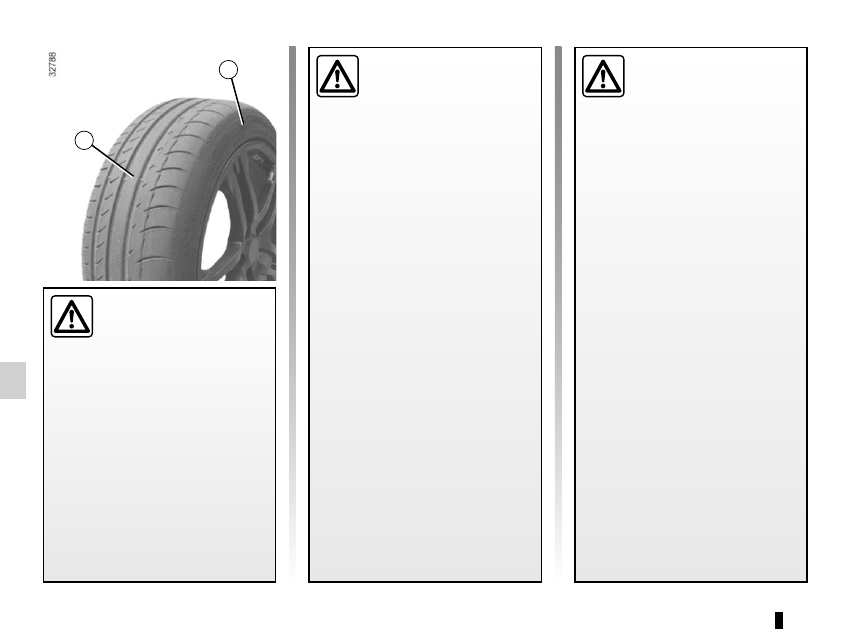

The kit repairs tyres when

tread A has been dam-

aged by objects smaller

than 4 mm. It cannot repair

all types of puncture, such as cuts

larger than 4 mm, or cuts in tyre

sidewall B.
Ensure also that the wheel rim is in

good condition.
Do not pull out the foreign body

causing the puncture if it is still in

the tyre.

Do not attempt to use the

inflation kit if the tyre has

been damaged as a result

of driving with a puncture.

You should therefore carefully check

the condition of the tyre sidewalls

before any operation.
Driving with underinflated, flat or

punctured tyres can be dangerous

and may make the tyre impossible

to repair.
This repair is temporary.
A tyre which has been punctured

should always be inspected (and re-

paired, where possible) as soon as

possible by a specialist.
When taking a tyre which has been

repaired using this kit to be replaced,

you must inform the specialist.
When driving, vibration may be felt

due to the presence of the repair

product injected into the tyre.

5.5

TYRE PRESSURE KIT

(2/3)

Depending on the vehicle, in the event

of a puncture, use the kit located in the

boot or underneath the luggage com-

partment carpet.
Vehicle fitted with a tyre pressure

loss warning system
If under-inflated (puncture, low pres-

sure, etc.), the warning light



lights up on the instrument panel.

See “Tyre pressure loss warning” in

Section 2.

With the engine running and the

parking brake applied,

– Disconnect any accessories previ-

ously connected to the vehicle’s ac-

cessories sockets;

– Refer to the information on the in-

flation kit compressor located in the

vehicle’s luggage compartment and

follow the instructions;

– inflate the tyre to the recommended

pressure (please refer to the infor-

mation in the section on “Tyre pres-

sures”);

– after a maximum of 15 minutes, stop

inflating and read the pressure (on

the pressure gauge 1);
Note: while the bottle is emptying

(approximately 30 seconds), the

pressure gauge 1 will indicate briefly

a pressure of 6 bar, then the pres-

sure drops.

– Adjust the pressure: to increase

it, continue inflation with the kit. To

reduce it, press the button 2.

Before using this kit, park

the vehicle at a sufficient

distance from traffic, switch

on the hazard warning

lights, apply the handbrake, ask all

passengers to leave the vehicle and

keep them away from traffic.

If the vehicle is parked on

the hard shoulder, you must

warn other road users of

your vehicle’s presence

with a warning triangle or with other

devices as per the legislation apply-

ing to the country you are in.

5.6

TYRE PRESSURE KIT

(3/3)

If a minimum pressure of 1.8 bar is

not reached after 15 minutes, repair

is not possible; do not drive the ve-

hicle but contact an approved dealer.

Once the tyre is correctly inflated,

remove the kit: slowly unscrew the in-

flation end piece 3 to prevent any prod-

uct spatter and store the container in

plastic packaging to prevent product

leaks.
– Affix the driving recommendation

label to the dashboard where it can

easily be seen by the driver;

– Put the kit away.

– At the end of this initial inflation op-

eration, air will still escape from the

tyre. You must drive a short distance

in order to seal the hole.

– Start immediately and drive at

between 12 and 40 mph (20 and

60 km/h) in order to distribute the

product evenly in the tyre and, after

driving for 2 miles (3 km), stop and

check the pressure.

– If the pressure is greater than

1.3 bar but less than the recom-

mended pressure (refer to the label

affixed to the edge of the driver’s

door), readjust it. Otherwise, please

contact an authorised dealer: the

tyre cannot be repaired.

Precautions when using the

kit

The kit should not be operated for more

than 15 consecutive minutes.

Nothing should be placed

around the driver’s feet

as such objects may slide

under the pedals during

sudden braking manoeuvres and

obstruct their use.

Please be aware that a

poorly tightened or miss-

ing valve cap can make the

tyres less airtight and may

lead to pressure loss.
Always use valve caps identical to

those fitted originally and tighten

them fully.

Following repair with the kit,

do not travel further than

120 miles (200 km). In addi-

tion, reduce your speed and

under no circumstances exceed

48 mph (80 km/h). The sticker,

which you must affix in a prominent

position on the dashboard, reminds

you of this.

Depending on the country or local

legislation, a tyre repaired with the

inflation kit may need to be replaced.

5.7

Jack 2

Fold it correctly before refitting it in its

housing (ensure that the wheelbrace is

correctly positioned).

Hubcap tool 3

This tool is used to remove the wheel

trims.

Wheel bolt guide 4

To finish loosening or starting to tighten

the wheel bolts.

Tow eye 5

Please see “Towing: breakdown recov-

ery” in Section 5.

Lever 6

This tightens or releases the tow eye 5.

Wheelbrace 1

Locks or unlocks the wheel bolts and

tow eye 5.

Depending on the vehicle, tools are lo-

cated:

– in a bag in the luggage compart-

ment, or

– in the tool kit A located in the tray

under the luggage compartment

carpet. Lift the cover, then remove it.

Wheel bolt bag

TOOLS

Do not leave the tools unsecured inside the vehicle as they may come loose under braking. After use, check that all the

tools are correctly clipped into the tool kit, then position it correctly in its housing: there is a risk of injury.

If wheel bolts are supplied in the tool kit, only use these bolts for the emergency spare wheel: refer to the label affixed

to the emergency spare wheel.

The jack is designed for wheel changing purposes only. Under no circumstances should it be used for carrying out repairs un-

derneath the vehicle or to gain access to the underside of the vehicle.

5.8

Remove the wheel trim using hubcap

tool 1 (located in the tool kit) by en-

gaging the hook in the opening near

valve 2.
To refit it, align it with valve 2. Push the

retaining hooks in fully, starting with

side A near the valve, followed by B

and C, finishing at D opposite the valve.

WHEEL TRIMS - WHEEL

Do not leave the tools un-

secured inside the vehicle

as they may come loose

under braking. After use,

check that all the tools are correctly

clipped into the tool kit, then posi-

tion it correctly in its housing: risk of

injury.

5.9

Continue to crank the jack so that the

baseplate is correctly positioned (it

should be underneath the vehicle and

aligned with the jack head).
Turn it a few times to lift the wheel off

the ground.

Switch on the hazard warn-

ing lights.
Keep the vehicle away from

traffic and on a level surface

where it will not slip.
Apply the parking brake and engage

a gear (first or reverse, or P for auto-

matic transmissions).

Ask all the passengers to leave the

vehicle and keep them away from

traffic.

CHANGING A WHEEL

(1/2)

Vehicles equipped with a jack

and wheelbrace

If necessary, remove the wheel trim.
Use the wheelbrace 1 to slacken off the

wheel bolts. Position it so as to be able

to push from above.
Crank up jack 2 by hand to position the

jack head against the jacking point clos-

est to the relevant wheel and marked

by an arrow 3.

If the vehicle is not equipped with a

jack or wheelbrace, you can obtain

these from your approved dealer.

If the vehicle is parked on

the hard shoulder, you must

warn other road users of

your vehicle’s presence

with a warning triangle or with other

devices as per the legislation apply-

ing to the country you are in.

5.10

If you have a puncture, re-

place the wheel as soon as

possible.
A tyre which has been punc-

tured should always be inspected

(and repaired, where possible) by a

specialist.

CHANGING A WHEEL

(2/2)

Undo the bolts and take off the wheel.
Fit the emergency spare wheel on the

central hub and turn it to locate the

mounting holes in the wheel and the

hub.
Tighten the bolts, checking that the

wheel is correctly positioned on its hub.
Lower the jack.
With the wheel on the ground, tighten

the bolts fully and have the tightness of

the bolts checked and the emergency

spare wheel pressure checked as soon

as possible.

Do not leave the tools un-

secured inside the vehicle

as they may come loose

under braking. After use,

check that all the tools are correctly

clipped into the tool kit, then posi-

tion it correctly in its housing: risk of

injury.
If wheel bolts are supplied in the

tool kit, only use these bolts for the

emergency spare wheel: refer to the

label affixed to the emergency spare

wheel.
The jack is designed for wheel

changing purposes only. Under no

circumstances should it be used for

carrying out repairs underneath the

vehicle or to gain access to the un-

derside of the vehicle.

Vehicle fitted with a tyre pressure

loss warning system
If under-inflated (puncture, low pres-

sure, etc.), the warning light



the instrument panel comes on. See

“Tyre pressure loss warning” in

Section 2.

Renault Captur (2018 year). Manual - part 12
